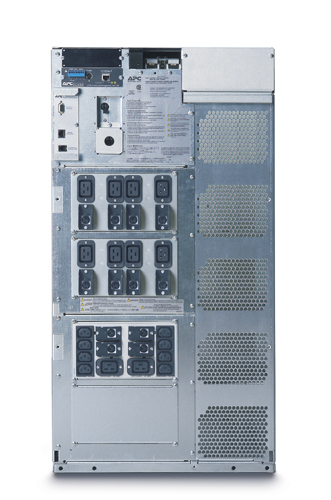

APC Symmetra LX rackmount 8-16kVA 1+3-Faseblack 19U uninterruptible power supply (UPS) 8 kVA 5600 W
Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V
0 ratings
Product category
Vendor
Part number
On the market since
Warranty from APC
Uninterruptible Power Supplies (UPSs)
APC
SYA8K16RMI
-
-
0 stars, based on 0 ratings

Hvem bruger produktet
0



Please login to view pricing
-
Stock available when logged in


Output power capacity
8 kVA
Output power
5600 W
Compatibility
C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Details about the product
Specifications
Features
Output power capacity 8 kVA
Output power 5600 W
Emergency Power Off (EPO) Yes
Audible alarm(s) Yes
Ports & interfaces
AC outlet types IEC 60320
Battery
Typical backup time at full load 7.5 min
Typical backup time at half load 20.2 min
Replacement battery cartridge SYBT5
Design
Compatibility C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Weight 198.6 kg
Packaging data
Package weight 239.6 kg
Logistics data
Harmonized System (HS) code 85078000
Total carbon footprint (kg of CO2e) 30844.17
Other features
Battery type Lead-Acid
Interface DB-9 RS-232, Smart-Slot
Output connections (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19
Input connection type Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
Dimensions (WxDxH) 472 x 688 x 838 mm
Nominal output voltage 230 V
Output voltage note 220: 230. 240
Nominal input voltage 230 V
Package dimensions (WxDxH) 599 x 997 x 1054 mm
I/O ports (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G)
General product description from the vendor
PLEASE NOTE: Below description comes directly from the vendor and may describe information relating to the entire product-series. We also recommend that you verify that the product you are looking at has the specifications that you require before ordering. You are always welcome to chat with us we are happy to help with any information you may require.
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.


Accessories / Others also bought
Mounting Kits
APC AR7701 monteringssæt

Please login to view prices
APC SYAFSU13I monteringssæt

Please login to view prices
APC AR8100 monteringssæt Sort

Please login to view prices
Cable Ties
APC Cable management ring kabelsamler Sort

Please login to view prices
APC AR7540100 kabelsamler Sort 100 stk

Please login to view prices
Signal Cables

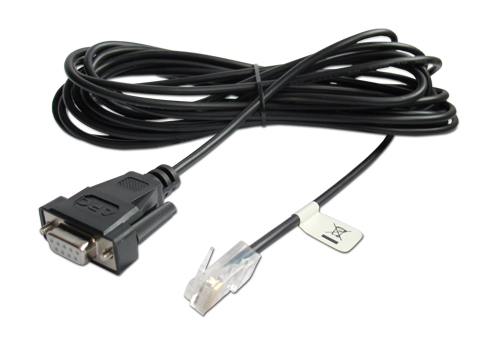

APC AP940-1525A signalkabel 4,57 m Sort

Please login to view prices
Rack Consoles
APC AP5717 rack-konsol 43,2 cm (17") Sort

Please login to view prices
APC AP5719 rack-konsol 48,3 cm (19")

Please login to view prices
APC AP5808 rack-konsol 43,2 cm (17") Sort

Please login to view prices
Cable Interface/Gender Adapters

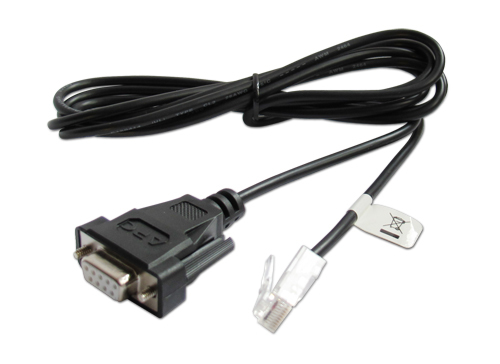

APC AP940-0625A kabel kønsskifter DB9 RJ45 Sort

Please login to view prices
Rack Accessories
APC AR7502 tilbehør til rack Kabelbakkepanel

Please login to view prices
Maintenance & Support Fees
Serial Cables

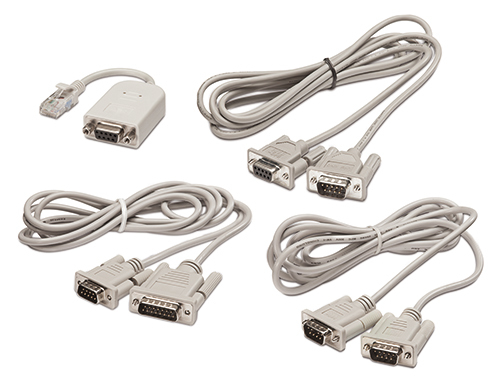

APC AP98275 serielkabel Hvid DB9

Please login to view prices
Temperature Transmitters
APC Temperature Sensor temperatur sender

Please login to view prices
Electric Meters
APC AP7155B elmåler Elektronisk Plug-in Sort

Please login to view prices
APC AP7152B elmåler Elektronisk Plug-in Sort

Please login to view prices
Cable Trays
APC AR7581A kabelkanal Lige kabelbakke Sort

Please login to view prices
APC AR7580A kabelkanal Lige kabelbakke Sort

Please login to view prices
KVM Switches
APC KVM1116R KVM Switch Stativ-montering Sort

Please login to view prices
APC KVM0116A KVM Switch Stativ-montering Sort

Please login to view prices
APC KVM0108A KVM Switch Stativ-montering Sort

Please login to view prices
UPS Battery Cabinets
APC Symmetra LX UPS batterikabinet 5U

Please login to view prices
Installation Services
APC WSTRTUP-SY-00 installationstjeneste

Please login to view prices
APC WTABINSTL-BM-02 installationstjeneste

Please login to view prices
APC WTABINSTL-BM-01 installationstjeneste

Please login to view prices
Warranty & Support Extensions

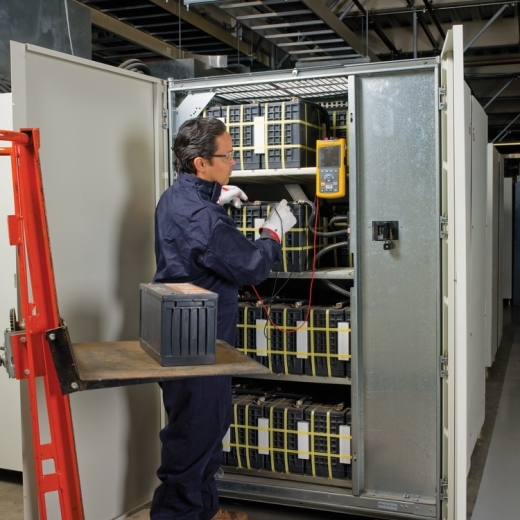

APC Advantage Plan f/ Symmetra, 1P, NBD, 1Y 1 År

Please login to view prices
Uninterruptible Power Supplies (UPSs) Accessories

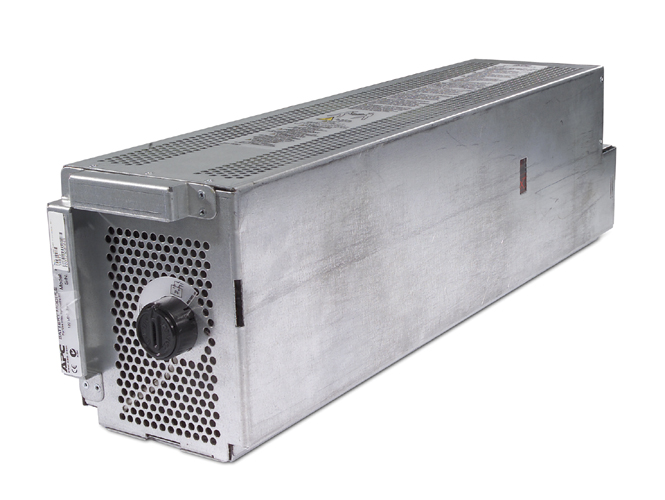

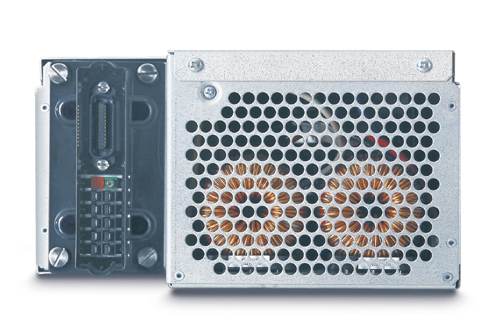

APC Symmetra LX Battery Module

Please login to view prices
Security Device Components
APC NBRK0750 komponent til sikkerhedsenhed

Please login to view prices
Power Cables
APC Power Cords Sort 3 m C19 forbinder

Please login to view prices
APC AP8755 el-ledning Sort 3,05 m

Please login to view prices
APC AP8716S el-ledning Sort 1,83 m

Please login to view prices

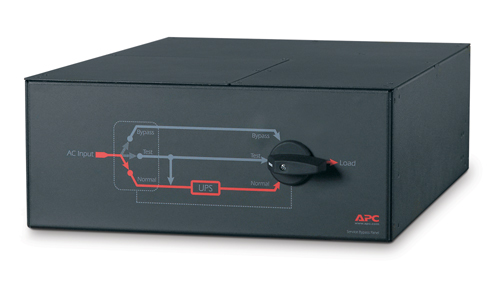

Maintenance Bypass Panels (MBPs)
