Processor Processor frequency 3.6 GHz Processor family Intel® Xeon® E3 V3 Family Processor model E3-1280V3 Processor cores 4 Number of processors installed 1 Processor boost frequency 4 GHz Processor socket LGA 1150 (Socket H3) Processor cache 8 MB Processor cache type Smart Cache Processor threads 8 System bus rate 5 GT/s Bus type DMI FSB Parity No Processor lithography 22 nm Processor operating modes 64-bit Processor series Intel Xeon E3-1200 v3 Processor codename Haswell Thermal Design Power (TDP) 82 W PCI Express slots version 3.0 Maximum number of PCI Express lanes 16 PCI Express configurations 1x16,2x8,1x16+1x4 Stepping C0 Maximum internal memory supported by processor 32 GB Memory types supported by processor DDR3-SDRAM Memory clock speeds supported by processor 1333,1600 MHz Memory bandwidth supported by processor (max) 25.6 GB/s ECC supported by processor Yes Memory Internal memory 8 GB Internal memory type DDR3-SDRAM Maximum internal memory 32 GB Memory layout (slots x size) 2 x 4 GB Memory slots 4x DIMM Memory clock speed 1600 MHz ECC Yes Memory channels Dual Storage Total storage capacity 1000 GB Card reader integrated Yes Storage media HDD Total HDDs capacity 1000 GB Number of HDDs installed 1 HDD capacity 1000 GB HDD interface Serial ATA HDD speed 7200 RPM Graphics On-board graphics adapter No Discrete graphics adapter model NVIDIA® Quadro® K620 On-board graphics adapter model Not available Discrete graphics adapter memory 2 GB Optical drive Optical drive type DVD Super Multi Optical drives quantity 1 BD interface type SATA Networking Ethernet LAN Yes Wi-Fi No Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000Base-T(X) Ports & interfaces USB 2.0 ports quantity 6 USB 3.0 (3.1 Gen 1) Type-A ports quantity 4 DVI port Yes Ethernet LAN (RJ-45) ports 1 Microphone in Yes Headphone outputs 1 DisplayPorts quantity 1 PS/2 ports quantity 2 Line-out Yes Line-in Yes Expansion slots PCI Express x1 (Gen 2.x) slots 2 PCI Express x4 (Gen 2.x) slots 1 PCI Express x16 (Gen 3.x) slots 1 PCI slots 1 Design Product colour Black Chassis type Mini Tower Water cooling system No Number of 3.5" bays 2 Number of 5.25" bays 2 Number of 2.5" bays 1 Performance Product type Workstation Motherboard chipset Intel® C226 Audio system HD Software Operating system installed Windows 7 Professional Operating system architecture 64-bit Recovery operating system Windows 8.1 Pro Processor special features Intel® vPro™ Technology Yes Intel® Wireless Display (Intel® WiDi) No Intel 64 Yes Enhanced Intel SpeedStep Technology Yes Embedded options available No Intel® InTru™ 3D Technology No Intel® Insider™ No Intel® Clear Video HD Technology (Intel® CVT HD) No Intel Clear Video Technology No Intel VT-x with Extended Page Tables (EPT) Yes Intel TSX-NI Yes Idle States Yes Thermal Monitoring Technologies Yes Intel Stable Image Platform Program (SIPP) Yes Intel® AES New Instructions (Intel® AES-NI) Yes Intel® Secure Key Yes Intel® OS Guard Yes Intel Trusted Execution Technology Yes Execute Disable Bit Yes Intel FDI Technology No Intel Flex Memory Access Yes Intel Fast Memory Access Yes Intel® Smart Cache Yes Intel Enhanced Halt State Yes Intel Demand Based Switching No Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) No Processor package size 37.5 mm Supported instruction sets AVX 2.0,SSE4.1,SSE4.2 Processor code SR150 Scalability 1S CPU configuration (max) 1 Graphics & IMC lithography 22 nm Thermal solution specification PCG 2013D Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel Identity Protection Technology version 1.00 Intel Stable Image Platform Program (SIPP) version 1.00 Intel Secure Key Technology version 1.00 Intel Virtualization Technology (VT-x) Yes Intel TSX-NI version 1.00 Intel Dual Display Capable Technology No Intel Rapid Storage Technology No Processor ARK ID 75057 Intel® Turbo Boost Technology 2.0 Intel® Hyper Threading Technology (Intel® HT Technology) Yes Intel® Quick Sync Video Technology No Intel® My WiFi Technology (Intel® MWT) No Intel® Identity Protection Technology (Intel® IPT) Yes Intel® Anti-Theft Technology (Intel® AT) Yes Conflict Free processor No Power Power supply 400 W Certificates Energy Star certified Yes Weight & dimensions Width 170 mm Depth 442 mm Height 399 mm Weight 8.8 kg Packaging content Display included No Mouse included Yes Keyboard included Yes

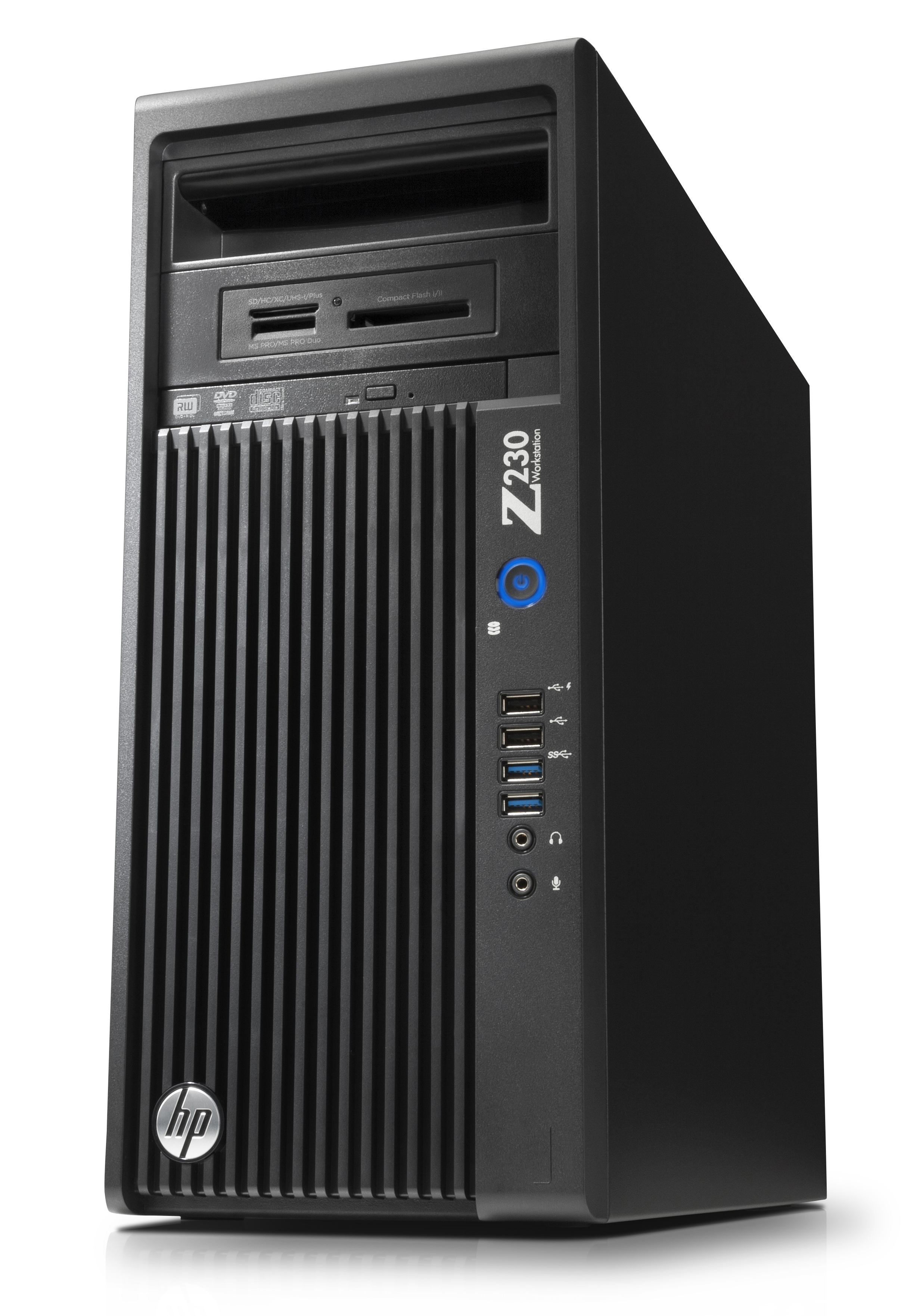

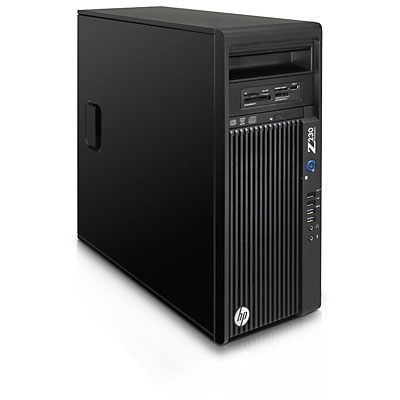

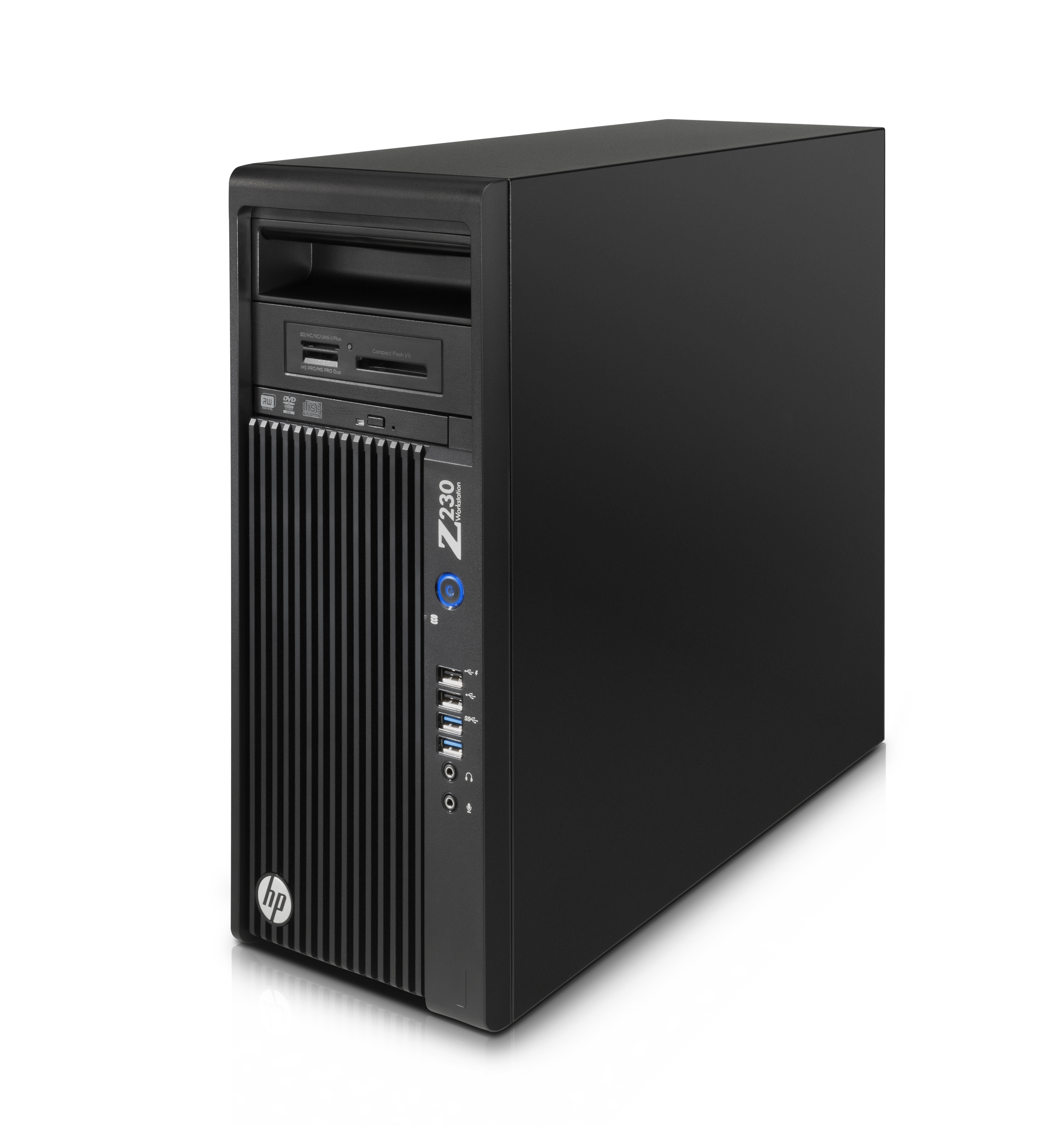

Affordable performance and flexibility, re-defined. Create a totally immersive work environment for those who demand reliability and performance on a budget. Designed for heavy 24x7x365 workloads, the HP Z230 delivers next-generation processor and graphics technologies in a redesigned, compact yet impressively expandable tower.

Features

Windows 8 Pro or other operating systems available

Rock solid reliability, affordably priced
- Designed for heavy 24x7x365 workloads. The affordable HP Z230 Tower Workstation handles the demanding workloads of business applications.
- Gain peace of mind from our extreme test and validation processes with workstations designed for always-on environments.
- Control your environmental impact better than ever1 while lowering your total cost of ownership with a 92% efficient power supply and enhanced system reliability.
- Work smarter with your software tools. This HP workstation has earned a wide range of ISV certifications to deliver better, smarter performance.

Power for now, room to grow

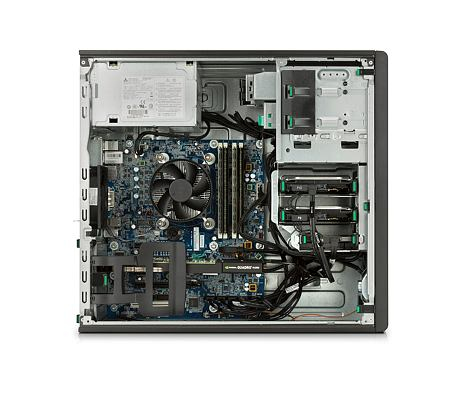

- Grow along with your business. The HP Z230 Tower Workstation is designed to scale and expand, so you can add more storage and connectivity when you need it.
- Complete computing power in a new compact design. HP’s redesigned and more compact workstation is robust and flexible, while freeing up more space for work.
- Spend less time waiting. Speed up data transfers with six available drive bays including a 6,3 cm (2.5'') HD bay for high speed solid state drives.
- Boost your storage performance with RAID, solid state drives, or get the best of both worlds by combining large hard drives with an optional solid state drive as a cache device.
- Optimize this workstation for peak performance. HP Performance Advisor helps you easily configure your system with the best settings designed for specific applications.

Totally immersive. Perfectly productive.
- Power to spare—and share. The latest Intel® Xeon® processors and rich graphics keep up with your work. Plug in and work on up to six displays.
- Enjoy the latest in performance and energy efficiency from Intel’s next generation processor architecture.
- Keep more work front-and-center with support for up to six monitors. Choose between cost-effective integrated graphics and powerful 2D or 3D discrete graphics choices.

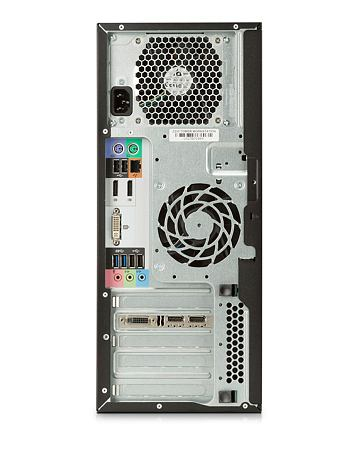

- Easily connect your peripherals and devices using the four PCIe slots, one PCI input/output slot, ten external USB ports and the fast charging USB port.
- With HP RGS you can take your graphics intensive workstation applications wherever you go. Collaborate with colleagues around the office or around the world, in real time.
