Management features Switch type Managed Switch layer L2 Quality of Service (QoS) support Yes Web-based management Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 24 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Installed SFP modules quantity 0 Installed SFP+ modules quantity 0 SFP module slots quantity 4 Network Networking standards IEEE 802.3, IEEE 802.3at, IEEE 802.3u 10G support No Port mirroring Yes Full duplex Yes Flow control support Yes Link aggregation Yes Rate limiting Yes Auto MDI/MDI-X Yes Spanning tree protocol Yes Auto-sensing Yes Data transmission MAC address table 16000 entries Switching capacity 56 Gbit/s Throughput 41.6 Mpps Latency (10-100 Mbps) 7.4 µs Latency (1 Gbps) 2.3 µs Jumbo frames support Yes Packet buffer memory 1.5 MB Security DHCP features DHCP server Access Control List (ACL) Yes SSH/SSL support Yes Multicast features Multicast support Yes Design Rack mounting Yes Stackable Yes Form factor 1U Product color Black Performance Virtual stacking (units) 16 Built-in processor Yes Processor frequency 800 MHz Memory type DDR3-SDRAM Internal memory 256 MB Flash memory 128 MB Power Power supply included Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 247 W Power over Ethernet (PoE) Power over Ethernet (PoE) Yes Total Power over Ethernet (PoE) budget 195 W Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 15 - 95% Storage relative humidity (H-H) 15 - 90% Weight & dimensions Width 443 mm Depth 330.2 mm Height 44.5 mm Weight 3.95 kg Logistics data Harmonized System (HS) code 85176990

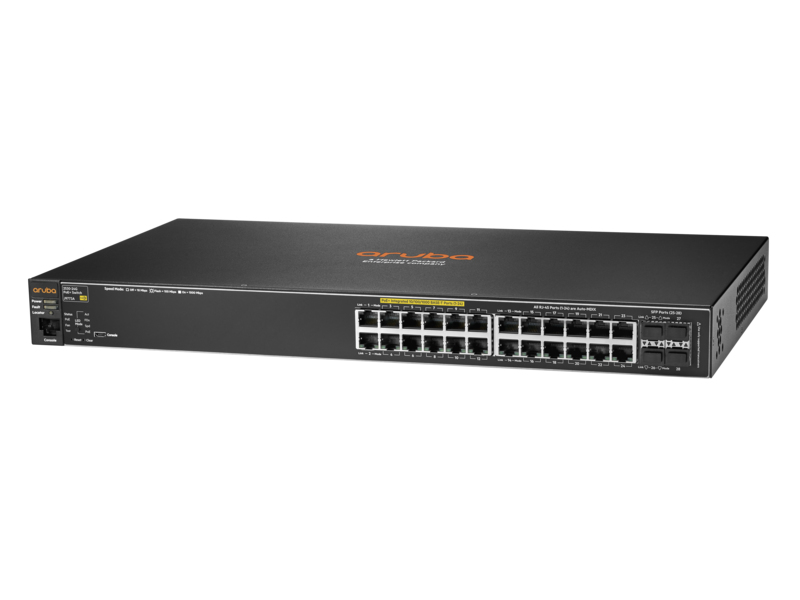

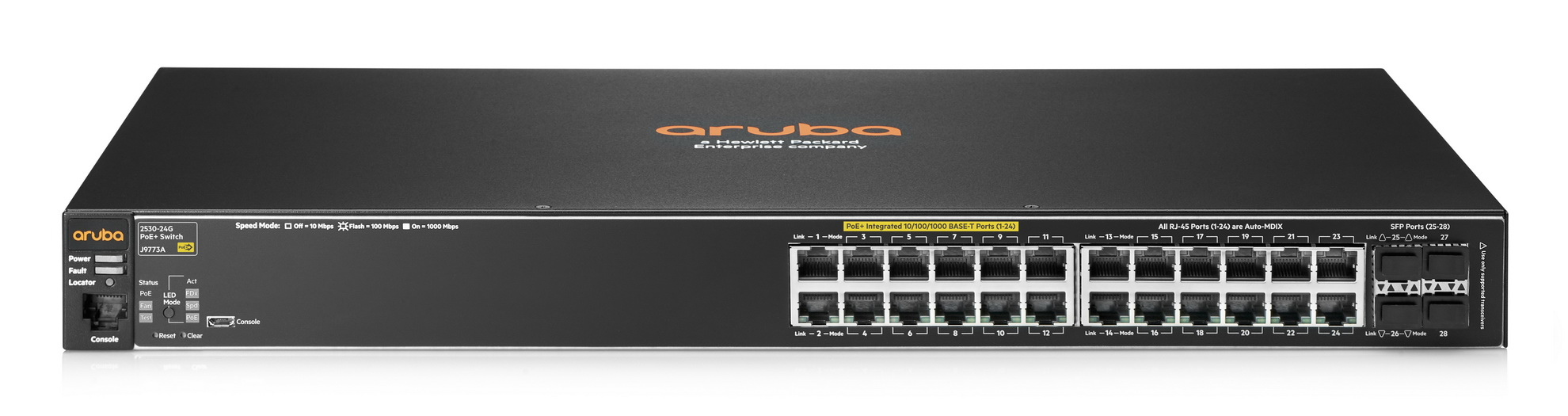

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet.

The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

Features

Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.

Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
