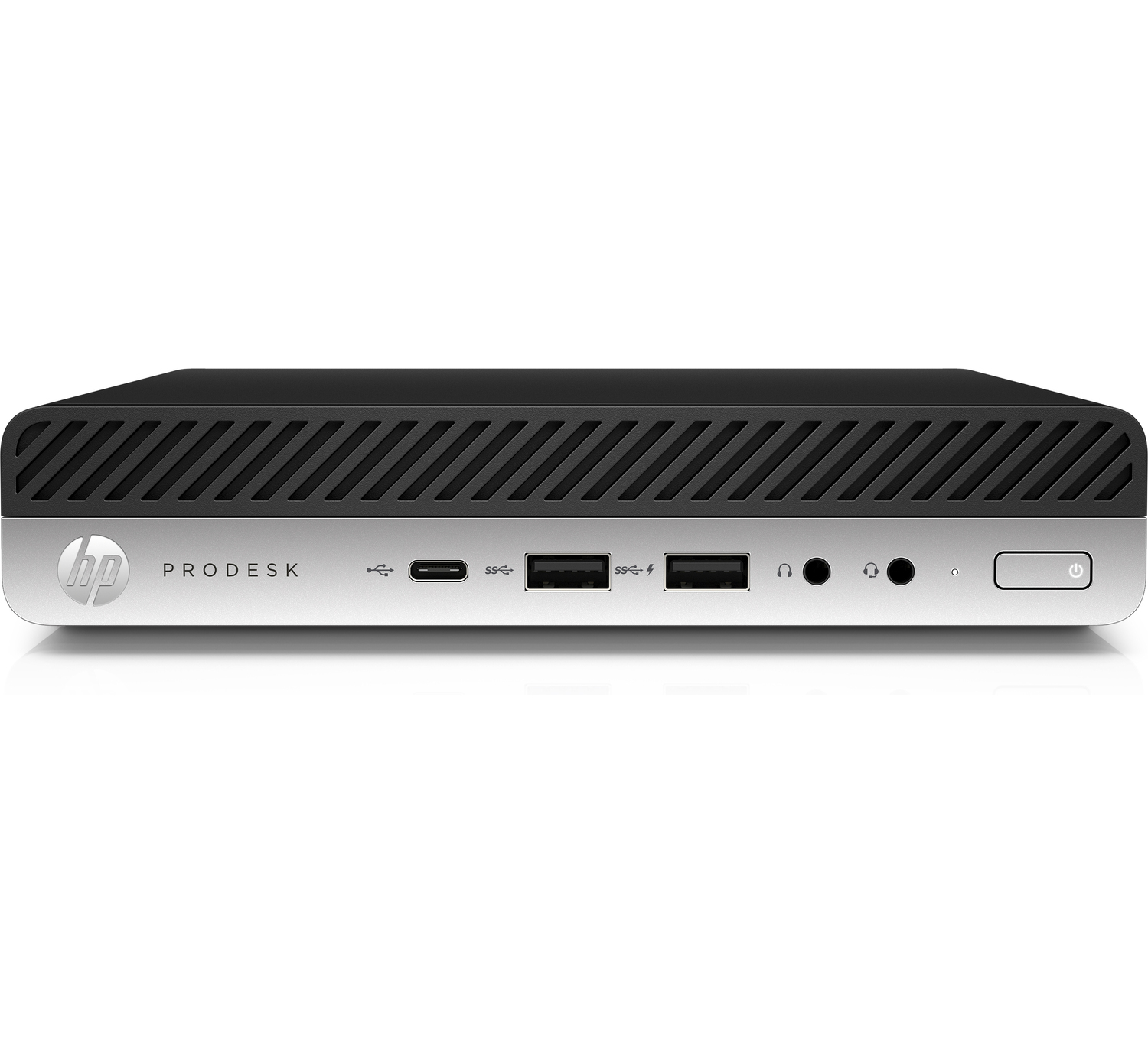

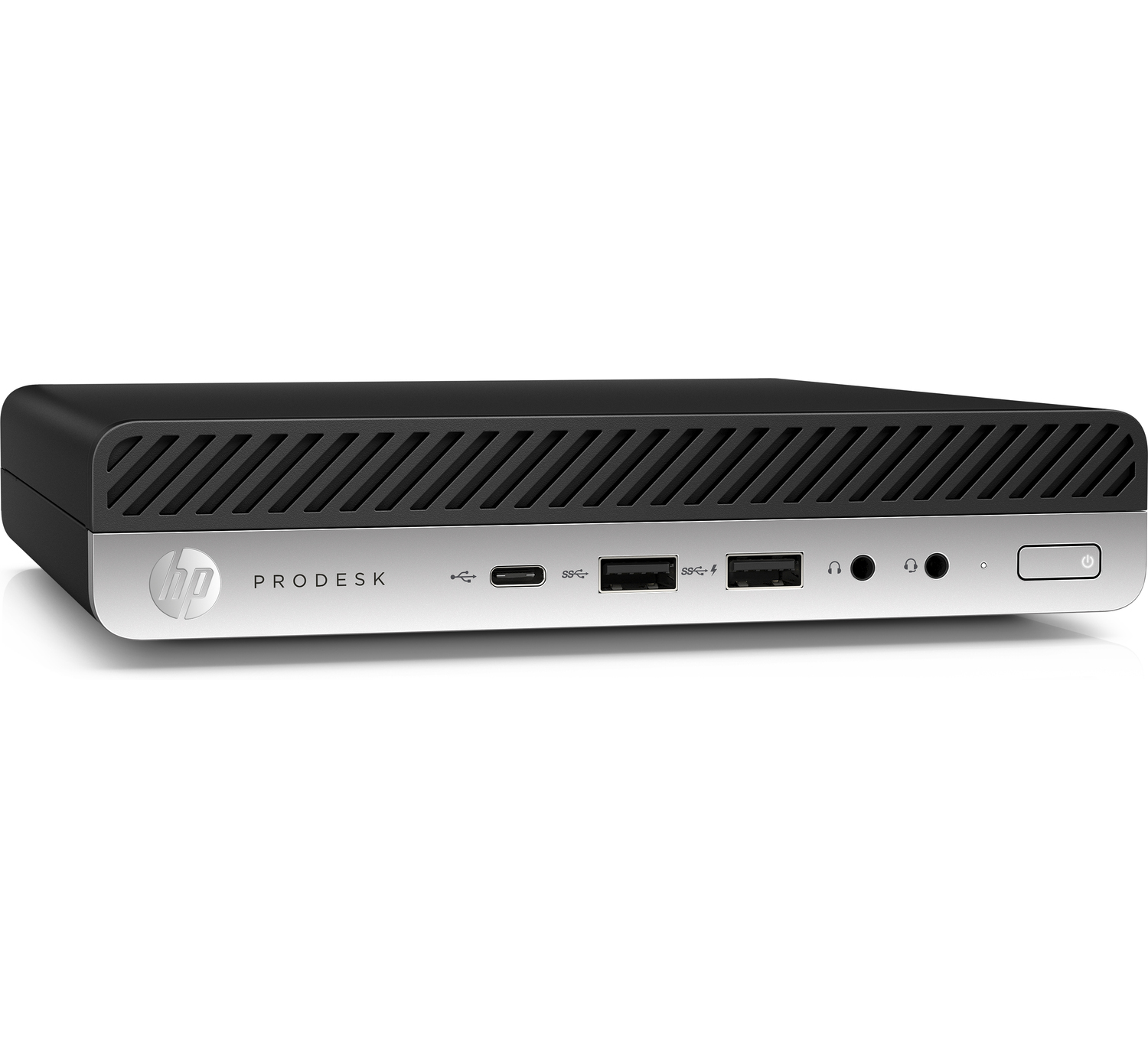

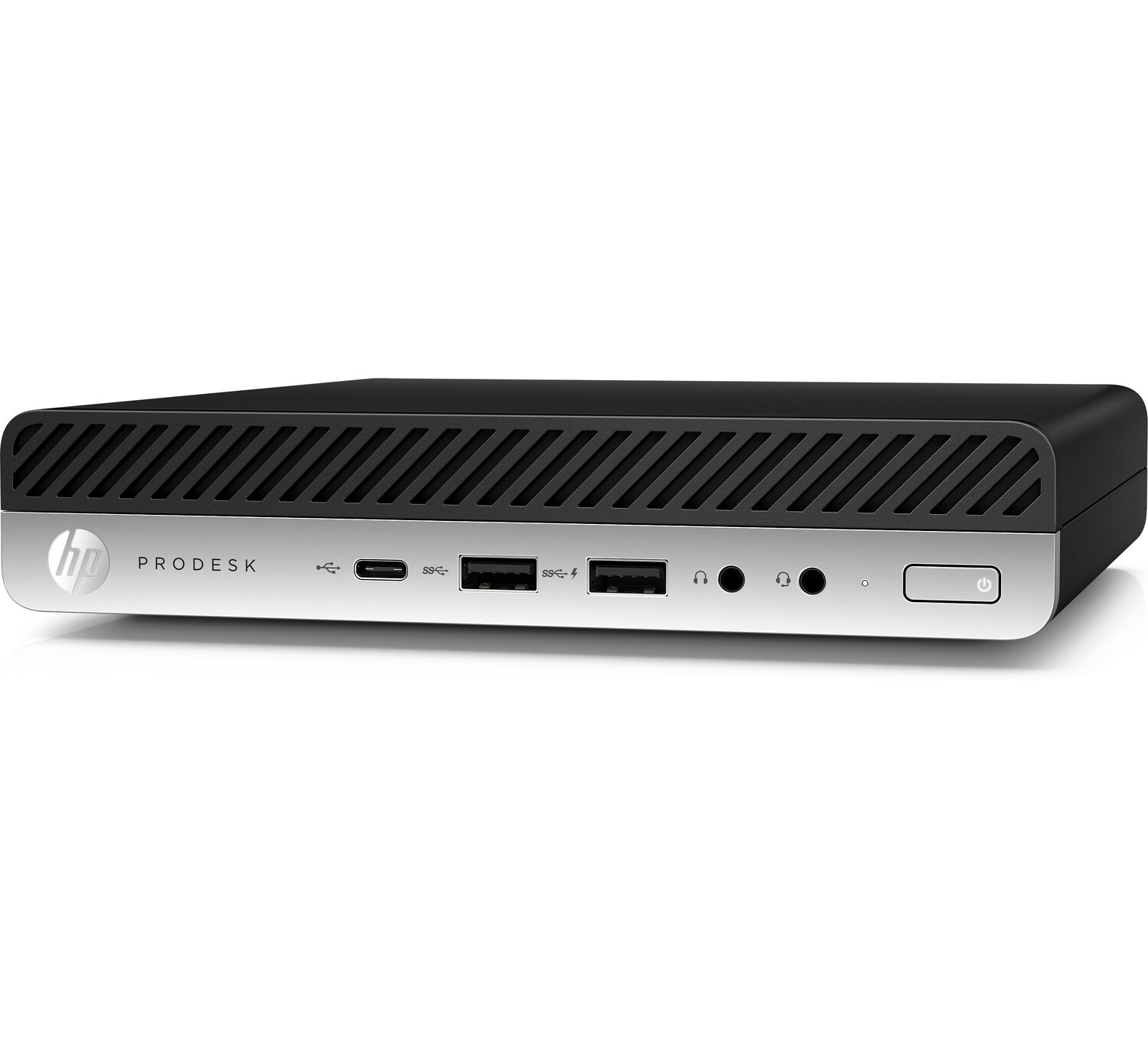

HP ProDesk 600 G3 i7-7700T mini PC 7th gen Intel® Core™ i7 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black

Intel Core i7-7700T (8MB Cache, 2.9GHz), 8GB DDR4-SDRAM, 256GB SSD, Intel HD Graphics 630, LAN, Windows 10 Pro 64-bit

0 ratings

Product category

Vendor

Part number

On the market since

Warranty from HP

PCs/Workstations

8YU67ES

7. december 2019

HP ProDesk 600 G3 i7-7700T mini PC 7th gen Intel® Core™ i7 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Black

Please login to view pricing

Stock available when logged in

Processor family

7th gen Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-7700T

Internal memory

8 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

32 GB

Total storage capacity

256 GB

Card reader integrated

Discrete graphics adapter

On-board graphics adapter

Yes

Chassis type

mini PC

Product type

Mini PC

Details about the product

Specifications

Processor
Processor family	7th gen Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-7700T
Processor cores	4
Processor frequency	2.9 GHz
Processor boost frequency	3.8 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	8 MB
Processor cache type	Smart Cache
Processor threads	8
System bus rate	8 GT/s
Bus type	DMI3
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-7700 Desktop series
Processor codename	Kaby Lake
Thermal Design Power (TDP)	35 W
Configurable TDP-down	25 W
Configurable TDP-down frequency	1.9 GHz
Tjunction	80 °C
PCI Express slots version	3.0
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16,1x8+2x4,2x8
Number of processors installed	1
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory voltage supported by processor	1.35 V
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Storage
Total storage capacity	256 GB
Card reader integrated	No
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel® HD Graphics 630
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	1150 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter ID	5912
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
DVI port	No
Ethernet LAN (RJ-45) ports	1
Microphone in	No
Headphone outputs	1
Design
Chassis type	mini PC
Product colour	Black
Country of origin	China
Performance
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel® Q270
Audio chip	Conexant CX20632
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Processor special features
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Enhanced Halt State	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor code	SR339
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015A
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Processor ARK ID	97122
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
Brand-specific features
HP segment	Business
Power
Power supply	65 W
Weight & dimensions
Width	177 mm
Depth	34.2 mm
Height	174.7 mm
Weight	1.21 kg
Packaging content
Display included	No

General product description from the vendor

PLEASE NOTE: Below description comes directly form the vendor and may describe information relating to the entire product-series. We also recommend that you verify that the product you are looking at has the specifications that you require before ordering. You are always welcome to chat with us we are happy to help with any information you may require.

Redesigned and future ready Designed to fit the modern workspace the ultra-small HP ProDesk 600 Desktop Mini with an updated stylish appearance, is a powerful and reliable PC with performance manageability features for business.
