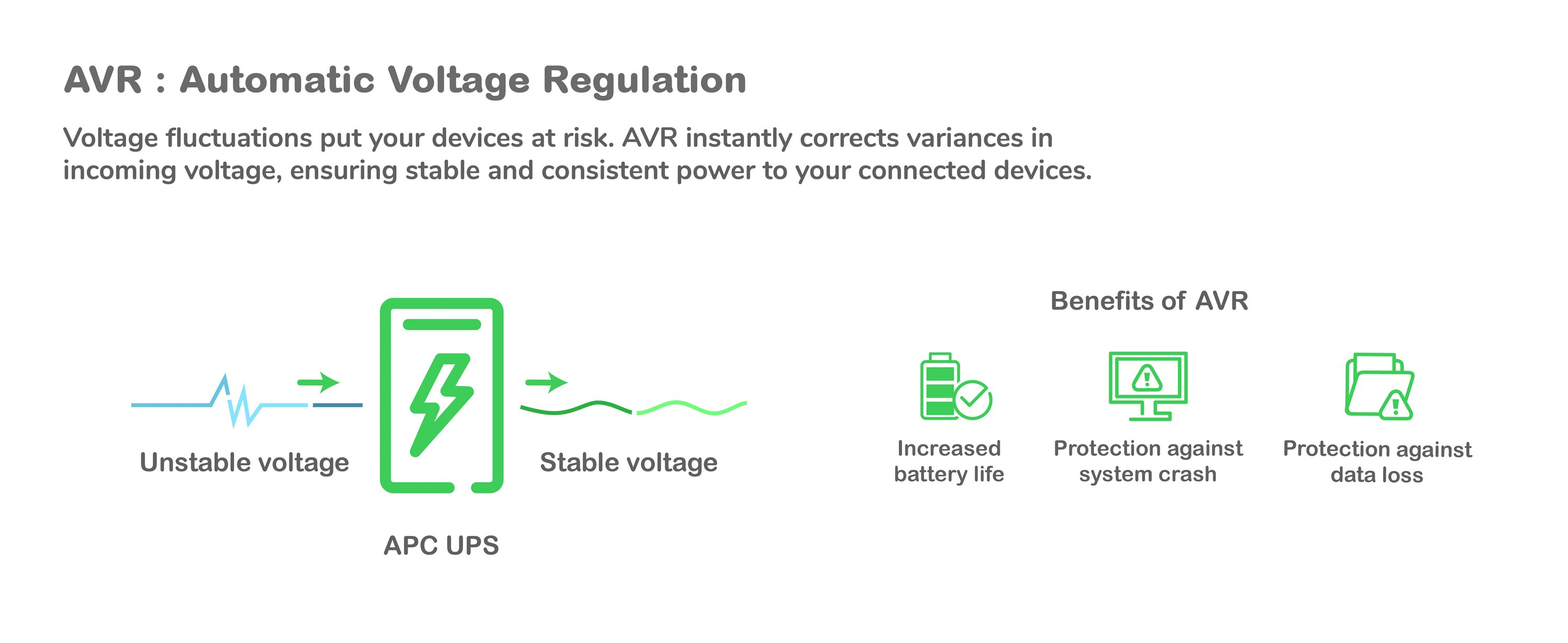

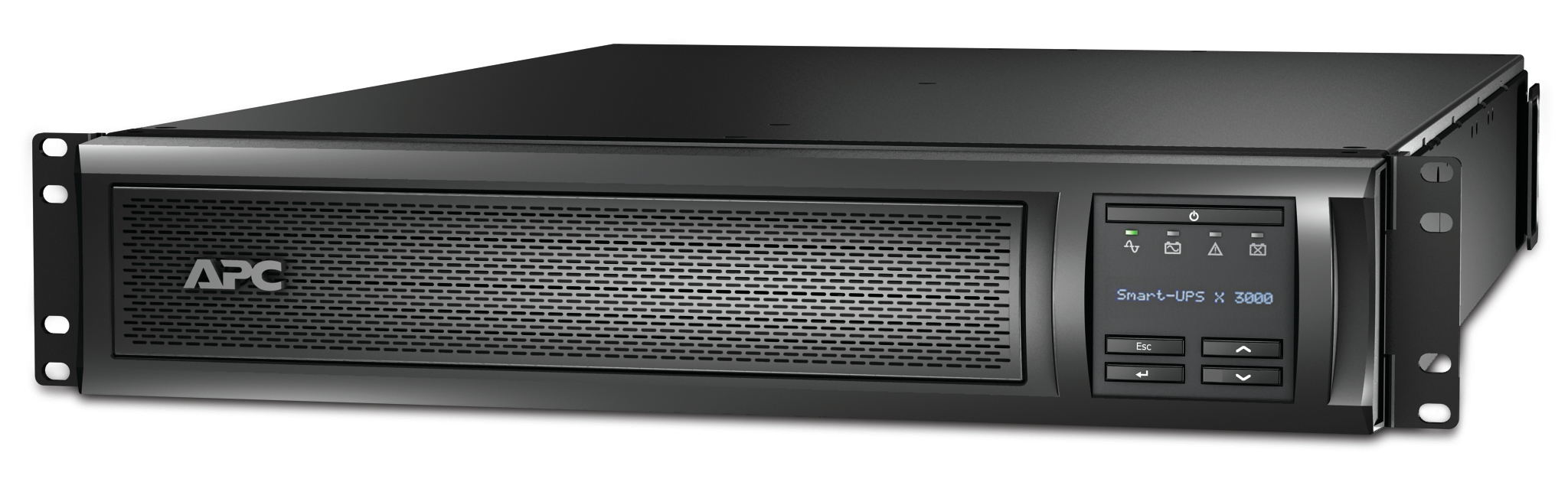

Features UPS topology Line-Interactive Output power capacity 3 kVA Output power 2700 W Waveform Sine Input frequency 50/60 Hz Output operation voltage (min) 208 V Output operation voltage (max) 240 V Output frequency regulation 50/60 Hz Automatic Voltage Regulation (AVR) Yes Surge energy rating 645 J Hold time (min) 2 ms Hold time (max) 10 ms Efficiency 98.5% Emergency Power Off (EPO) Yes Noise level 55 dB Surge protection Yes Audible alarm(s) Yes Auto-restart Yes Ports & interfaces AC outlet types C13 coupler, C19 coupler Power plug C20 coupler AC outlets quantity 9 AC outlet(s) Number of output IEC jumpers 2 SmartSlot Yes SmartConnect port No Battery Battery technology Sealed Lead Acid (VRLA) Battery capacity 738 VAh Typical backup time at full load 6.25 min Typical backup time at half load 18 min Battery life (max) 5 year(s) Battery recharge time 3 h Hot-swap battery Yes Automatic battery test Yes Design Form factor Rackmount/Tower Product color Black Rack capacity 2U Cable length 2.44 m LED indicators Battery replacement Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 45 °C Operating relative humidity (H-H) 0 - 95% Storage relative humidity (H-H) 0 - 95% Operating altitude 0 - 3000 m Non-operating altitude 0 - 15000 m Certificates Compliance certificates RoHS Certification C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI Packaging content Rack mount kit Yes Cables included RS-232 Management card included Yes Manual Yes Sustainability Sustainability certificates Green Premium Weight & dimensions Width 432 mm Depth 667 mm Height 85 mm Weight 37.3 kg Packaging data Temperature sensor Yes Software CD Yes Package width 596 mm Package depth 869 mm Package height 85 mm Package weight 45.4 kg Logistics data Quantity per pallet 8 pc(s) Harmonized System (HS) code 85078000 Total carbon footprint (kg of CO2e) 2723.74 Other features Nominal output voltage 230 V Nominal input voltage 230 V Packaging content Web/SNMP Management Card

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

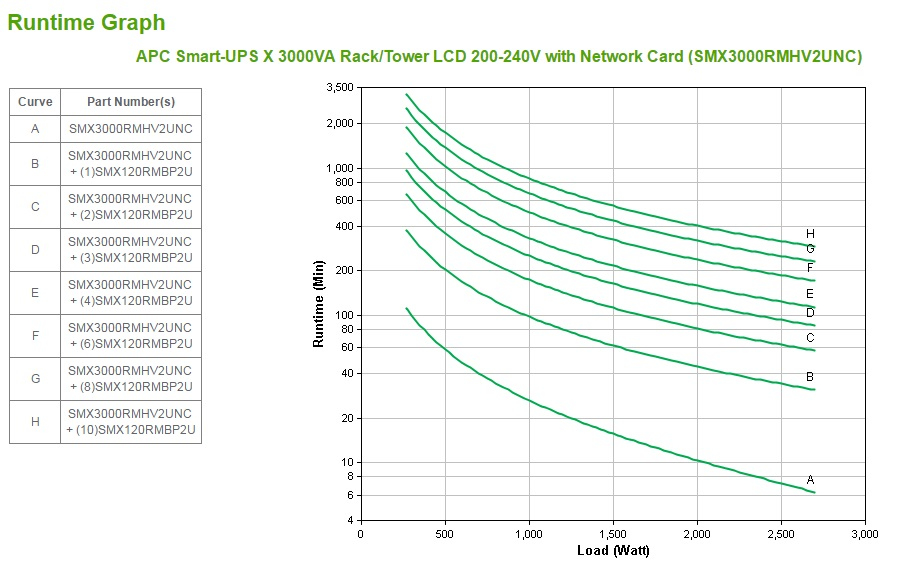

Extend the runtime

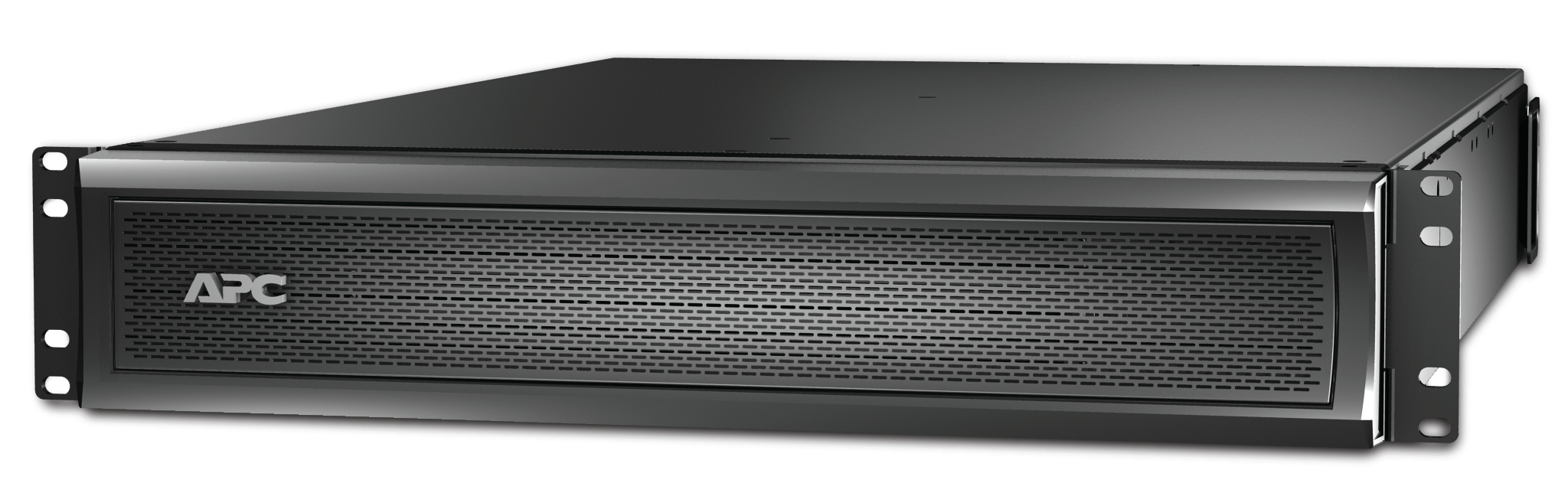

You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Manage your Smart-UPS

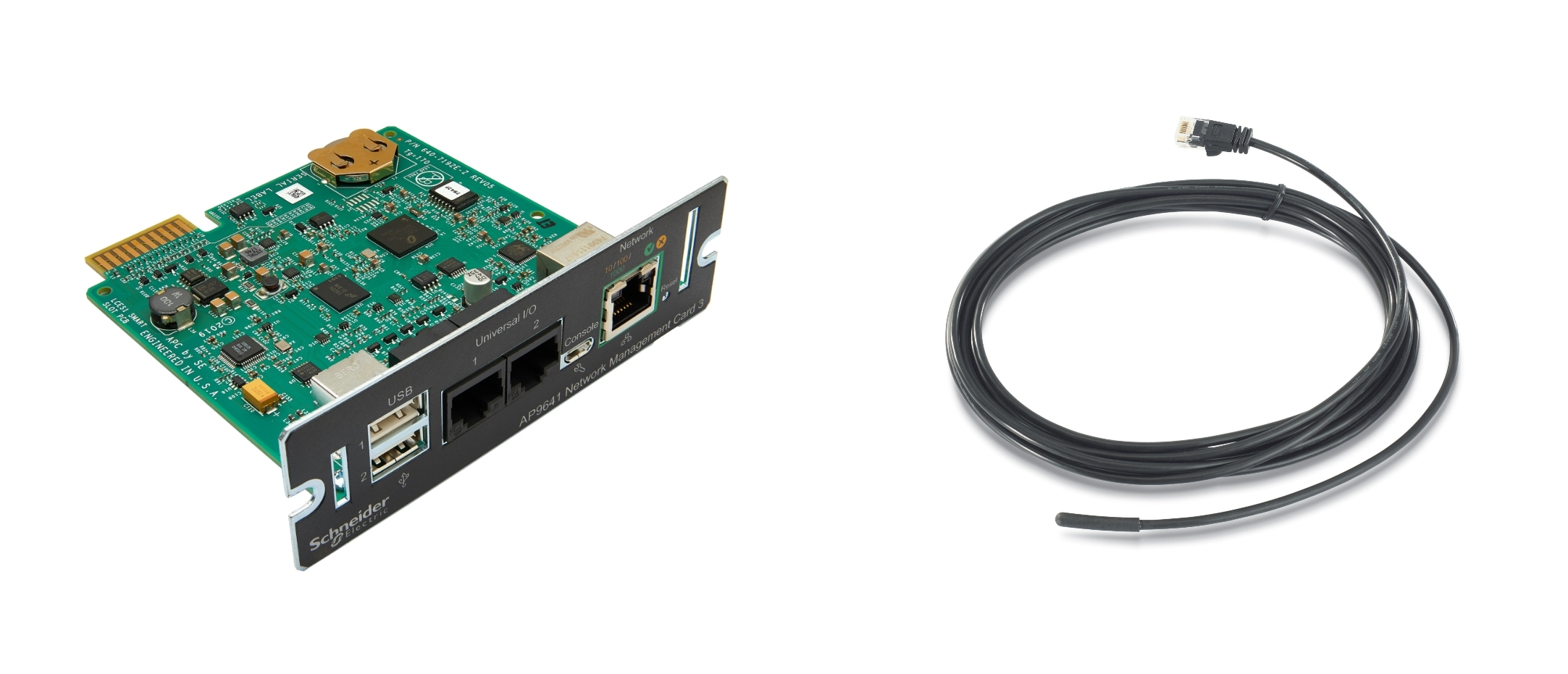

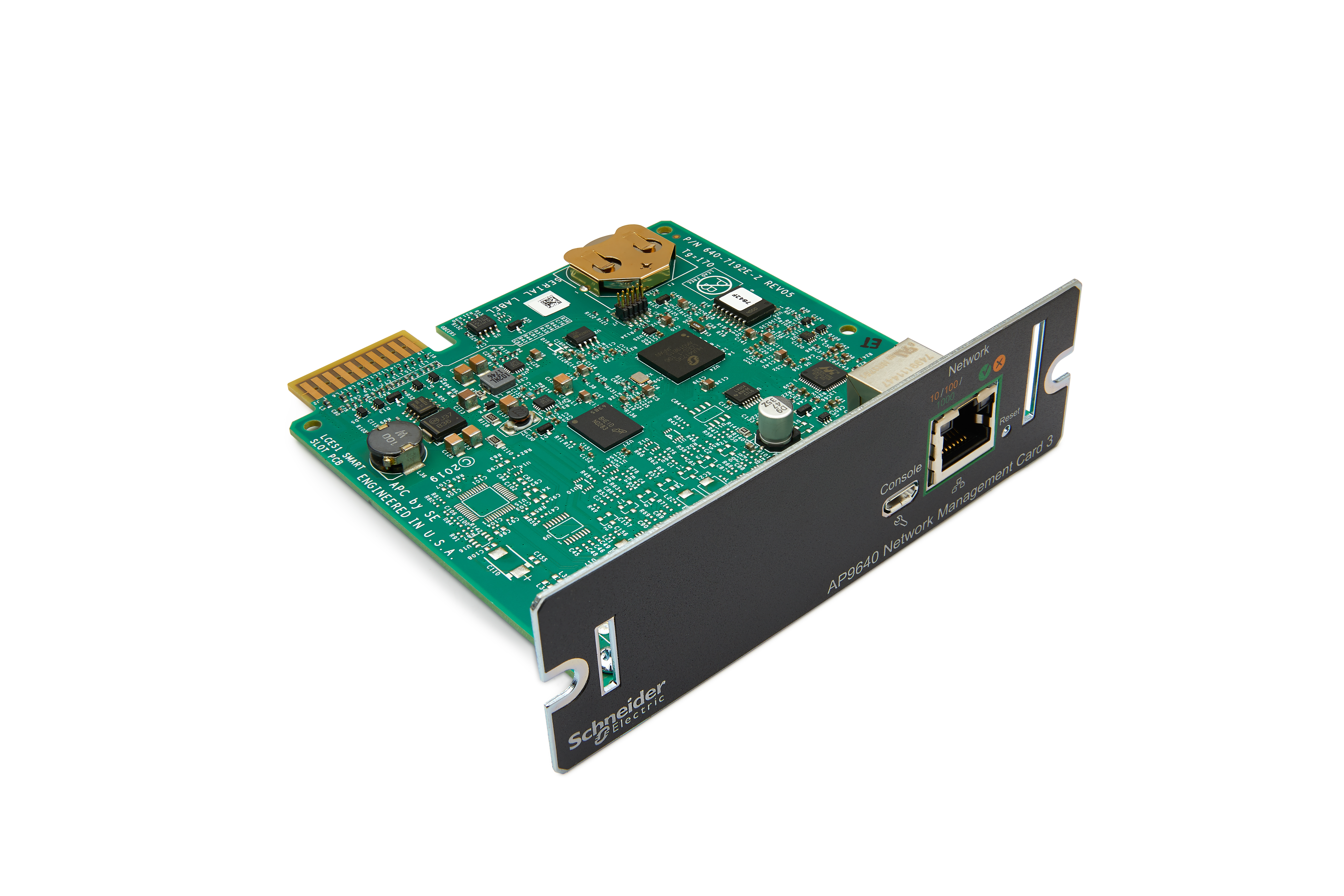

Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

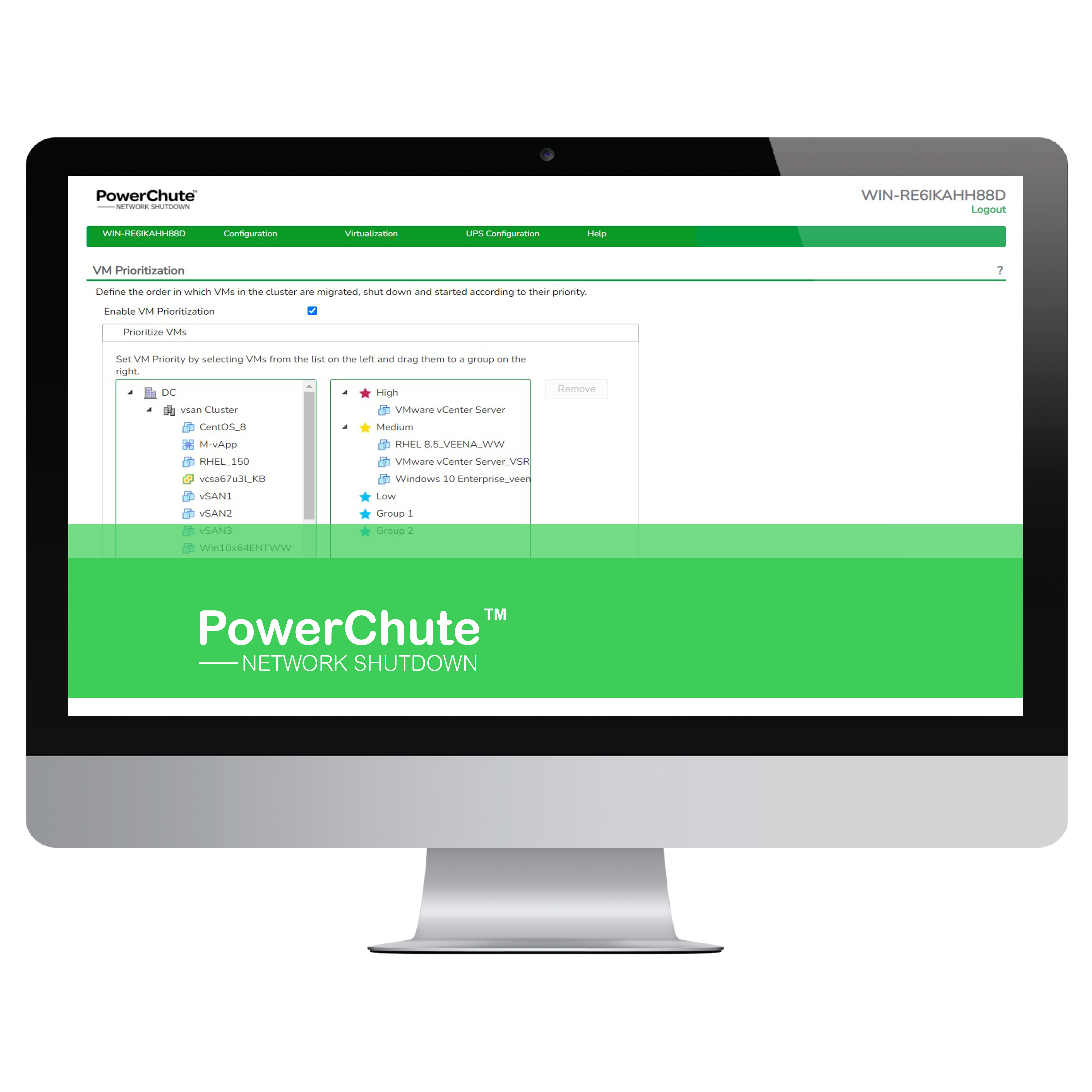

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.

*For HCI and virtual machine support an additional license is required:
1 year: SWPCNS1Y-DIGI
Up to (Replace bold number in article number with desired variant)
6 years: SWPCNS6Y-DIGI

Remote management and monitoring of your network
The network card can be managed externally via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.

Support contract
The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:
• New and improved functions
• Security updates
• Advanced support
(The functionality of the support contract is included free of charge in the first year of the UPS)

*The above license and available in the variants:
1 year: SWNMC3SU-1Y-DIGI
Up to (Replace the bold number in the article number with the desired variant)
6 years: SWNMC3SU-6Y-DIGI

Ease of use
The basic functionalities can be set and read using physical buttons and an LCD screen.

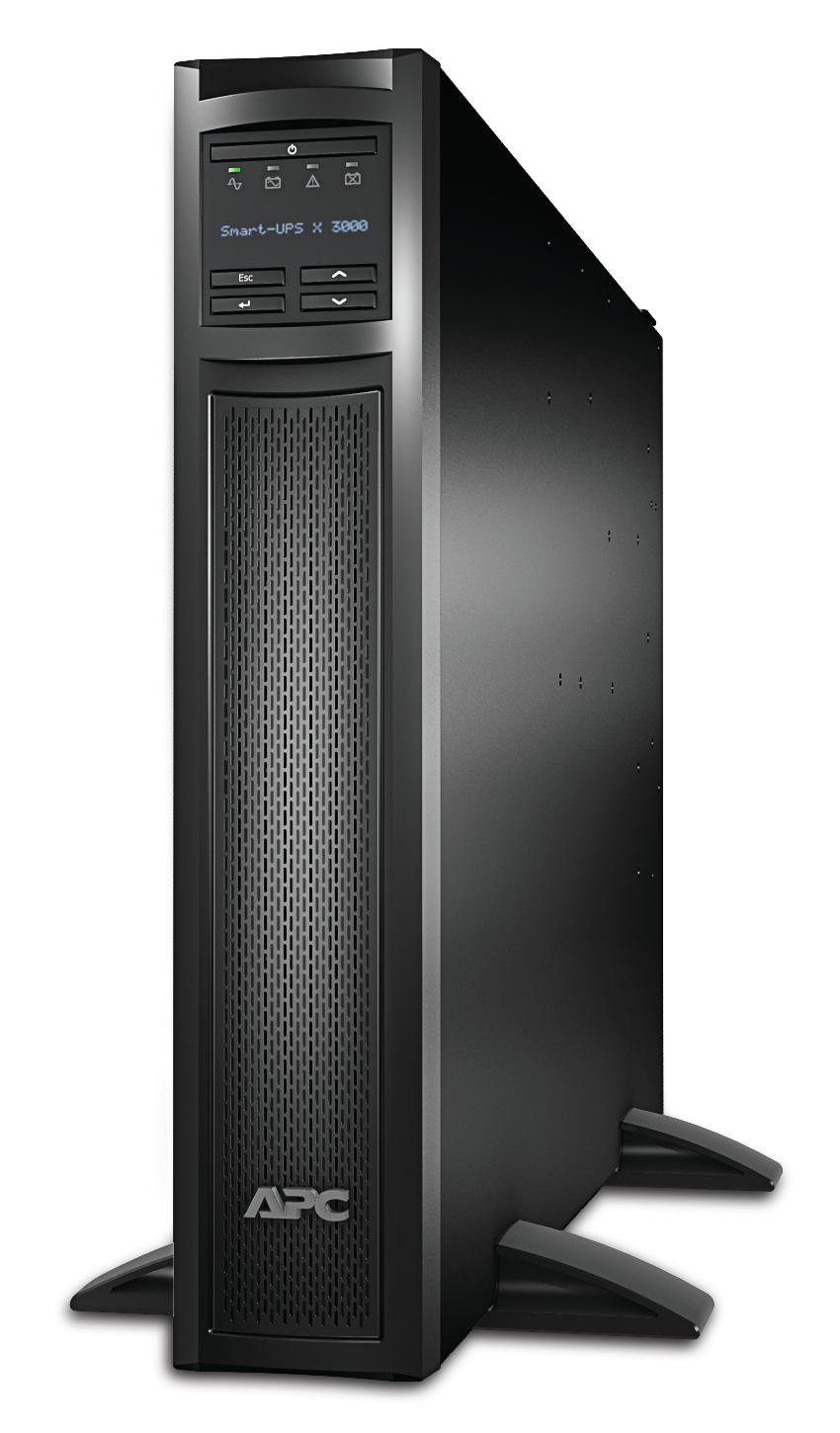

Rack/tower convertible

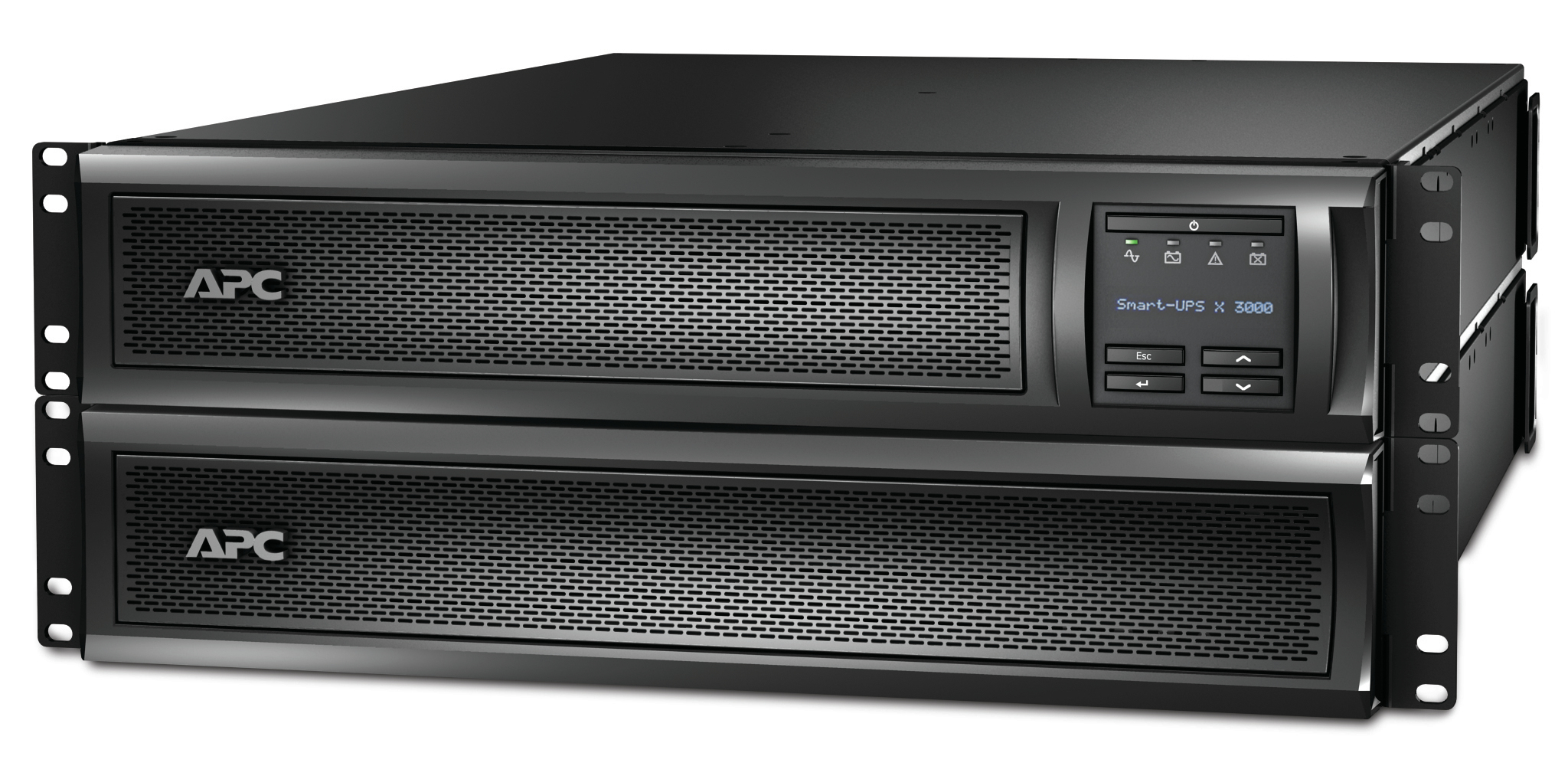

The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4 post rack mounting brackets are included, you can mount it in a rack (2U) or place it upright.

Extend the lifespan

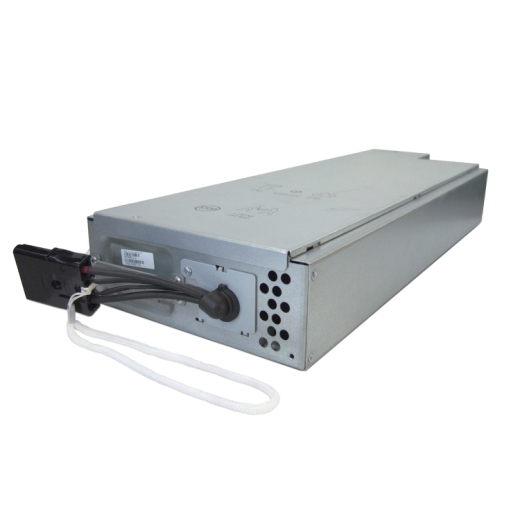

The internal battery cartridge (APCRBC117) can be easily, safely and independently replaced by the user. This without having to switch off the APC SMX3000RMHV2UNC or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The factory warranty of the SMX3000RMHV2UNC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05).

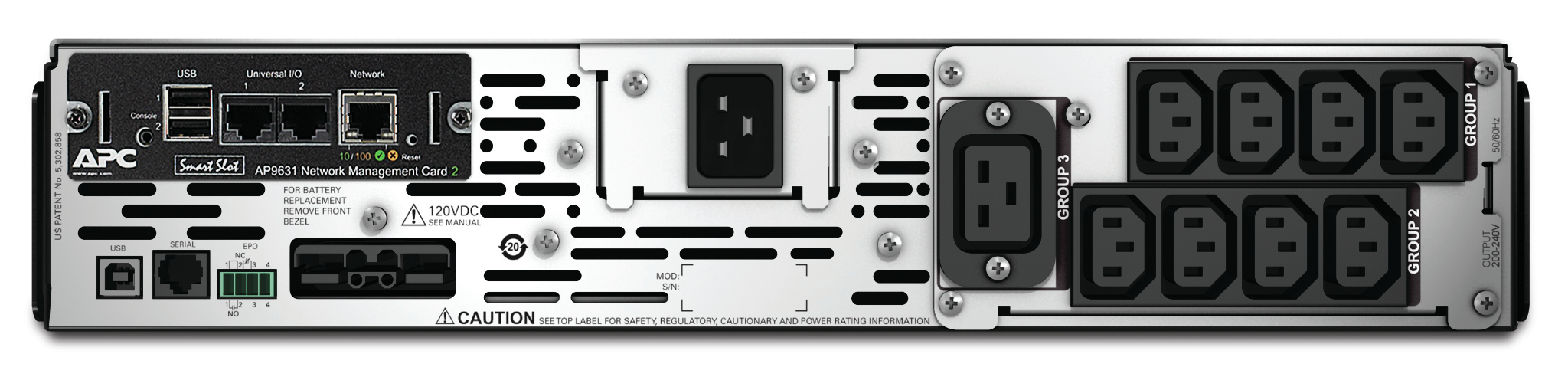

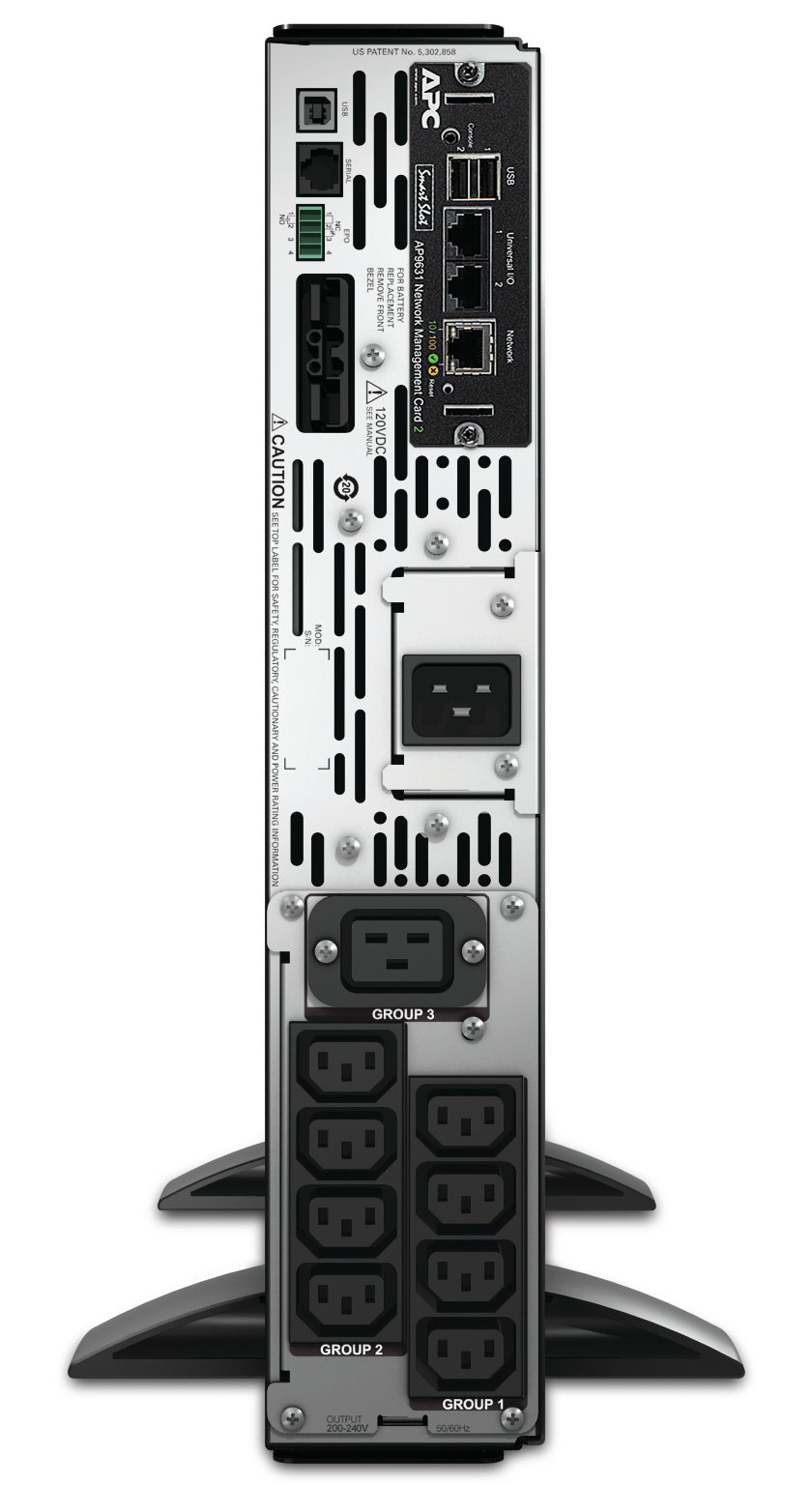

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SMX3000RMHV2UNC
1x USB cable

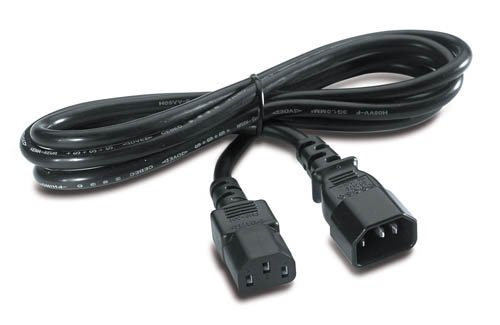

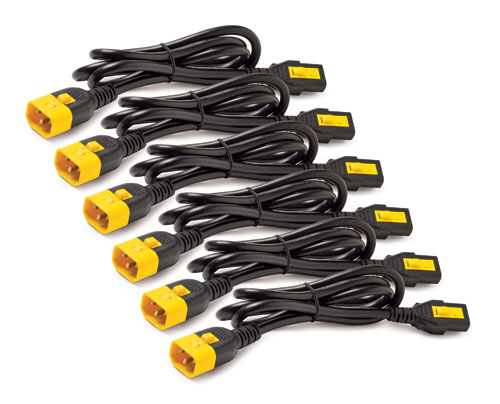

2x C13 to C14 powercord 2 Meter

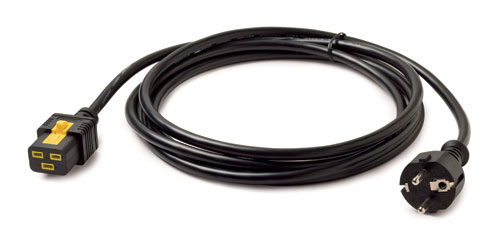

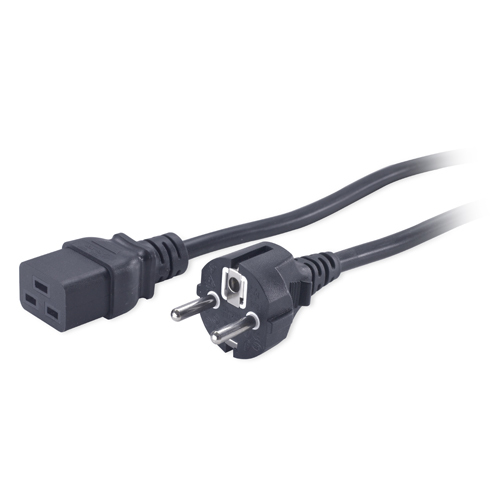

1x Schuko to C19 input powercord 2 Meter

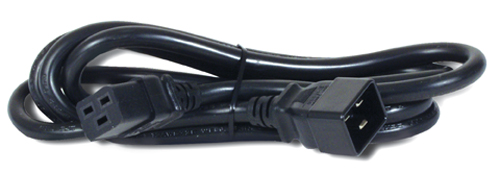

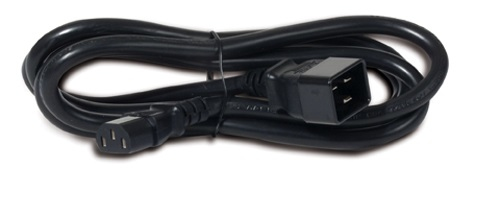

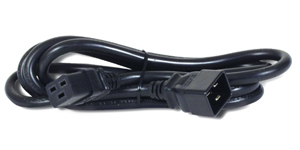

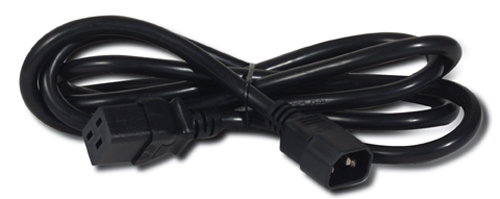

1x C19 to C20 powercord 2.5 Meter
1x Software CD with PowerChute Network Shutdown Edition
1x Documentation CD
1x British BS1363A to C19 input powercord

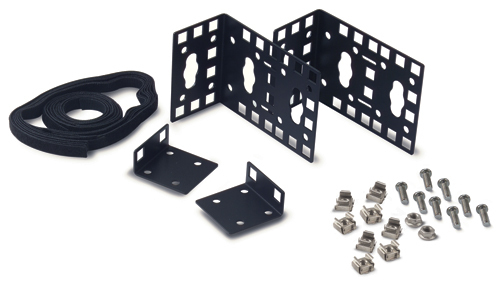

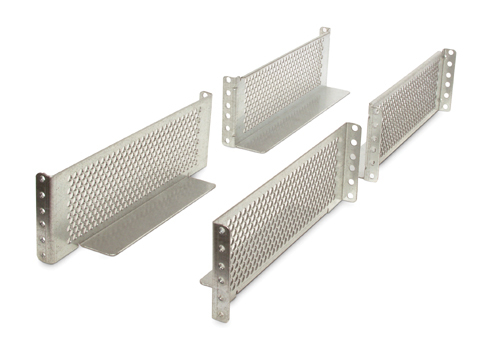

2x 4 post rack mounting brackets
1x Temperature sensor
