Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W DC-in jack No USB Type-C DisplayPort Alternate Mode Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Full duplex Yes Performance Product color Gray Card reader integrated No Data transfer rate 10 Gbit/s HD type 4K Ultra HD Maximum digital resolution 3840 x 2160 pixels Maximum refresh rate 60 Hz High Dynamic Range (HDR) supported Yes LED indicators Yes UASP support Yes Housing material Plastic Power Power source type USB Power consumption (typical) 15 W Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Mobile operating systems supported Android, iPadOS Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 85% Weight & dimensions Width 64 mm Depth 124 mm Height 26 mm Weight 93 g Packaging data Package width 143 mm Package depth 172 mm Package height 30 mm Package weight 149 g Technical details Compliance certificates CE, RoHS Logistics data Quantity per master (outer) case 70 pc(s) Master (outer) case width 465 mm Master (outer) case length 335 mm Master (outer) case height 440 mm Harmonized System (HS) code 84733020 Other features Cable length 0.3 m Chipset Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103 Sustainability Sustainability compliance Yes

4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)

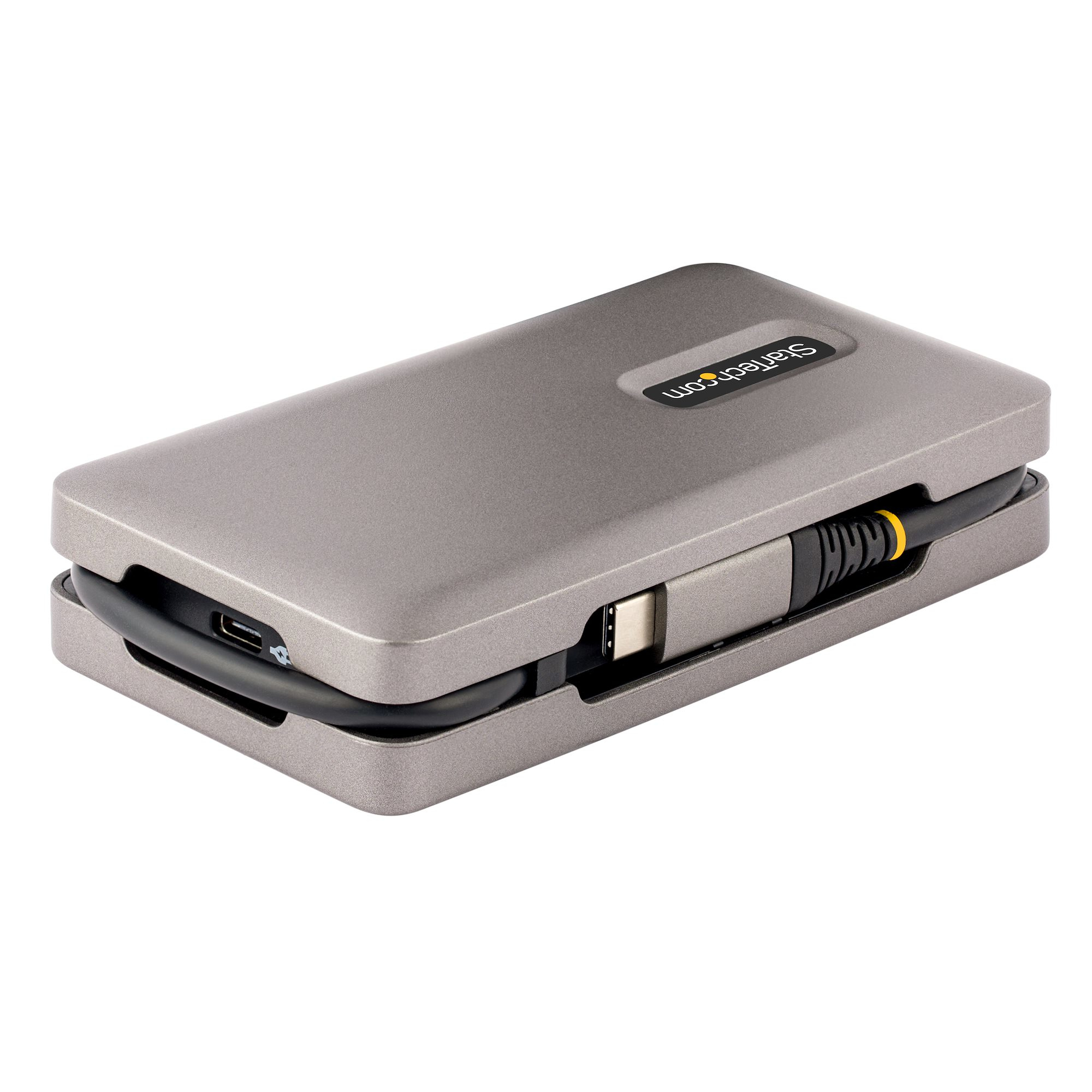

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.

Enhance Productivity

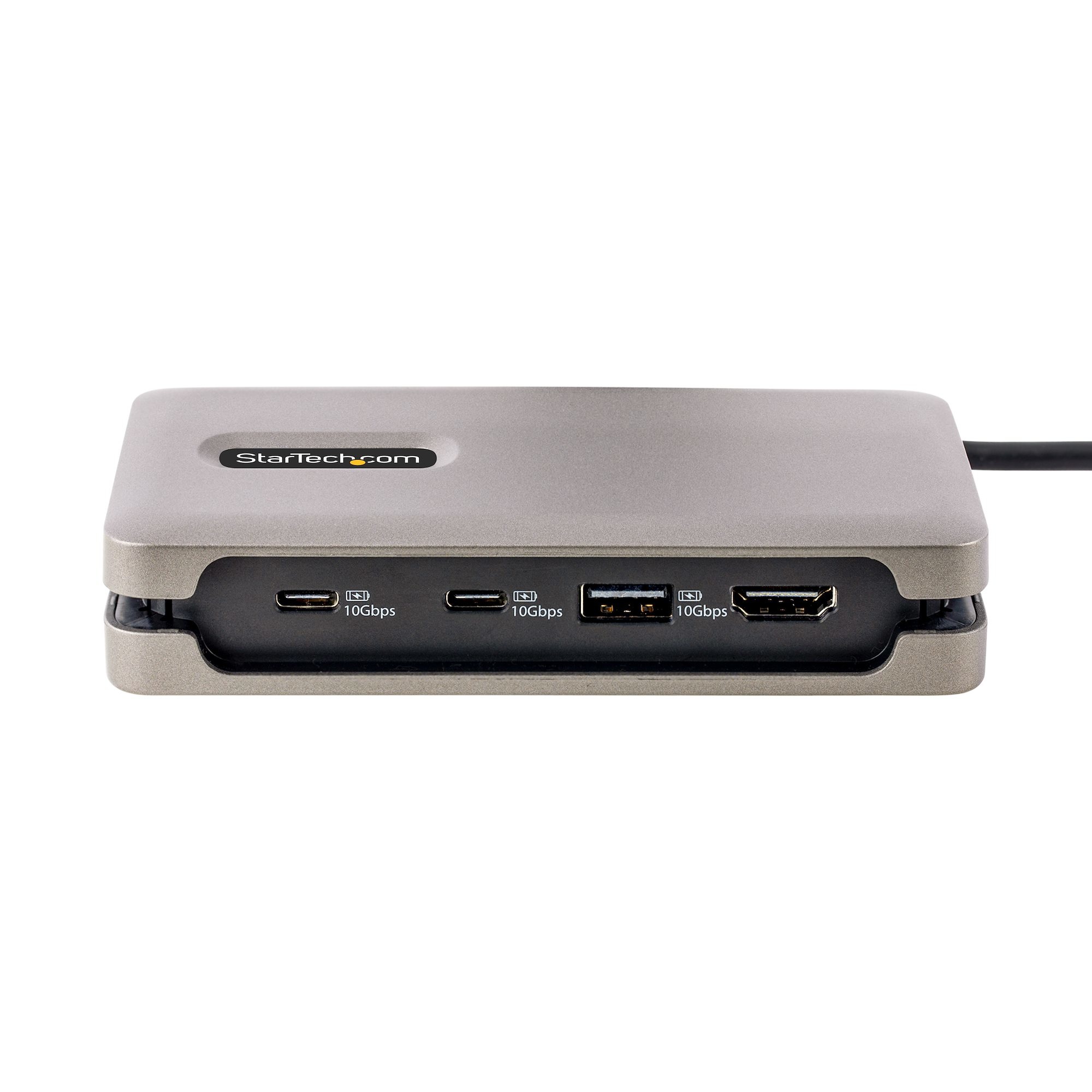

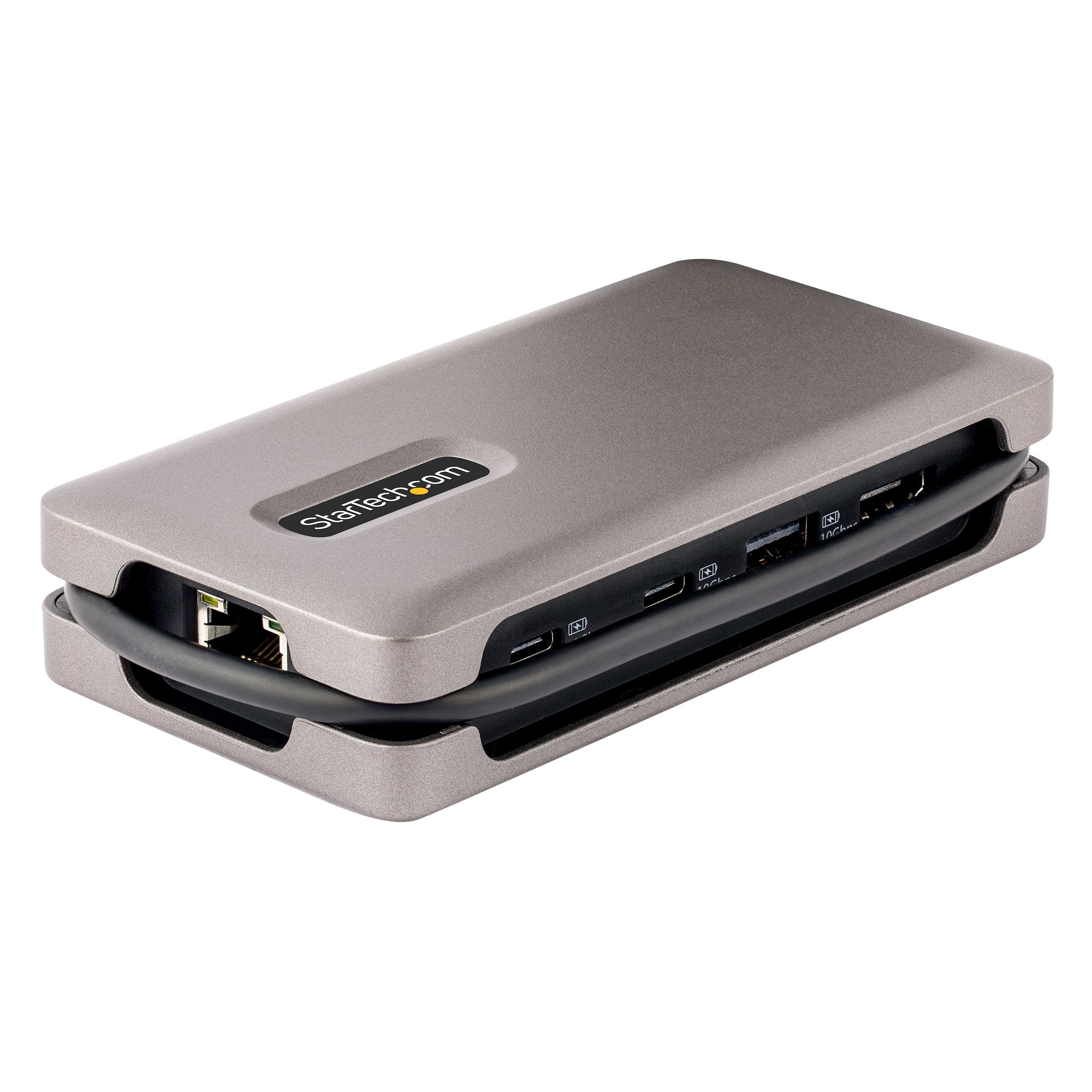

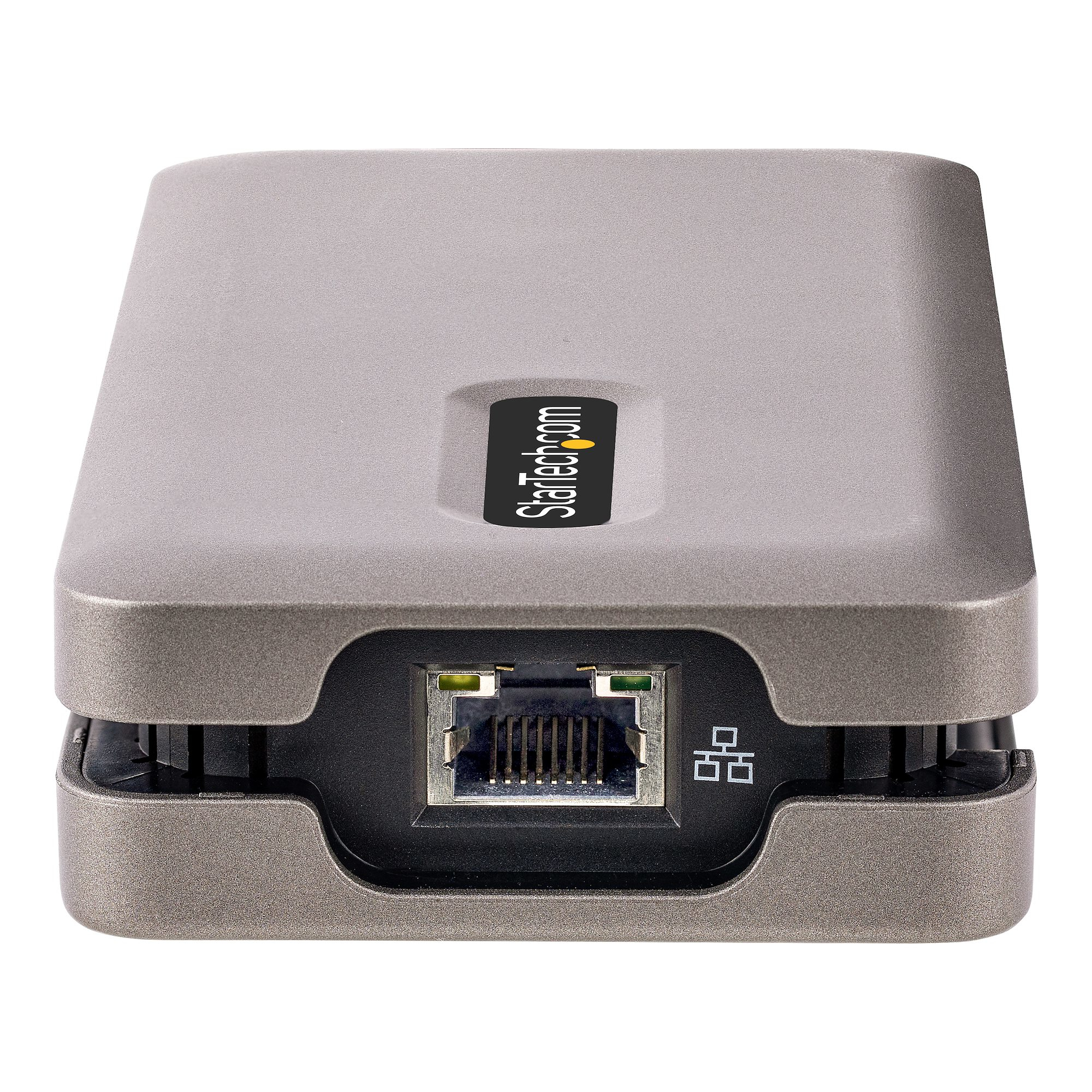

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.

Host Connection

Maximum Resolution

DP 1.4 Alternate Mode

Up to 4K 60Hz

DP 1.2 Alternate Mode

Up to 4K 30Hz

Connect and Charge Your USB Devices

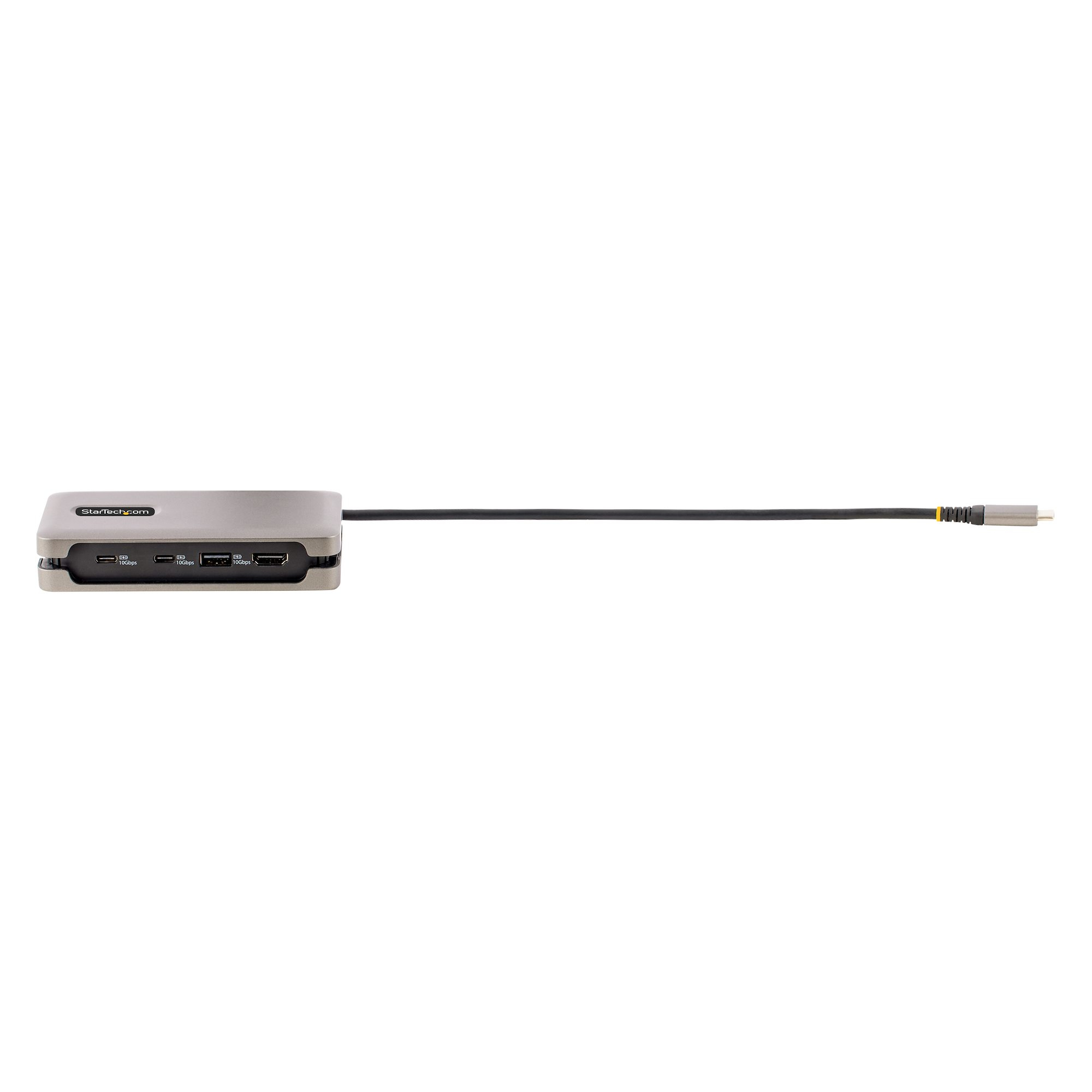

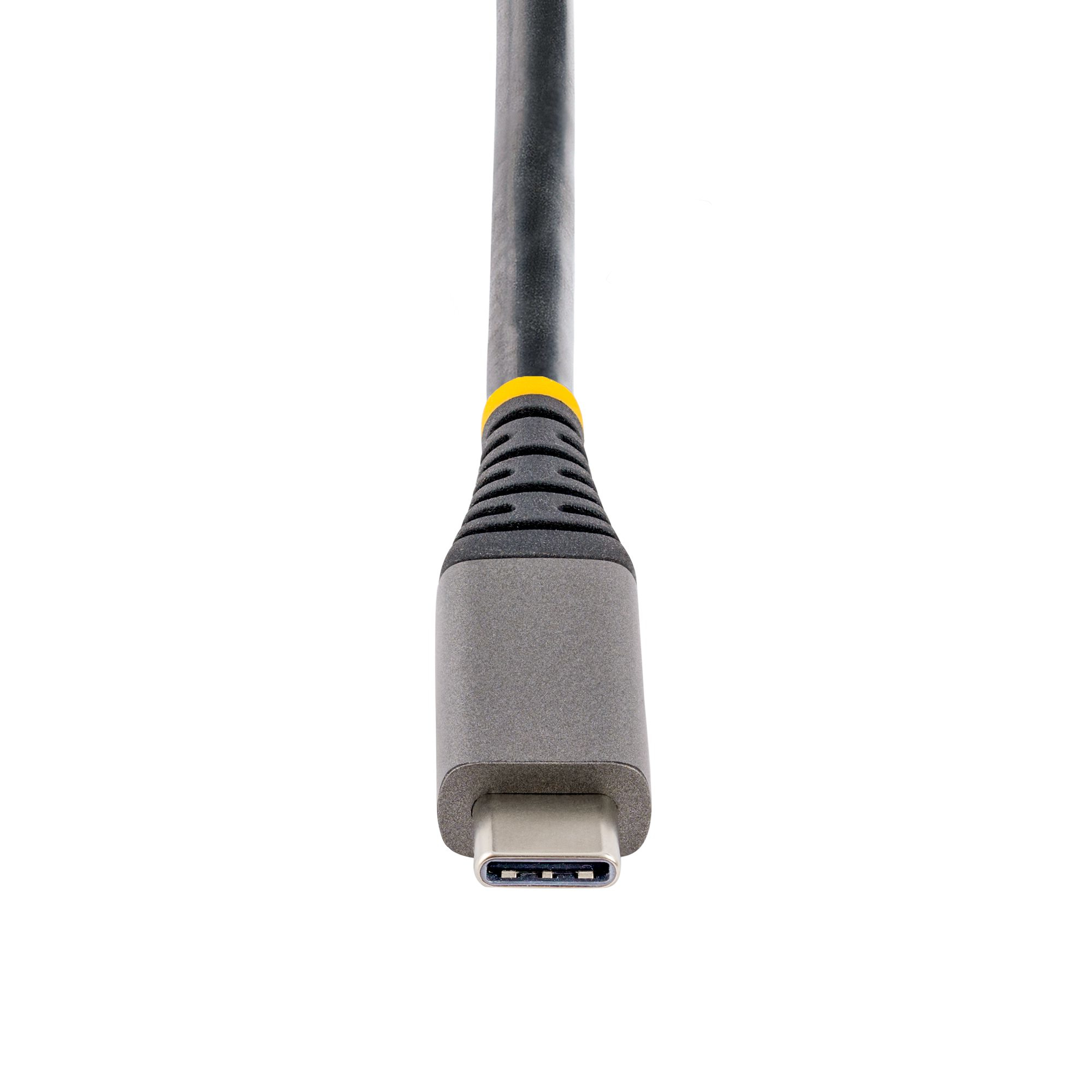

The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.

Portable Connectivity

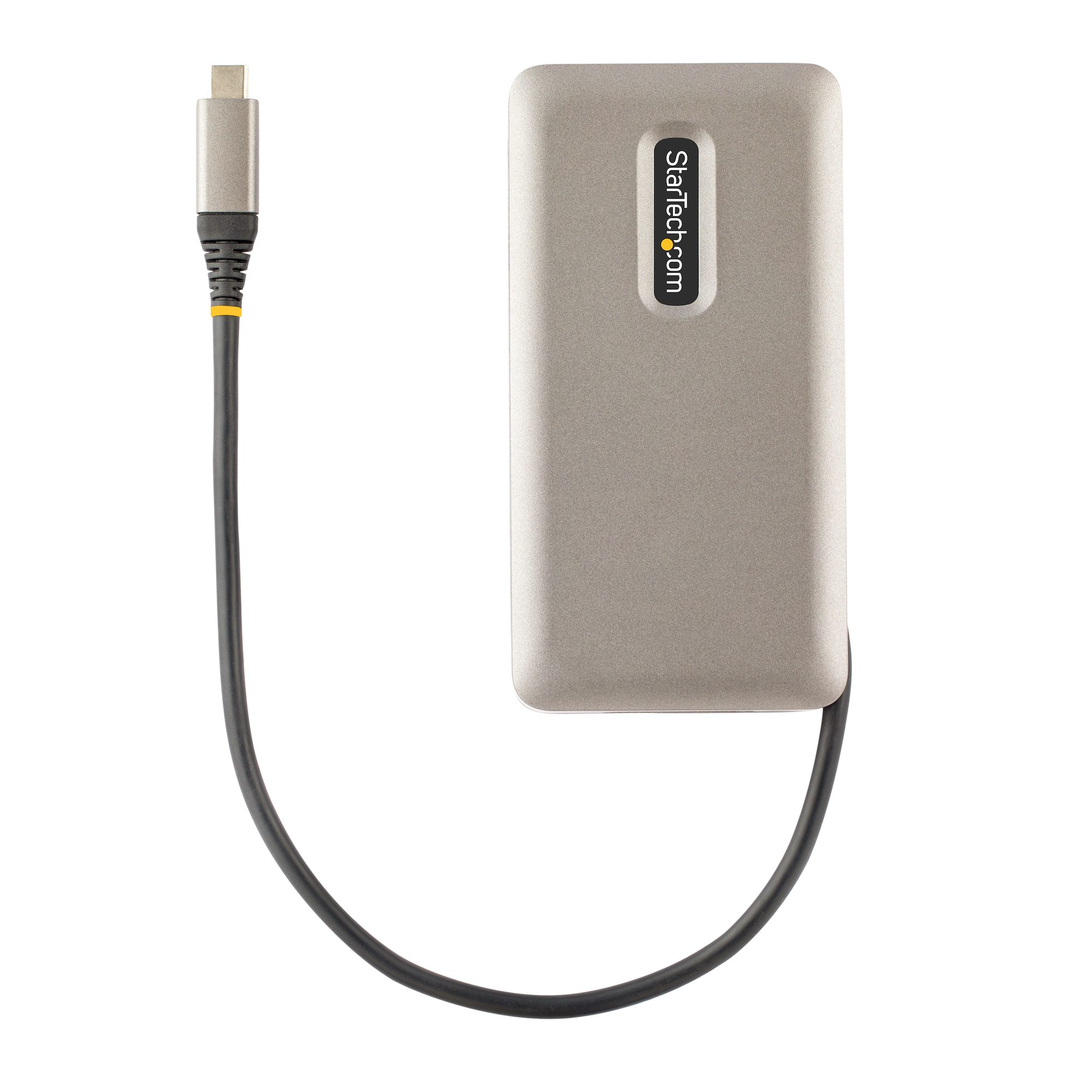

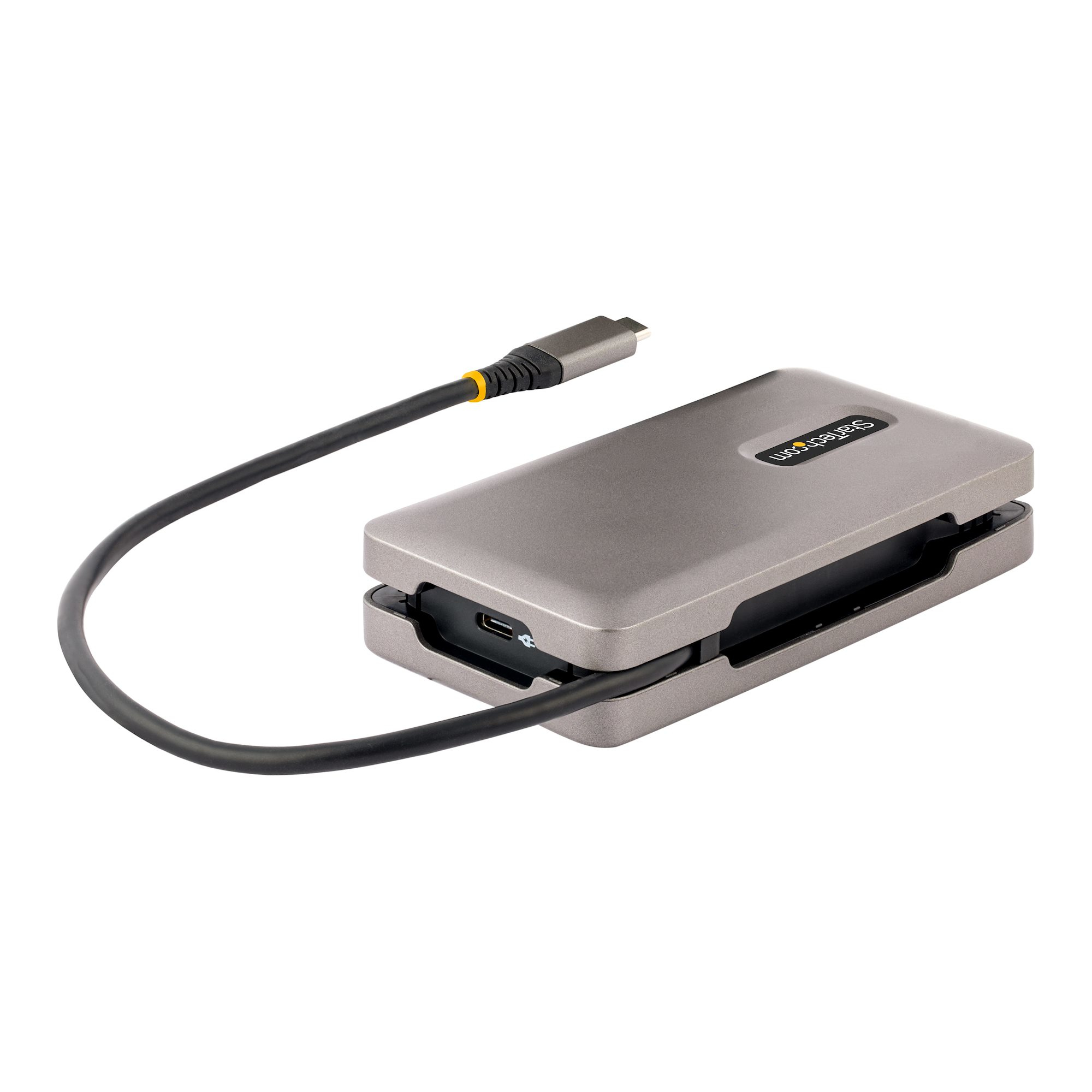

For use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• Mac Address Pass-Through Utility: To improve network security.
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage
