Ports & interfaces Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 4 HDMI ports quantity 0 Card reader integrated No DC-in jack No Features Product color Gray Housing material Plastic USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W Cable length 0.345 m Power Power source type USB Power consumption (typical) 15 W Weight & dimensions Width 60 mm Depth 135 mm Height 20 mm Weight 160 g Packaging data Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 175 g Operational conditions Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 80 °C Operating relative humidity (H-H) 0 - 85% Logistics data Master (outer) case width 473 mm Master (outer) case length 331 mm Master (outer) case height 440 mm Quantity per master (outer) case 70 pc(s) Harmonized System (HS) code 84733020 Technical details Compliance certificates CE, RoHS Other features Chipset Realtek - RTS5423, VIA - VL160 Sustainability Sustainability compliance Yes

USB 3.2 Gen 2 (10Gbps) | 4x USB-C | 100W Power Delivery Pass-Through | Built-in 12.6 in (32 cm) Wrap-Around Cable

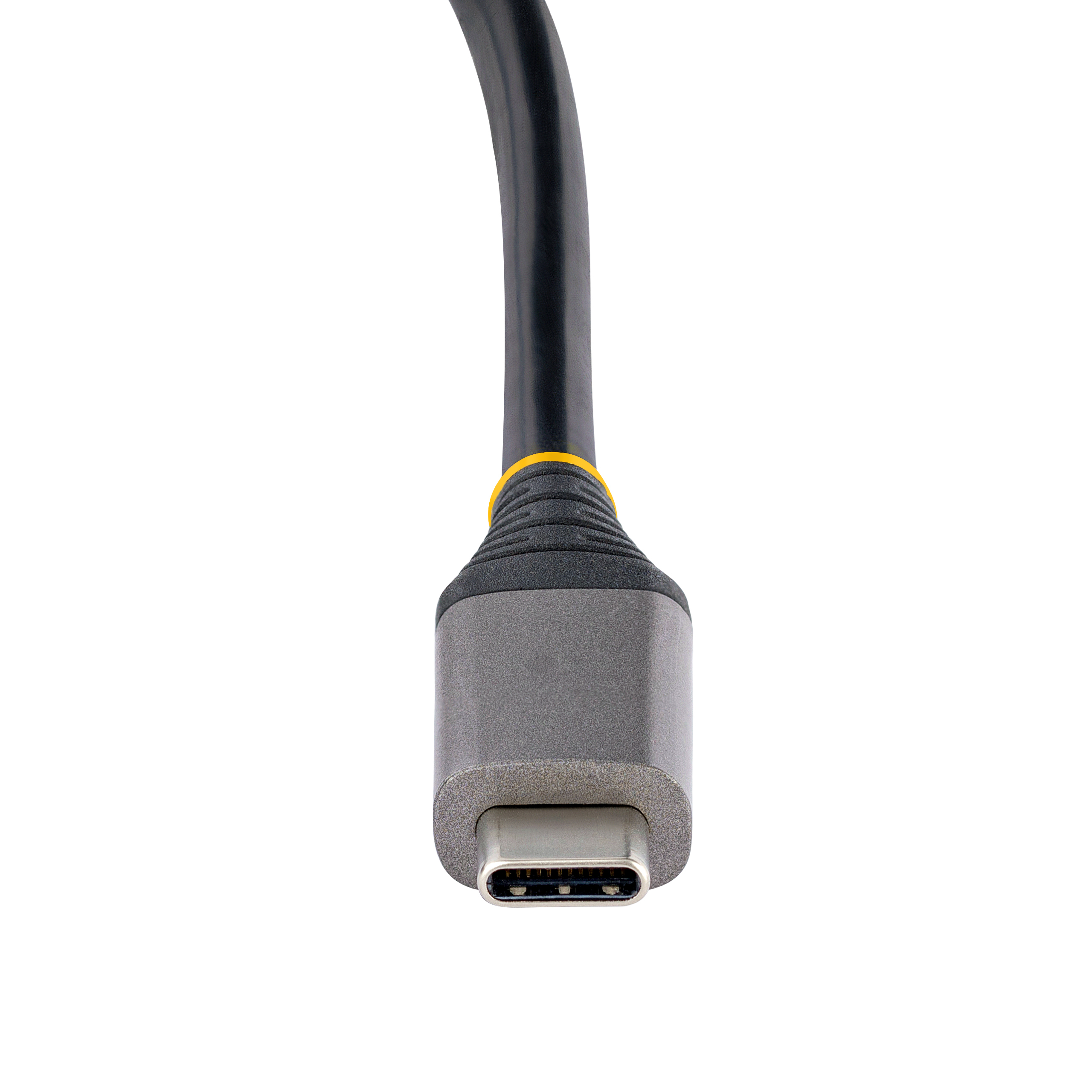

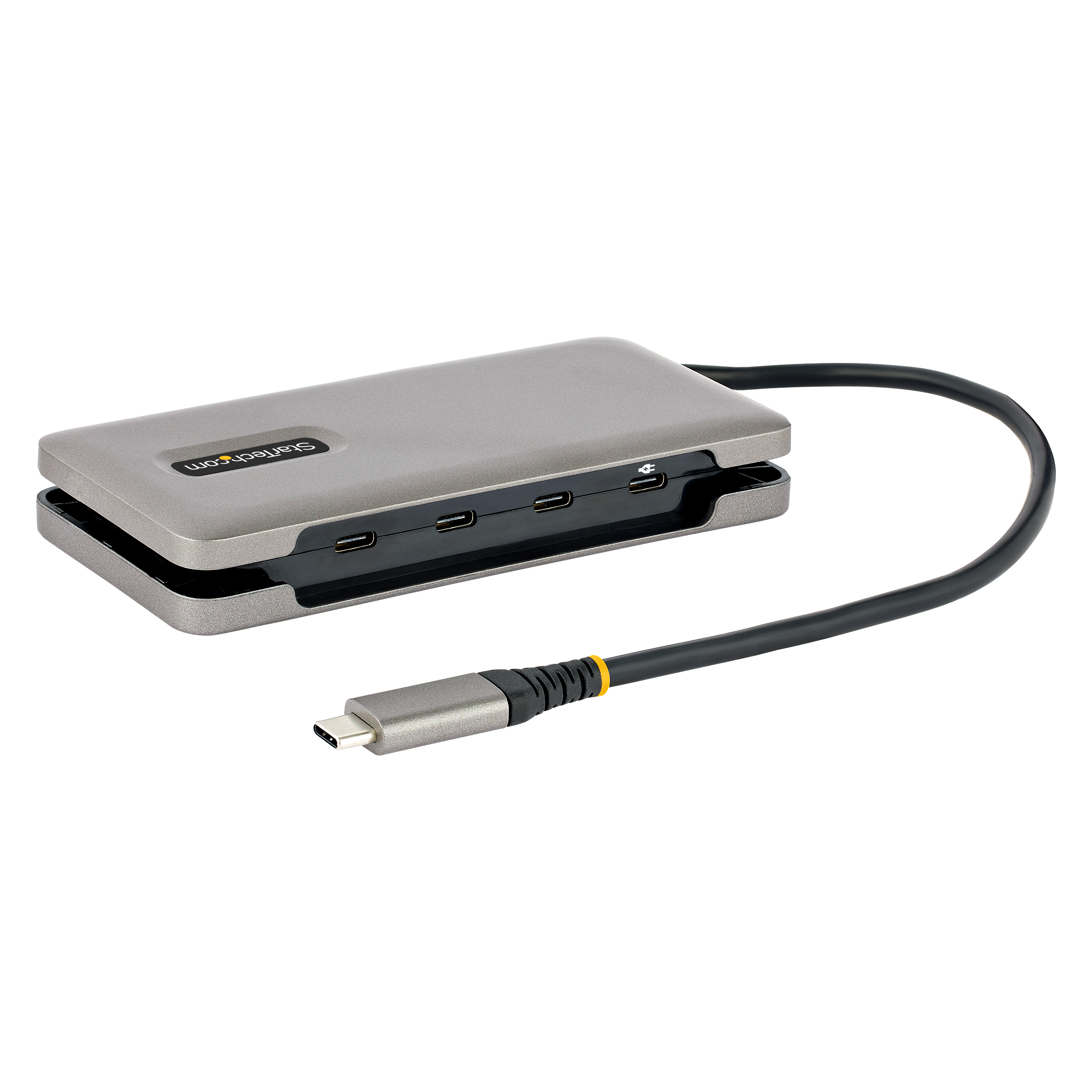

This 4-Port USB-C Hub with optional USB Power Delivery (PD) pass-through, expands the connectivity of a USB-C laptop. This hub features four USB 3.2 Gen 2 (10Gbps) Type-C ports, that support high-bandwidth USB peripherals. Connect the attached USB-C cable to a USB Type-C or Thunderbolt™ 3/4 port, located on the host computer, to enable the quick connection of up to 4 peripherals. This lightweight USB-C Hub can operate with bus-power. Alternatively, connect a USB-C power adapter (not included) to the designated USB-C PD port for laptop charging.

Charge Laptop and Connected Peripherals

Support for USB PD enables charging of the host laptop and up to three USB peripherals by connecting a USB-C power source to the PD pass-through port. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power). This allows you to charge the connected host device, as well as any devices connected to the three remaining USB-C ports.

With a USB-C power adapter connected, 15W will be reserved for the hub, with up to 85W available to power/charge the host computer and downstream devices (up to 7.5W per port).

Convenient Portability and Easy Setup

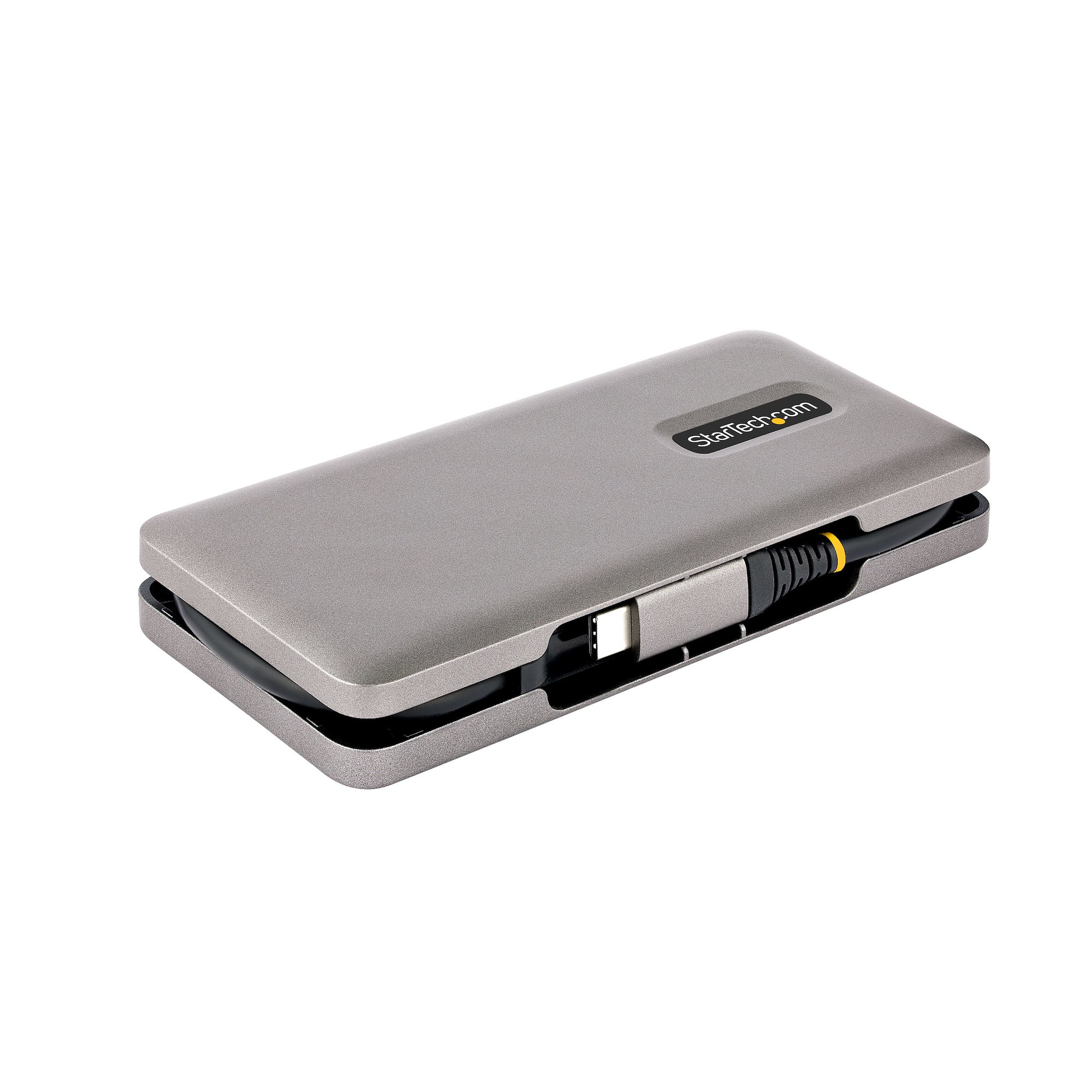

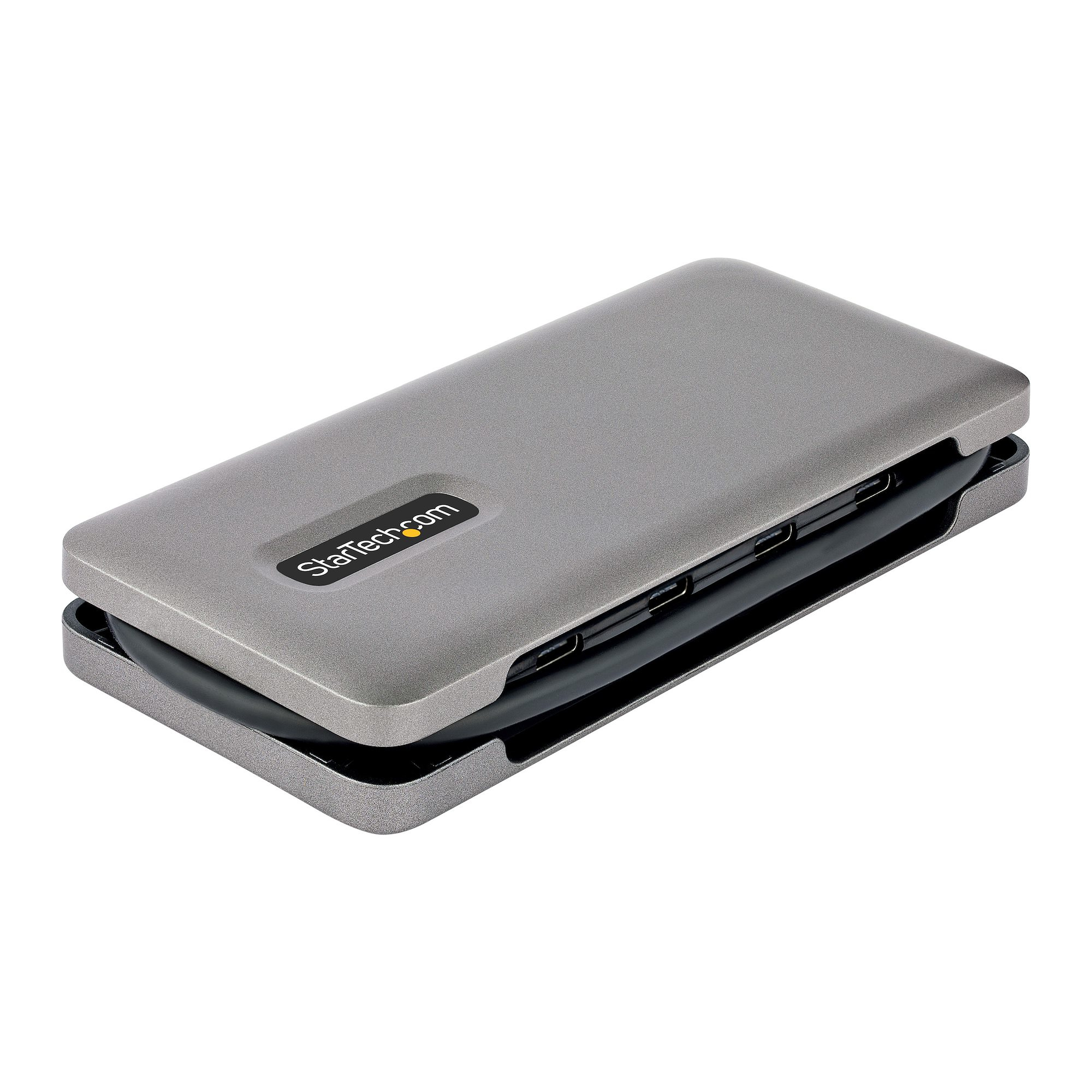

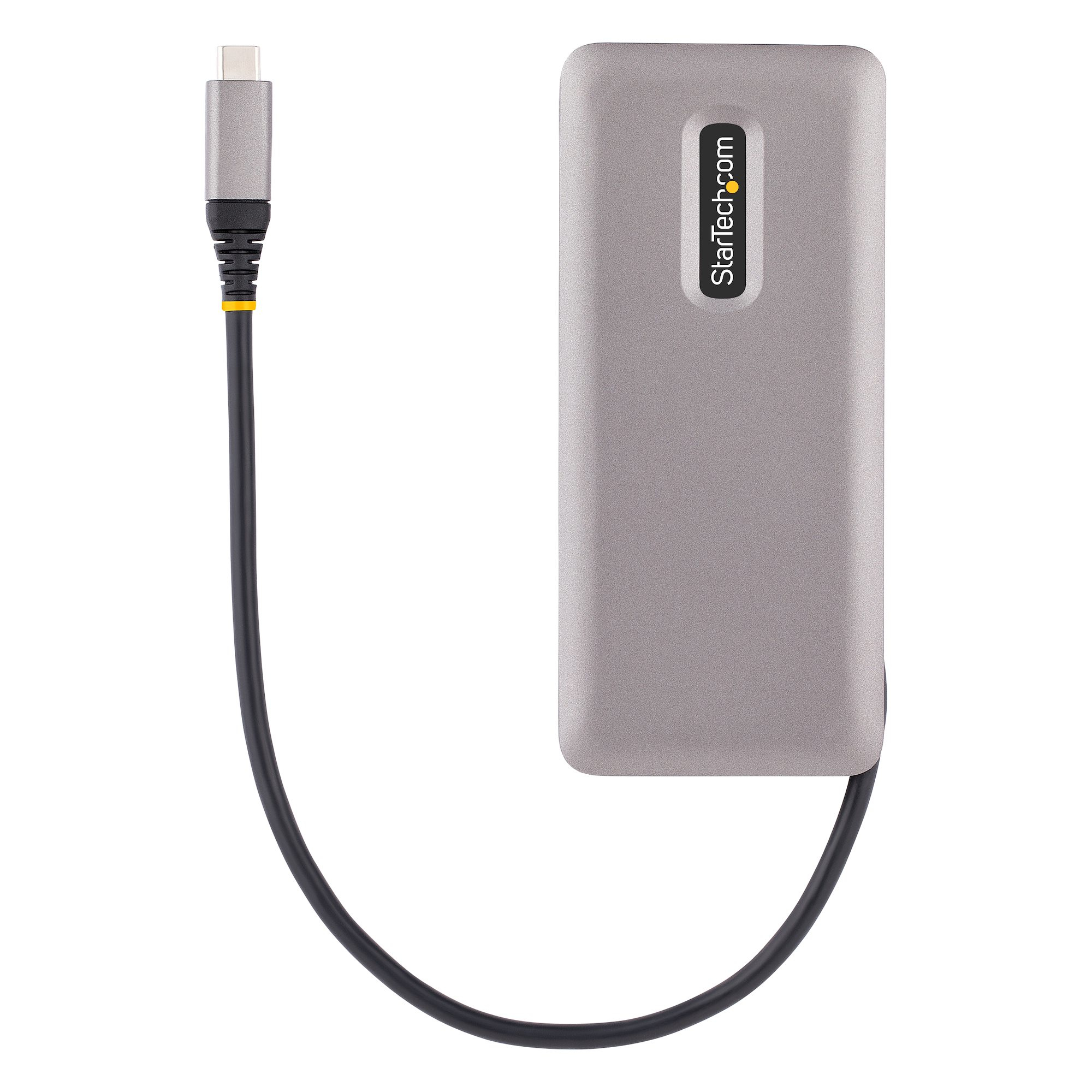

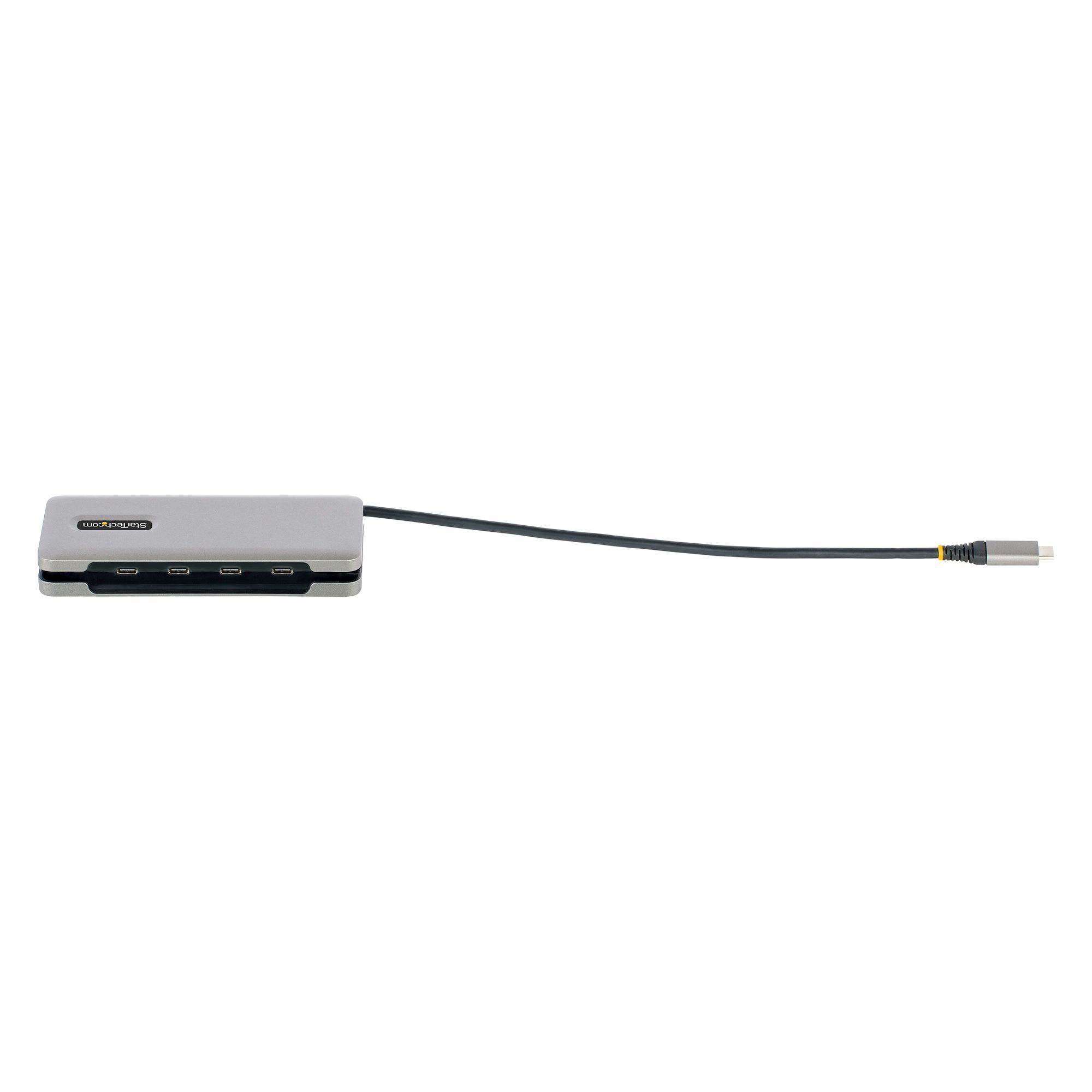

This USB-C hub is a compact and lightweight portable laptop accessory. The attached cable measures 12.6in (32cm) in length. This cable can be stored when the hub is being transported in a laptop bag, facilitating tangle-free stow-away portability.

USB-C Compatibility

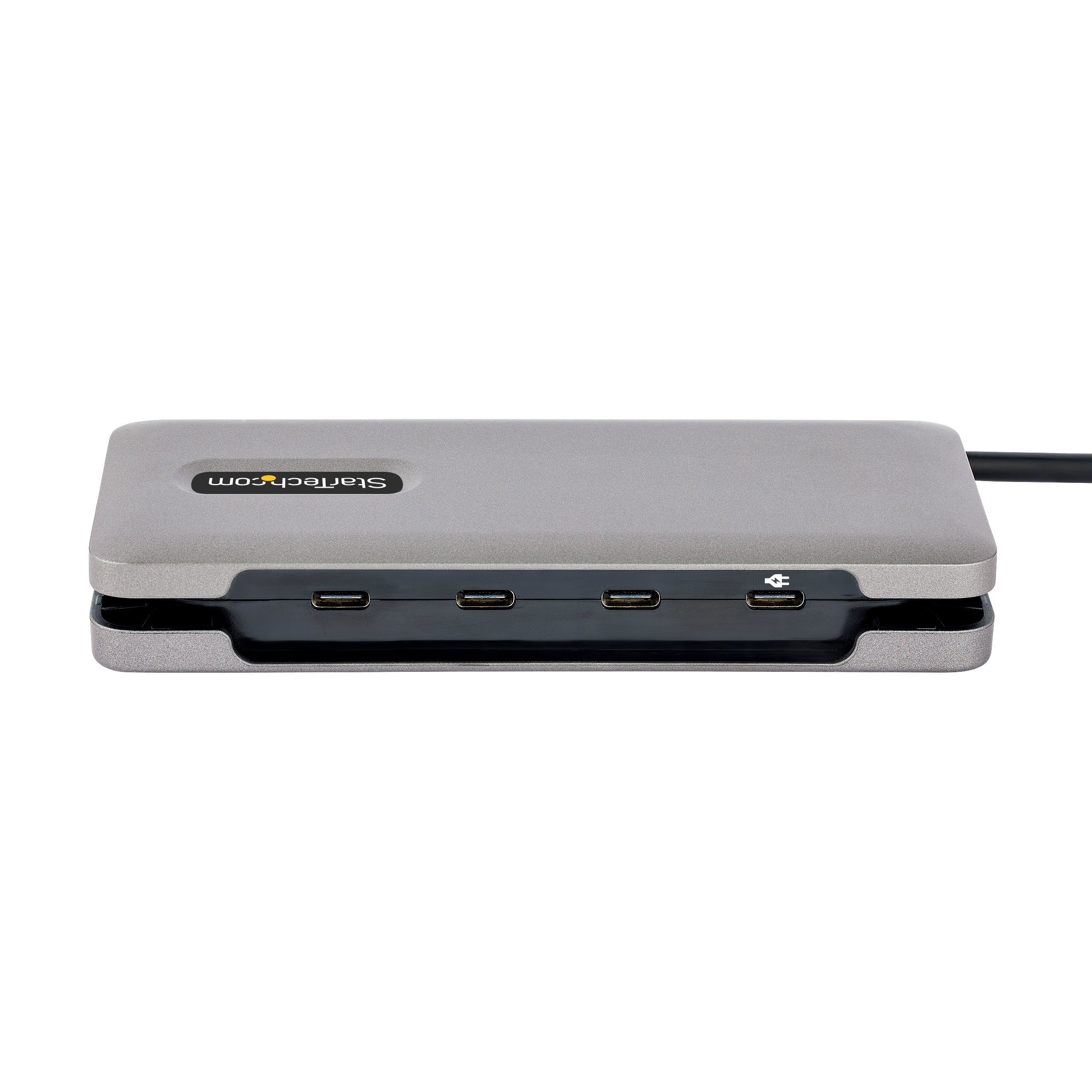

With four USB 3.2 Gen 2 (10Gbps) Type-C ports, and backward compatibility with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480Mbps), this USB hub supports new and legacy USB devices. Connect flash drives, video capture devices and external hard drives, with data transfer speeds of up to 10Gbps. This USB Type-C hub enhances productivity, providing the connections needed for the efficient use of multiple peripherals.

Hassle-Free Plug-and-Play Installation

The 4-Port USB Hub is OS independent. It supports all operating systems including Windows, macOS, ChromeOS, iPadOS and Android. This adapter is plug-and-play, requiring no software or drivers.

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
