Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 HDMI ports quantity 3 Headphone outputs 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W HDMI version 2.0 DisplayPorts quantity 2 DisplayPort version 1.4 Combo headphone/mic port Yes Headphone connectivity 3.5 mm USB Type-C DisplayPort Alternate Mode Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T Wake-on-LAN ready Yes Networking standards IEEE 802.3ab Performance Product color Gray, Silver Card reader integrated No Data transfer rate 10 Gbit/s HD type 4K Ultra HD Maximum digital resolution 4096 x 2160 pixels Maximum refresh rate 60 Hz Cable lock slot Yes Cable lock slot type Kensington LED indicators Power Housing material Plastic Power AC input voltage 100 - 240 V Input current 2.5 A Output voltage 24 V Output current 5.41 A Power consumption (typical) 15 W Power plug type Type M Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Yes Mobile operating systems supported Android Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -10 - 55 °C Operating relative humidity (H-H) 0 - 85% Weight & dimensions Width 85 mm Depth 190 mm Height 30 mm Weight 350 g Packaging data Package width 205 mm Package depth 250 mm Package height 50 mm Package weight 1.1 kg Packaging content Cables included AC, USB Type-C to USB Type-C AC adapter included Yes Quick start guide Yes Logistics data Quantity per master (outer) case 10 pc(s) Master (outer) case width 280 mm Master (outer) case length 430 mm Master (outer) case height 290 mm Other features Chipset DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0

Seamlessly standardize across platforms with triple 4K display support

This USB-C Triple 4K Monitor Docking Station enables wide workstation flexibility, featuring compatibility with USB-C, or Thunderbolt 3/Thunderbolt 4 laptops, and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

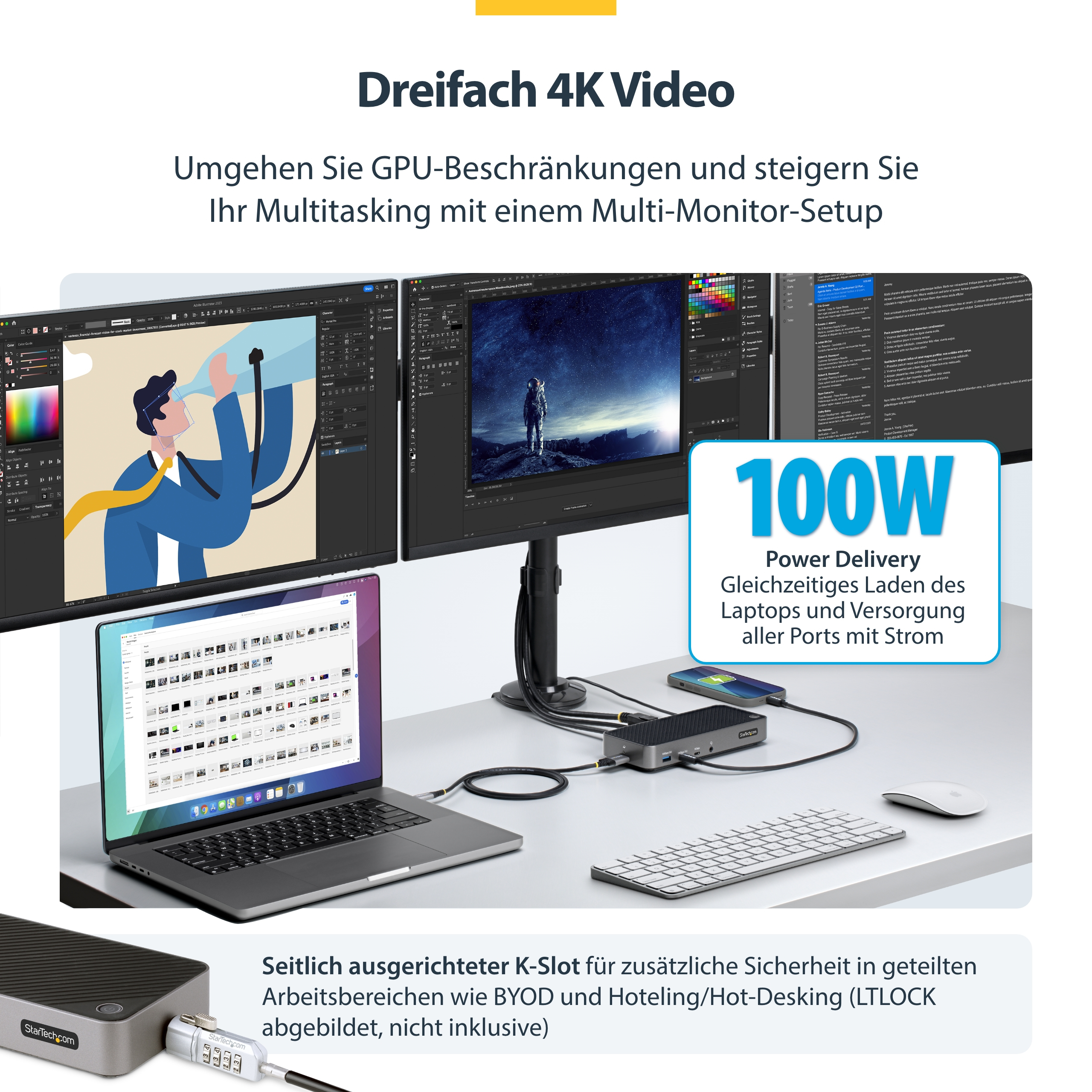

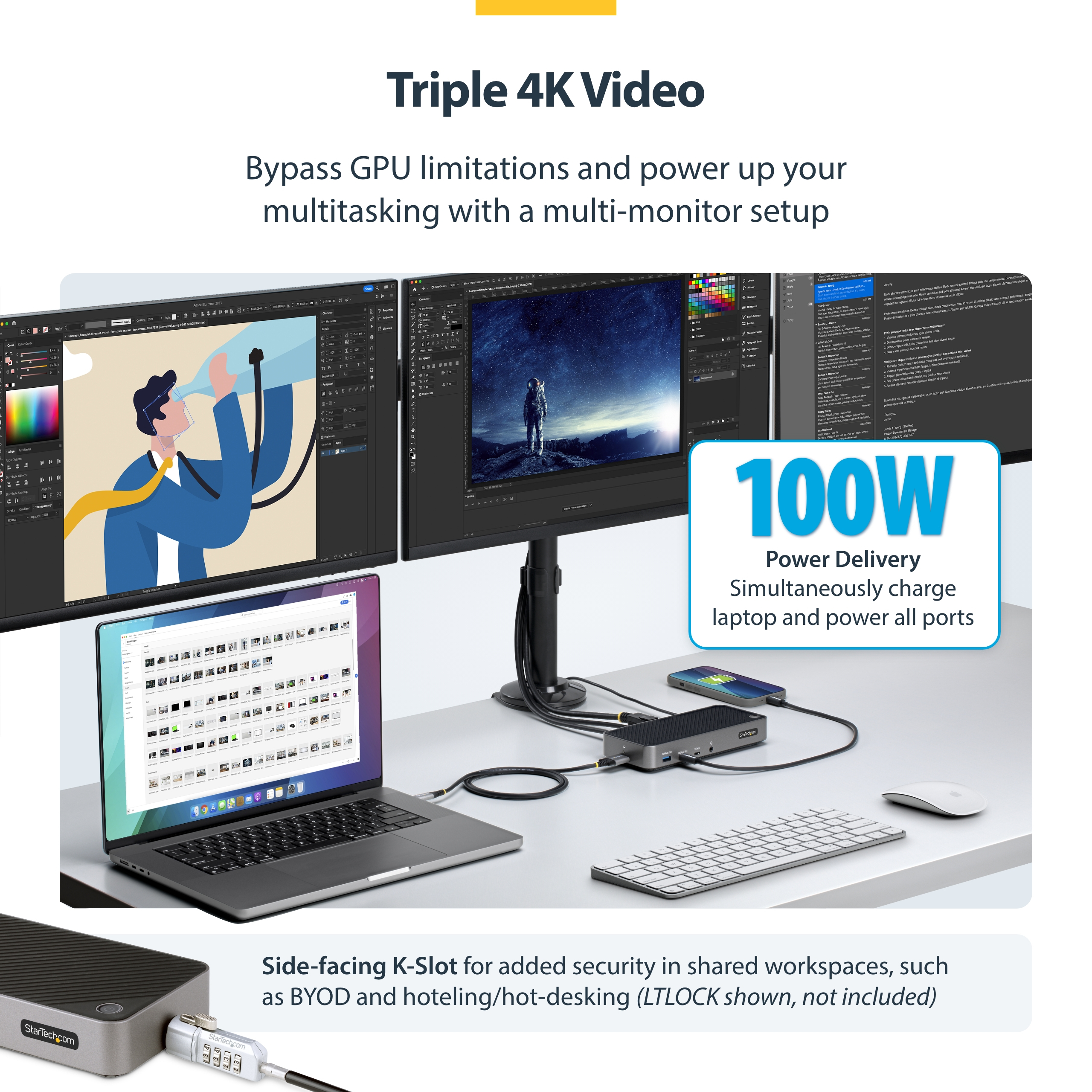

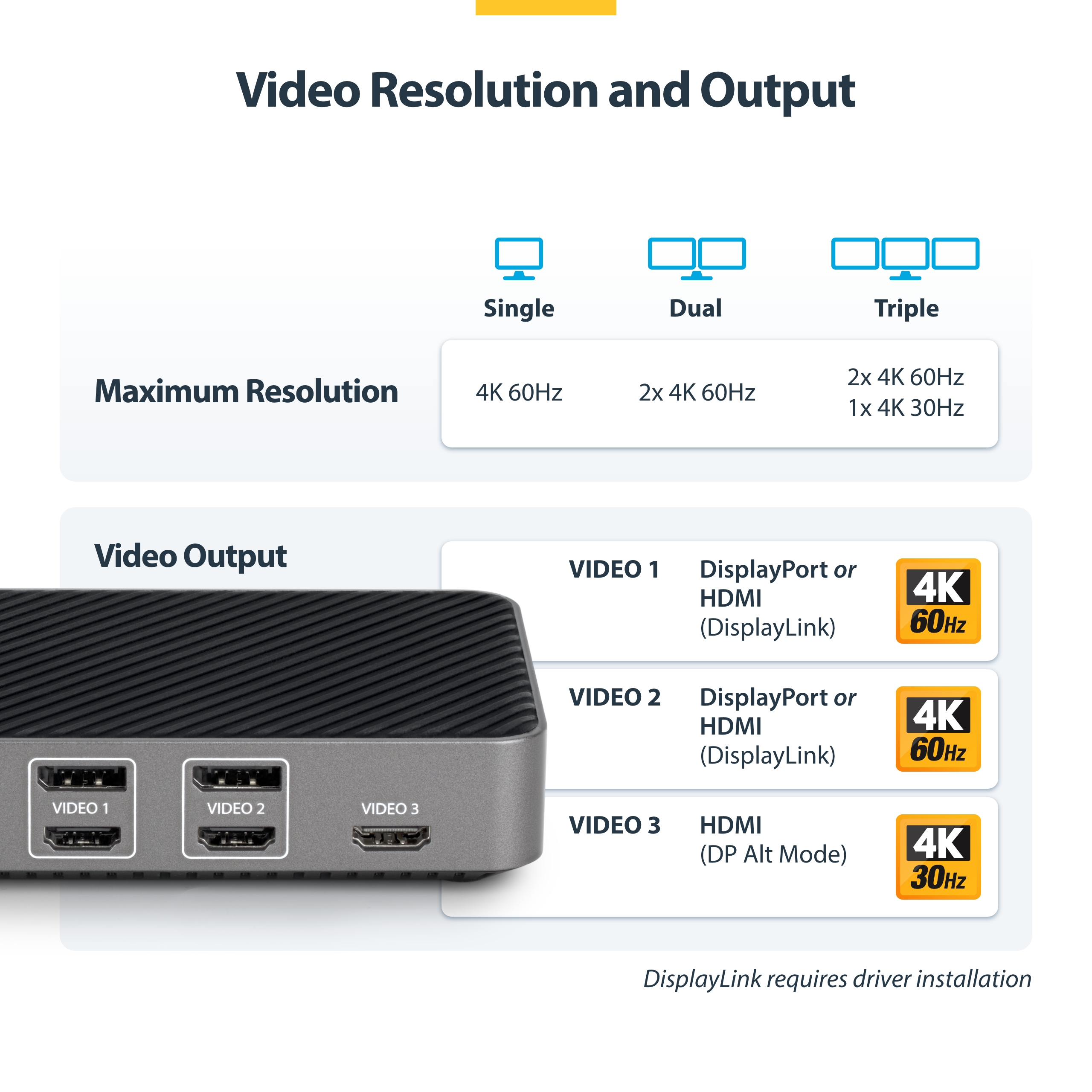

Enhance Productivity with Triple-4K Video

This triple-4K docking station uses a combination of its integrated DisplayLink® graphics controller and your computer's DP Alt Mode enabled USB-C port to provide three independent 4K displays.

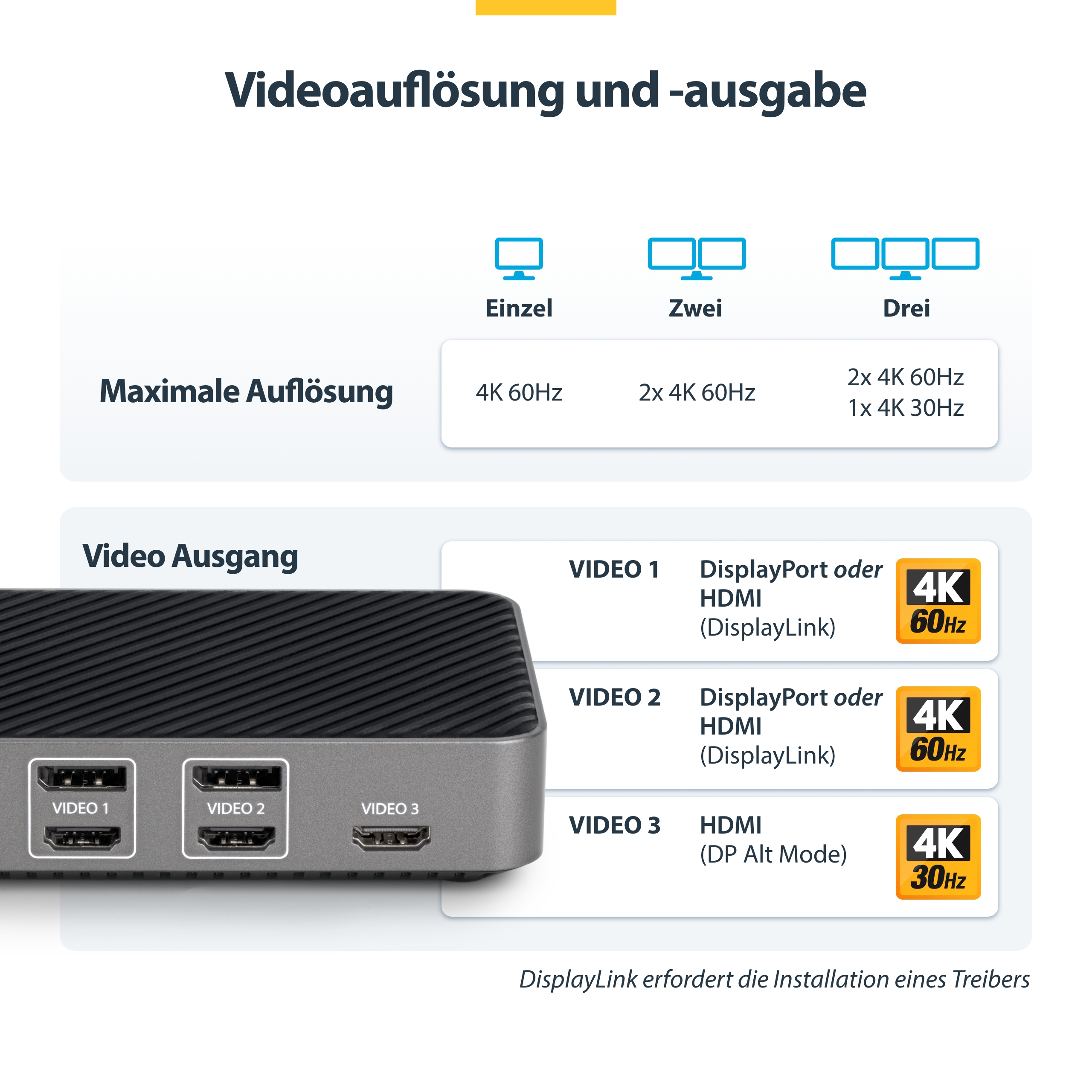

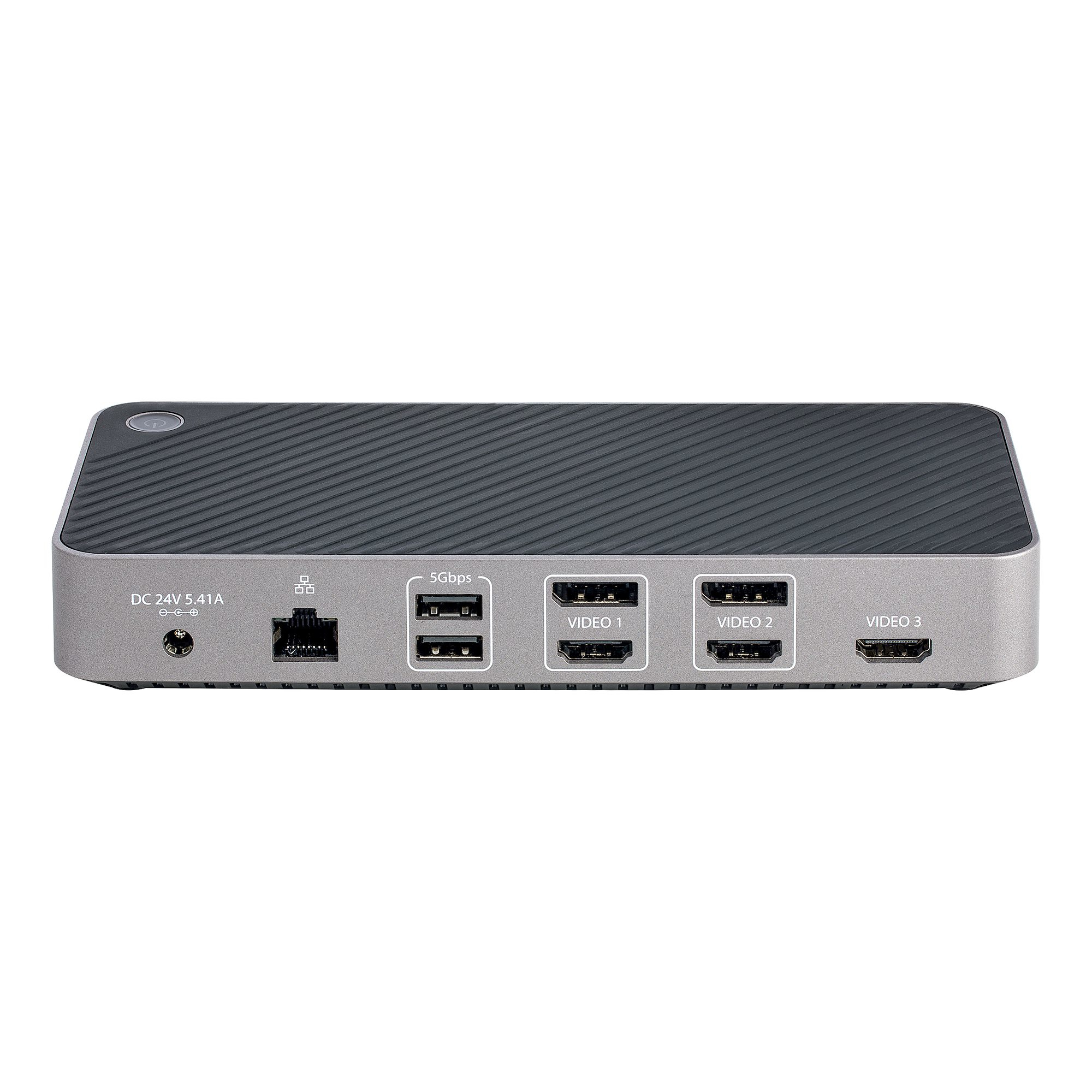

Connect any combination of HDMI and/or DisplayPort monitors to Video Ports 1 and 2 (DisplayLink®); at resolutions up to 4K at 60Hz. Connect an HDMI monitor to Video Port 3 (DP Alt-Mode), at resolutions up to 4K at 30Hz. This high-resolution video performance is ideal for detailed graphics applications, enhancing your productivity by expanding the display capabilities of your laptop.

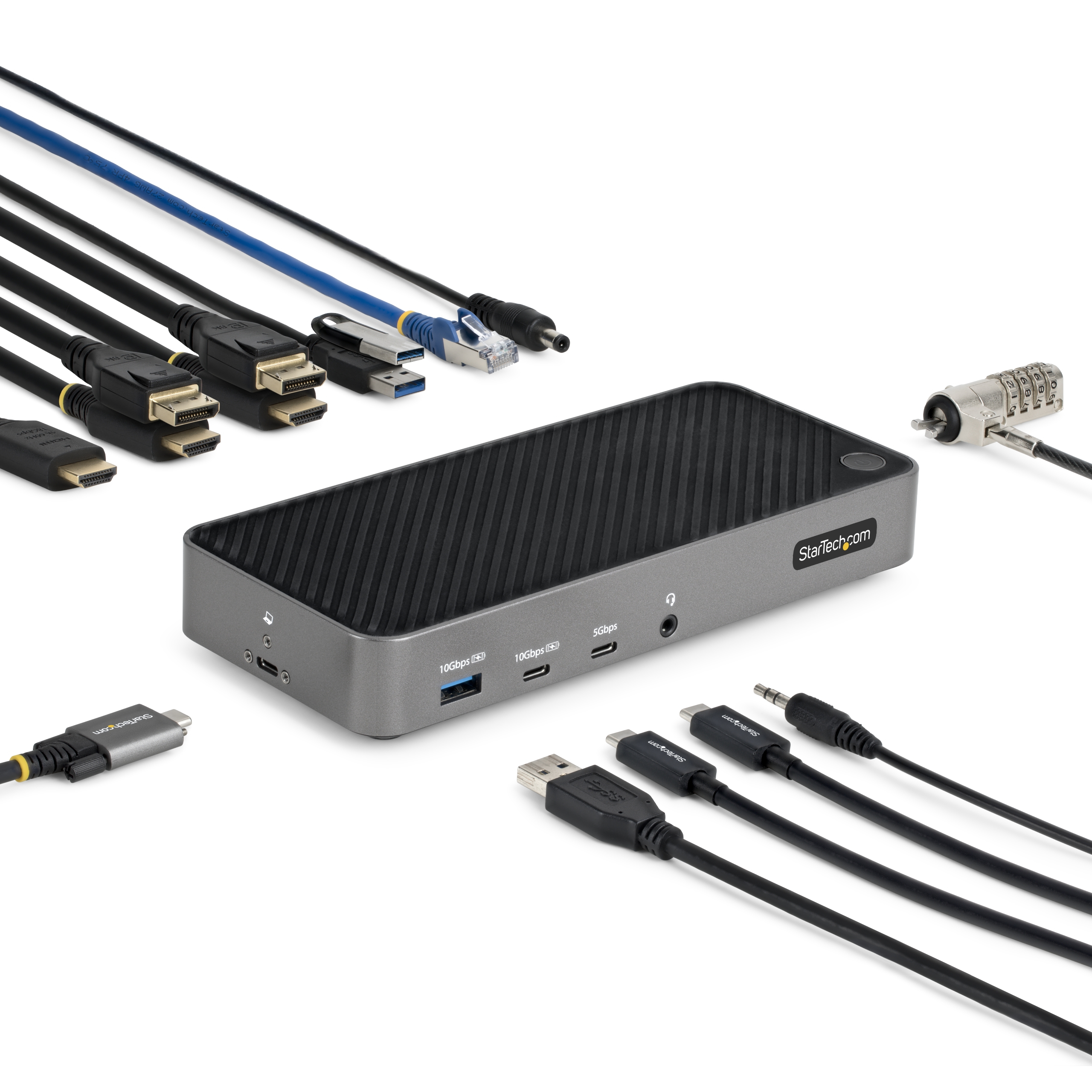

Full-Featured Docking Station

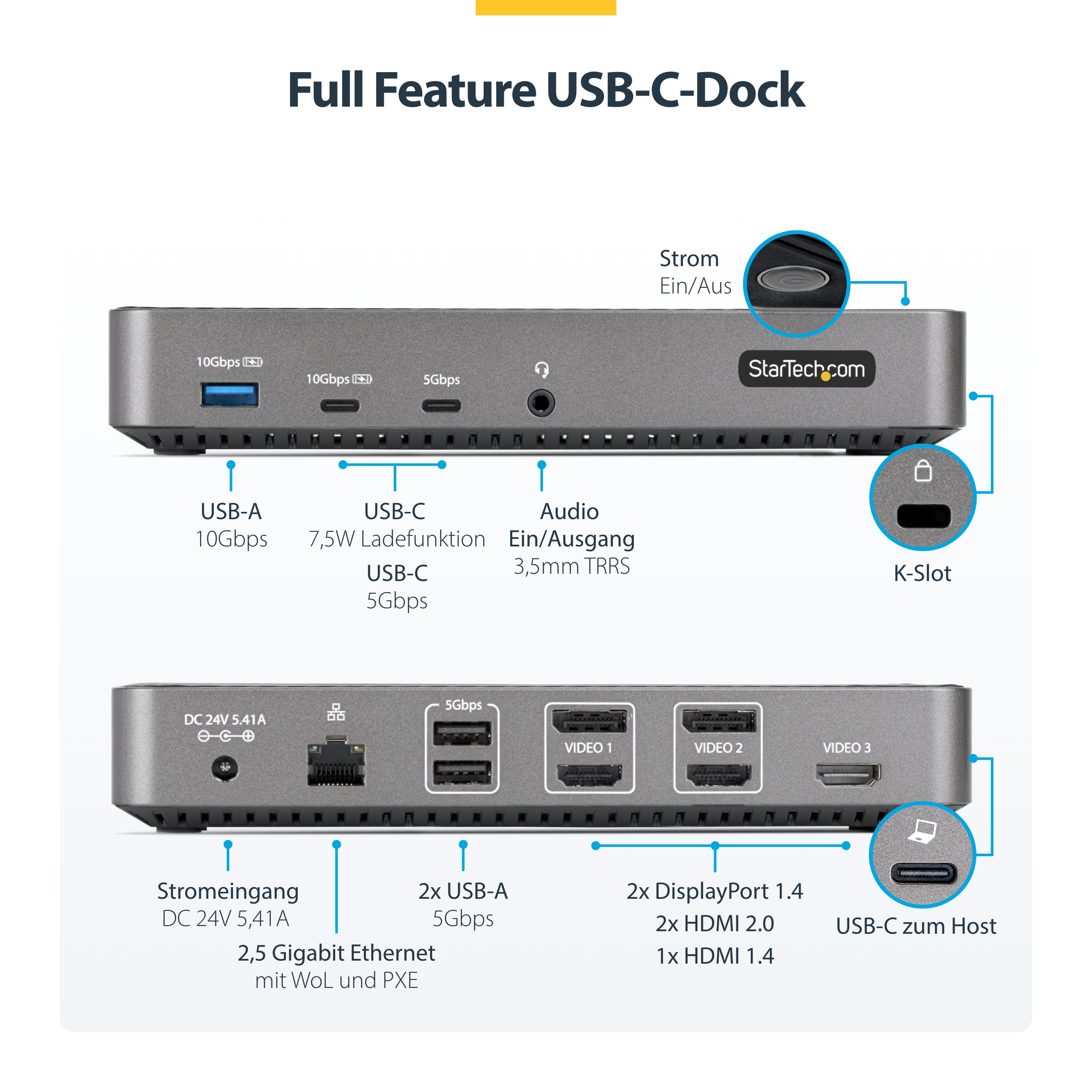

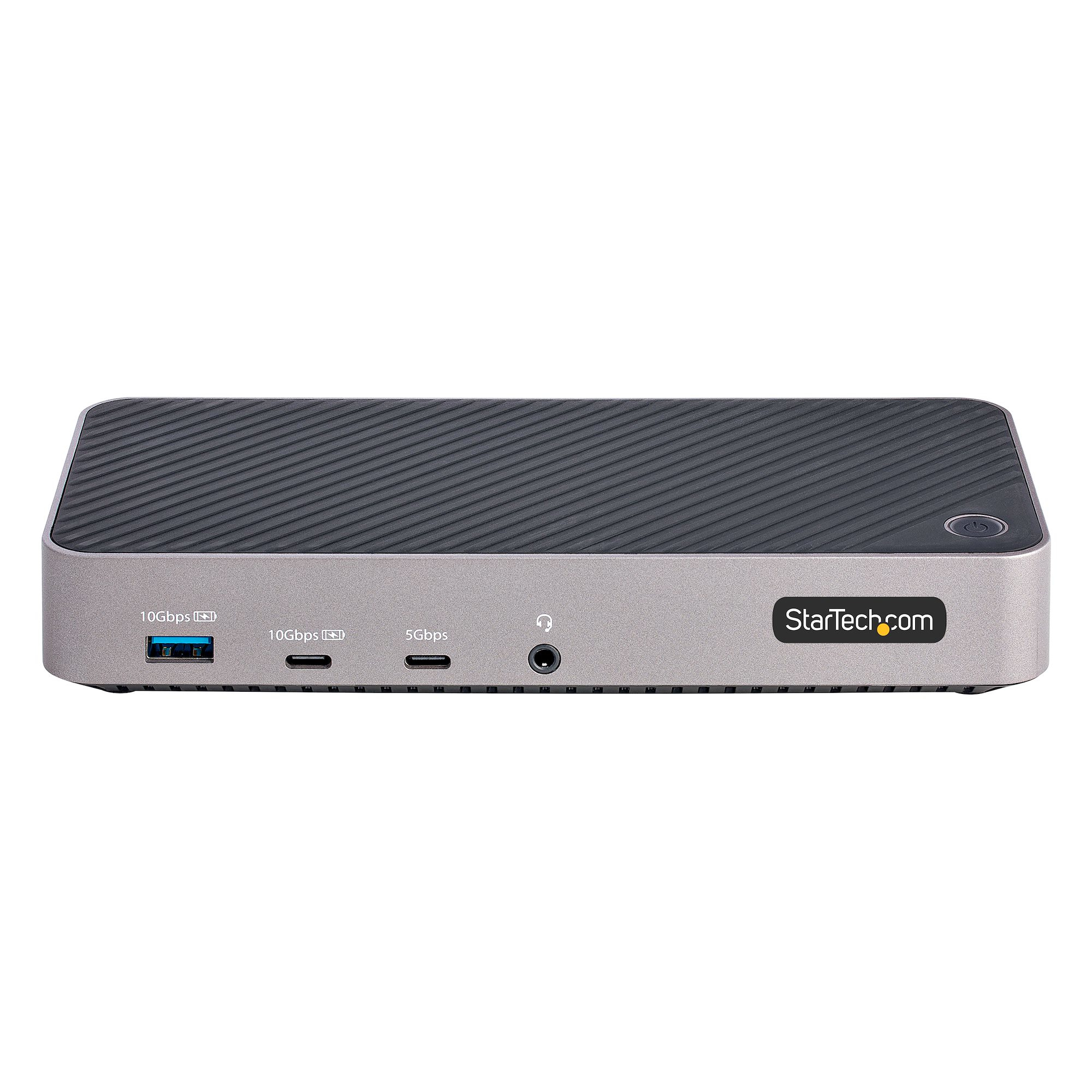

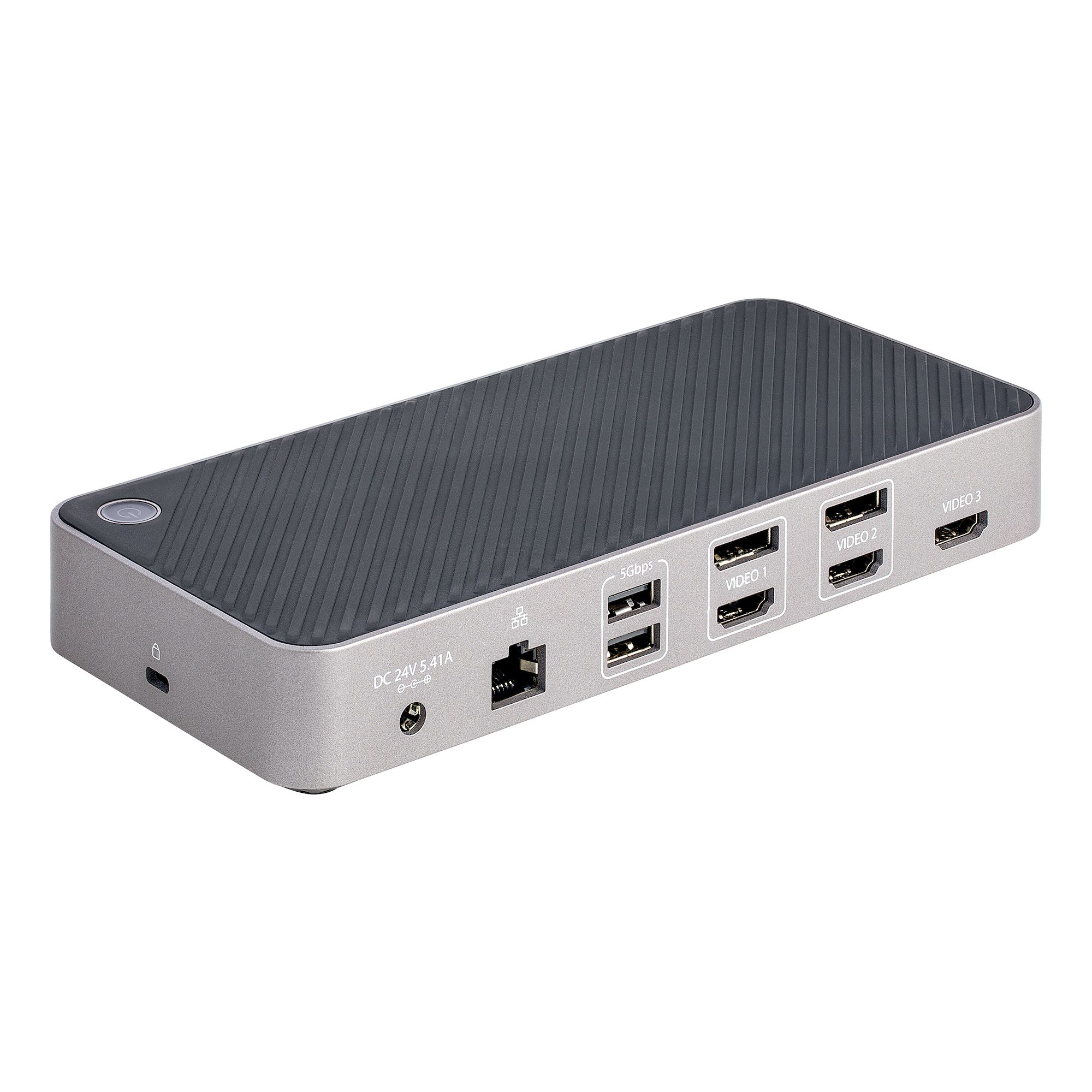

Connect the docking station to your computer's USB 3.2 Gen 2 (10Gbps) Type-C port to provide a wide range of port connectivity, options and features. The docking station features:

• 2x USB-A and 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for USB peripheral devices.
• 1x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones.
• 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
• 1x 3.5mm 4-position TRRS Audio Jack for a 3.5mm headset.

100W USB Power Delivery

The USB-C docking station supports 100W USB Power Delivery with the included power adapter. This allows you to charge the connected host device, as well as the devices connected to the BC 1.2 USB charging ports.

For added protection to connected USB devices, the BC 1.2 enabled USB charging ports feature Overcurrent Protection (OCP). OCP prevents USB peripherals from drawing more power than is safely allocated for the port.

Easy Deployment

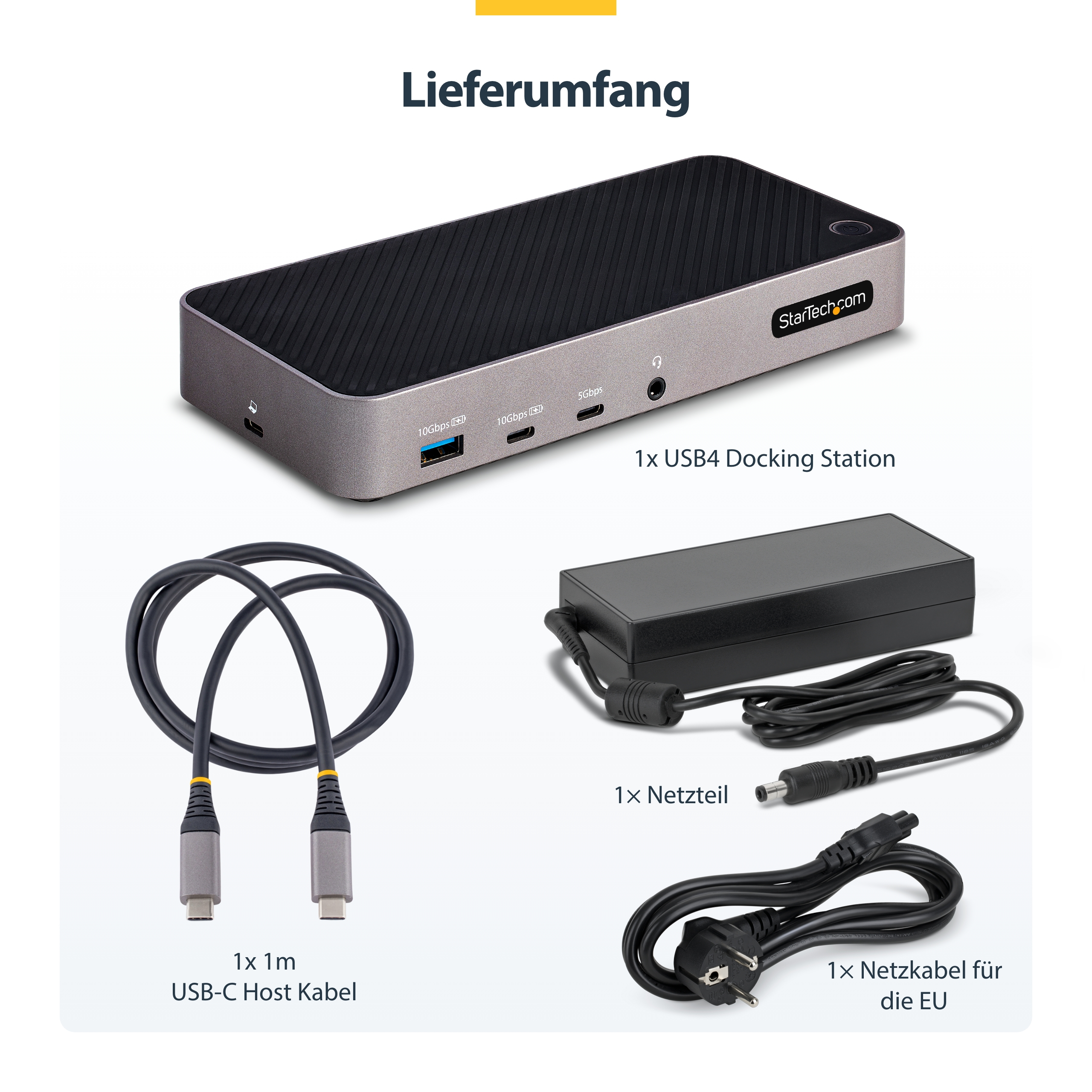

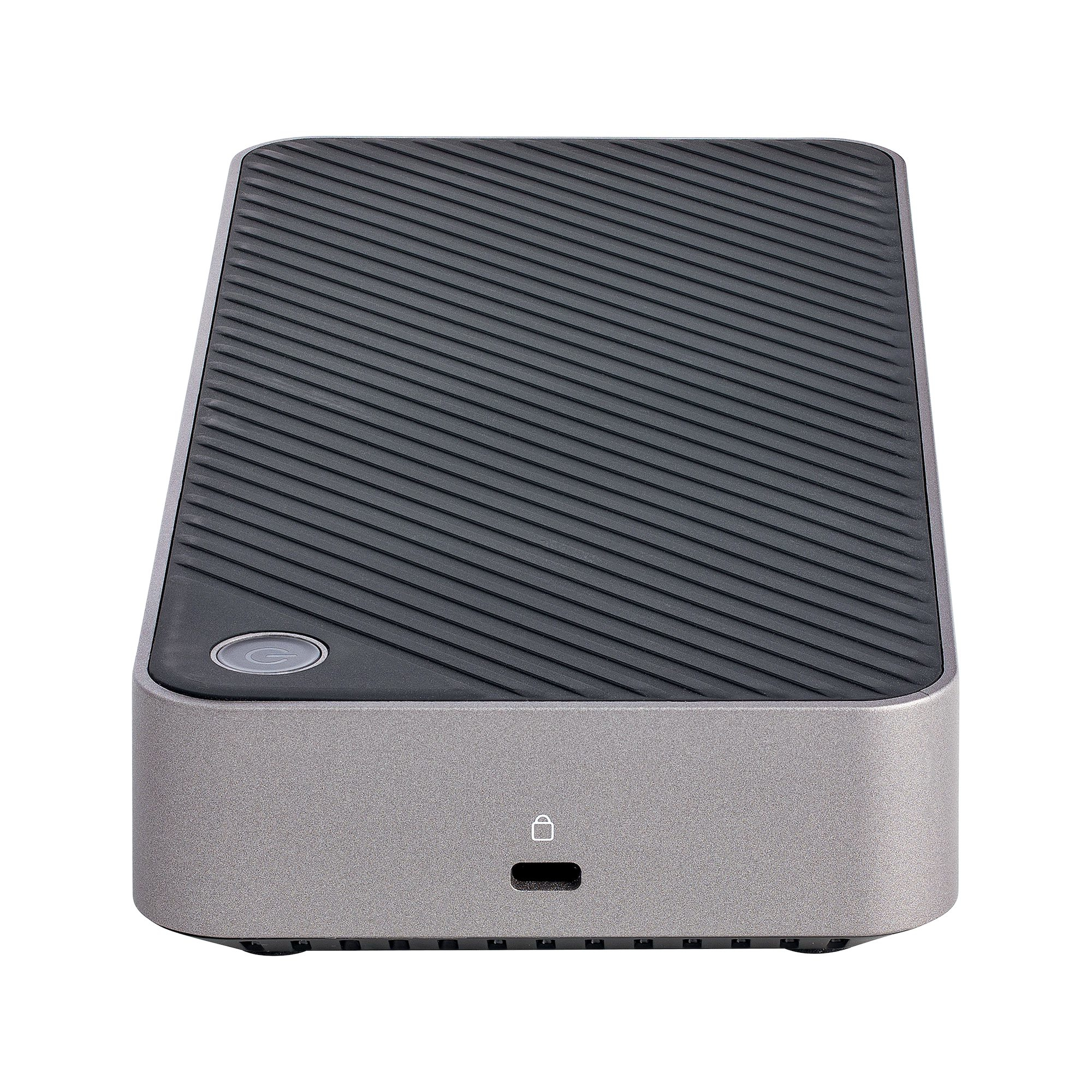

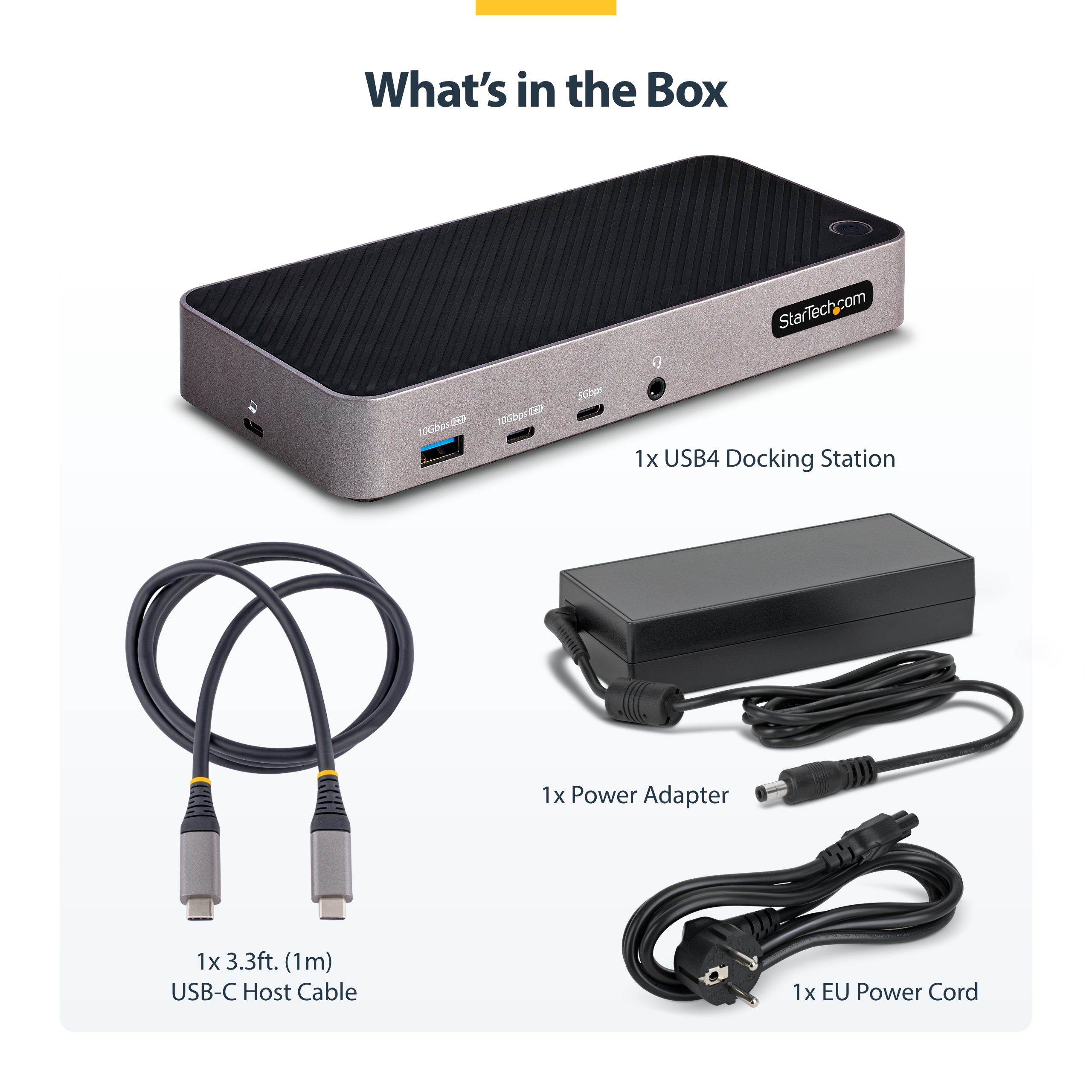

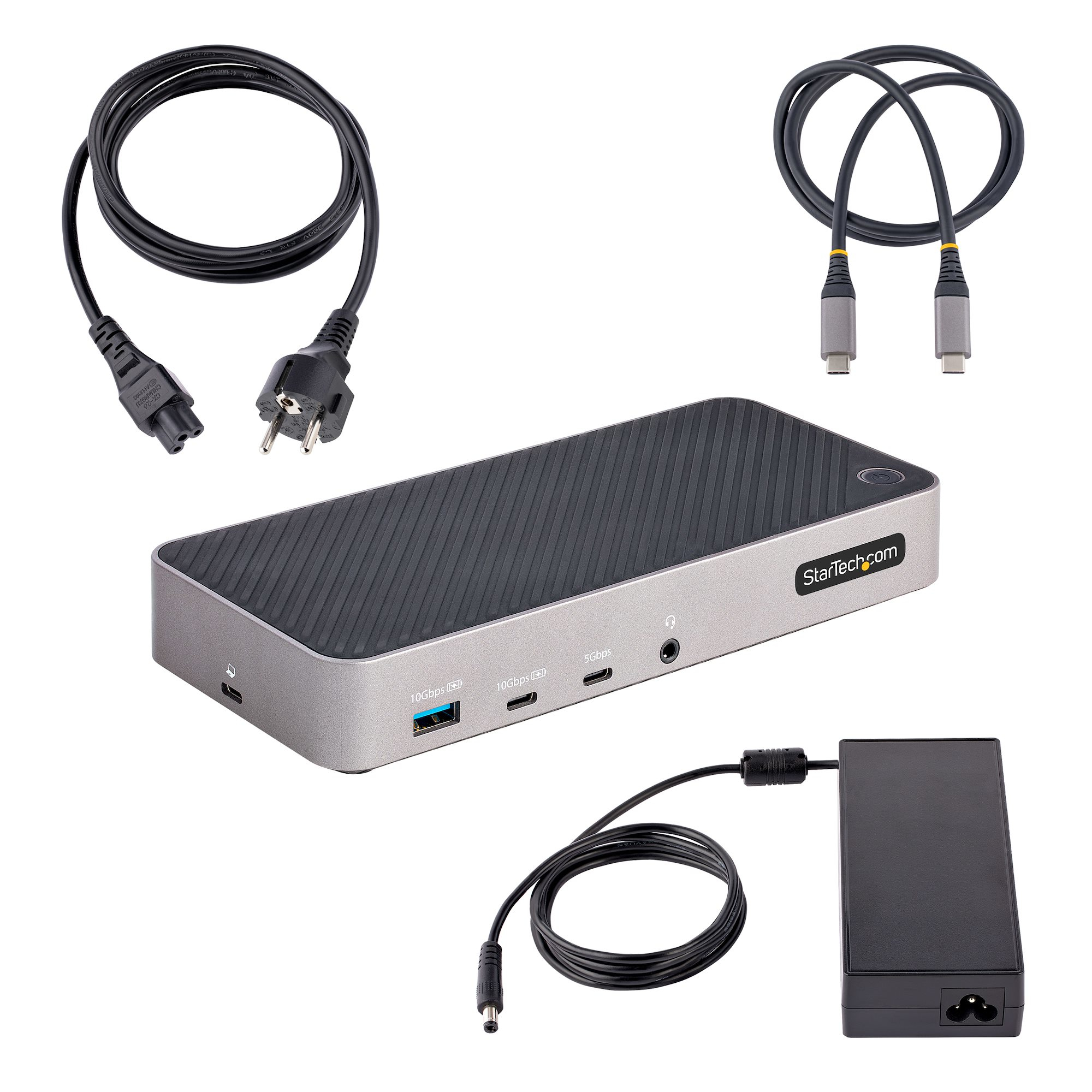

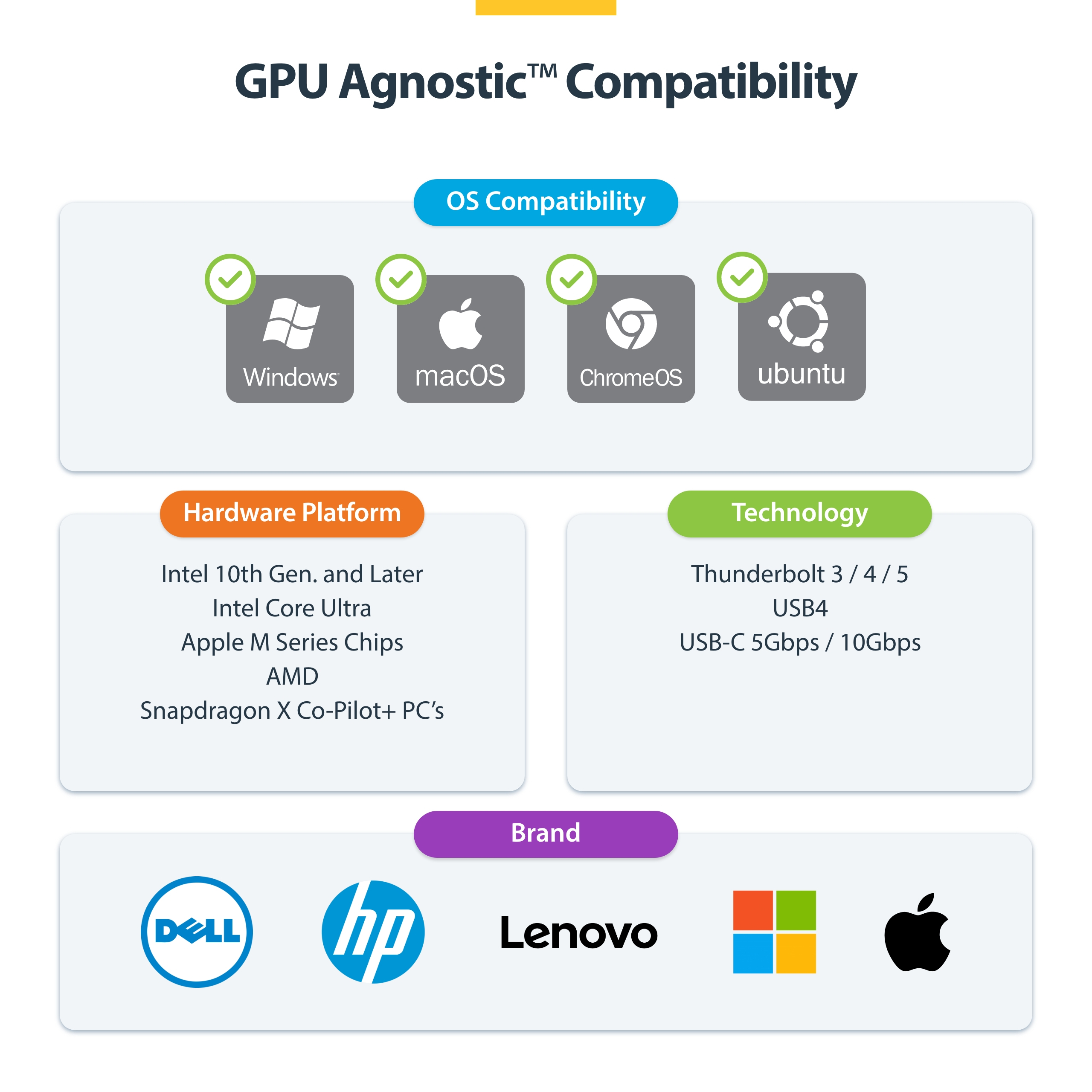

Connect the dock to your host computer, using the included 3.3ft (1m) USB-C cable. The docking station supports all major operating systems, including Windows, macOS, ChromeOS, and Ubuntu. This dock was designed for seamless integration with any compatible USB-C equipped device within your organization, including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision/XPS 15, HP Envy, Surface Laptop 3, and M1 Pro/Max/M2 MacBooks. The dock features a side-facing K-Slot for added security in shared workspaces (e.g., BYOD hoteling/hot-desking).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : Setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : Improve network security.

•

USB Event Monitoring Utility : Track and log connected USB devices.

•

Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
