Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB Power Delivery Yes USB Power Delivery up to 100 W HDMI version 2.0b DisplayPorts quantity 1 DisplayPort version 1.4 DC-in jack No Network Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Full duplex Yes Performance Product color Gray Card reader integrated No Data transfer rate 10 Gbit/s HD type 4K Ultra HD Maximum digital resolution 4096 x 2160 pixels Maximum refresh rate 60 Hz LED indicators Yes UASP support Yes Power USB cable length 0.32 m Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported Ubuntu 18.04 LTS, Ubuntu 20.04 LTS Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 55 °C Operating relative humidity (H-H) 0 - 85% Weight & dimensions Width 64 mm Depth 124 mm Height 25 mm Weight 130 g Packaging data Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 152 g Packaging content Quick start guide Yes Technical details Compliance certificates CE, RoHS Logistics data Quantity per master (outer) case 70 pc(s) Master (outer) case width 473 mm Master (outer) case length 331 mm Master (outer) case height 440 mm Other features Chipset Realtek - RTL8153, Realtek - RTL2142, VIA - VL822-Q8, VIA - VL103 Sustainability Sustainability compliance Yes

Create a workstation, with a single-4K 60Hz HDMI or DisplayPort, multiple USB ports, Gigabit Ethernet, and 100W Power Delivery pass-through

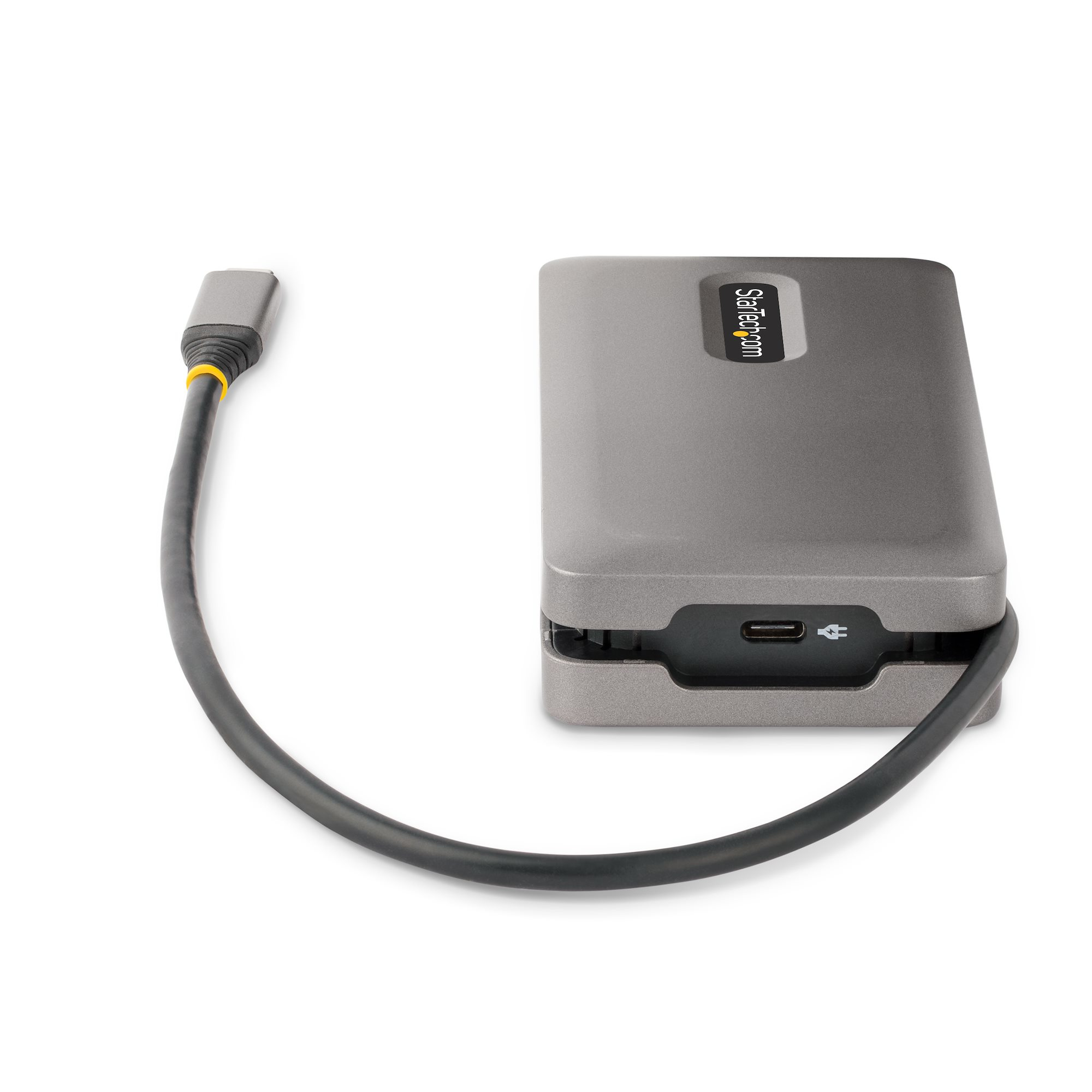

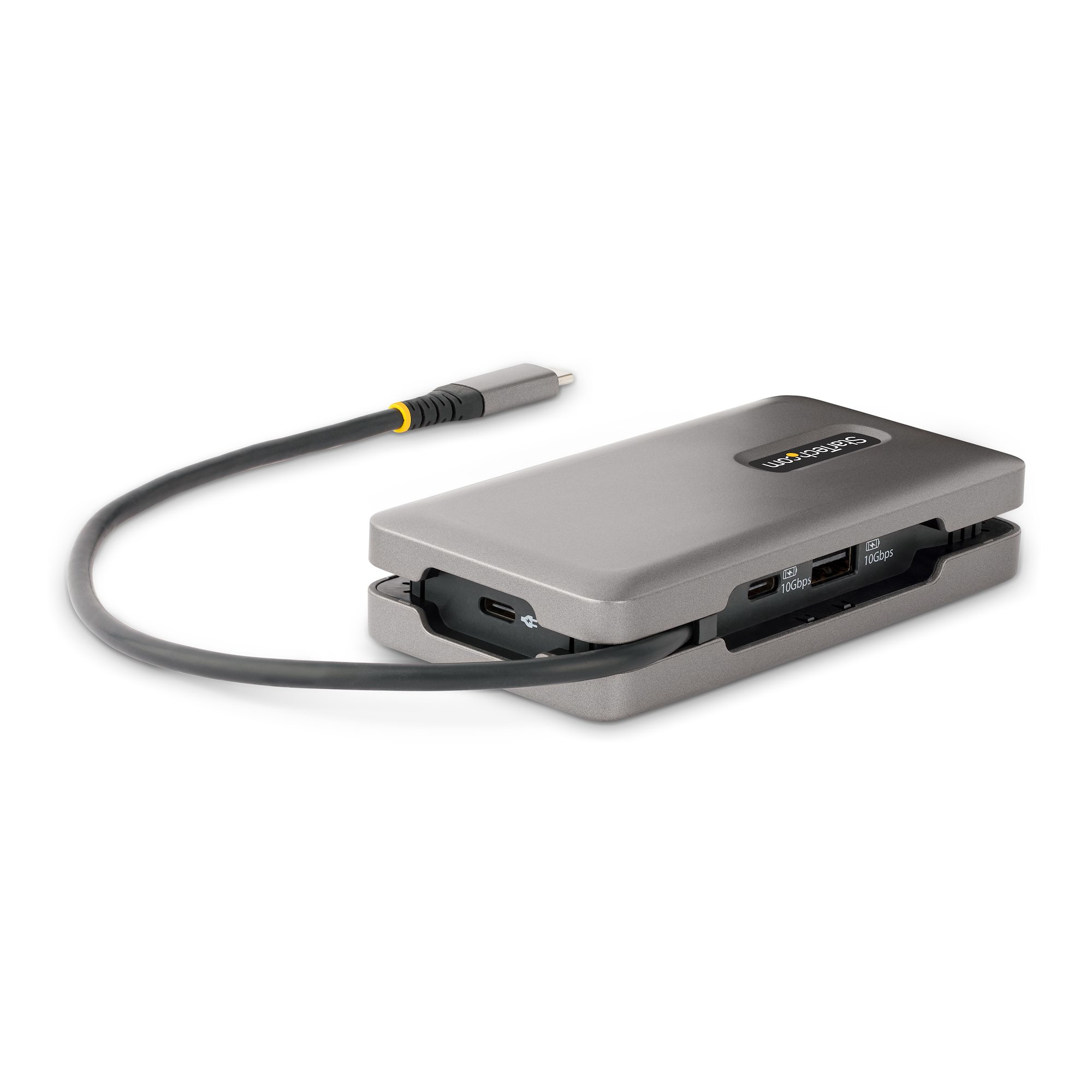

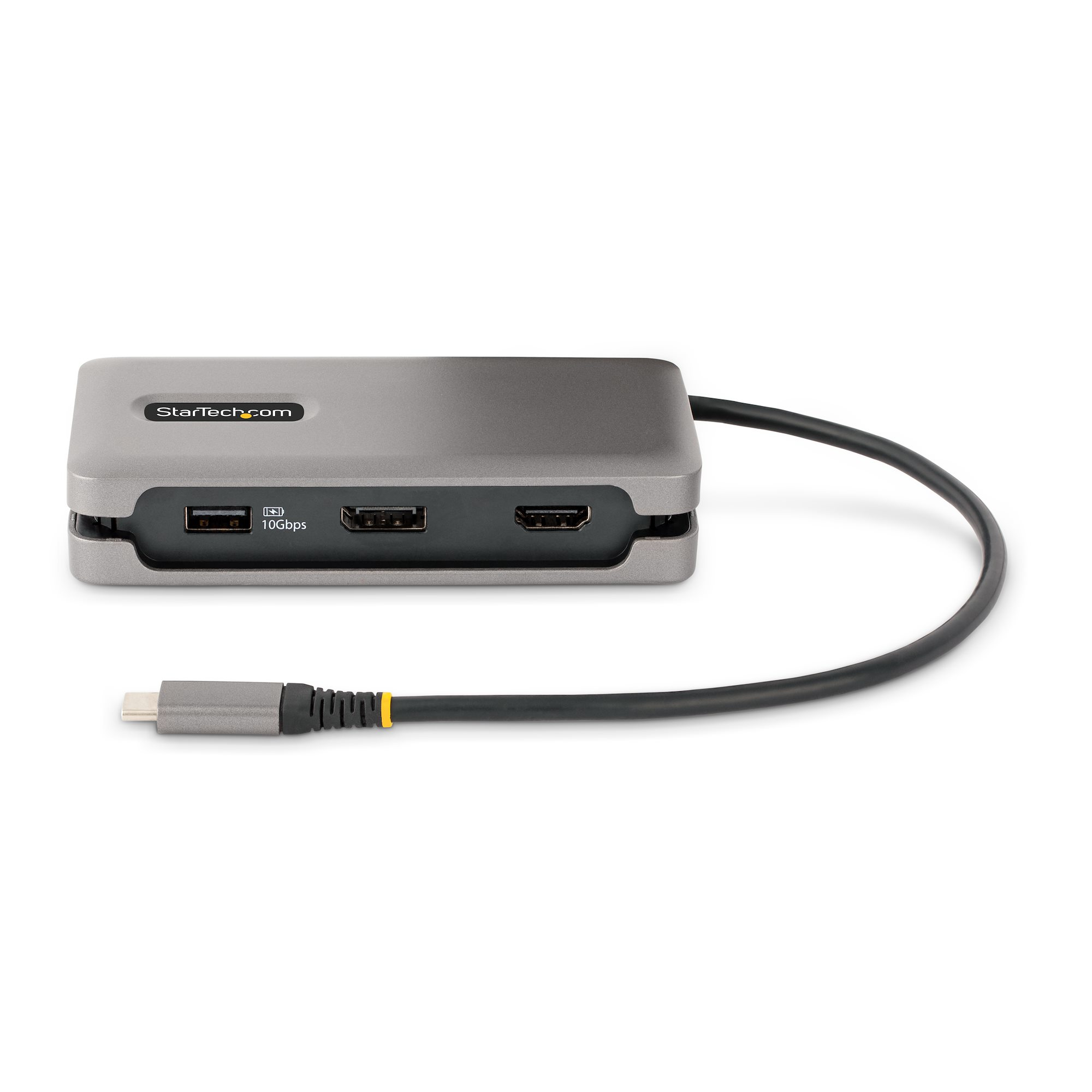

Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display HDMI 2.0b or DisplayPort 1.4 video output via DP Alt Mode, supporting resolutions up to 4K 60Hz. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.

Extra-Long Cable with Built-in Cable Manager

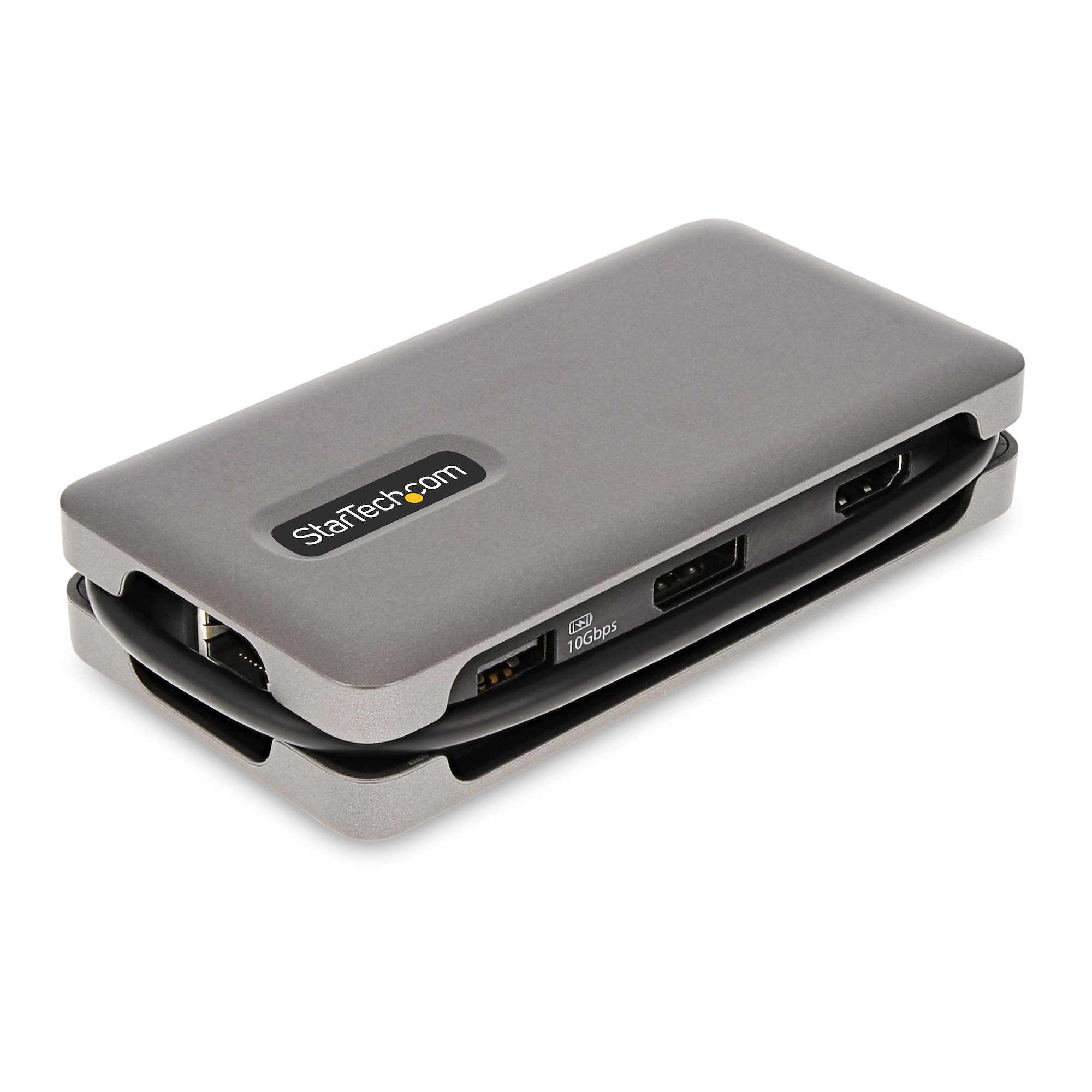

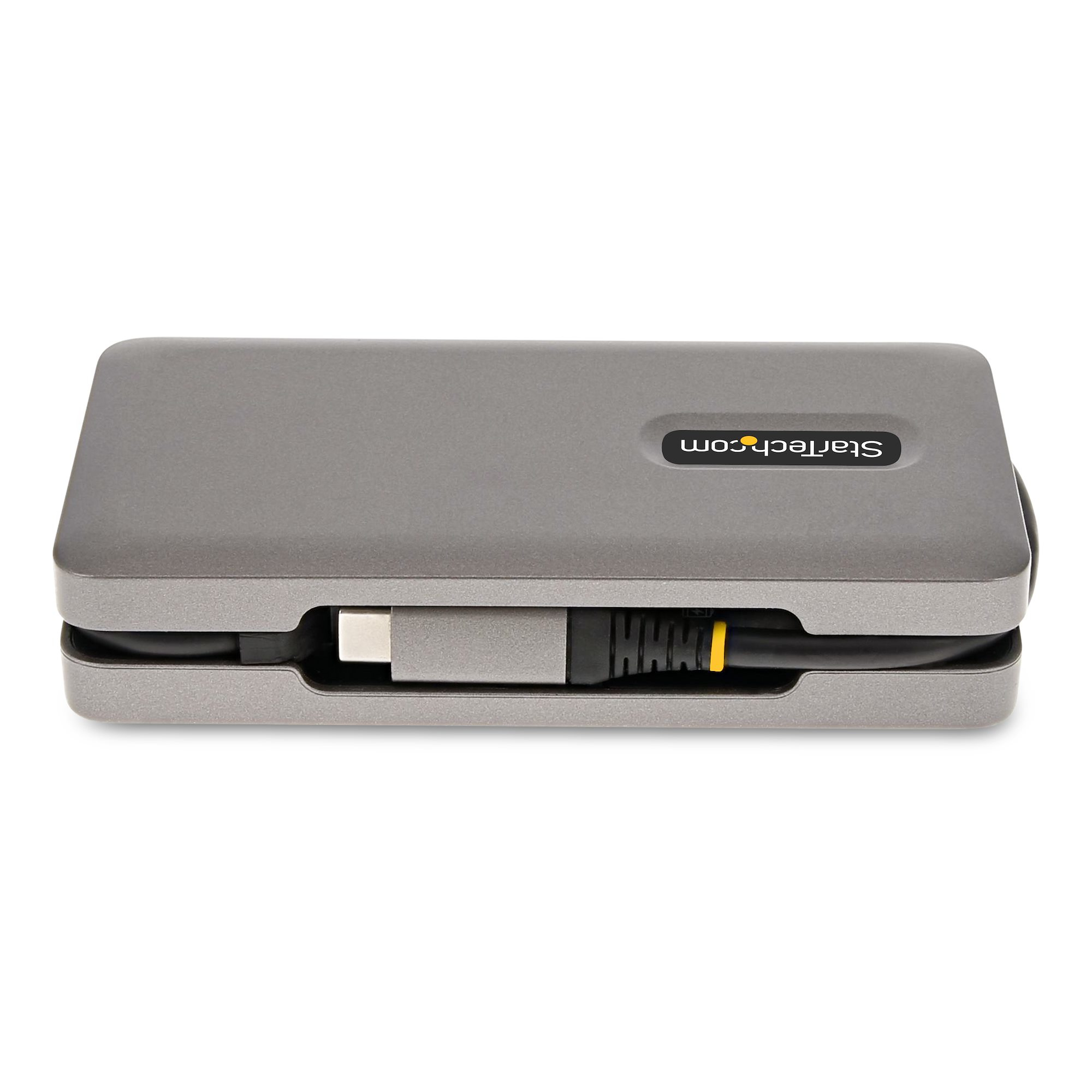

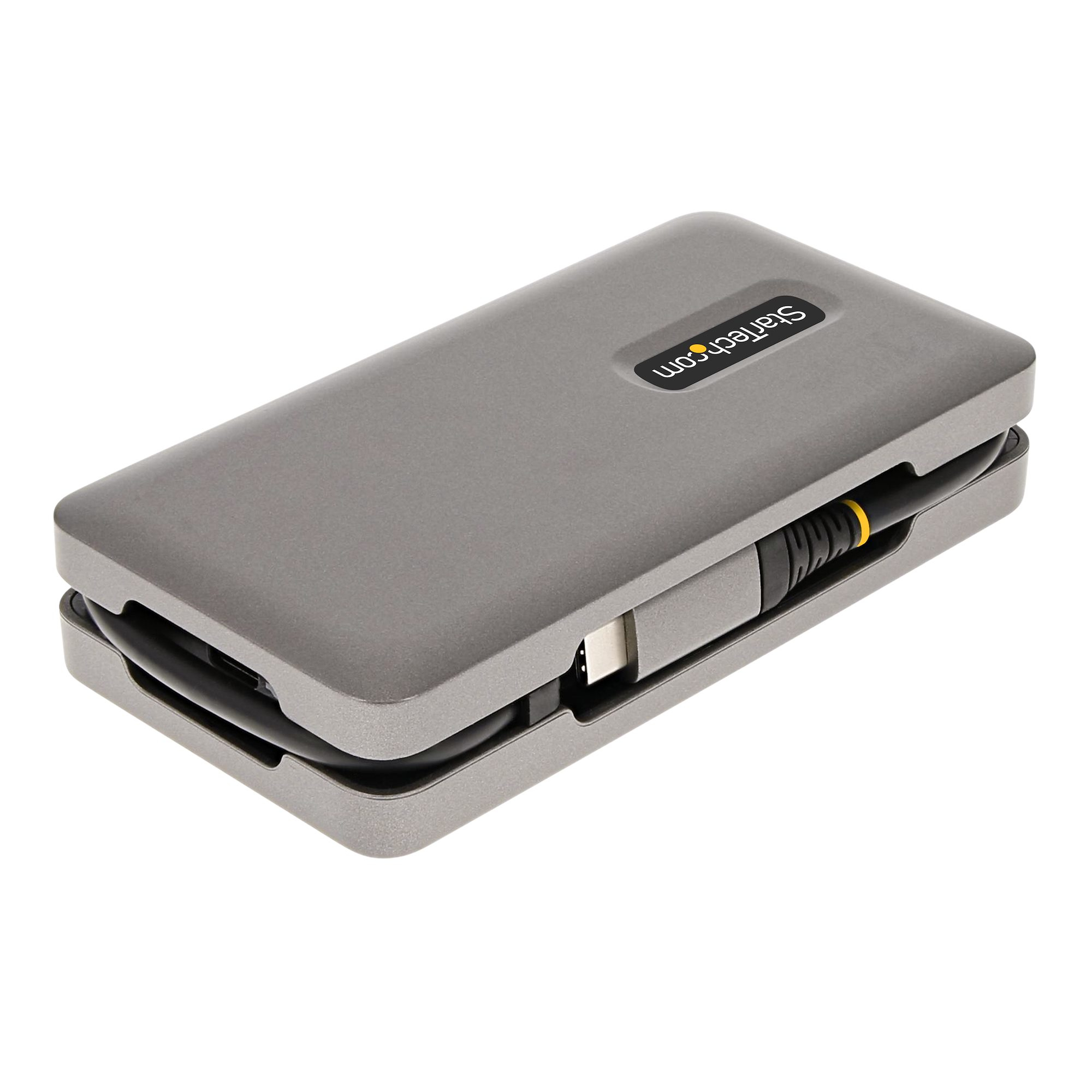

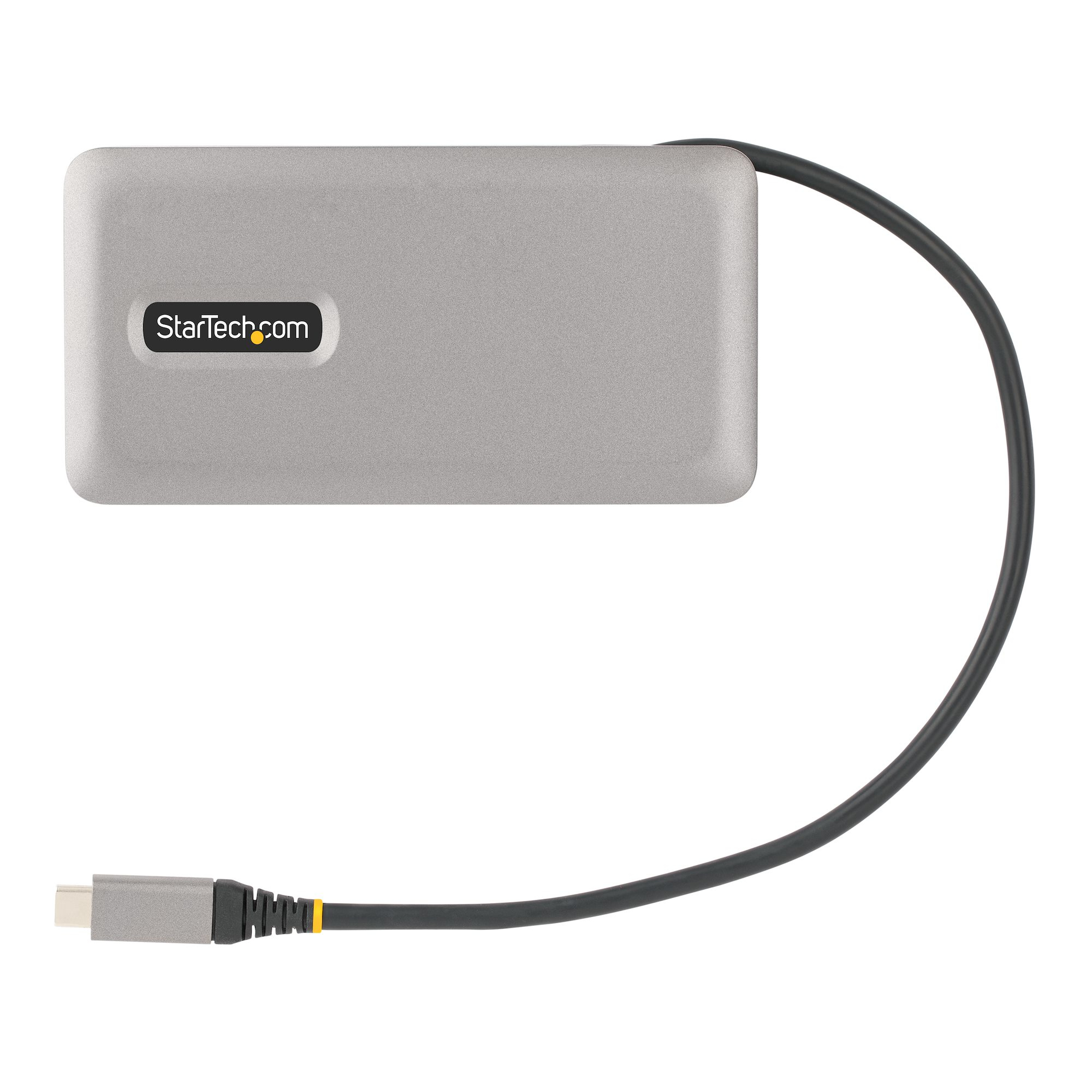

The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.

USB 3.2 Gen 2 Hub

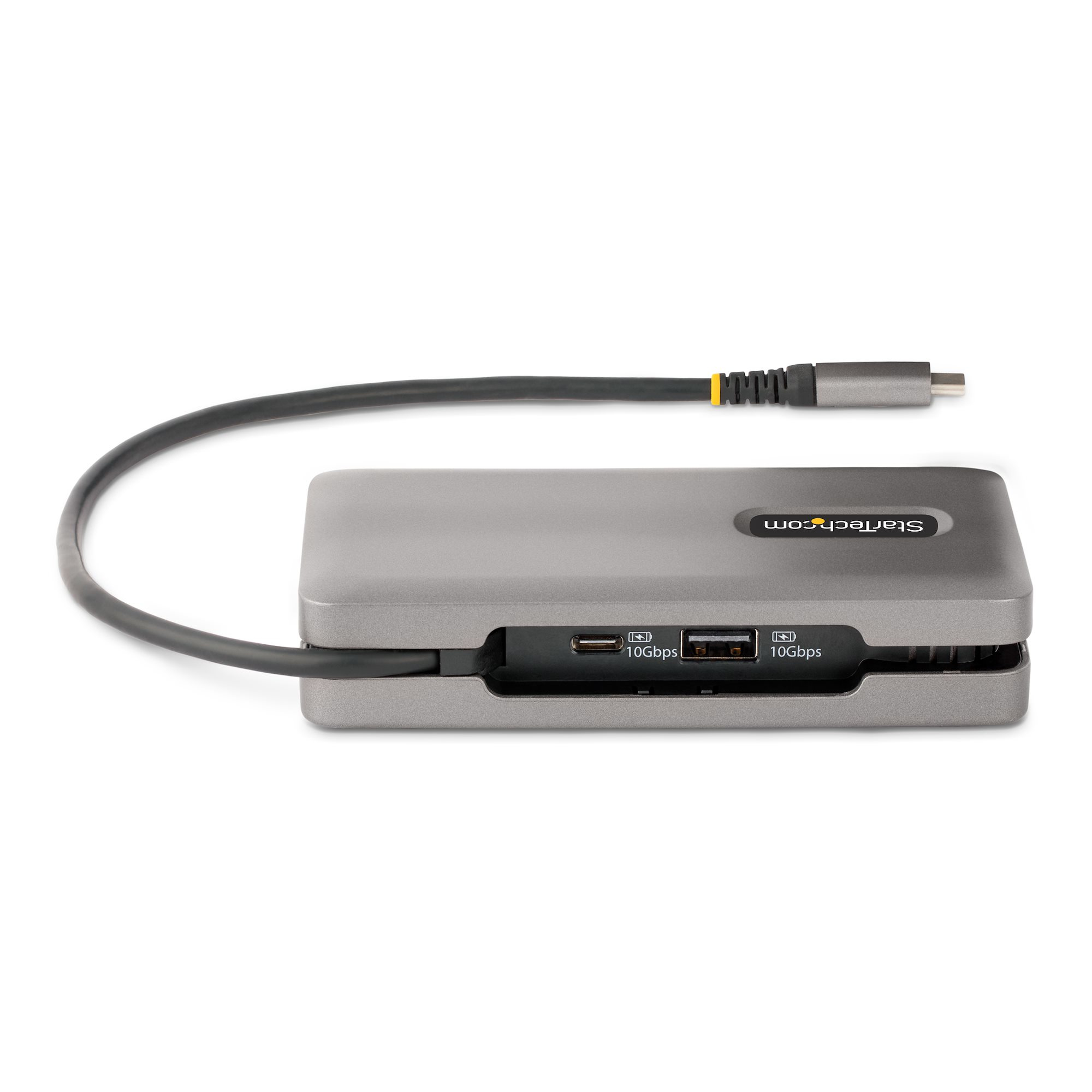

Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports.

A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

Wired Gigabit Network Connectivity

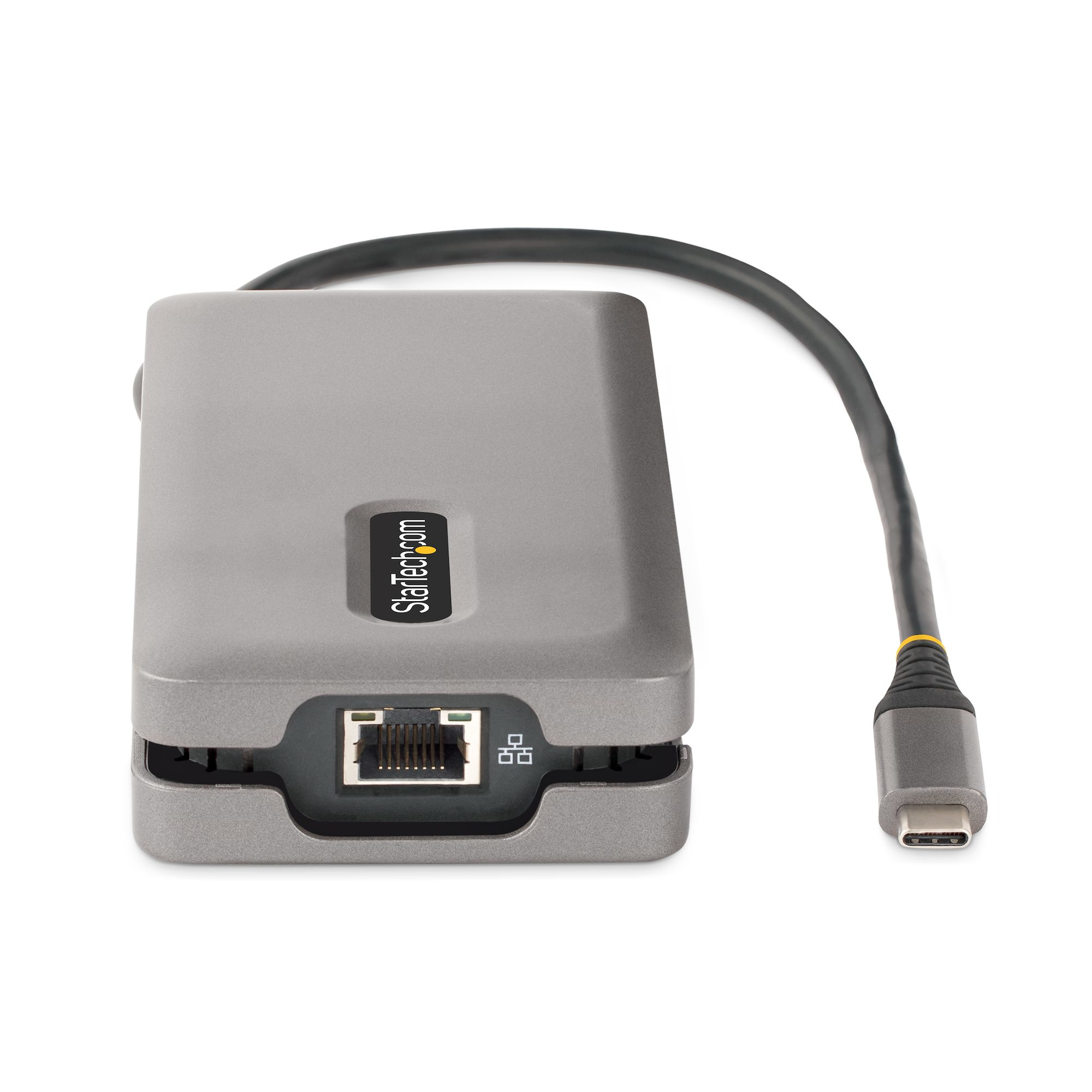

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : Setup and save custom windows layouts.

•

MAC Address Pass-Through Utility : Improve network security.

•

USB Event Monitoring Utility : Track and log connected USB devices.

•

Wi-Fi Auto Switch Utility : Enable quick access to wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

This product is backed for 3 years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
