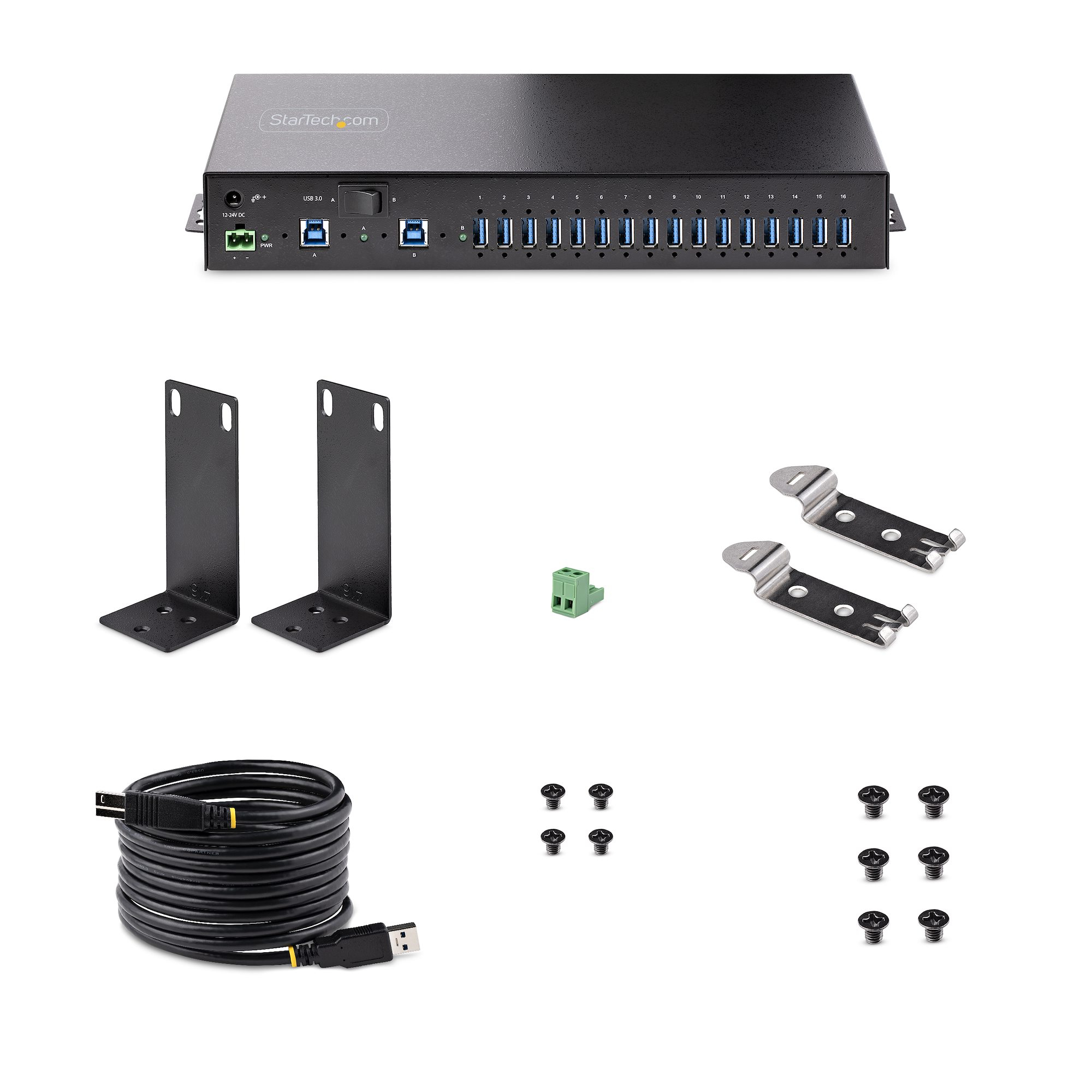

Ports & interfaces Ports quantity 16 Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 16 Terminal block port Yes DC-in jack Yes Features Data transfer rate 5000 Mbit/s Product colour Black Housing material Steel LED indicators Yes Plug and Play Yes Power Power supply type DC Input voltage 12 - 24 V Power plug type Type M Weight & dimensions Width 31 mm Depth 13 mm Height 44 mm Weight 1.1 kg Packaging data Package width 130 mm Package depth 280 mm Package height 43 mm Package weight 1.8 kg Packaging content Cables included USB Type-A to USB Type-B Terminal block included Yes DIN rail kit included Yes Mounting brackets included Yes Quick start guide Yes Operational conditions Operating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 75 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 122383.8 h Logistics data Master (outer) case width 515 mm Master (outer) case length 390 mm Master (outer) case height 313 mm Products per master (outer) case 5 pc(s) Other features Rack mounting Yes Form factor 1U Chipset Genesys Logic - GL3523

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub

The 16-Port Industrial USB 3.0 Hub with 5Gbps of shared bandwidth provides fast and efficient transfer speeds, making it an ideal solution for data-intensive applications. The hub features a 2-port host switch, enabling users to switch between two host devices, streamlining device management. The hub also includes ESD protection to safeguard against static electricity. Versatile mounting hardware is included for flexible installation options. Additionally, the hub supports USB BC 1.2, enabling fast charging of battery-powered USB devices. The combined features of this USB hub ensure stable and reliable functionality for use in IT and industrial applications.

Engineered for Use in Industrial Environments

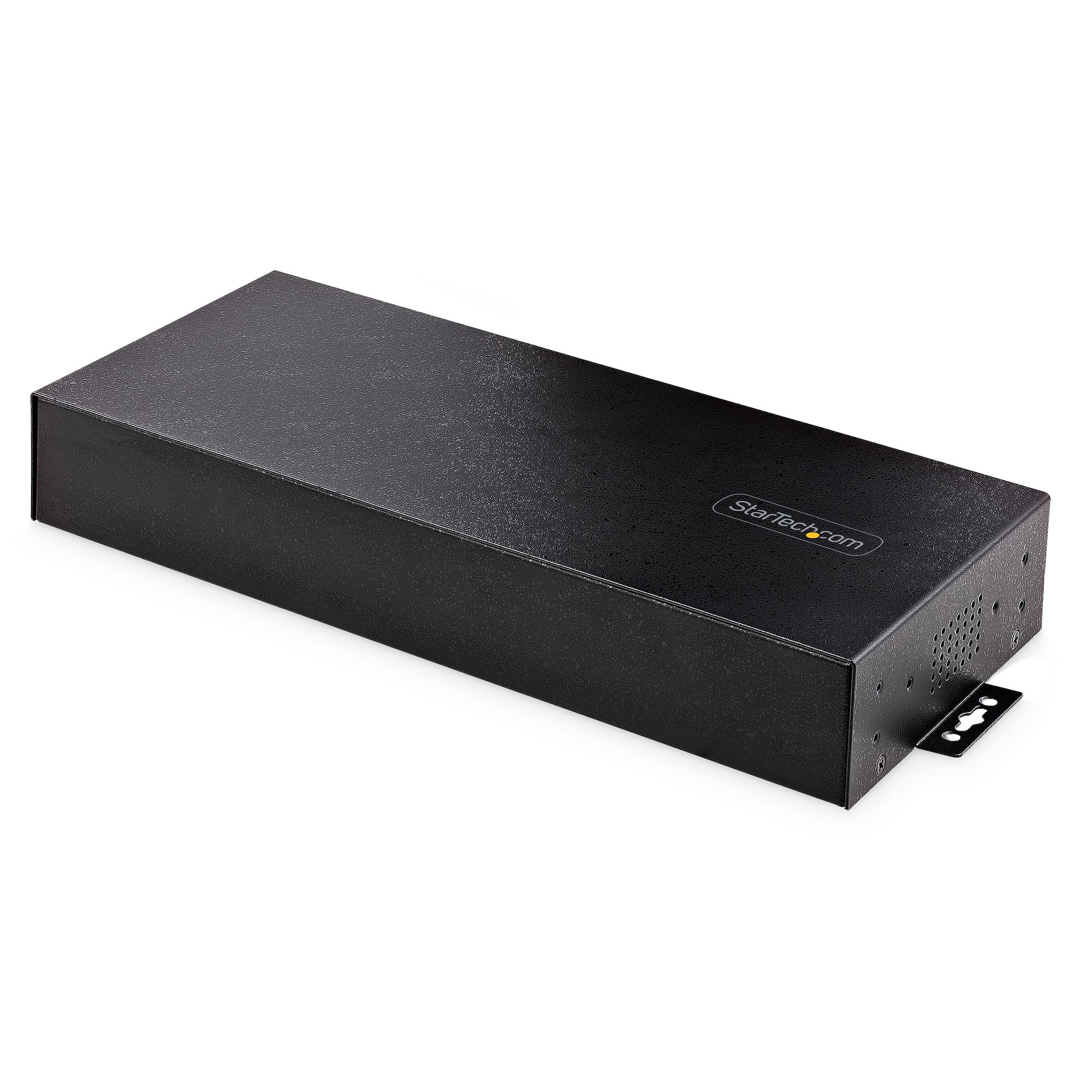

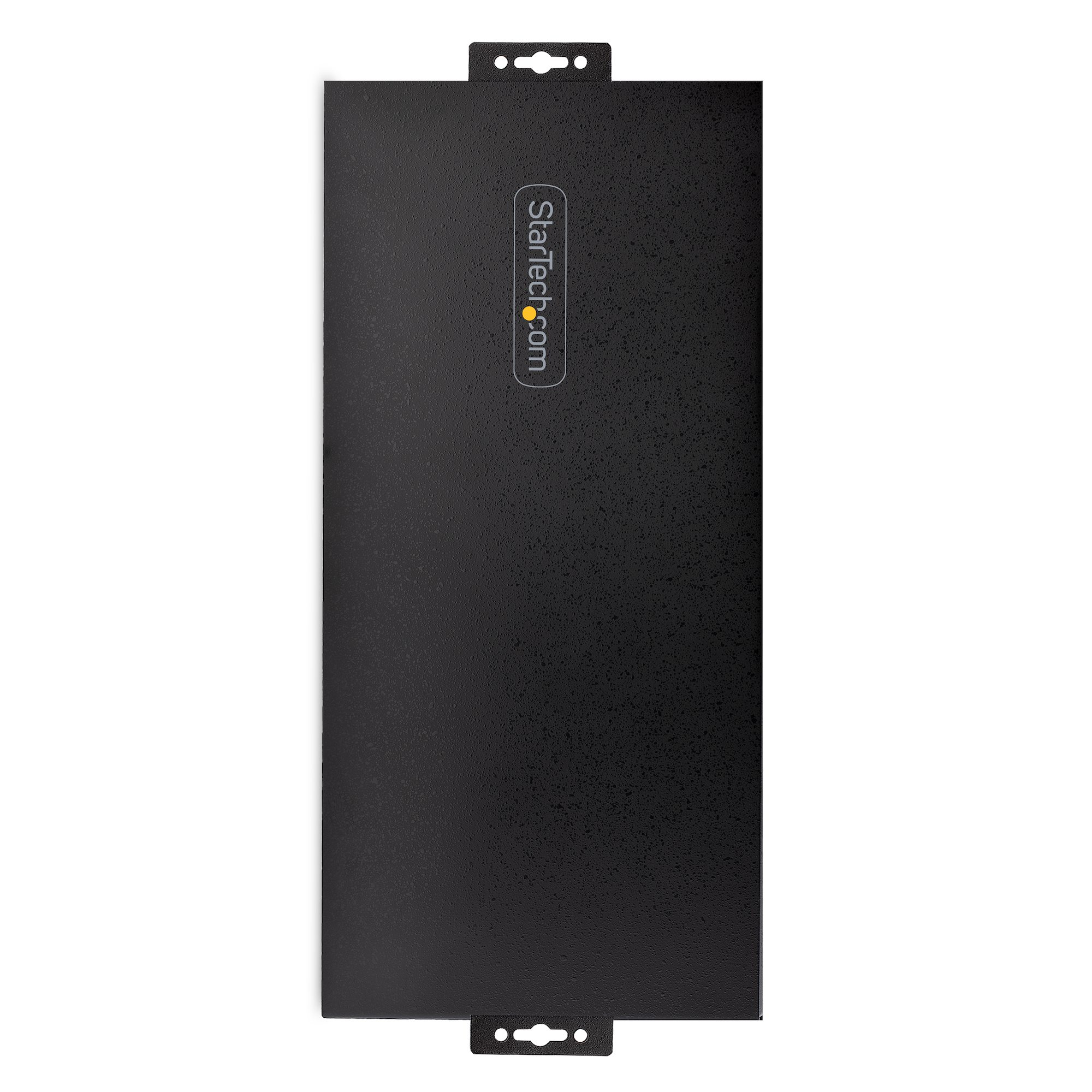

This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that provides protection against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity. These features make the USB hub an excellent choice for use in factories, production lines, and other industrial settings.

Three Mounting Options

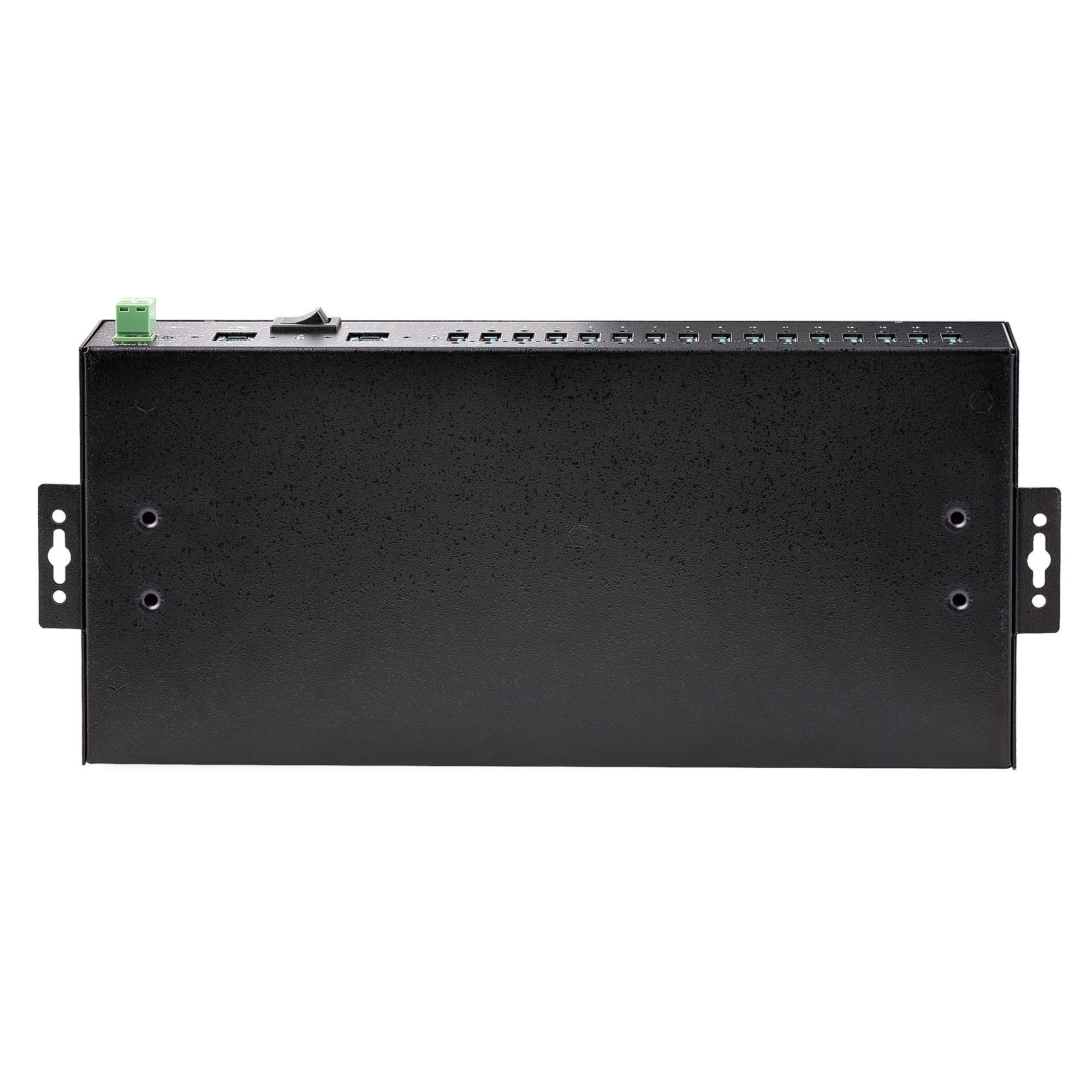

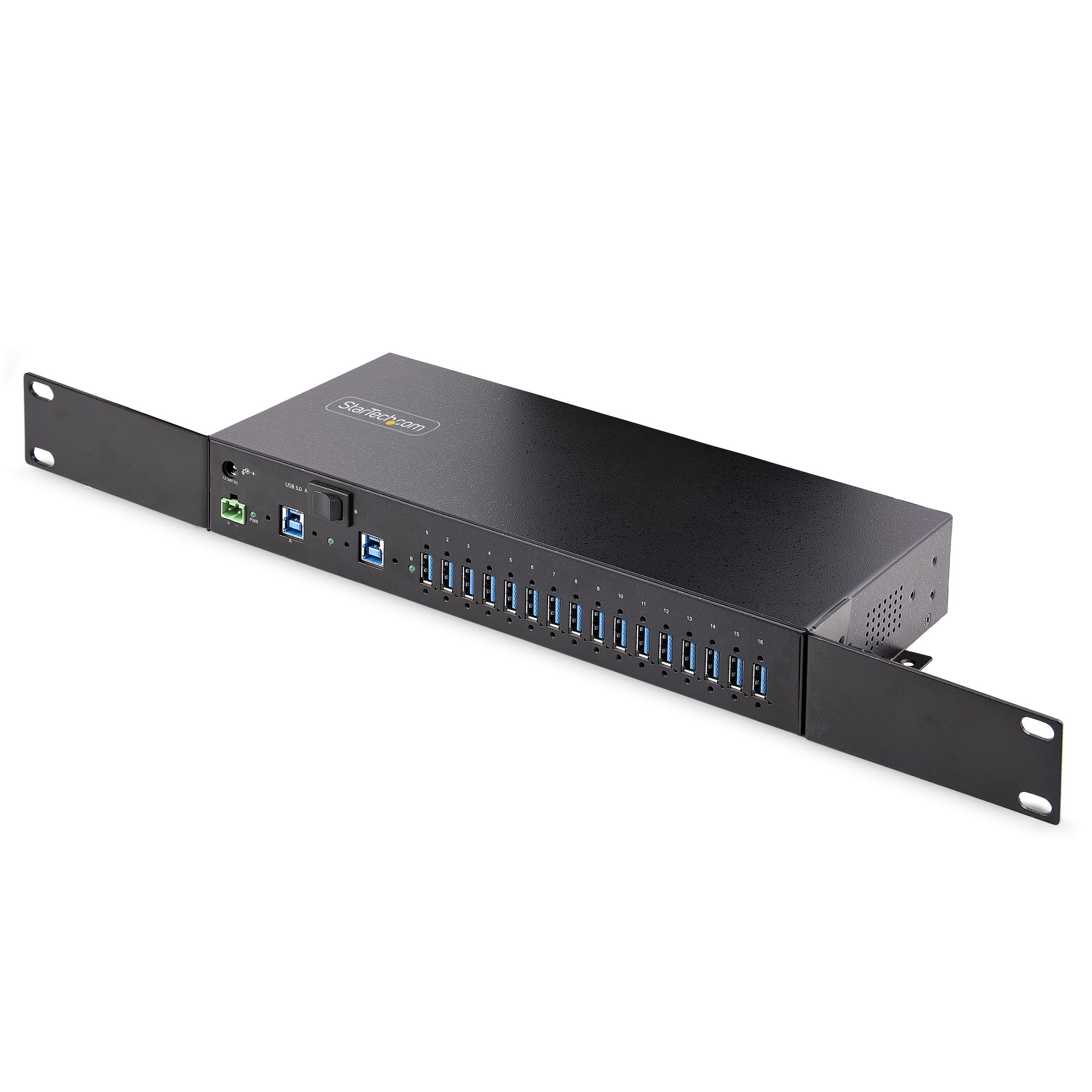

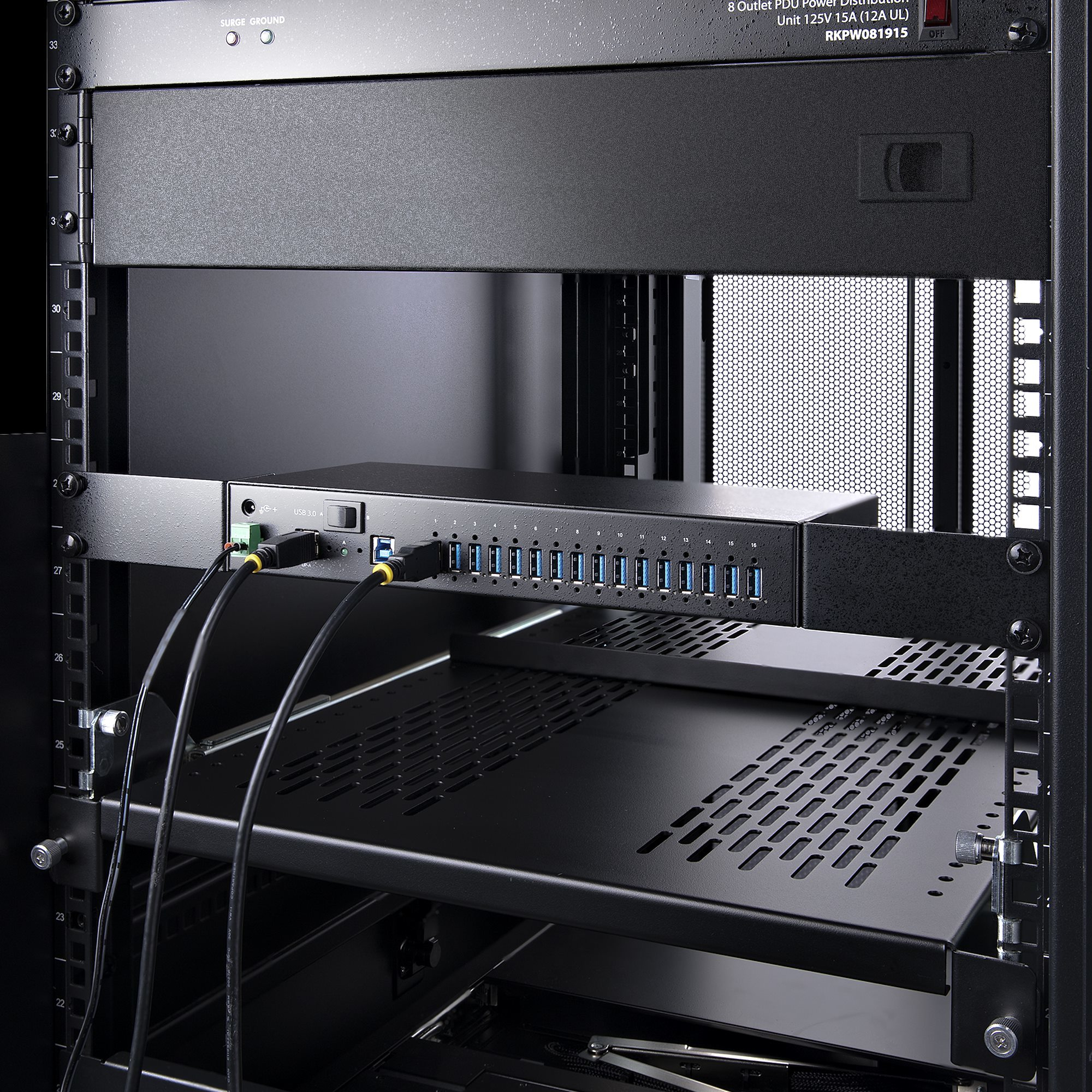

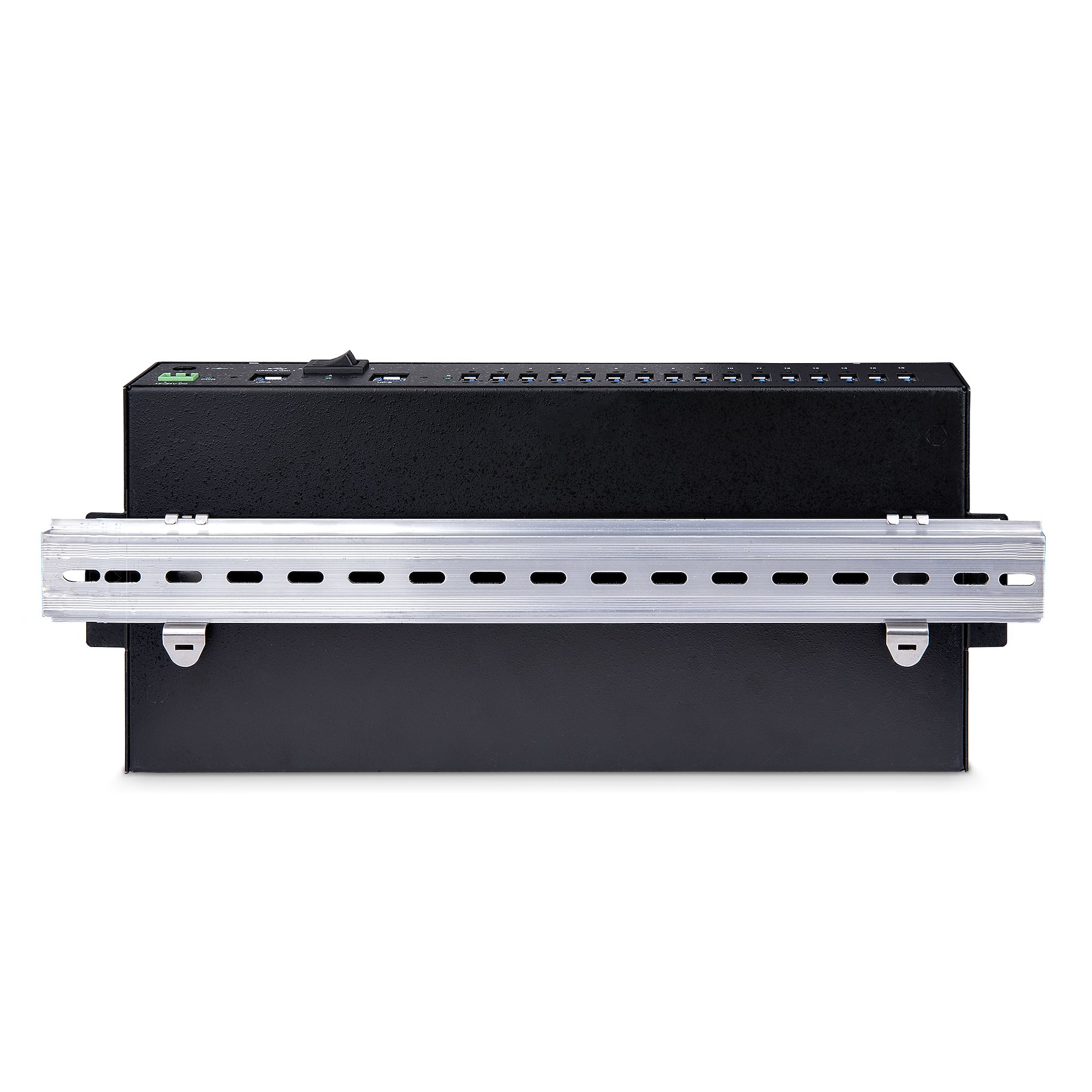

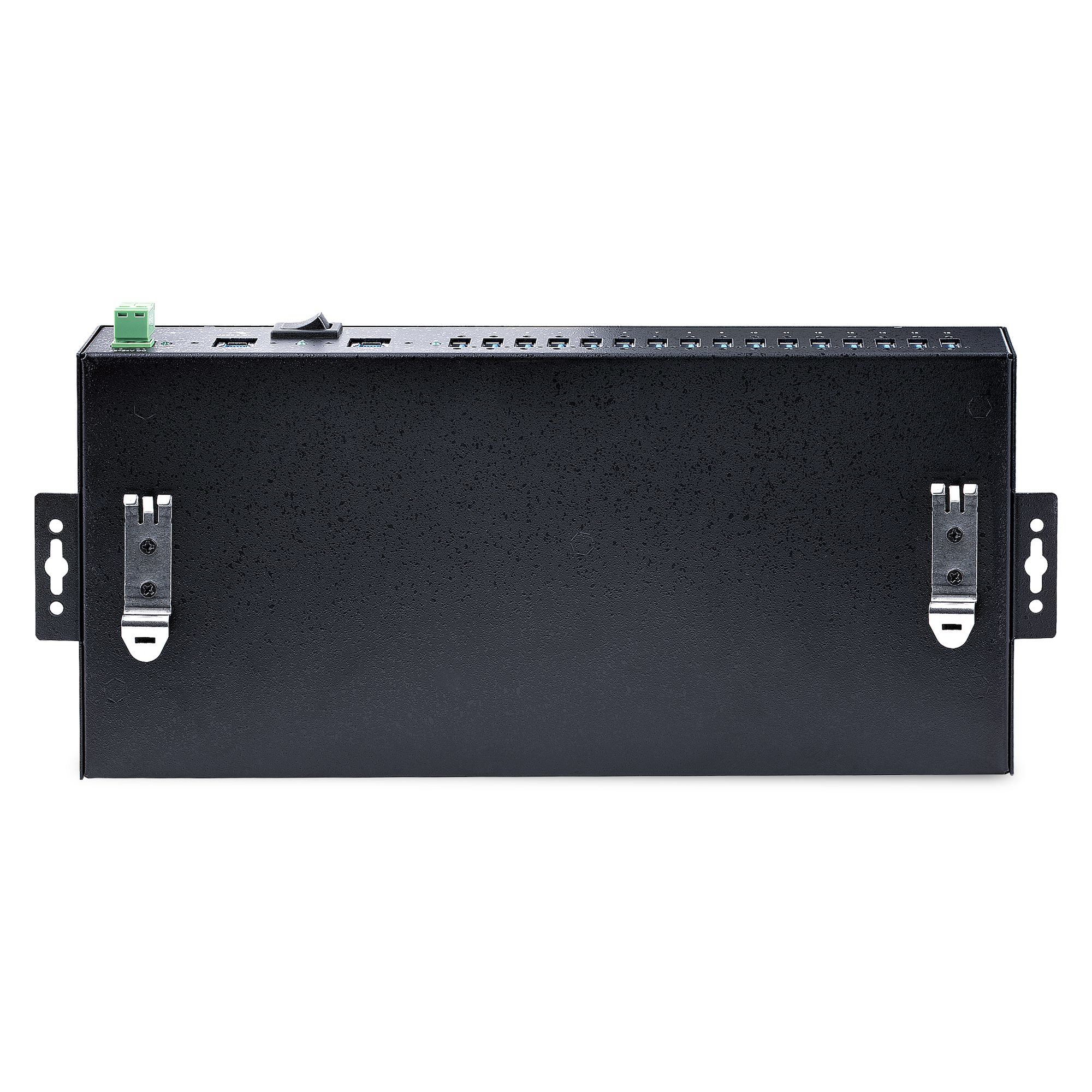

The 16-Port USB Hub offers three mounting options to accommodate a wide variety of applications, from IT to industrial. The 19" rackmount rails included with the 16-Port USB hub are compliant with EIA-310 standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. The built-in surface mount is perfect for workstations, desks, or walls, where users need quick access to the USB hub. The standard DIN-rail (Top Hat/TH) mounting hardware is best suited for industrial automation and control equipment.

Connect and Charge USB Devices

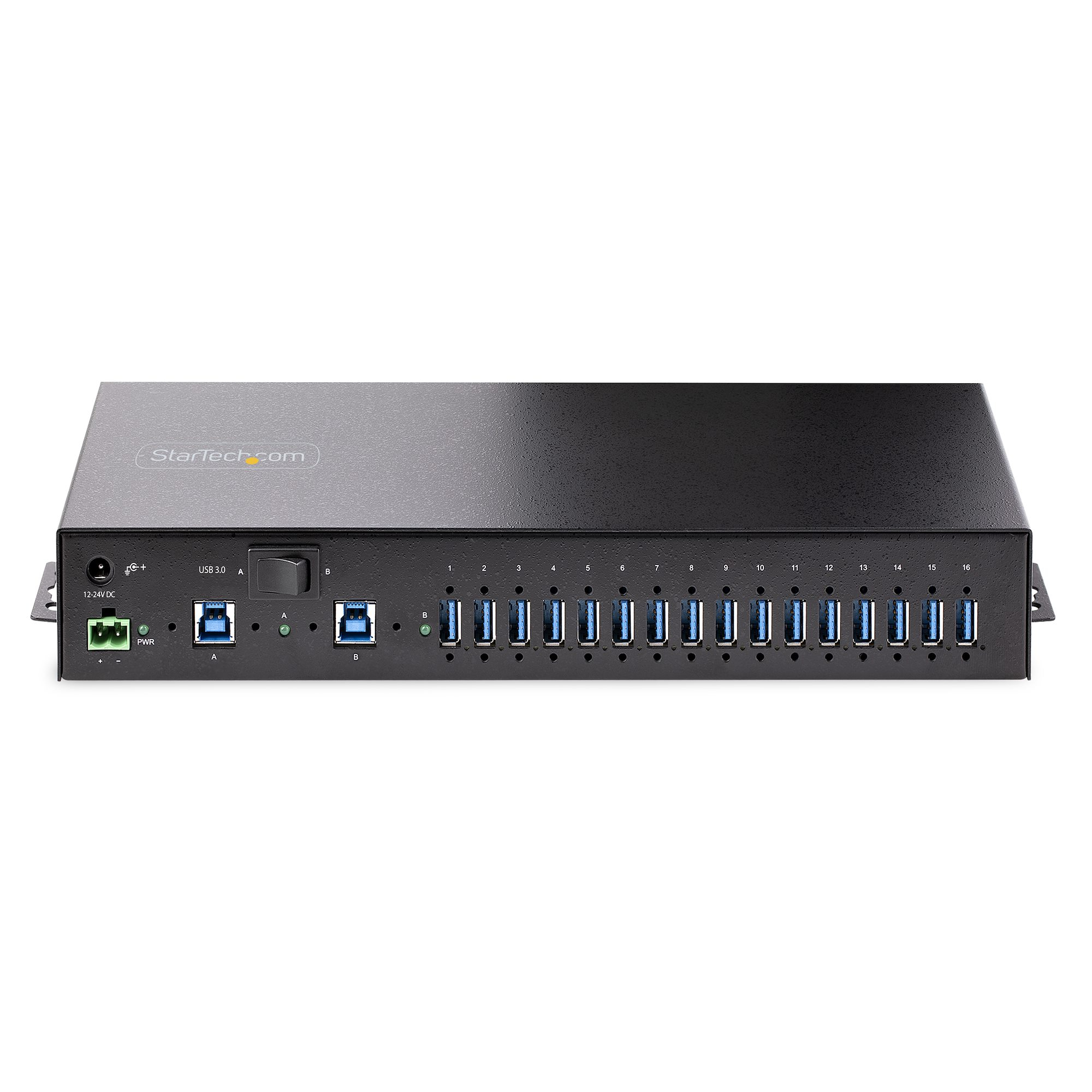

This USB Hub features two 12-24V DC power options. Power can be inputted using the 2-wire terminal block connector or the barrel connector. Both options enable support for USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.

Dual-Host Switch

The USB Hub can connect to two separate desktop or laptop computers, and features a dual-host switch that enables easy toggling between them. The dual-host switch provides a convenient solution for applications requiring two host devices.

Wide Device Compatibility

This USB Hub is OS independent ensuring compatibility with all operating systems, including Windows, macOS, and Linux.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. This product utilizes the USB Event Monitoring utility. Use this utility to track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

5G16AINDS-USB-A-HUB is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual technical support.
