Features Cable length 1 m Connector 1 USB Type-C Connector 2 HDMI Type A (Standard) Connector 1 gender Male Connector 2 gender Male Connector 1 form factor Straight Connector 2 form factor Straight HDMI version 2.1 HDCP Yes HDCP version 1.4/2.2/2.3 USB Type-C DisplayPort Alternate Mode Yes High Dynamic Range (HDR) supported Yes Maximum resolution 7680 x 4320 pixels Supported graphics resolutions 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320 Maximum refresh rate 144 Hz Refresh rate at maximum resolution 60 Hz Product colour Grey Chipset VMM7100 Jacket material Polyvinyl chloride (PVC) Cable type Round cable Connector housing material Plastic Supported audio channels 7.1 Plug and Play Yes Converter type Active video converter High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10) Dolby technologies DTS:X, Dolby Atmos Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) 0 - 75 °C Operating relative humidity (H-H) 0 - 80% Certificates Compliance certificates CE, RoHS Weight & dimensions Cable diameter 4.8 mm Weight 130 g Packaging data Package width 200 mm Package depth 220 mm Package height 12 mm Package weight 64.5 g Packaging content Quantity per pack 1 pc(s) Logistics data Master (outer) case width 415 mm Master (outer) case length 435 mm Master (outer) case height 420 mm Products per master (outer) case 160 pc(s) Sustainability Sustainability compliance Yes

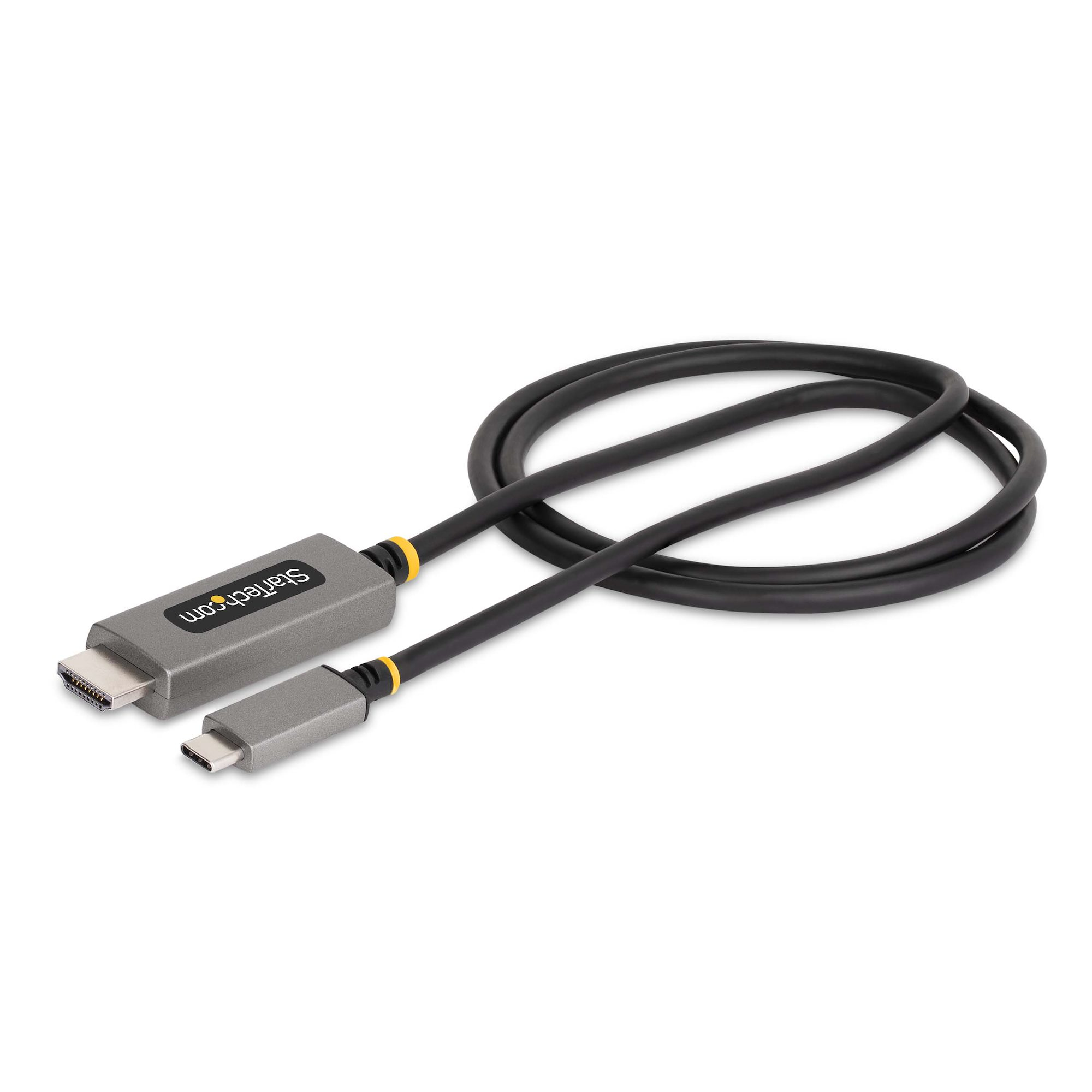

Connect a DP Alt Mode enabled USB-C source to an HDMI monitor, located up to 3.3ft (1m) away, with support for HDR video and resolutions up to 8K 60Hz

Connect an 8K 60Hz or a 4K 144Hz HDMI display to a DP Alt Mode-enabled USB Type-C source, at a distance of up to 3.3ft (1m), using this USB-C to HDMI Adapter Cable.

High-Resolution HDR Video

This USB-C to HDMI Cable enables resolutions of up to 8K 60Hz and is HDMI 2.1 FRL complaint. It supports HDR10, HDCP 1.x/2.2/2.3, and DSC 1.1/1.2a. The adapter cable supports 7.1 channel audio with Dolby Atmos and DTS:X.

Hardware Platform

Single Monitor

DisplayPort Alt Mode

Intel 11 th Gen & Later Processors

8K 60Hz or 4K 144Hz*

DisplayPort 1.4

Nvidia RTX3000 and AMD RX6000 or later

8K 60Hz or 4K 144Hz

DisplayPort 1.4

Intel 10th Gen & Earlier

4K 60Hz

DisplayPort 1.4

Apple M1/M2/M3 + Pro & Max

4K 60Hz**

DisplayPort 1.4

*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later

**Apple MacBook's with M1/M2 silicon can only support up to 4K 60Hz through HDMI

Universal Compatibility

The USB-C to HDMI Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to HDMI Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.

Note: Apple M1/M2/M3 devices, including MacBook Pro, can only support up to 4K 60Hz over USB-C DP Alt Mode and cannot achieve 8K 60Hz.

Thoughtfully Designed

Combining a video adapter and cable minimizes potential points of failure and signal loss. Adaptive receiver equalization optimizes the input signal and amplifies the output signal to ensure compatibility with high-resolution monitors. The cable is equipped with cage shielding to prevent Electromagnetic Interference (EMI).
