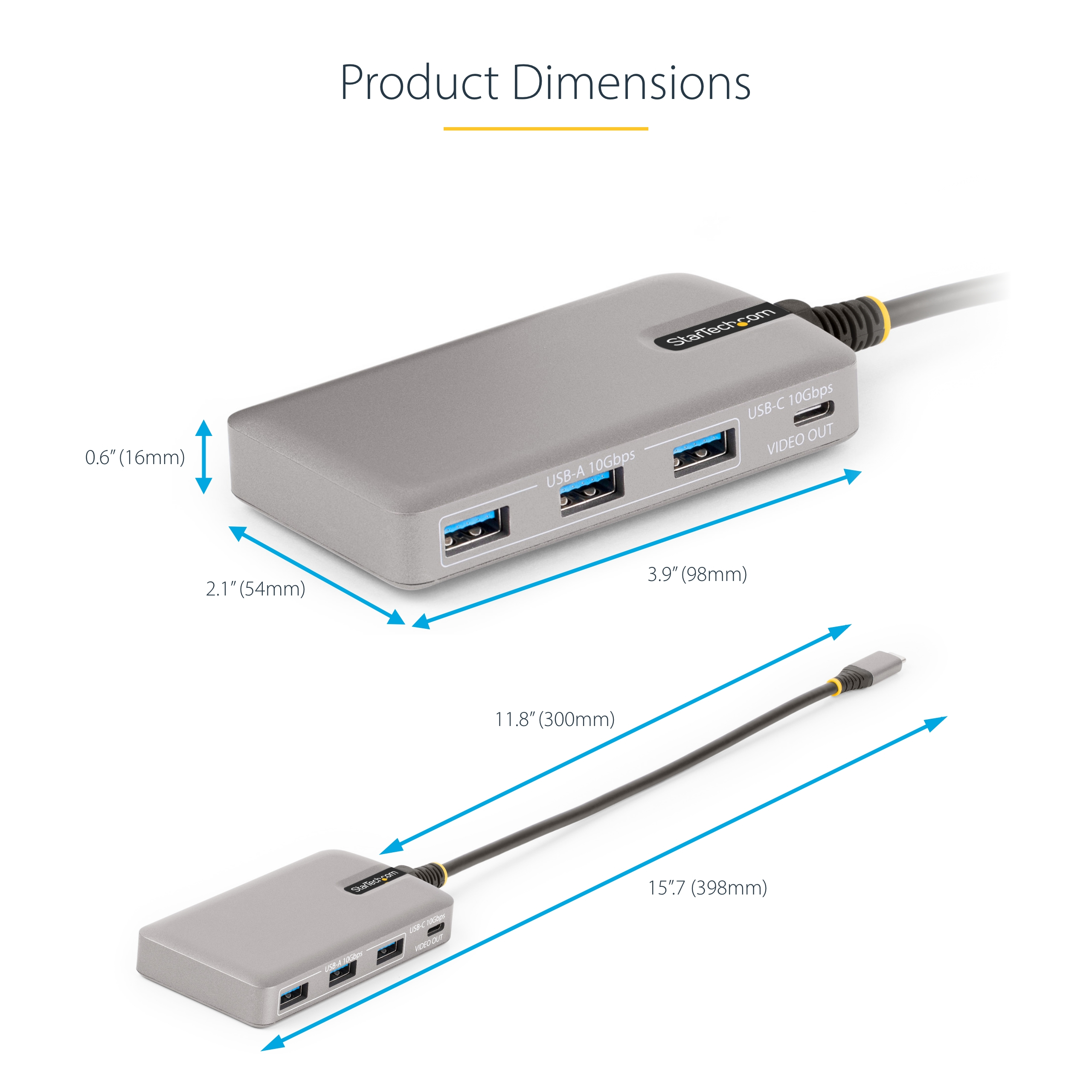

Ports & interfaces Ports quantity 4 Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 DisplayPort version 1.4 USB Type-C DisplayPort Alternate Mode Yes Card reader integrated No DC-in jack No Features Data transfer rate 10000 Mbit/s Maximum refresh rate 60 Hz Supported graphics resolutions 4096 x 2160 Product color Silver USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W Overcurrent protection Yes Network UASP support Yes Power Power supply type USB Power consumption (max) 18 W Weight & dimensions Width 54 mm Depth 98 mm Height 16 mm Weight 98 g Packaging data Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 133 g Packaging content Quick start guide Yes Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 0 - 95% Logistics data Master (outer) case width 473 mm Master (outer) case length 331 mm Master (outer) case height 440 mm Quantity per master (outer) case 70 pc(s) Technical details Compliance certificates CE, RoHS Other features Chipset VIA - VL103-Q4, VIA - VL822-Q7, Parade - PS8802, Parade - FL7102-2L0, TMI - IM2605, Realtek - RTD2186 Sustainability Sustainability compliance Yes

Add four 10Gbps USB ports (3x USB-A and 1x USB-C) to a USB-C enabled laptop while powering and charging the host device with Power Delivery 3.0

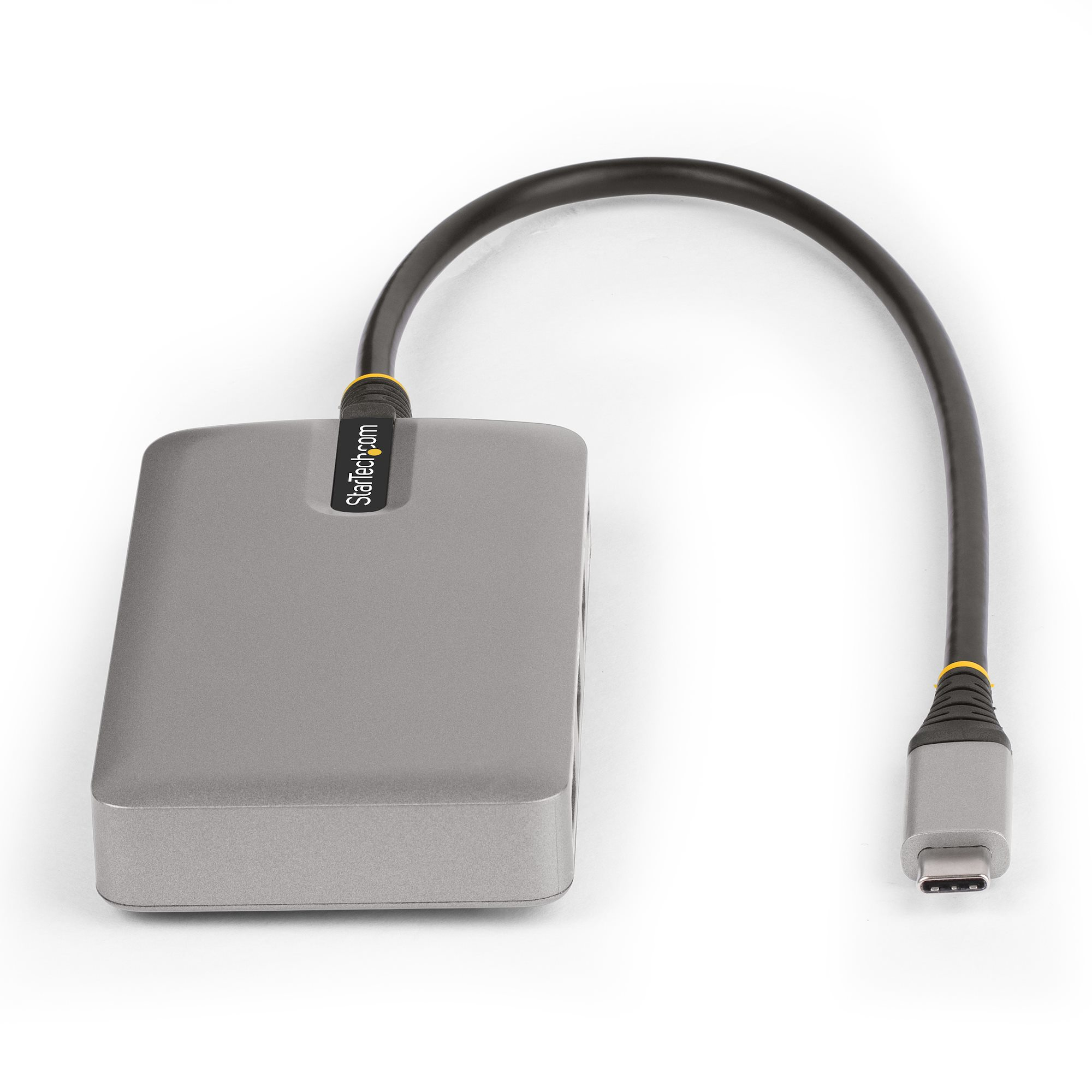

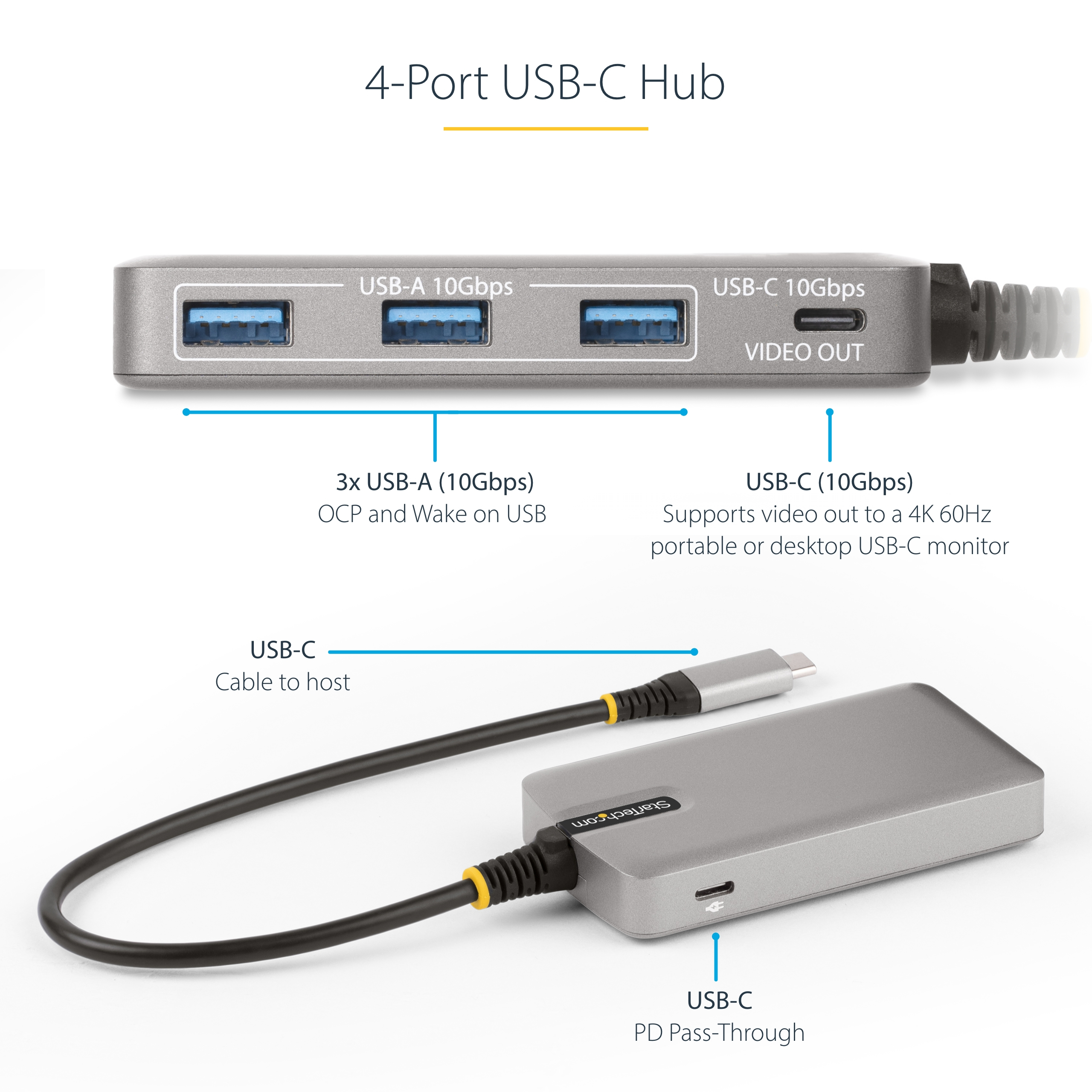

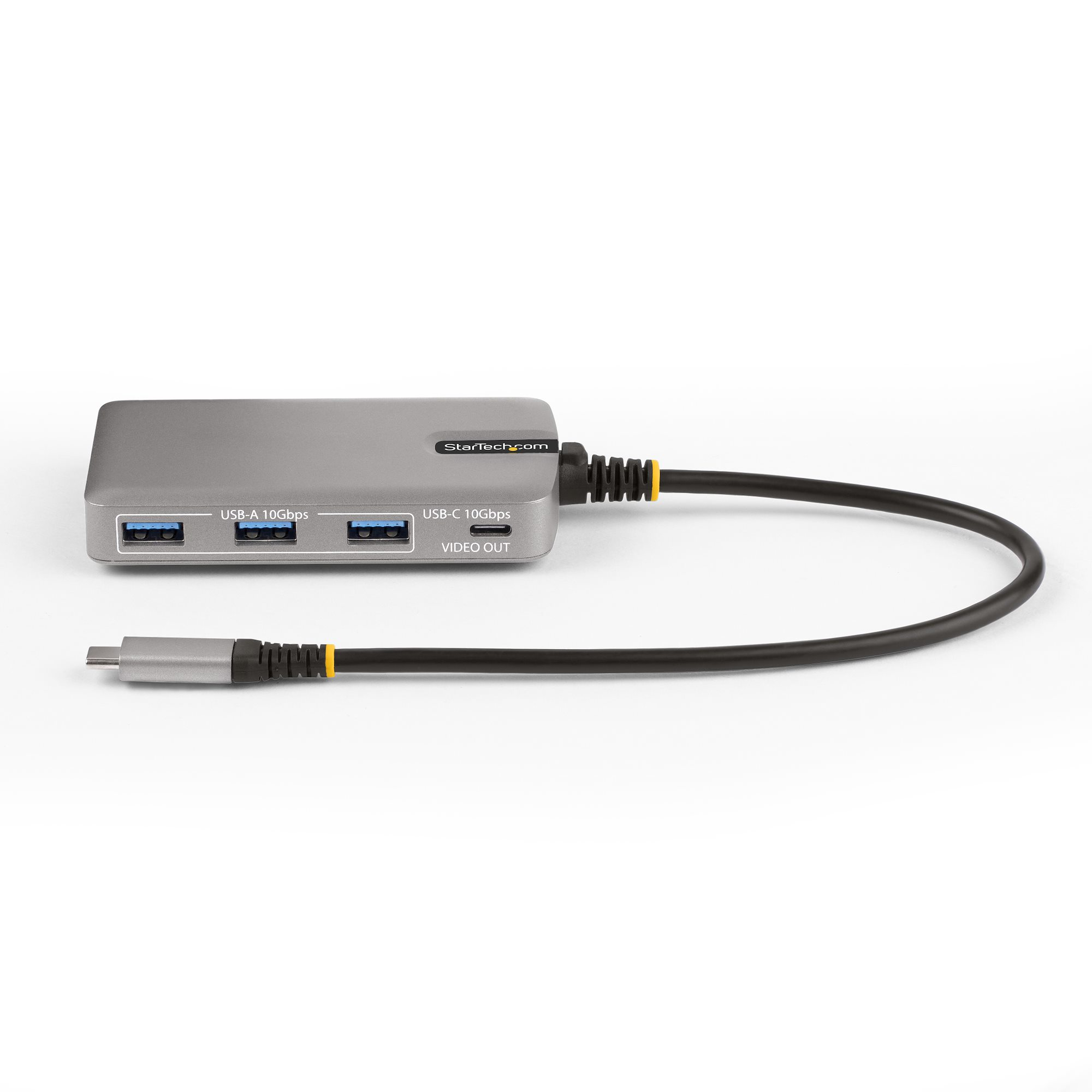

This USB Type-C Hub with USB-C DP Alt Mode Output and 100W USB Power Delivery pass-through adds four USB 3.2 Gen 2 (10Gbps) ports (3x USB-A, 1x USB-C) to a USB-C enabled computer. The Hub supports USB-C DP Alt mode on the downstream USB-C port, enabling the connection of USB-C portable monitors or desktop monitors. Connect the USB hub to a USB-C port on a laptop, using the built-in 1ft (30cm) USB-C host cable. Charge a host laptop by connecting the host laptop's USB-C power supply to the USB Power Delivery (PD) 3.0 port. Backward compatibility with USB 2.0 (480Mbps) devices ensures support for a wide range of modern and legacy USB peripherals.

USB-C DP Alt Mode Video Output

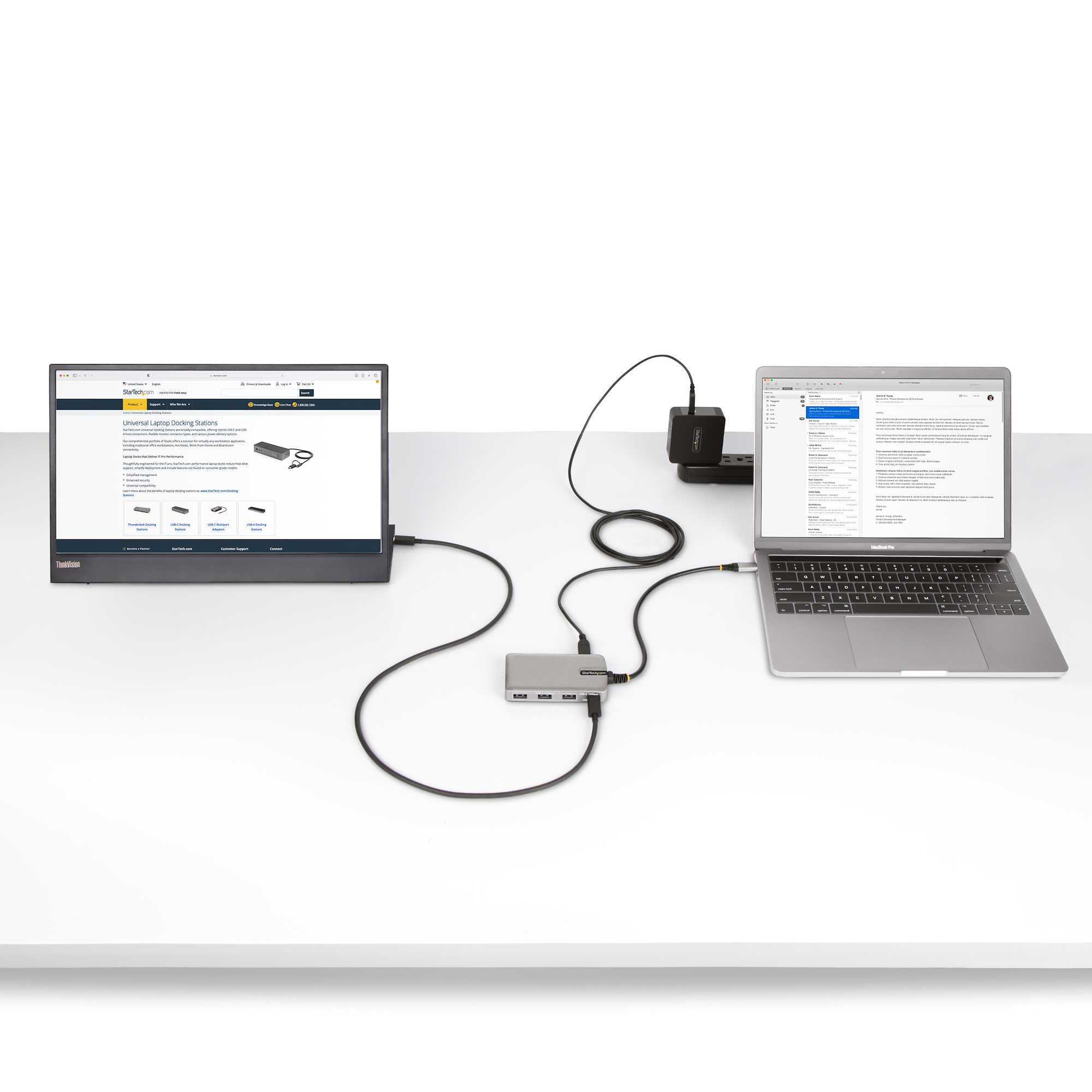

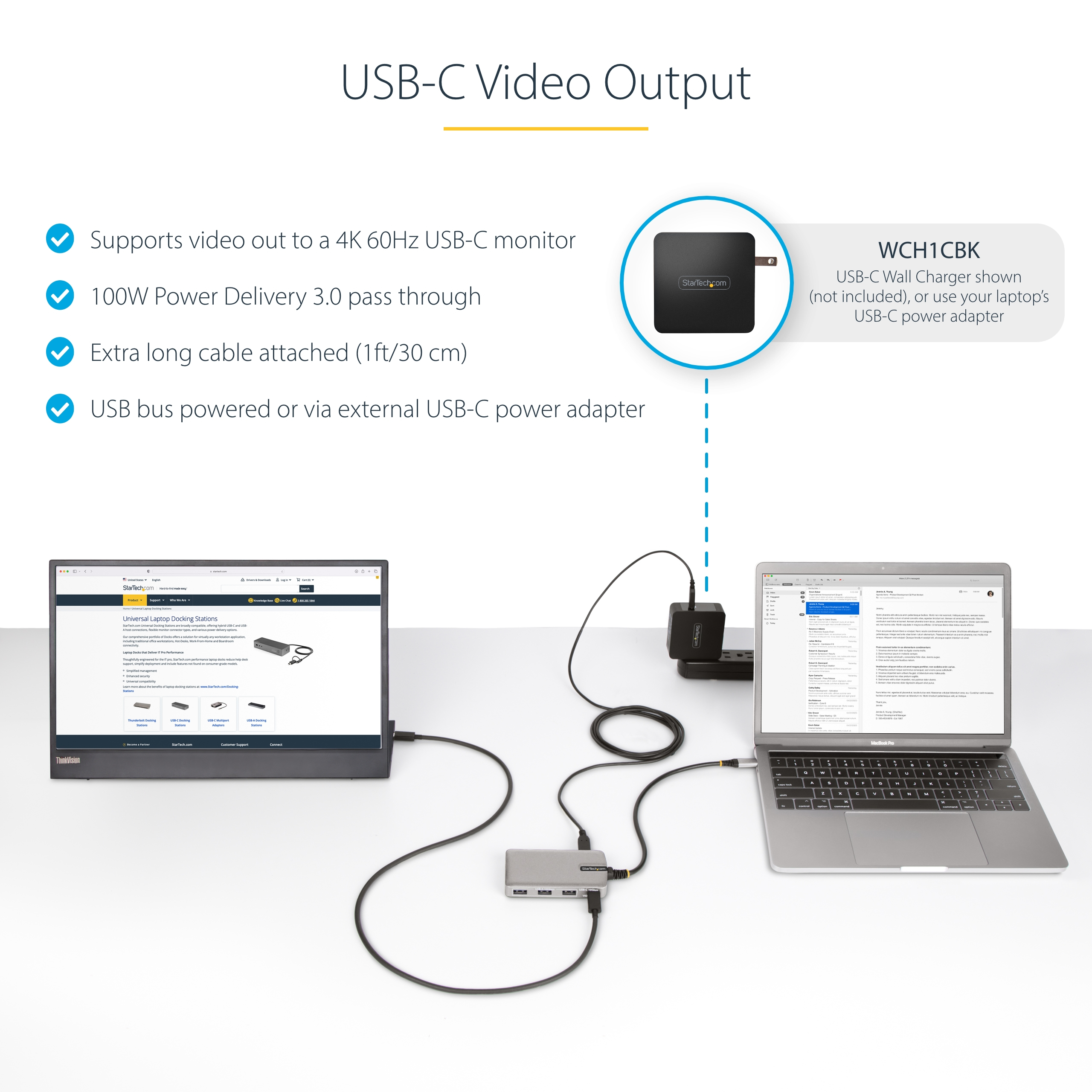

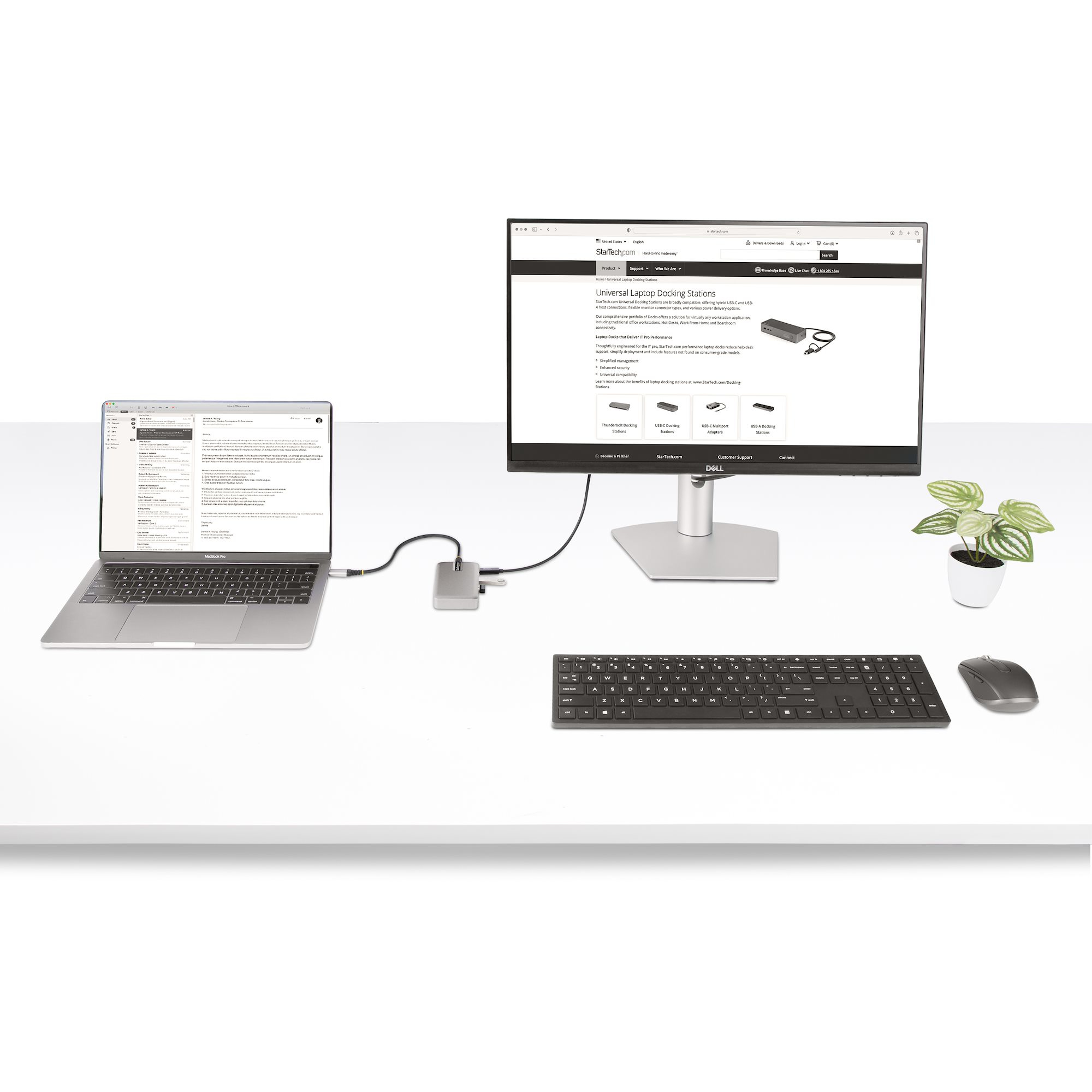

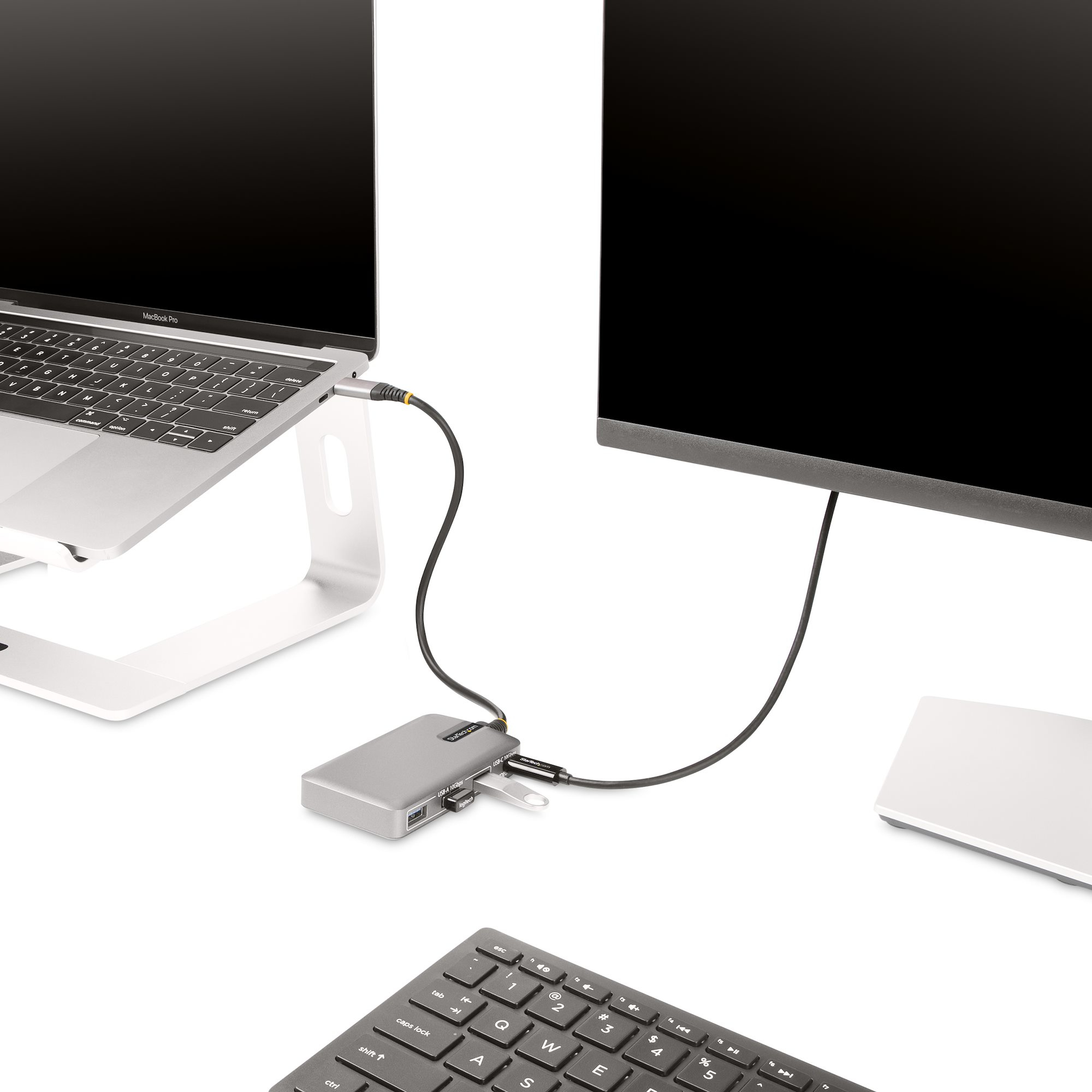

The downstream USB-C port on this USB hub supports both 10Gbps data transfers and USB-C DP Alt Mode, with support for resolutions up to 4K 60Hz. This enables users to connect either a USB data peripheral or a USB-C portable or desktop monitor. The USB-C port outputs 12W (5V/2.4A) of power to support portable USB-C monitors, or power and charge other USB peripherals. This integration is particularly valuable for enhancing productivity in professional settings and delivering either video or USB 10Gbps performance, depending upon user needs.

USB Power Delivery Pass-Through

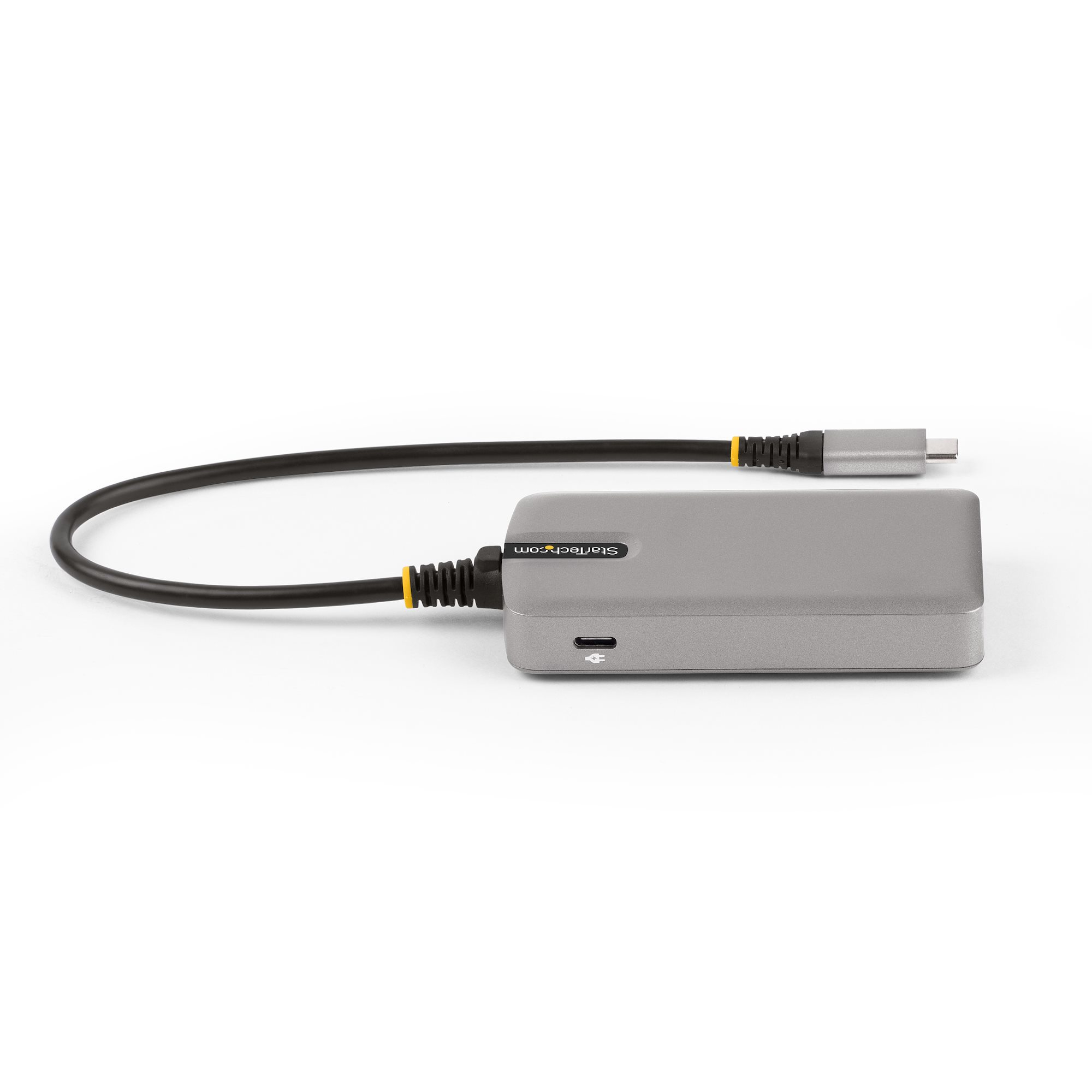

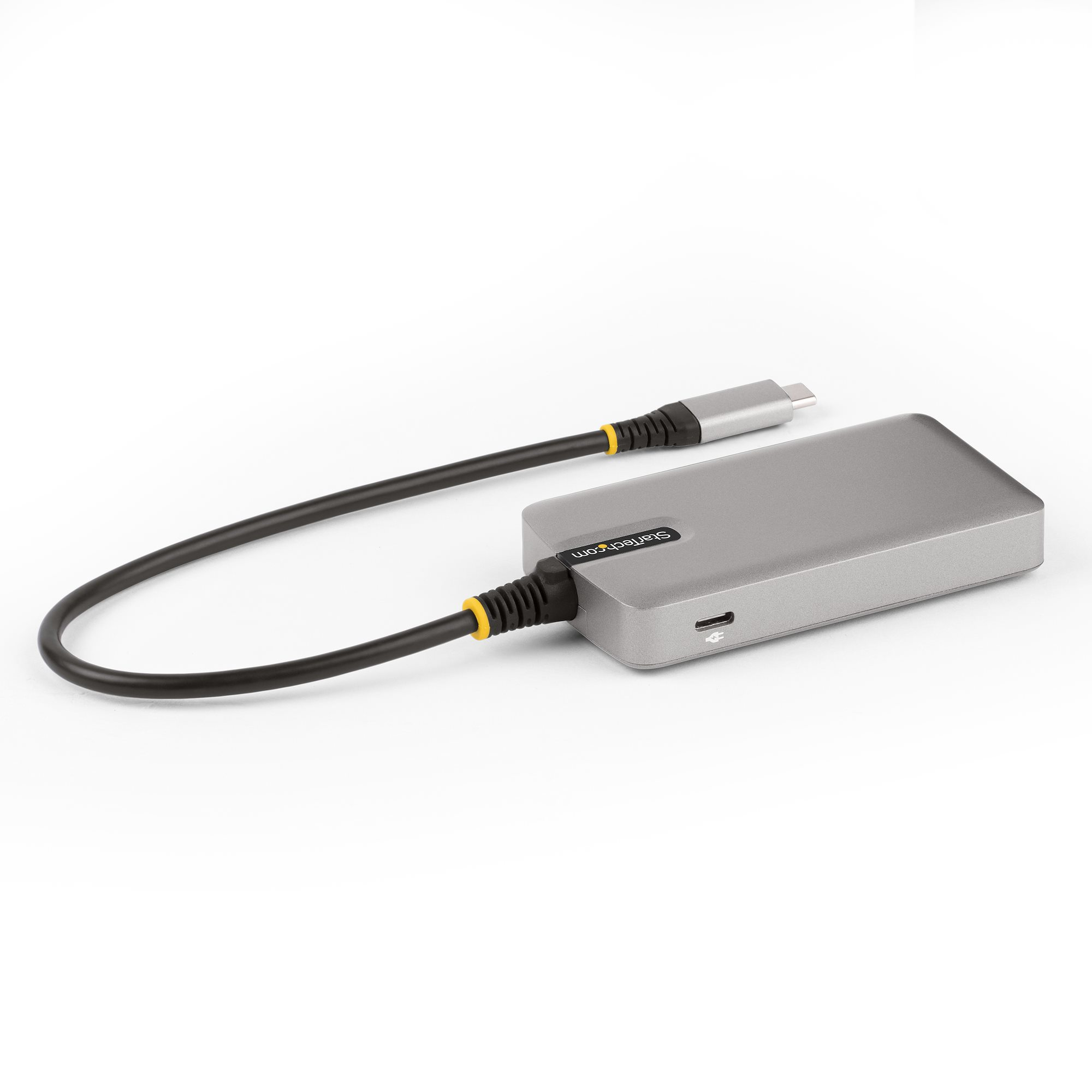

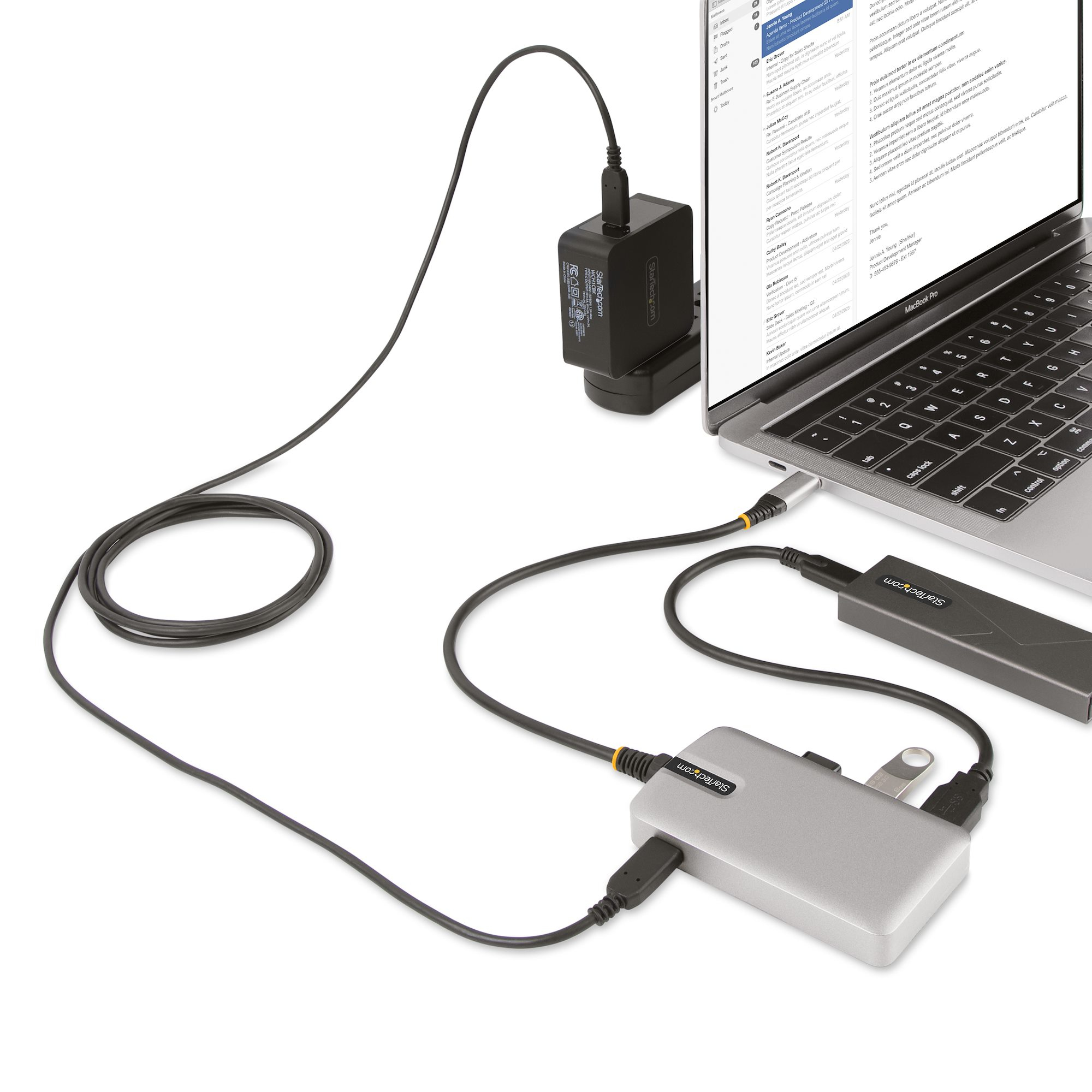

This USB hub features USB Power Delivery 3.0 pass-through (up to 100W). Connect a power source to the PD pass-through port to power the host, the hub, and an external display, and to enable full charging capabilities for the USB peripheral ports. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).

Power the hub using a USB-C power adapter connected or with bus-powered alone. The hub requires up to 18W of power. This power is dynamically shared across the downstream ports. For added protection to this USB hub and the connected host device, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play

This device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility: Setup and save custom windows layouts.

•

USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools
