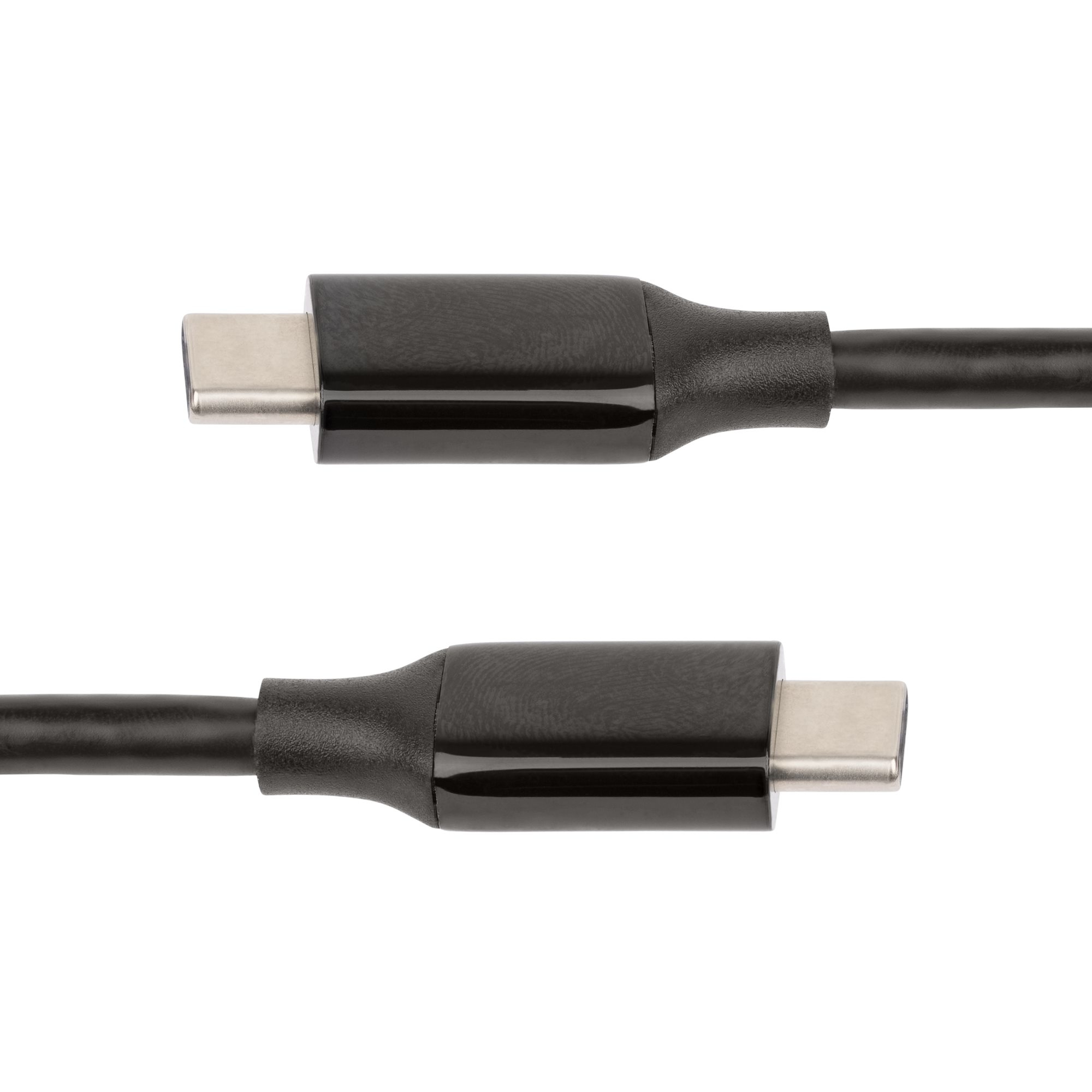

Features USB version USB 3.2 Gen 2 (3.1 Gen 2) Connector 1 USB C Connector 2 USB C Connector 1 gender Male Connector 2 gender Male Product color Black Connector 1 form factor Straight Connector 2 form factor Straight AWG wire size 29 Connector contacts plating Nickel Cable jacket material Polyvinyl chloride (PVC) Cable shielding Aluminum mylar foil Maximum data transfer rate 10000 Mbit/s Maximum data transfer rate 10 Gbit/s Plug and Play Yes USB Power Delivery Yes USB Power Delivery up to 60 W USB Type-C DisplayPort Alternate Mode Yes DisplayPort version 1.4 Maximum resolution 7680 x 4320 pixels Maximum refresh rate 240 Hz High Dynamic Range (HDR) supported Yes High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10) HDCP Yes HDCP version 2.2 Weight & dimensions Cable length 3 m Cable diameter 6.2 mm Weight 400 g Packaging data Package width 190 mm Package depth 210 mm Package height 32 mm Package weight 195 g Packaging content Quantity per pack 1 pc(s) Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -10 - 70 °C Certificates Compliance certificates RoHS Logistics data Quantity per master (outer) case 50 pc(s) Master (outer) case width 500 mm Master (outer) case length 320 mm Master (outer) case height 210 mm Sustainability Sustainability compliance Yes

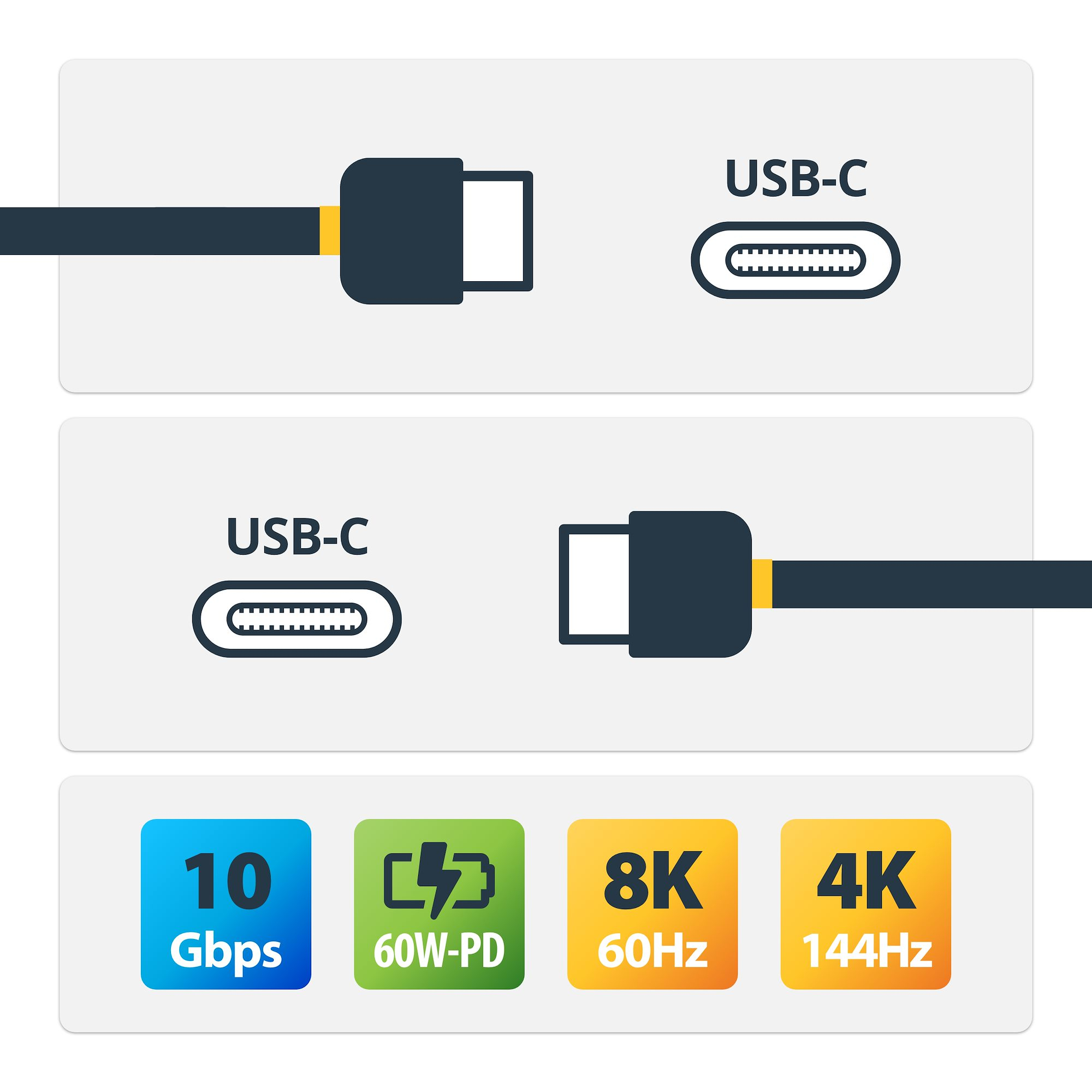

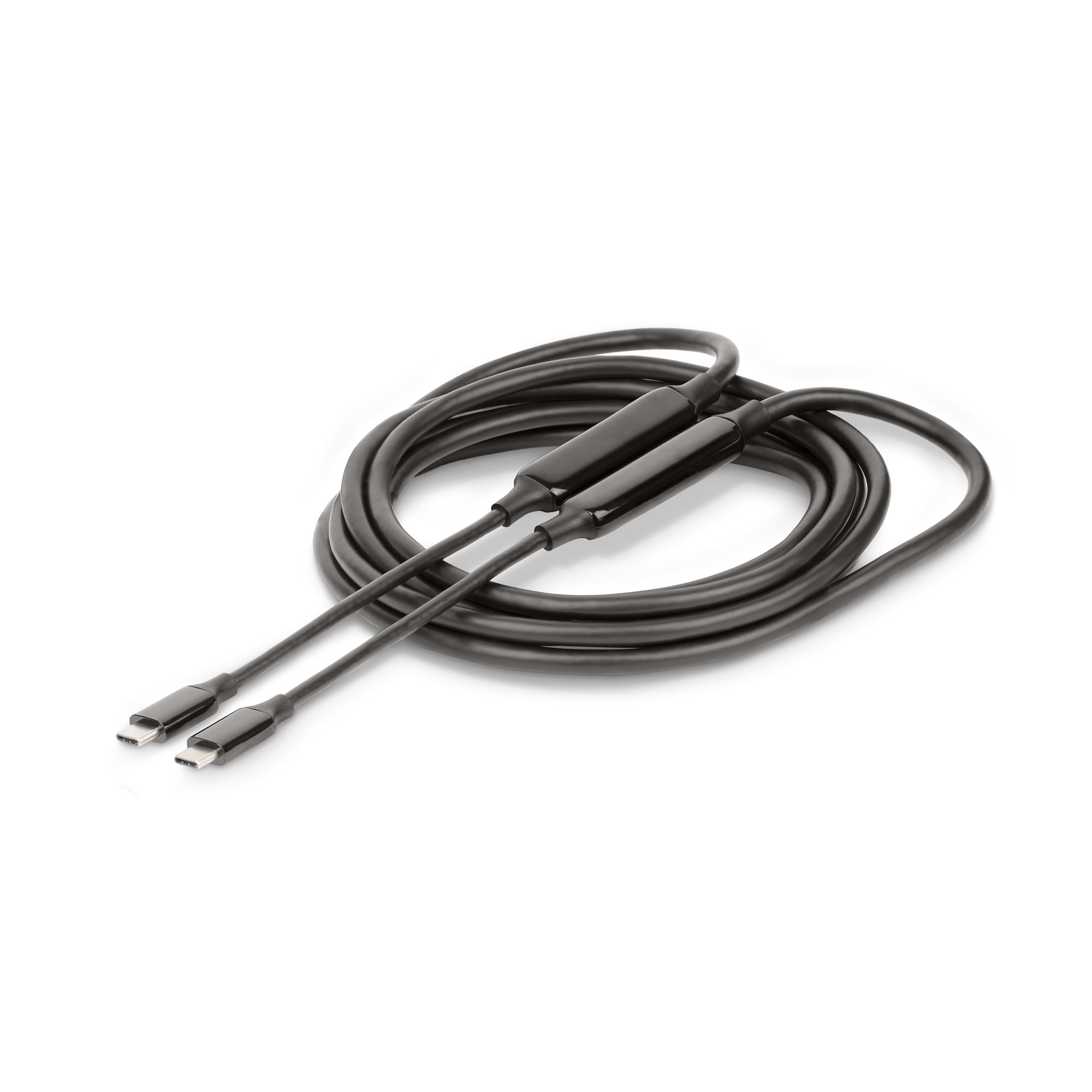

Experience full-featured USB-C and 8K video at distances up to 3m using this active USB-C cable

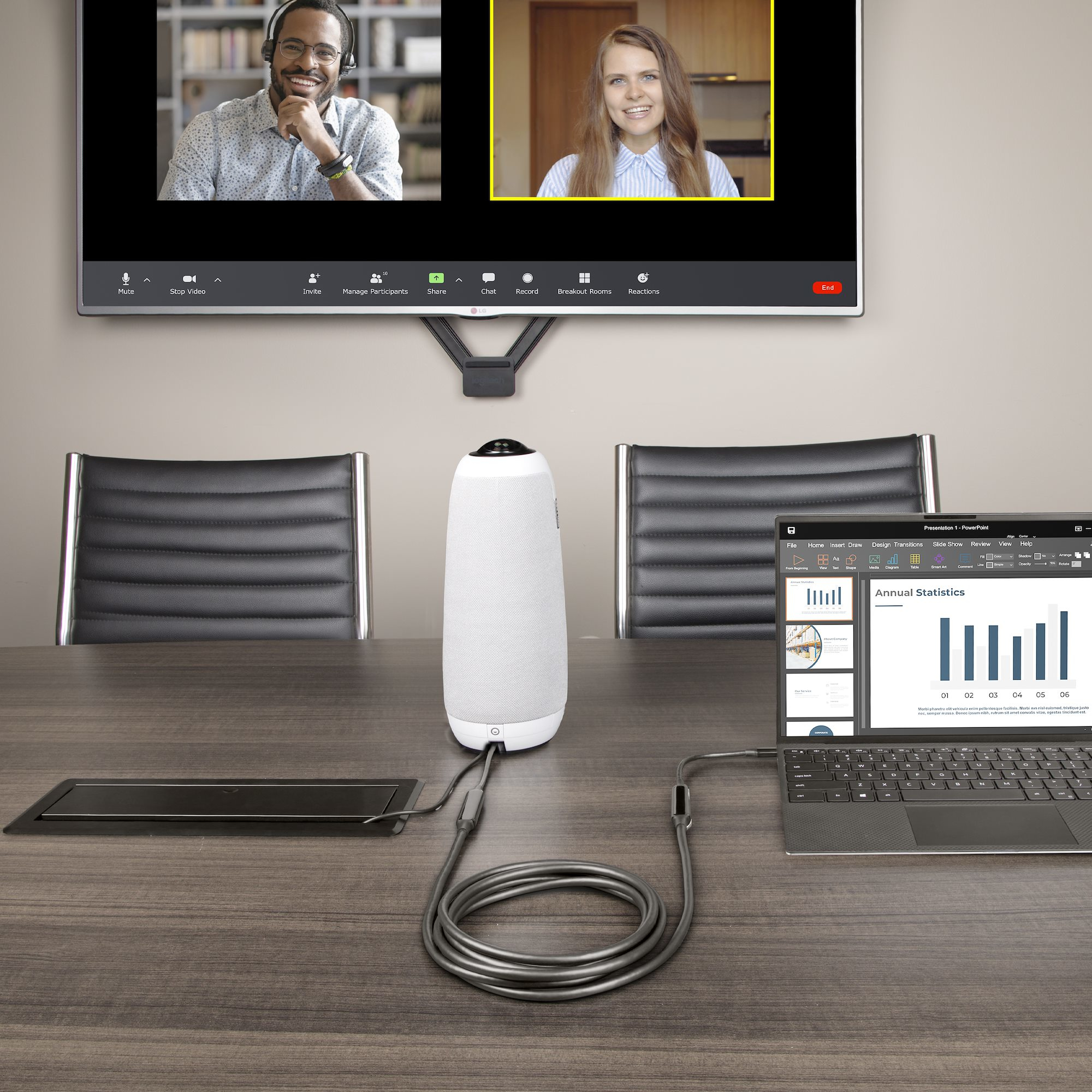

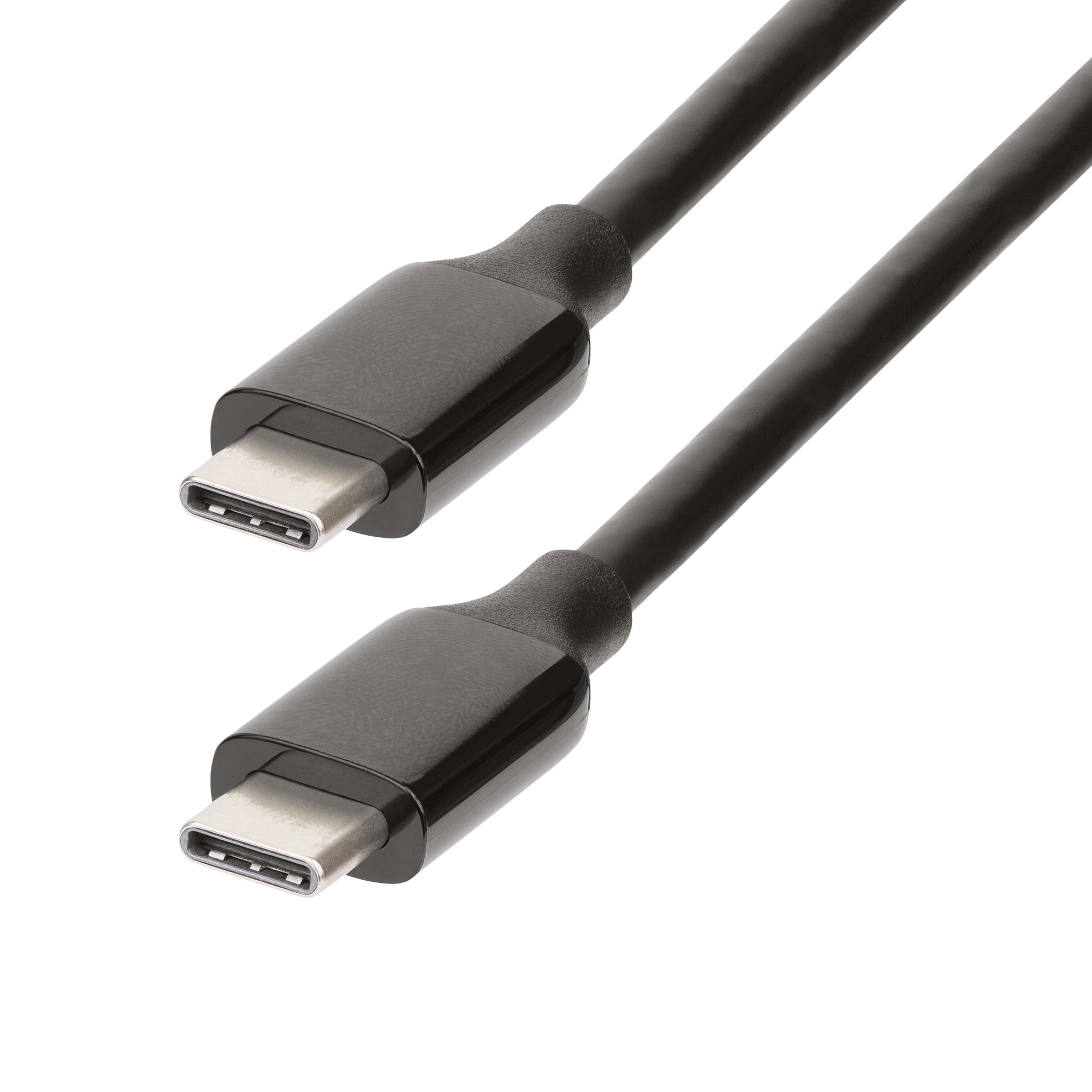

Connect USB 10Gbps source and peripheral devices using this 9.8ft (3m) Active USB Type-C Cable. This cable is ideal for setups requiring full-featured USB-C and DP 1.4 support, such as large UHD displays/video walls, and boardroom/conference room cameras.

Versatile Compatibility

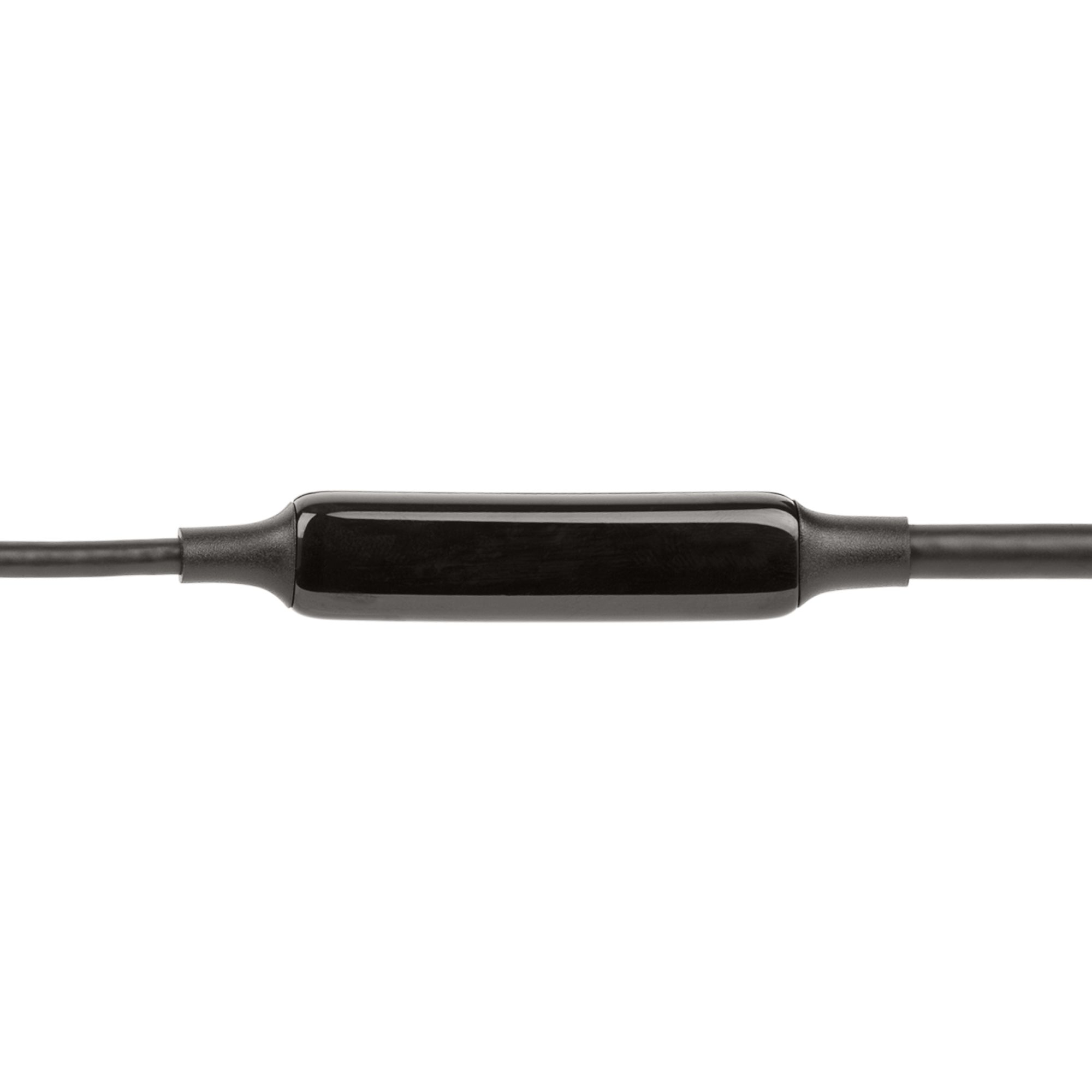

The USB-C to C cable enables universal compatibility with USB 3.2, USB 3.0, and USB-C devices. An integrated active chipset facilitates bi-directional connectivity for convenient setup, and supports up to 10Gbps throughput without additional power or signal boosters.

Experience 4K Video with DisplayPort 1.4 Alt Mode

The Active USB-C cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with HBR3, HDR10, MST, DSC 1.2, and HDCP 2.2. It is backward compatible with DP 1.3/1.2 resolutions, including 4K 60Hz, 1440p, and 1080p.

Full-Featured USB-C Power and Data

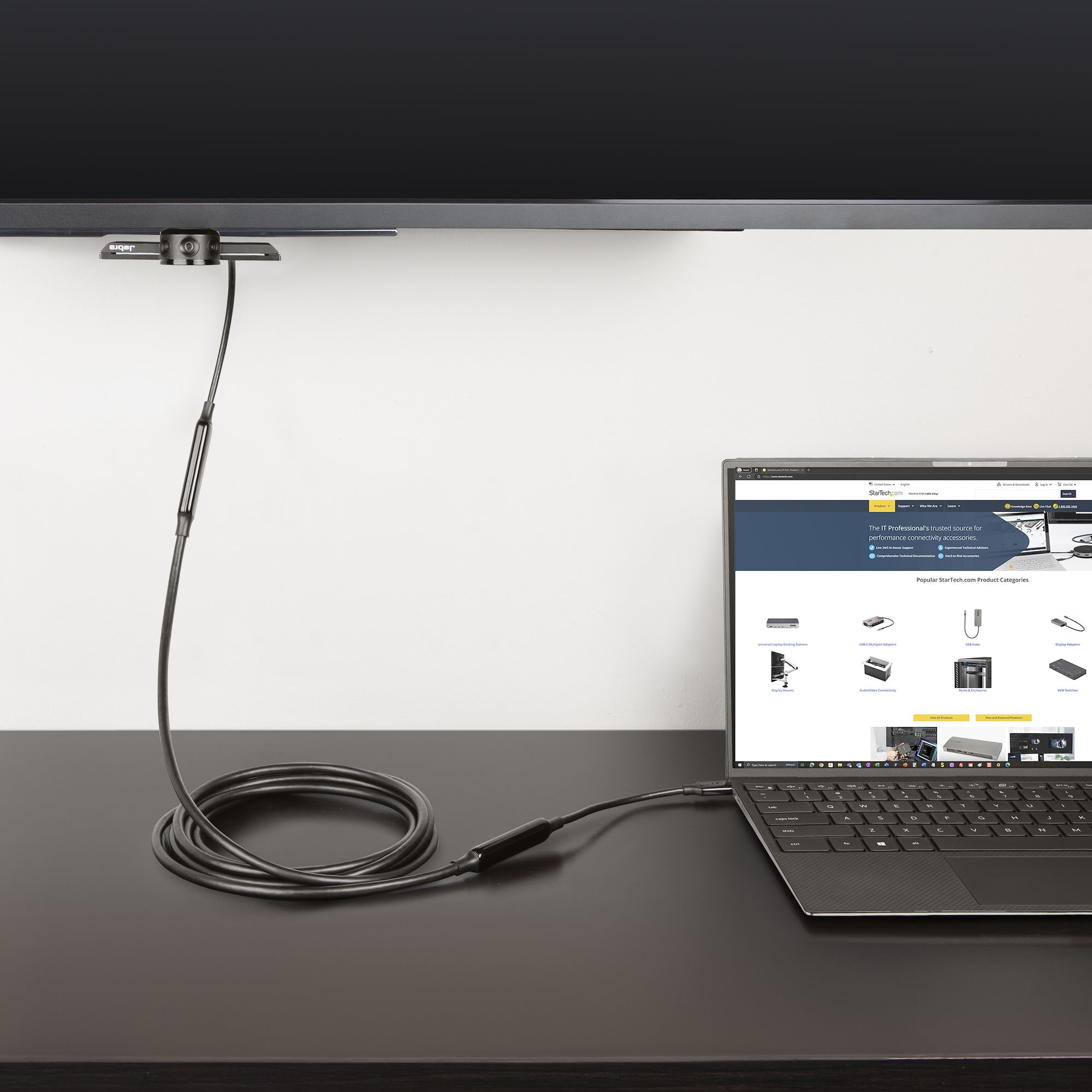

The long Active USB-C Cable supports a data bandwidth of up to 10 Gbps. A certified E-marker chip ensures consistent Power Delivery of up to 60W. Dock and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface using a single USB-C connection that extends beyond the length of passive cables.
