Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5 HDMI ports quantity 0 Headphone outputs 1 DVI-I ports quantity 1 DVI-D ports quantity 1 Combo headphone/mic port Yes Headphone connectivity 3.5 mm DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Wake-on-LAN ready Yes Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product color Black, Silver Card reader integrated No Data transfer rate 5 Gbit/s Maximum analog resolution 2048 x 1152 pixels LED indicators Power Charging function Yes UASP support Yes Rubber feet Yes Housing material Aluminum, Plastic Brand compatibility Any brand Certification CE, FCC, REACH Power Power source type AC AC input voltage 100 - 240 V Input current 0.8 A Output voltage 5 V Output current 4 A Power consumption (typical) 20 W Power plug type Type M Compatible power plug types AU, EU, UK, US Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 5 - 85% Weight & dimensions Width 23 mm Depth 83 mm Height 178 mm Weight 285 g Packaging data Package width 255 mm Package depth 186 mm Package height 95 mm Package weight 1.02 kg Packaging content Cables included USB AC adapter included Yes Manual Yes Drivers included Yes Interface adapters included DVI-I male - HDMI female, DVI-I male - VGA female Stand included Yes Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 10 pc(s) Master (outer) case width 357 mm Master (outer) case length 415 mm Master (outer) case height 251 mm Harmonized System (HS) code 84733020 Other features Cable length 1 m Chipset DisplayLink - DL-3900, Genesys Logic - GL3520 USB data transfer rates 12,480,5000 Mbit/s

Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge Ports

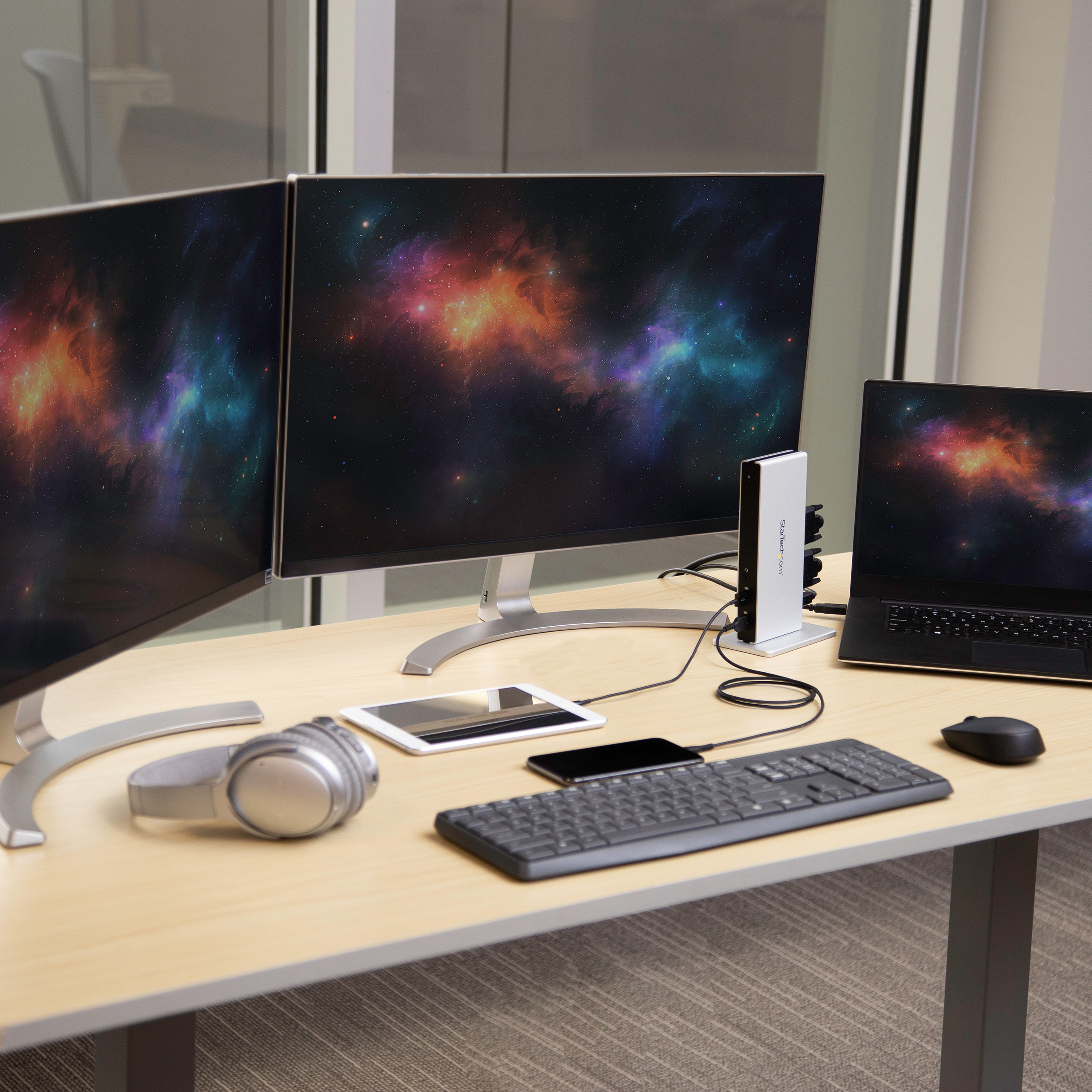

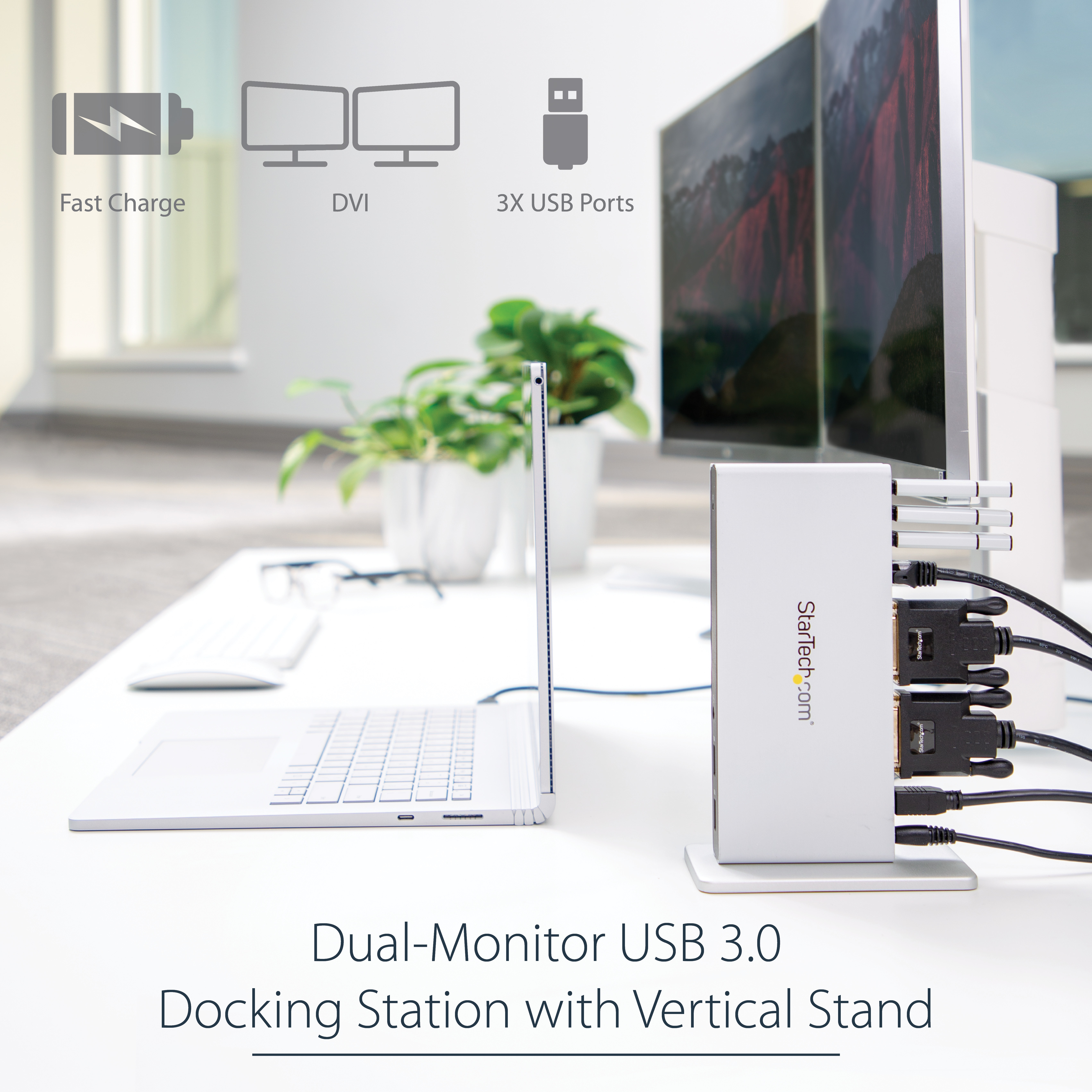

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

Display Flexibility

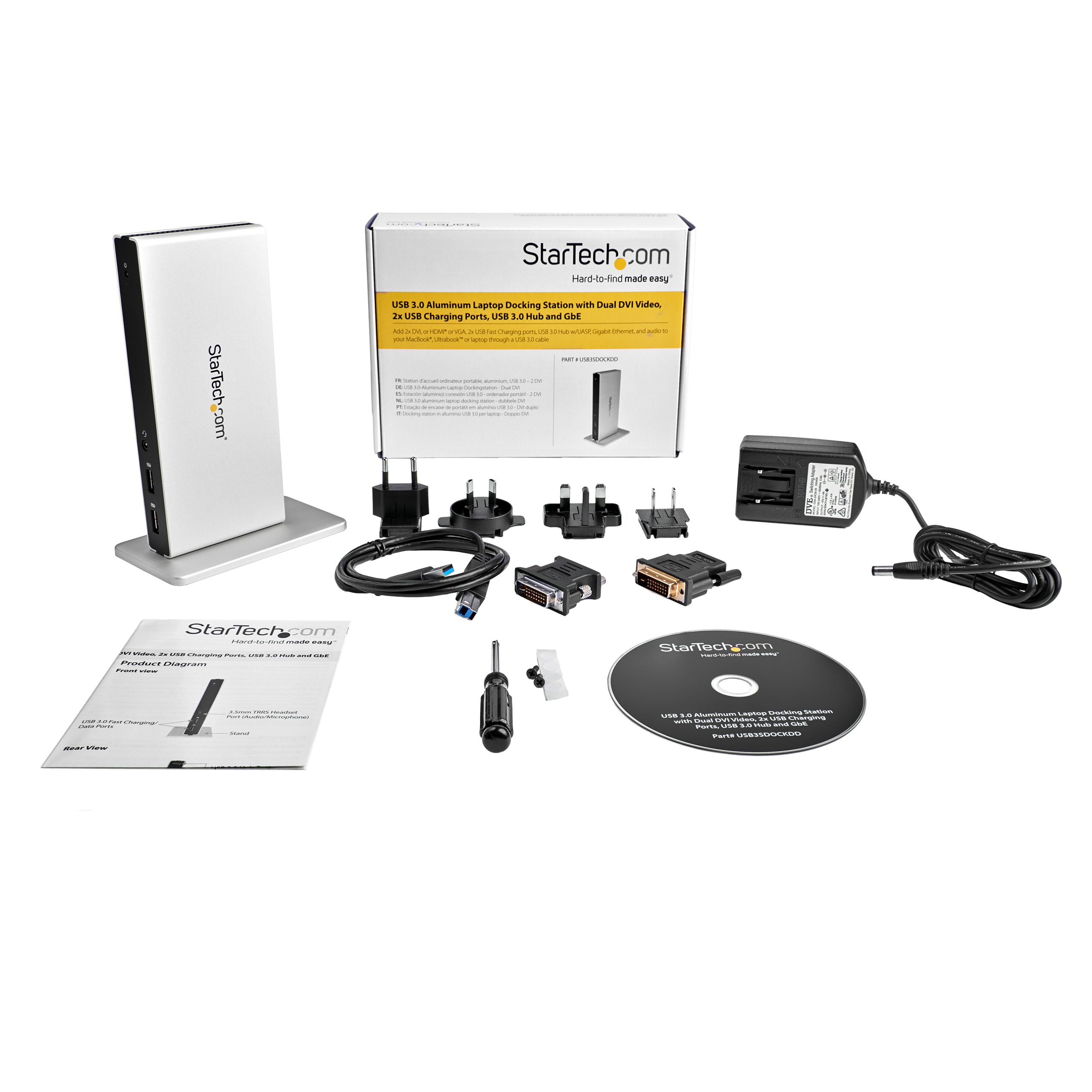

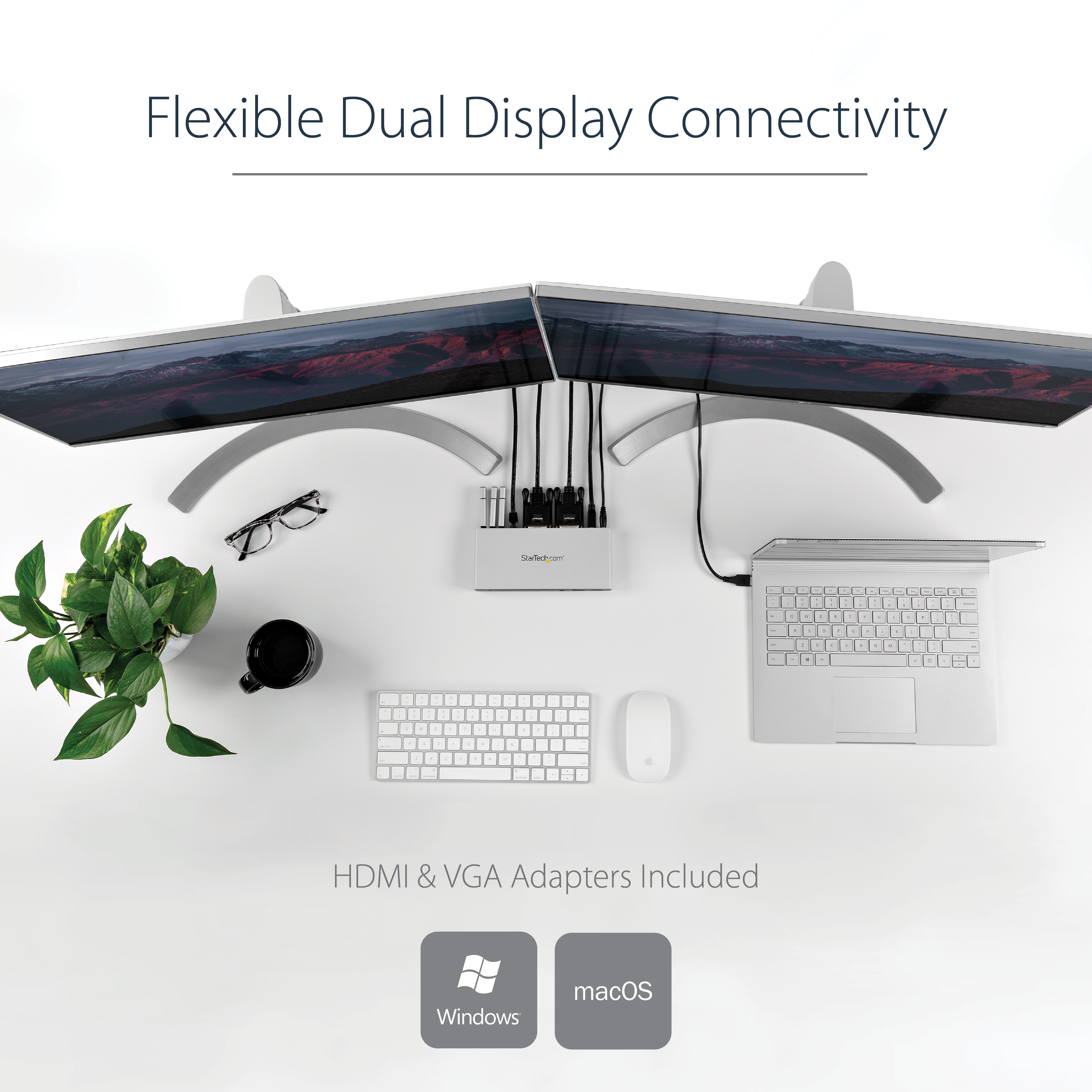

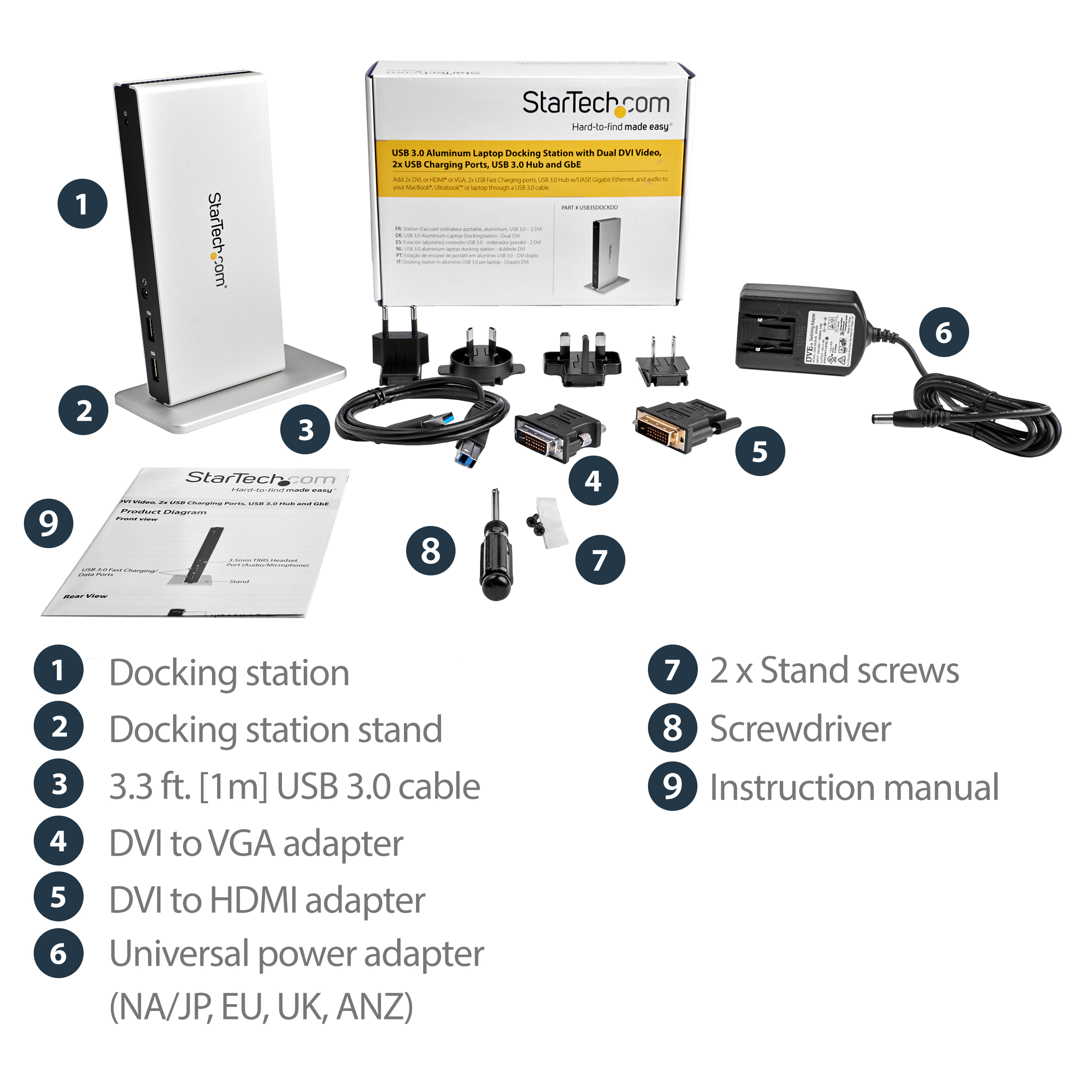

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

Powerful Connections and Fast Device Charging

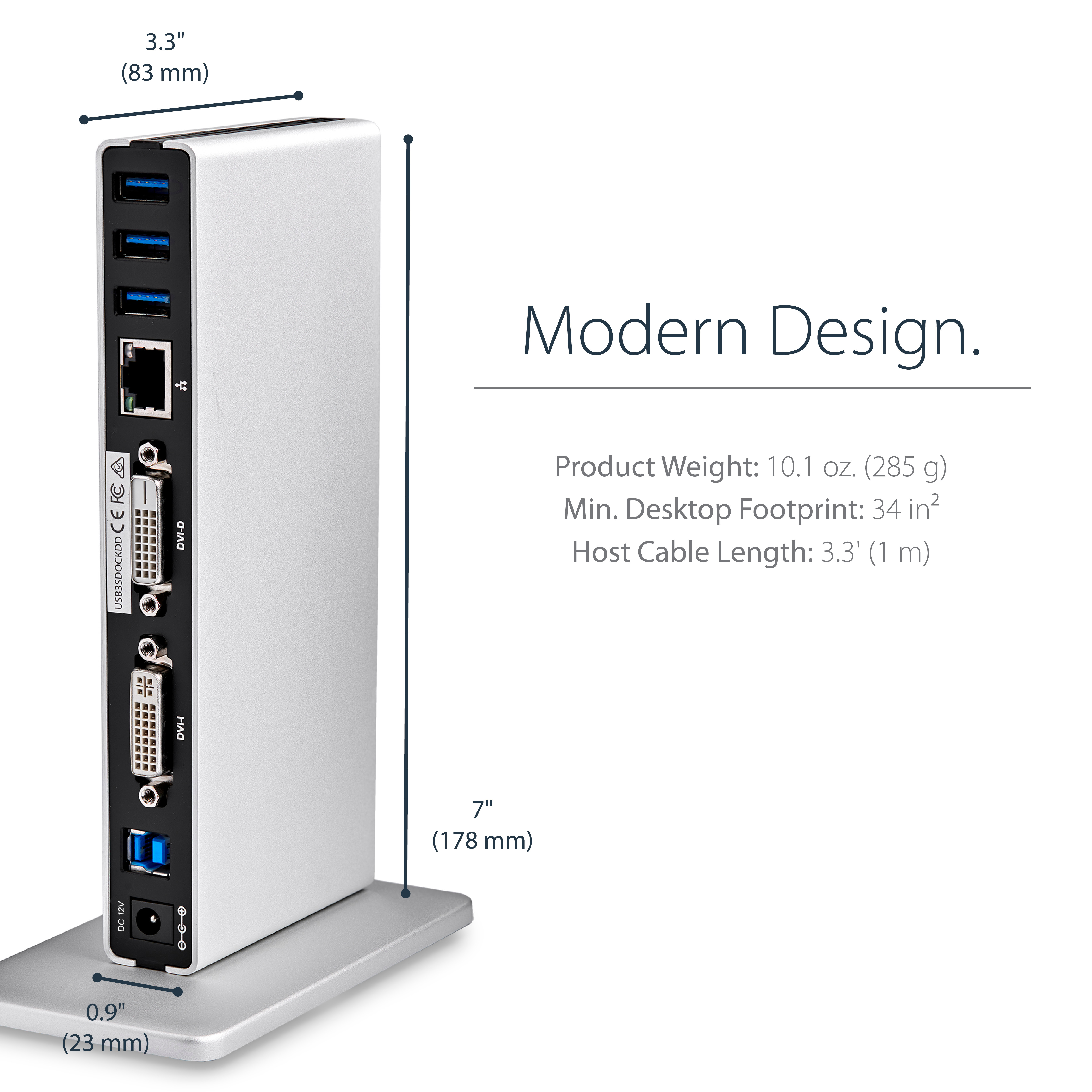

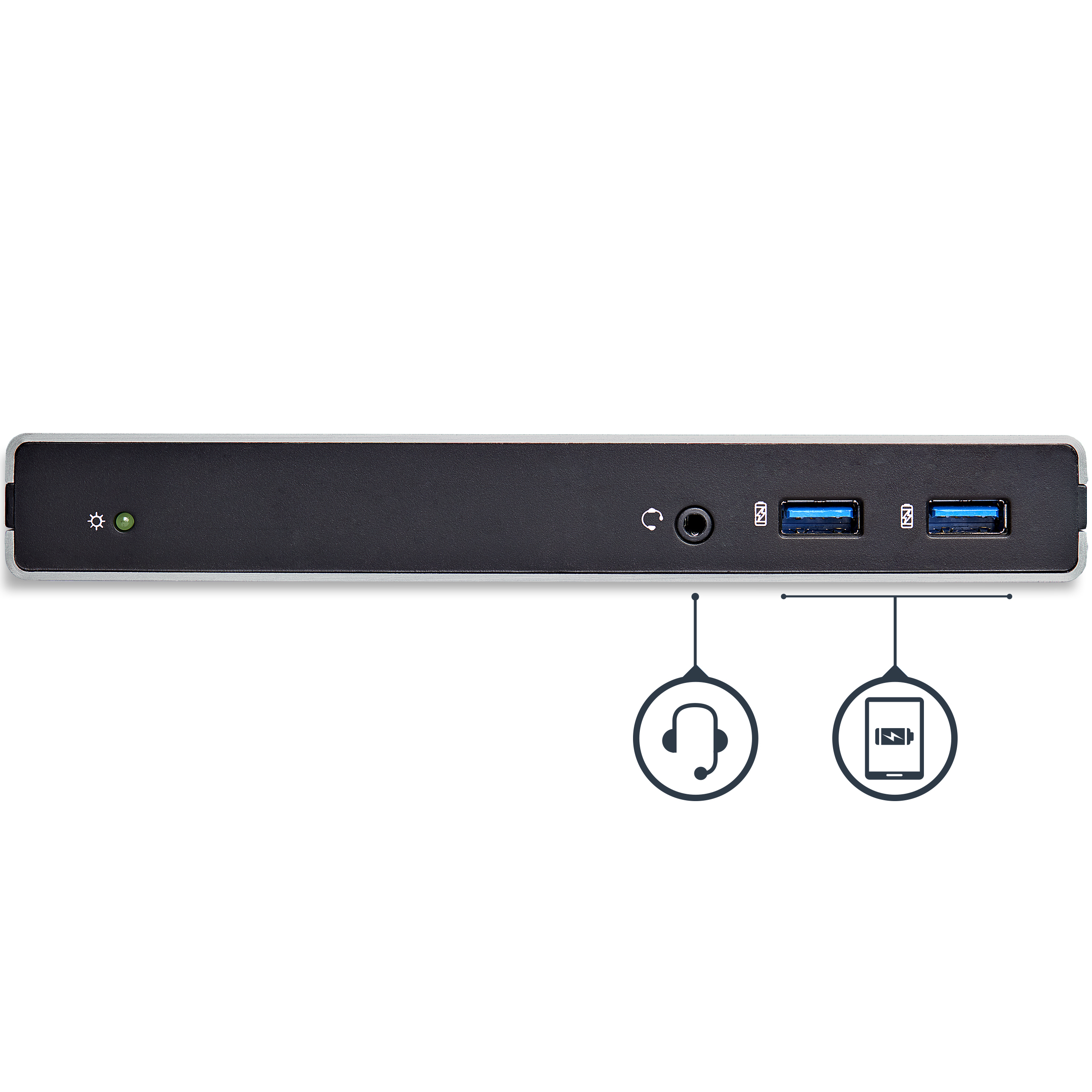

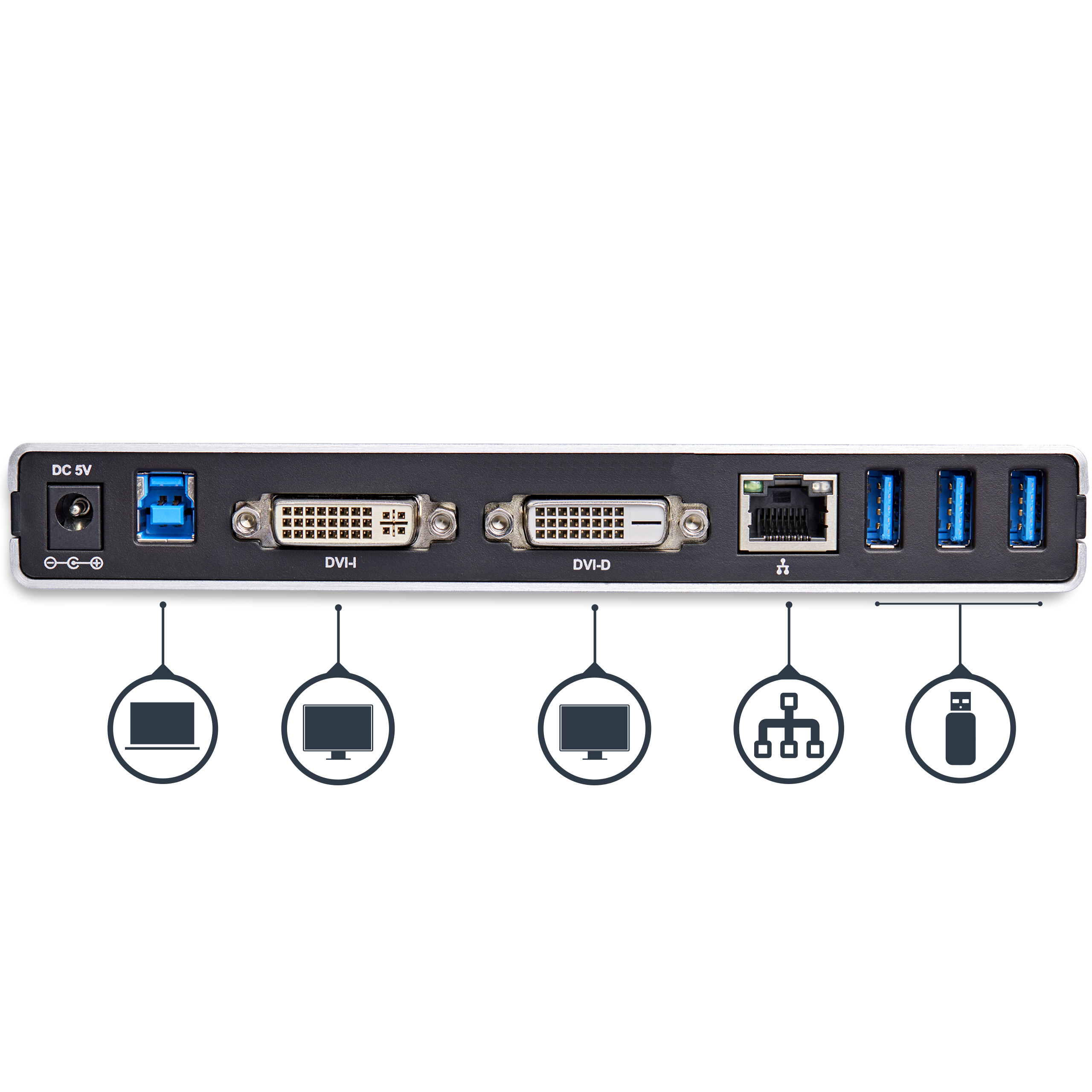

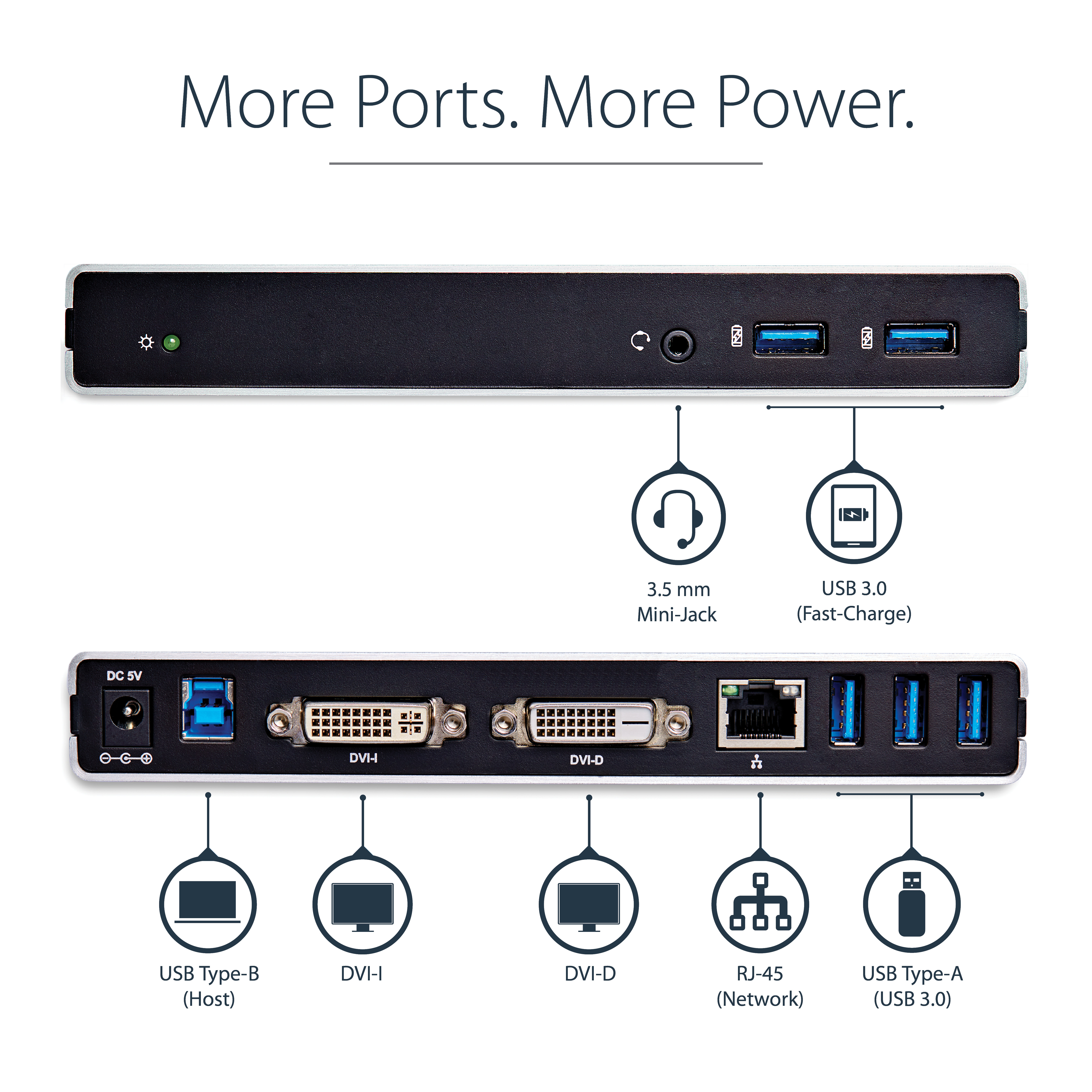

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

Save Desktop Space

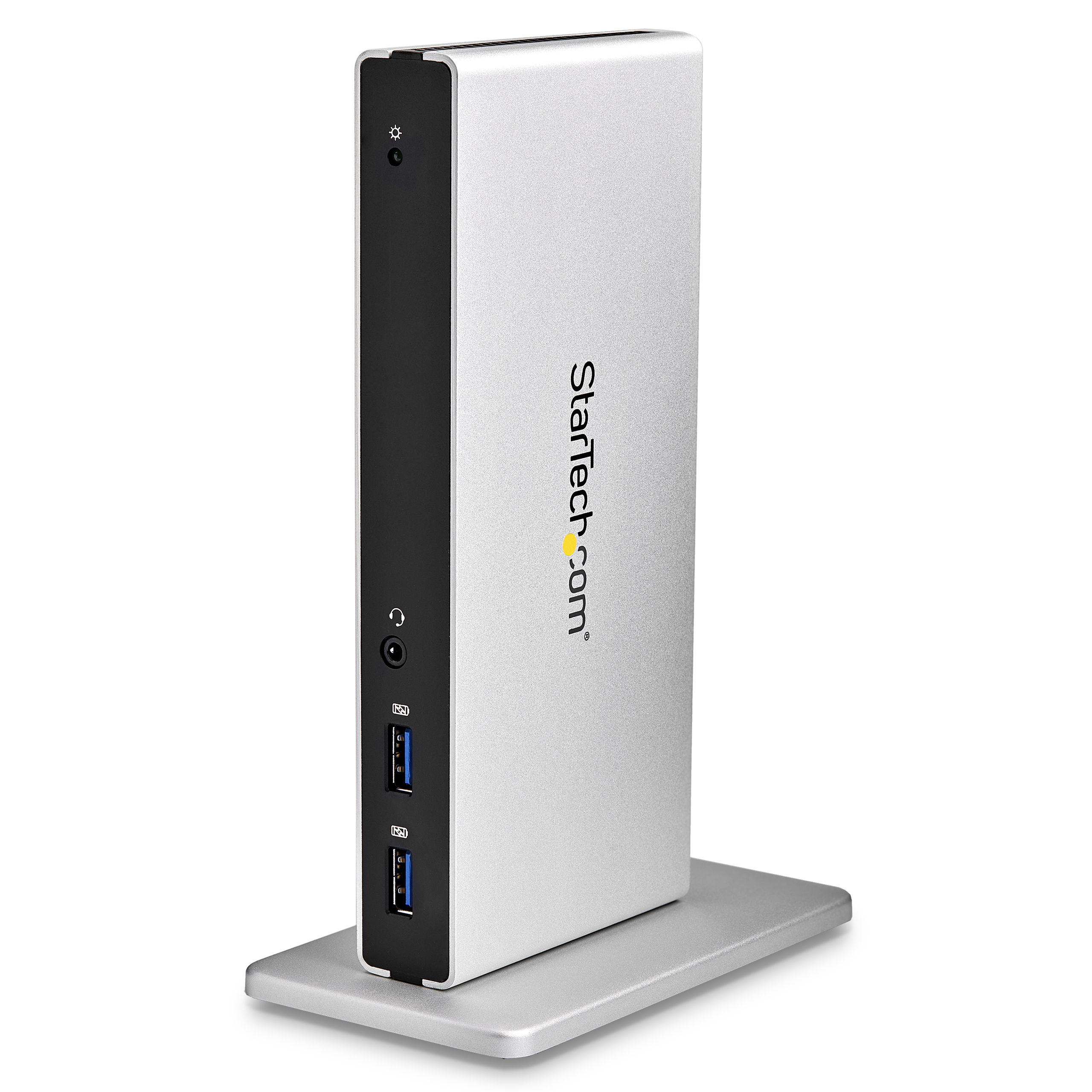

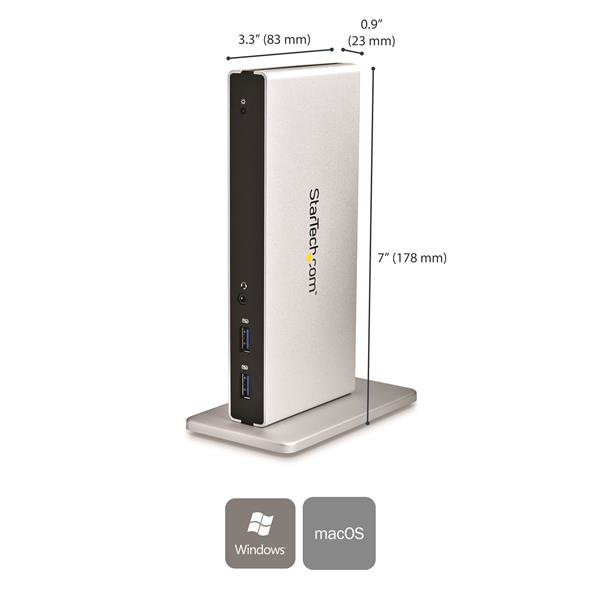

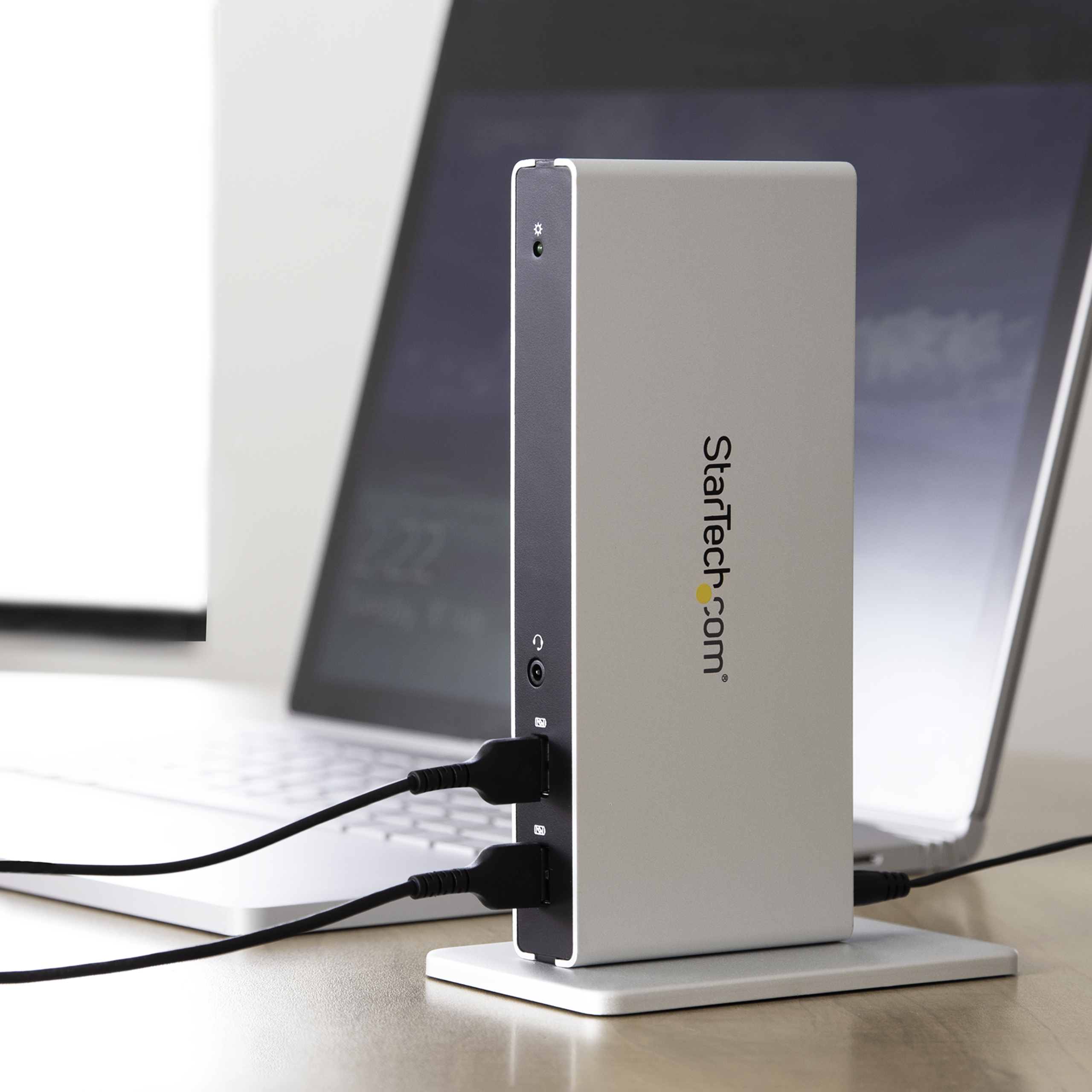

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.

The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
