Features Cable length 0.15 m Connector 1 DisplayPort Connector 2 HDMI Type A (Standard) Connector 1 gender Male Connector 2 gender Female Connector 1 form factor Straight Connector 2 form factor Straight HDMI version 1.4 HDCP Yes HDCP version 1.4 DisplayPort version 1.2 DisplayPort Content Protection (DPCP) Yes Maximum resolution 4096 x 2048 pixels Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) Maximum refresh rate 30 Hz Product color Black Supported audio channels 7.1 Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 10 - 85% Certificates Compliance certificates CE, RoHS Weight & dimensions Weight 22 g Width 21 mm Depth 64 mm Height 11 mm Packaging data Package width 125 mm Package depth 225 mm Package height 13 mm Package weight 27 g Packaging content Quantity per pack 1 pc(s) Logistics data Harmonized System (HS) code 84733080 Master (outer) case width 330 mm Master (outer) case length 500 mm Master (outer) case height 220 mm Quantity per master (outer) case 320 pc(s)

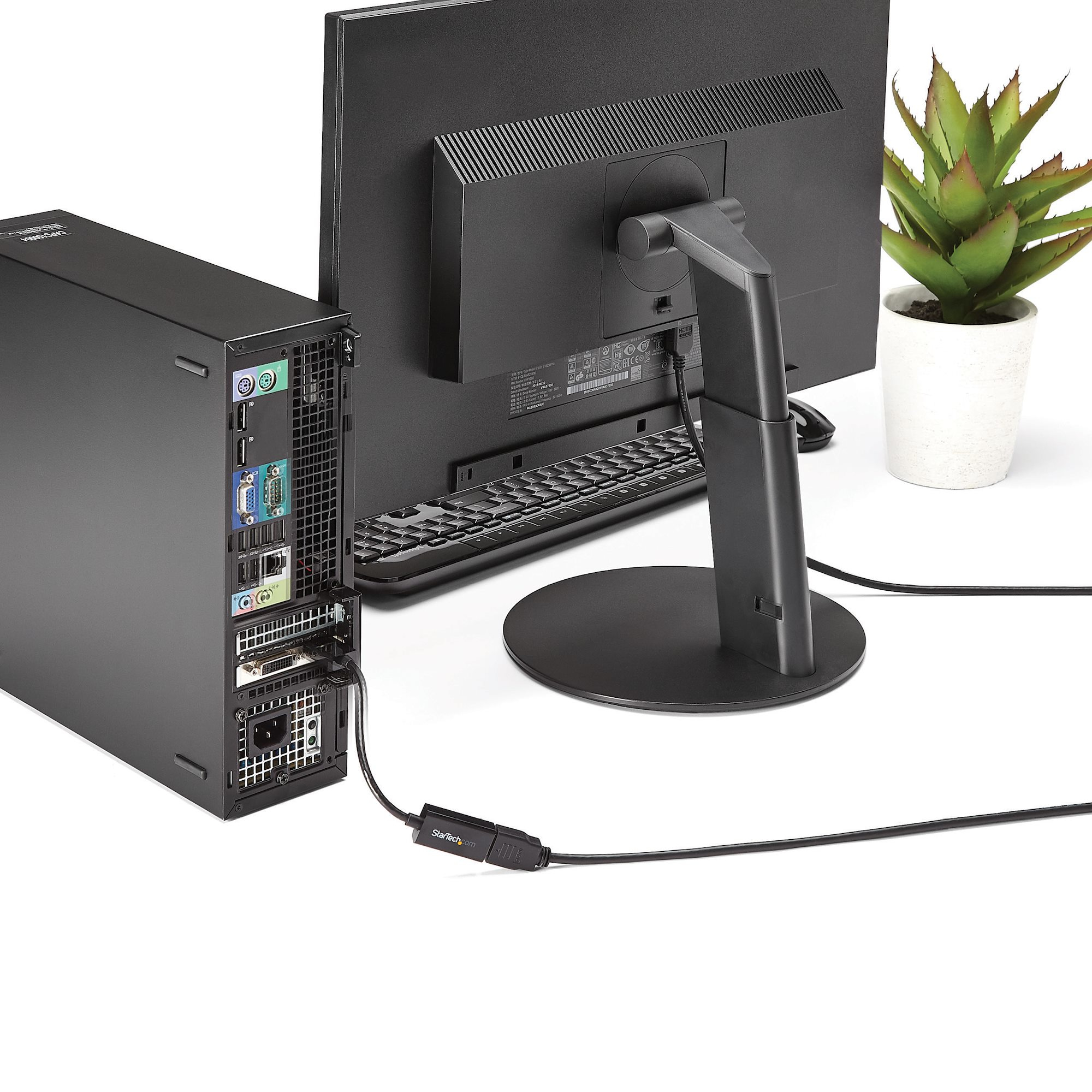

Connect an HDMI monitor to a DisplayPort video source

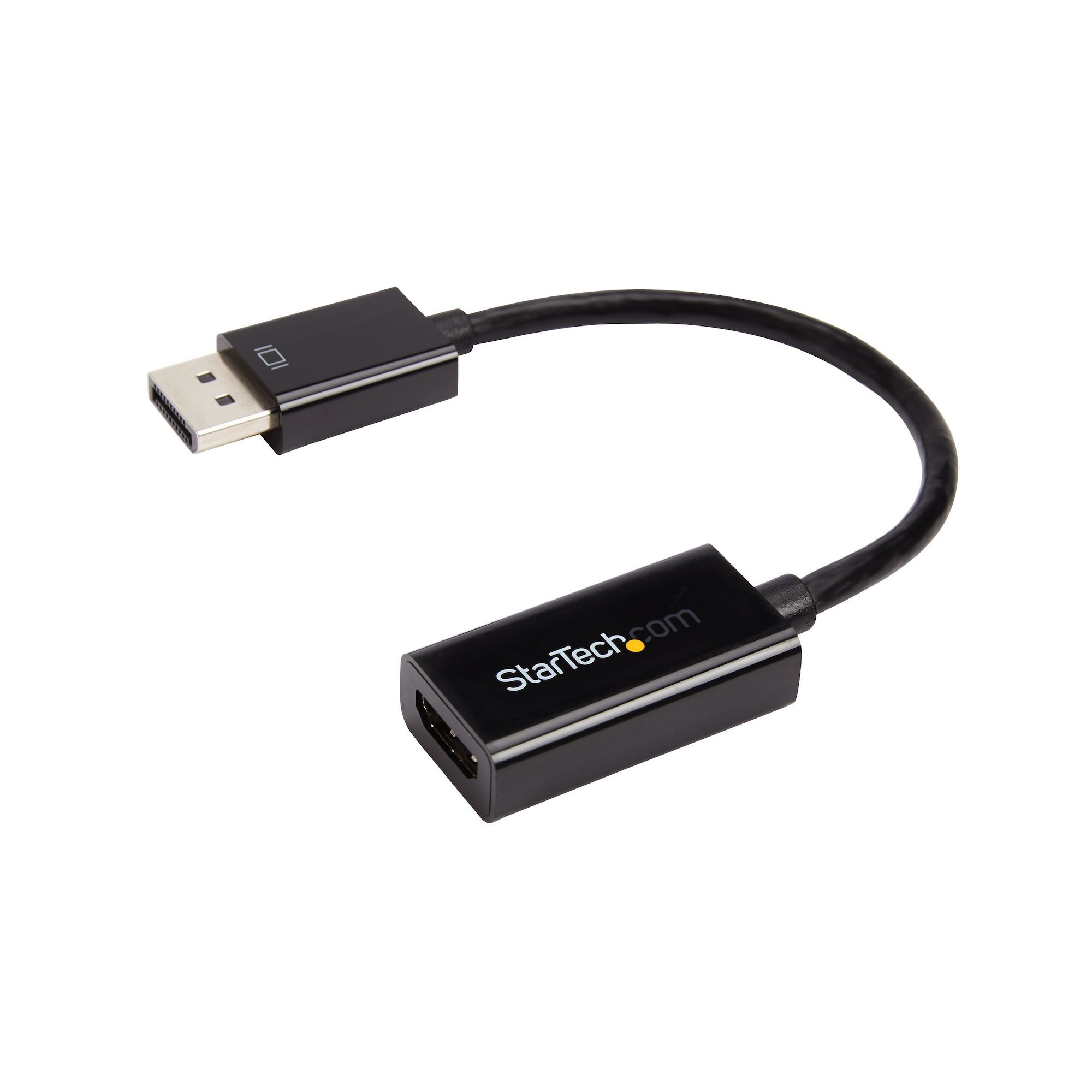

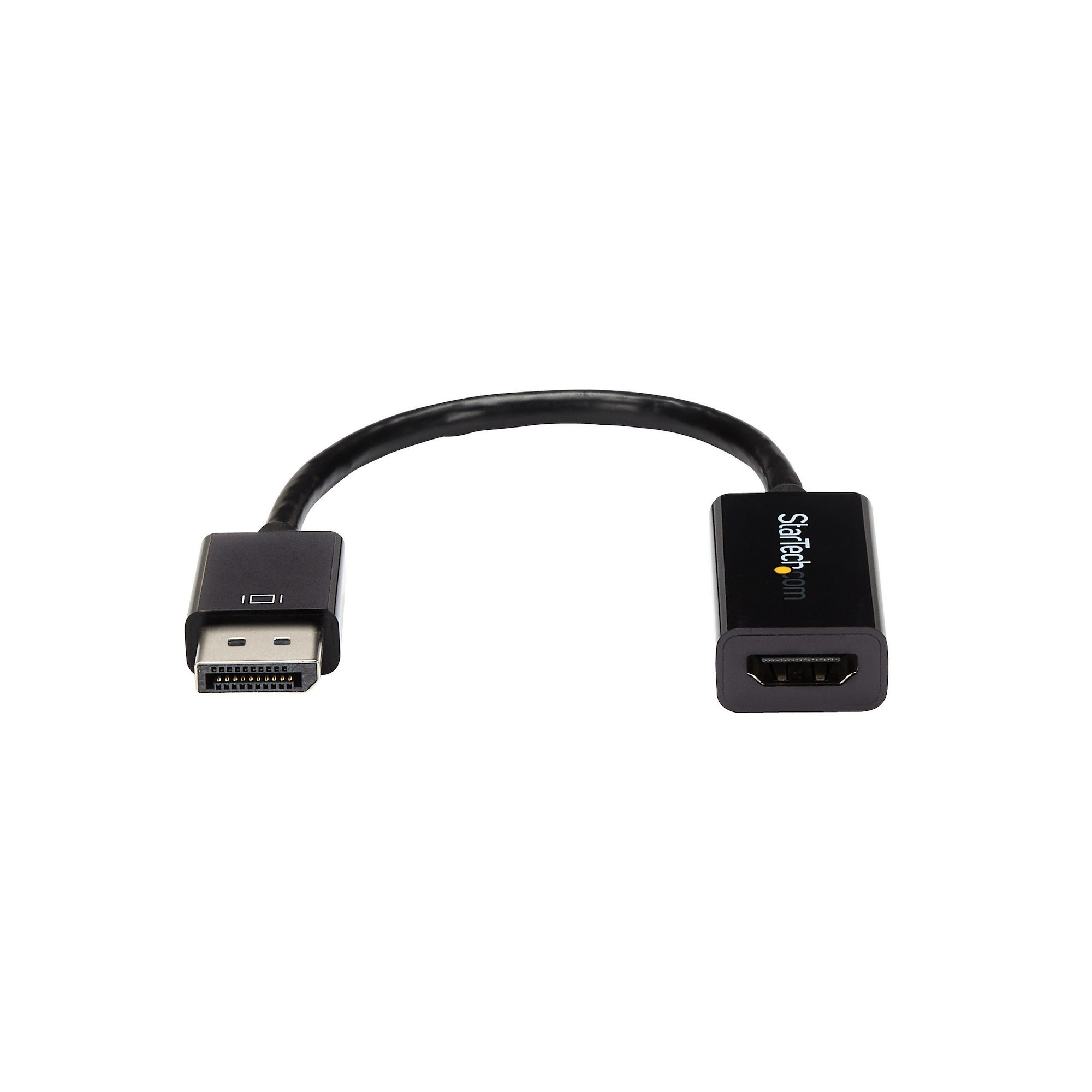

The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.

With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.

For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.

To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

The DP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.
