Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB Power Delivery (USB PD) Yes USB Power Delivery up to 60 W USB connector type USB Type-A, USB Type-C DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Wake-on-LAN ready Yes Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product colour Silver, White Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 4096 x 2160 pixels UASP support Yes Housing material Plastic Certification CE, FCC, TAA, REACH Power Power source type USB Power supply 60 W Software Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 65 °C Operating relative humidity (H-H) 0 - 85% Weight & dimensions Width 51 mm Depth 96 mm Height 16 mm Weight 64 g Packaging data Package width 147 mm Package depth 213 mm Package height 42 mm Package weight 193 g Packaging content Quick start guide Yes Technical details Compliance certificates RoHS Logistics data Products per master (outer) case 40 pc(s) Master (outer) case width 440 mm Master (outer) case length 445 mm Master (outer) case height 316 mm Harmonized System (HS) code 84733020 Other features Cable length 0.25 m Chipset VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179

Portable Docking Station | Mac & Windows® | GbE | Thunderbolt™ 3 Compatible | TAA

This sleek USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters into a portable docking station for your laptop. You get the convenience of a USB-C to USB adapter, USB-C to Ethernet adapter, and USB-C 4K HDMI adapter all in one portable solution.

And, with support for 60W USB Power Delivery 2.0, you can power both the adapter and charge your laptop at the same time.

Create a Powerful Workstation

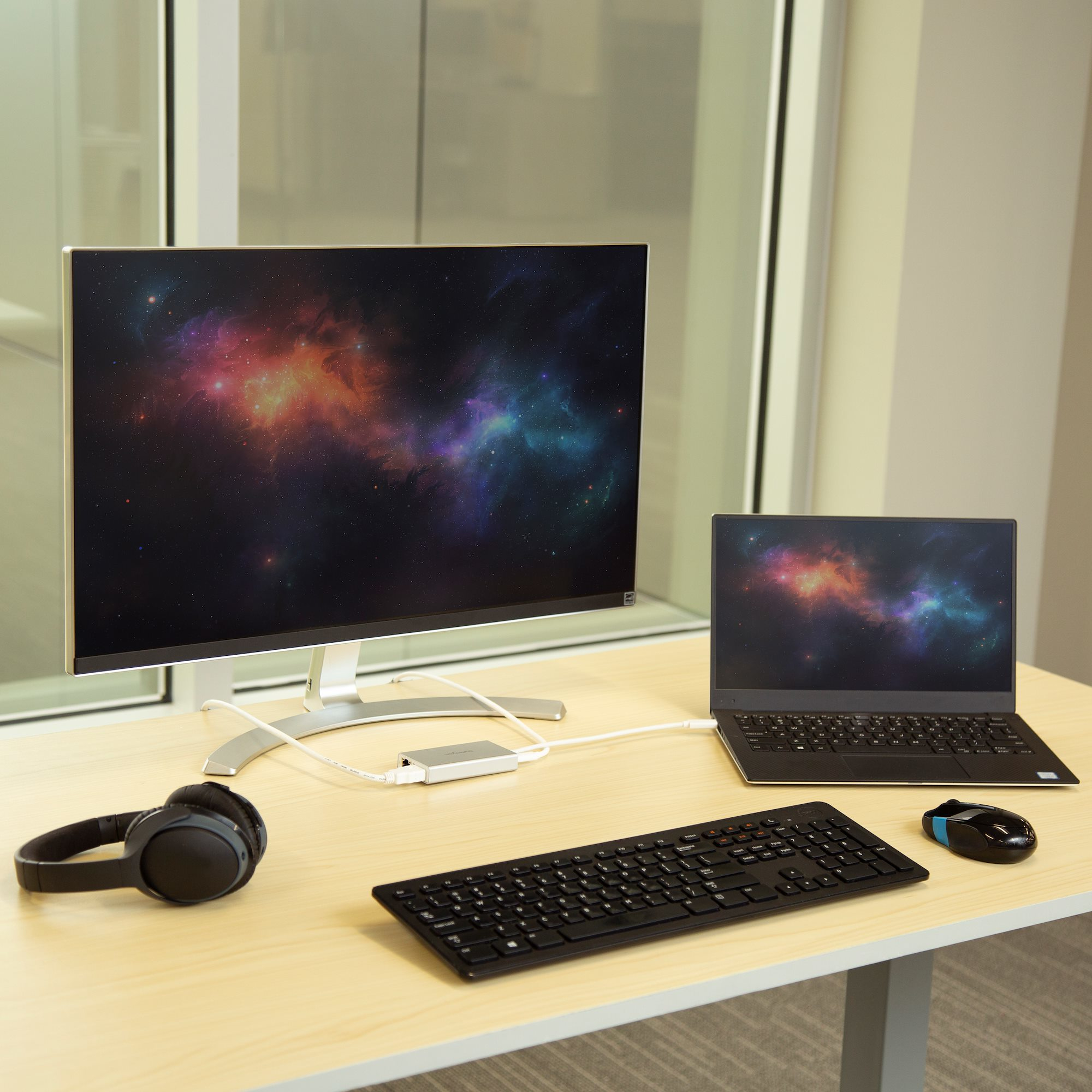

The versatile USB-C adapter lets you create a dual-monitor workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI output with 30 Hz refresh rate and audio, two USB 3.0 ports, and a Gigabit Ethernet port, with support for USB Power Delivery 2.0.

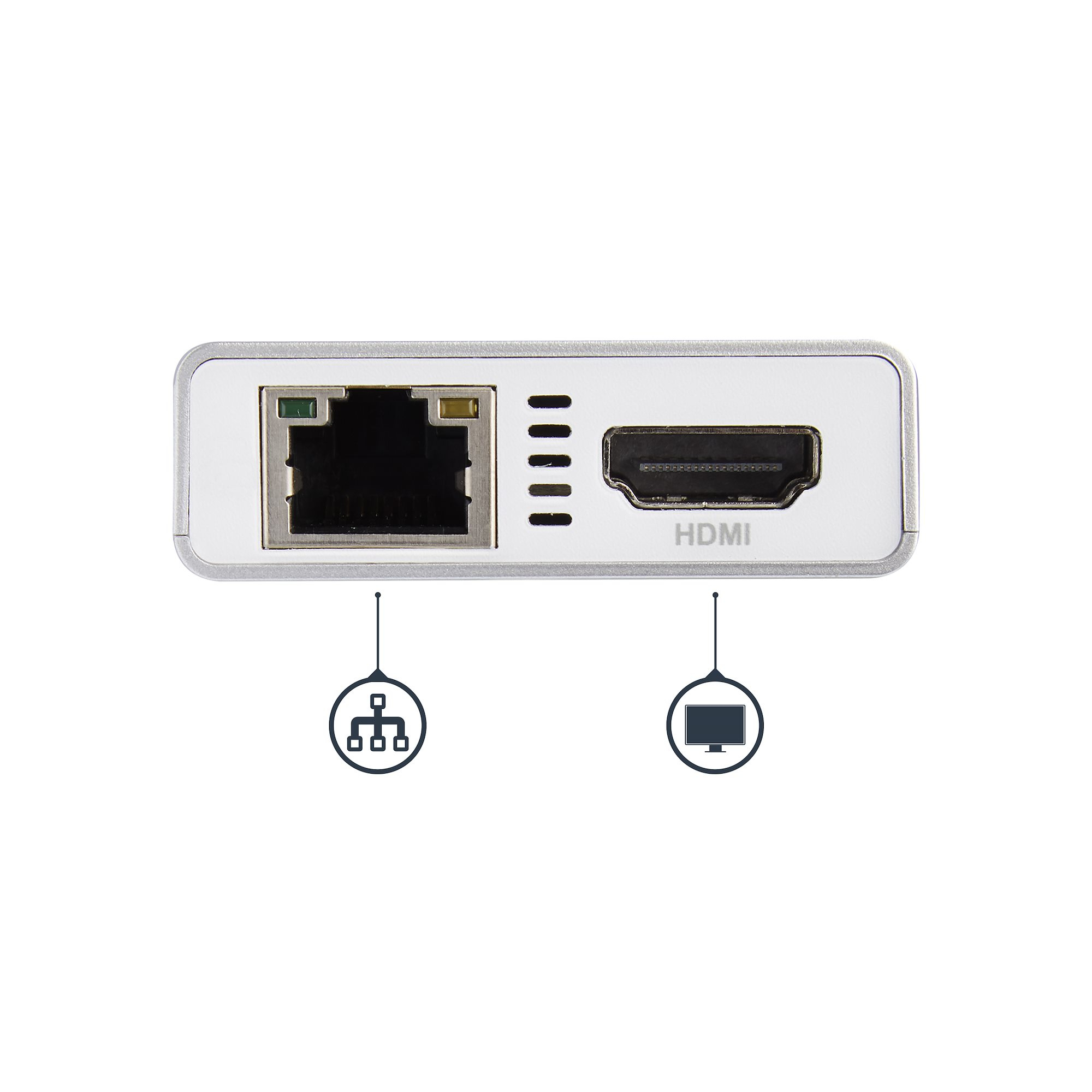

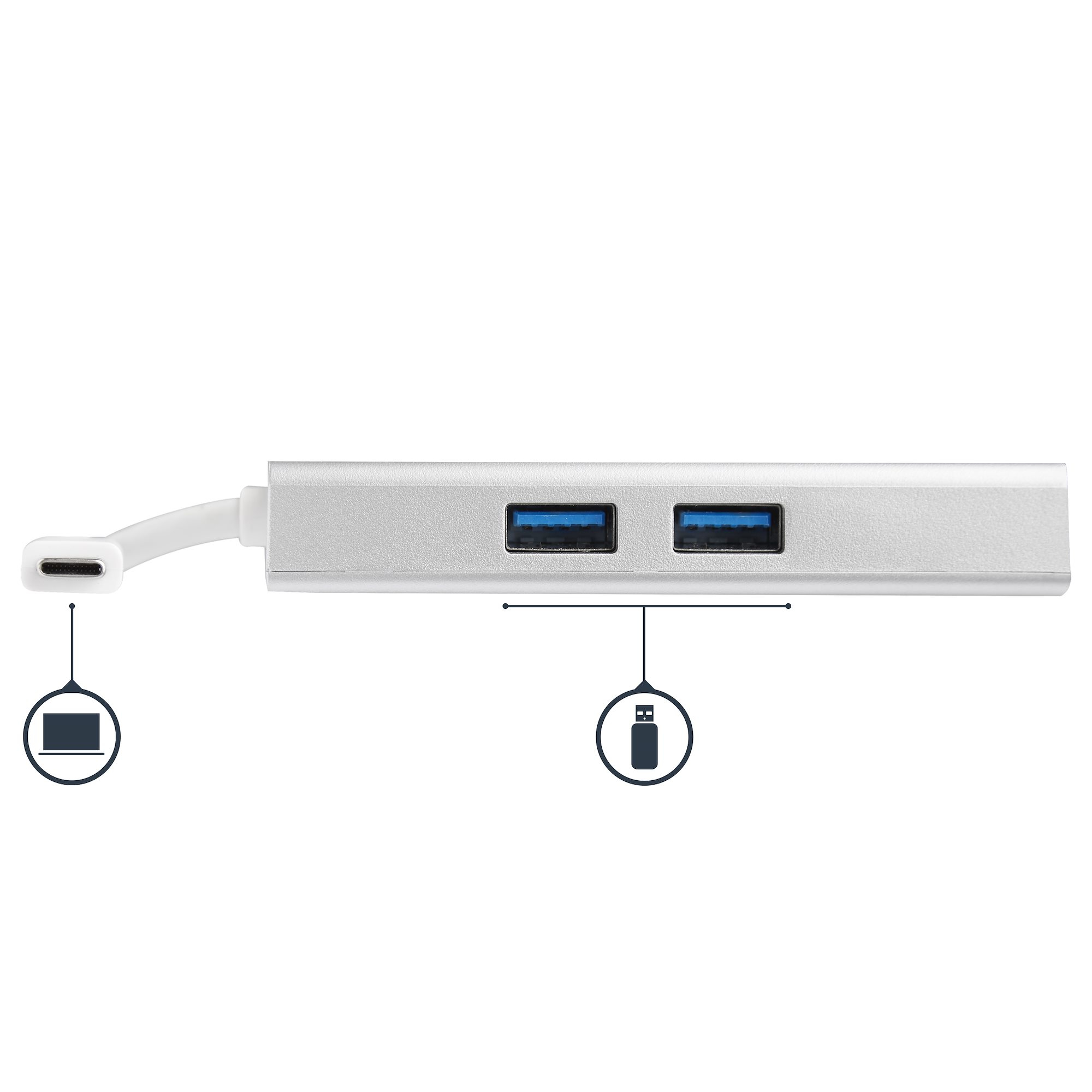

The Gigabit Ethernet port with support for Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet, delivers a reliable wired network connection, ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect productivity devices like your mouse and/or flash drive.

Designed for Easy Portability

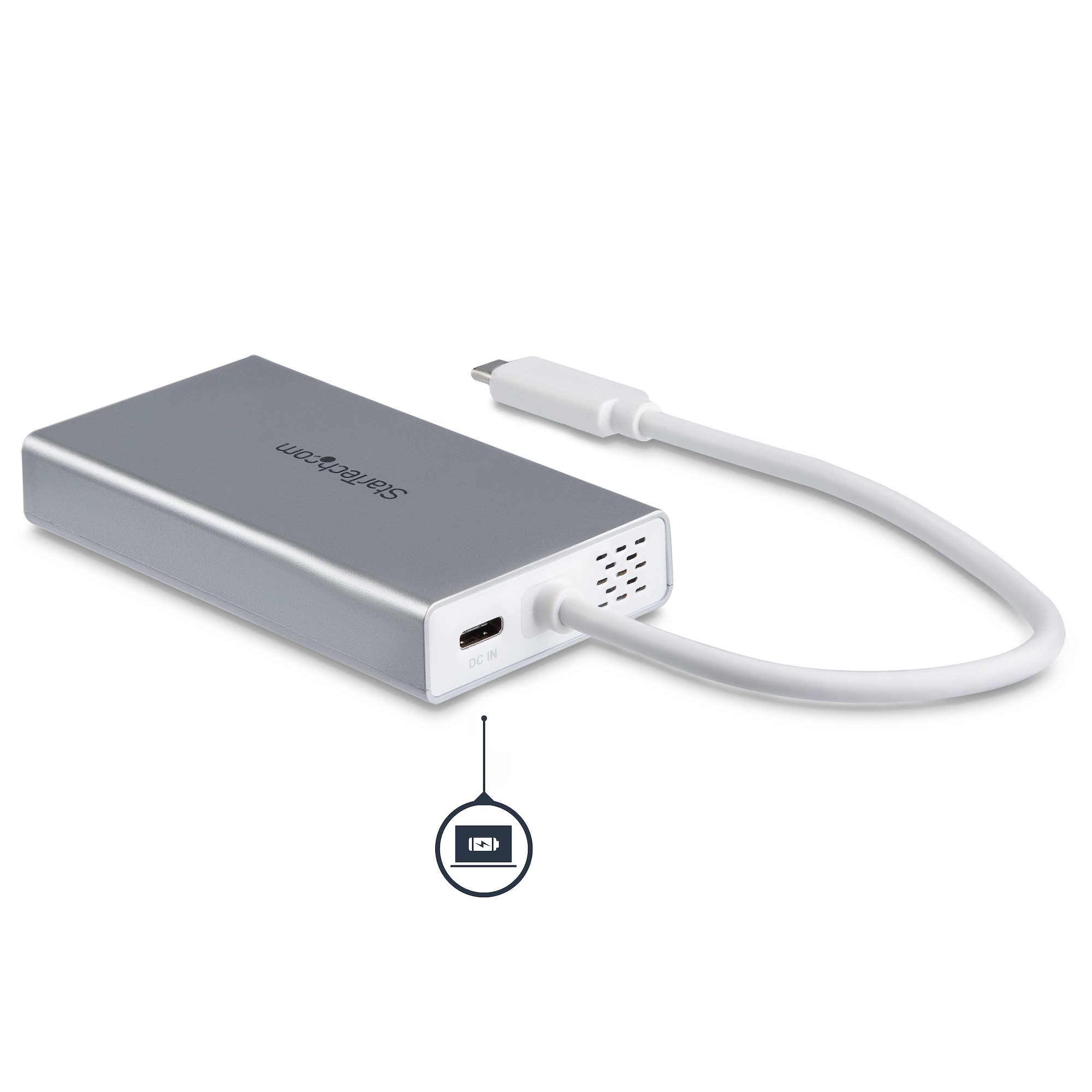

Ideal for mobile use, the compact multiport adapter supports USB Power Delivery 2.0 (PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop and the adapter. The adapter also features an integrated extended-length USB-C cable, for added flexibility in connecting to your laptop, which means one less cable to carry with you.

The StarTech.com Advantage for Docking Stations

• Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
•

Get more done faster - More ports and more displays maximize end user connectivity and productivity

•

Quick installation - eliminate deployment headaches that waste time and frustrate end users

•

IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

The DKT30CHPDW is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP alt mode.

The StarTech.com Advantage
