Features Cable length 1.8 m Connector 1 Mini DisplayPort Connector 2 DisplayPort Connector 1 gender Male Connector 2 gender Male Maximum resolution 3840 x 2400 pixels Product color Black Connector 1 form factor Straight Connector 2 form factor Straight Connector contacts plating Gold DisplayPort version 1.2 Supported graphics resolutions 3840 x 2400, 2560 x 1600 (WQXGA) Maximum refresh rate 120 Hz HDCP Yes DisplayPort Content Protection (DPCP) Yes Connector 2 lockable Yes Cable rating CMG (CM) Cable shielding Aluminum mylar foil Jacket material Polyvinyl chloride (PVC) Connector housing material Acrylonitrile butadiene styrene (ABS) AWG wire size 32 Bandwidth 21600 MB/s Plug and Play Yes Multi-Stream Transport (MST) Yes Number of conductors 19 Cable type Round cable Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 10 - 85% Certificates Compliance certificates RoHS, CE Weight & dimensions Cable diameter 4.8 mm Weight 69 g Packaging data Package width 200 mm Package depth 220 mm Package height 11 mm Package weight 78 g Packaging content Quantity per pack 1 pc(s) Logistics data Harmonized System (HS) code 84733080 Master (outer) case width 330 mm Master (outer) case length 500 mm Master (outer) case height 220 mm Quantity per master (outer) case 60 pc(s)

Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

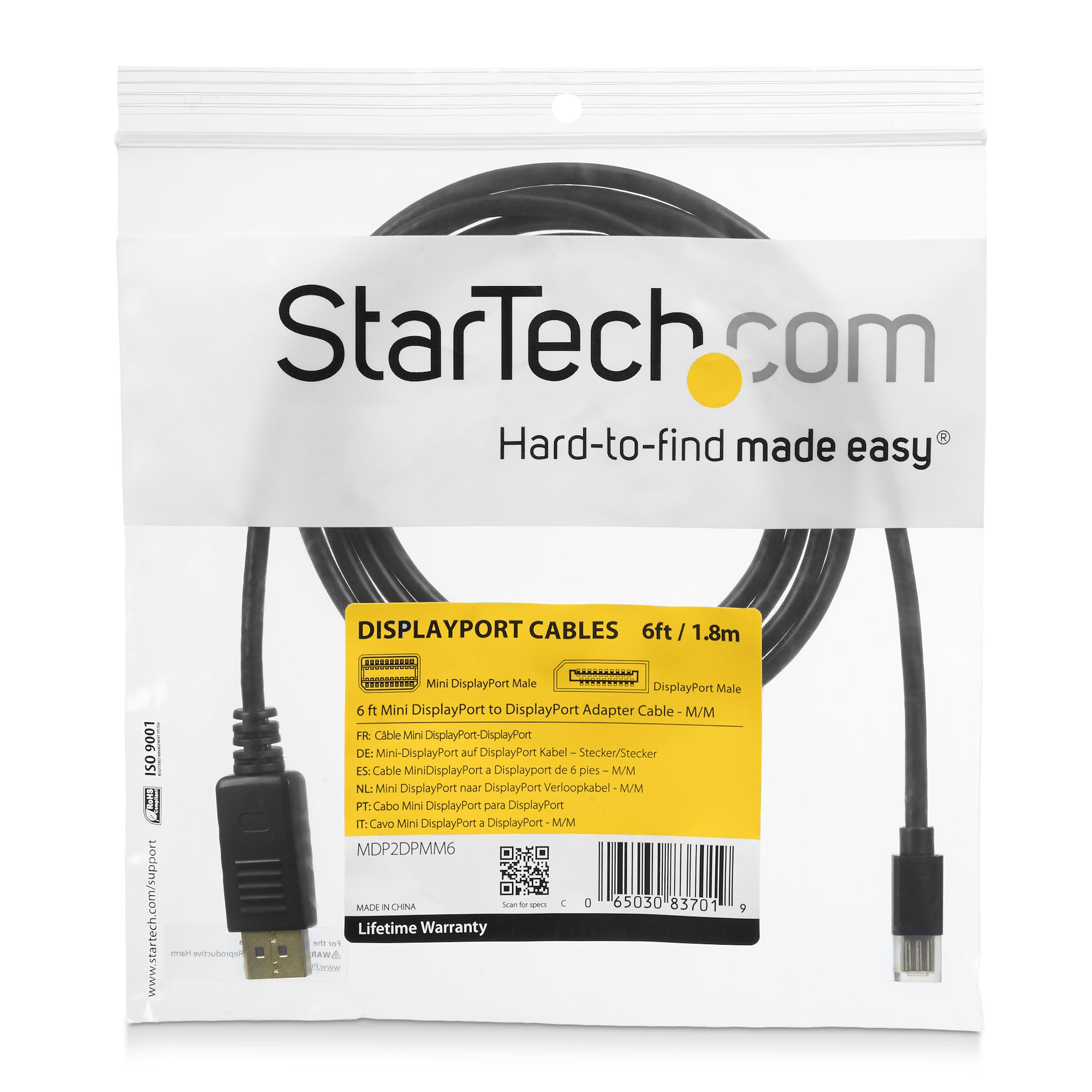

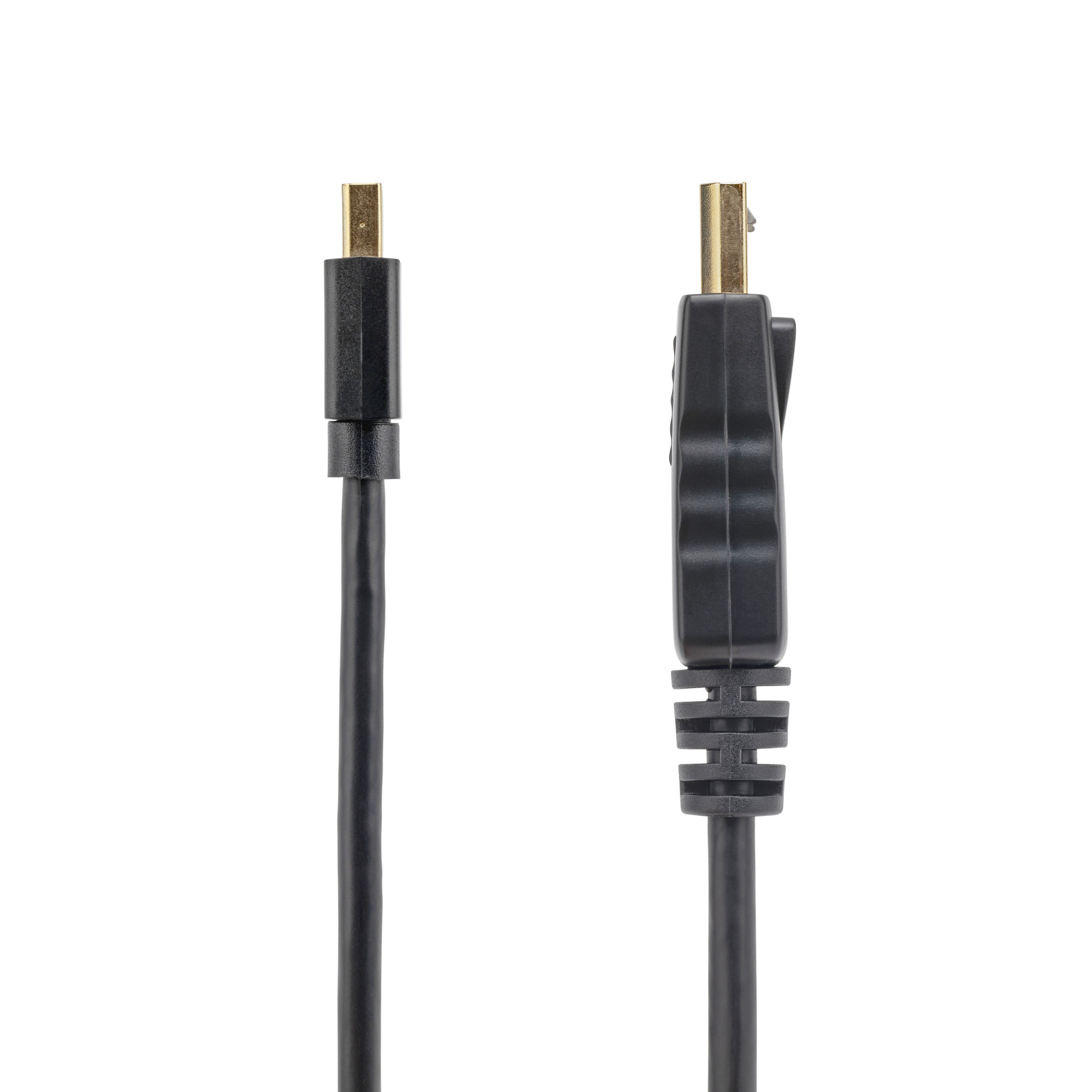

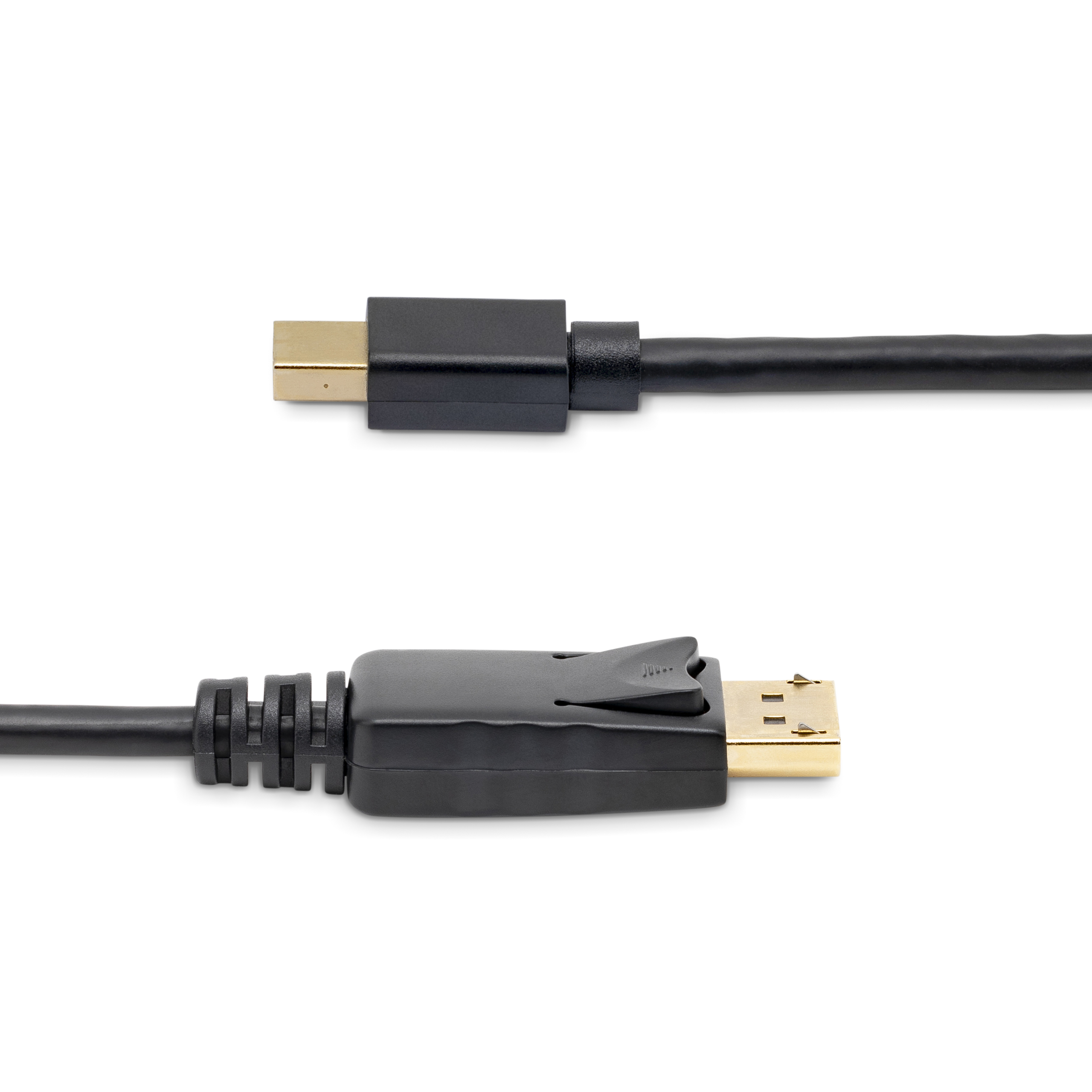

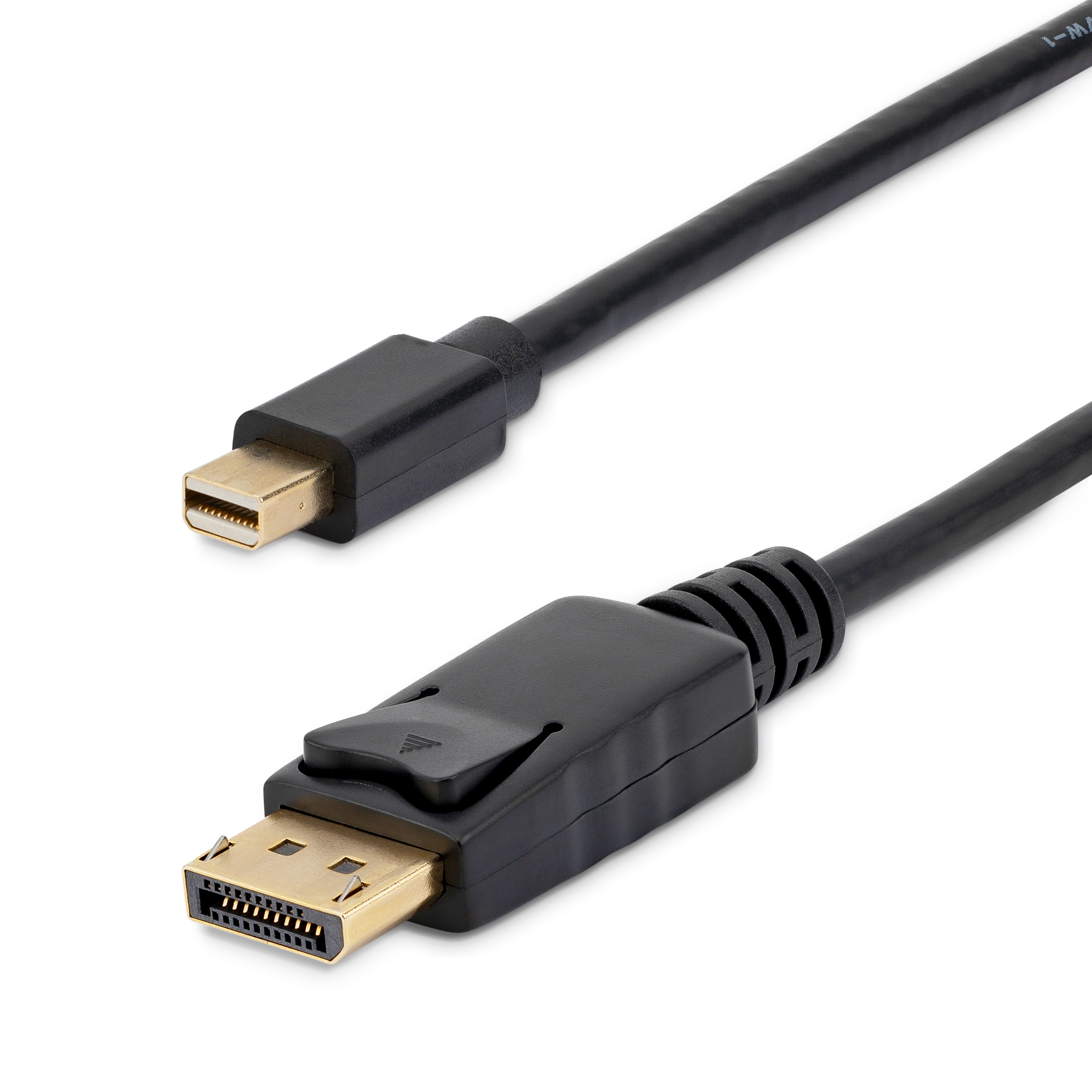

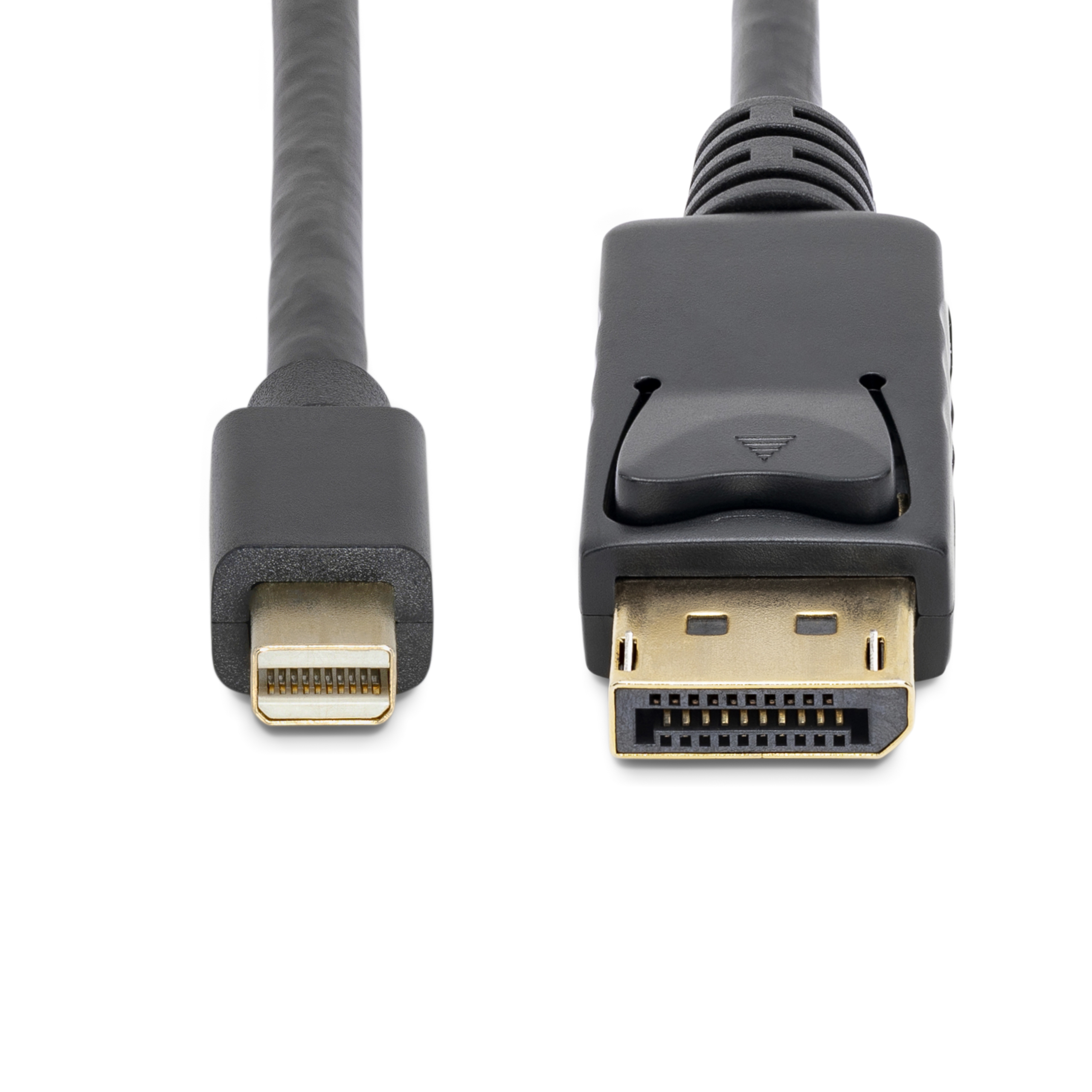

The MDP2DPMM6 6ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.

The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The MDP2DPMM6 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
