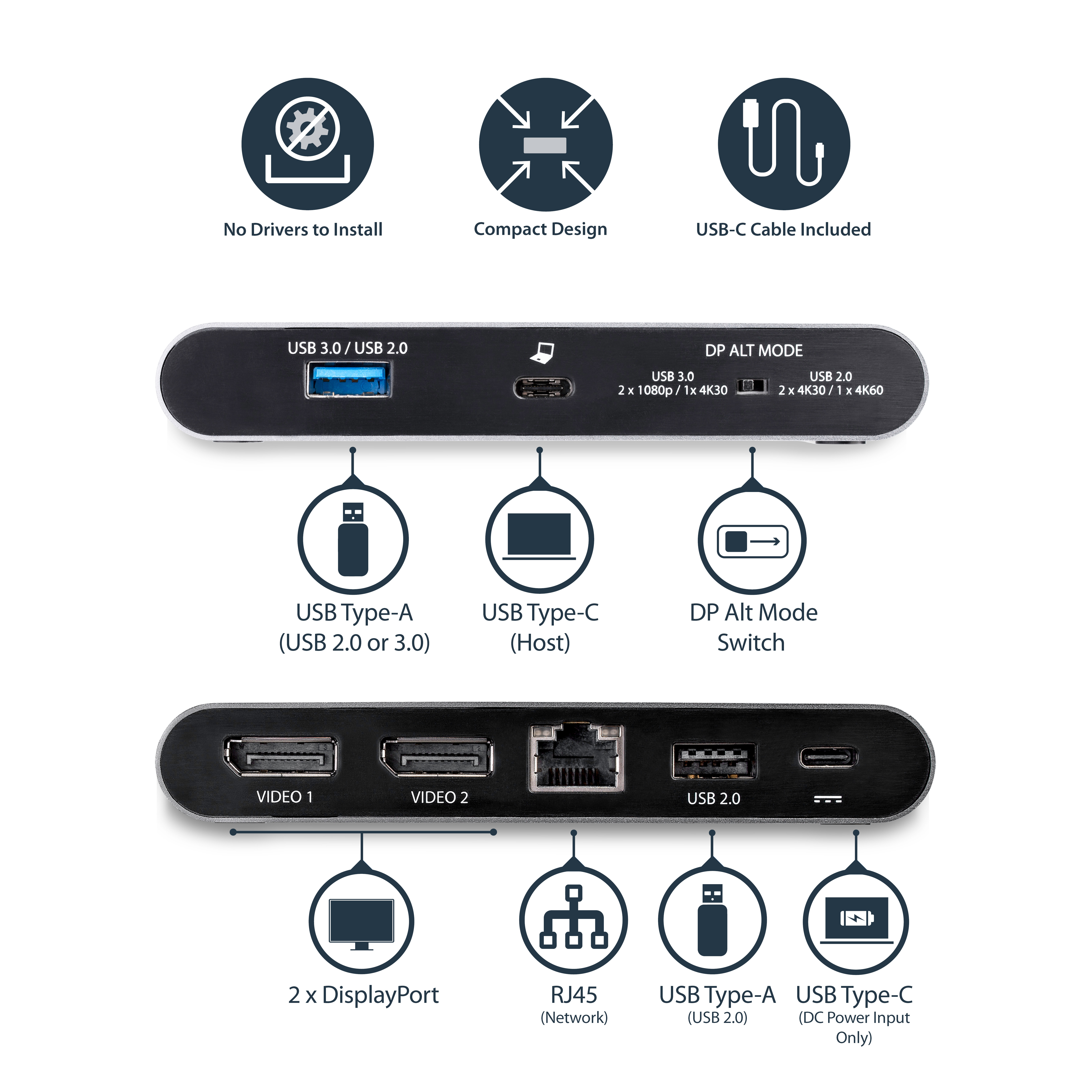

Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 HDMI ports quantity 0 Microphone in No Headphone outputs 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W DisplayPorts quantity 2 DC-in jack No Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes 10G support No Performance Product color Black Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 4096 x 2160 pixels UASP support Yes Housing material Plastic Brand compatibility Any brand Certification CE, FCC, REACH Power Power source type USB Power supply 100 W Power consumption (typical) 15 W Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensions Width 60 mm Depth 120 mm Height 18.8 mm Weight 150 g Packaging data Package width 145 mm Package depth 208 mm Package height 42 mm Package weight 300 g Packaging content Cables included USB Type-C Quick start guide Yes Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 24 pc(s) Master (outer) case width 310 mm Master (outer) case length 450 mm Master (outer) case height 280 mm Harmonized System (HS) code 84733020 Other features Chipset VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153

USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch

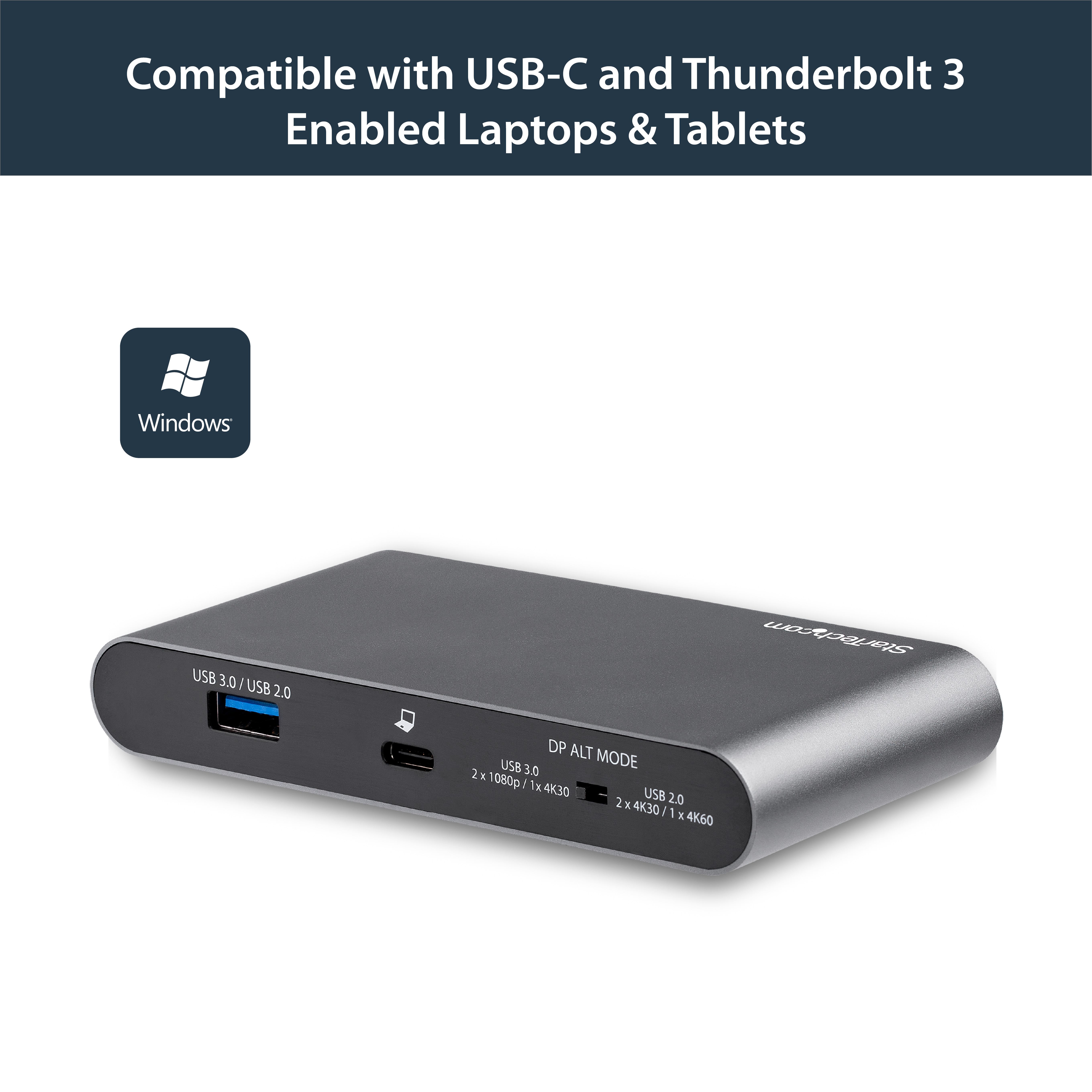

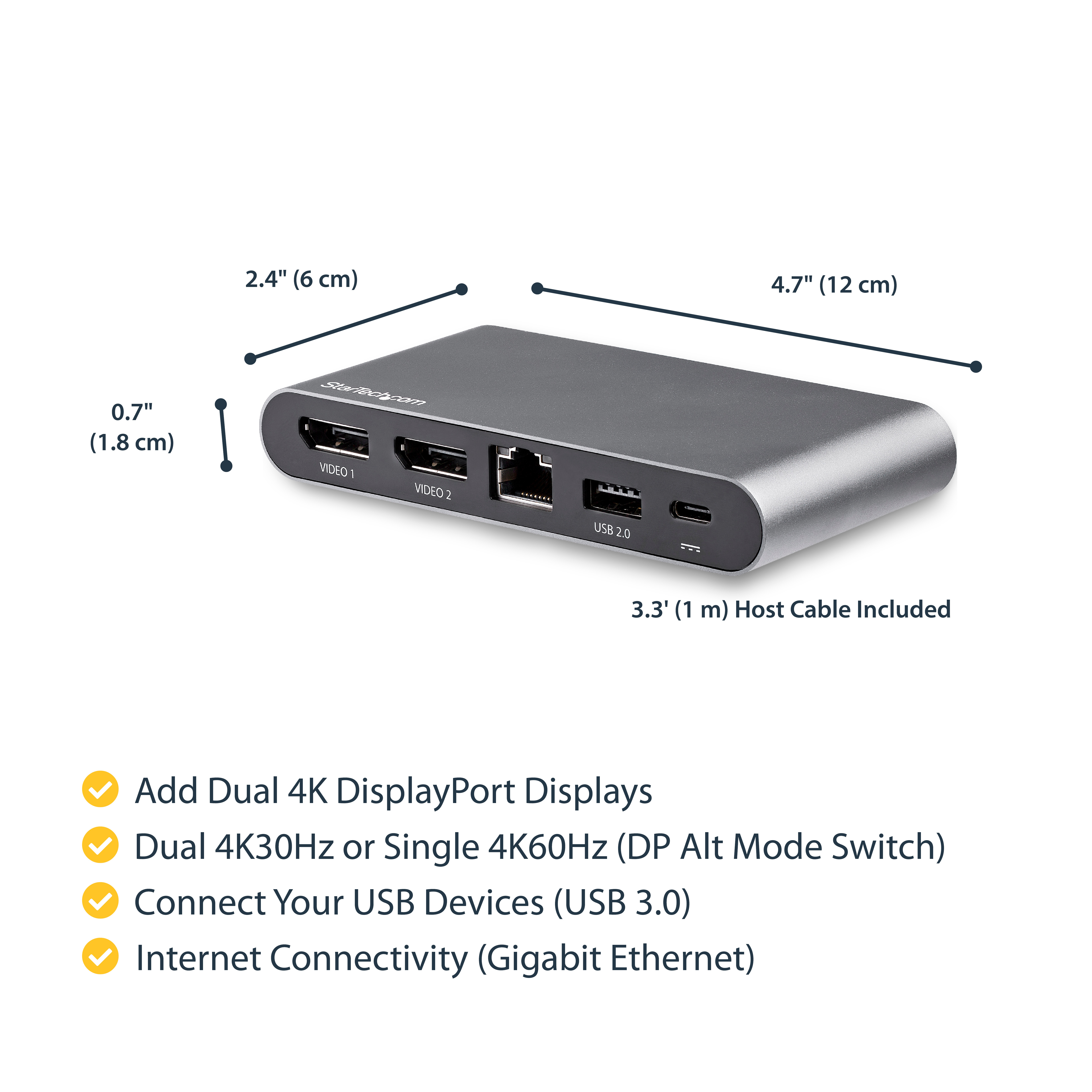

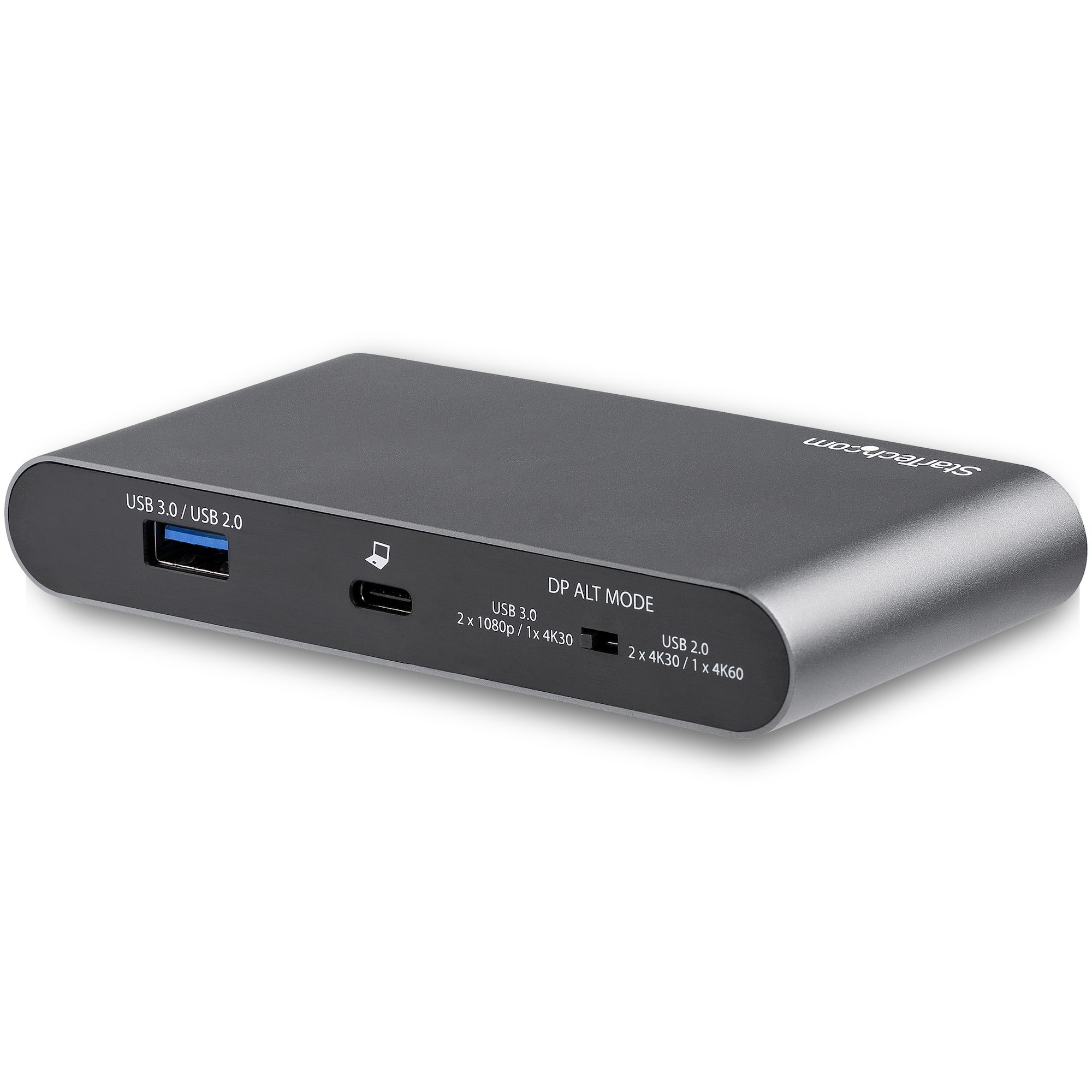

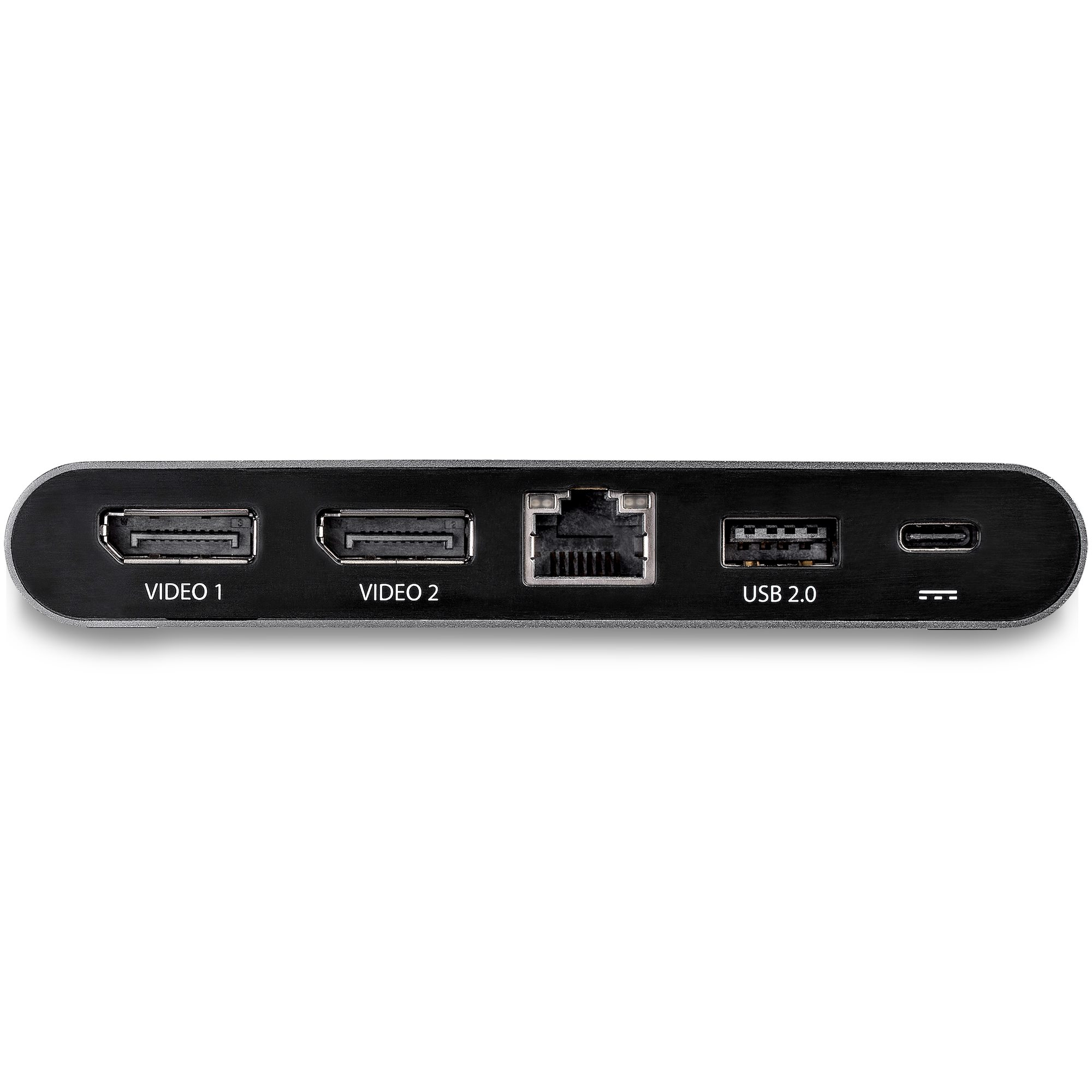

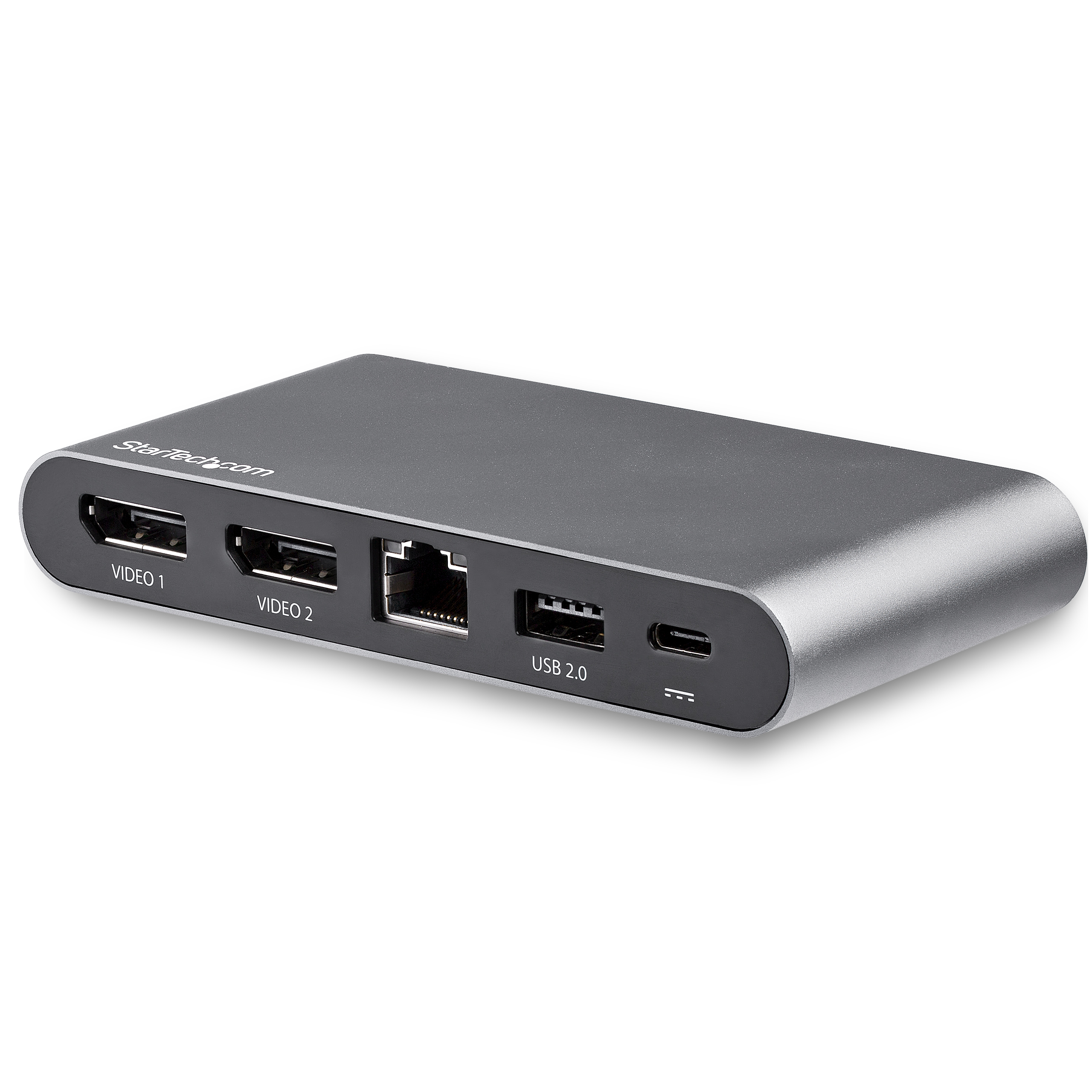

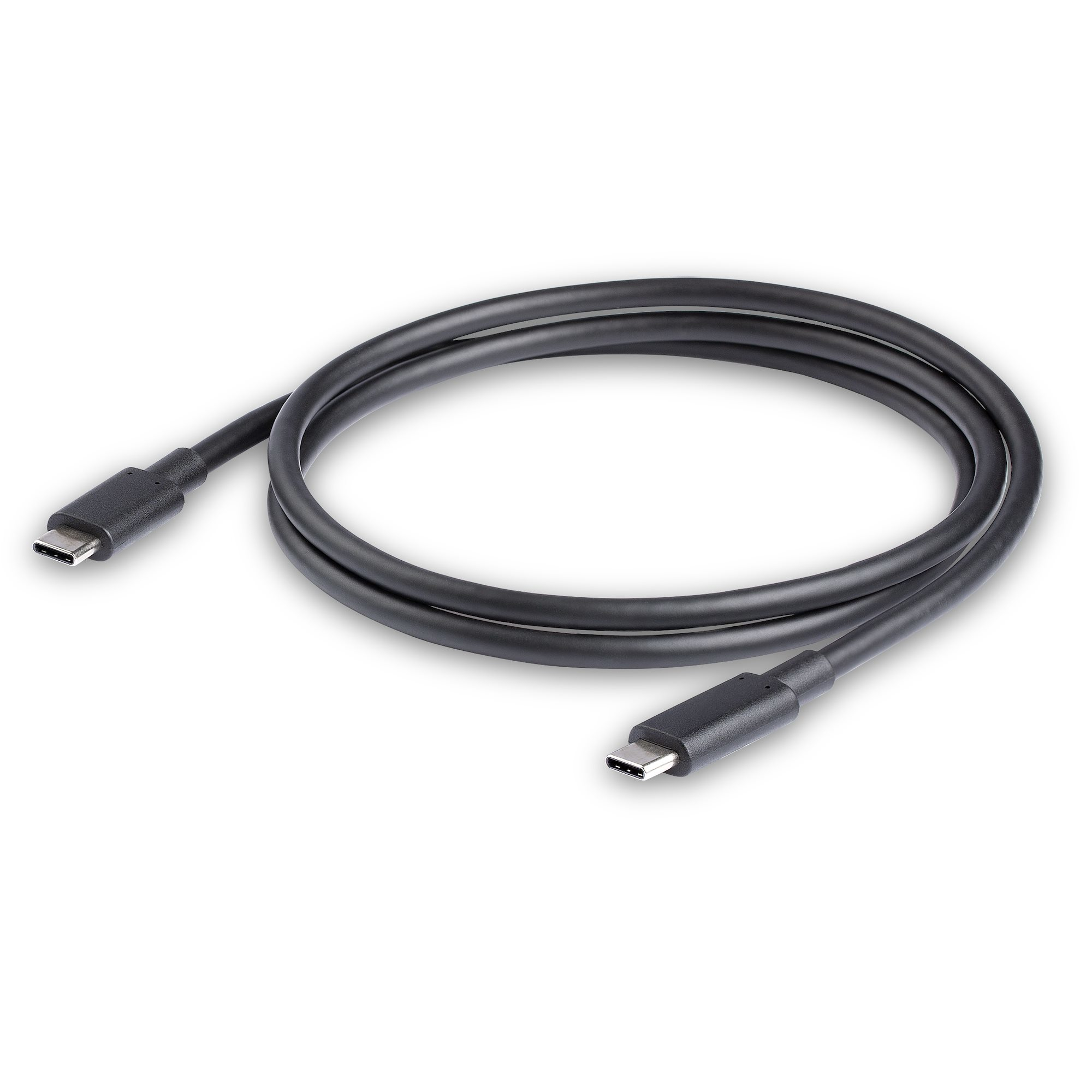

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

DisplayPort™ Alternate Mode to Choose Your Video Display Output

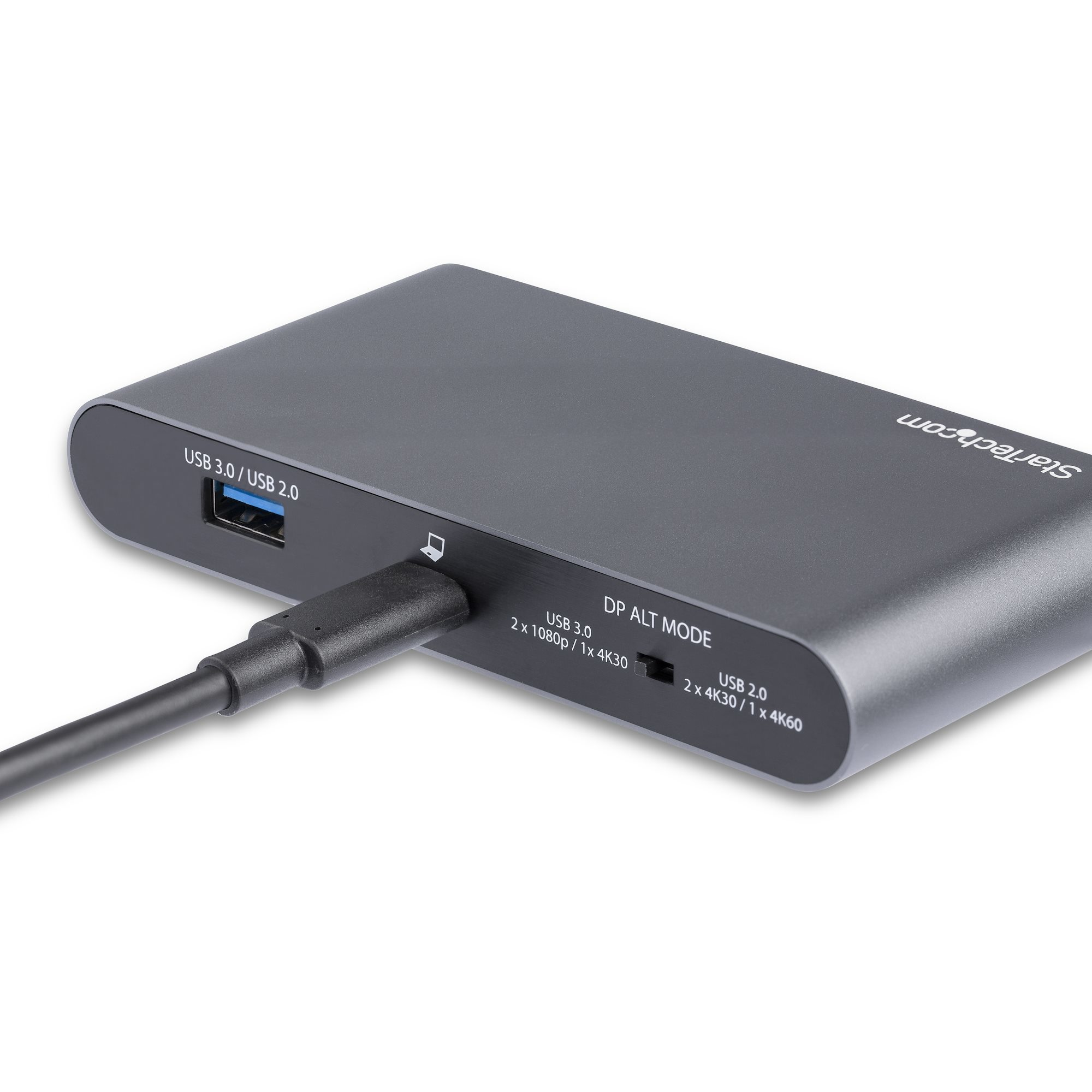

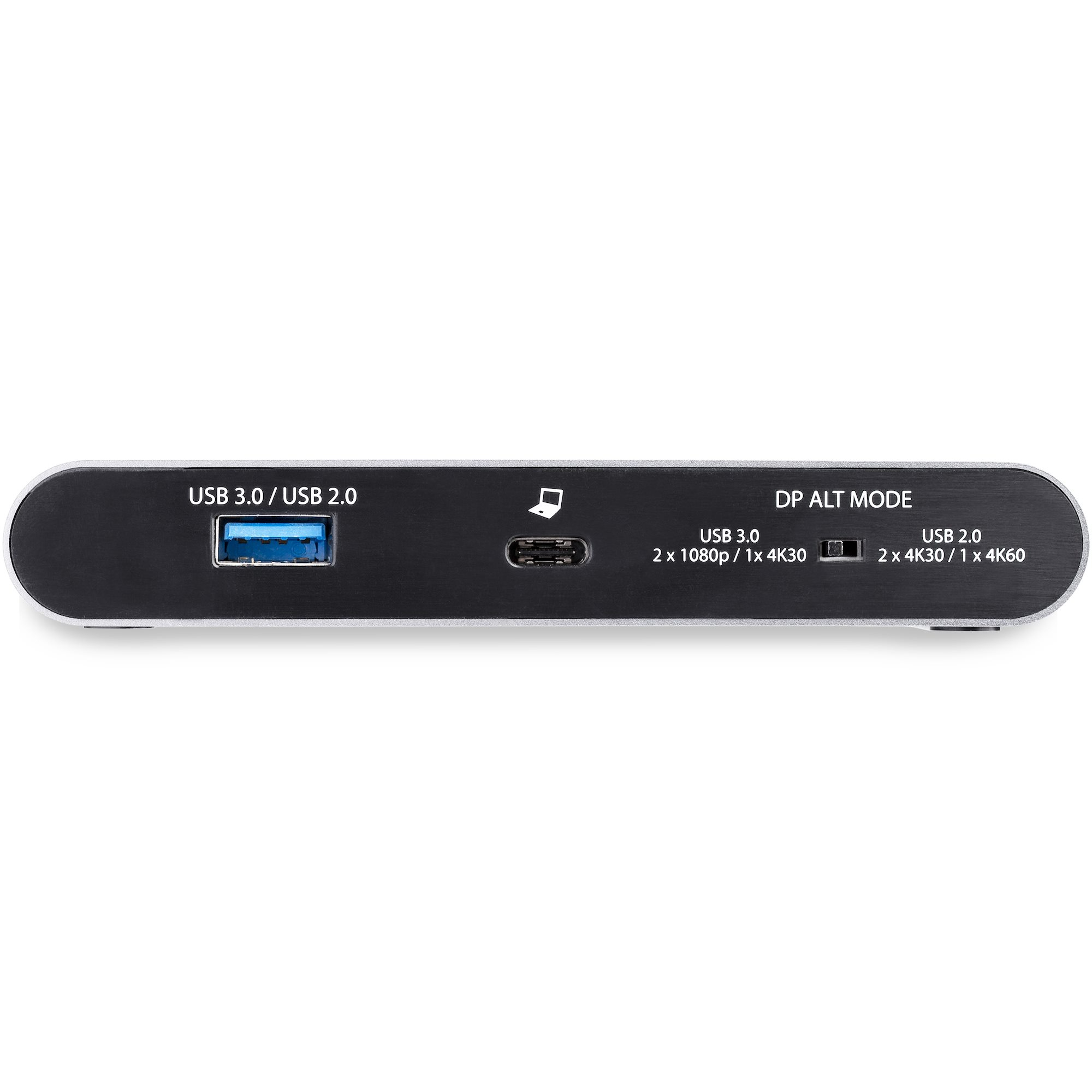

Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.

Switch Left

Switch Right

2 Lane DP Alt- Mode

4 Lane DP Alt Mode

USB 3.0

(5Gbps)

USB 2.0

(480 Mbps)

Dual 1080p Monitors

or

Single 4K 30Hz Monitor

Dual 4K 30Hz Monitors

or

Single 4K 60Hz Monitor

Reliable 100W Power Delivery Passthrough

The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.

Multi-Stream Transport for Driverless Displays

The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.

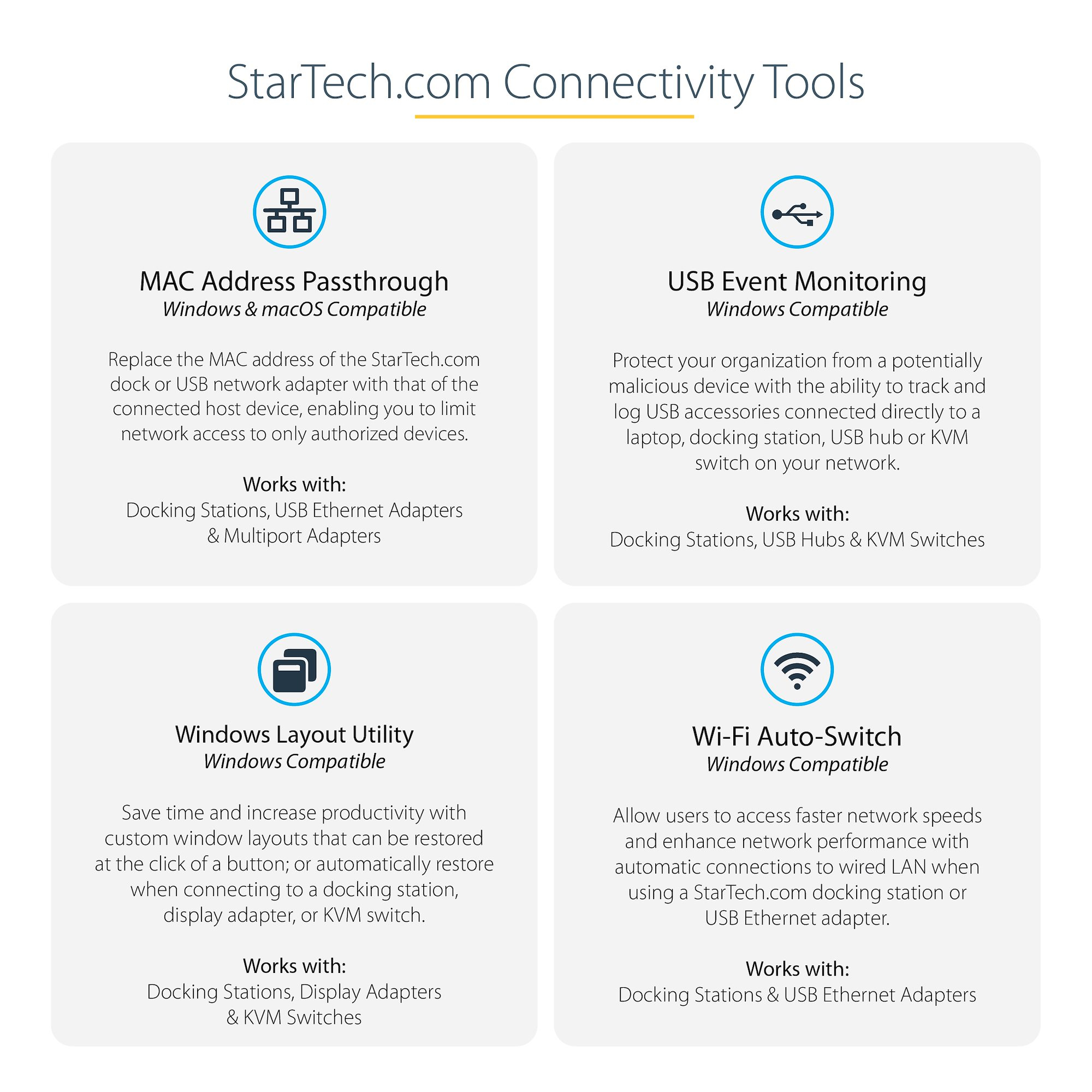

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.
