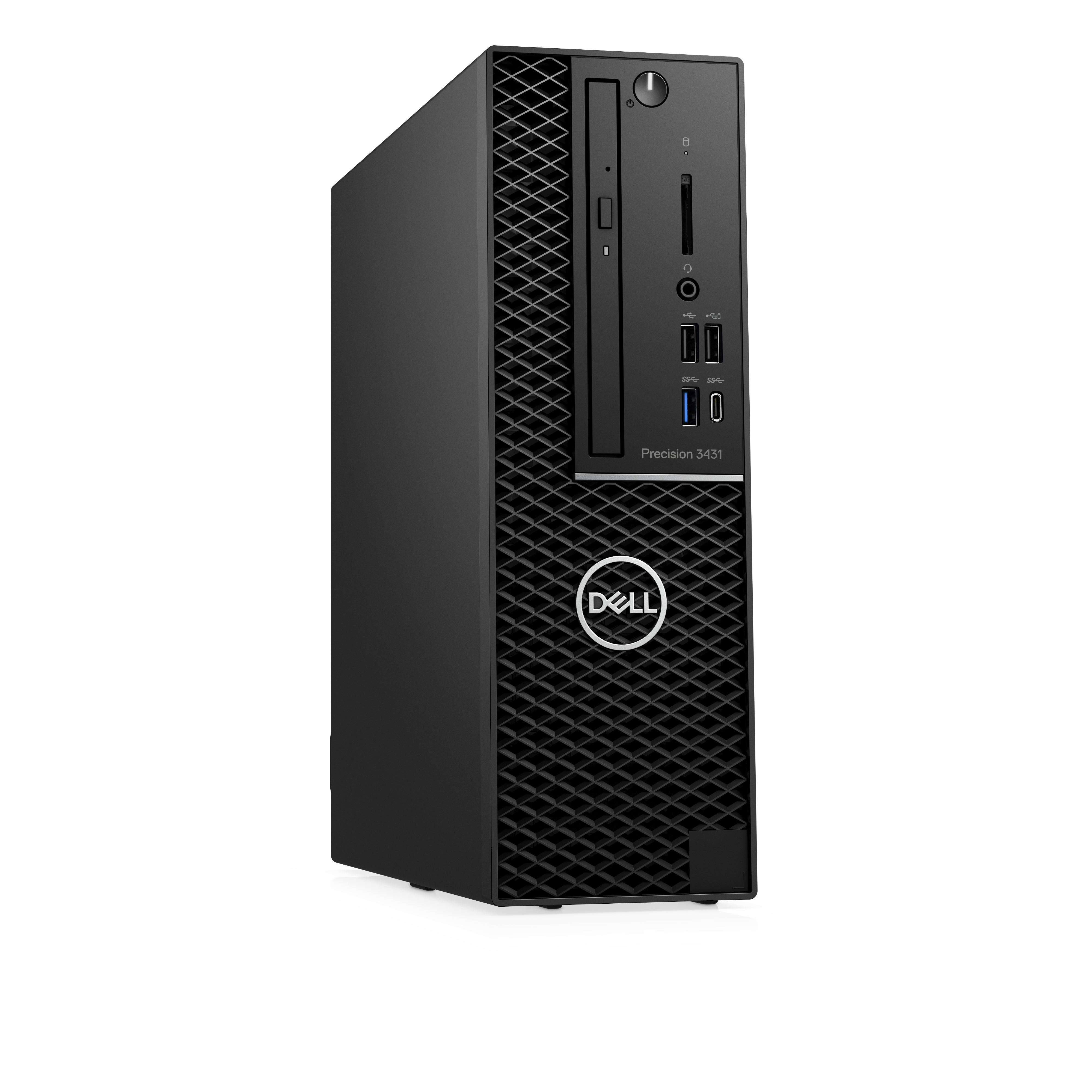

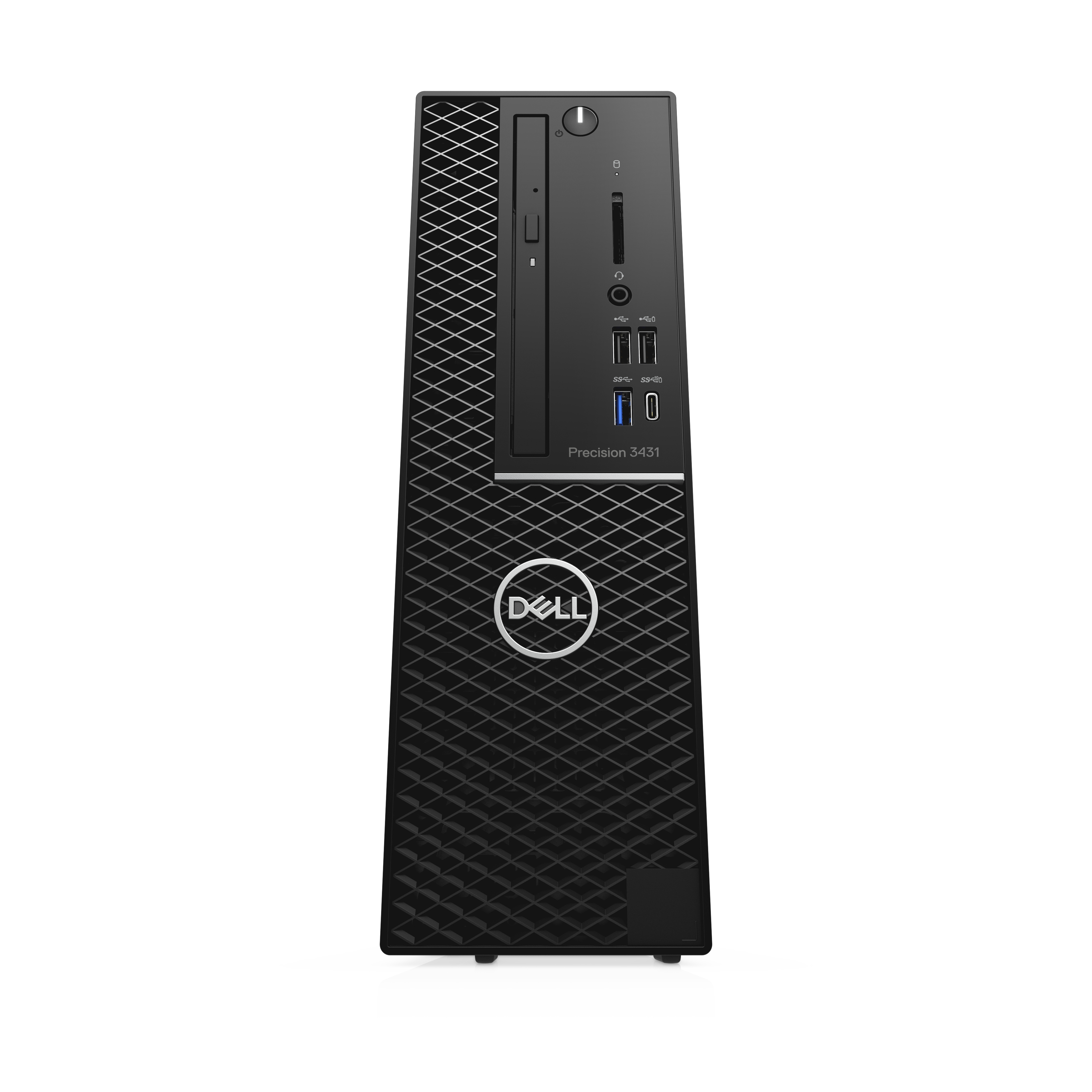

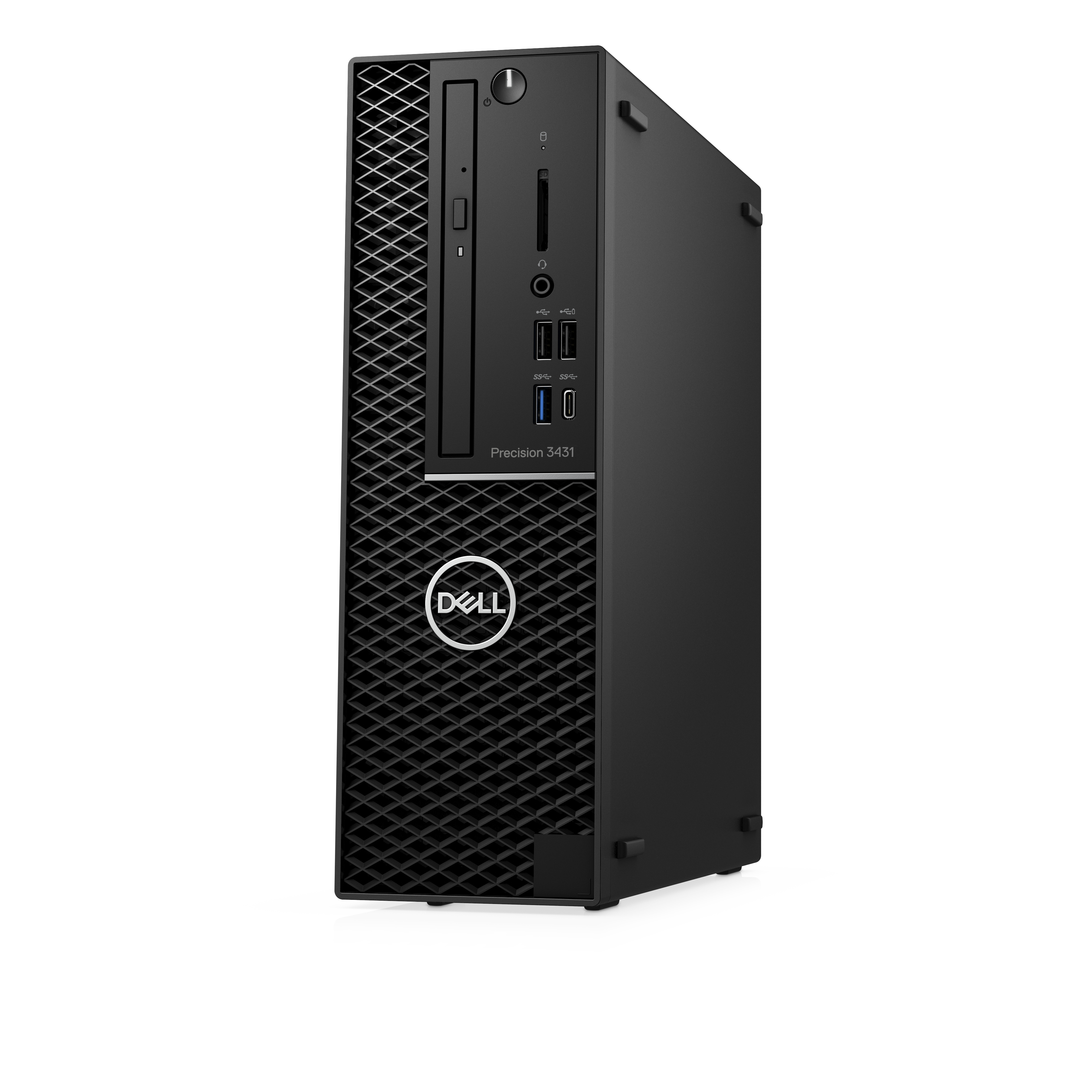

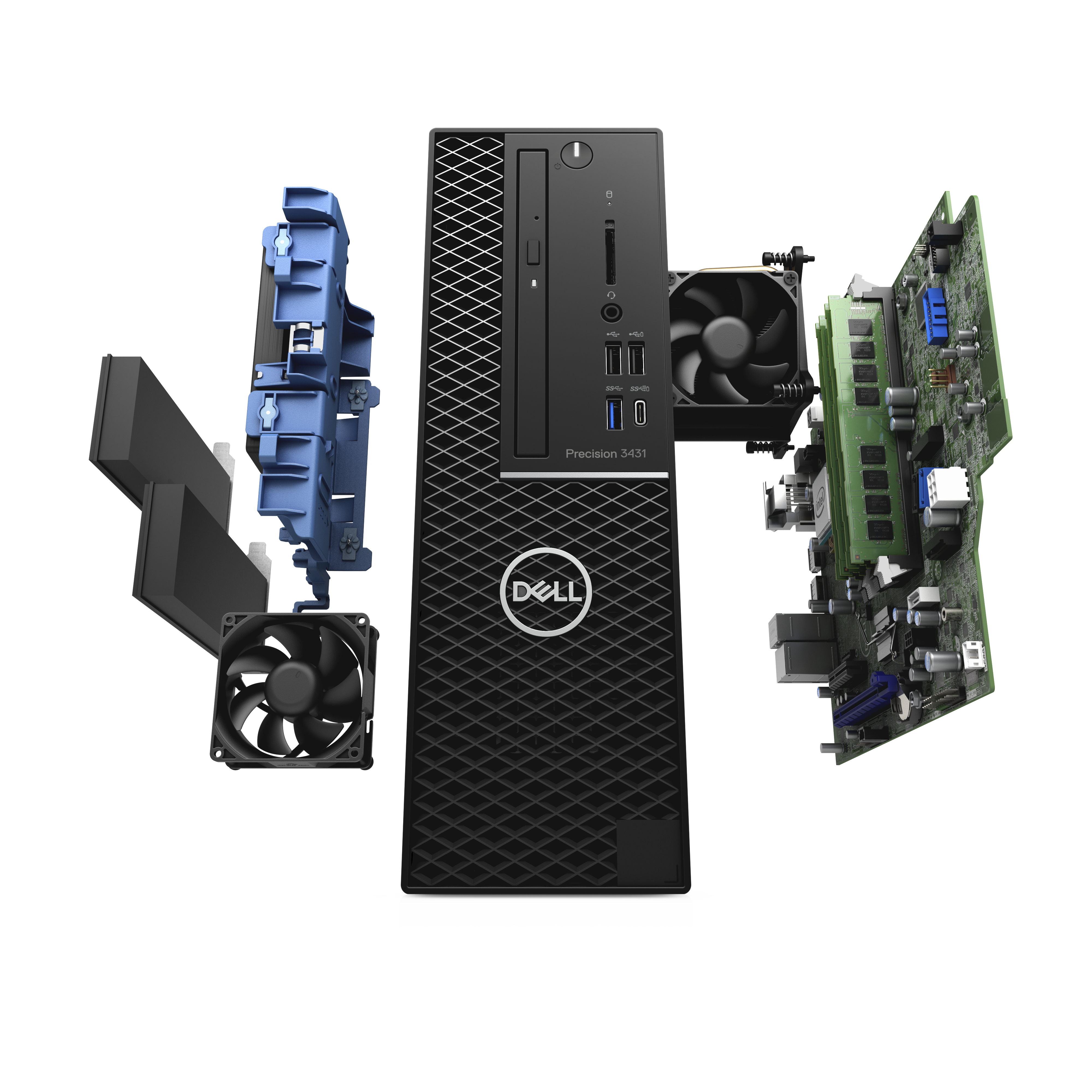

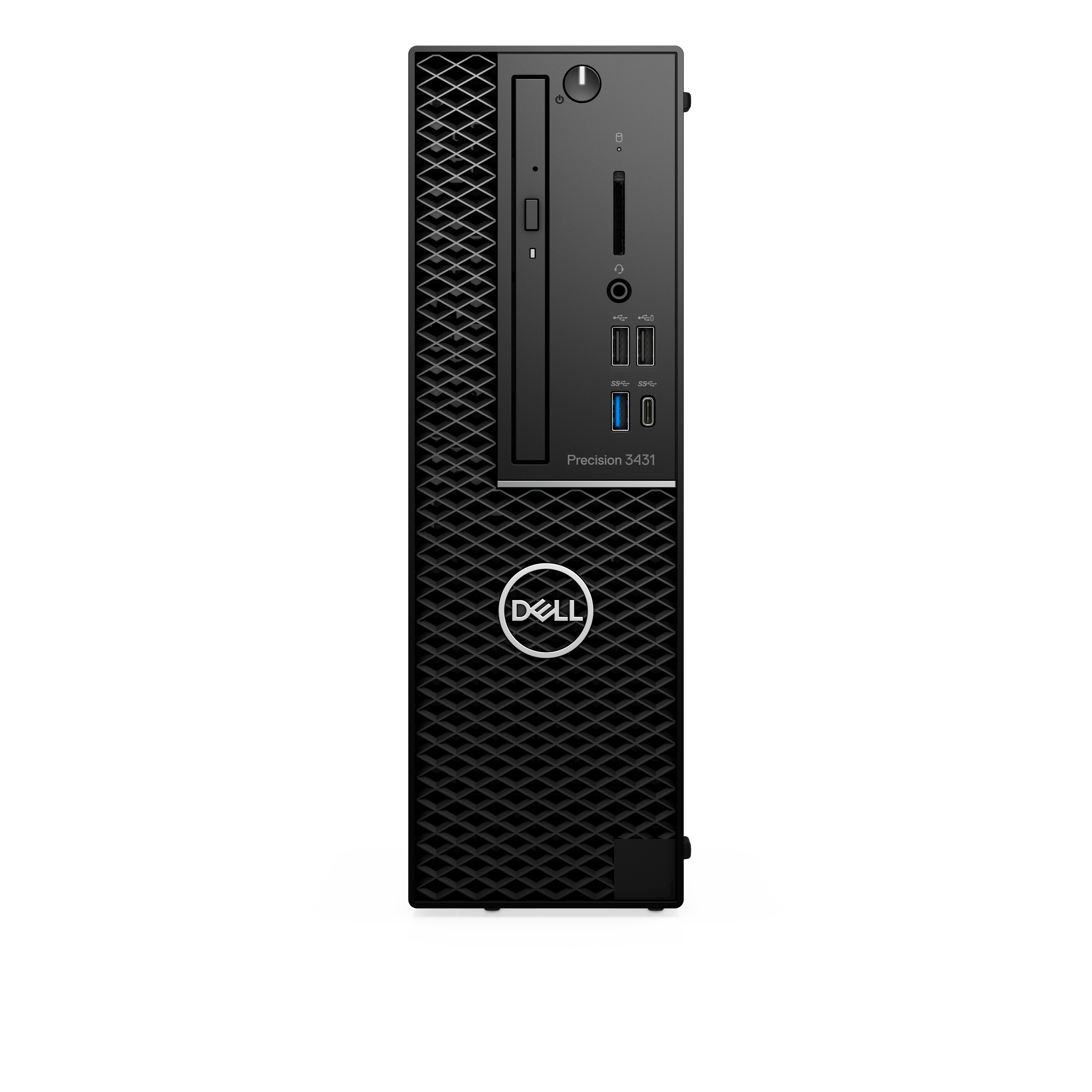

DELL Precision 3431 9th gen Intel® Core™ i7 i7-9700 16 GB DDR4-SDRAM 512 GB SSD SFF Black Workstation Windows 10 Pro

Intel Core i7-9700 (12MB Cache, 3GHz), 16GB DDR4-SDRAM, 512GB SSD, DVD±RW, Intel UHD Graphics 630, LAN, Windows 10 Pro 64-bit

0 ratings

Product category

Vendor

Part number

On the market since

Warranty from DELL

PCs/Workstations

DELL

GKTWG

31. august 2019

DELL Precision 3431 9th gen Intel® Core™ i7 i7-9700 16 GB DDR4-SDRAM 512 GB SSD SFF Black Workstation Windows 10 Pro

Please login to view pricing

Stock available when logged in

Processor family

9th gen Intel® Core™ i7

Processor manufacturer

Intel

Processor model

i7-9700

Internal memory

16 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

64 GB

Total storage capacity

512 GB

Optical drive type

DVD±RW

Discrete graphics adapter

On-board graphics adapter

Yes

Chassis type

SFF

Product type

Workstation

Details about the product

Specifications

Processor
Processor family	9th gen Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-9700
Processor cores	8
Processor frequency	3 GHz
Processor boost frequency	4.7 GHz
Processor socket	LGA 1151 (Socket H4)
Processor cache	12 MB
Processor cache type	Smart Cache
Processor threads	8
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
PCI Express slots version	3.0
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16,2x8,1x8+2x4
Number of processors installed	1
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2666 MHz
Storage
Total storage capacity	512 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Graphics
Discrete graphics adapter	No
On-board graphics adapter	Yes
Discrete graphics adapter model	Not available
On-board graphics adapter model	Intel® UHD Graphics 630
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter dynamic frequency (max)	1200 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter DirectX version	12.0
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter ID	0x3E98
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DVI port	No
Ethernet LAN (RJ-45) ports	1
Microphone in	No
PowerShare	Yes
Number of USB ports with PowerShare support	2
DisplayPorts quantity	2
PS/2 ports quantity	2
Line-out	Yes
Combo headphone/mic port	Yes
On/off button	Yes
Design
Chassis type	SFF
Product colour	Black
Volume	7.8 L
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Product type	Workstation
Audio chip	Realtek ALC3234
Audio system	High Definition Audio
Password protection	Yes
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Multilingual
Trial software	Microsoft Office
Processor special features
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel Clear Video Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191792
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Weight & dimensions
Width	92.6 mm
Depth	292 mm
Height	290 mm
Weight	5.26 kg
Package width	487 mm
Package depth	394 mm
Package height	264 mm
Package weight	8.67 kg
Packaging content
Display included	No
Mouse included on selected markets only	Yes
Keyboard included on selected markets only	Yes
Manual	Yes
Power cord included	Yes
Other features
Optical drives quantity	1

General product description from the vendor

PLEASE NOTE: Below description comes directly from the vendor and may describe information relating to the entire product-series. We also recommend that you verify that the product you are looking at has the specifications that you require before ordering. You are always welcome to chat with us we are happy to help with any information you may require.

Breakthrough power. Small design.
Next-gen graphics and enhanced memory are more accessible than ever on this small form factor design with the latest Intel® Core™ or Xeon® processors.
