Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W HDMI version 2.0b Mini DisplayPorts quantity 1 DisplayPort version 1.4 DC-in jack No Network Ethernet LAN No Performance Product color Black, Silver Card reader integrated No Data transfer rate 10 Gbit/s HD type 4K Ultra HD Maximum digital resolution 3840 x 2160 pixels Maximum refresh rate 60 Hz Certification CE, FCC, RoHS Power Power consumption (typical) 15 W Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura Linux operating systems supported Ubuntu 18.04 LTS, Ubuntu 20.04 LTS Mobile operating systems supported Android, iPadOS Other operating systems supported ChromeOS Weight & dimensions Width 425 mm Depth 46.8 mm Height 160 mm Weight 84.3 g Packaging data Package width 140 mm Package depth 117 mm Package height 30 mm Package weight 153 g Packaging content Quick start guide Yes Logistics data Quantity per master (outer) case 70 pc(s) Master (outer) case width 473 mm Master (outer) case length 331 mm Master (outer) case height 440 mm Harmonized System (HS) code 84733020 Other features Cable length 0.3 m Chipset Realtek - RTD2142S, VIA Labs - VL103, VIA Labs - VL822, VIA Labs - VL160, Terminus - FE8.1

USB-C Multiport Adapter | HDMI & Mini DisplayPort Video | 100W PD Pass-Through | 4-Port USB Hub

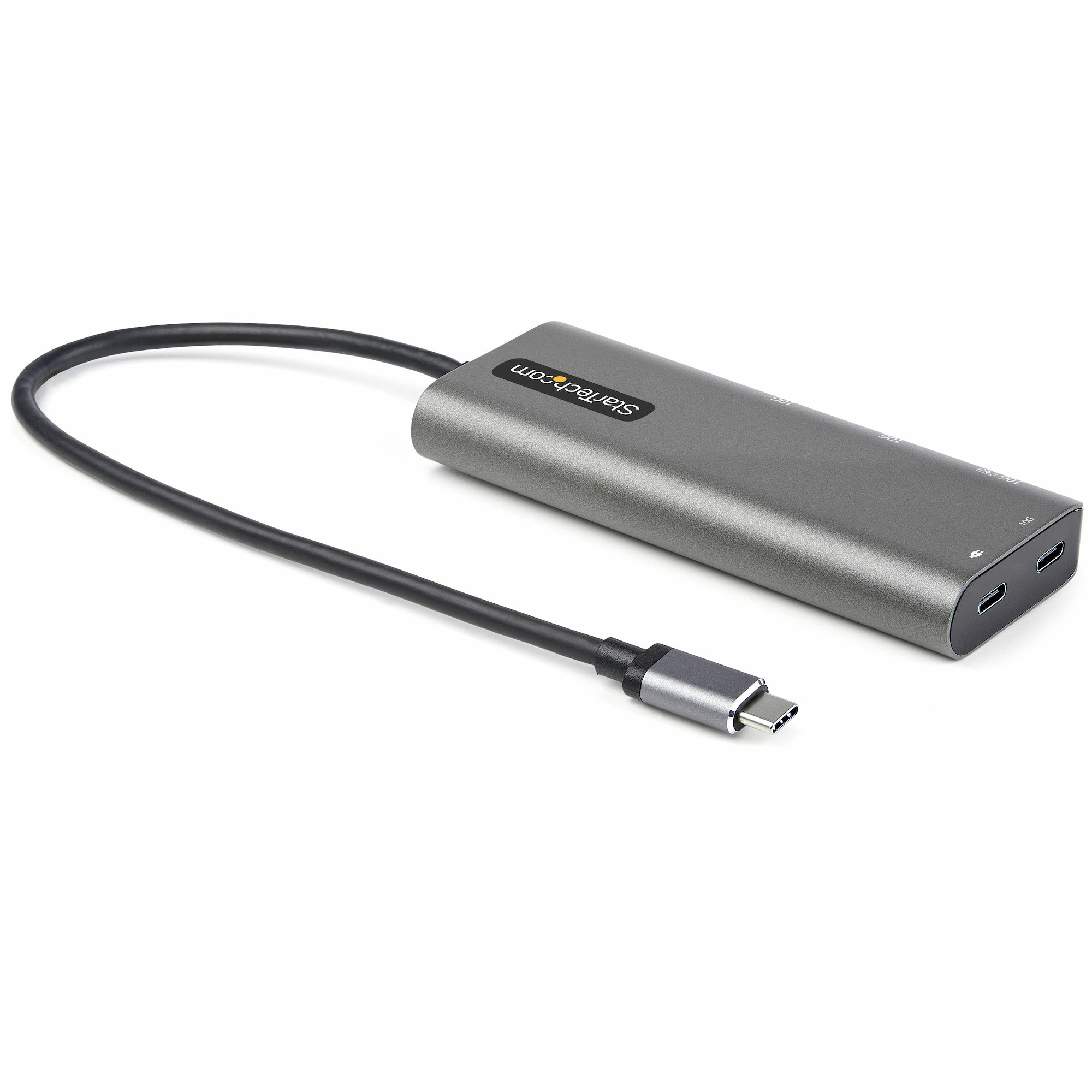

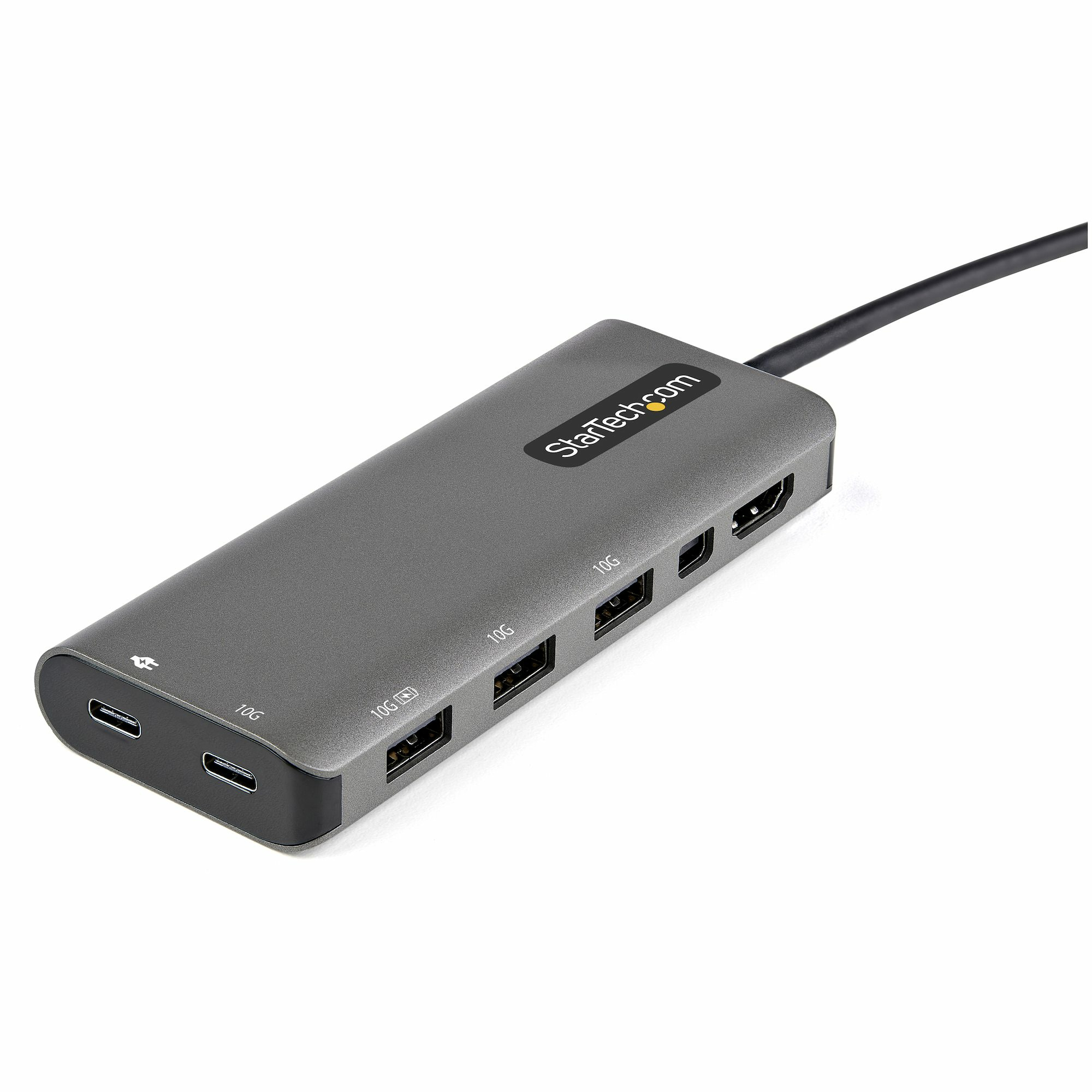

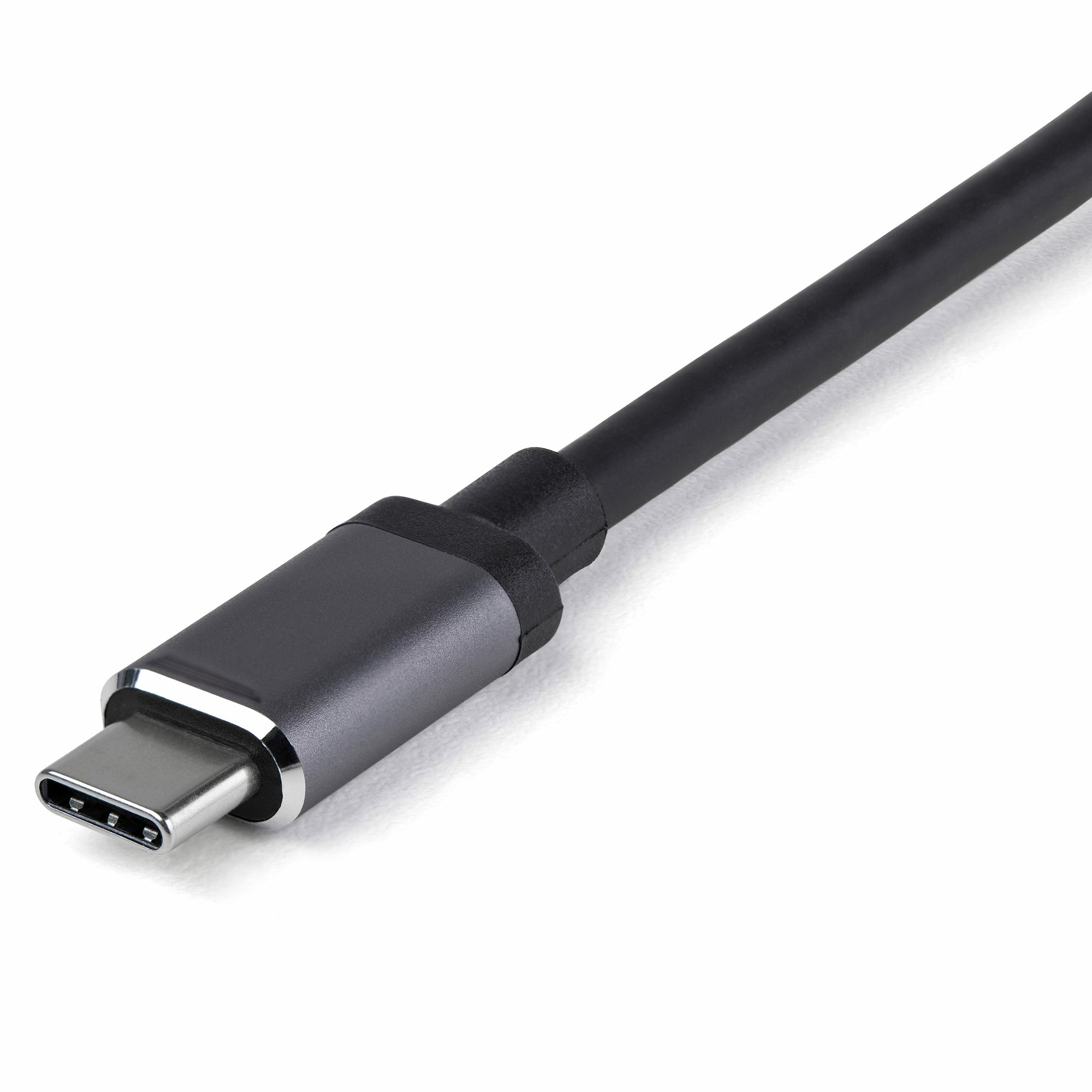

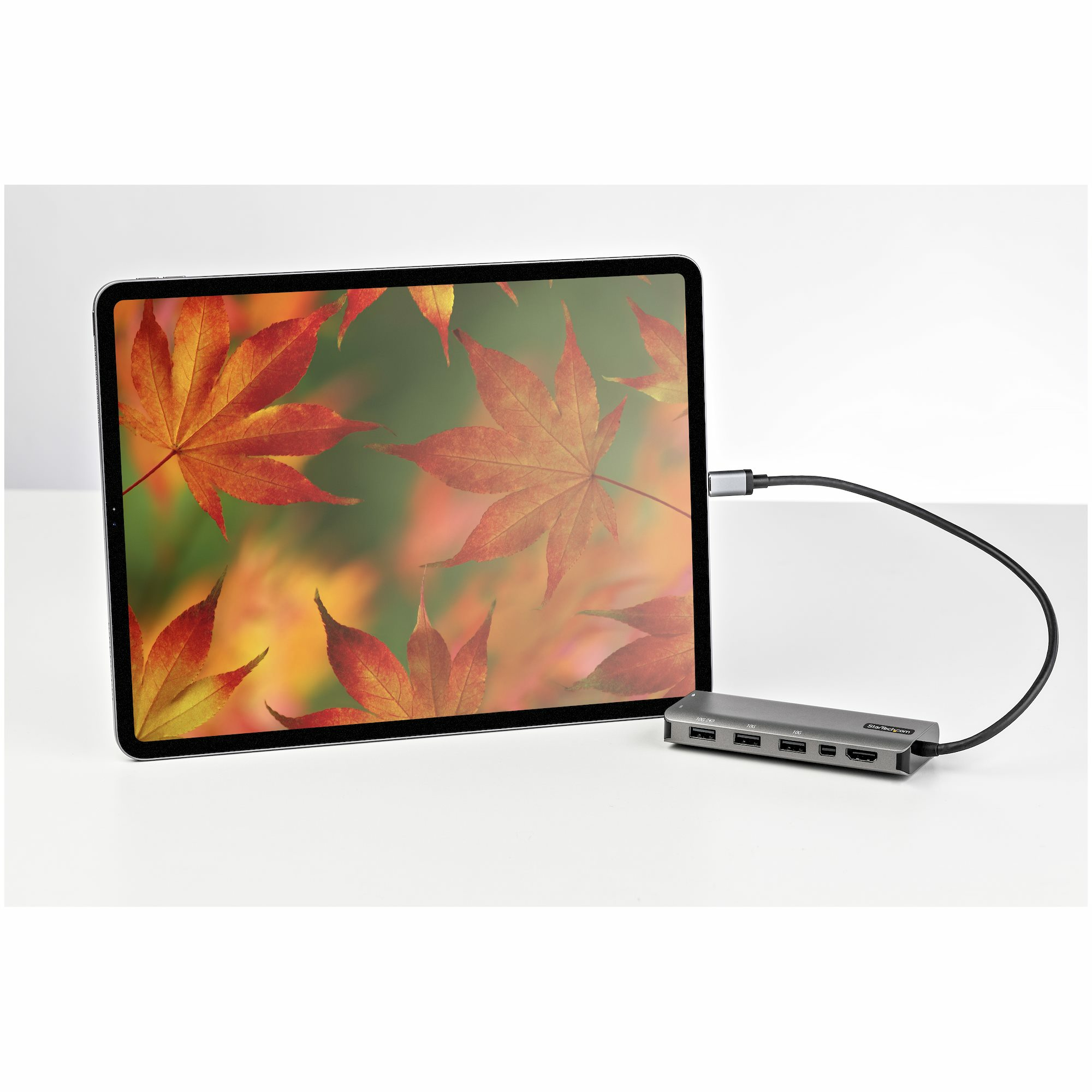

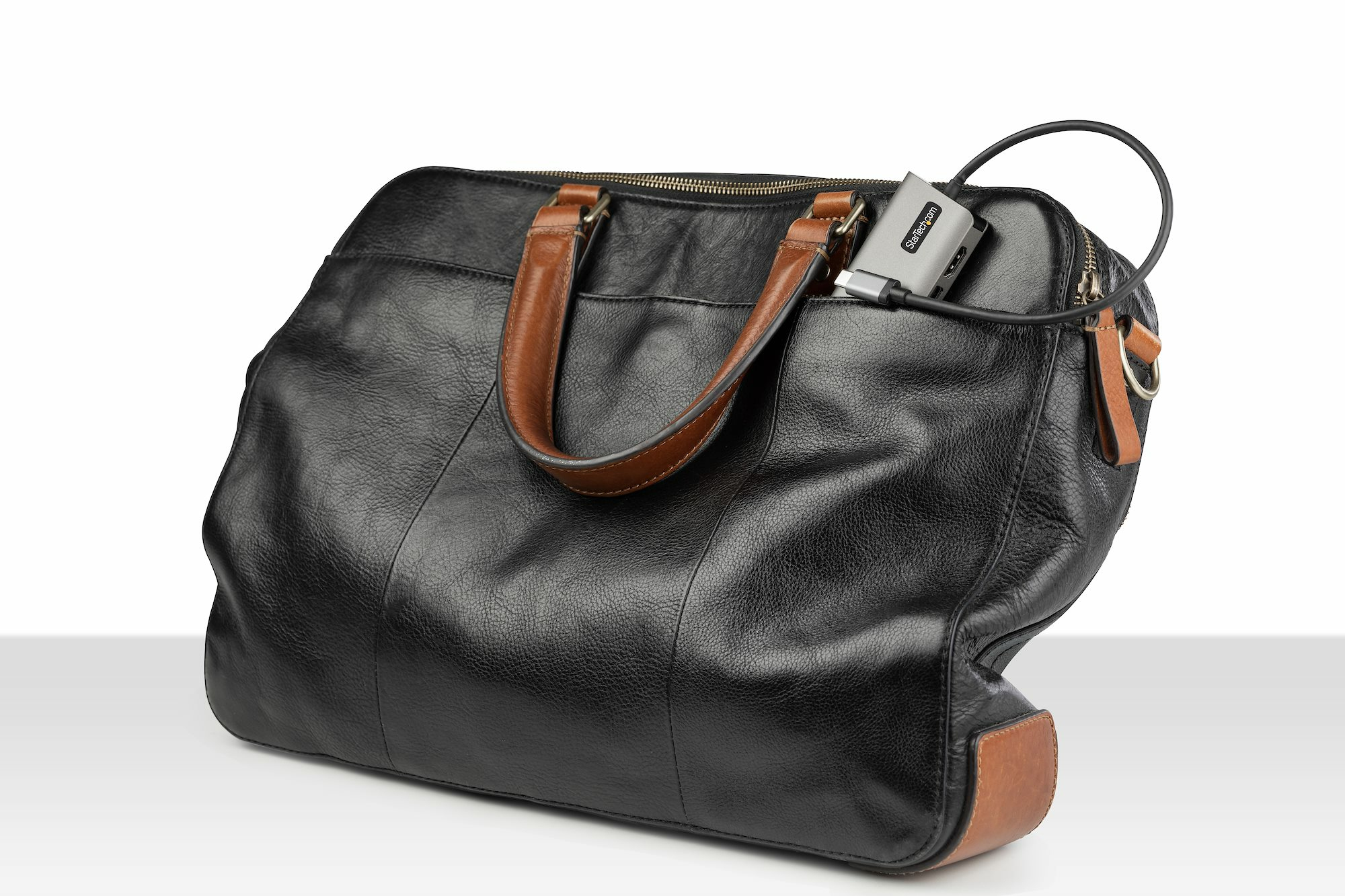

This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.

Maximum Resolution

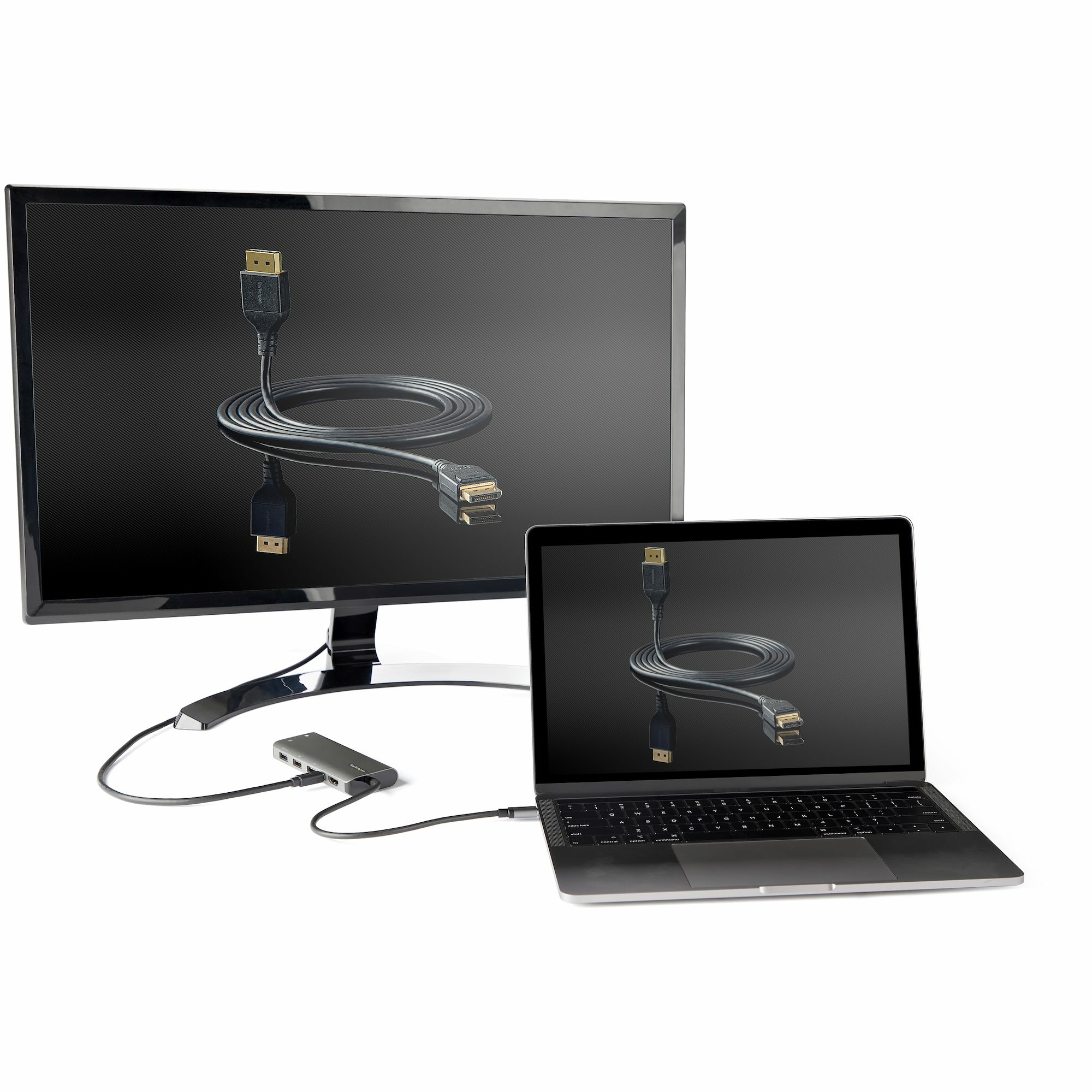

The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.

DP Alt Mode Required

Maximum Resolution

DP 1.2 Alternate Mode

Up to 4K 30Hz

DP 1.4 Alternate Mode

Up to 4K 60Hz

Connect Your Devices

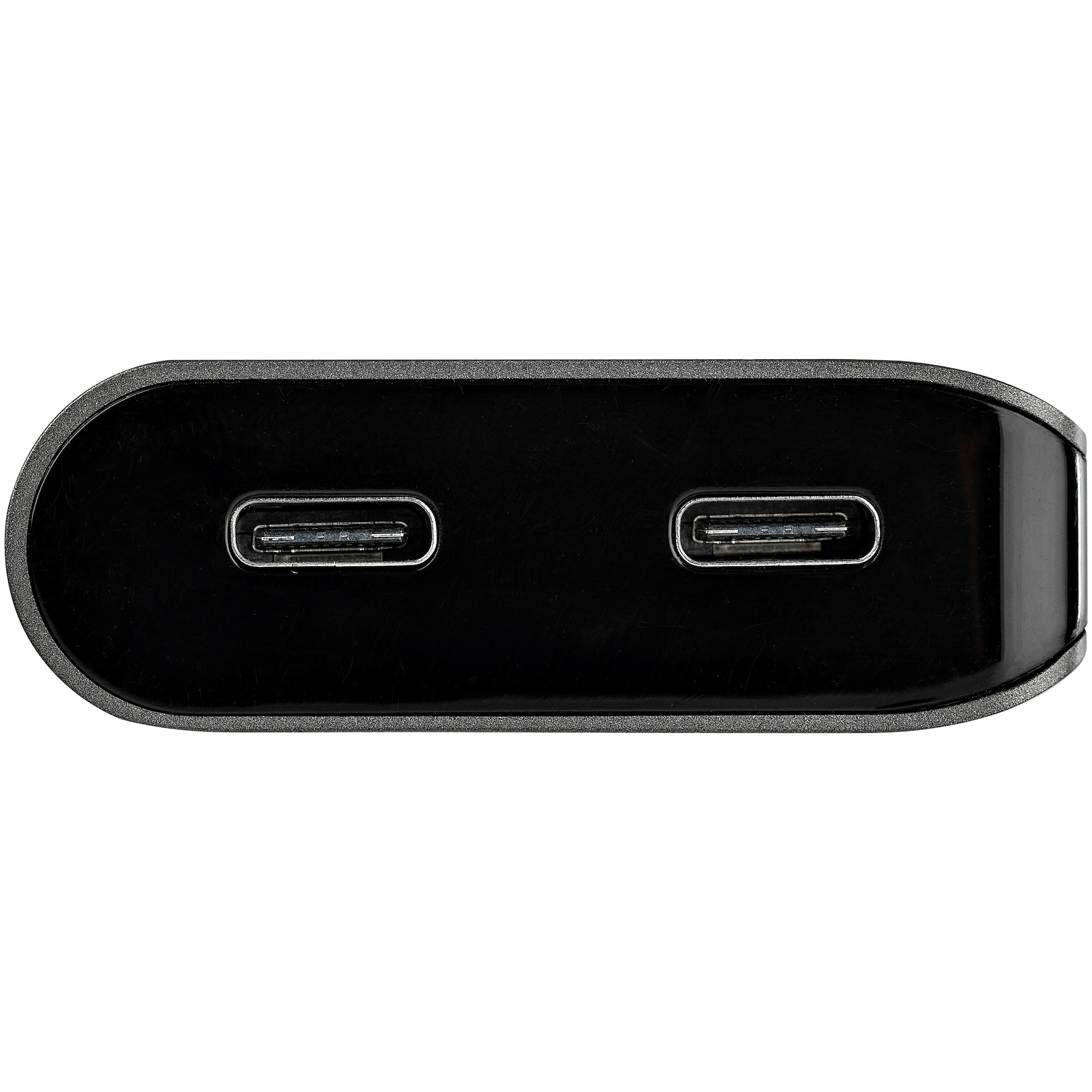

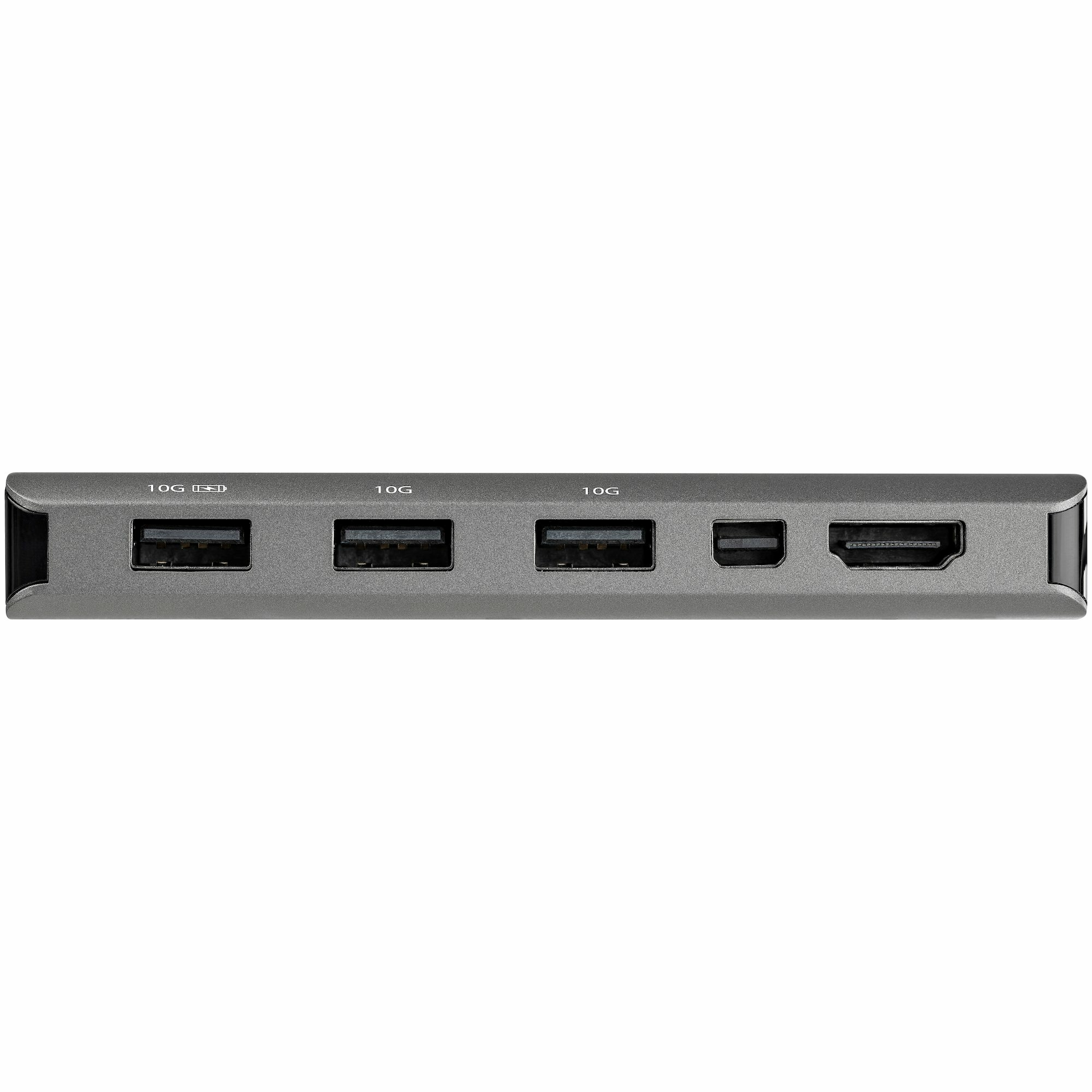

The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.

Charge Your Laptop and Peripheral

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

The DKT31CMDPHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.
