Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 100 W HDMI version 1.4 DC-in jack No Network Ethernet LAN No Performance Product color Gray Card reader integrated No Data transfer rate 5 Gbit/s HD type 4K Ultra HD Maximum digital resolution 4096 x 2160 pixels Number of displays supported 1 Maximum refresh rate 60 Hz Housing material Plastic Power Power source type USB Power consumption (typical) 8 W Wireless charging No Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 10 - 85% Weight & dimensions Width 115 mm Depth 60 mm Height 10 mm Weight 102 g Packaging data Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 102 g Technical details Compliance certificates CE, RoHS Logistics data Quantity per master (outer) case 60 pc(s) Master (outer) case width 330 mm Master (outer) case length 530 mm Master (outer) case height 310 mm Harmonized System (HS) code 84733020 Other features Cable length 0.34 m Chipset VIA/VLI - VL817, VIA/VLI - VL103, Parade - PS176

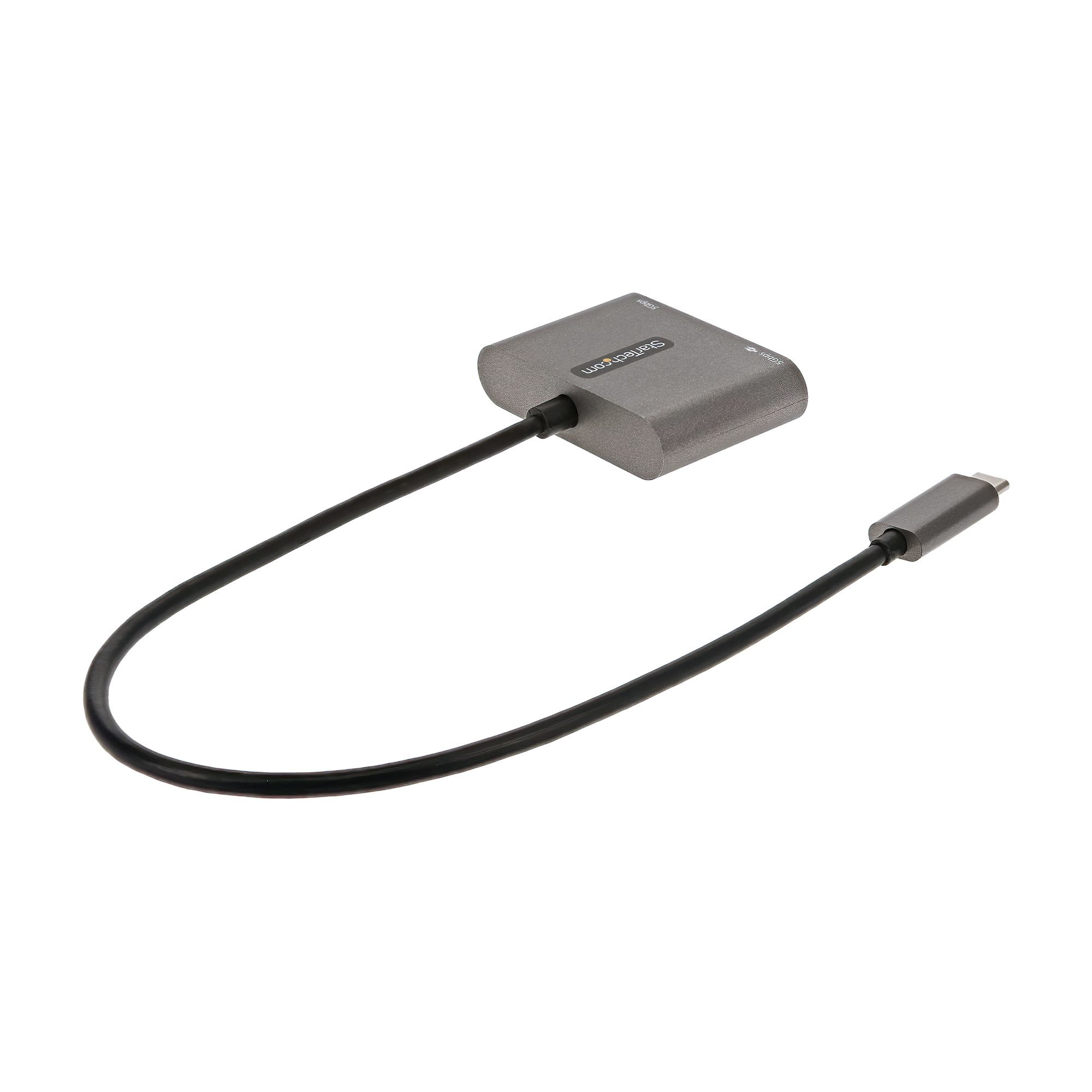

USB-C™ Video Adapter | 13 in. (34 cm) Attached Cable | Mac | Windows® | Chrome | Linux | Android | 4K 30Hz | Thunderbolt™ 3/4 Compatible

This USB-C™ multiport adapter with HDMI lets you add vital connections to your laptop with a single USB-C port. The USB C mini docking station features automatic driver installation and supports Windows, macOS, Chrome OS, Linux and Android, providing a portable connectivity solution for your USB-C laptop, tablet, phone, Ultrabook or Chromebook. The multiport adapter is also compatible with Thunderbolt 3, and Thunderbolt 4 laptops like MacBook Pro/Air, HP EliteBook, Dell XPS/Latitude, Lenovo Thinkpad X1 & Surface Laptop 3/Book 3.

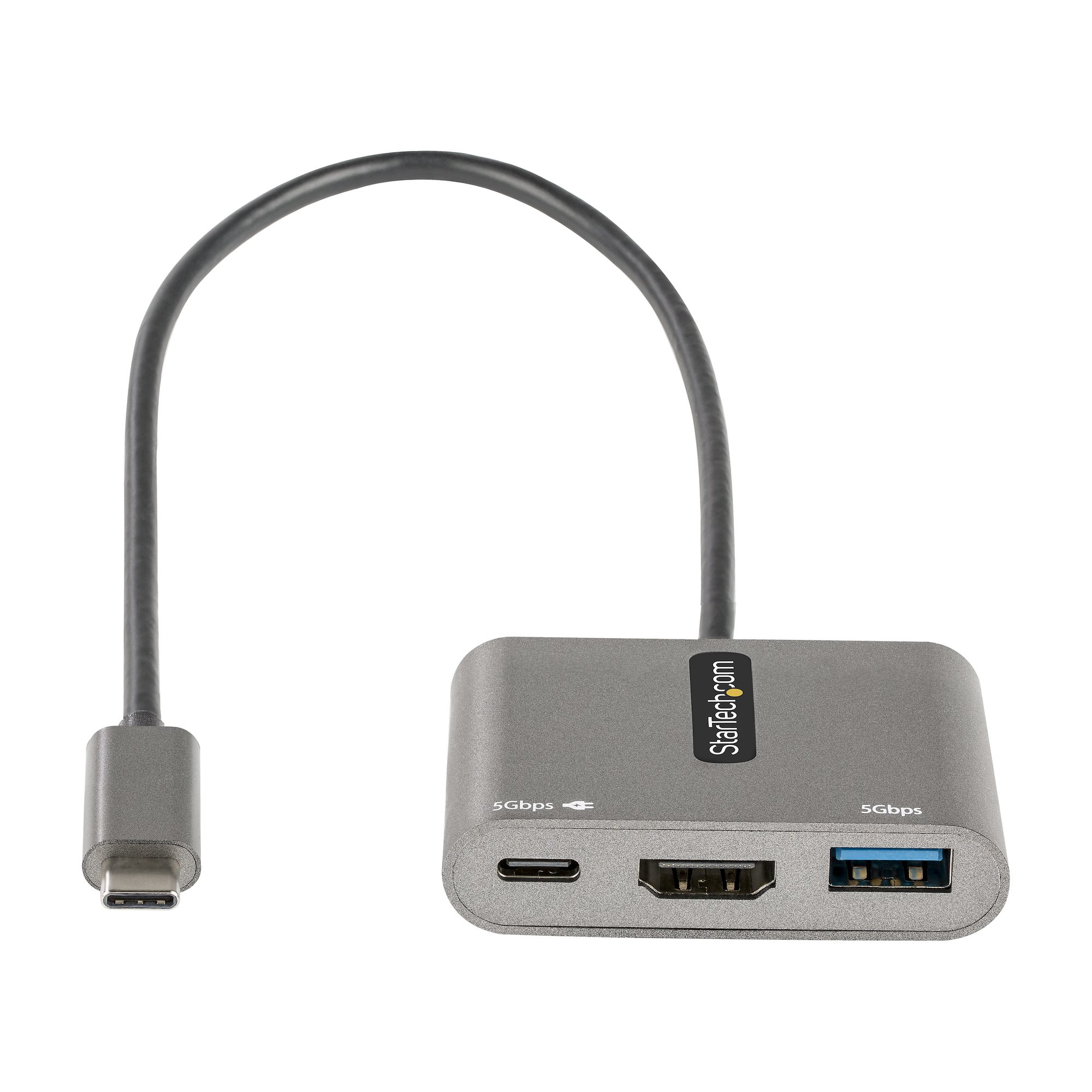

3-in-1 Multiport Adapter with 4K 30Hz HDMI Video Output

The USB-C mini docking station features an HDMI output that supports video resolutions up to 4K 30Hz, providing a high-resolution screen to maximize your productivity when multi-tasking using an HDMI desktop monitor (3440x1440 ultra-wide monitors/displays supported). You can also connect to an HDMI projector or TV in a boardroom or other meeting space, to deliver presentations on a shared screen.

Other output ports included on the adapter are a USB-A port (USB 3.2 Gen 1 5Gbps & BC 1.2 charging) for connecting and charging devices, and a USB-C (5Gbps Data + 100W Power Delivery 3.0) for charging your laptop or connecting to a downstream USB-C peripheral device.

Portable, Travel Friendly Design with Extra Long Cable

The USB-C adapter has a 13 in. (34 cm) attached cable that provides extended reach that reduces port/connector strains when connected to 2-in-1 devices like Surface Pro (7+), and on laptops that are resting on riser stands. The adapter also features a compact, portable design that fits easily into your laptop bag, making it ideal for on-the-go use as travel accessory with your laptop and other portable devices.

Bus-Powered or 100W USB Power Delivery 3.0

To provide power flexibility in different applications, the USB-C multiport adapter can operate using bus power alone, or it can be connected to an external USB-C power adapter up to 100W.

The adapter features 100W Power Delivery 3.0 pass through, enabling you to charge your laptop and connected devices. When connected to a power adapter up to 92W of power are available for charging, while 8W of power are reserved for the USB-C multiport adapter, this power reserve avoids video flickering and device dropouts, caused by overdrawing power, common in other hubs, ensuring this adapter provides high-performance operation, while reliably charging your devices. When a power adapter isn't connected, this adapter operates using USB bus power, and the USB-C port where you connect your power adapter turns into a downstream 5Gbps USB Type-C port for connecting USB-C peripheral devices.

Note: The adapter will not be as effective at charging downstream devices, when a USB-C power adapter is not connected.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

USB Event Monitoring Utility : To track and log connected USB devices

For more information and to download the StarTech.com Connectivity Tools application, please visit: StarTech.com/Connectivity-Tools

CDP2HDUACP2 is backed by a 3-year StarTech.com warranty, and free lifetime multilingual, North American based technical support.
