Ports & interfaces Ports quantity 4 Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Terminal block port Yes DC-in jack Yes Features Data transfer rate 5000 Mbit/s Product color Black Housing material Steel LED indicators Yes Cable length 1.8 m Plug and Play Yes Power Power plug type Type M Weight & dimensions Width 59 mm Depth 178 mm Height 23 mm Weight 280 g Packaging data Package width 149 mm Package depth 213 mm Package height 51 mm Package weight 500 g Packaging content Cables included USB Type-A to USB Type-B Quick start guide Yes Operational conditions Operating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 75 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 243753 h Logistics data Master (outer) case width 430 mm Master (outer) case length 520 mm Master (outer) case height 270 mm Quantity per master (outer) case 25 pc(s) Technical details Compliance certificates RoHS Other features Chipset VIA/VLI - VL817-Q7 Sustainability Sustainability compliance Yes

Connect four USB Type-A 3.2 Gen 1 (5Gbps) devices to a single USB port on your computer, using a USB hub that's suitable for harsh industrial/commercial environments

Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.

Functional in Harsh Environments

This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.

Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.

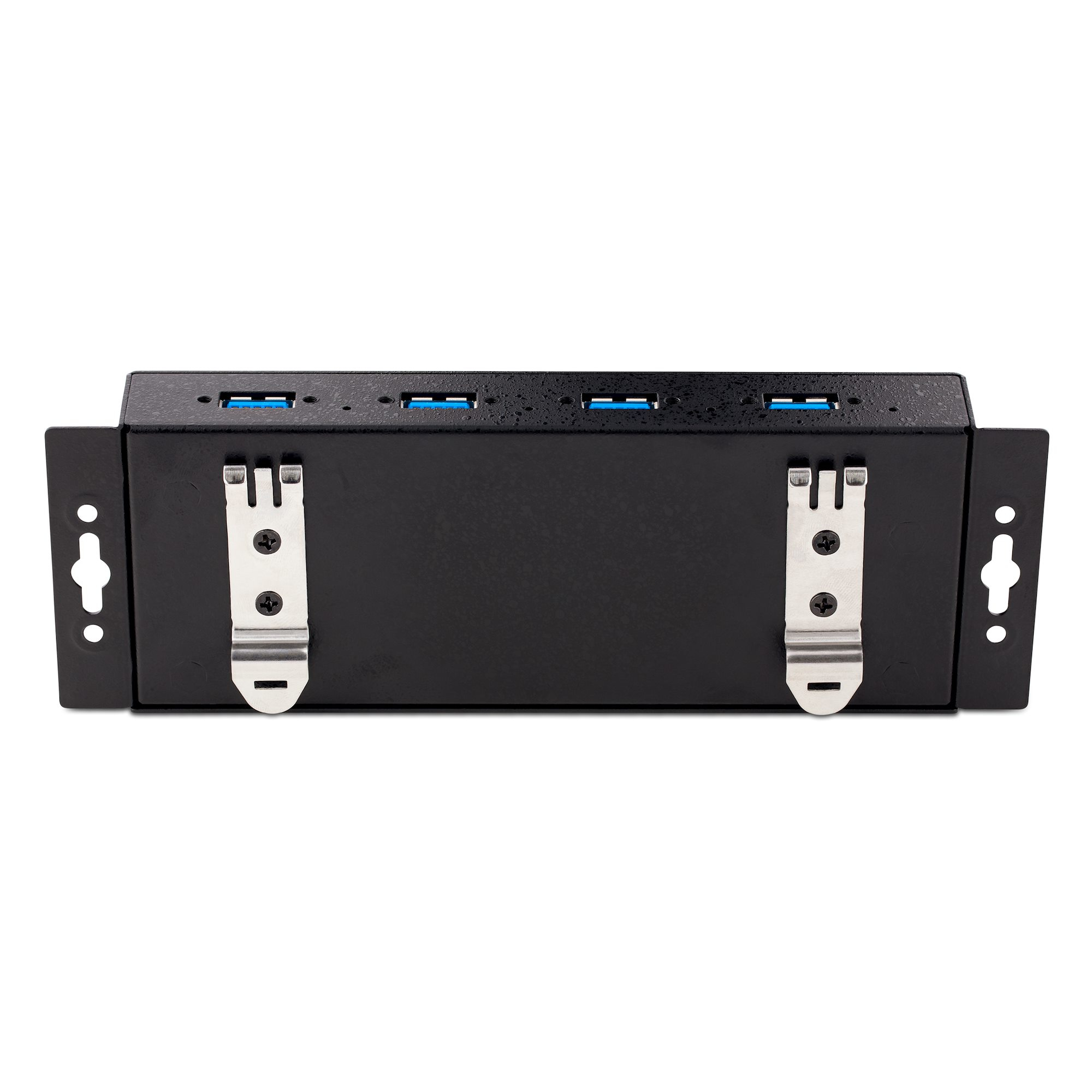

Mount to a Wall, Desk or DIN-Rail

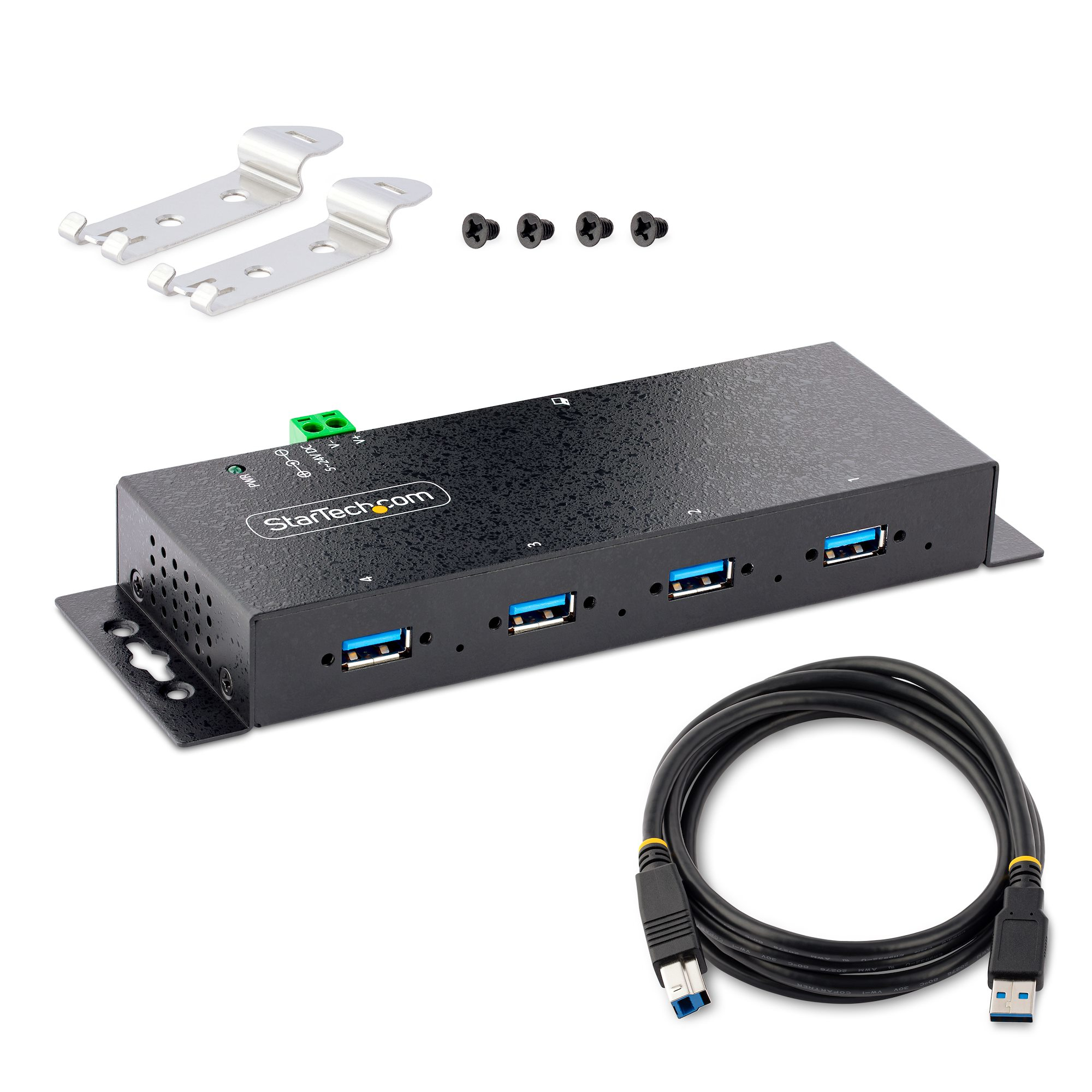

Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.

Connect and Charge USB Devices

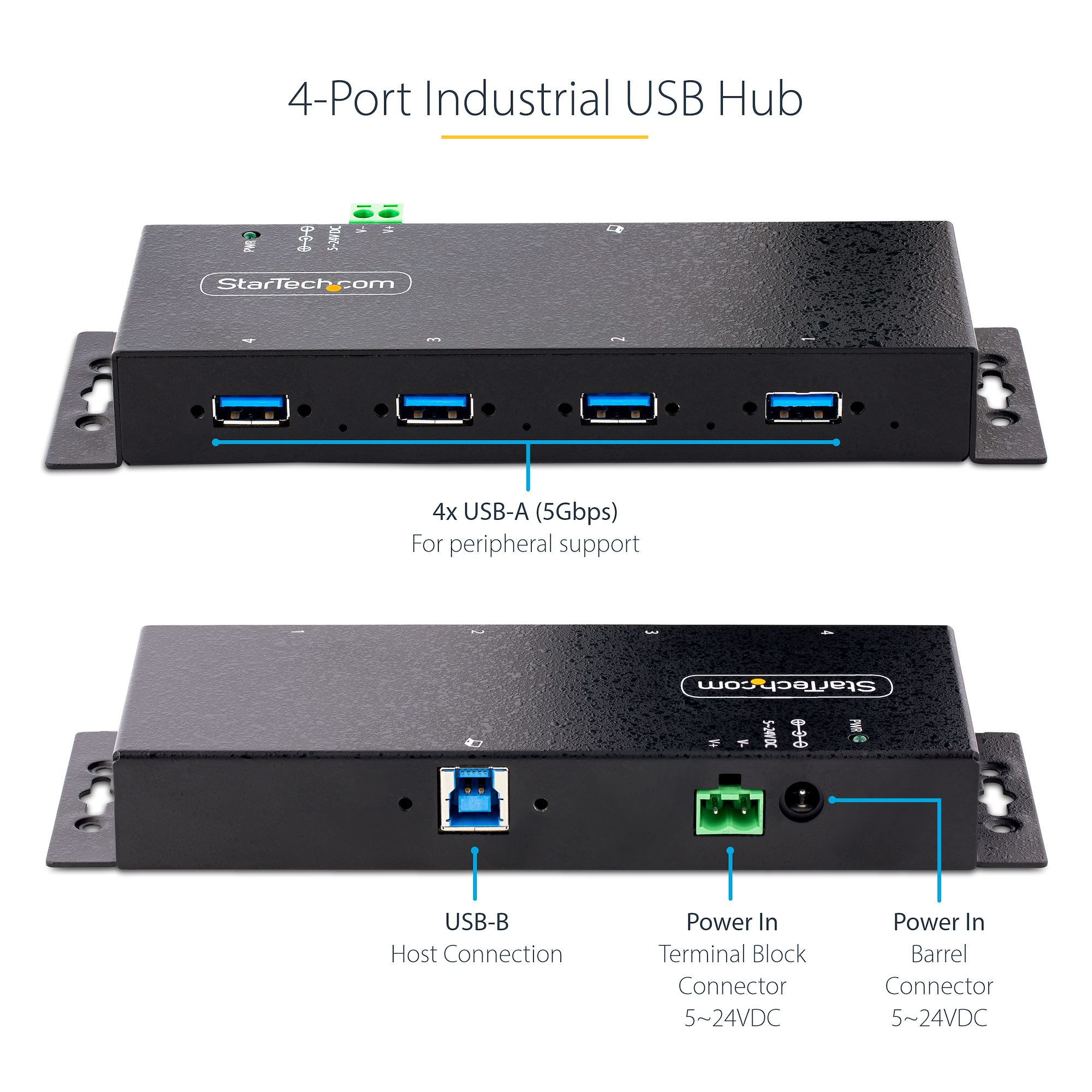

This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.

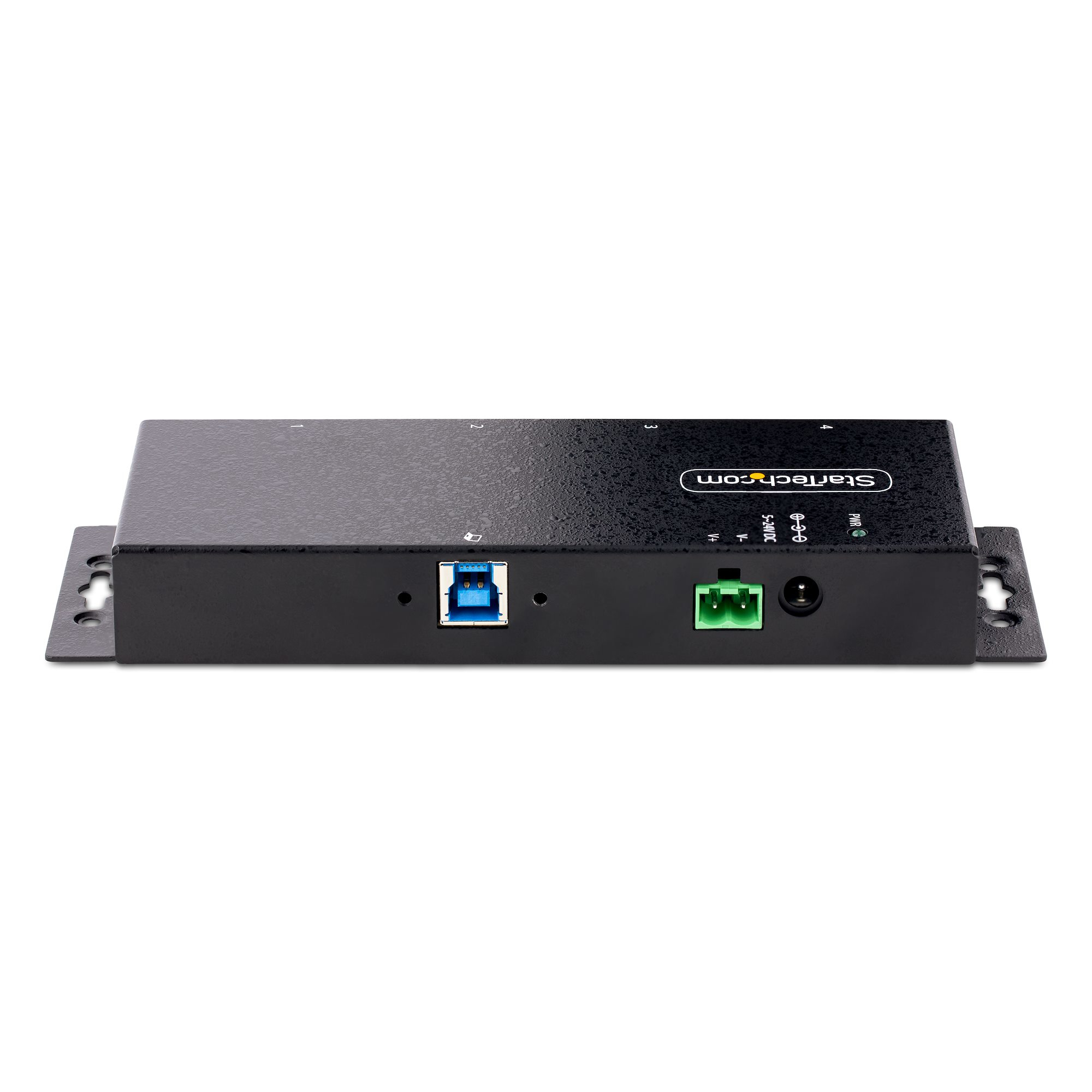

The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.

StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.

With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.

Wide Device Compatibility

The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.
