Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 HDMI ports quantity 1 Microphone in Yes Headphone outputs 1 DVI-I ports quantity 1 Combo headphone/mic port No Headphone connectivity 3.5 mm USB connector type USB Type-A DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product color Black Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 1920 x 1200 pixels LED indicators Power, USB Housing material Plastic Brand compatibility Any brand Certification CE, FCC Power AC input voltage 100 - 240 V Input current 0.8 A Output voltage 5 V Output current 4 A Power consumption (typical) 20 W Power plug type Type C Compatible power plug types AU, EU, JP, UK, US Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 10 - 40 °C Storage temperature (T-T) -10 - 80 °C Weight & dimensions Width 70 mm Depth 125 mm Height 195 mm Weight 370 g Packaging data Package width 190 mm Package depth 273 mm Package height 109 mm Package weight 900 g Packaging content Cables included USB AC adapter included Yes Manual Yes Drivers included Yes Interface adapters included DVI-I male - VGA female Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 6 pc(s) Master (outer) case width 300 mm Master (outer) case length 400 mm Master (outer) case height 360 mm Harmonized System (HS) code 84733020 Other features Minimum system requirements CPU: i3 Dual core 2.8GHz + RAM: 2GB + Chipset DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E Number of microphone inputs 1

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

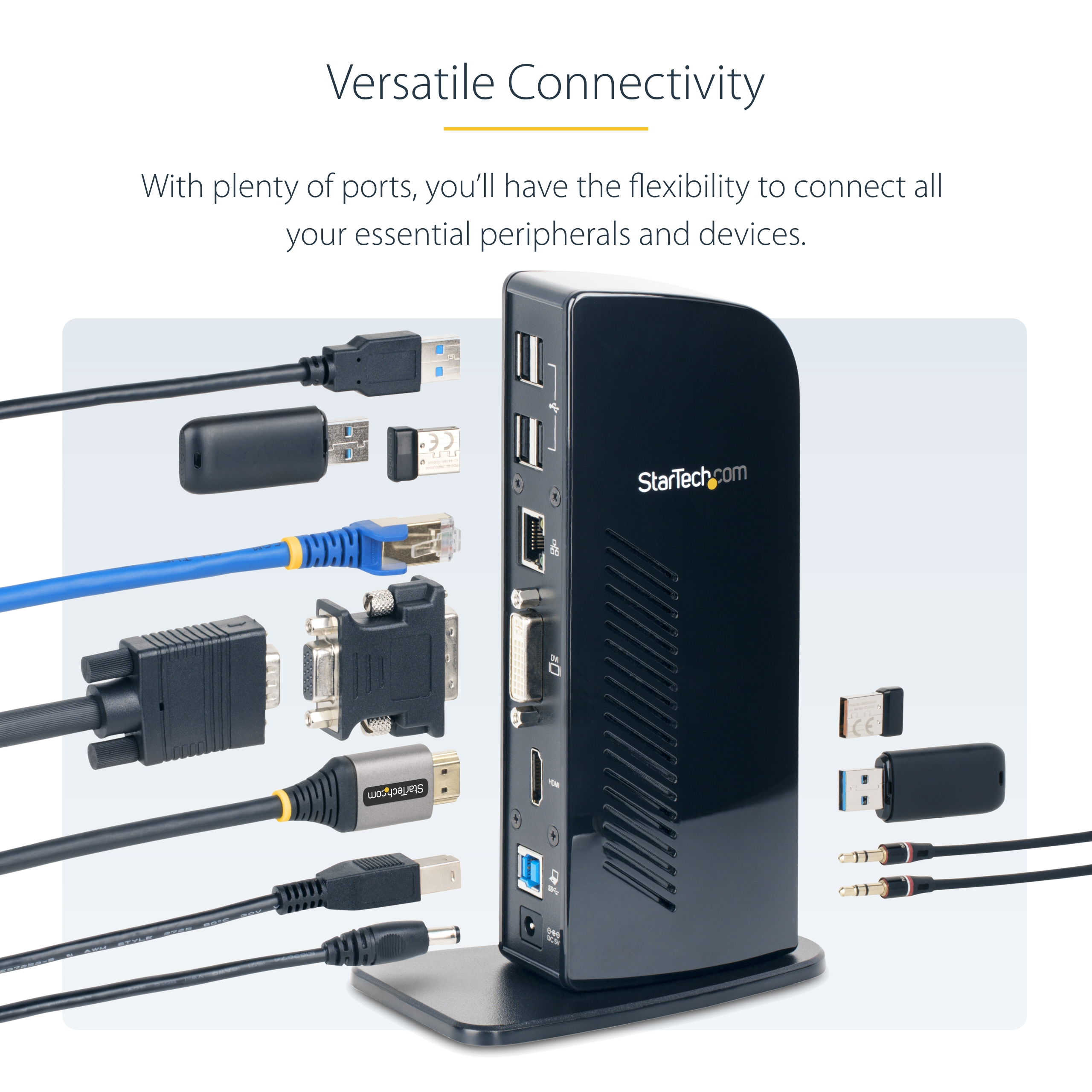

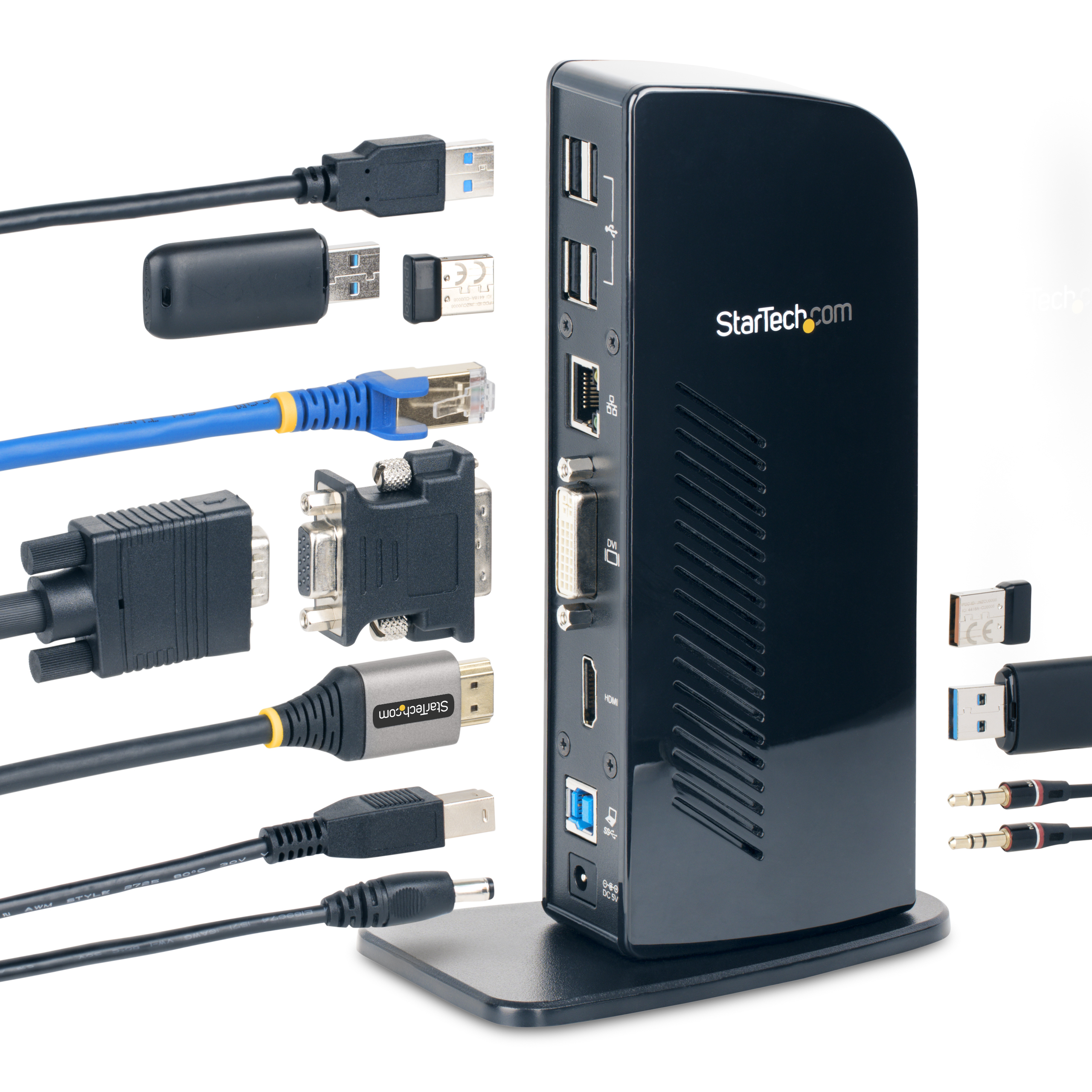

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.

Display Adaptability

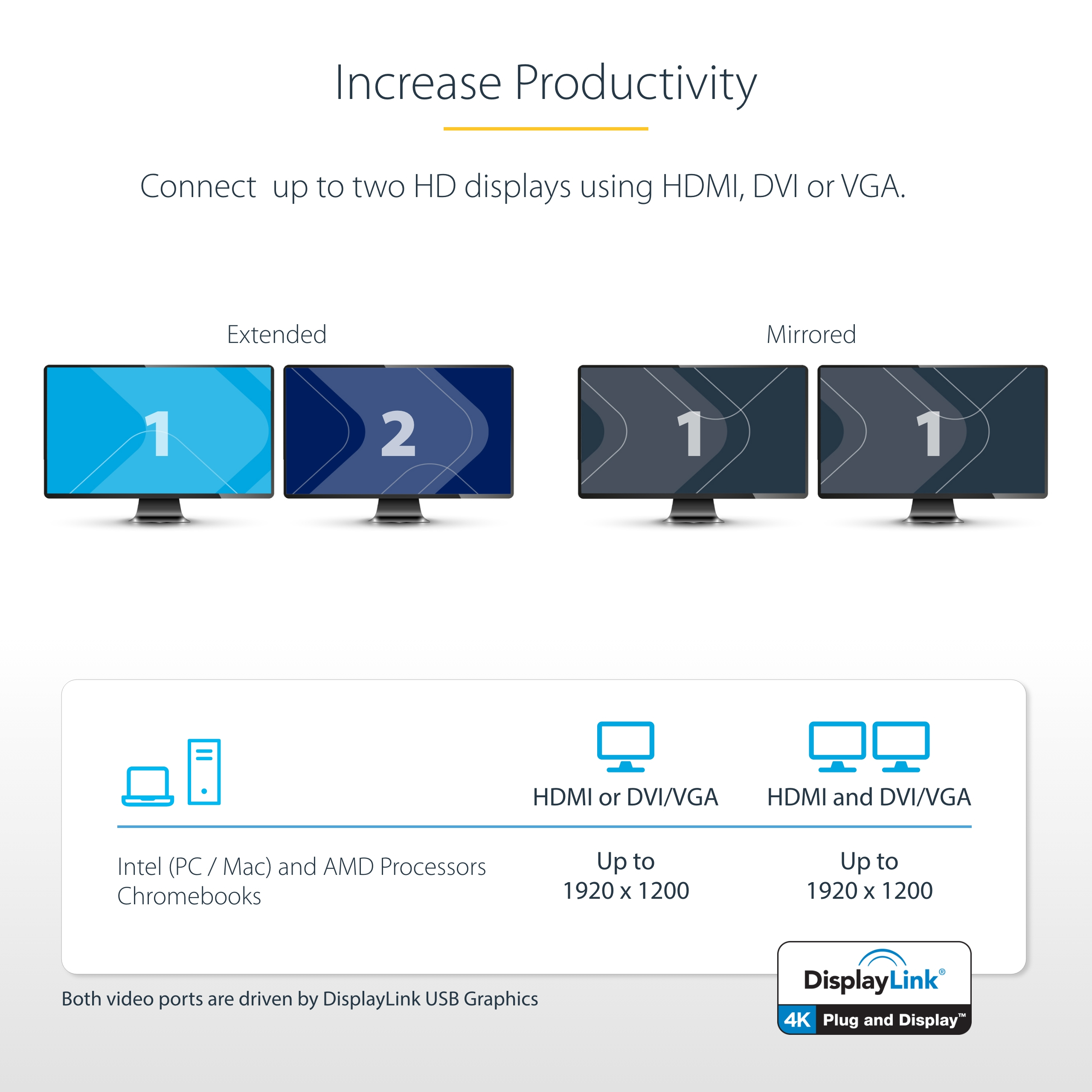

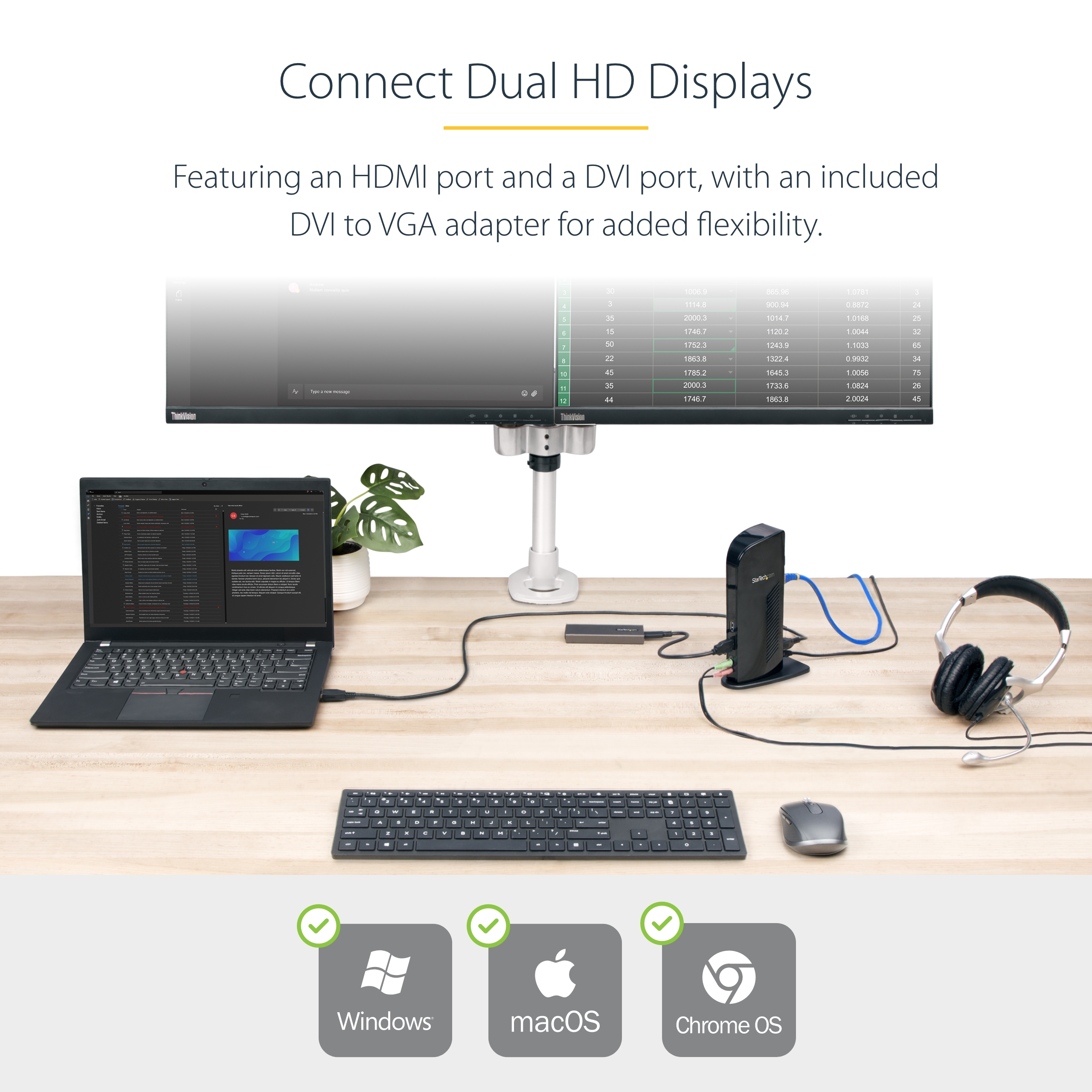

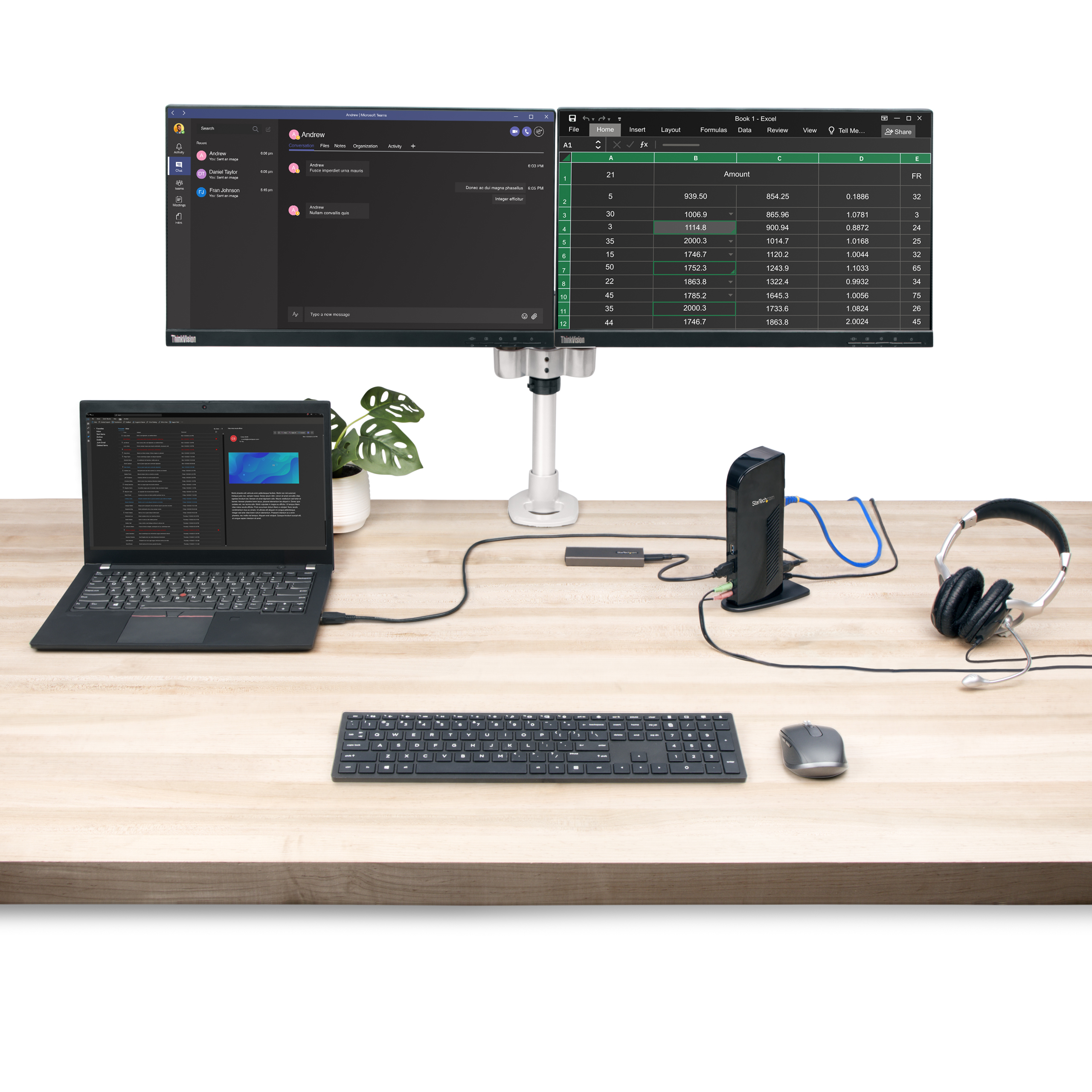

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.

Integrated USB Hub

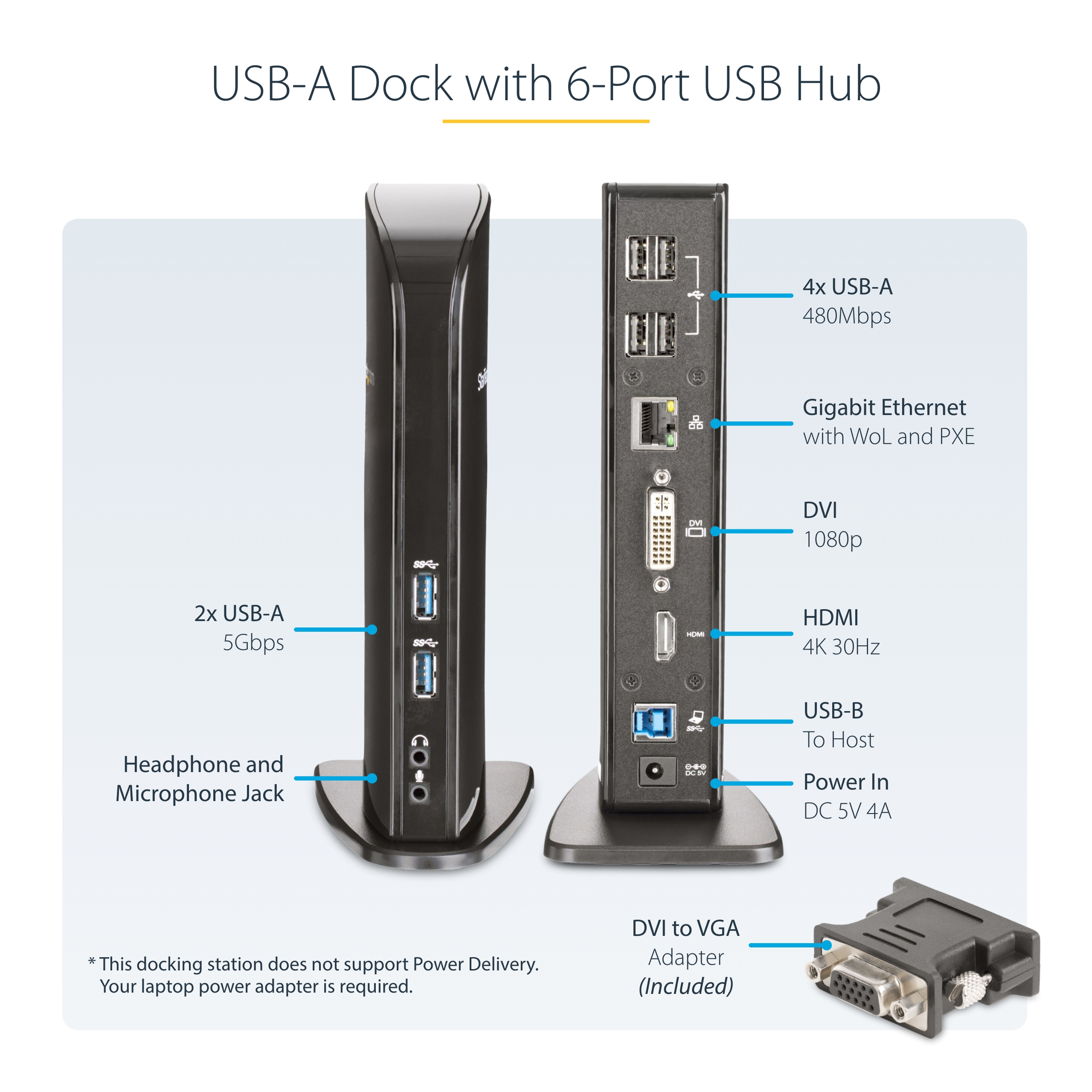

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

Versatile Design

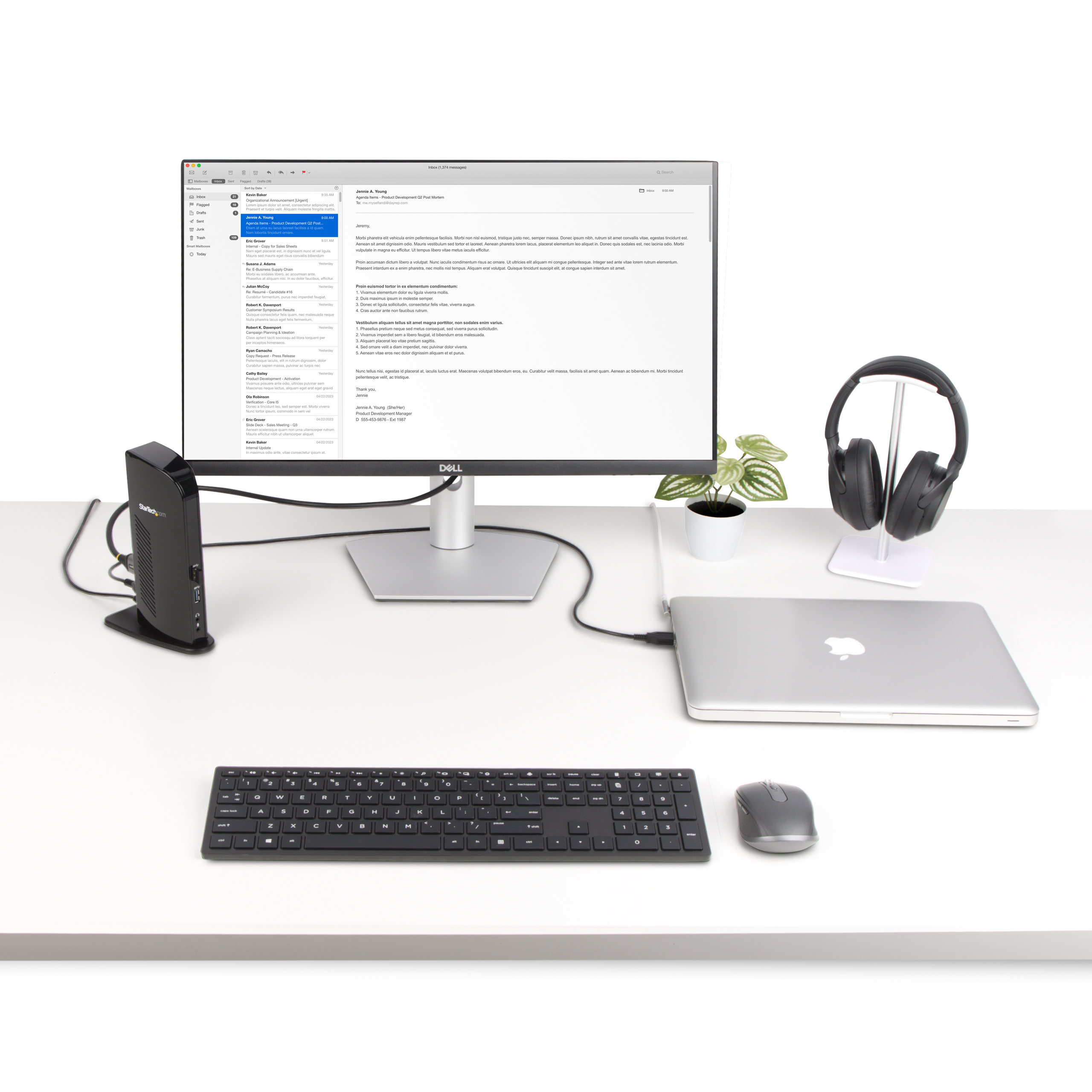

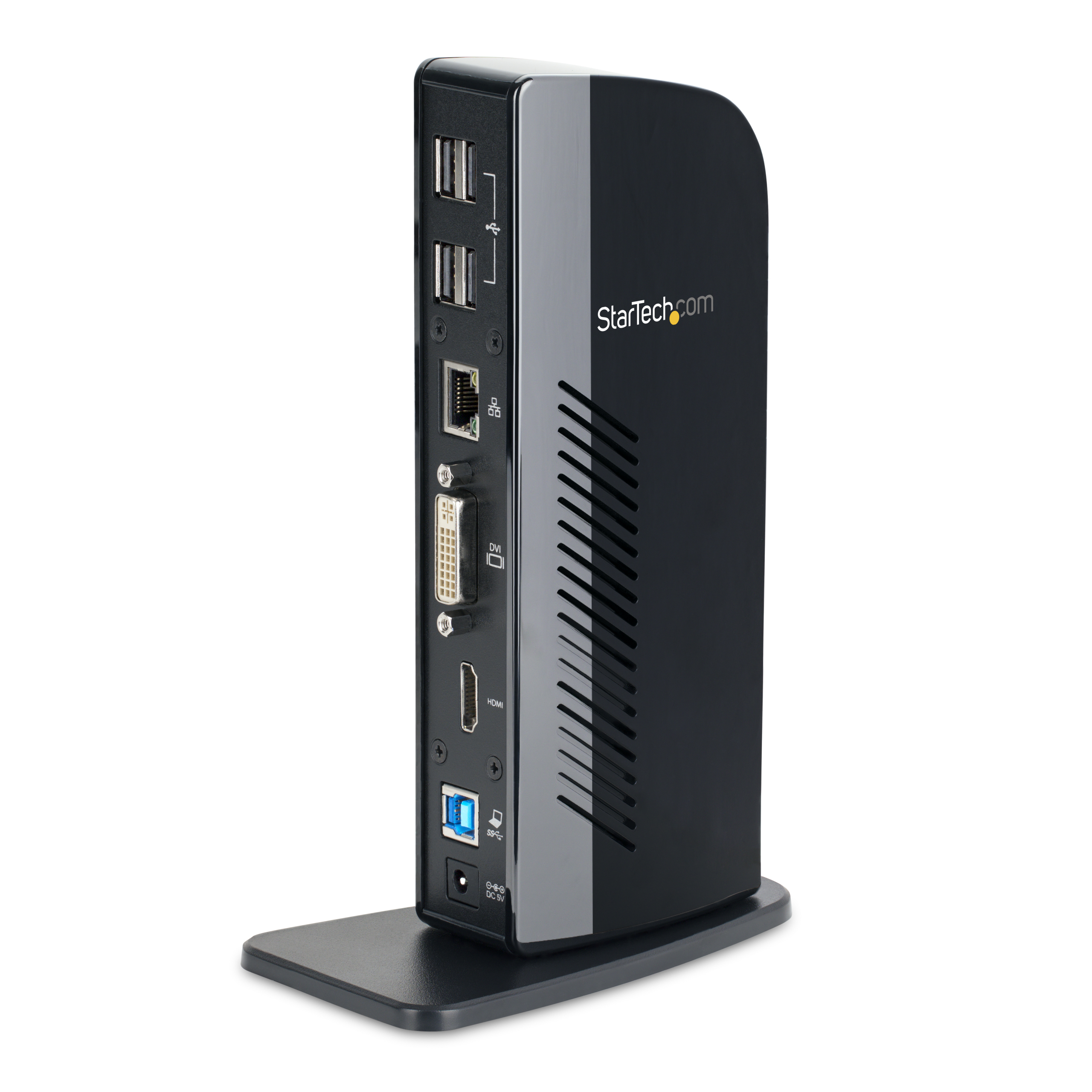

With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.

StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
