Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 HDMI ports quantity 1 Microphone in Yes Headphone outputs 1 VGA (D-Sub) ports quantity 1 DVI-D ports quantity 1 DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product color Black Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 1920 x 1200 pixels Maximum analog resolution 2048 x 1152 pixels Cable lock slot Yes Cable lock slot type Kensington Housing material Plastic Certification FCC, CE, TAA, REACH Power AC input voltage 100-240 V Input current 0.9 A Output voltage 5 V Output current 4 A Power consumption (typical) 20 W Power plug type Type B Compatible power plug types AU, EU, UK, US Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Width 178 mm Depth 304 mm Height 44 mm Weight 295 g Packaging data Package width 195 mm Package depth 296 mm Package height 66 mm Package weight 878 g Packaging content Cables included USB AC adapter included Yes Manual Yes Drivers included Yes Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 6 pc(s) Master (outer) case width 215 mm Master (outer) case length 435 mm Master (outer) case height 345 mm Harmonized System (HS) code 84733020 Other features Chipset DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E USB data transfer rates 12,480,5000 Mbit/s

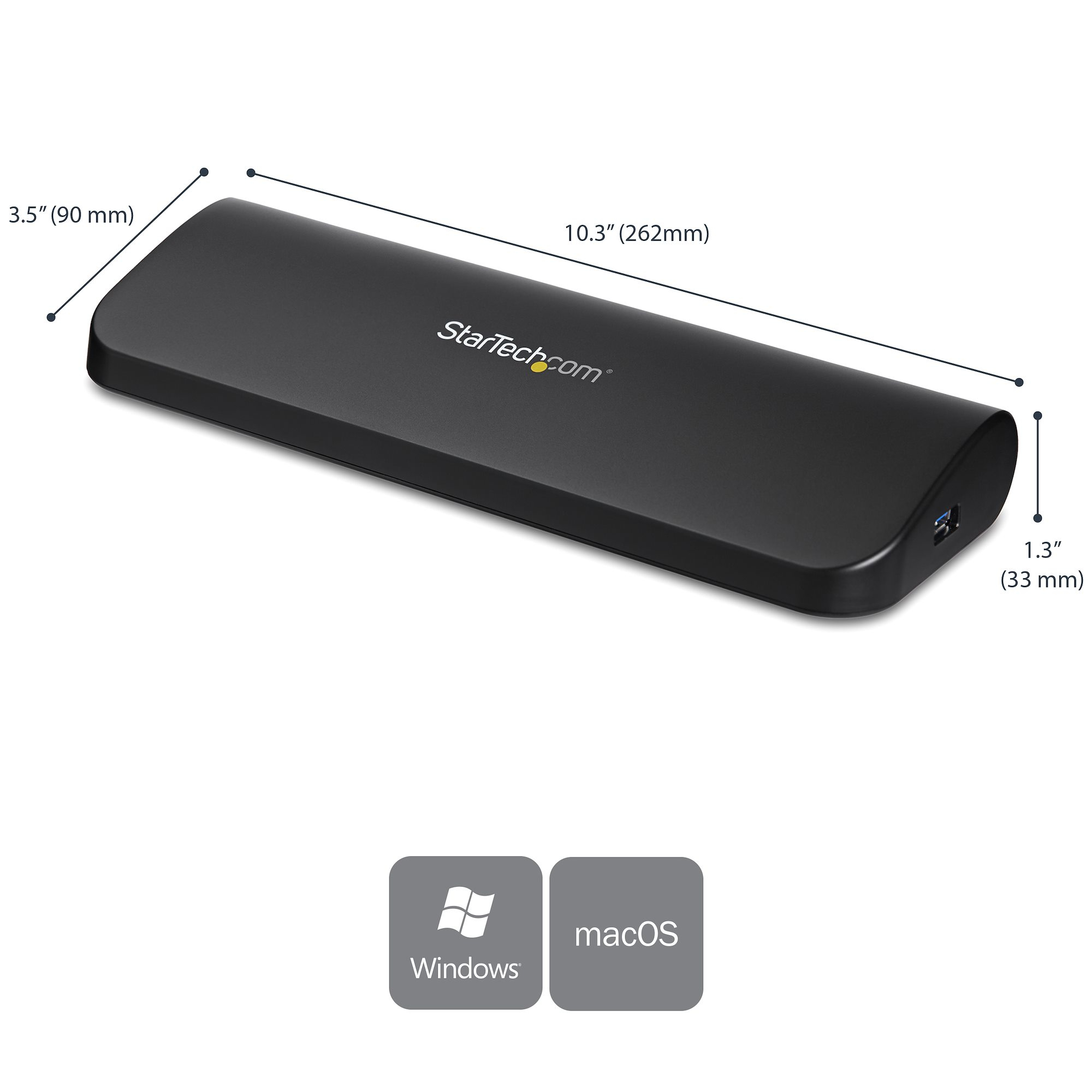

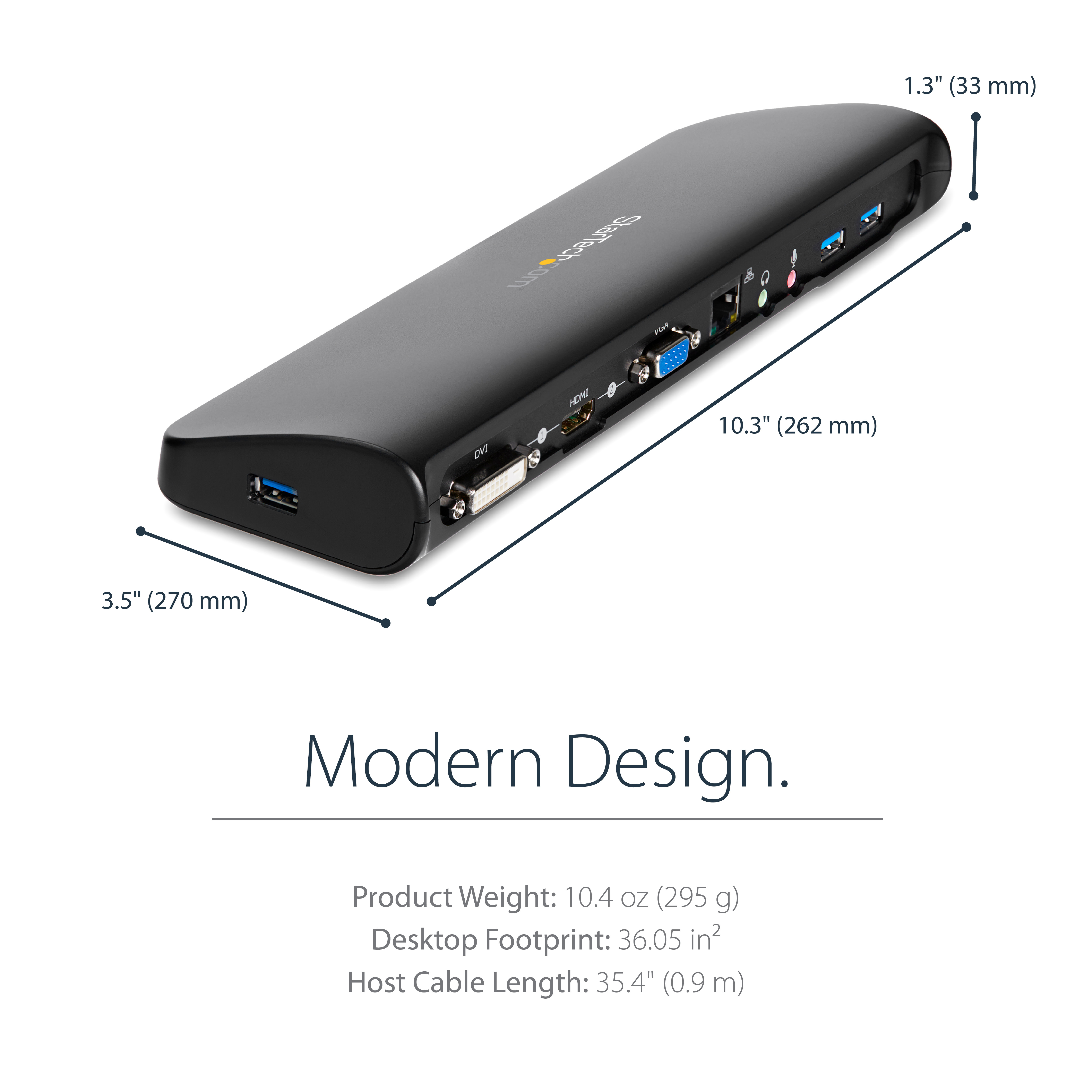

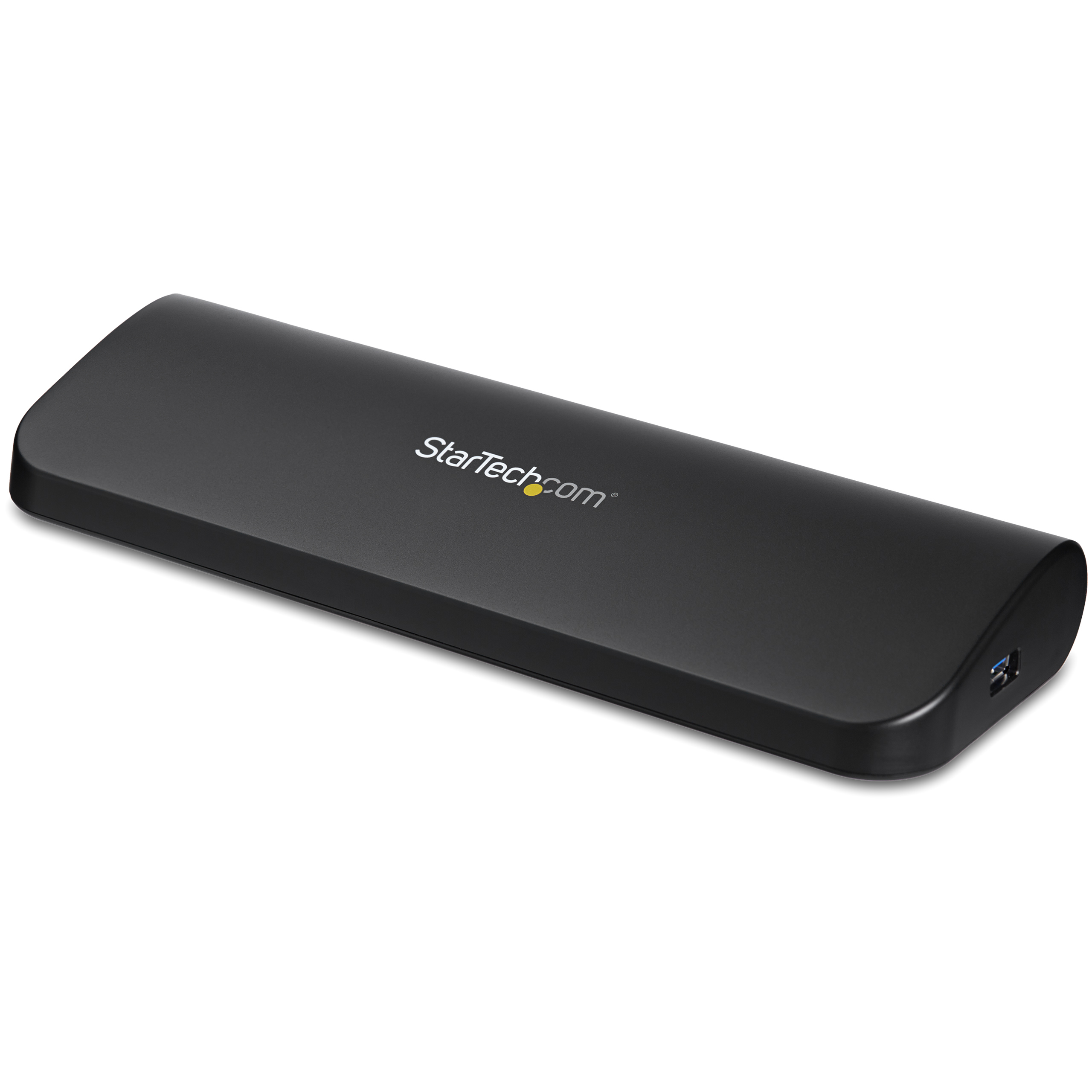

Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

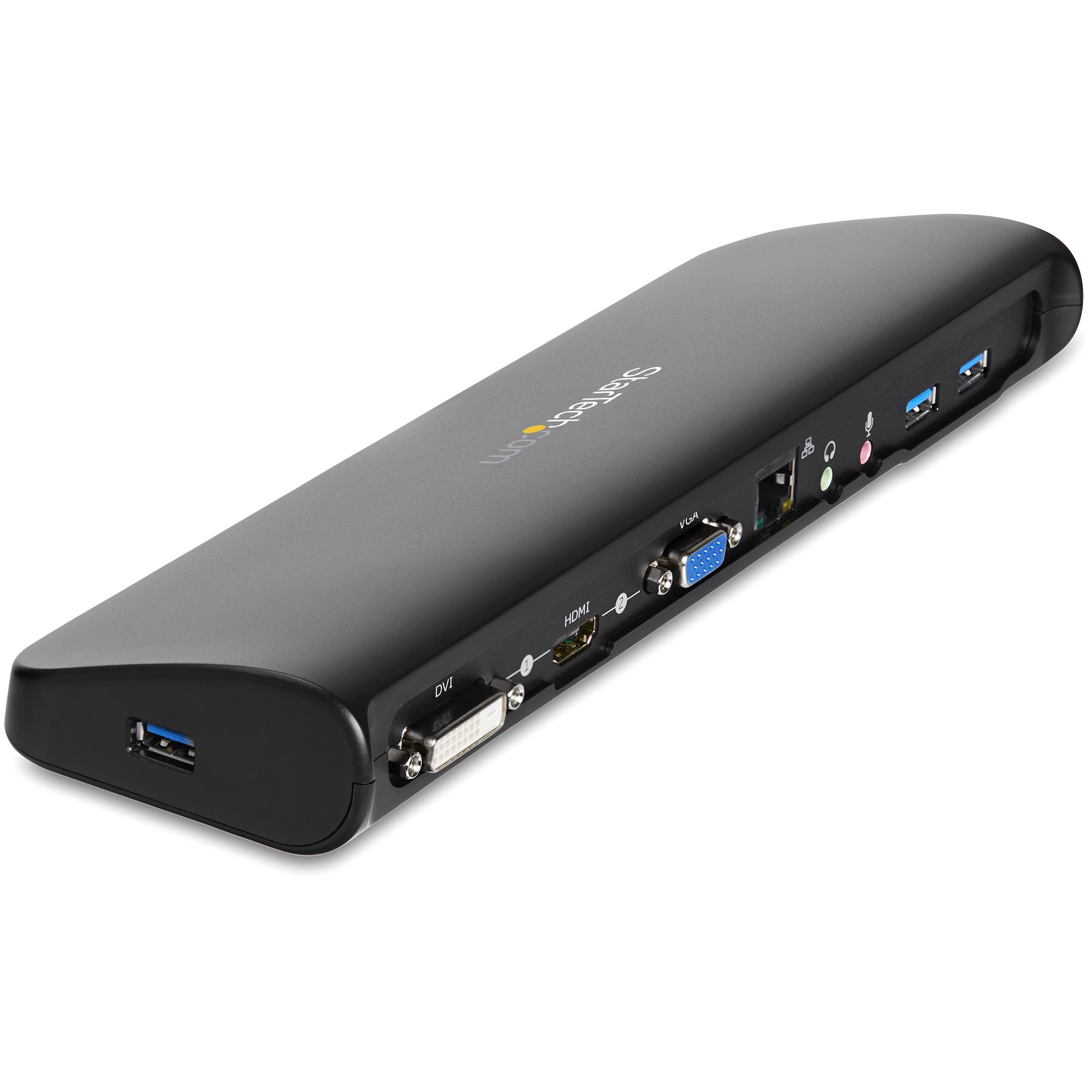

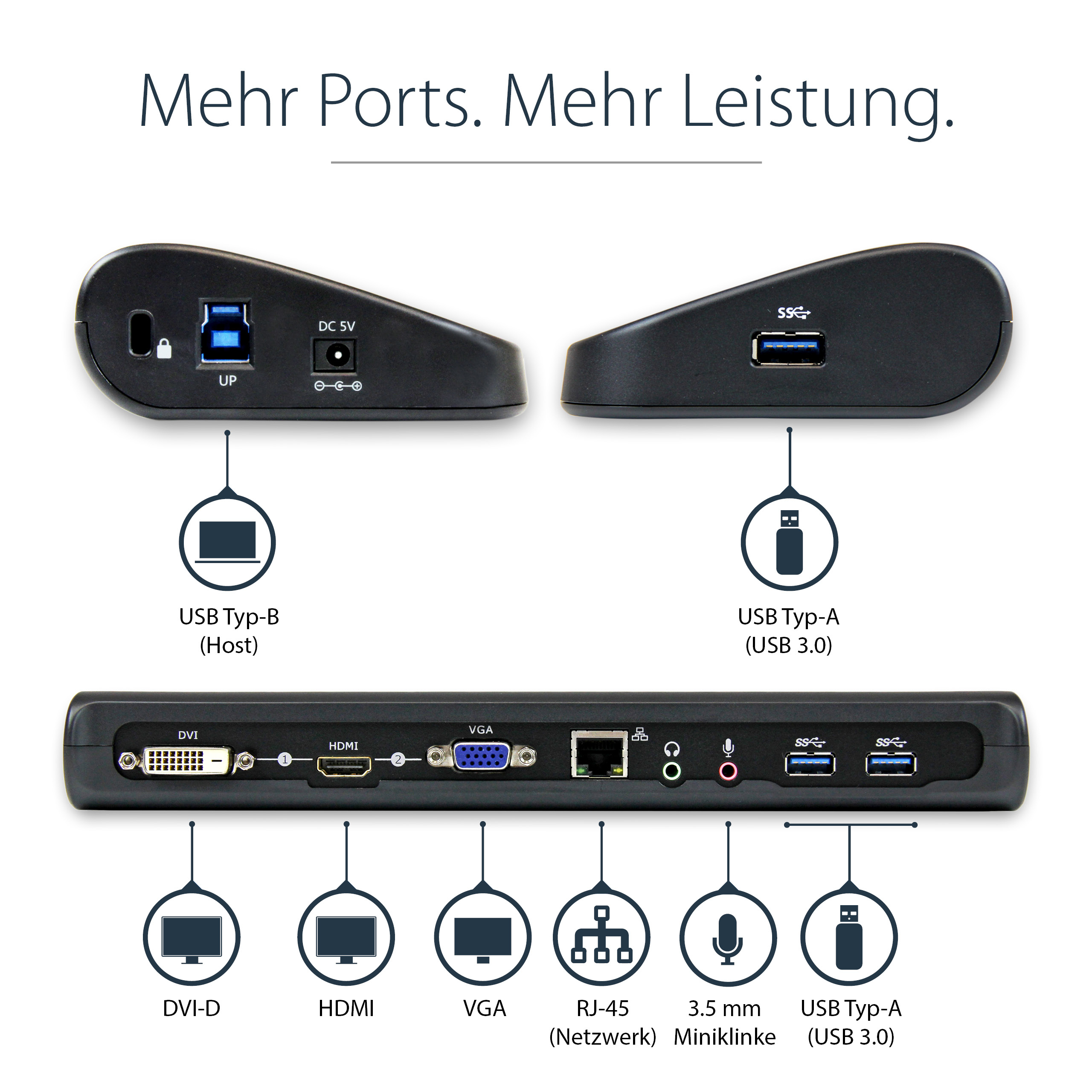

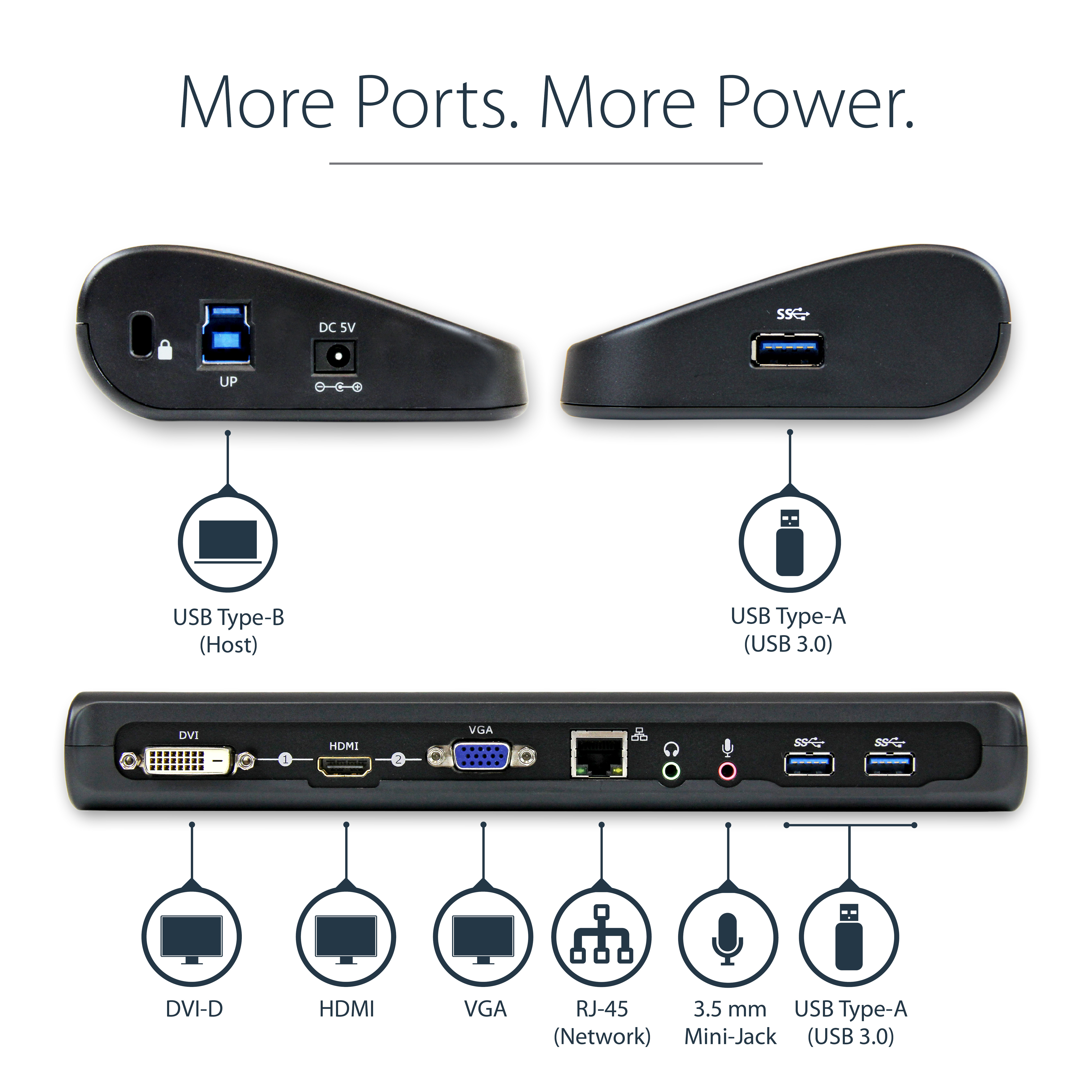

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

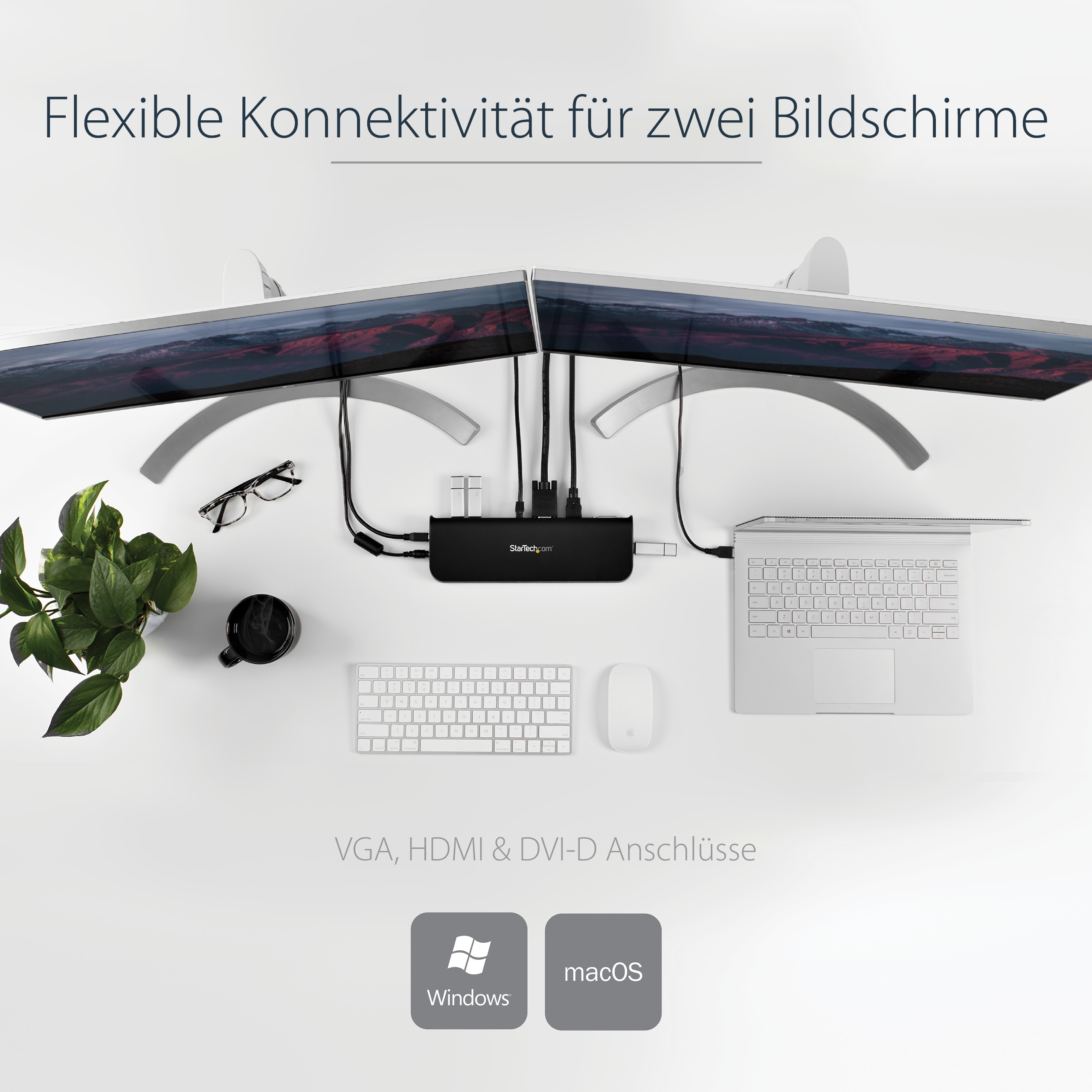

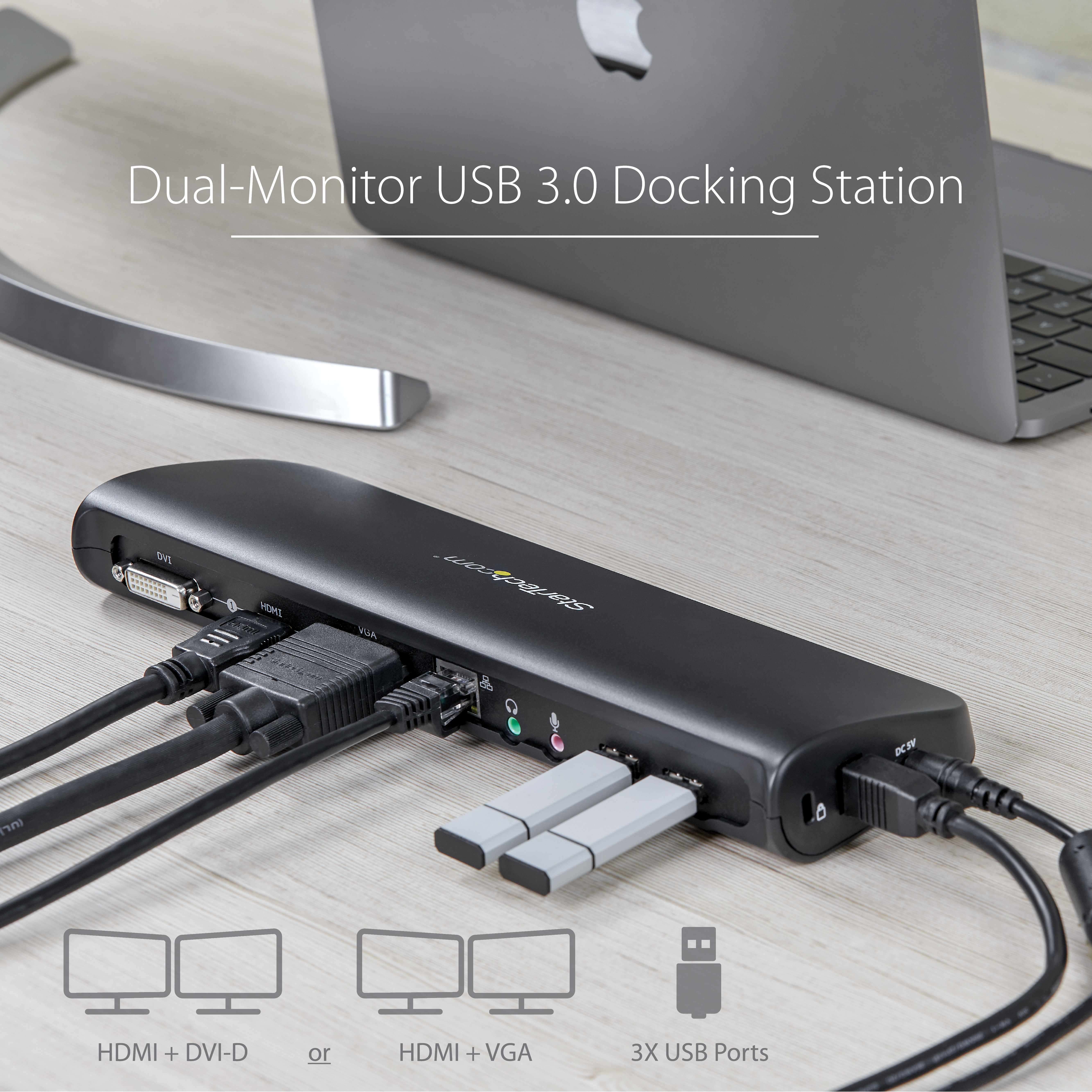

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

• HDMI + VGA
• HDMI + DVI

Integrated USB Hub

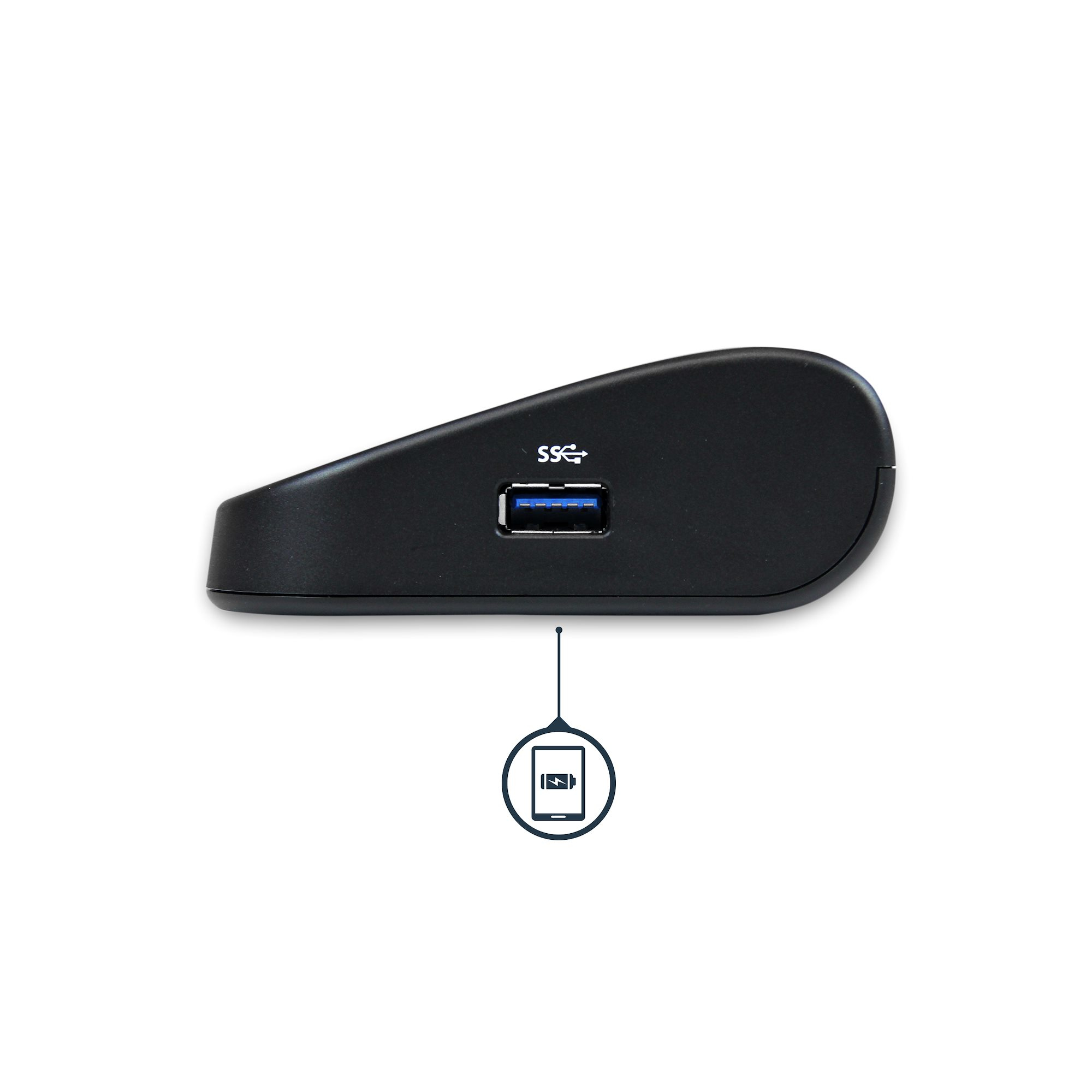

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
