Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 HDMI ports quantity 1 Microphone in No Headphone outputs 0 VGA (D-Sub) ports quantity 1 DC-in jack No Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product color Black Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 2048 x 1152 pixels LED indicators Activity, Link UASP support Yes Housing material Plastic Brand compatibility Any brand Certification CE, FCC, REACH Power Power source type USB Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Width 55 mm Depth 125 mm Height 17 mm Weight 82 g Packaging data Package width 167 mm Package depth 143 mm Package height 43 mm Package weight 192 g Packaging content Manual Yes Drivers included Yes Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 40 pc(s) Master (outer) case width 346 mm Master (outer) case length 448 mm Master (outer) case height 309 mm Harmonized System (HS) code 84733020 Other features Cable length 0.093 m Chipset DisplayLink - DL-3700

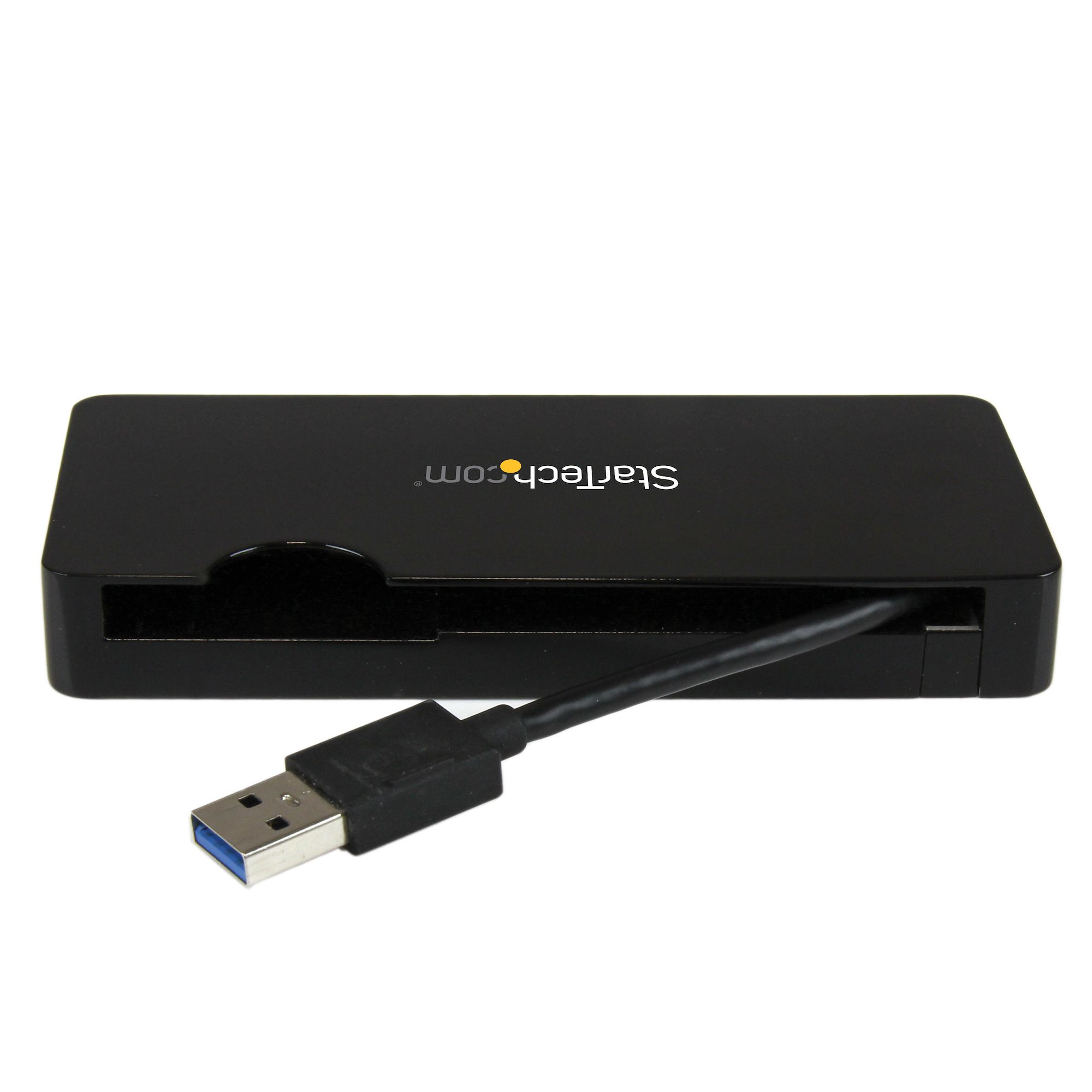

Create a mobile workstation using your Ultrabook™ or laptop USB 3.0 port via this portable USB 3.0 mini dock

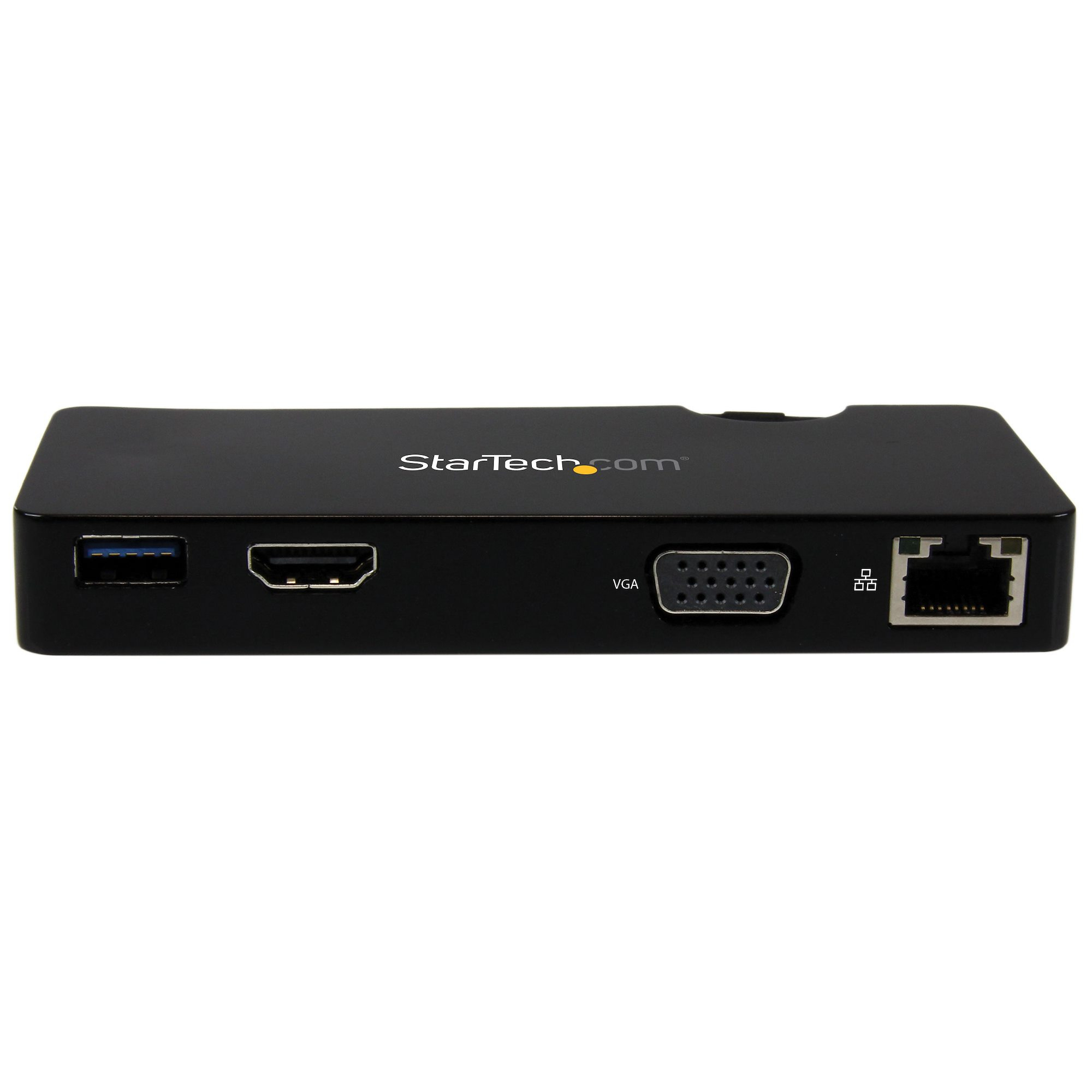

The travel docking station for laptops lets you transform your laptop or Ultrabook™ into a mobile workstation. It adds HDMI® or VGA video output, a USB 3.0 hub port, and a Gigabit Ethernet RJ45 port, through a single USB 3.0 host connection. The travel-friendly dock helps you overcome the port limitations of modern mobile computers, making it ideal for your laptop, Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

Now, you can avoid the nuisance of carrying multiple adapters. By consolidating four essential connection ports into one convenient device, the travel dock is the the perfect laptop accessory. It features a lightweight, compact design that fits nicely into your travel bag and also features an integrated host connection cable that tucks neatly into the docking stations casing.

A versatile solution for connecting an additional display to your laptop, the travel docking station offers HDMI video output with audio, or VGA video output, providing two popular interfaces for connecting a television, projector, or monitor as a second display, with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5Gbps) USB 3.0 interface to deliver flexible video output, a USB 3.0 hub port, and Gigabit Ethernet, you can quickly set up a multi-functional workstation while on the run, without sacrificing one of your laptop USB ports.

Setup is seamless and hassle-free; the travel dock will automatically download the latest driver when connected to Windows® system with an active network connection.

The USB3SMDOCKHV is backed by a StarTech.com 3-year warranty and free lifetime technical support.
