Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 HDMI ports quantity 1 Microphone in Yes Headphone outputs 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2 DisplayPorts quantity 2 Combo headphone/mic port Yes Headphone connectivity 3.5 mm DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product color Black, Silver Card reader integrated No Data transfer rate 6 Gbit/s Maximum digital resolution 4096 x 2160 pixels Cable lock slot Yes On/off switch Yes UASP support Yes Brand compatibility Any brand Certification CE, FCC, TAA Power AC input voltage 100 - 240 V Input current 2 A Power supply 60 W Output voltage 20 V Output current 6 A Compatible power plug types EU, UK Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensions Width 82 mm Depth 270 mm Height 34 mm Weight 385 g Packaging data Package width 161 mm Package depth 296 mm Package height 71 mm Package weight 1.45 kg Packaging content Cables included USB Type-C AC adapter included Yes Manual Yes Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 10 pc(s) Master (outer) case width 318 mm Master (outer) case length 370 mm Master (outer) case height 382 mm Harmonized System (HS) code 84733020 Other features Chipset DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176 Number of microphone inputs 1

Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI

This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It's the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™; or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

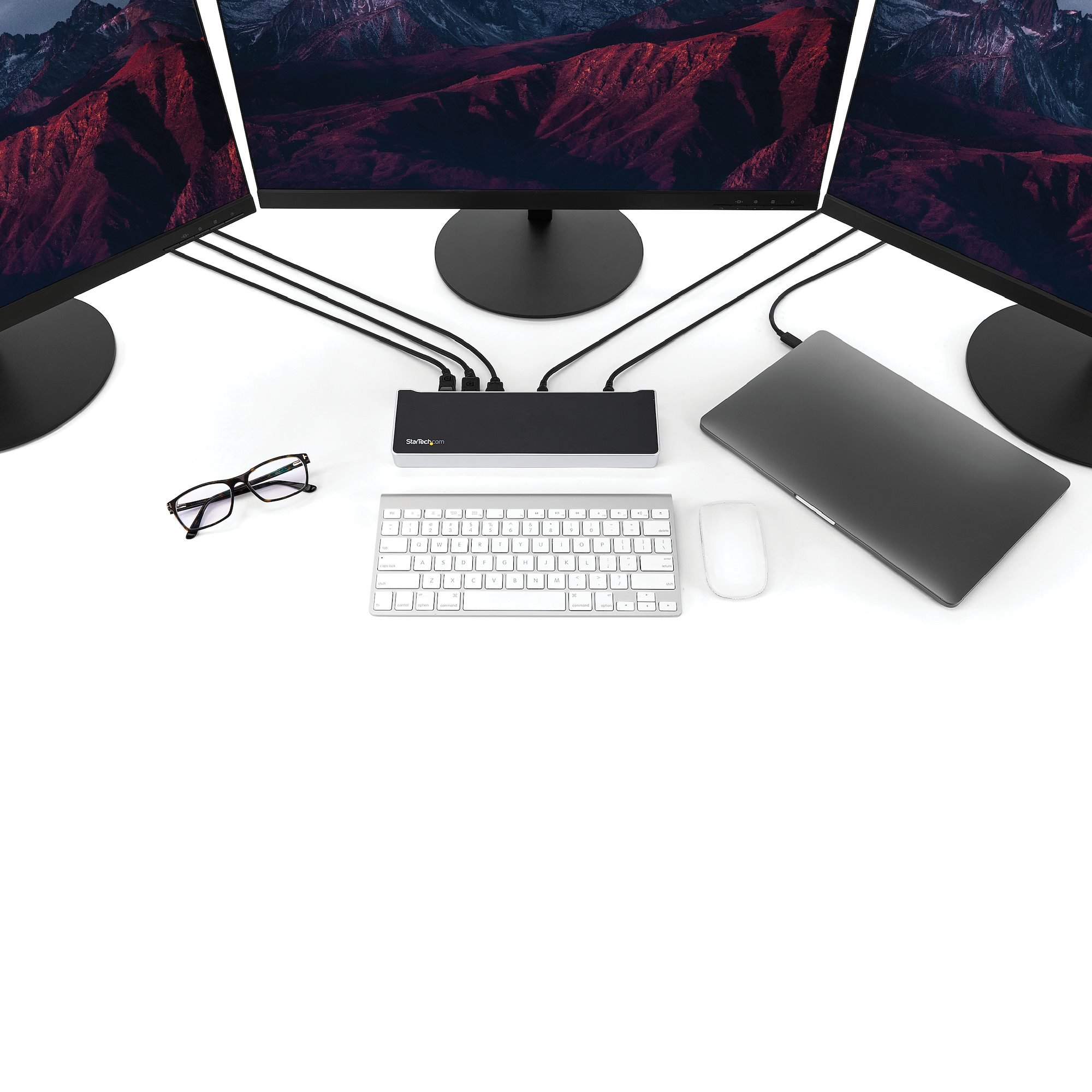

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

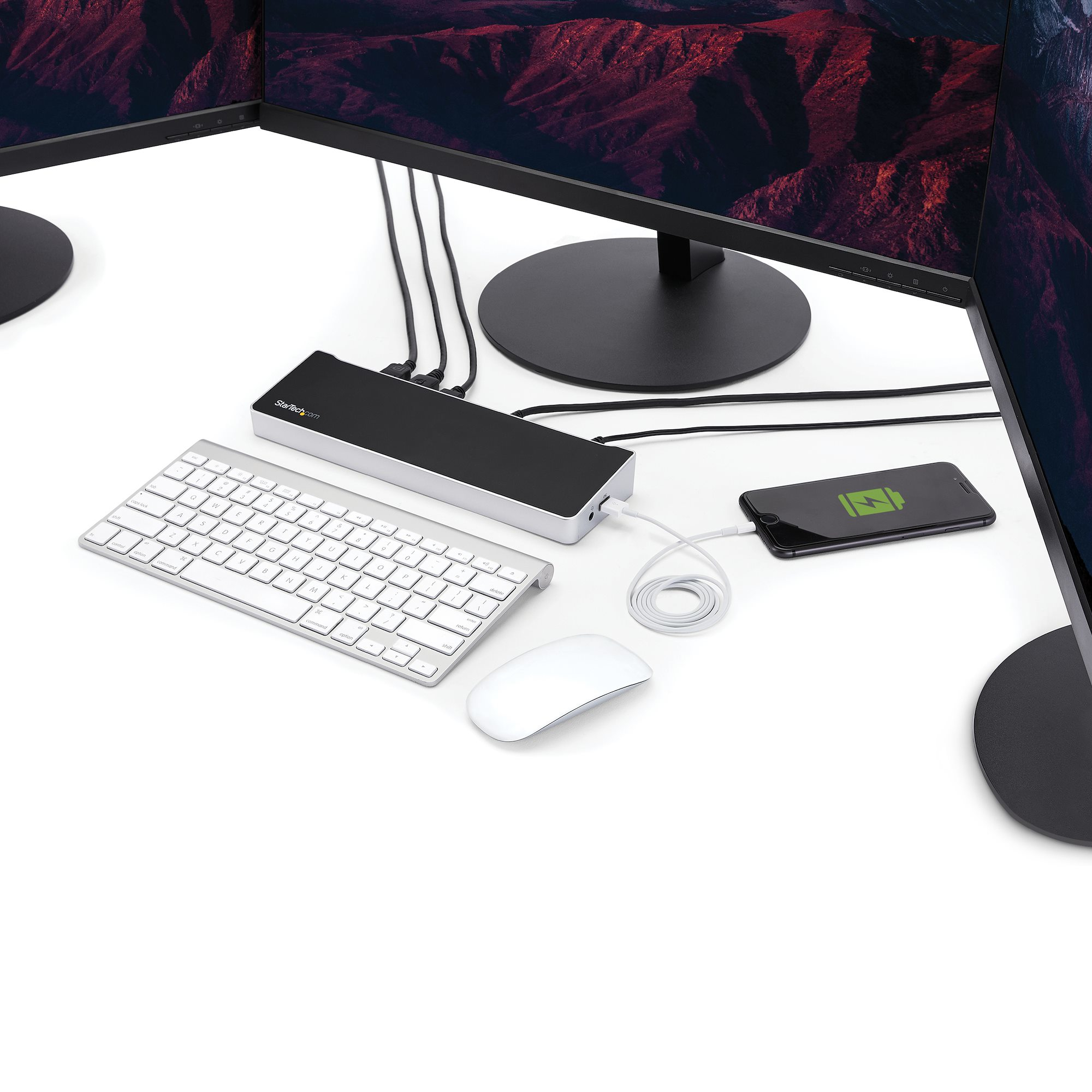

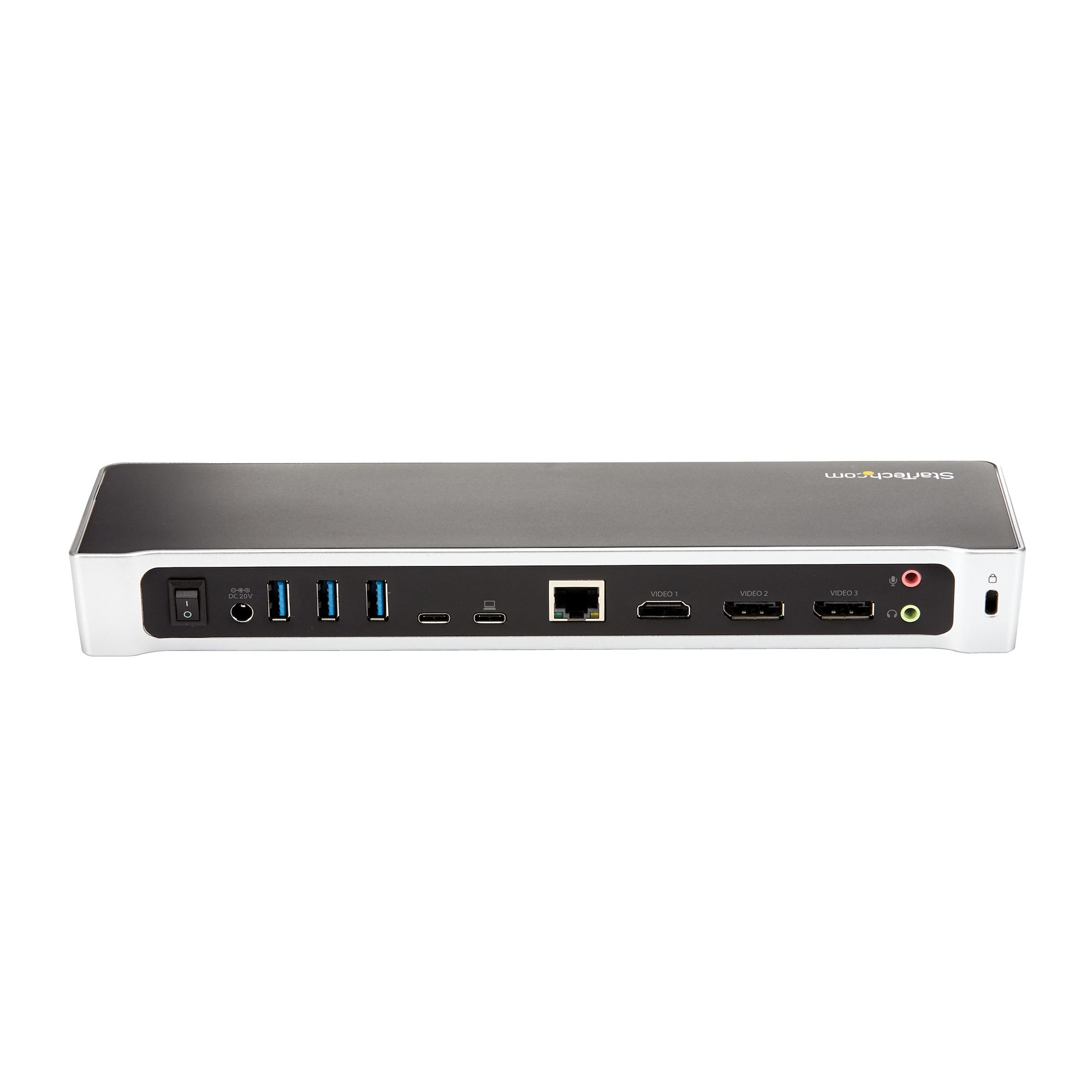

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

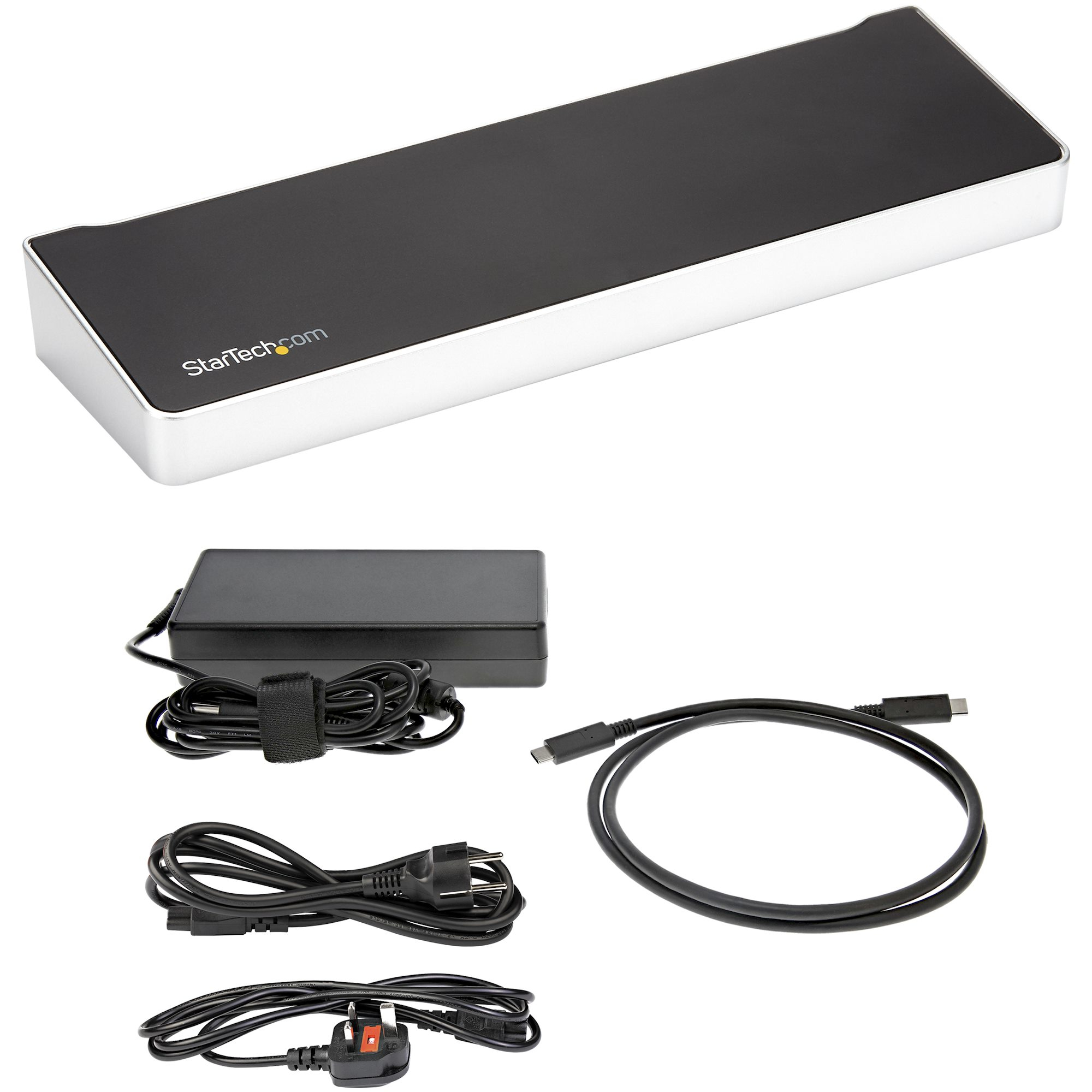

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The DK30CH2DPPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
