Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 HDMI ports quantity 3 Headphone outputs 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB Power Delivery (USB PD) Yes USB Power Delivery up to 85 W HDMI version 2.0 DisplayPorts quantity 3 Combo headphone/mic port Yes DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Performance Product colour Black, Grey Card reader integrated No Data transfer rate 10 Gbit/s Maximum digital resolution 3840 x 2160 pixels Cable lock slot Yes Cable lock slot type Kensington Housing material Aluminium, Plastic Certification CE, FCC Power AC input voltage 100 - 240 V Input current 2.5 A Output voltage 20 V Output current 7.5 A Power plug type Type M Compatible power plug types EU, UK Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensions Width 84 mm Depth 233 mm Height 37 mm Weight 365 g Packaging data Package width 172 mm Package depth 253 mm Package height 91 mm Package weight 1.7 kg Packaging content Cables included USB Type-A to USB Type-C AC adapter included Yes Quick start guide Yes Technical details Compliance certificates RoHS Logistics data Products per master (outer) case 6 pc(s) Master (outer) case width 315 mm Master (outer) case length 395 mm Master (outer) case height 300 mm Harmonized System (HS) code 84733020 Other features Cable length 1 m Chipset Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950

USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | DisplayPort | 85W Power Delivery

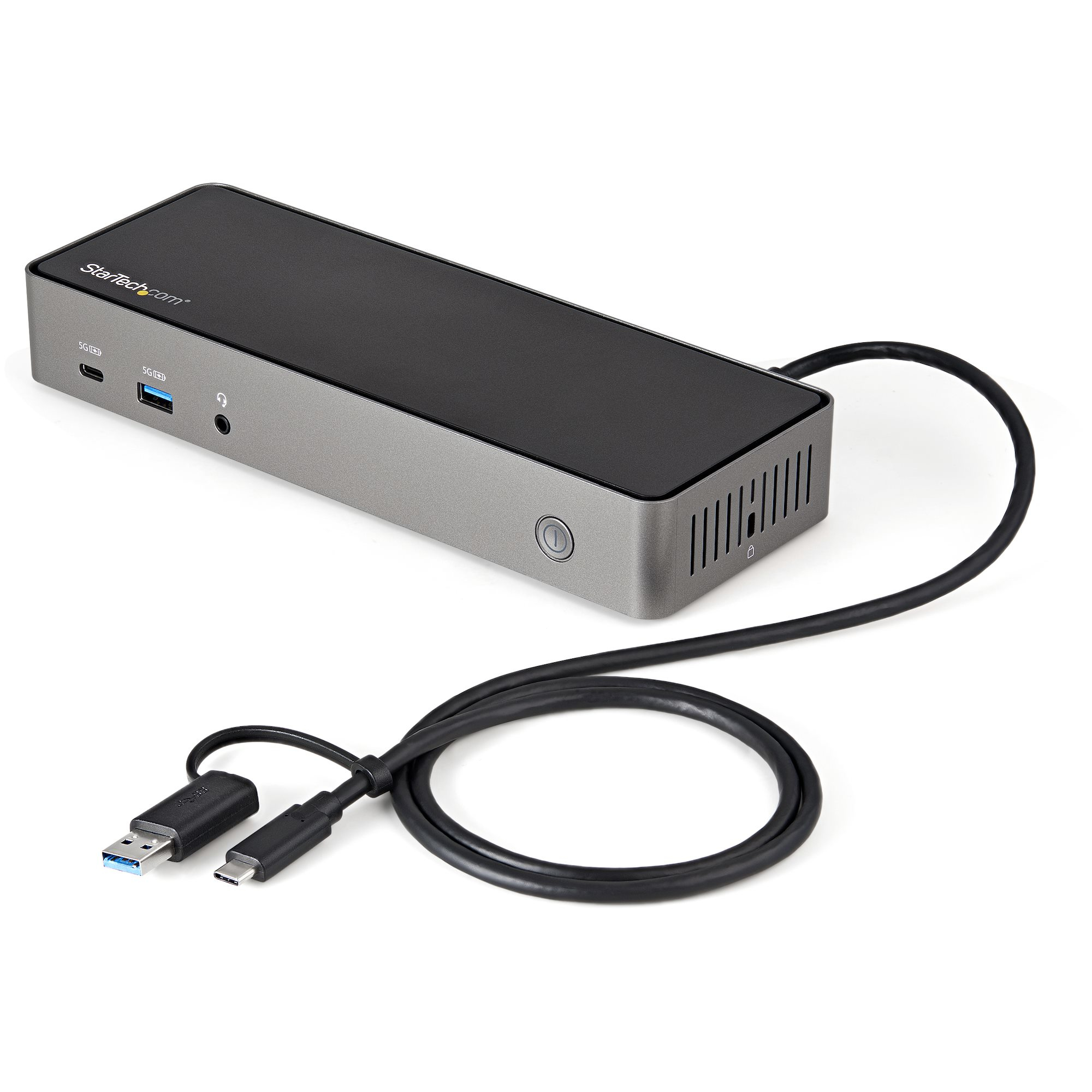

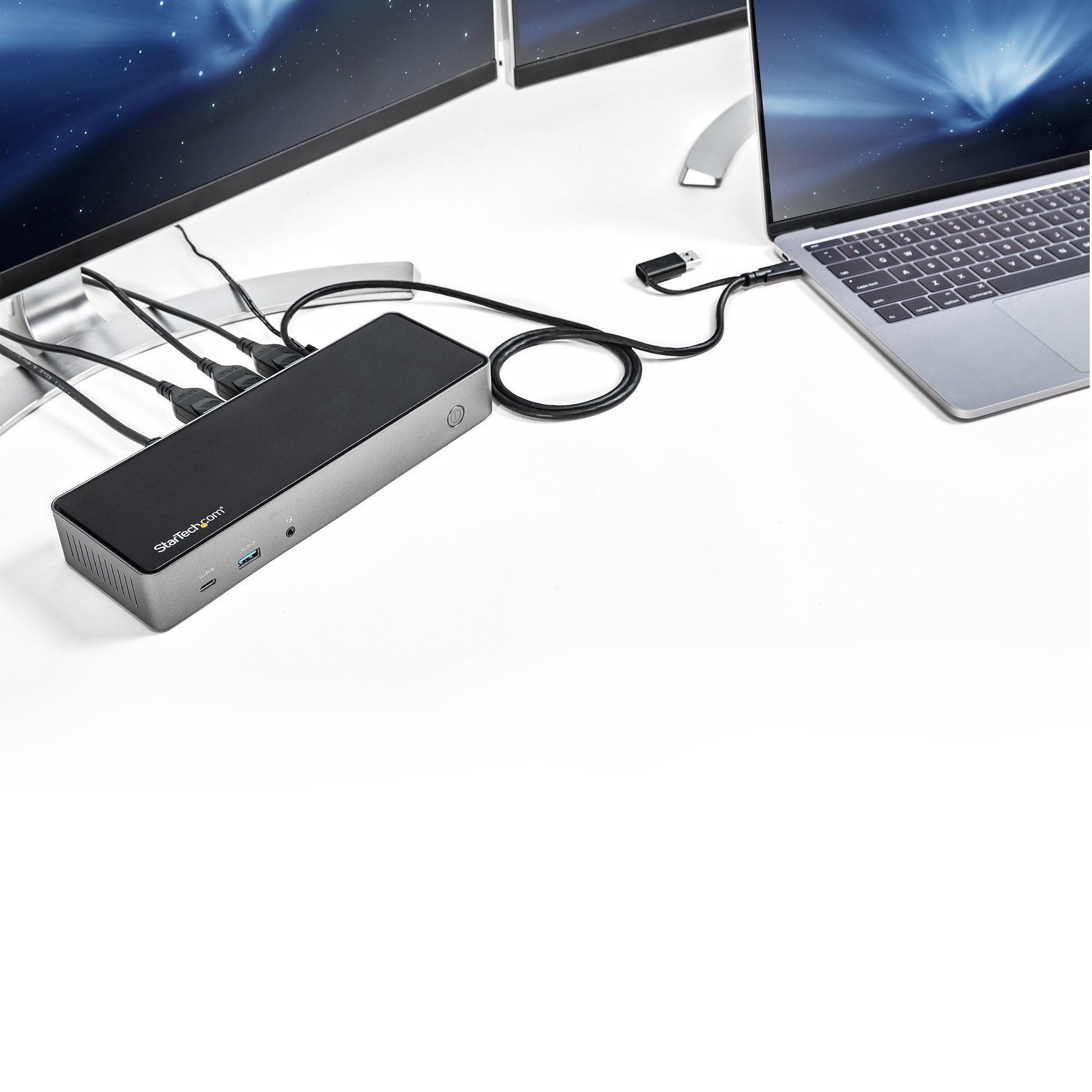

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery. Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included.

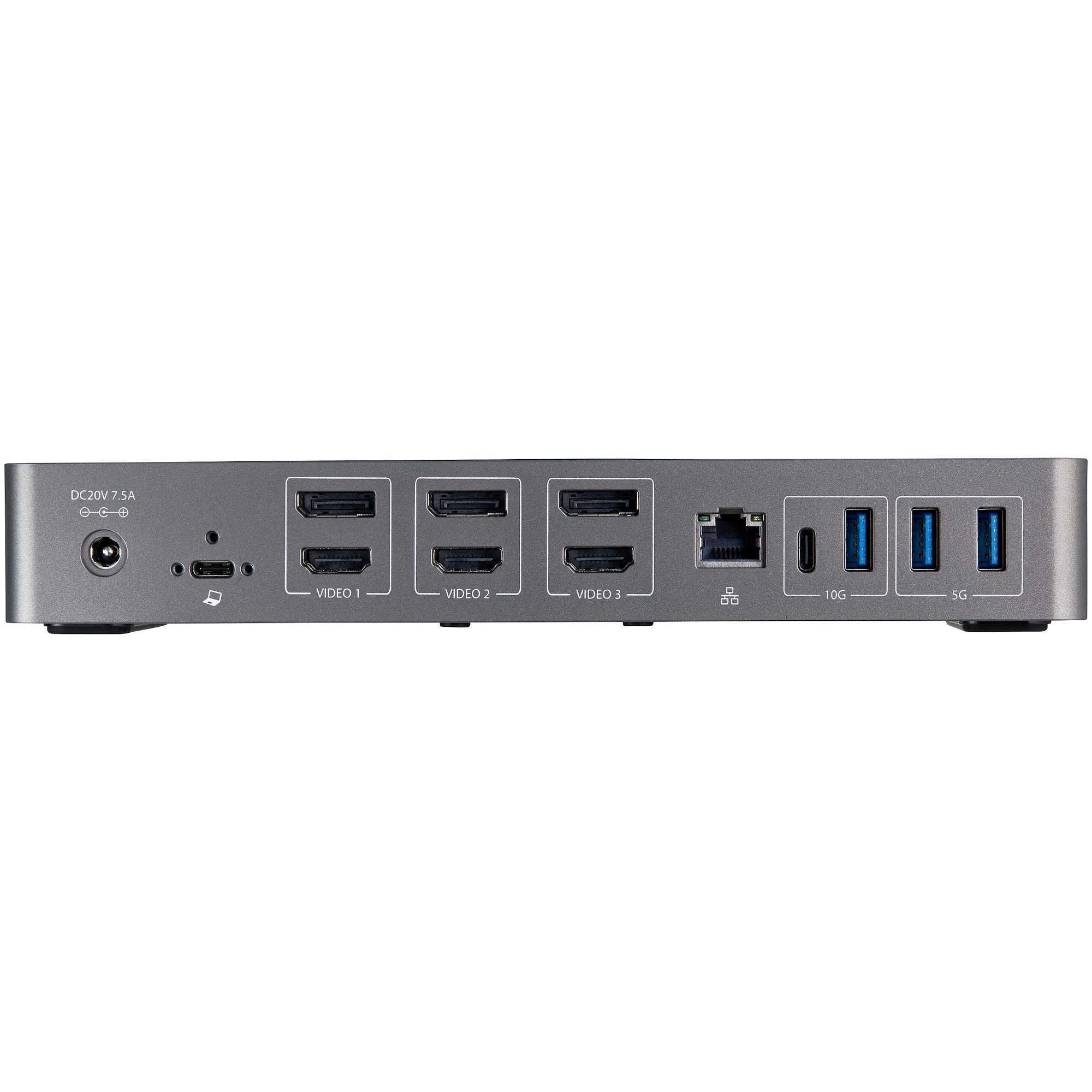

HDMI & DisplayPort for Triple Monitor Outputs

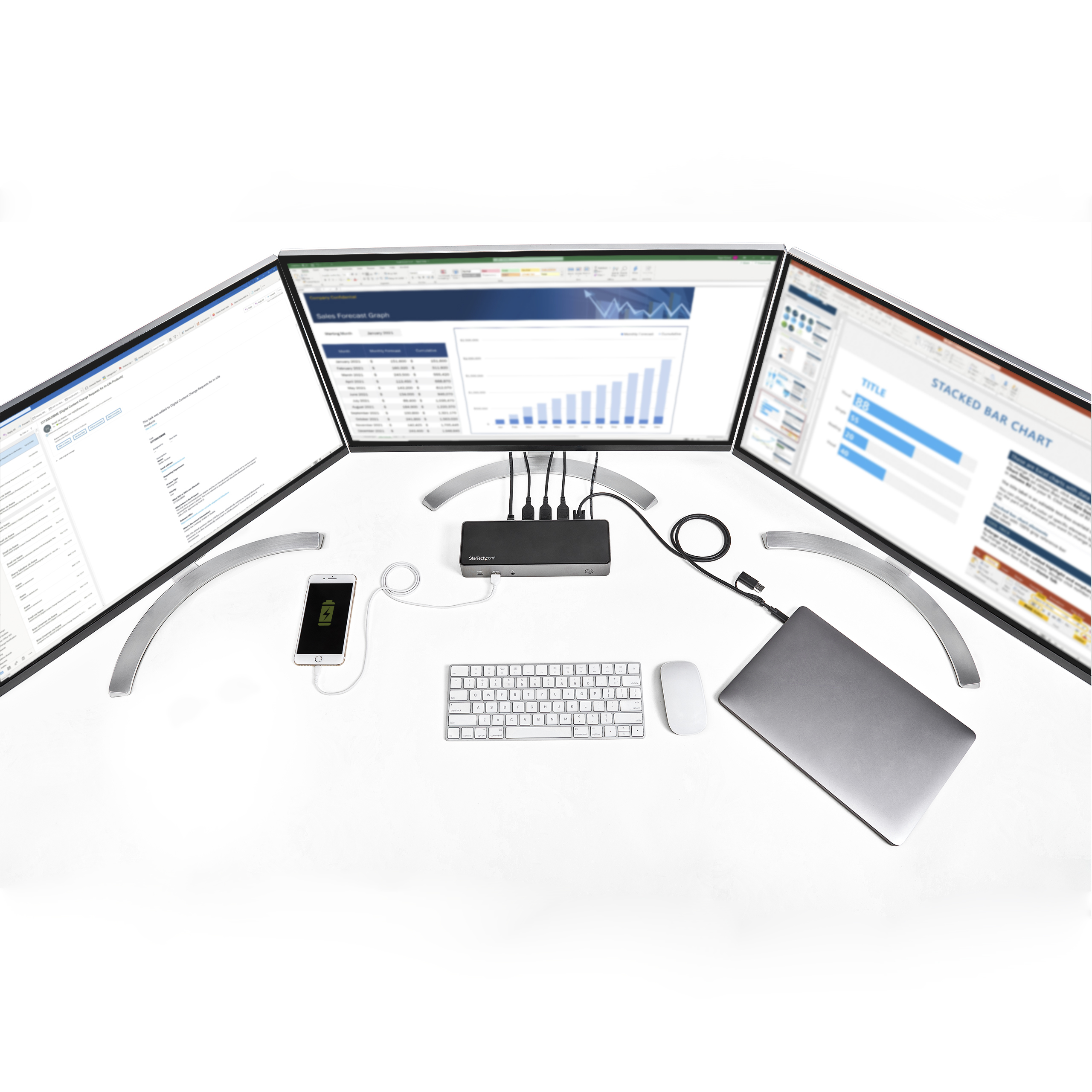

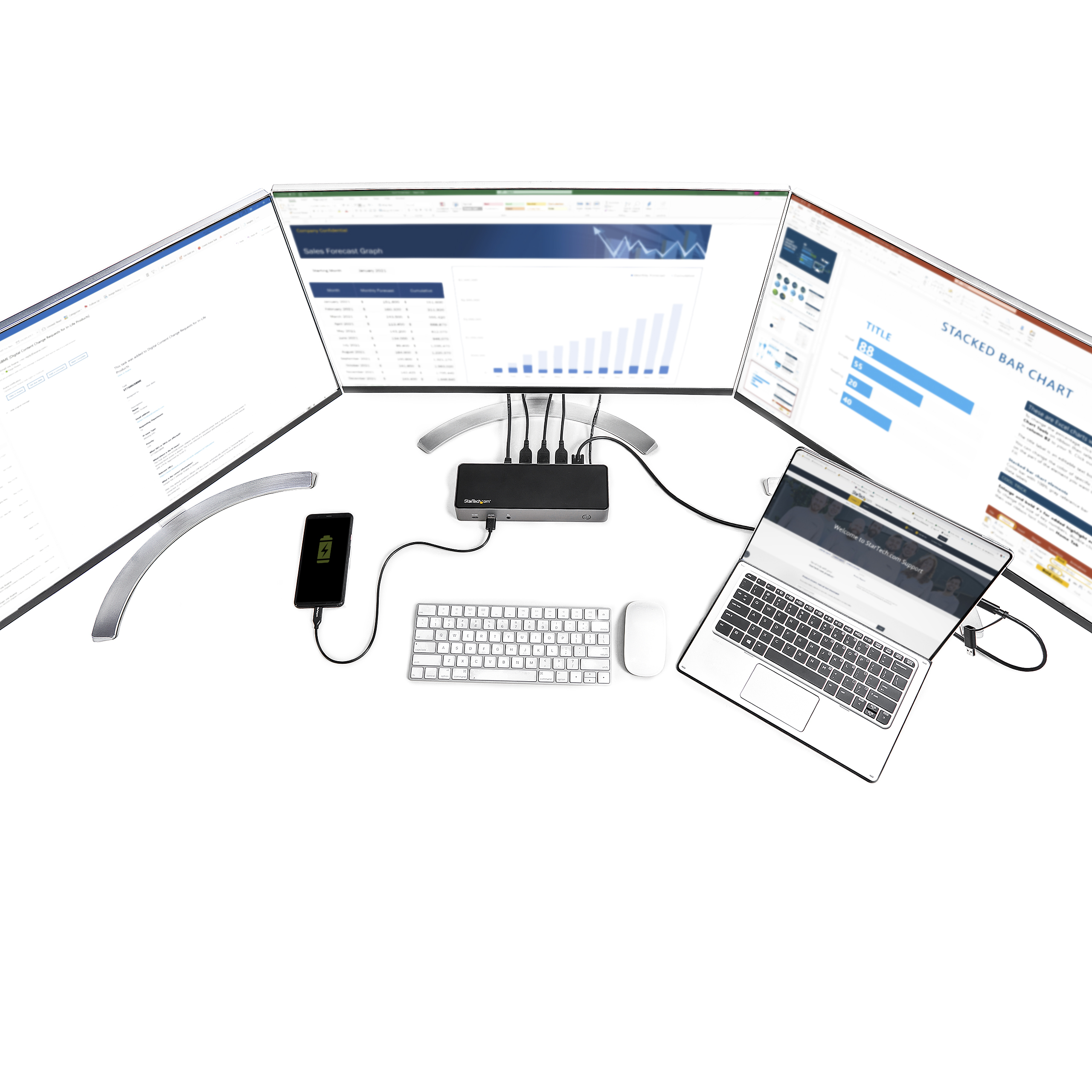

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.

Host

Display Output

USB-C Gen 1 or 2 (with DP 1.4)

Triple Display - 3x 4K 60Hz

Thunderbolt 3 (DP 1.4 Supported)

Triple Display - 3x 4K 60Hz

USB-C Gen 1 (with DP 1.2)

Triple Display - 2x 4K 60Hz; 1x 4K 30Hz

USB-A or USB-C (No DP Alt Mode)

Dual Display - 2x 4K 60Hz

Power & Charge with 85W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD

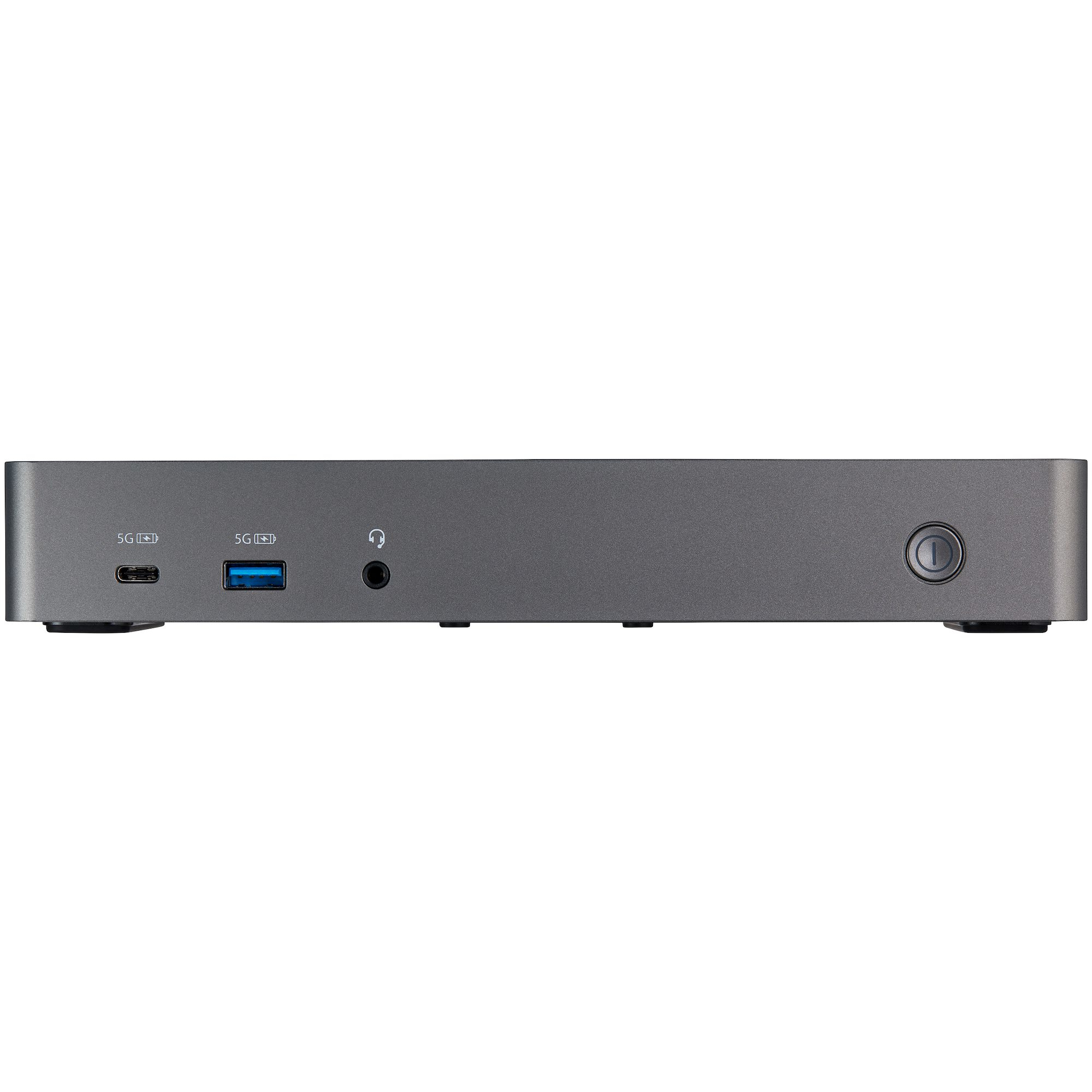

Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

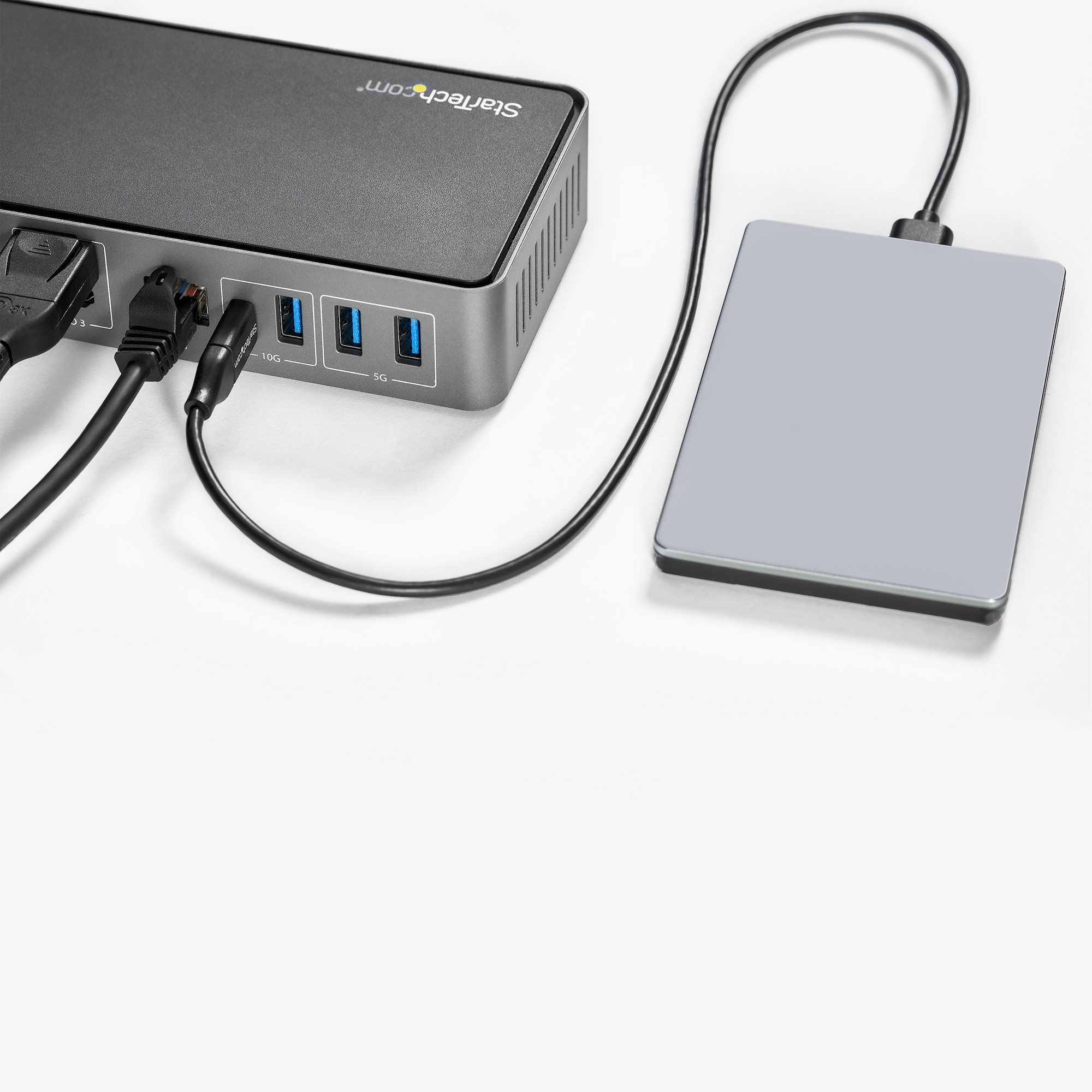

Plenty of Downstream USB Ports

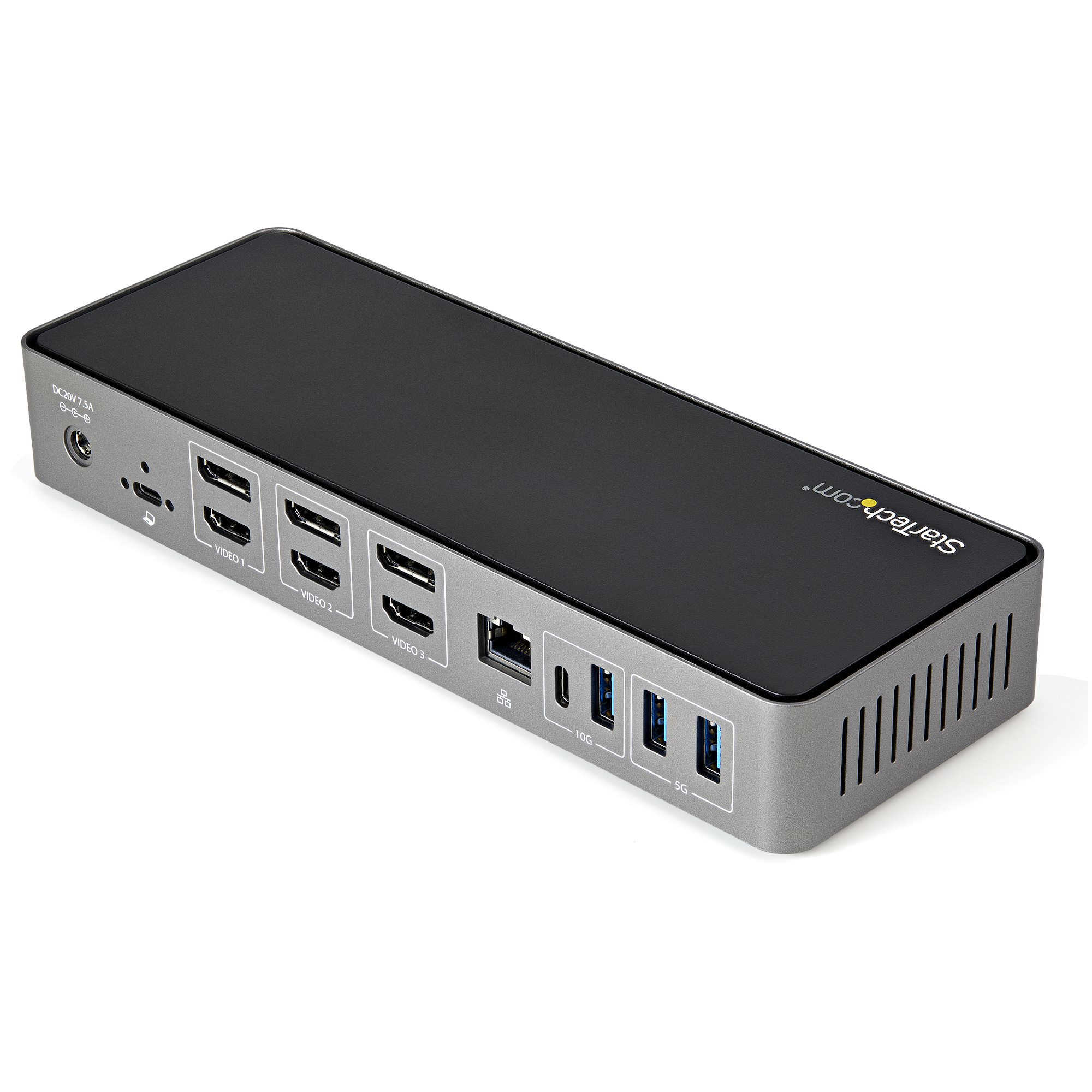

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.

• 1x USB-C 3.2 Gen 2 (10 Gbps)
• 1x USB-A 3.2 Gen 2 (10 Gbps)
• 1x USB-C 3.2 Gen 1 (5 Gbps)
• 3x USB-A 3.2 Gen 1 (5 Gbps)

Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.

Additional Security Features

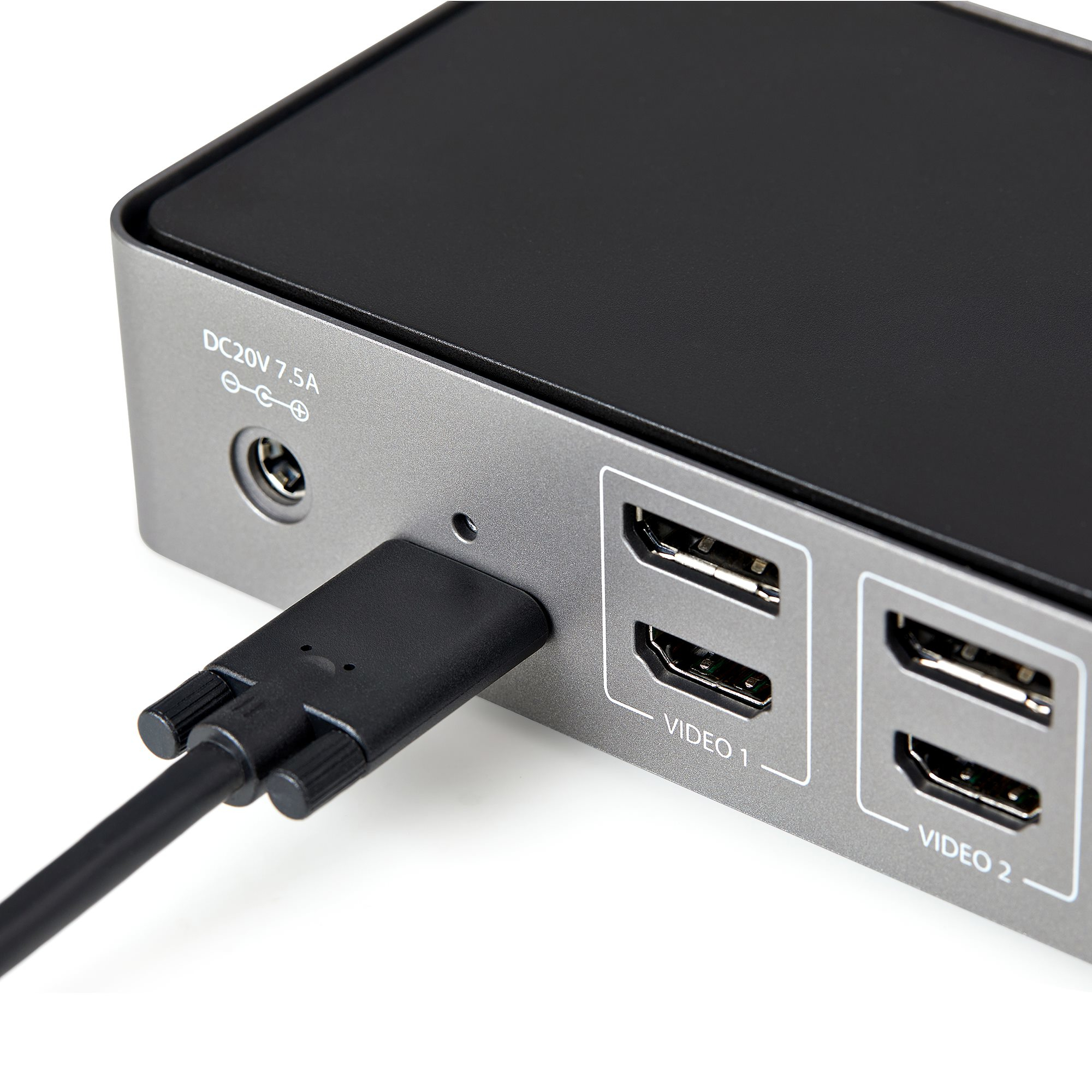

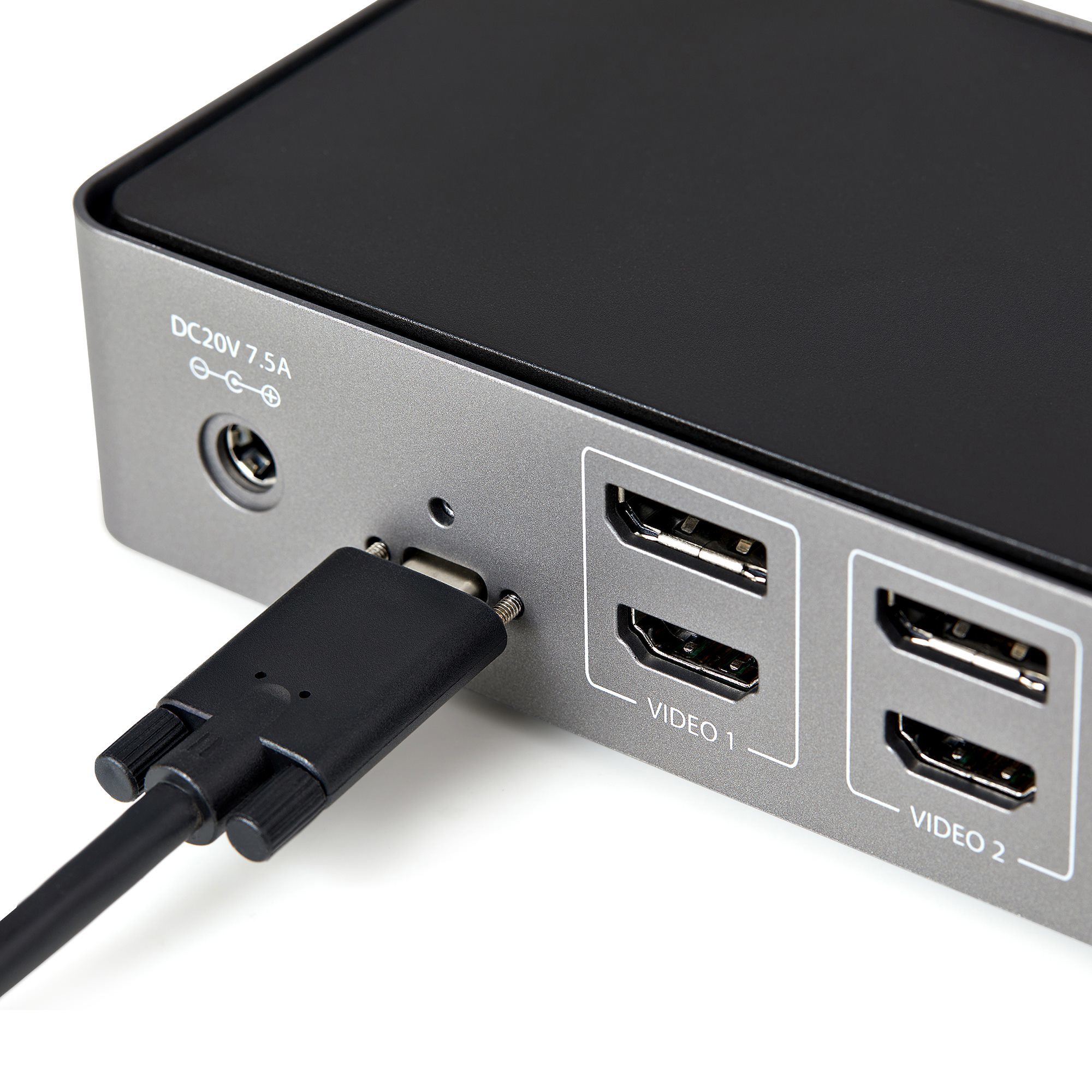

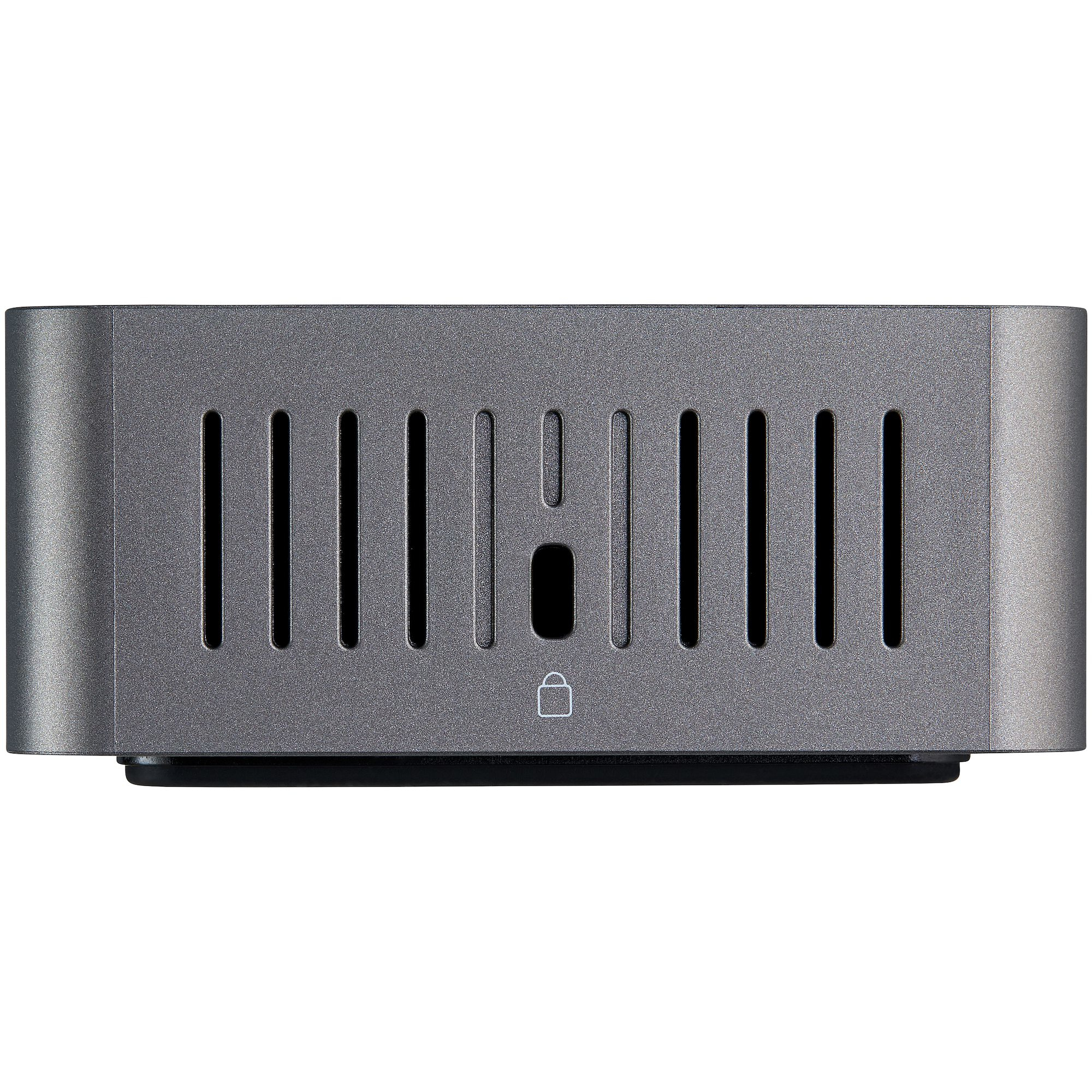

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.

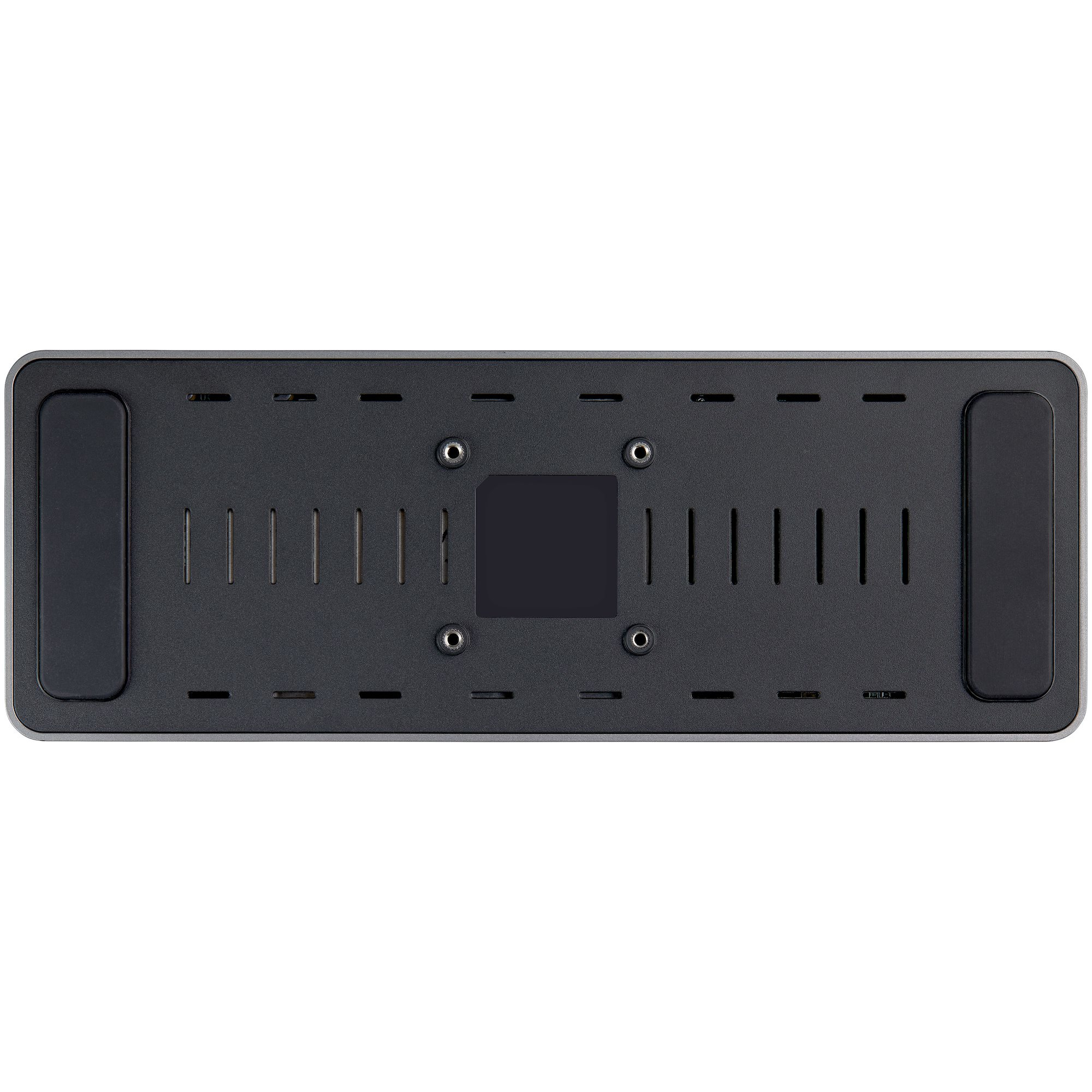

For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
