Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 HDMI ports quantity 1 Microphone in Yes Headphone outputs 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 USB Power Delivery (USB PD) Yes USB Power Delivery up to 100 W DisplayPorts quantity 2 Combo headphone/mic port Yes Headphone connectivity 3.5 mm DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product colour Black, Silver Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 5120 x 2880 pixels Cable lock slot Yes On/off switch Yes UASP support Yes Rubber feet Yes Housing material Plastic Certification CE, FCC, TAA, REACH Power AC input voltage 100 - 240 V Input current 2.5 A Power supply 100 W Output voltage 20 V Output current 7.5 A Power plug type Type N Compatible power plug types EU, UK Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 70% Weight & dimensions Width 82 mm Depth 270 mm Height 34 mm Weight 382 g Packaging data Package width 160 mm Package depth 320 mm Package height 80 mm Package weight 1.7 kg Packaging content Cables included USB Type-C AC adapter included Yes Manual Yes Technical details Compliance certificates RoHS Logistics data Products per master (outer) case 8 pc(s) Master (outer) case width 365 mm Master (outer) case length 370 mm Master (outer) case height 370 mm Harmonized System (HS) code 84733020 Other features Chipset DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176

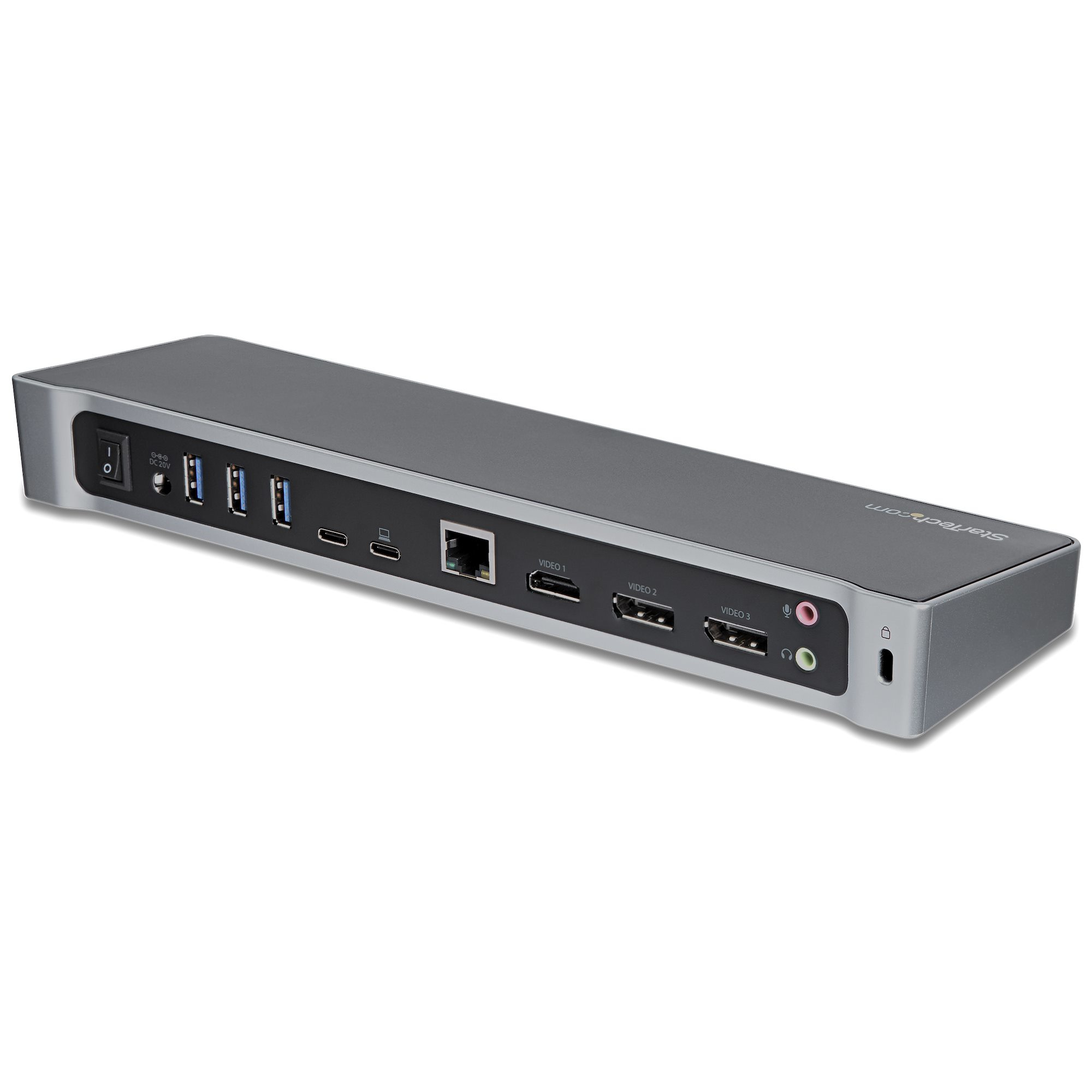

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 2x 4K 60Hz DP + HDMI

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

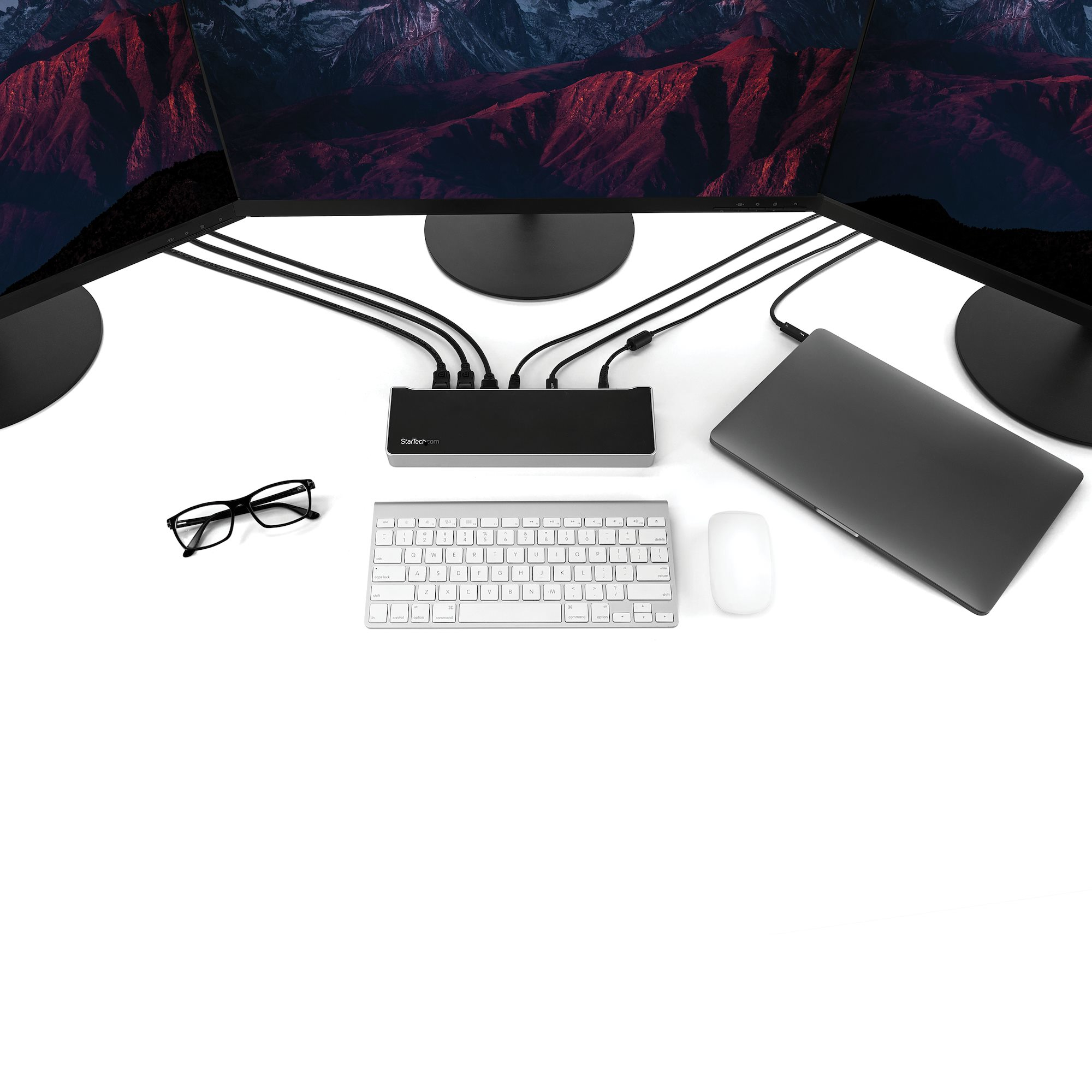

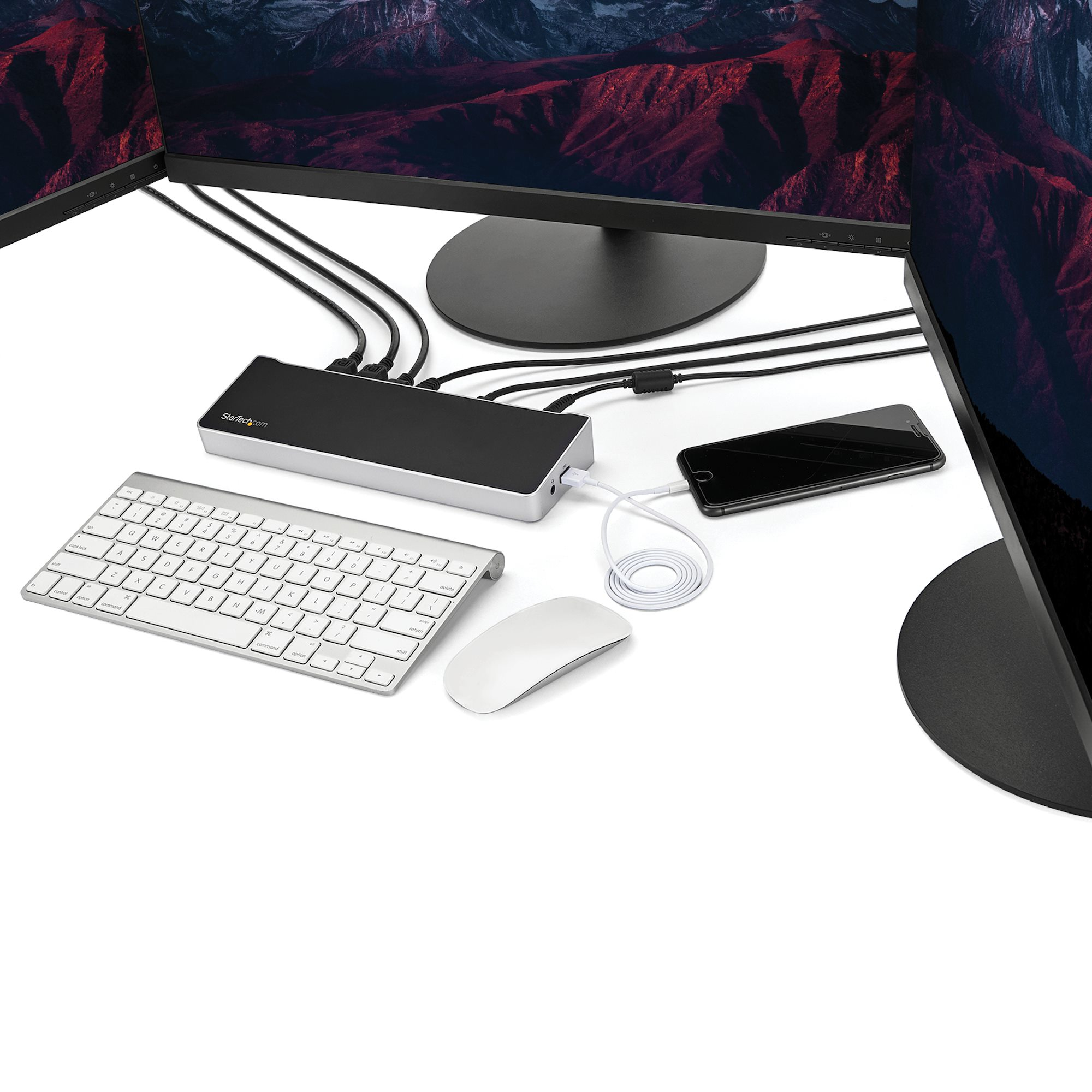

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

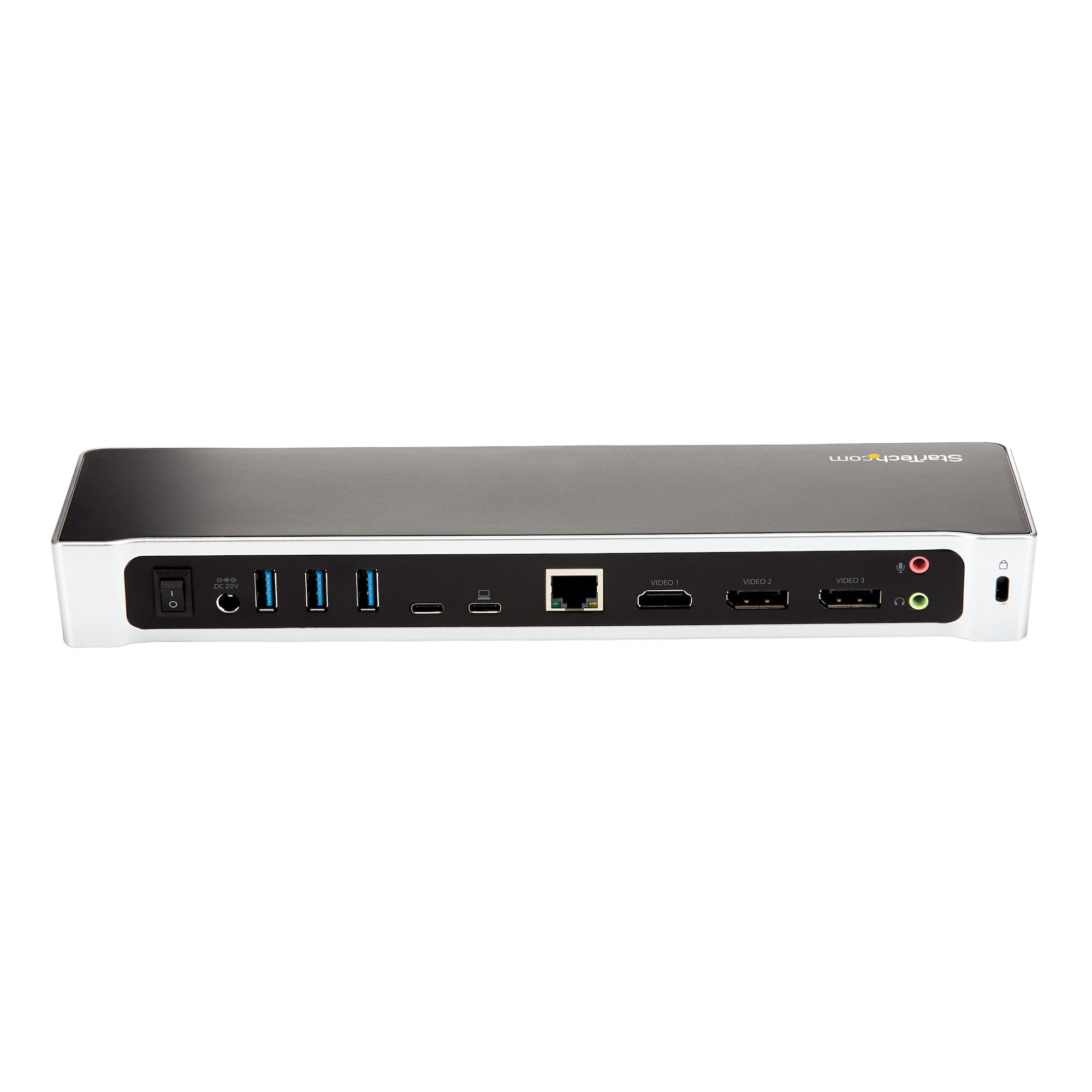

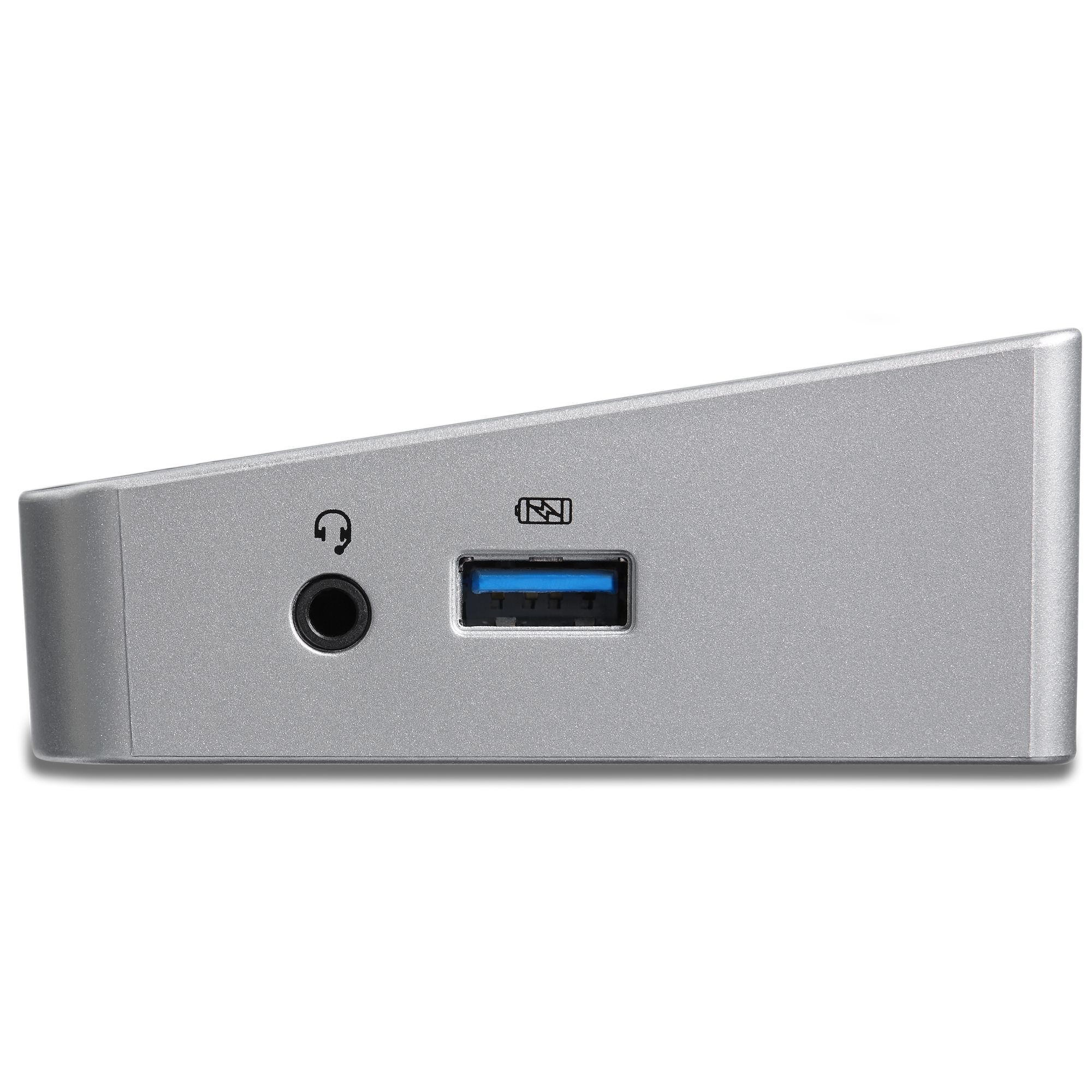

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
