Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 HDMI ports quantity 2 Headphone outputs 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB Power Delivery (USB PD) Yes USB Power Delivery up to 60 W DisplayPorts quantity 2 Combo headphone/mic port Yes Headphone connectivity 3.5 mm DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Full duplex Yes 10G support No Performance Product colour Black, Grey Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 5120 x 2880 pixels Cable lock slot Yes Cable lock slot type Kensington UASP support Yes Housing material Plastic Certification CE, FCC, REACH Power AC input voltage 100 - 240 V Input current 2.5 A Output voltage 20 V Output current 6.75 A Power consumption (typical) 135 W Power plug type Type N Compatible power plug types EU, UK Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensions Width 80 mm Depth 220 mm Height 30 mm Weight 280 g Packaging data Package width 160 mm Package depth 270 mm Package height 105 mm Package weight 1.3 kg Packaging content Cables included USB Type-A to USB Type-C AC adapter included Yes Quick start guide Yes Technical details Compliance certificates RoHS Logistics data Products per master (outer) case 6 pc(s) Master (outer) case width 295 mm Master (outer) case length 500 mm Master (outer) case height 250 mm Harmonized System (HS) code 84733020 Other features Chipset DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E

Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot

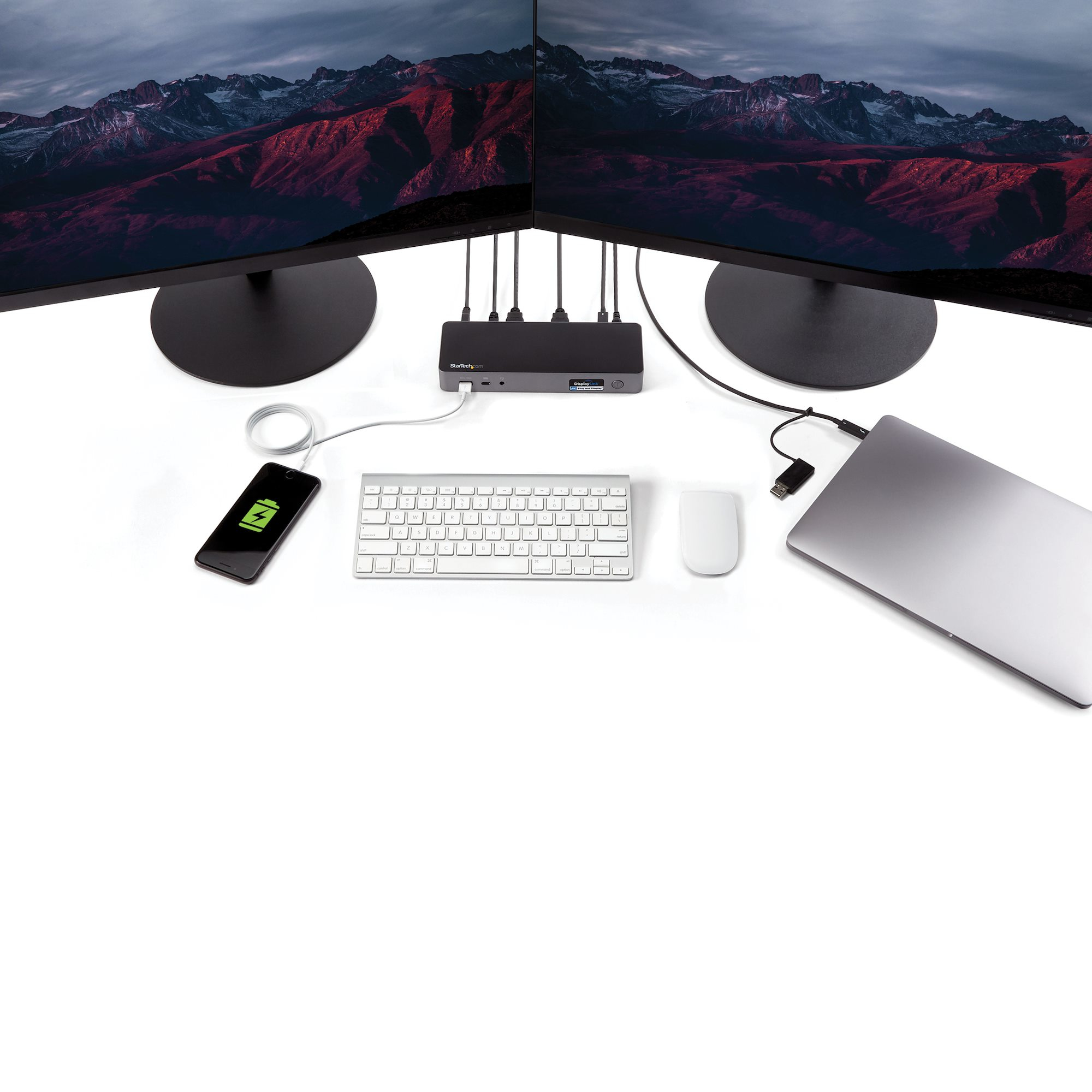

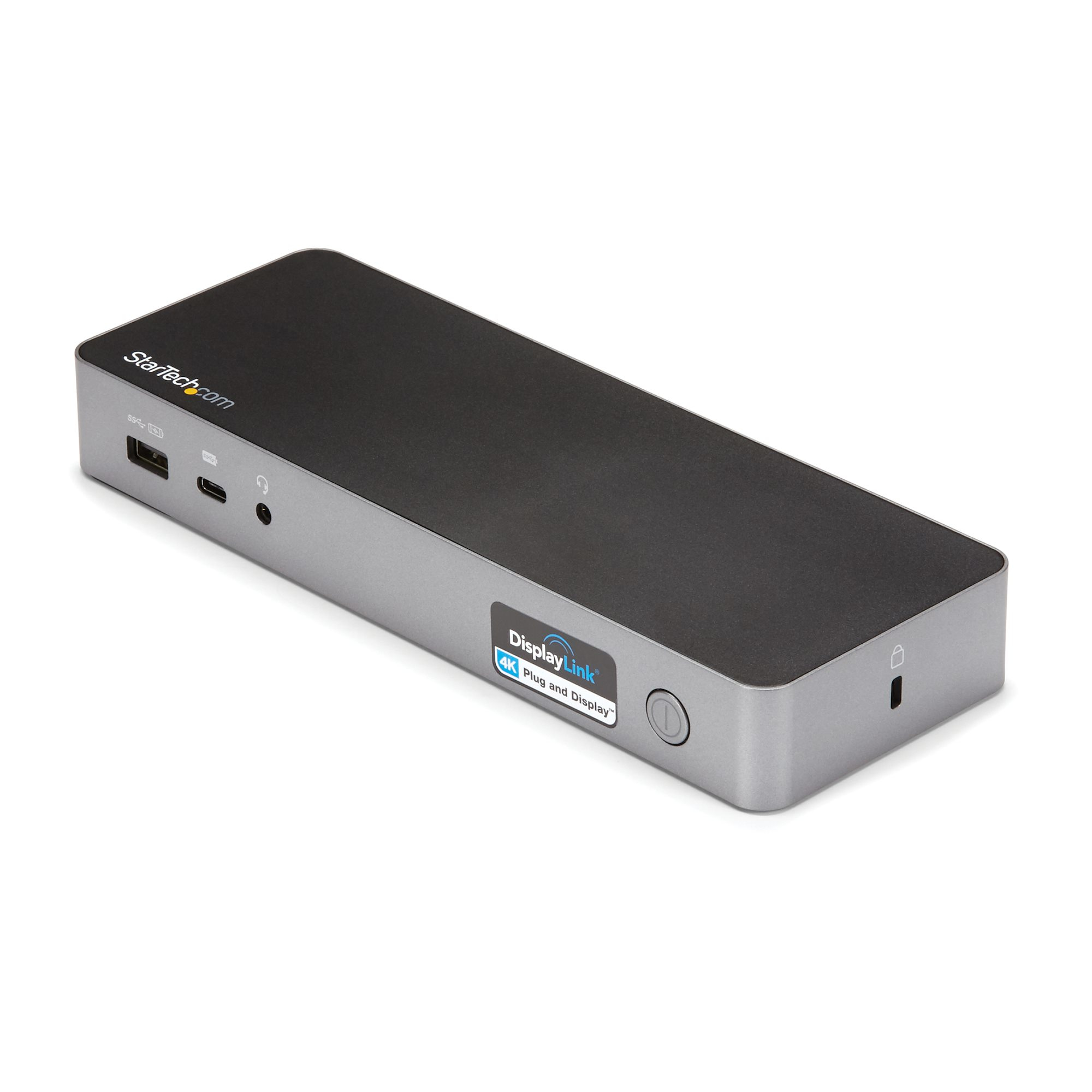

Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

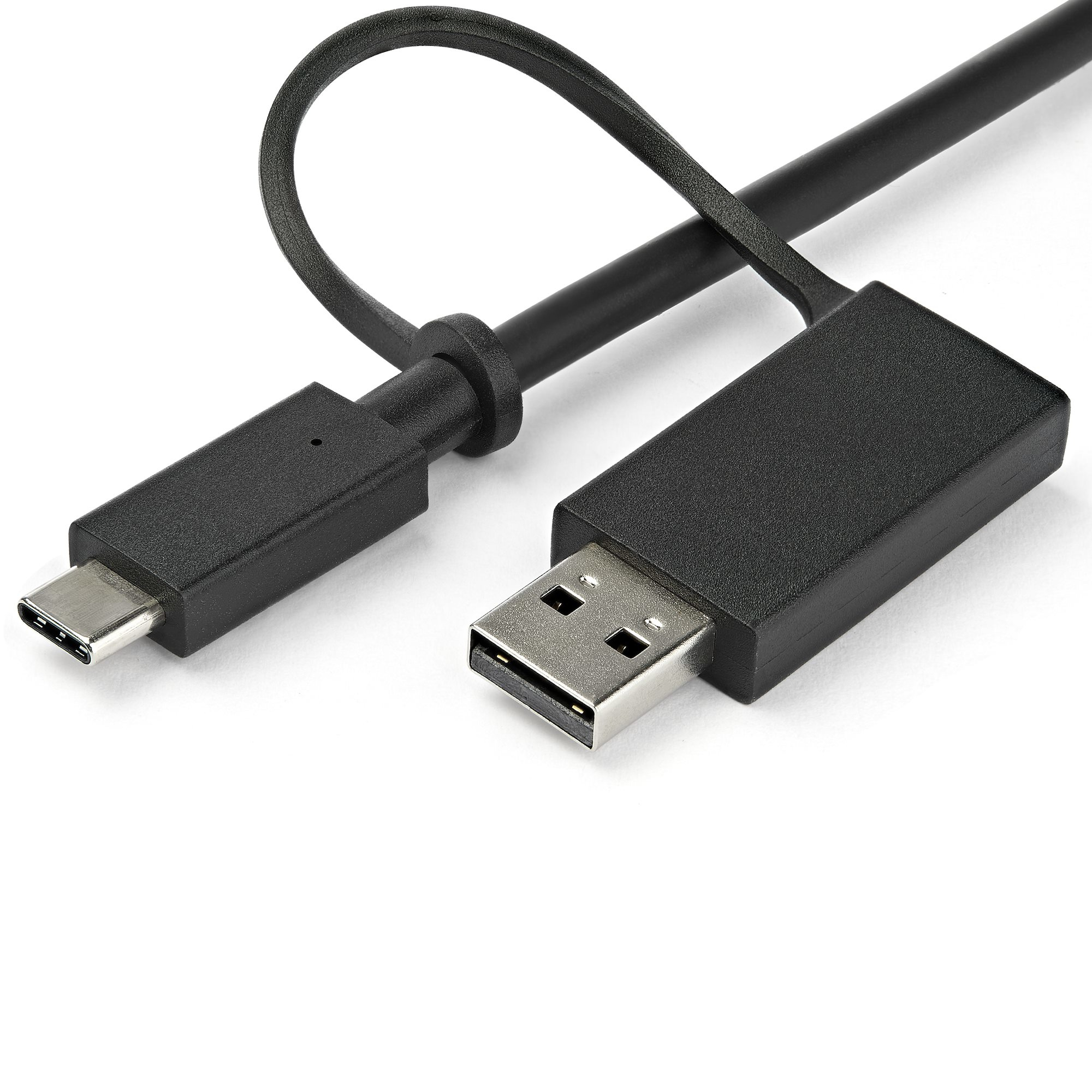

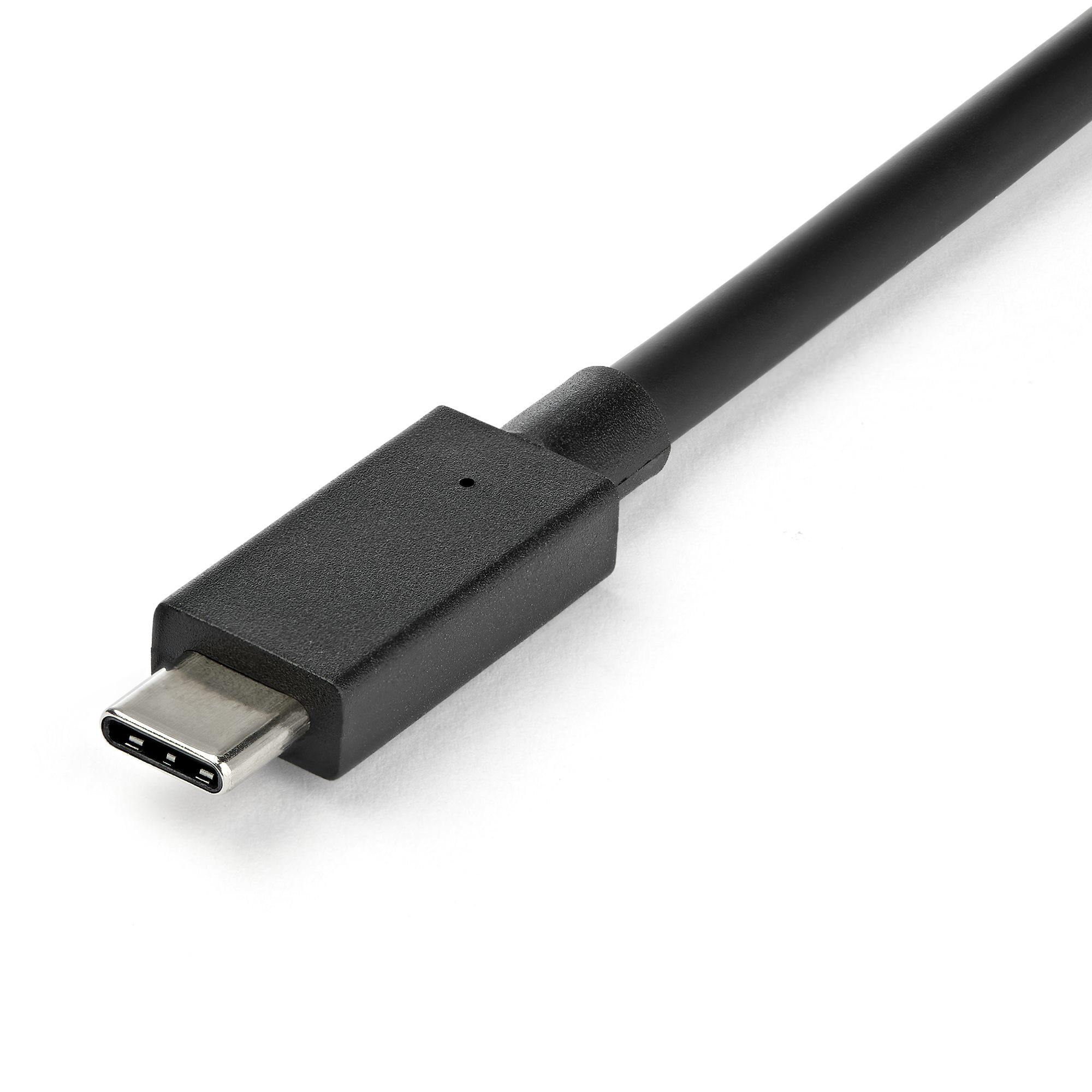

The Uniquely Universal Host Cable

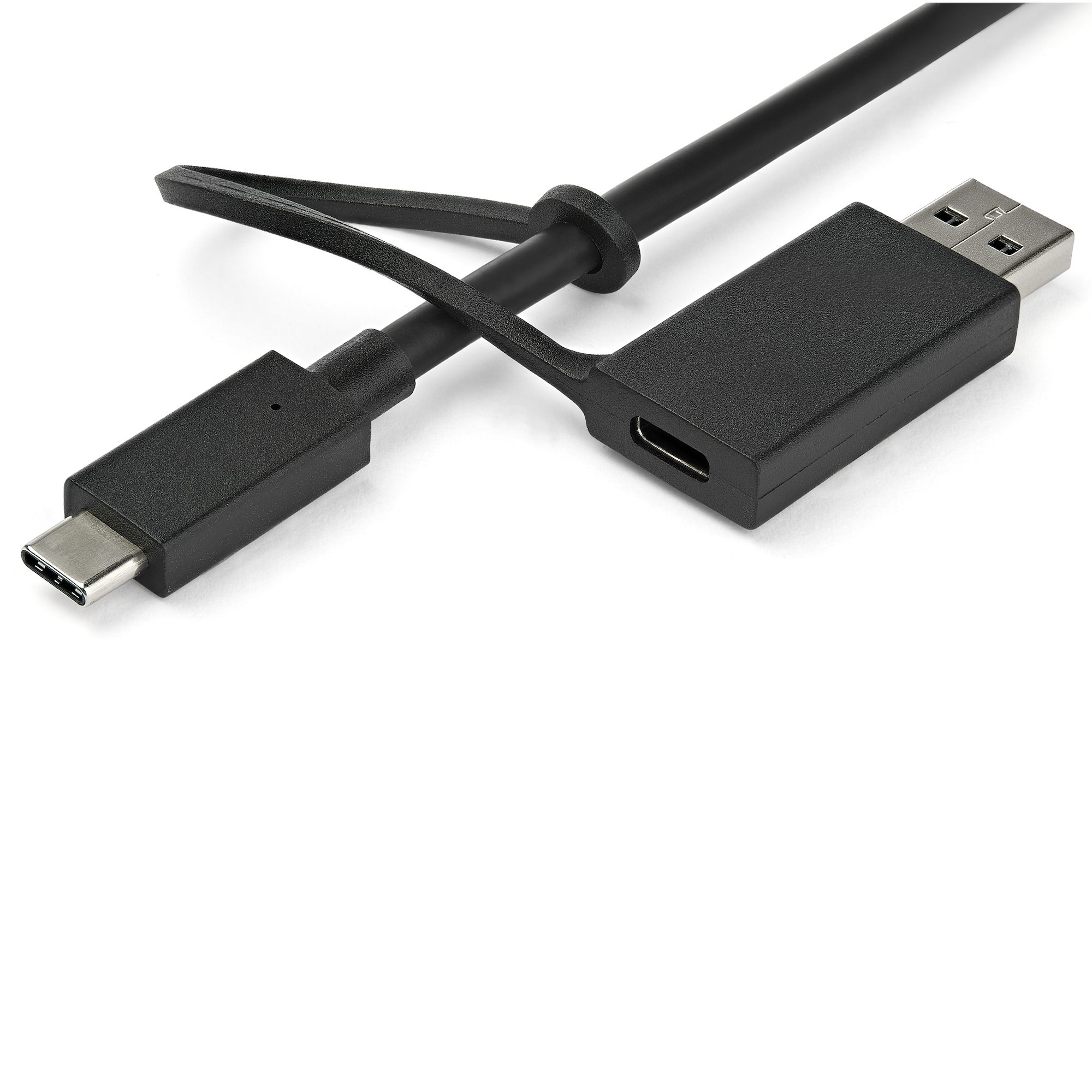

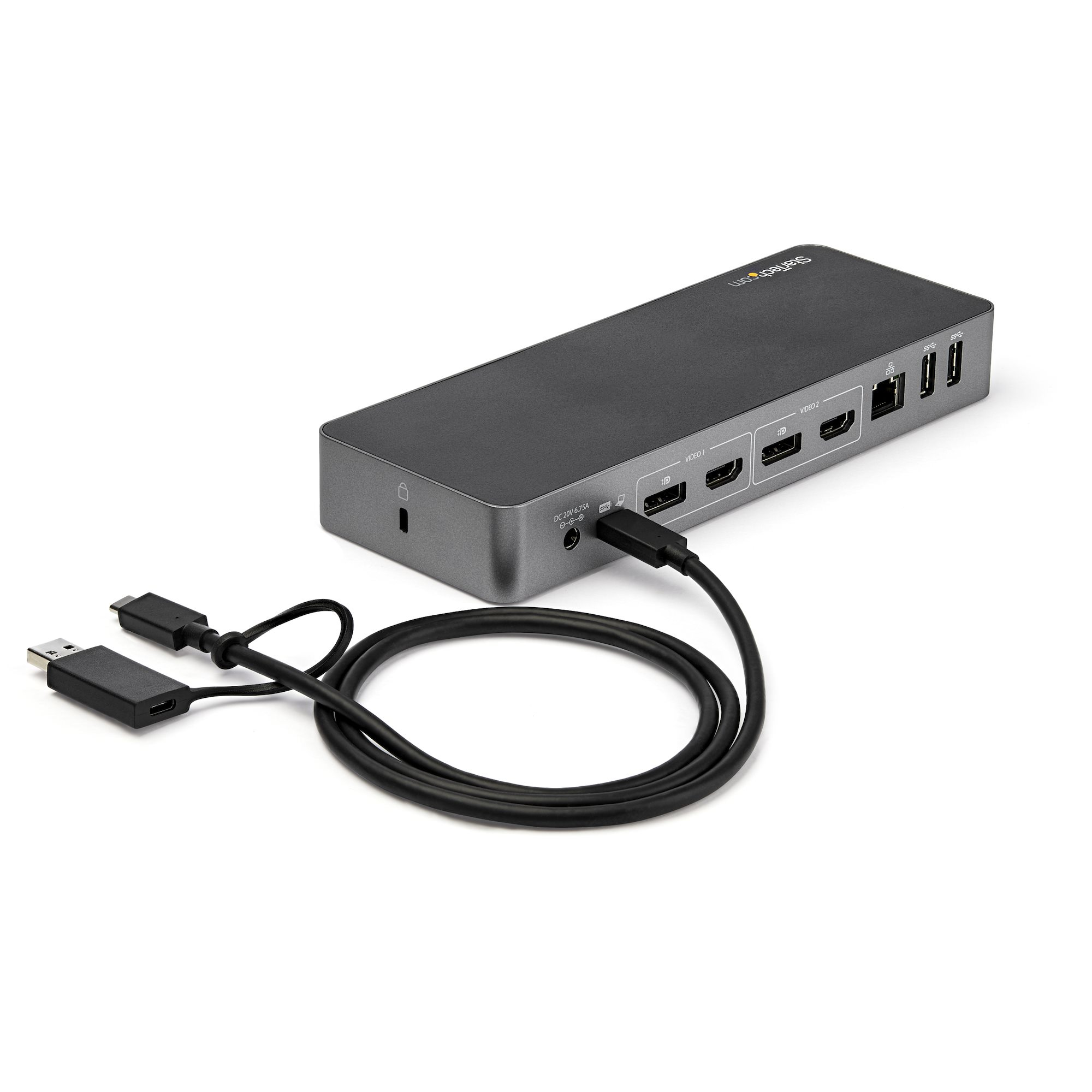

The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups. Replacement host cables or extra host cables can be purchased separately here.

Flexible Monitor Connections

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

•

Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz

•

Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

•

Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

•

Single 5K DisplayPort * | Up to 5120 × 2880

*Requires monitor support for 5K using two DP ports

Certified for Universal Compatibility & Reliability

This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

60W Power Delivery

Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.

Easy and Convenient Setup

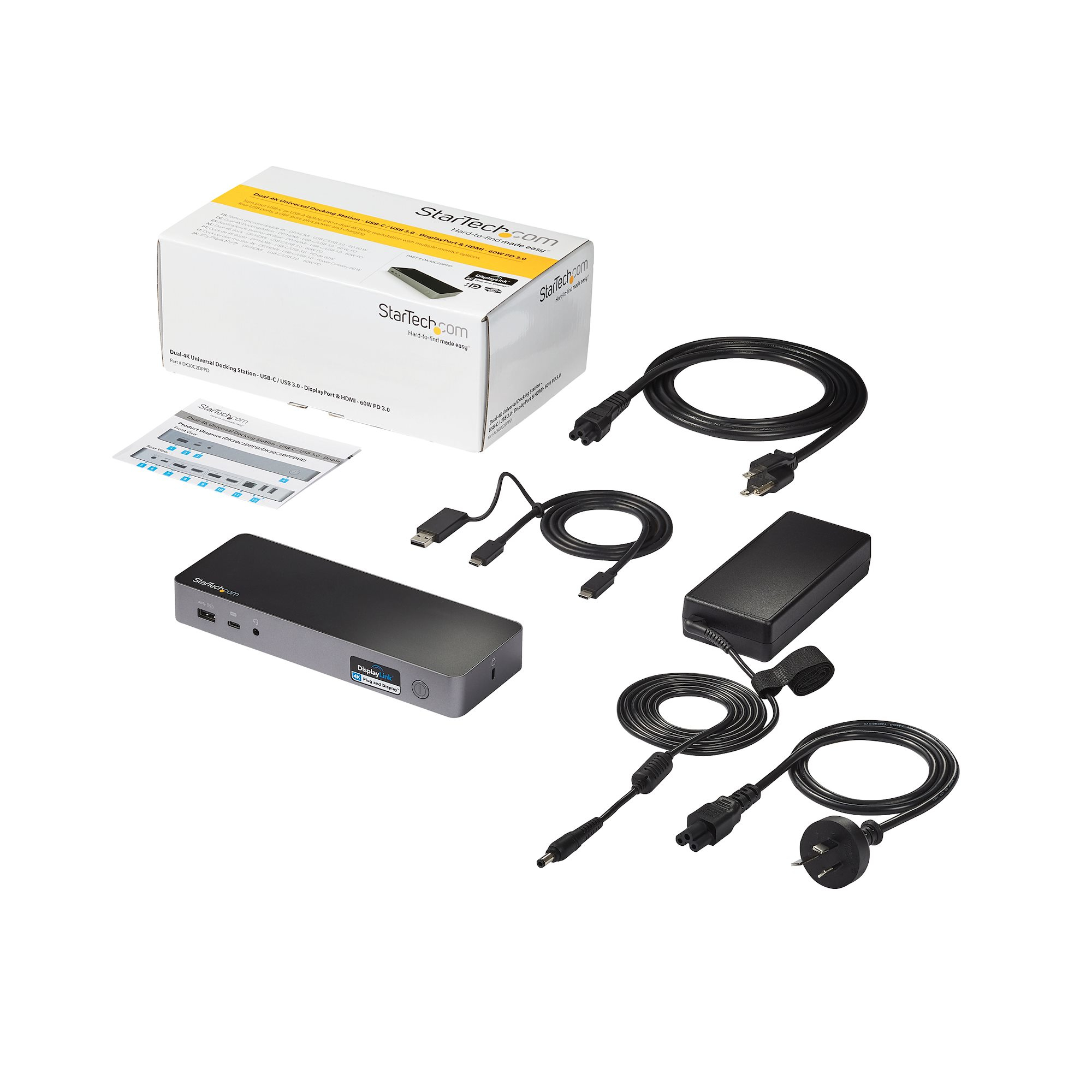

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

The Connections You Need

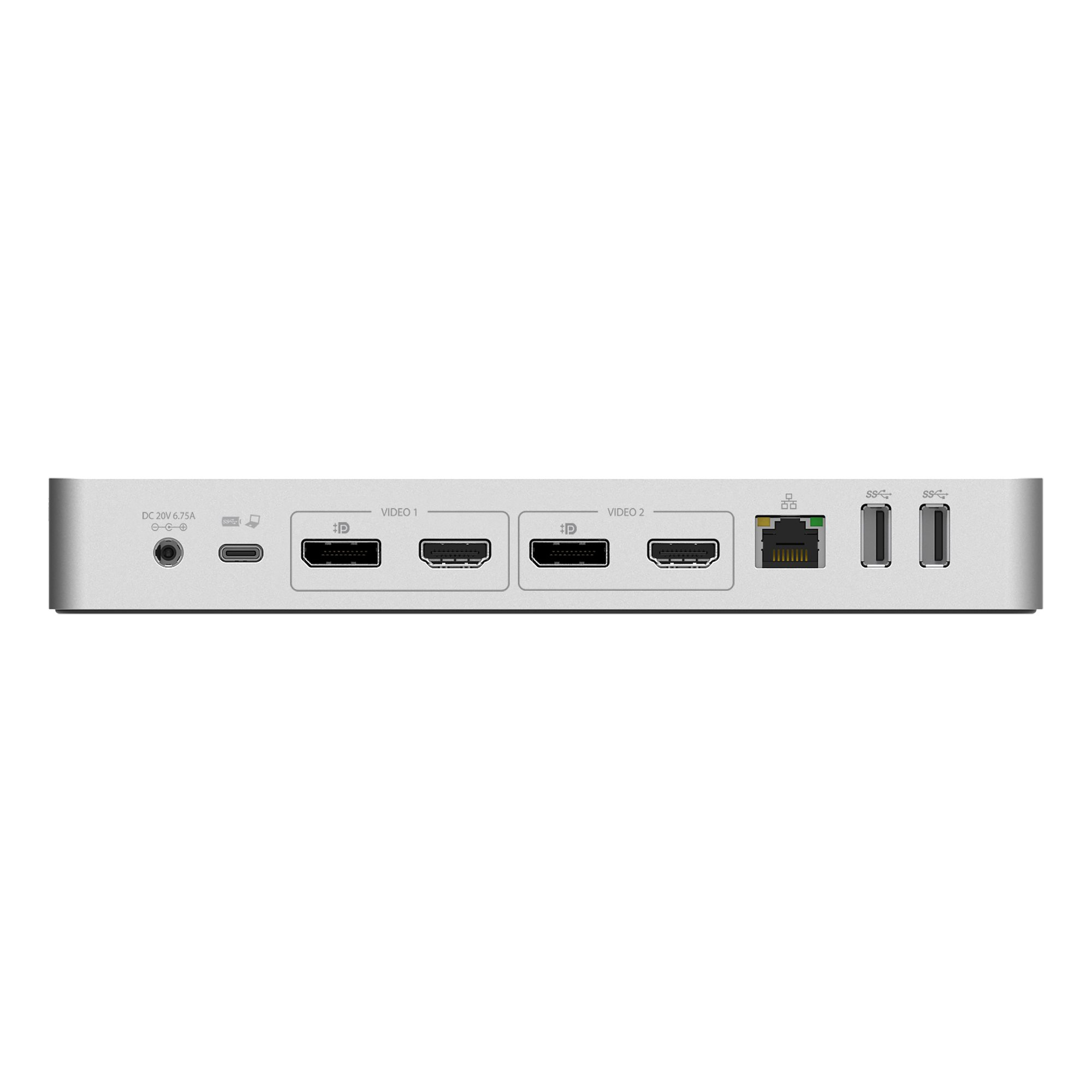

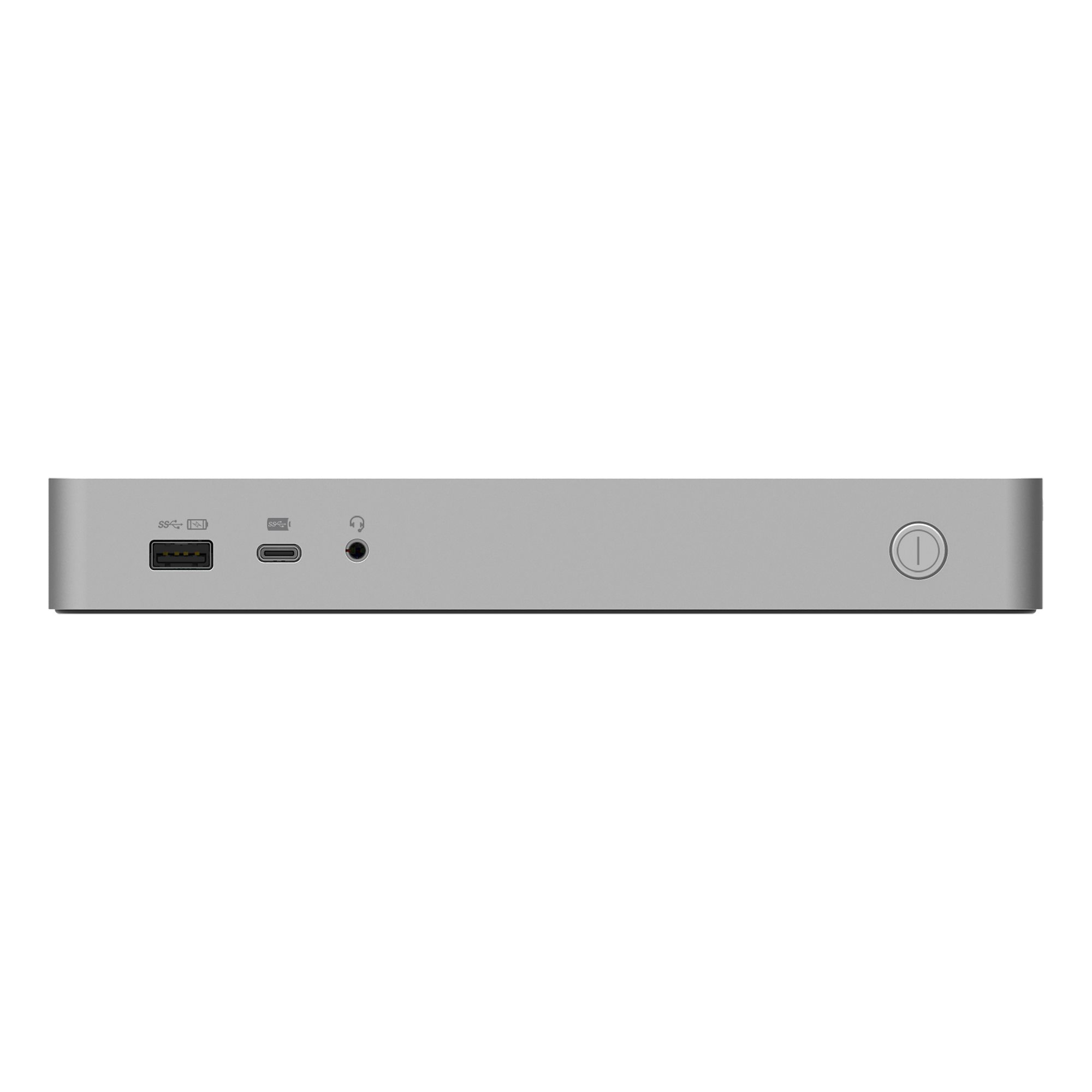

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM& SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The IT Pro's Choice Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

DK30C2DPPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
