Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB Power Delivery Yes USB Power Delivery up to 75 W VGA (D-Sub) ports quantity 1 DisplayPorts quantity 1 DC-in jack No Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u Performance Product color Black, Gray Card reader integrated No Data transfer rate 10 Gbit/s Maximum digital resolution 3840 x 2160 pixels Power Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura Mobile operating systems supported Android, iOS Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensions Width 90 mm Depth 90 mm Height 32.5 mm Weight 201 g Packaging data Package width 133 mm Package depth 145 mm Package height 37 mm Package weight 278 g Packaging content Quick start guide Yes Technical details Compliance certificates CE, RoHS Logistics data Quantity per master (outer) case 48 pc(s) Master (outer) case width 300 mm Master (outer) case length 555 mm Master (outer) case height 255 mm Harmonized System (HS) code 84733020 Other features Cable length 0.254 m Chipset Genesys Logic GL9510, Genesys Logic GL3590, Realtek RTL8153, Realtek RTD2142S

USB-C Docking Station | USB 3.1 Gen 2 | 4K 60Hz HDMI or DisplayPort | 1080p VGA | 75W PD Pass Through | 3 Port USB Hub

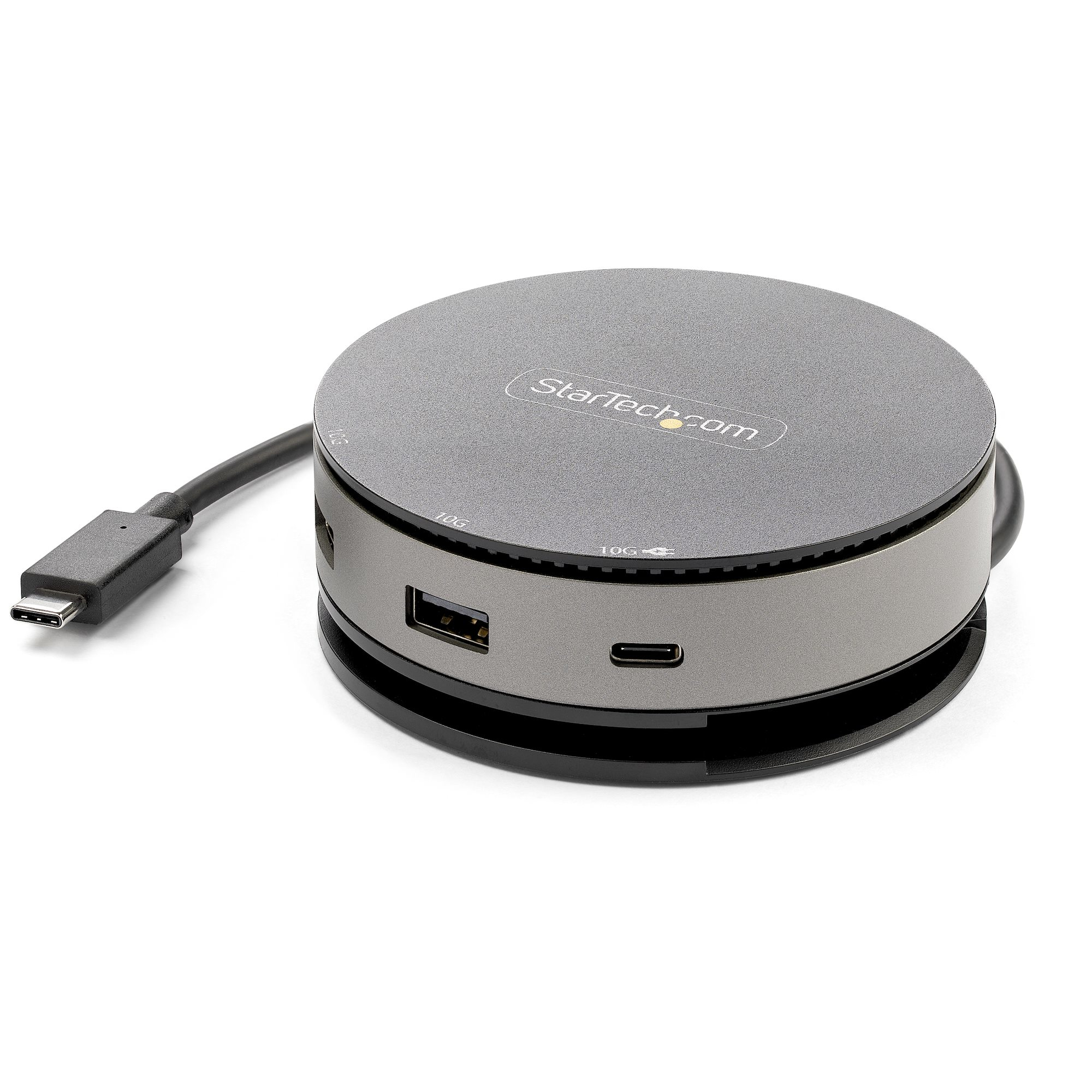

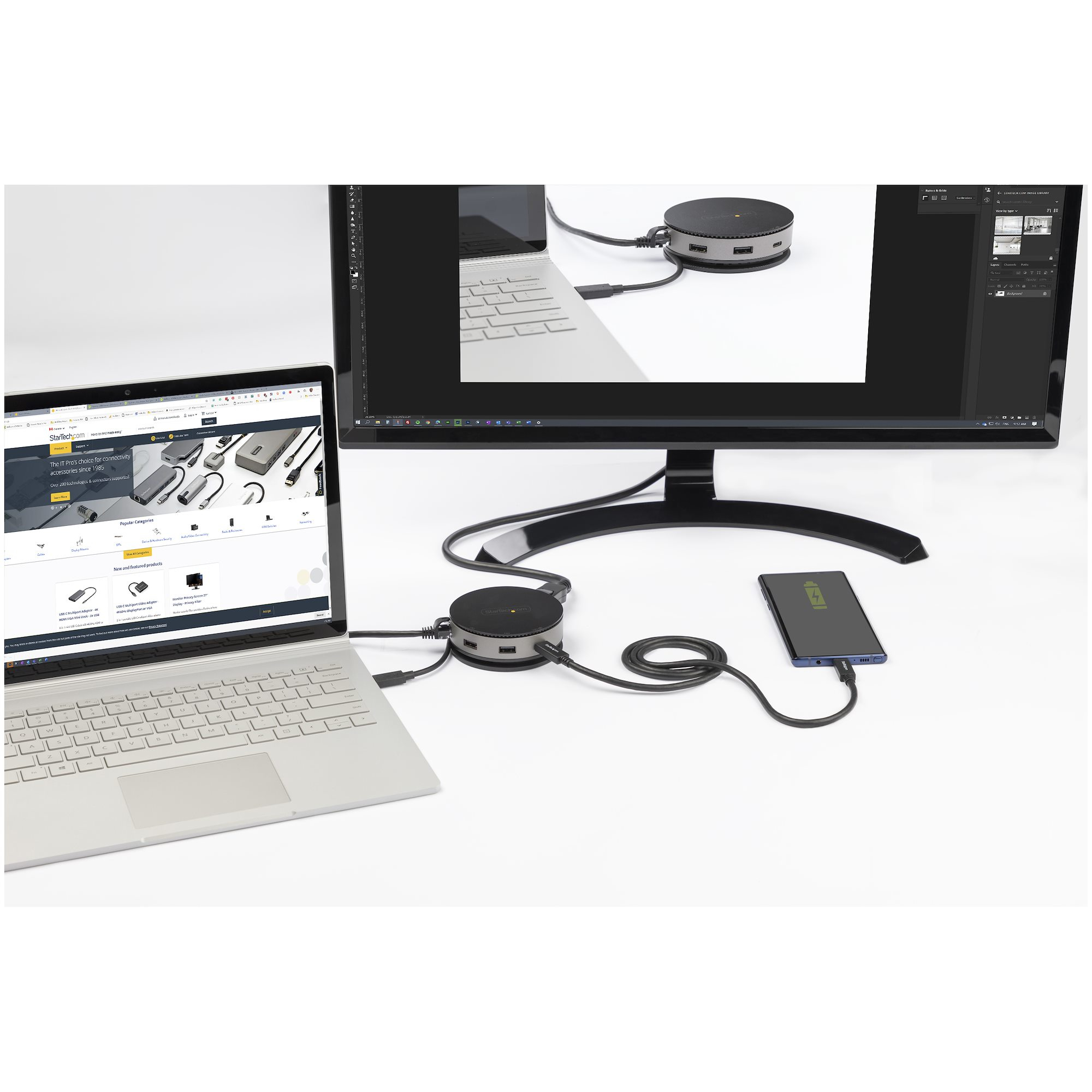

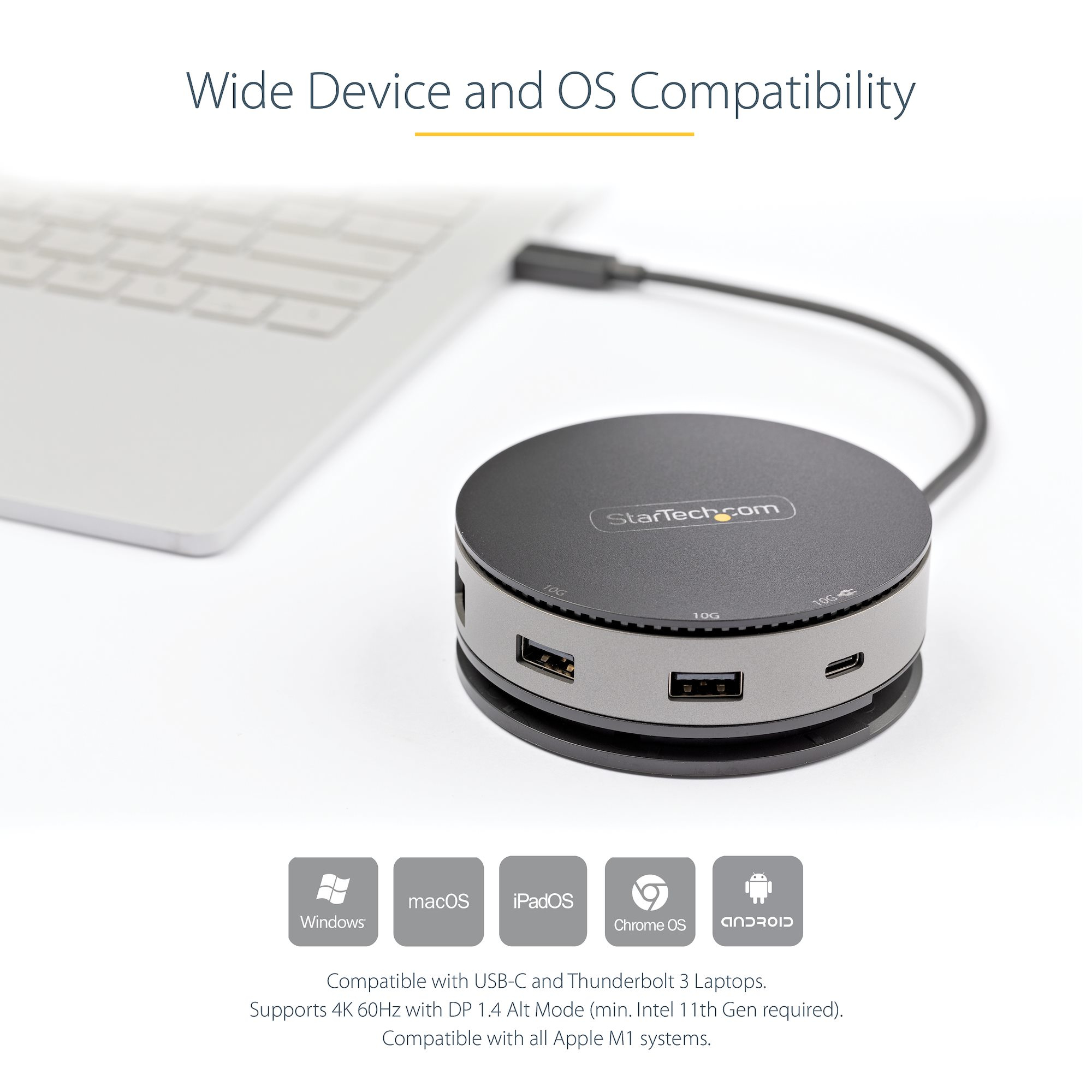

This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility, turns your USB-C ® or Thunderbolt™ 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections

• HDMI, DisplayPort, VGA video options
• 10Gbps USB-C & USB-A peripheral ports
• Attached 24cm (10 in) USB-C® host cable

Three Video Output Options

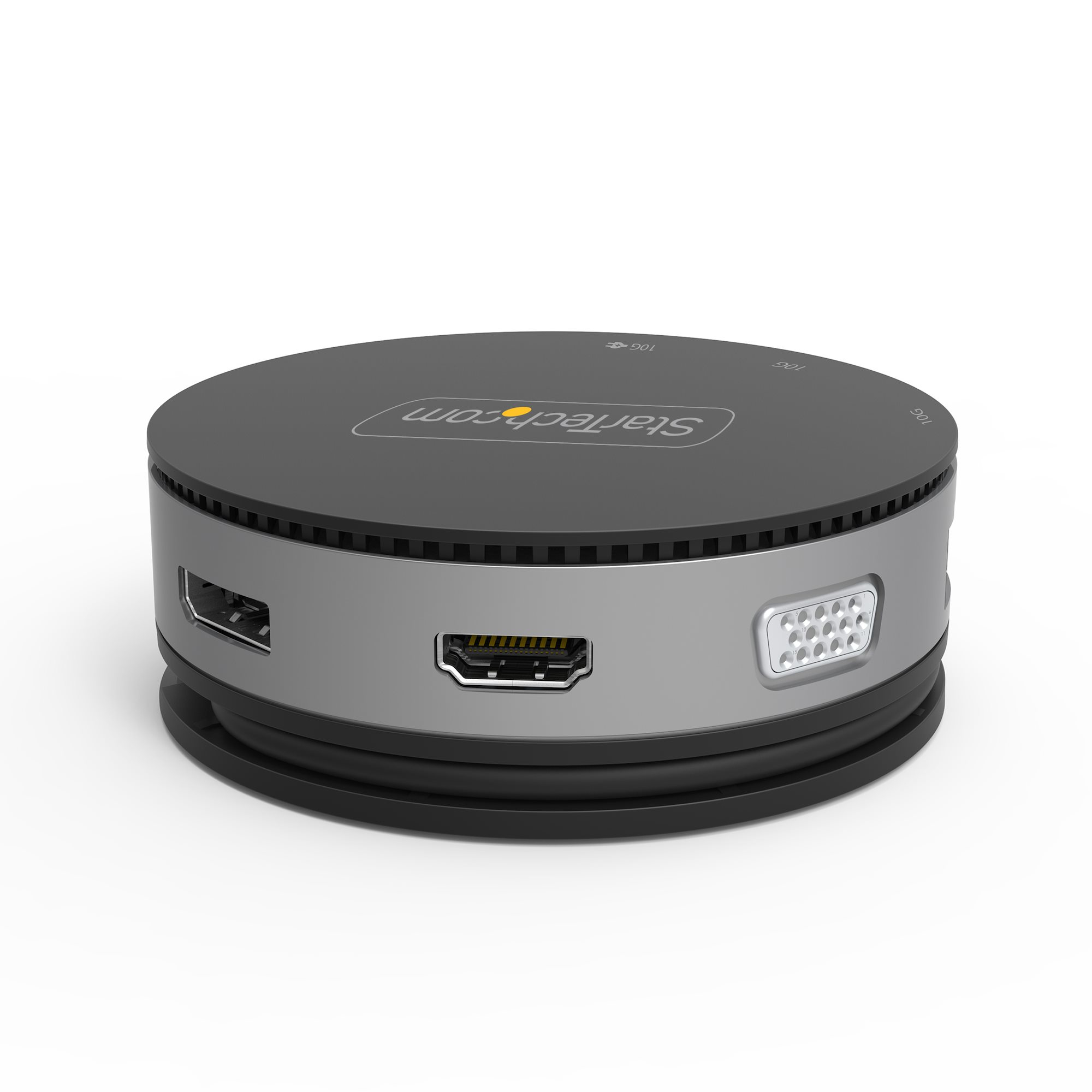

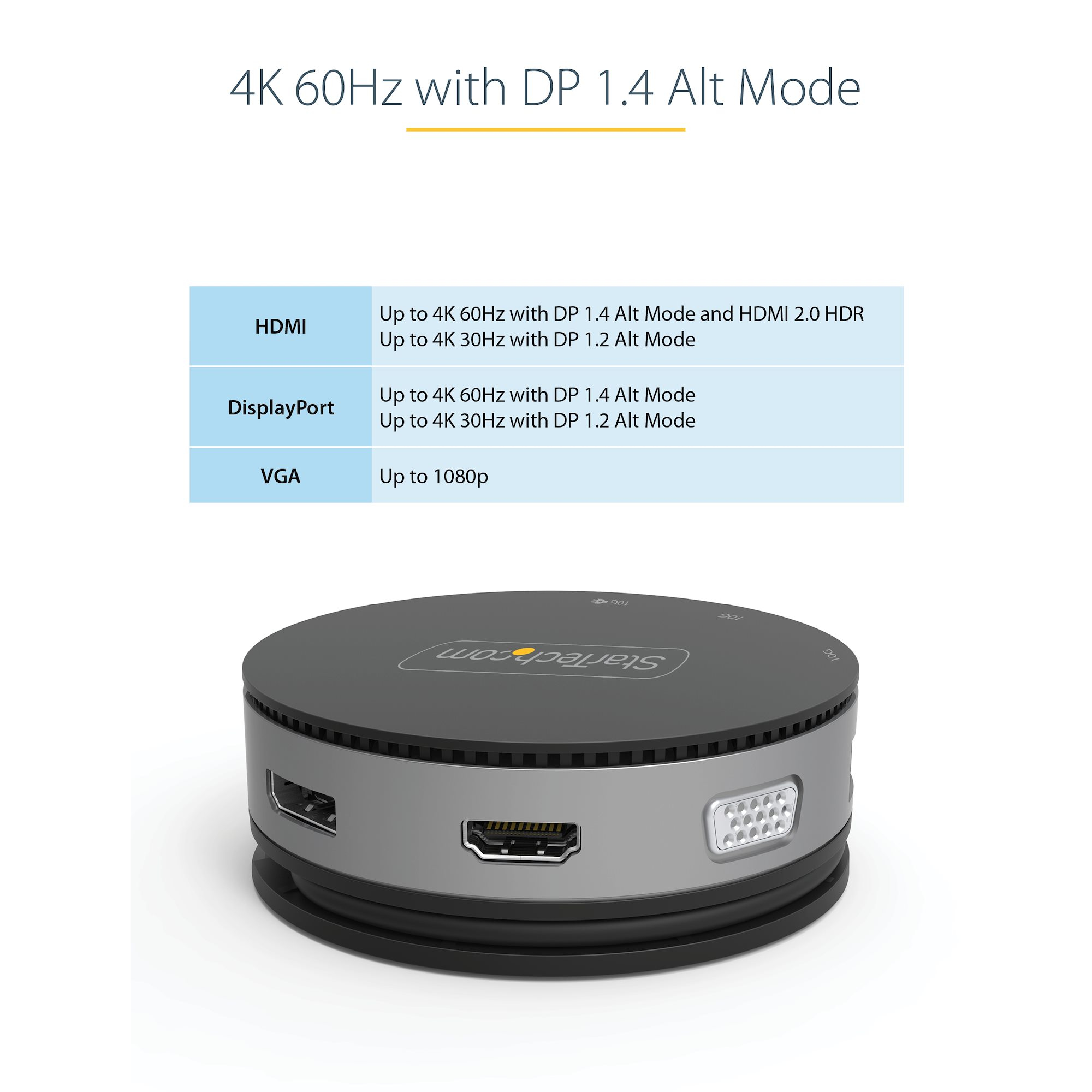

This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor.

• HDMI ( Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR )
• DisplayPort ( Up to 4K 60Hz with DP 1.4 )
• VGA ( Up to 1080p)

Designed for Portability & Ease of Use

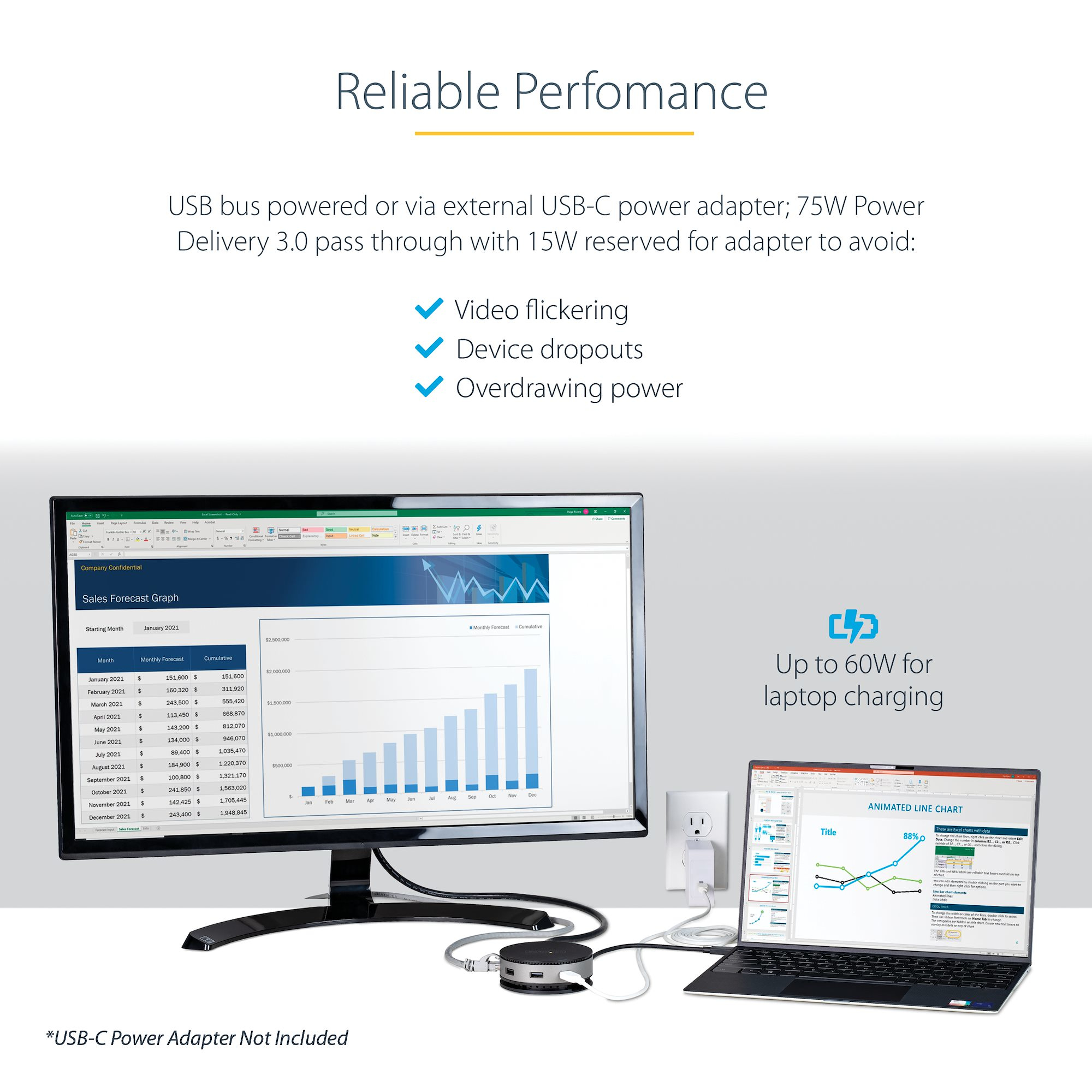

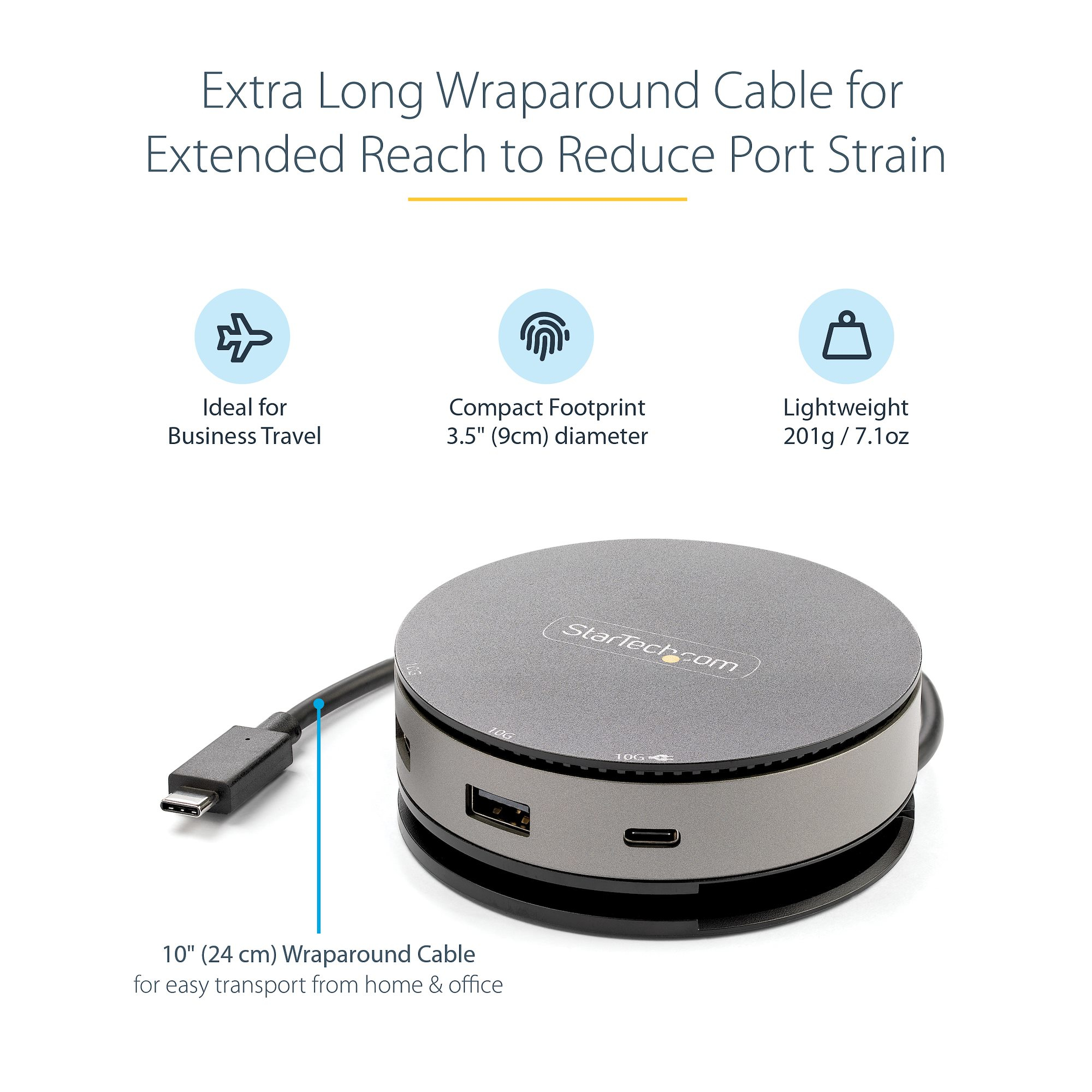

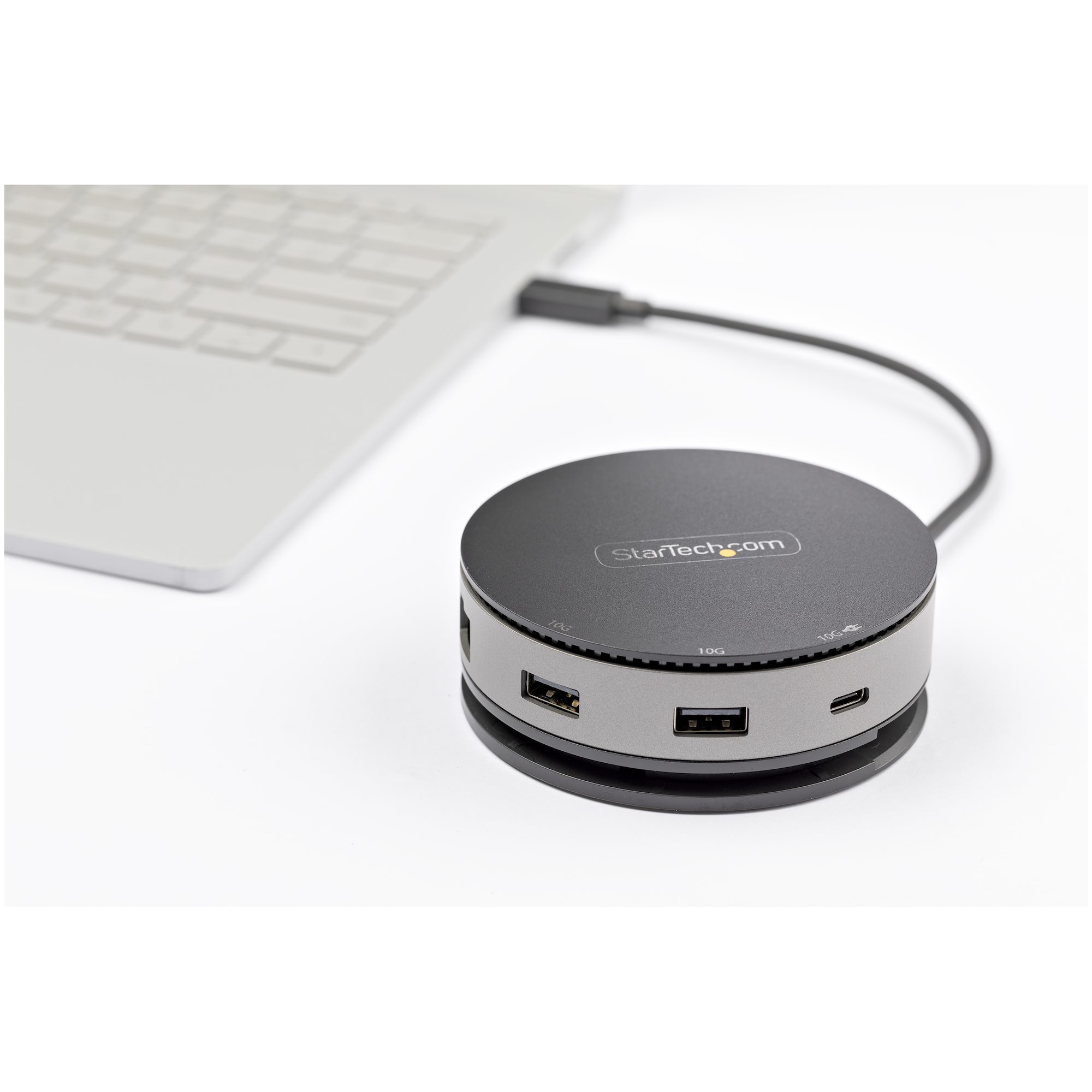

The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging).

Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable.

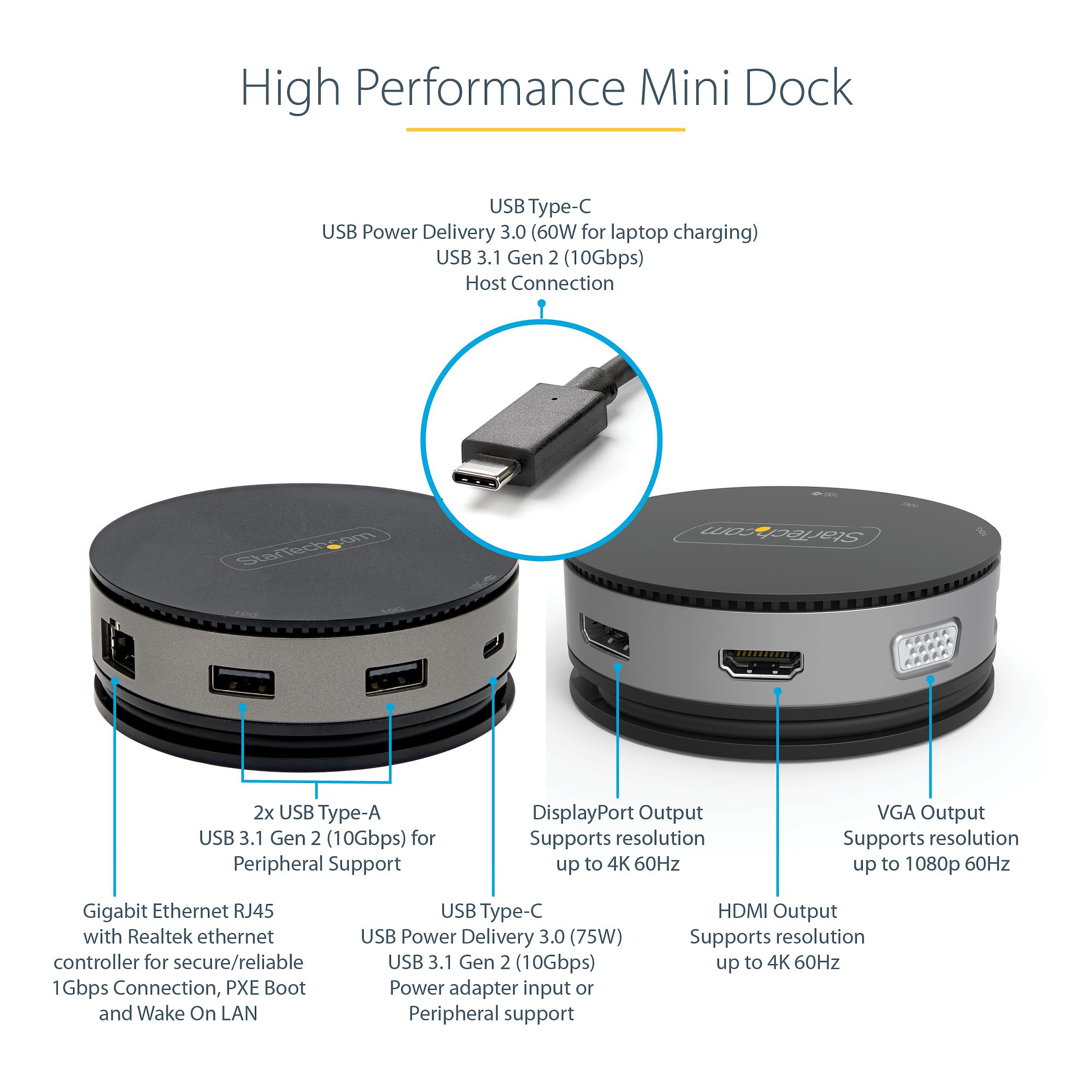

Essential Port Configuration

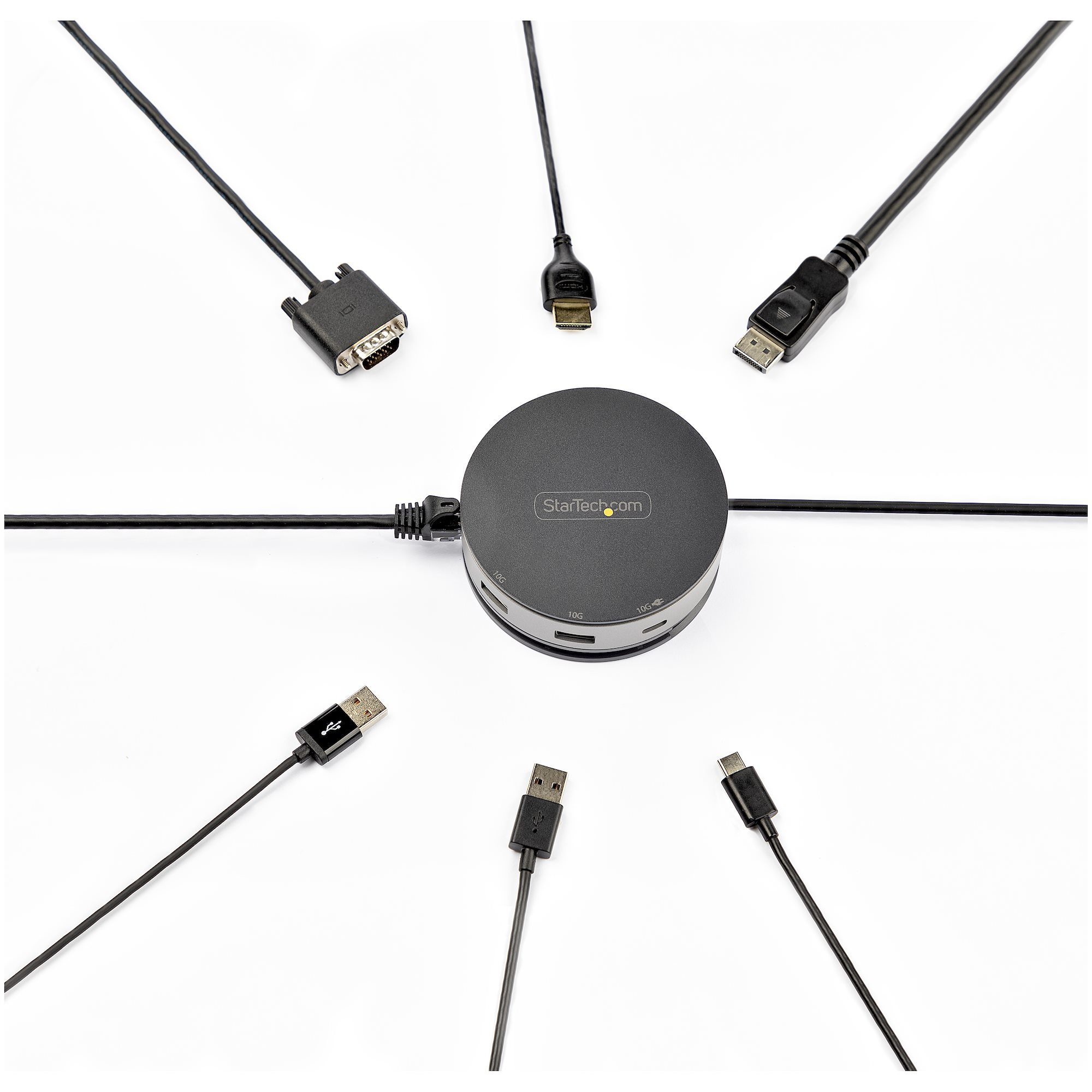

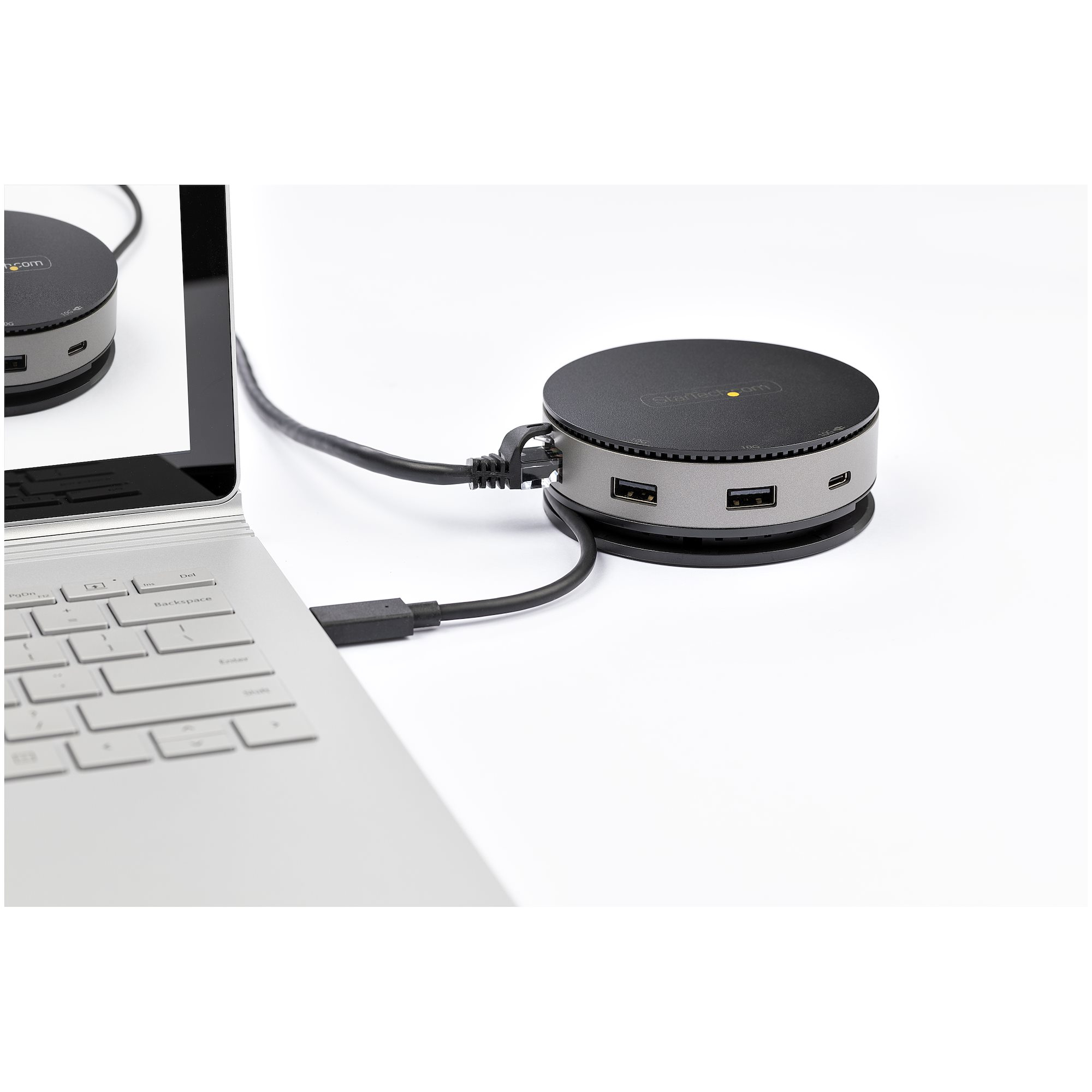

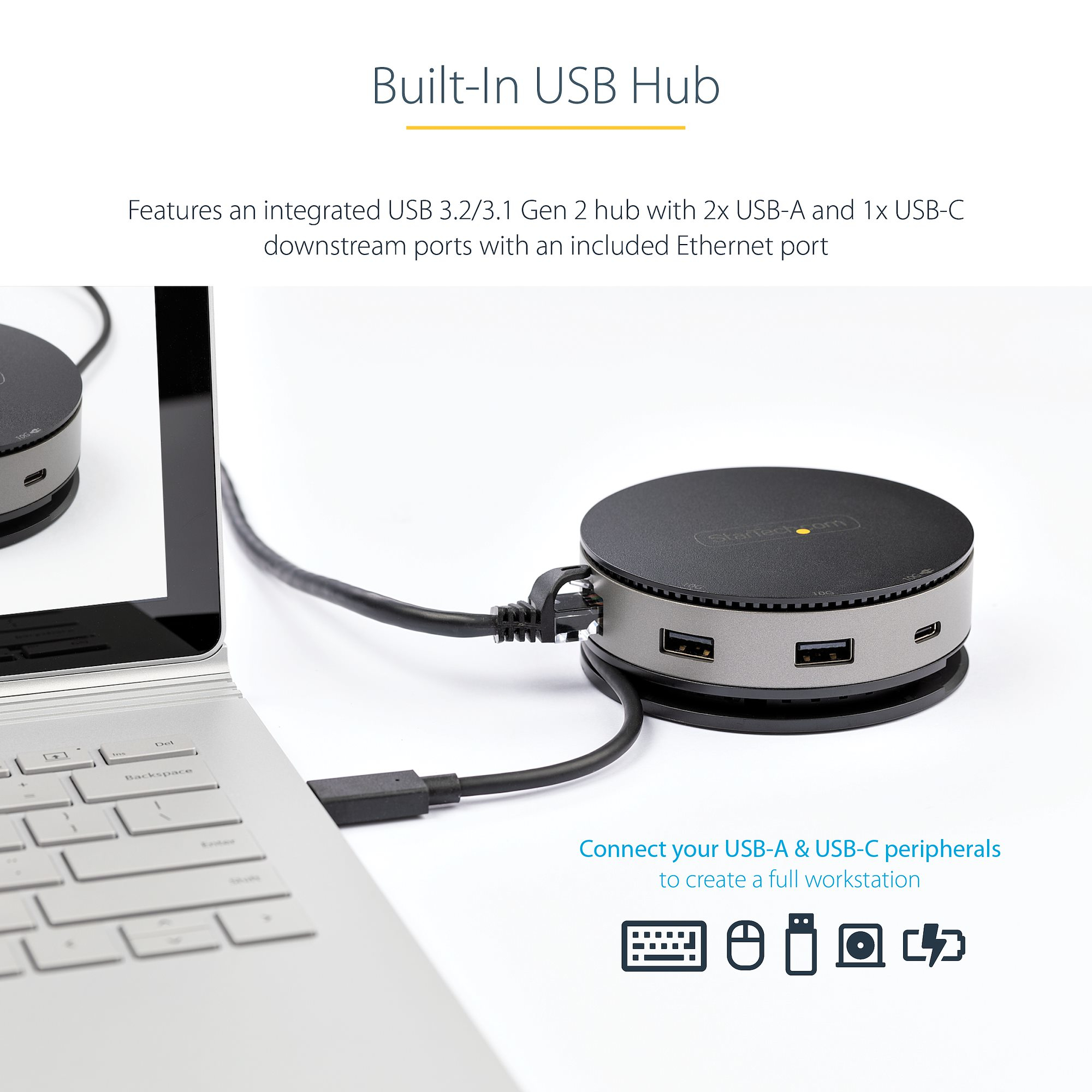

In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
