Ports & interfaces Ports quantity 4 Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C Hub interfaces USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Card reader integrated No Terminal block port Yes DC-in jack Yes Features Data transfer rate 10000 Mbit/s Product color Black Housing material Steel Surge protection Yes LED indicators Link, Power Network UASP support Yes Power Power consumption (typical) 36 W Input voltage 100 - 240 V Input current 1 A Output voltage 12 V Output current 3 A Power plug type Type M Weight & dimensions Width 59.6 mm Depth 152 mm Height 23.5 mm Weight 281 g Packaging data Quantity per pack 1 pc(s) Package width 149 mm Package depth 290 mm Package height 70 mm Package weight 1.2 kg Packaging content Included power plug types ANZ, EU, JP, UK, US Cables included USB Type-A to USB Type-C, USB Type-C to USB Type-C Manual Yes Terminal block included Yes Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -10 - 55 °C Operating relative humidity (H-H) 0 - 85% Logistics data Master (outer) case width 390 mm Master (outer) case length 515 mm Master (outer) case height 313 mm Quantity per master (outer) case 14 pc(s) Harmonized System (HS) code 84719000 Technical details Compliance certificates CE, RoHS Other features Chipset VIA/VLI - VL822

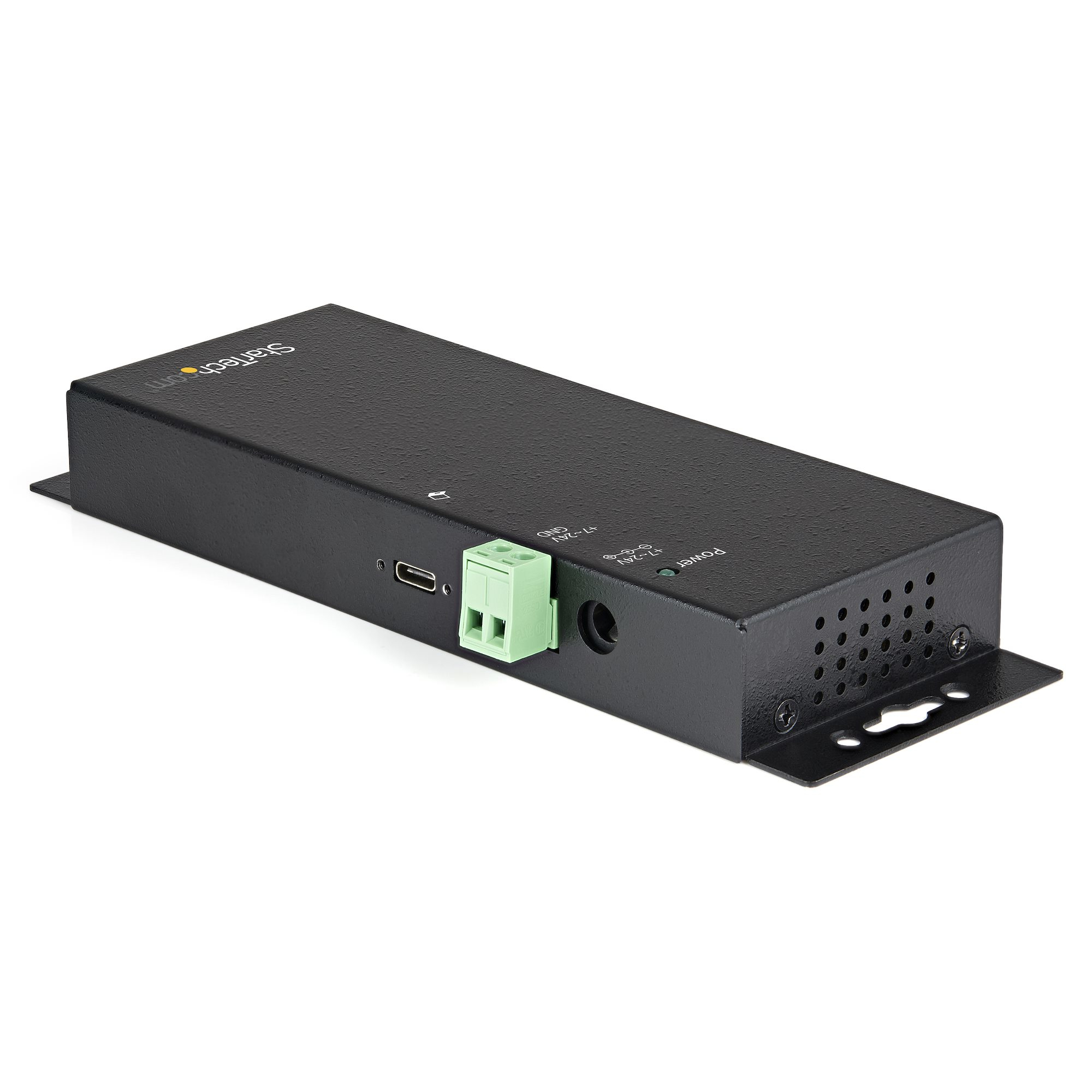

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

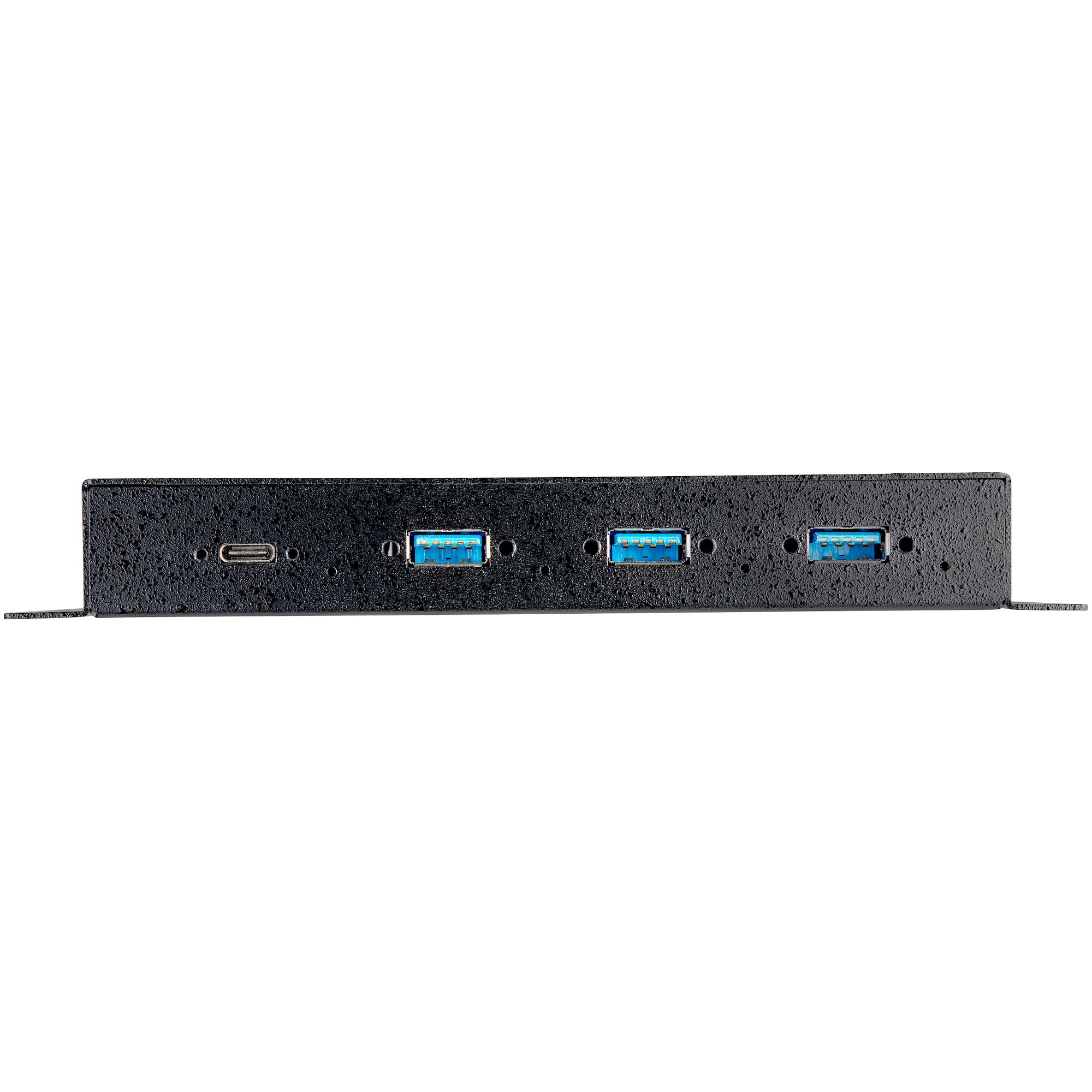

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.

Expands the Connectivity of Your Computer for Industrial Applications

With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).

Powers and Charges Your Connected Devices

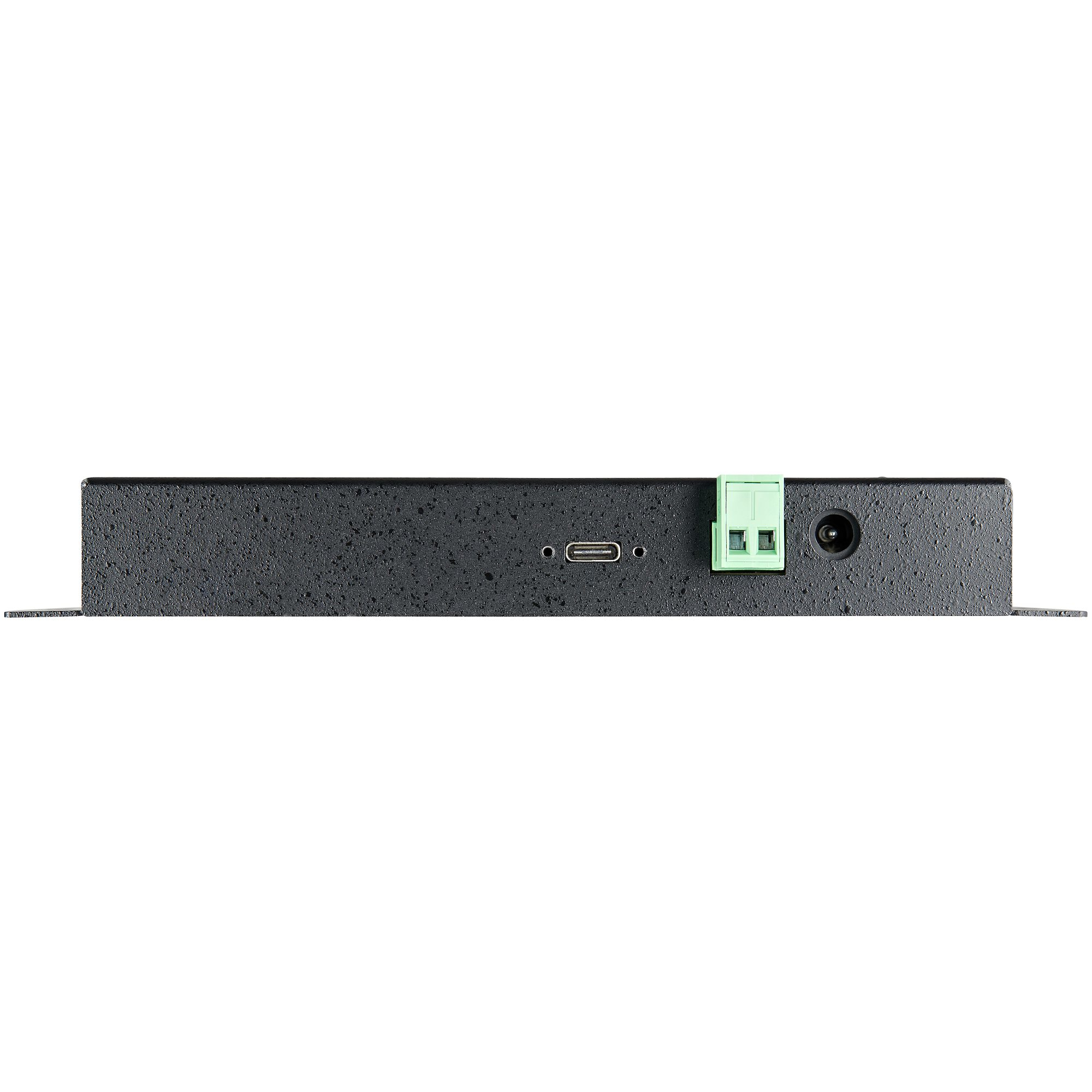

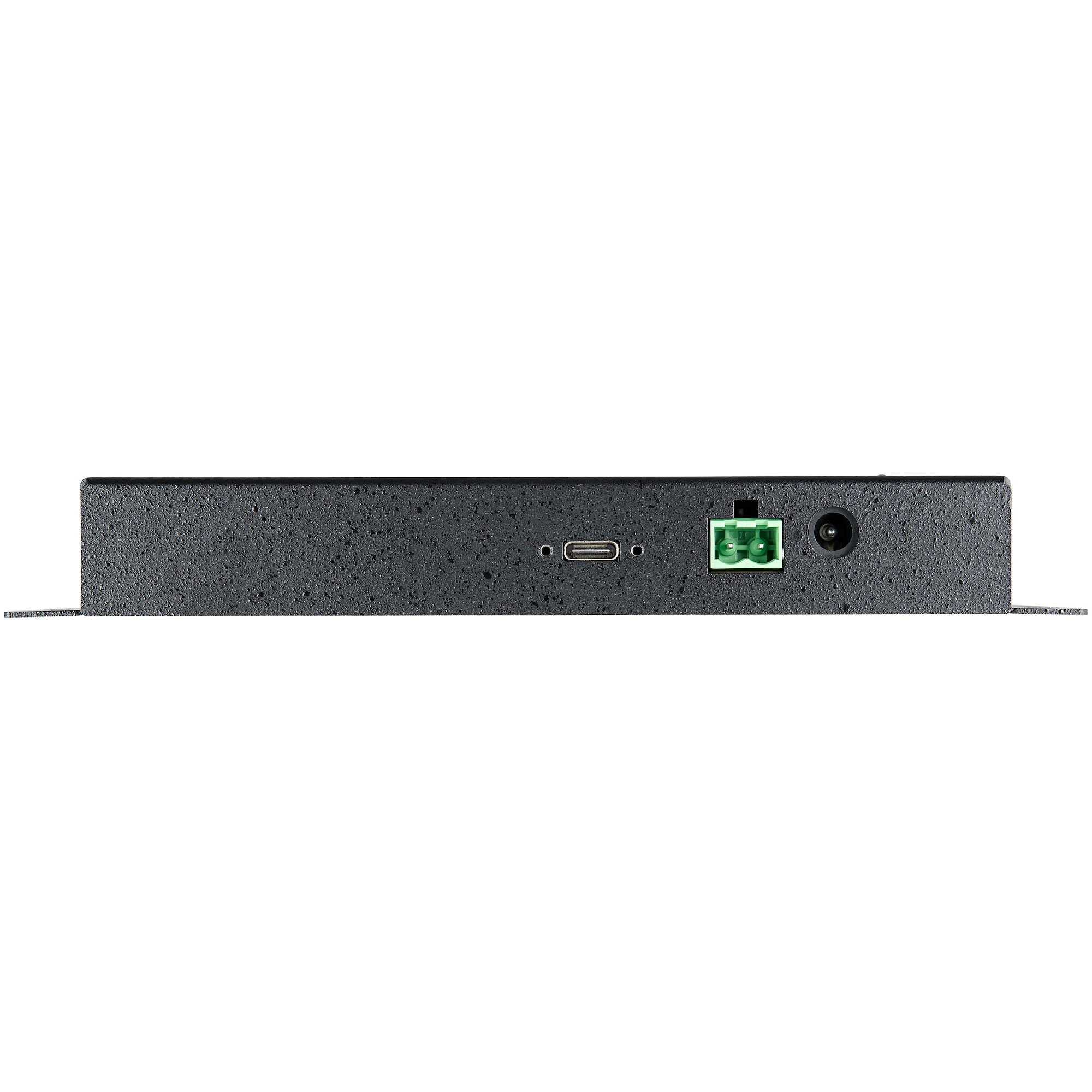

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.

Ideal for Use in Industrial Environments

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C & USB-A host cables is included that features a locking screw.

Wide Device Compatibility

The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

HB31C3A1CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
