Ports & interfaces Ports quantity 7 Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A Card reader integrated No Terminal block port Yes DC-in jack No Features Data transfer rate 5000 Mbit/s Product color Black Housing material Steel Surge protection Yes LED indicators Power Certification CE, FCC, RoHS, TAA, REACH Power Power source type DC Input voltage 7 - 48 V Weight & dimensions Width 54 mm Depth 145 mm Height 45 mm Weight 325 g Packaging data Package width 295 mm Package depth 190 mm Package height 69 mm Package weight 600 g Packaging content Cables included USB Manual Yes Terminal block included Yes DIN rail kit included Yes Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 126106 h Logistics data Master (outer) case width 397 mm Master (outer) case length 511 mm Master (outer) case height 326 mm Quantity per master (outer) case 14 pc(s) Harmonized System (HS) code 84719000 Other features Chipset Genesys Logic - GL3520

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

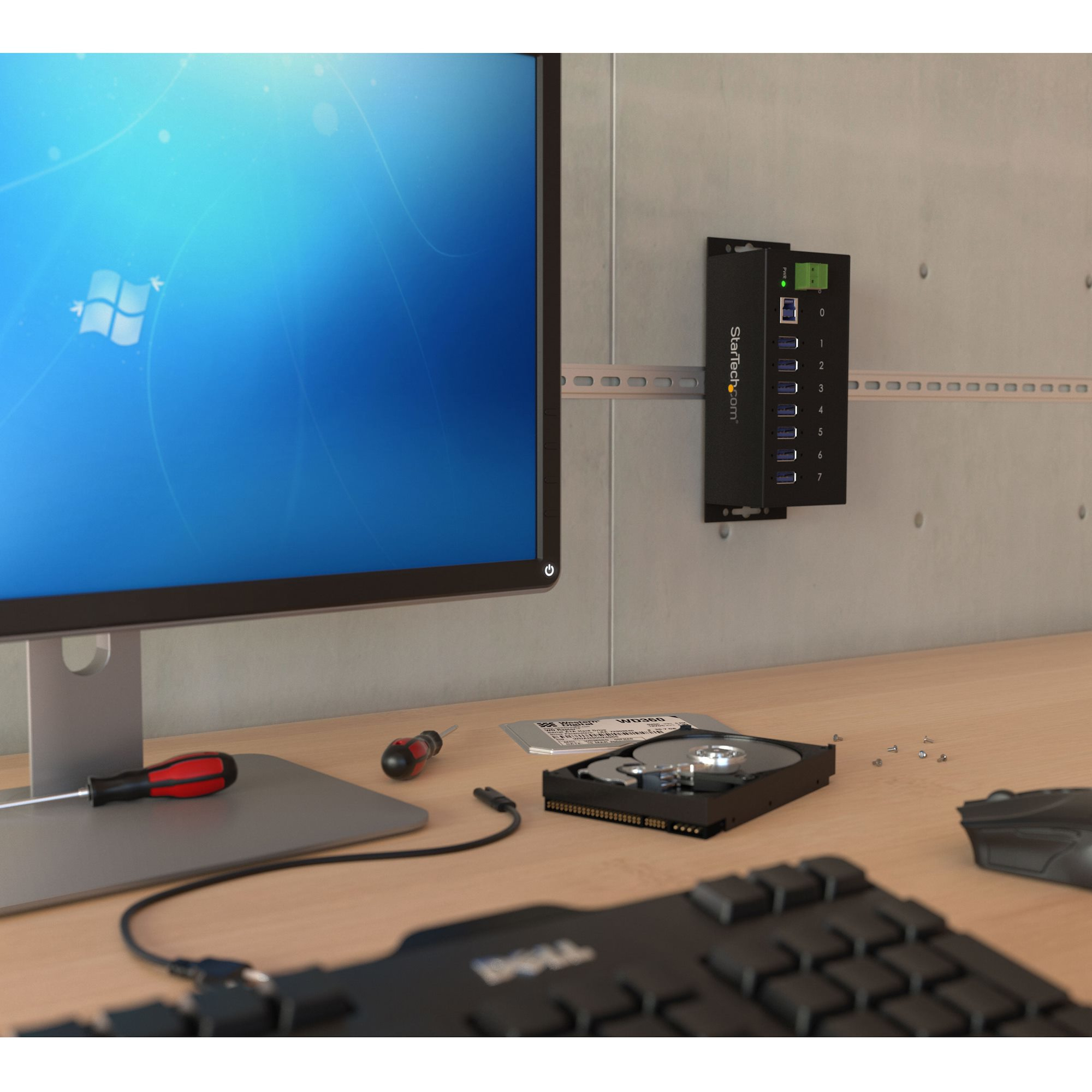

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
