Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6 HDMI ports quantity 2 Microphone in Yes Headphone outputs 1 DisplayPorts quantity 2 Combo headphone/mic port No Headphone connectivity 3.5 mm DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes 10G support No Performance Product colour Black, Silver Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 4096 x 2160 pixels Number of displays supported 2 On/off switch Yes LED indicators Power UASP support Yes Housing material Aluminium, Plastic Brand compatibility Any brand Certification CE, FCC, REACH Power Power source type AC AC input voltage 100 - 240 V Input current 1 A Output voltage 20 V Output current 2 A Power consumption (typical) 40 W Power plug type Type N Compatible power plug types AU, EU, JP, UK, US Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 10 - 90% Weight & dimensions Width 87 mm Depth 226 mm Height 28 mm Weight 301 g Packaging data Package width 130 mm Package depth 318 mm Package height 52 mm Package weight 900 g Packaging content Cables included USB Type-A to USB Type-C, USB Type-C AC adapter included Yes Quick start guide Yes Technical details Compliance certificates RoHS Logistics data Products per master (outer) case 10 pc(s) Master (outer) case width 325 mm Master (outer) case length 325 mm Master (outer) case height 305 mm Harmonized System (HS) code 84733020 Other features Cable length 0.152 m Chipset DisplayLink - DL-6950, VIA/VLI - VL813 Number of microphone inputs 1 USB data transfer rates 12,480,5000 Mbit/s

Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz

This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

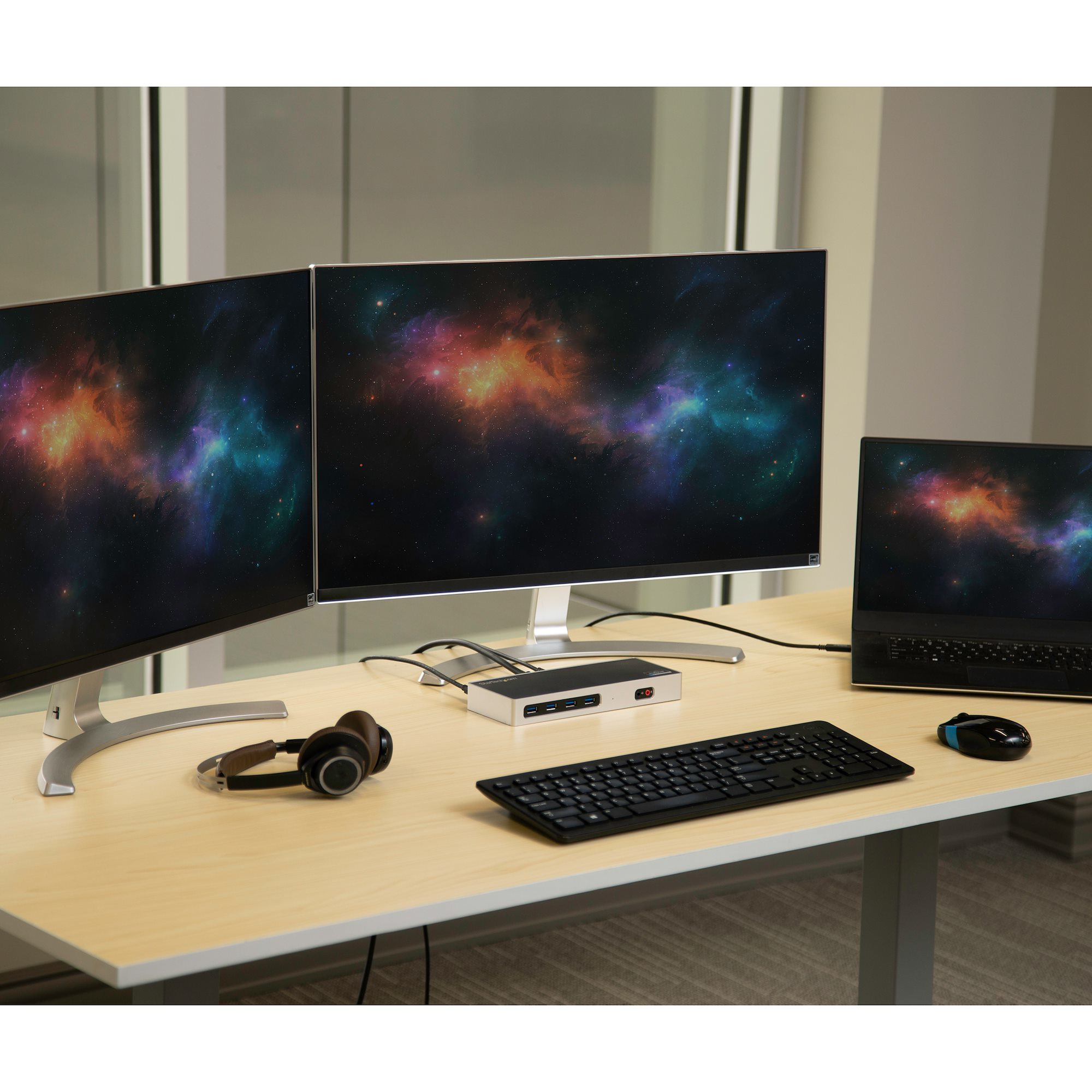

Enhance Productivity with Dual-4K 60Hz Video

Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

With the dual-4K dock, connect:

• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Connects to USB-C and USB-A Laptops

The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.

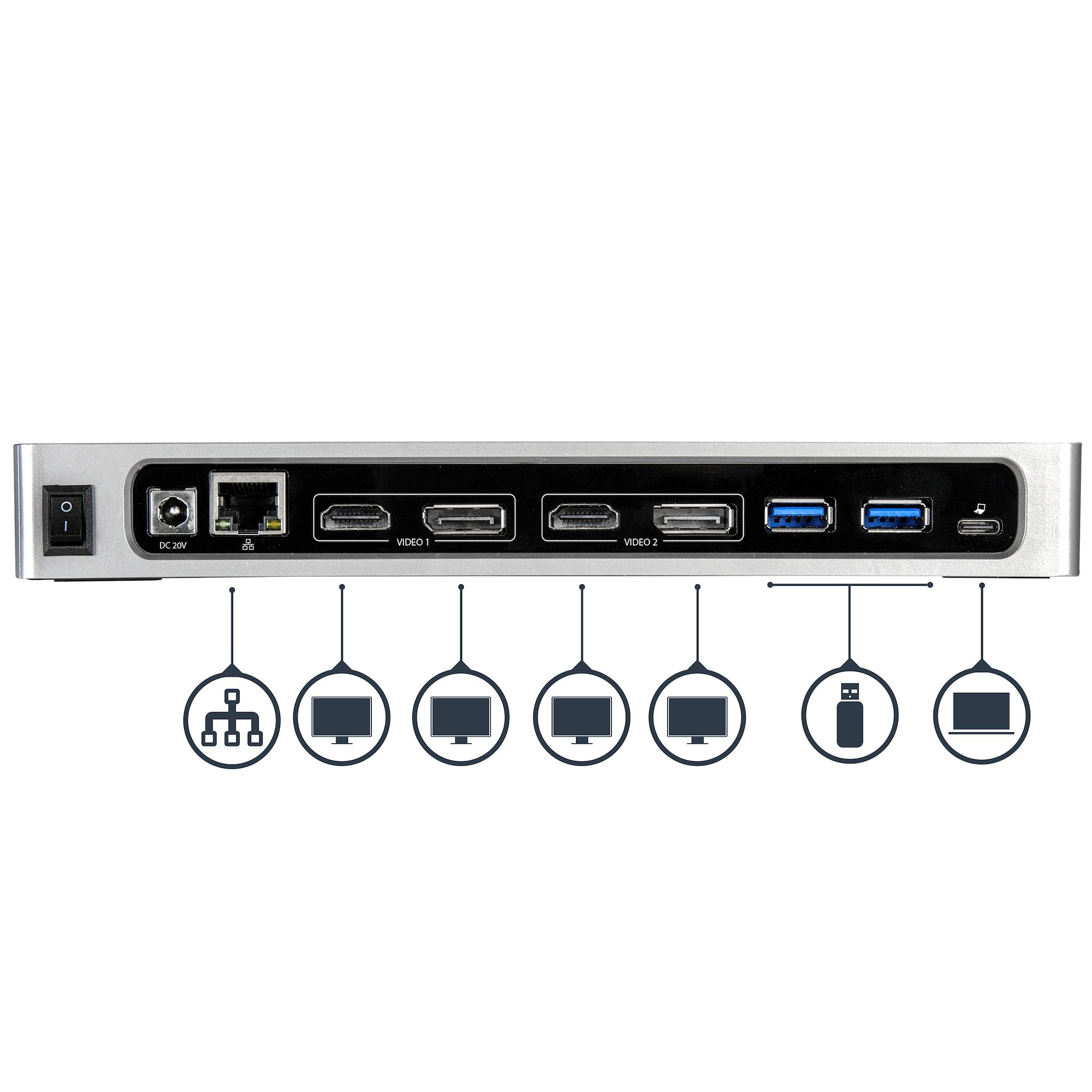

All the Connections You Need

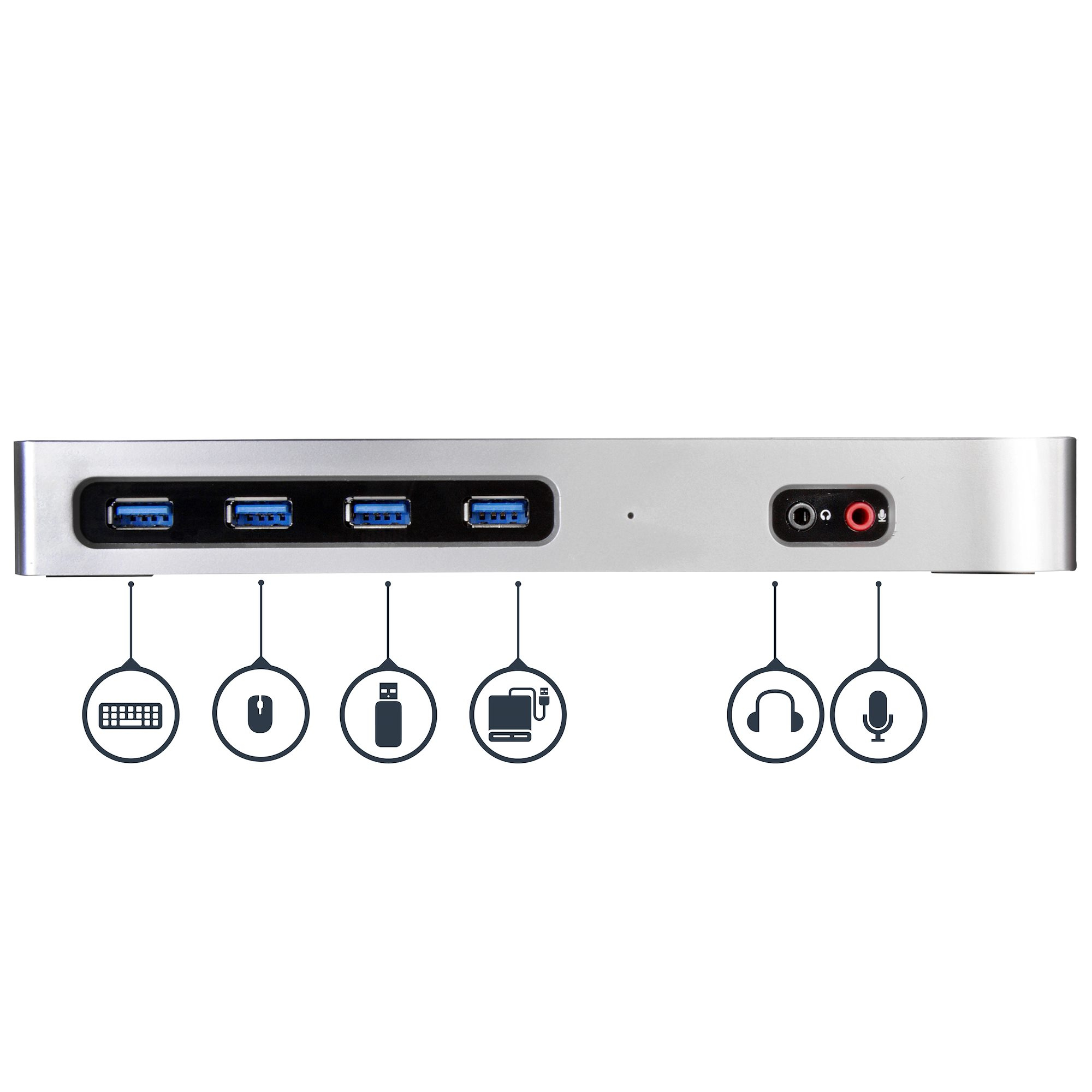

This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.

DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
