Ports & interfaces Ports quantity 10 Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 10 Card reader integrated No Terminal block port Yes DC-in jack Yes Features Data transfer rate 5000 Mbit/s Product color Black Surge protection Yes LED indicators Power Plug and Play Yes Certification RoHS, REACH, CE, FCC, TAA Network UASP support Yes Power Power supply type AC Power consumption (typical) 65 W Input voltage 100 - 240 V Input current 1.4 A Output voltage 20 V Output current 3.25 A Weight & dimensions Width 55 mm Depth 198 mm Height 30 mm Weight 352 g Packaging data Quantity per pack 1 pc(s) Package width 190 mm Package depth 295 mm Package height 70 mm Package weight 1.4 kg Packaging content AC adapter included Yes Included power plug types ANZ, EU, JP, NA, UK Cables included USB Quick installation guide Yes DIN rail kit included Yes Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 126106 h Logistics data Master (outer) case width 400 mm Master (outer) case length 510 mm Master (outer) case height 320 mm Quantity per master (outer) case 14 pc(s) Harmonized System (HS) code 84719000 Other features Chipset Genesys Logic - GL3523

Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps

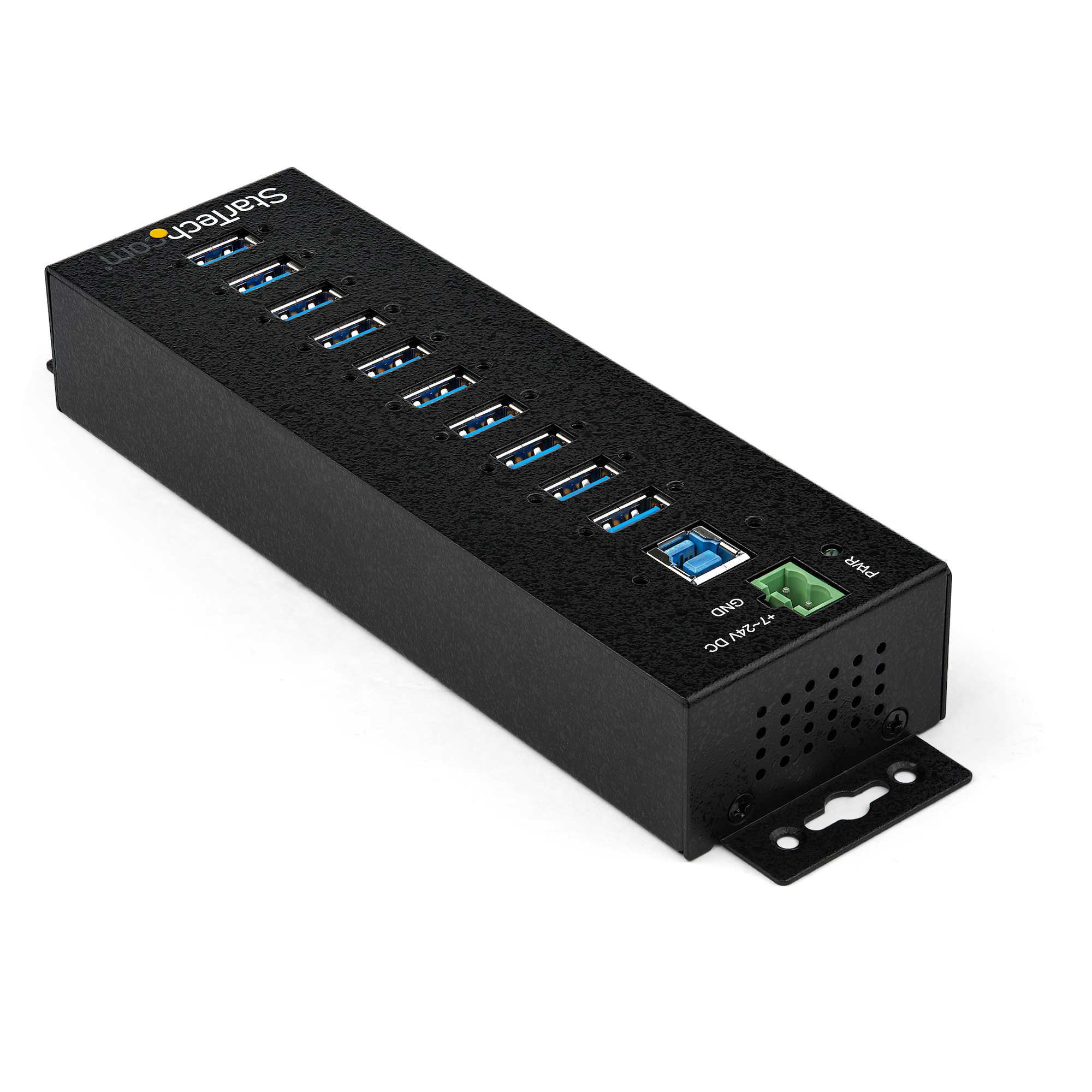

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

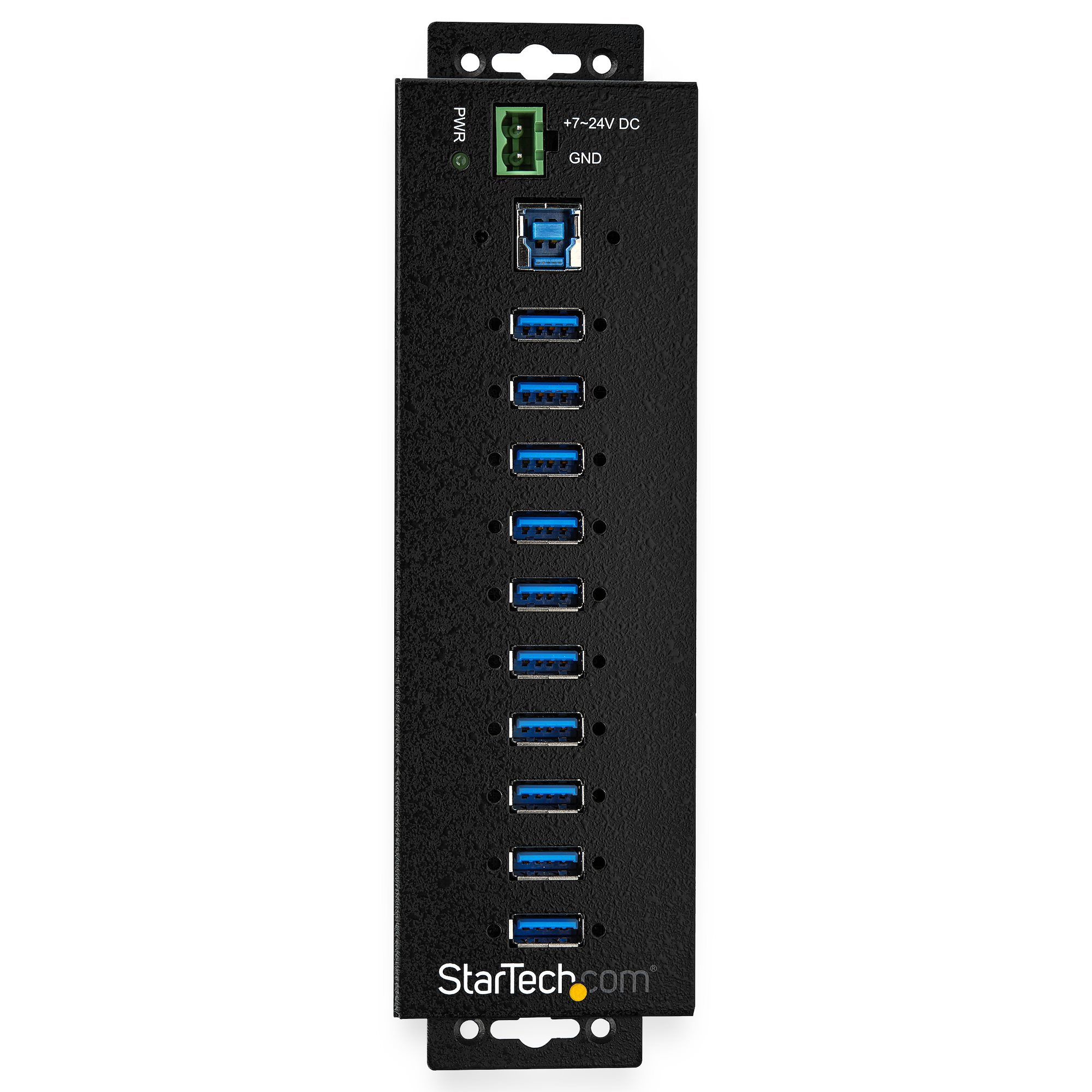

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 10 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
