Features Purpose Universal Power supply type Indoor Input voltage 100 - 240 V Output power 158.4 W Output voltage 24 V Input current 3.5 A Output current 6.6 A Brand compatibility StarTech.com Compatibility HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB Design Product colour Black Housing material Plastic Operational conditions Operating temperature (T-T) 5 - 55 °C Storage temperature (T-T) -20 - 80 °C Operating relative humidity (H-H) 20 - 80% Certificates Compliance certificates PSE Weight & dimensions Cable length 1.2 m Width 53 mm Depth 115 mm Height 37 mm Weight 291 g Packaging data Package width 160 mm Package depth 90 mm Package height 200 mm Package weight 350 g Packaging content Quantity per pack 1 pc(s) Cables included AC Logistics data Master (outer) case width 470 mm Master (outer) case length 320 mm Master (outer) case height 235 mm Products per master (outer) case 50 pc(s) Sustainability Sustainability compliance Yes

AC/DC Power Adapter for StarTech.com DC Powered Industrial Products

Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.

High-Performance Universal Power Adapter

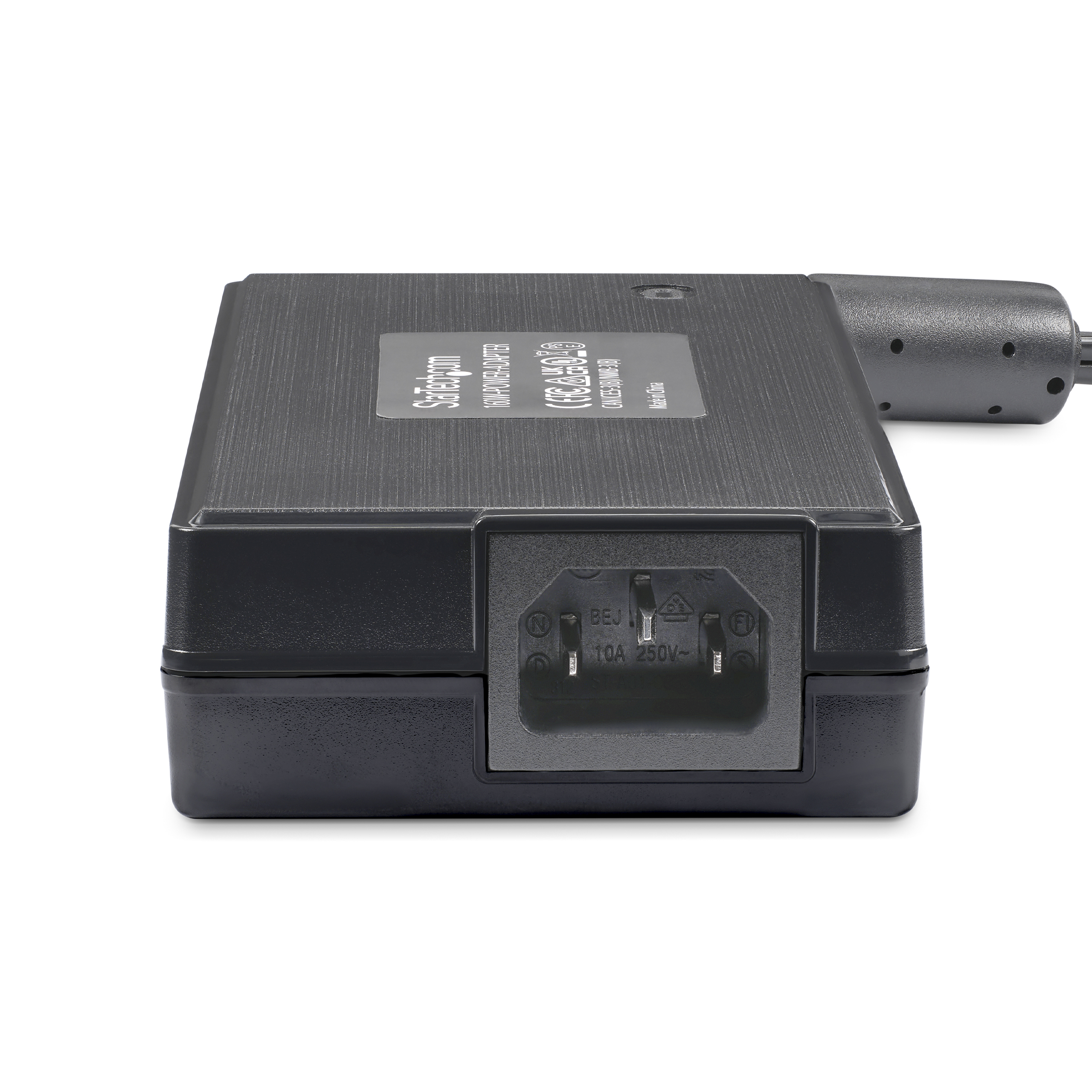

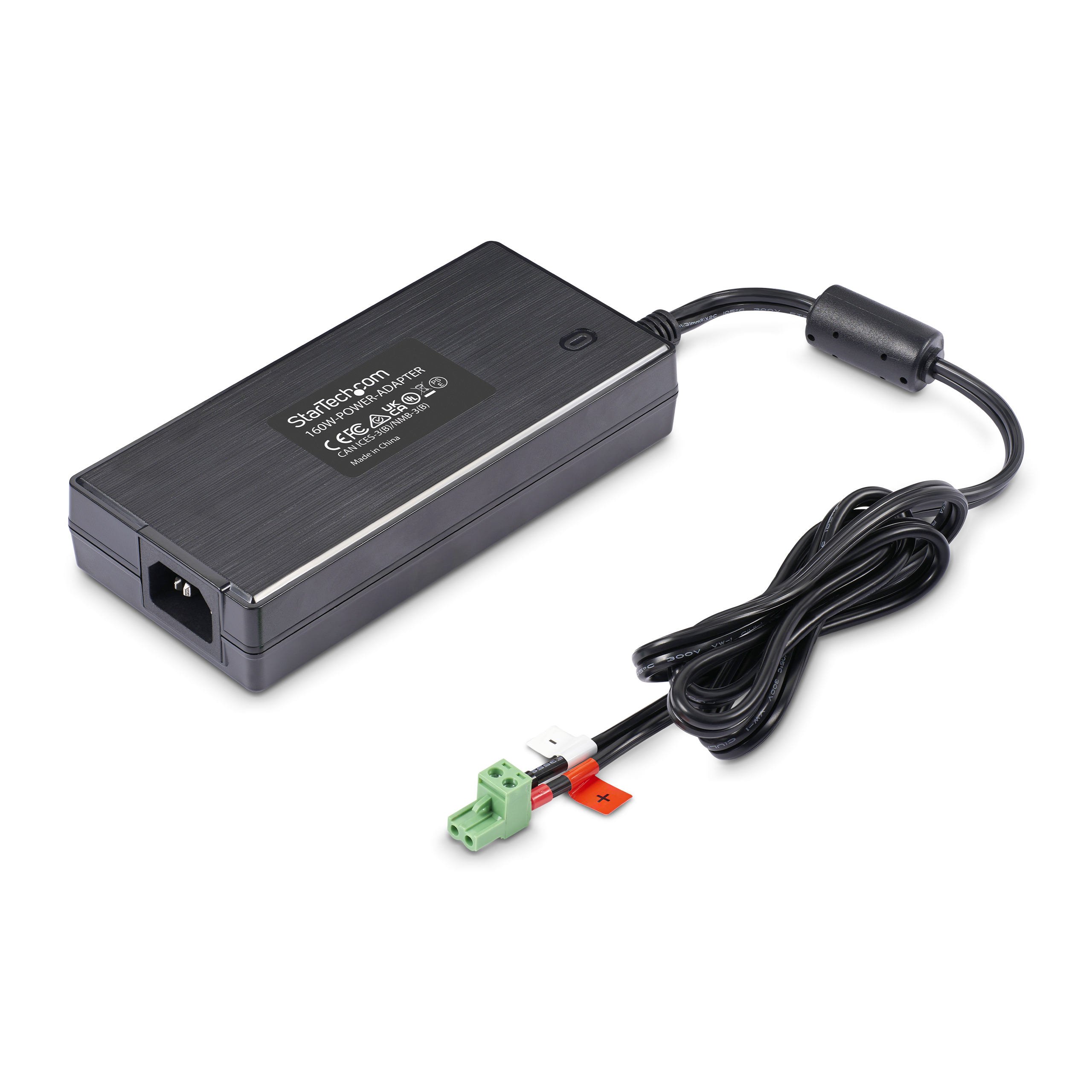

The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.

Four 4ft (1.2m) regional power cables are included, to ensure international support:

• North America - Type-A NEMA 1-15
• United Kingdom - Type-G BS 1363
• Europe - CEE 7/7
• Australia/New Zealand - Type-I AS 3112

Device Compatibility

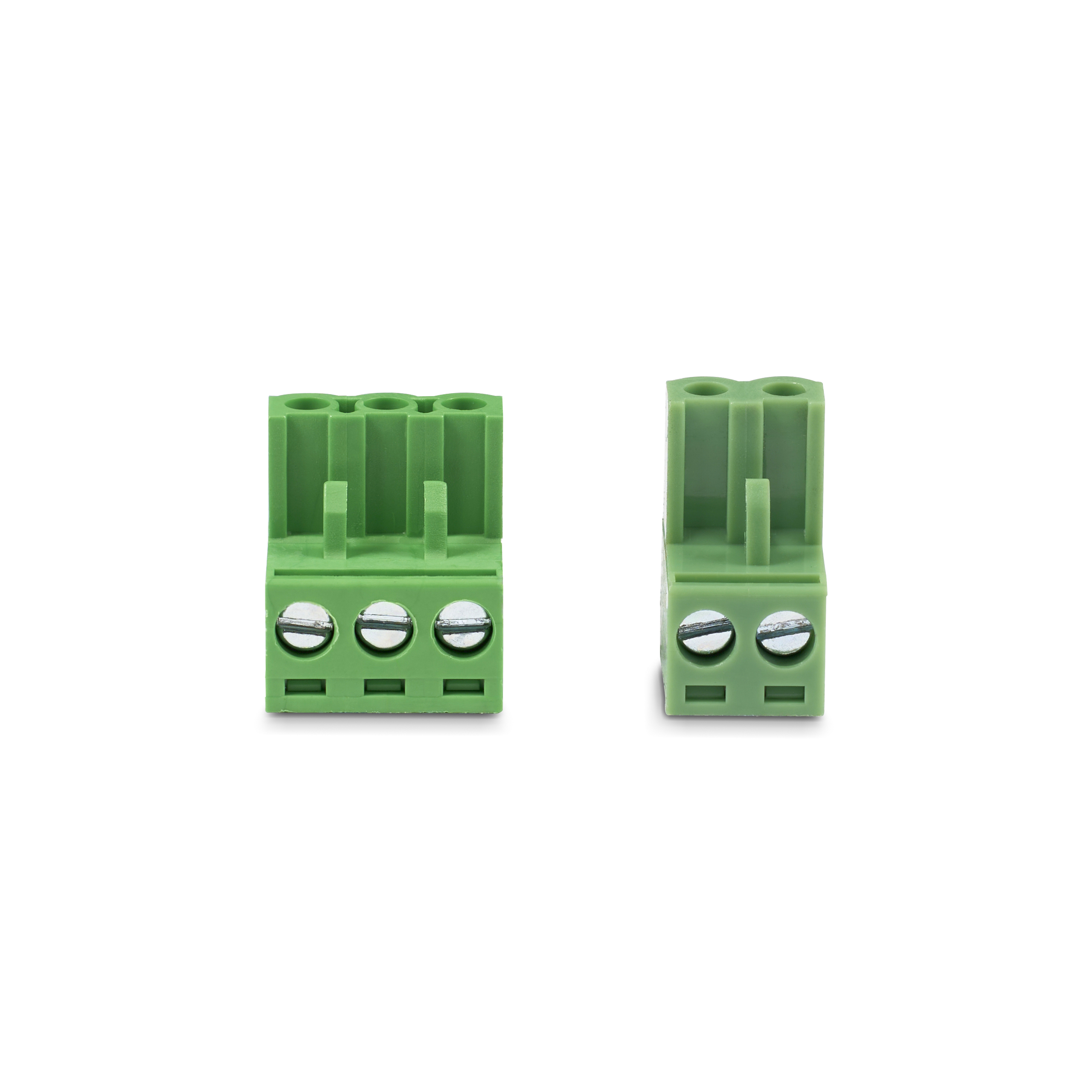

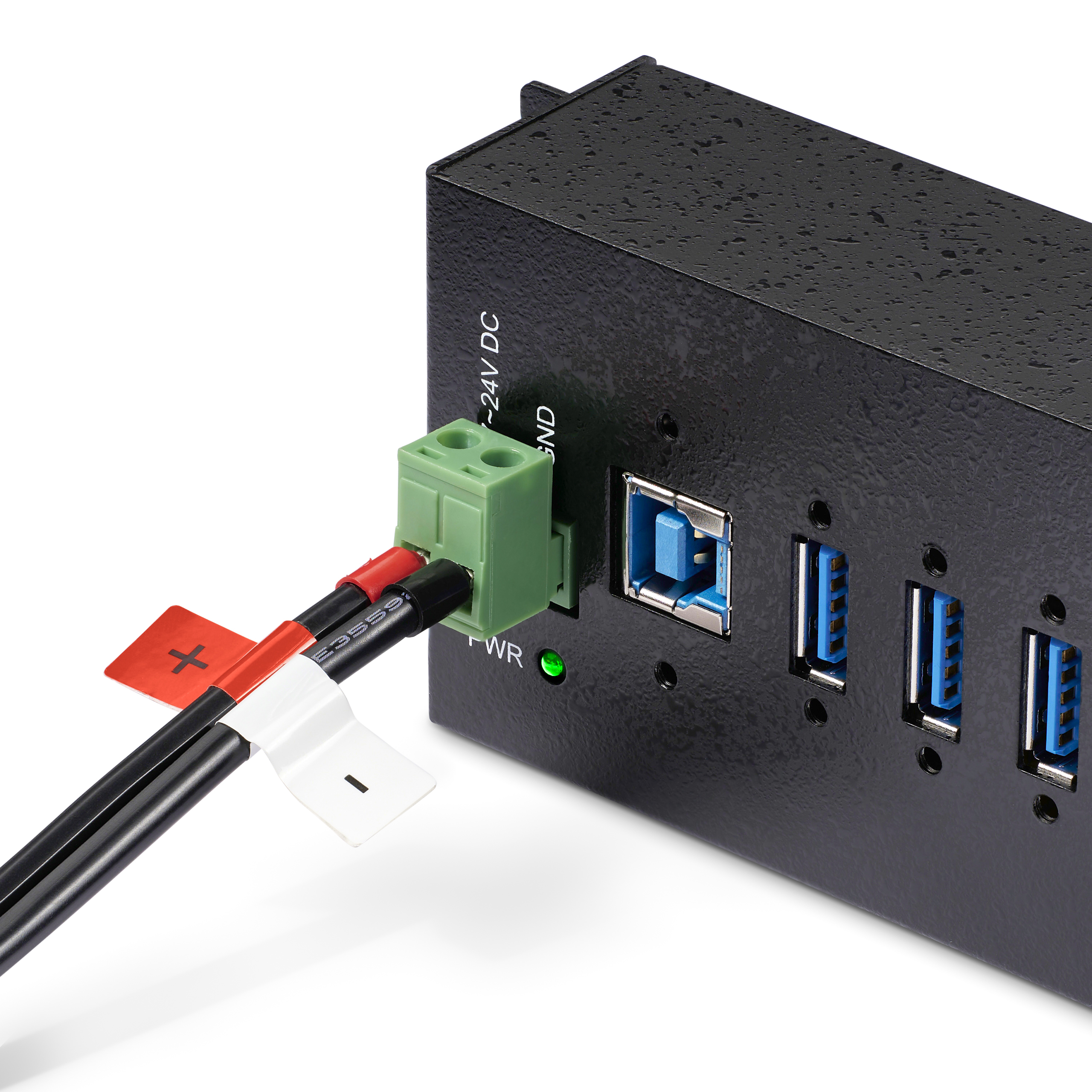

The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors included, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:

• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)

This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:

• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)
