Ports & interfaces Ports quantity 4 Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Terminal block port Yes DC-in jack Yes Features Data transfer rate 5000 Mbit/s Product color Black Housing material Steel LED indicators Power, USB Hot-swap Yes Plug and Play Yes Certification RoHS, CE, FCC, TAA, REACH Power Power consumption (typical) 36 W Output voltage 12 V Output current 3 A Power plug type Type M System requirements Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Mac operating systems supported Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard Weight & dimensions Width 59.6 mm Depth 152 mm Height 24 mm Weight 301 g Packaging data Quantity per pack 1 pc(s) Package width 295 mm Package depth 191 mm Package height 69 mm Package weight 1.2 kg Packaging content AC adapter included Yes Included power plug types AU, EU, NA, UK Cables included USB Manual Yes Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 245881 h Logistics data Master (outer) case width 402 mm Master (outer) case length 513 mm Master (outer) case height 318 mm Quantity per master (outer) case 14 pc(s) Harmonized System (HS) code 84719000 Other features Chipset VIA/VLI - VL811+

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | 5 Gbps

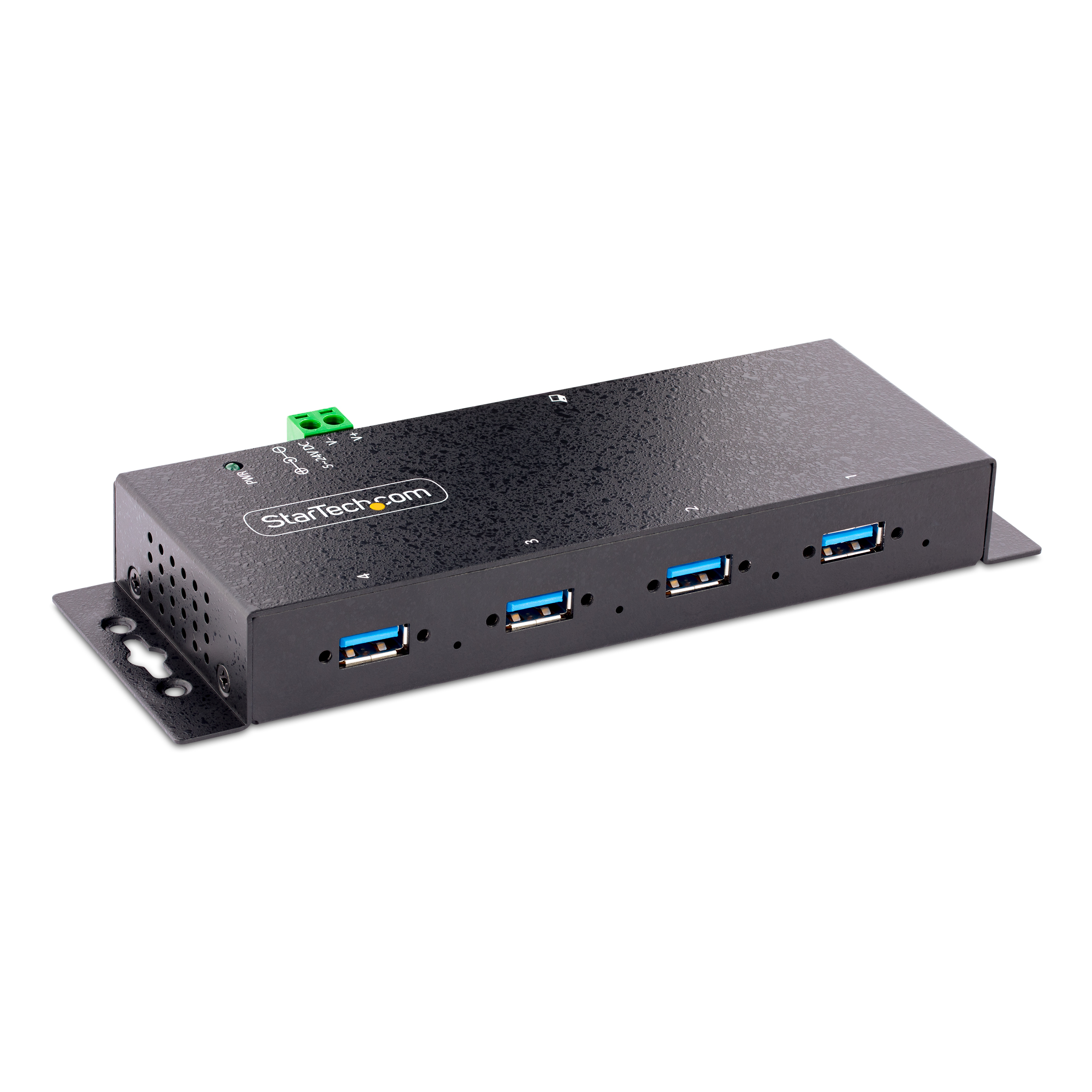

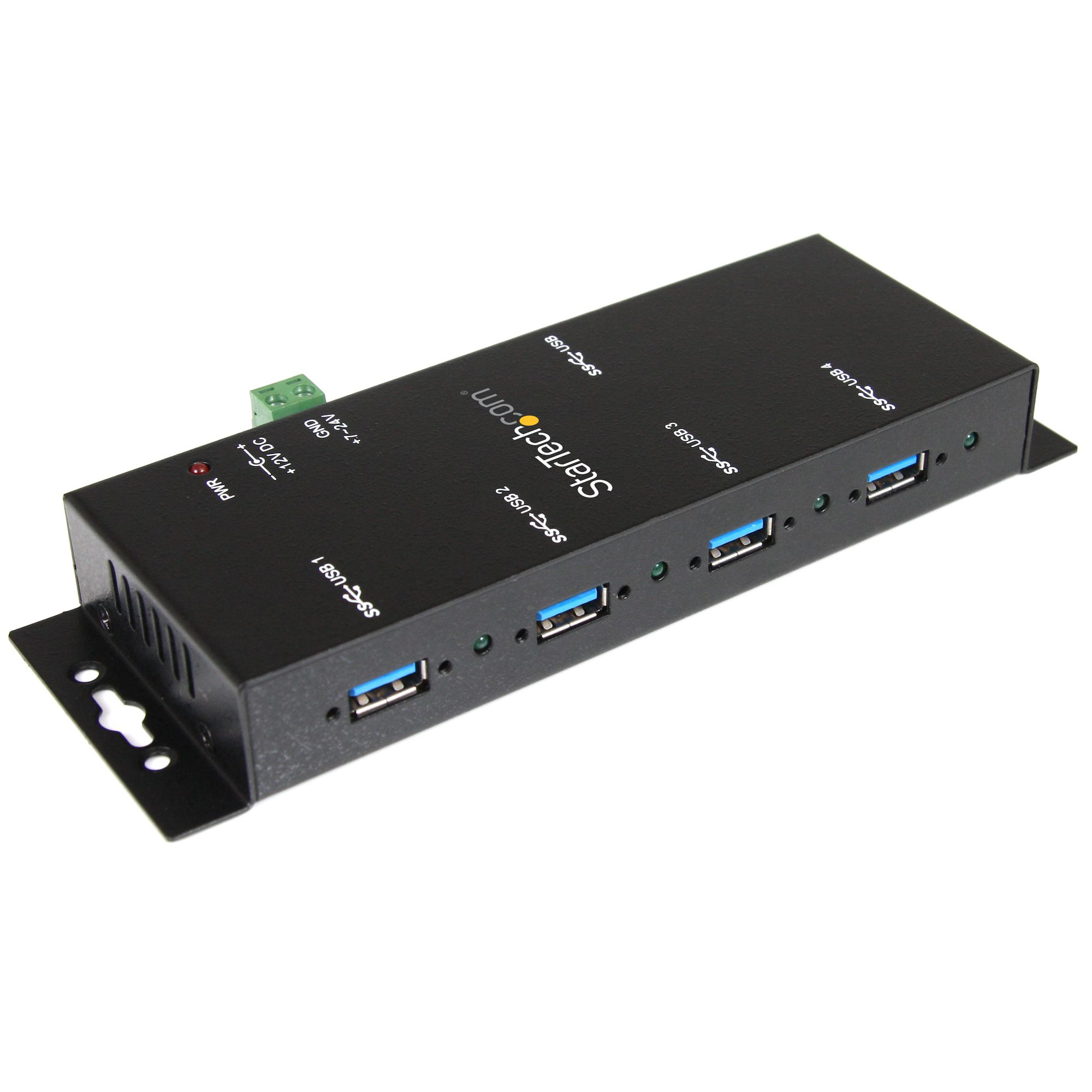

This TAA compliant 4-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

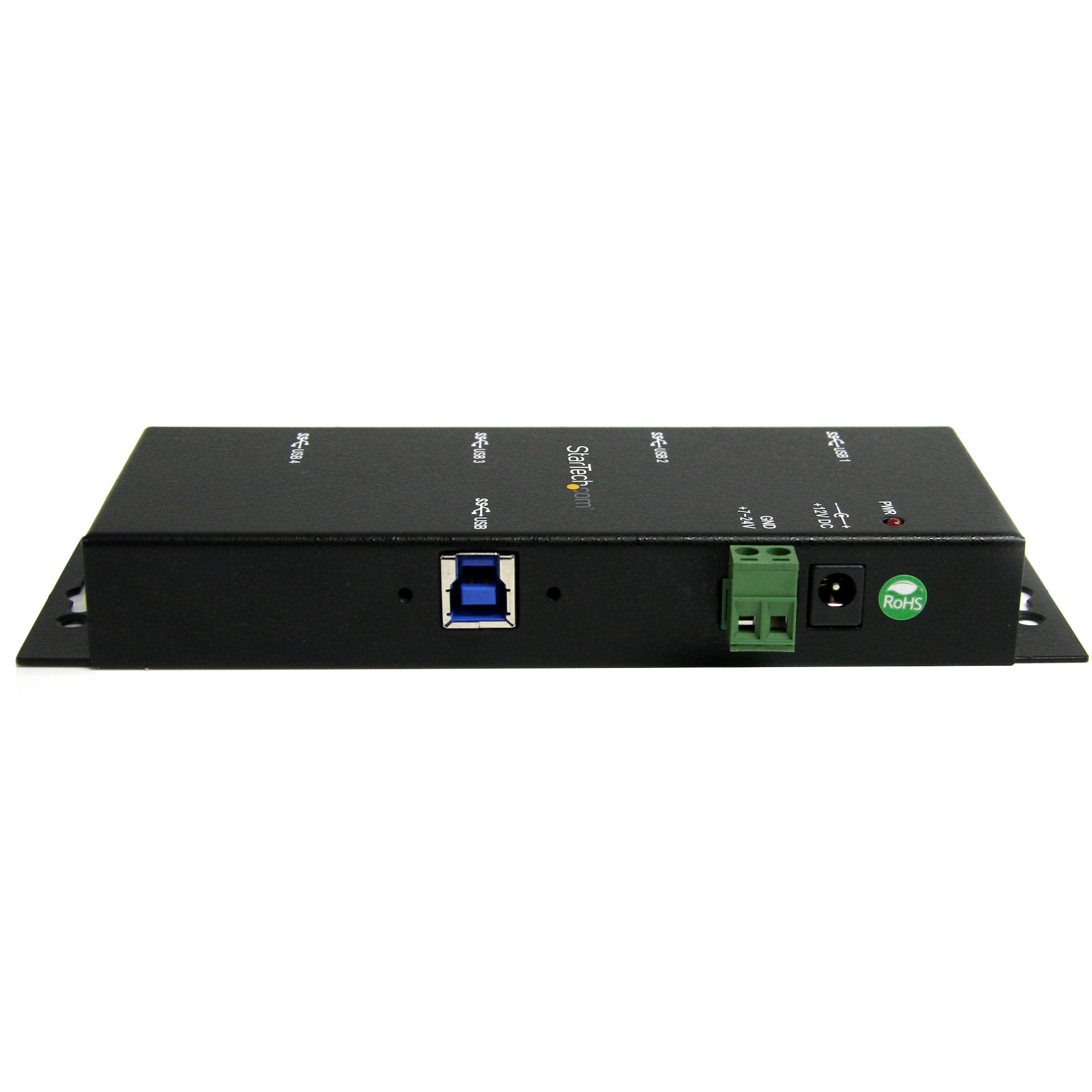

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

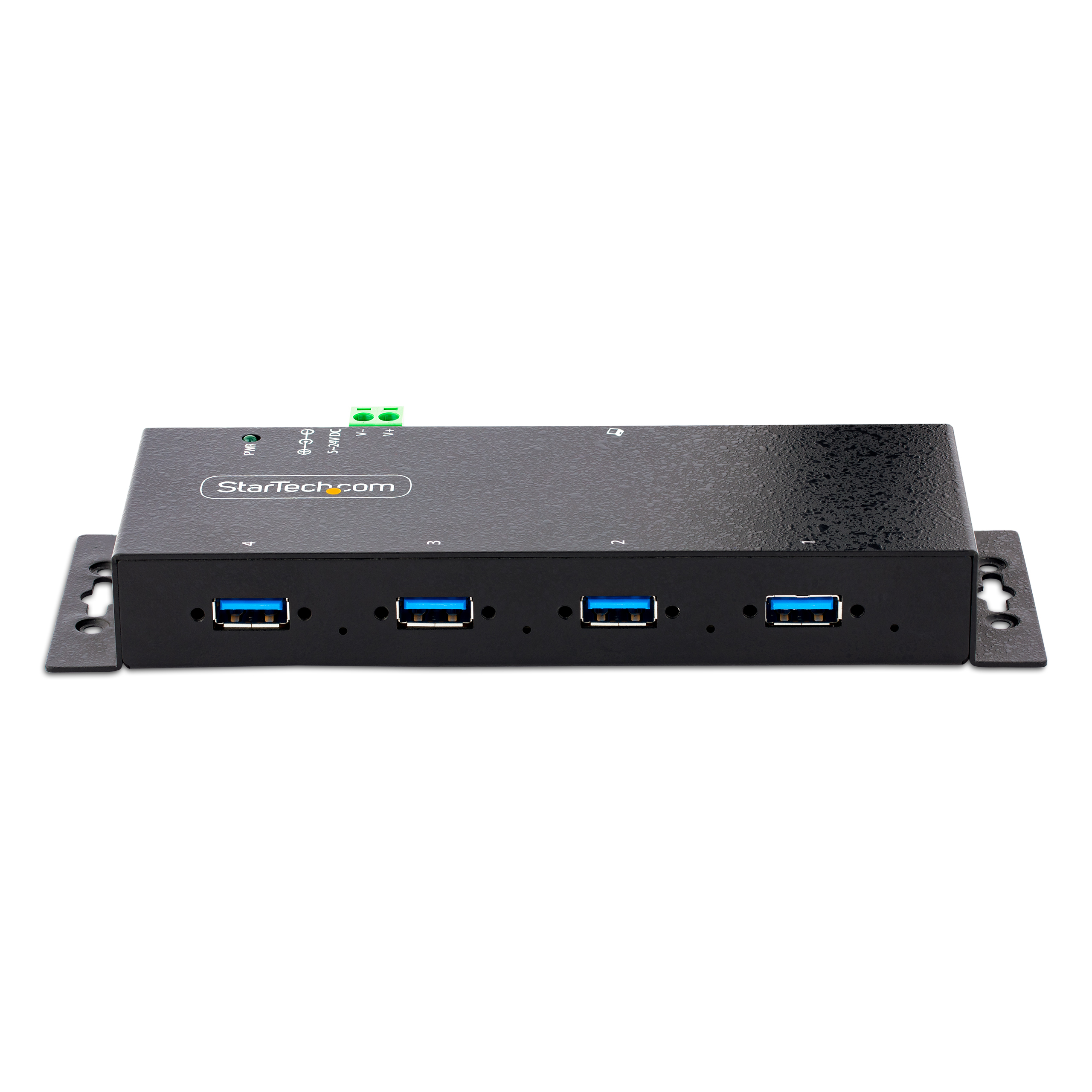

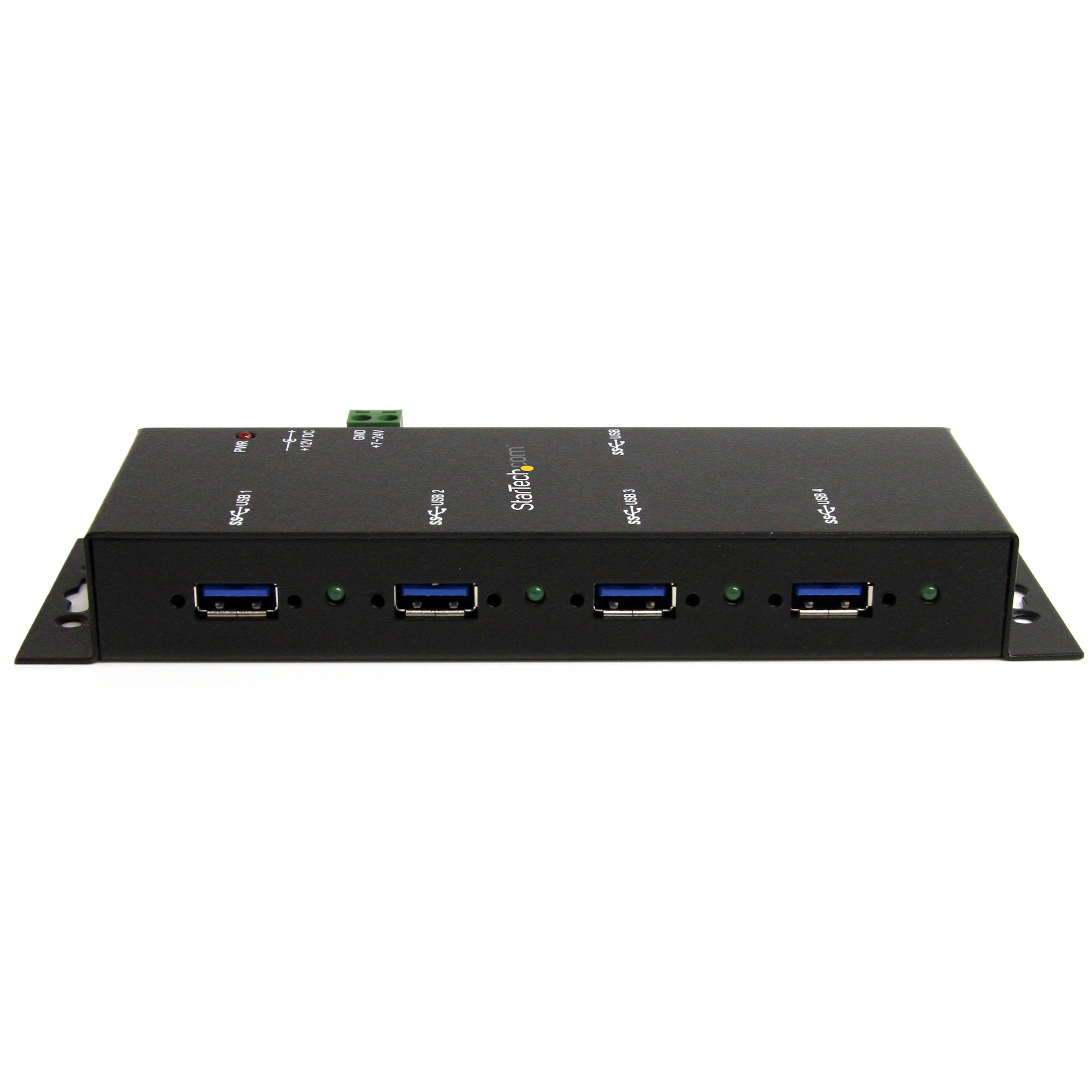

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers four connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

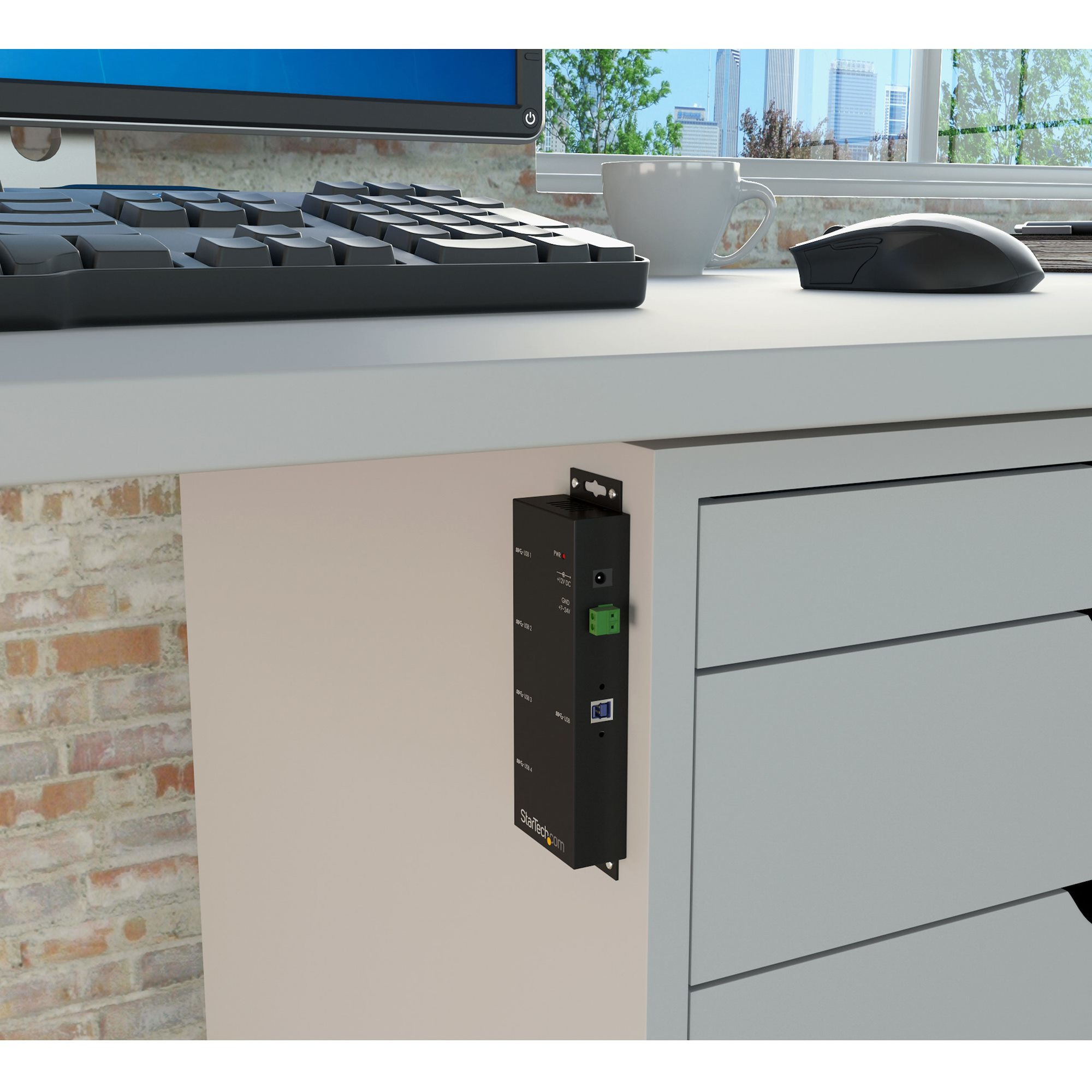

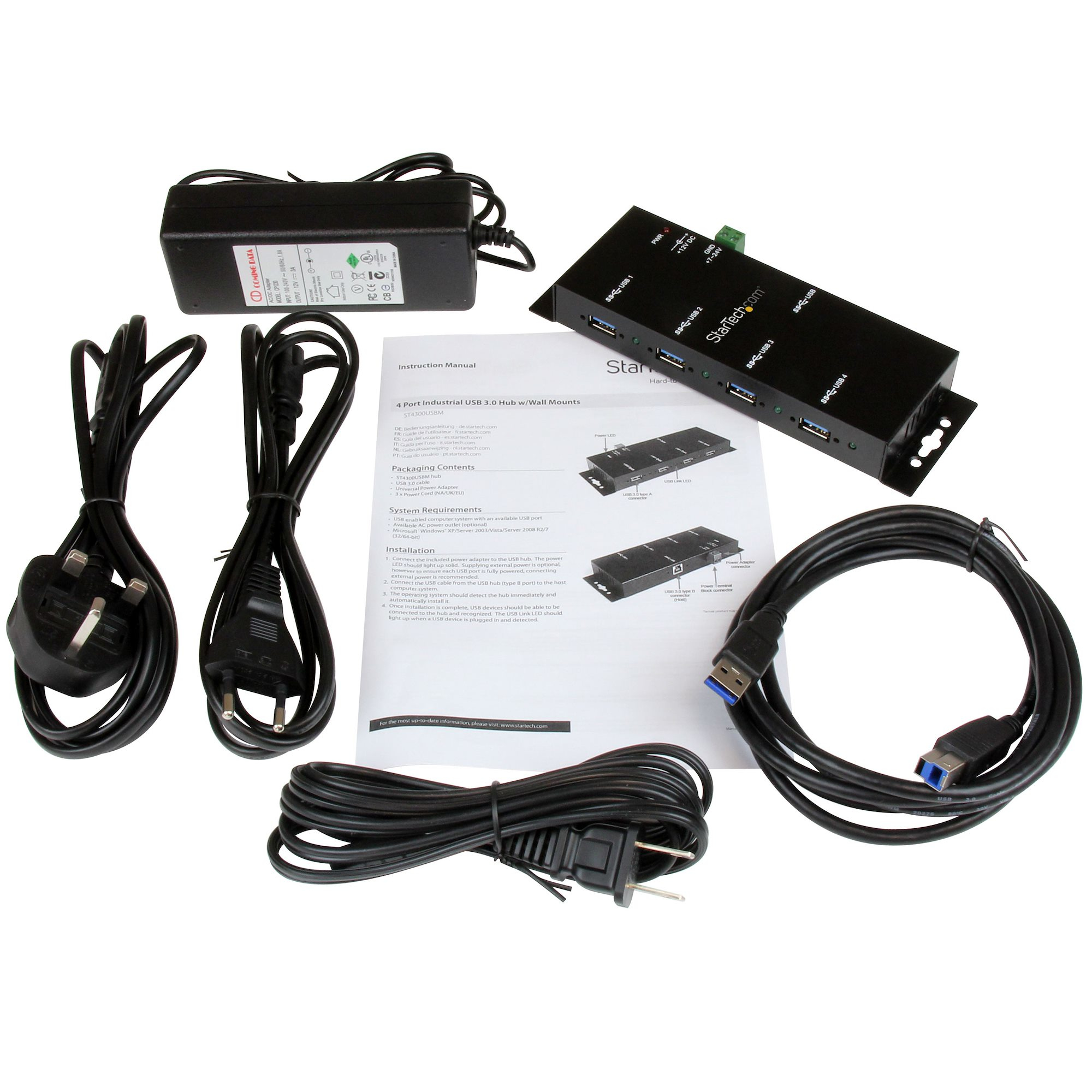

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST4300USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
