Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 HDMI ports quantity 1 Headphone outputs 1 DisplayPorts quantity 1 Headphone connectivity 3.5 mm USB connector type USB Type-A DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Wake-on-LAN ready Yes Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product color Black Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 3840 x 2160 pixels Cable lock slot Yes LED indicators Activity, Link Charging function Yes UASP support Yes Housing material Plastic, Steel Brand compatibility Any brand Certification CE, FCC, DisplayLink Power AC input voltage 100-240 V Input current 1.5 A Output voltage 5 V Output current 6.5 A Power consumption (typical) 32.5 W Compatible power plug types AU, EU, UK, US Wireless charging No Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 80 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Width 76 mm Depth 227 mm Height 24 mm Weight 277 g Packaging data Package width 251 mm Package depth 198 mm Package height 71 mm Package weight 1.1 kg Packaging content Cables included AC, USB AC adapter included Yes Manual Yes Drivers included Yes Technical details Compliance certificates RoHS Logistics data Quantity per master (outer) case 10 pc(s) Master (outer) case width 390 mm Master (outer) case length 426 mm Master (outer) case height 302 mm Quantity per shipping (inner) case 150 pc(s) Harmonized System (HS) code 84733020 Other features Cable length 0.6 m Chipset DisplayLink - DL-5900, VLI - VL812 USB data transfer rates 5000 Mbit/s

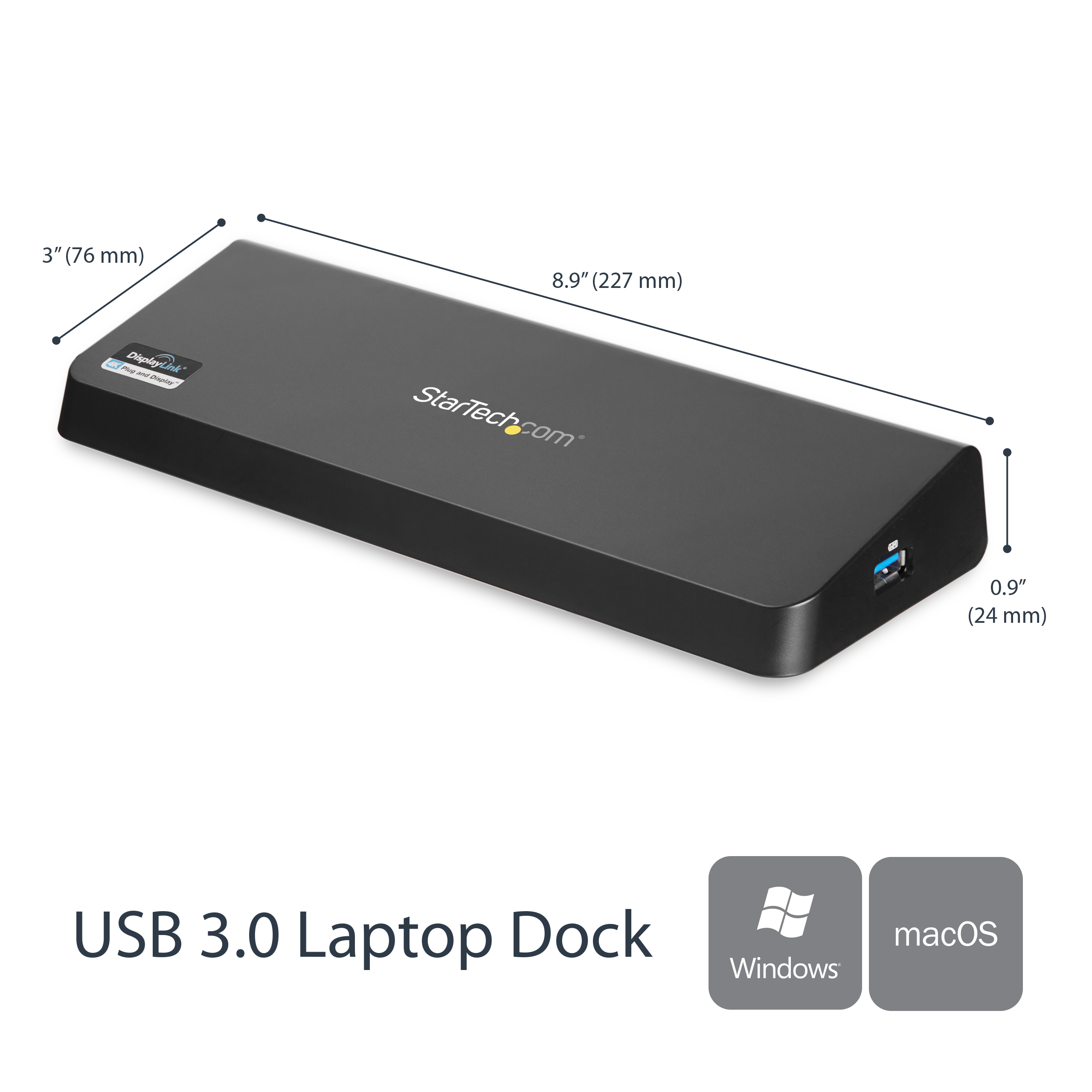

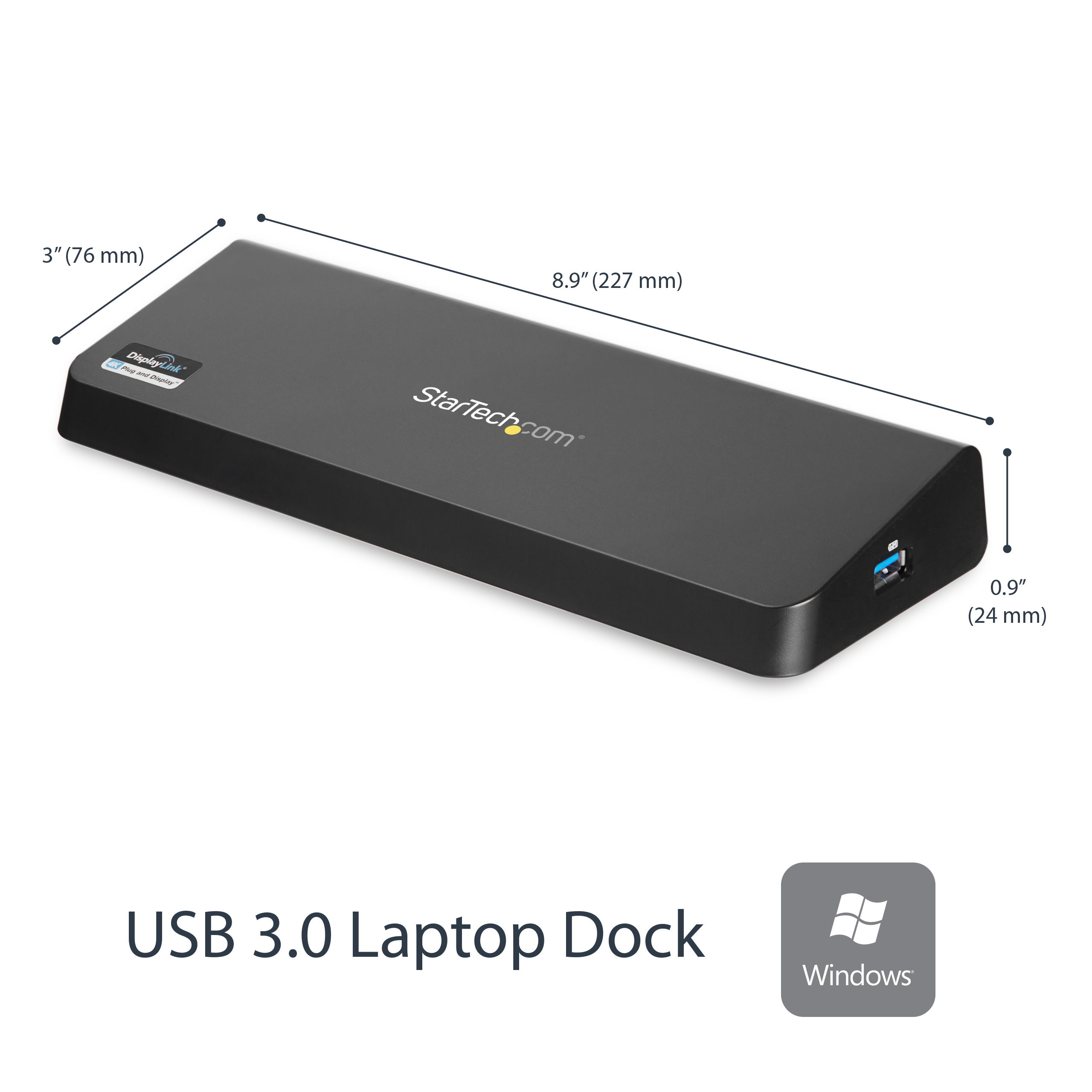

Laptop Docking Station | Mac & Windows® | USB Fast Charge Port | 4 USB Ports | TAA Compliant

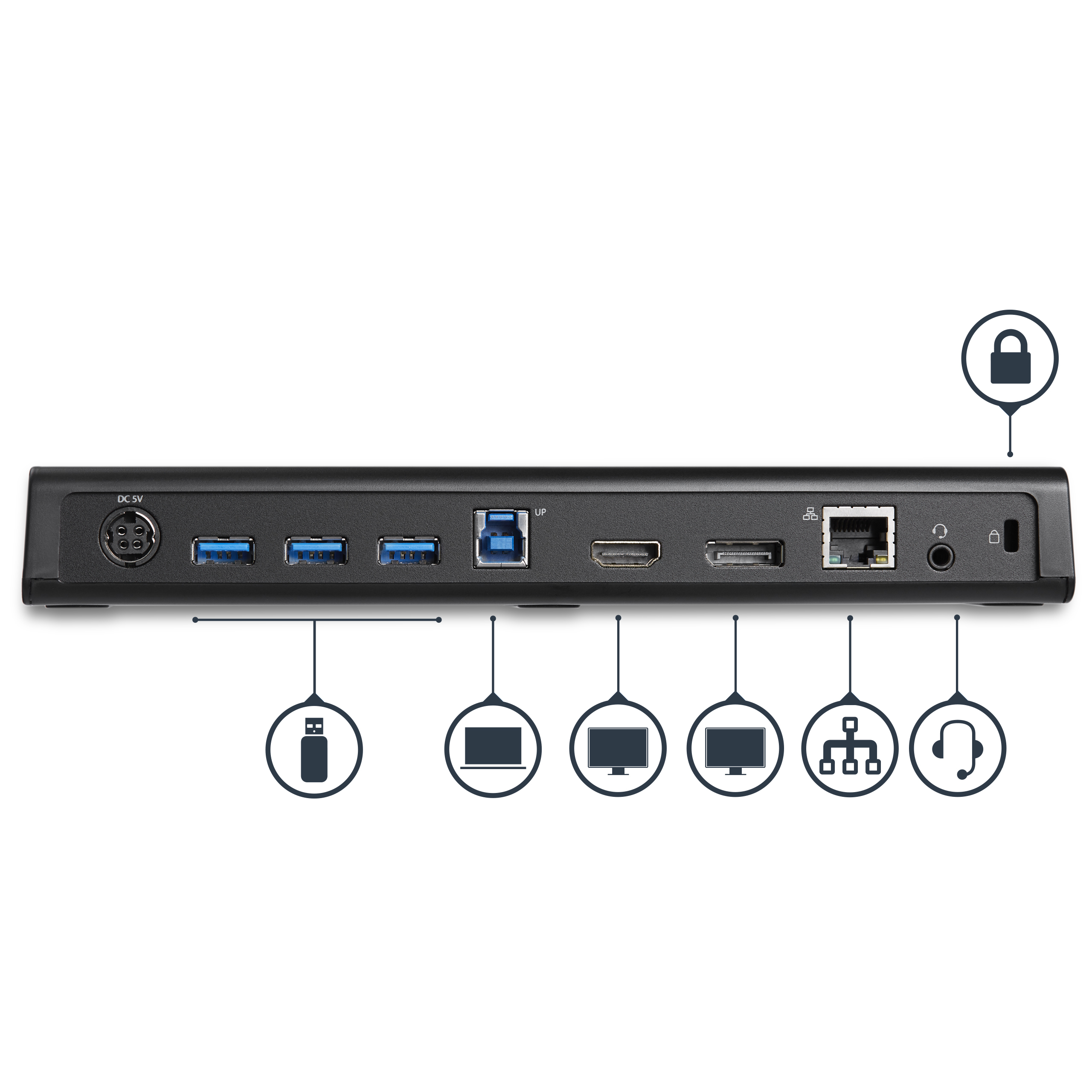

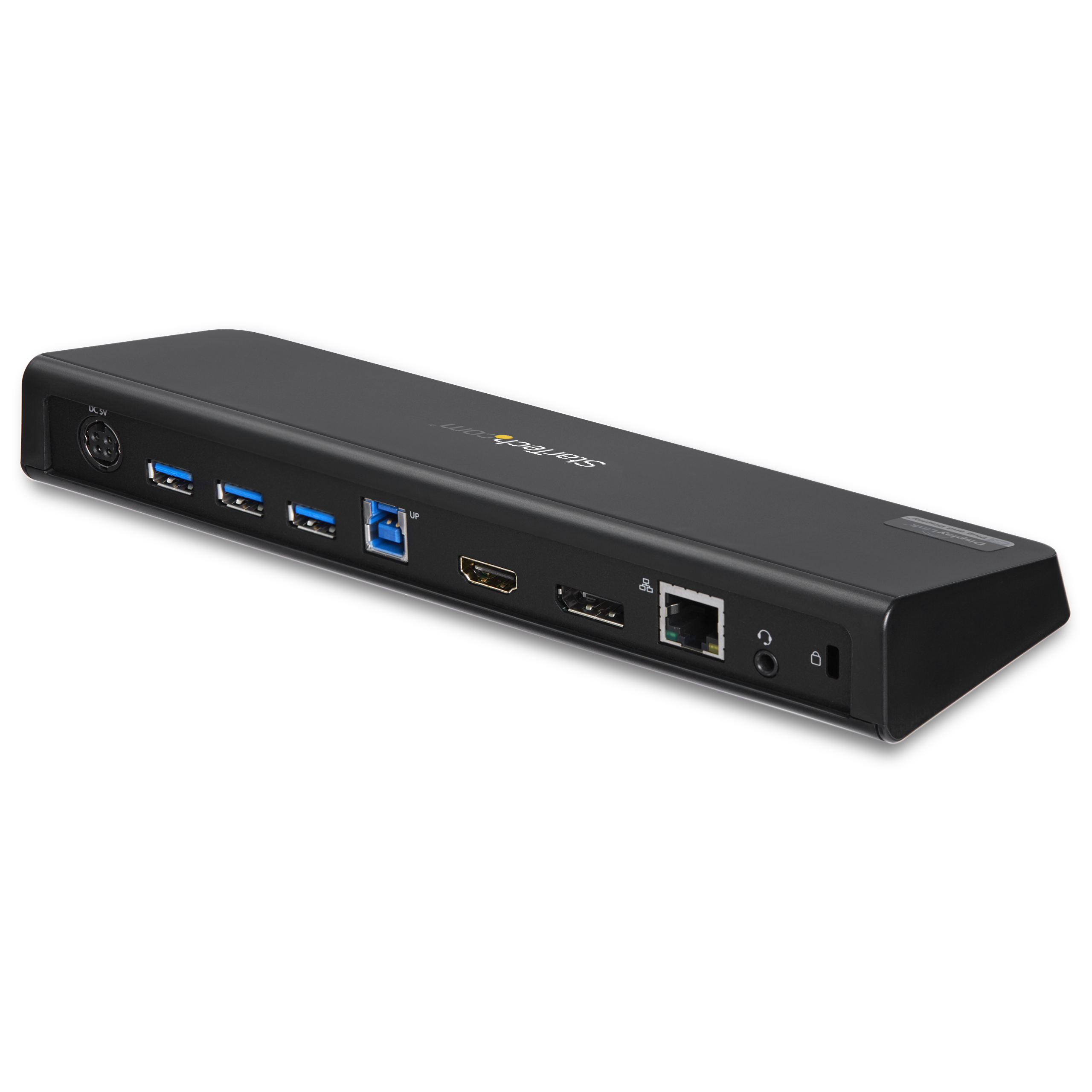

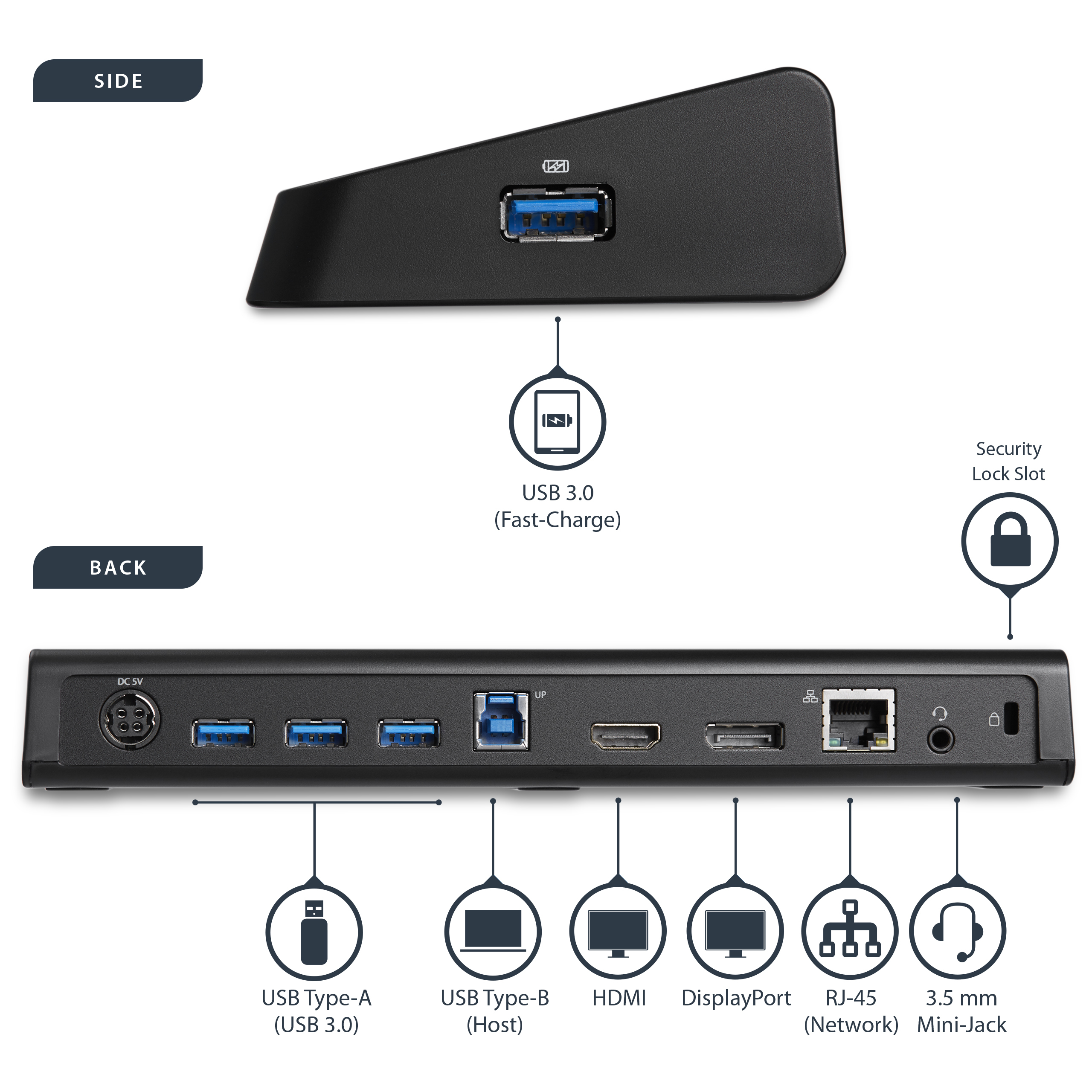

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions

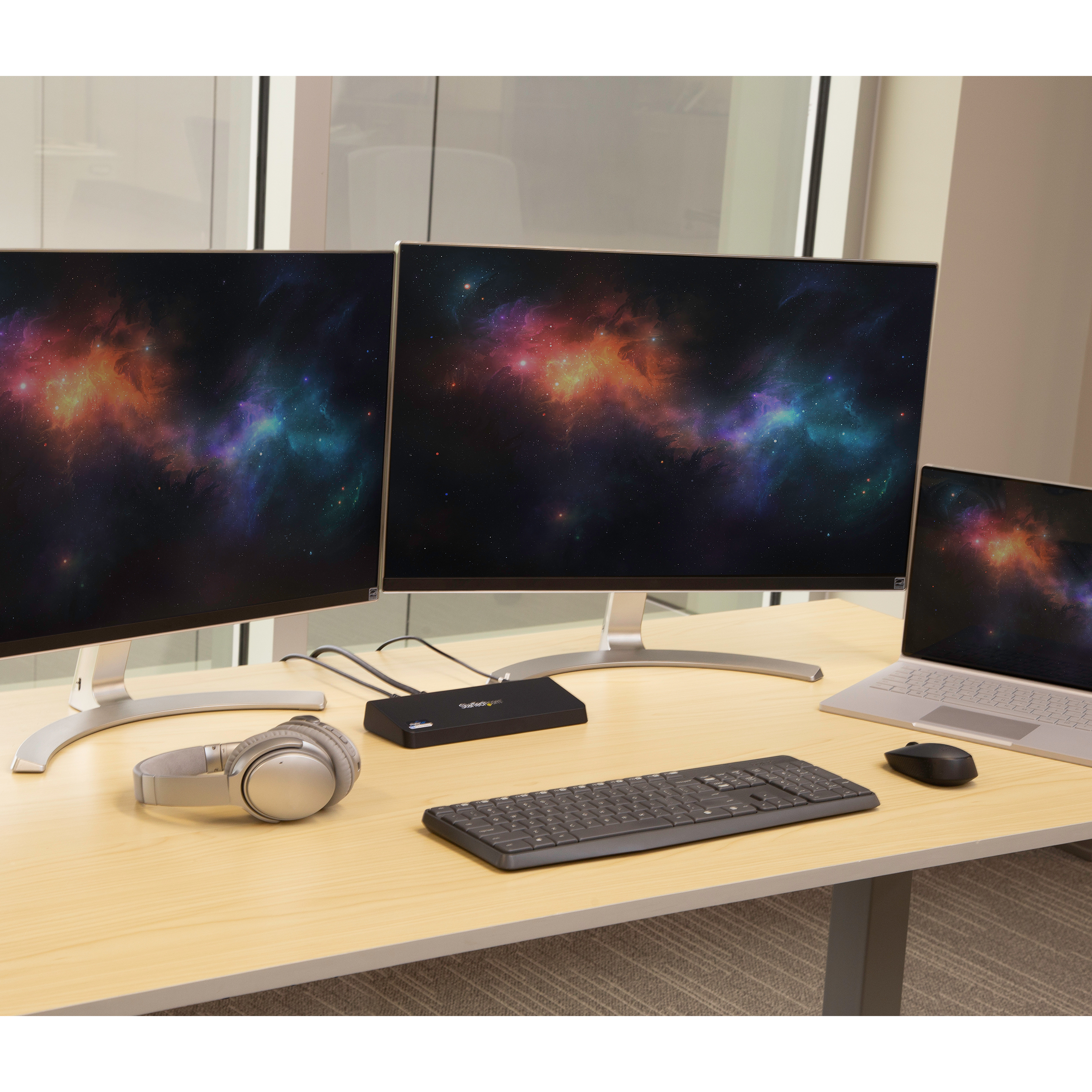

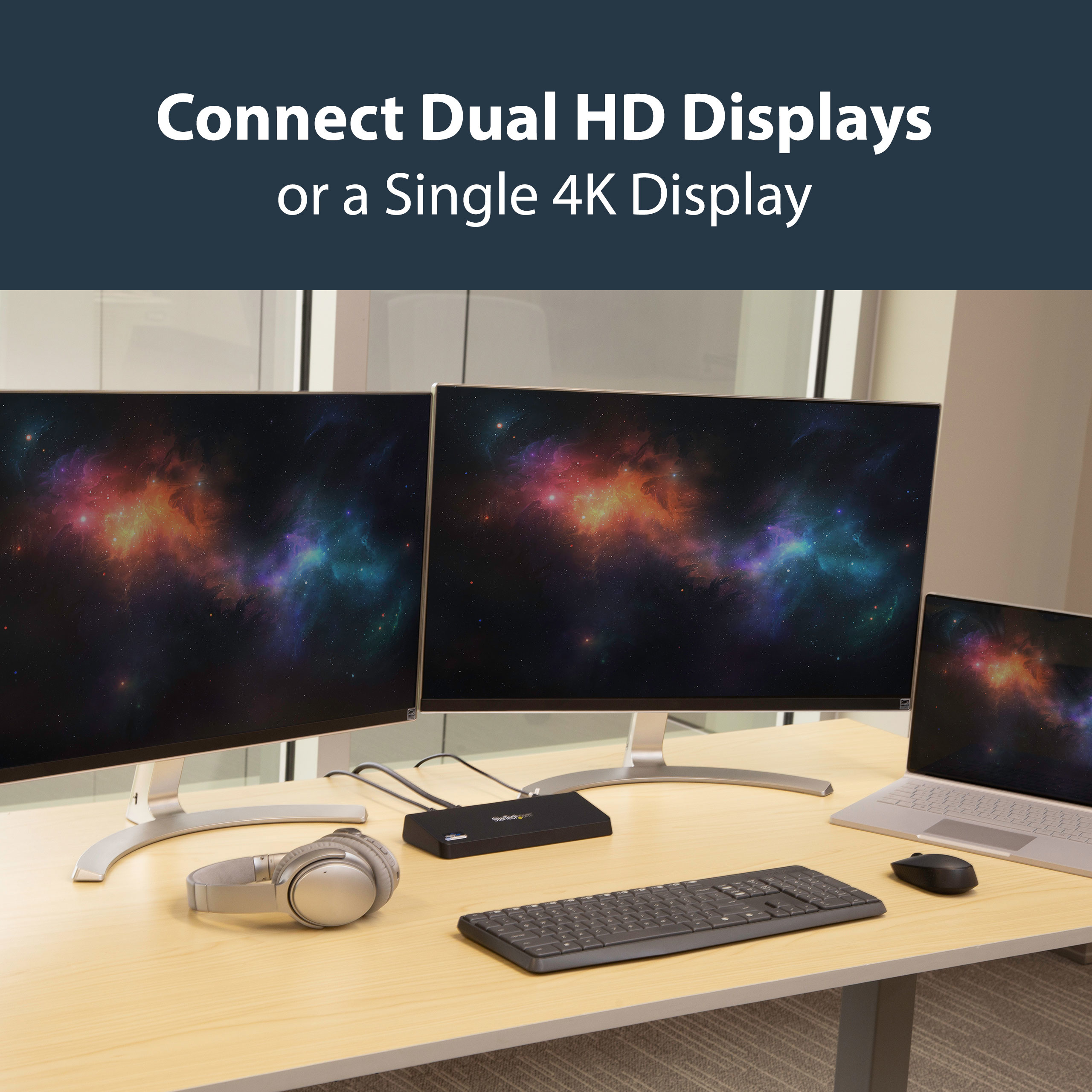

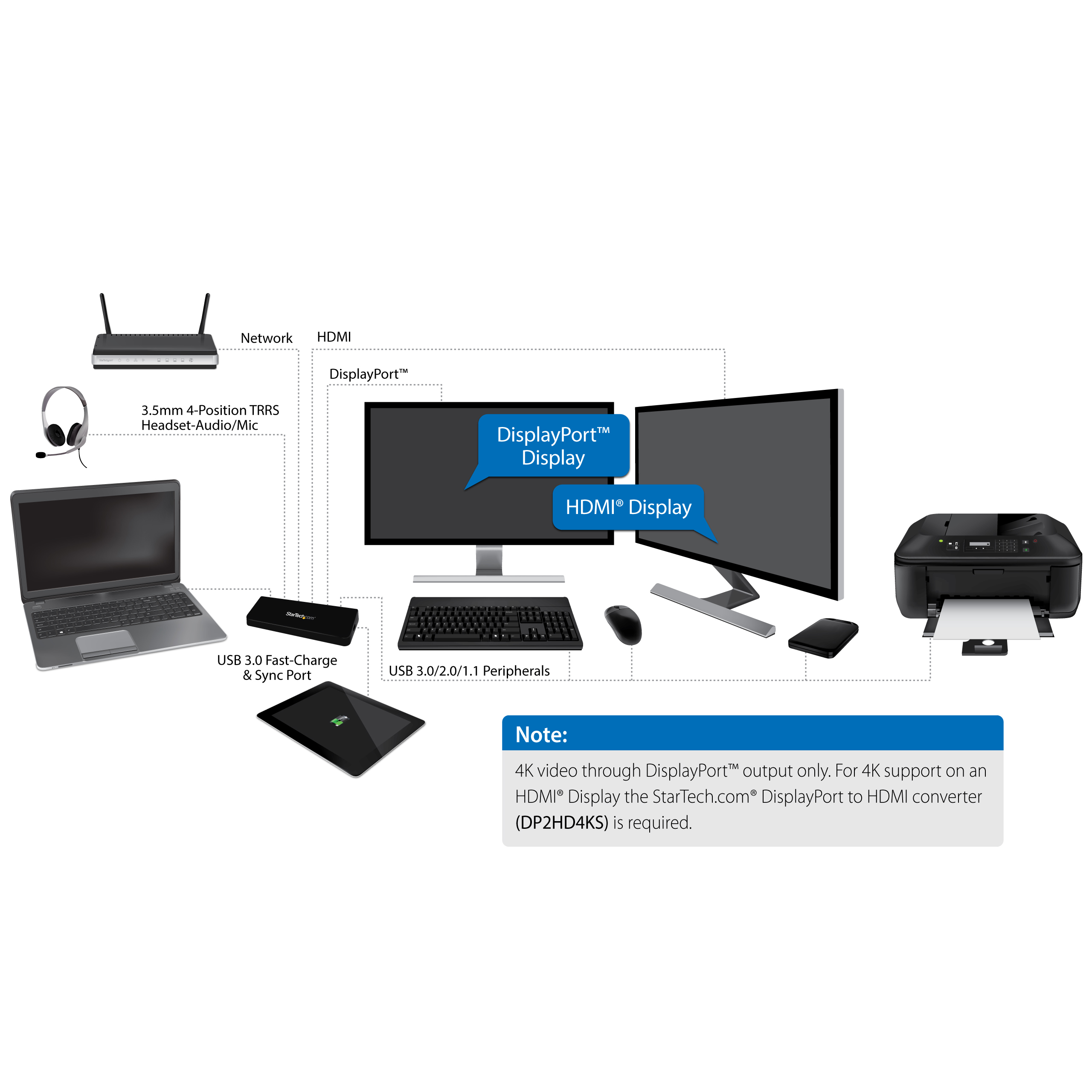

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

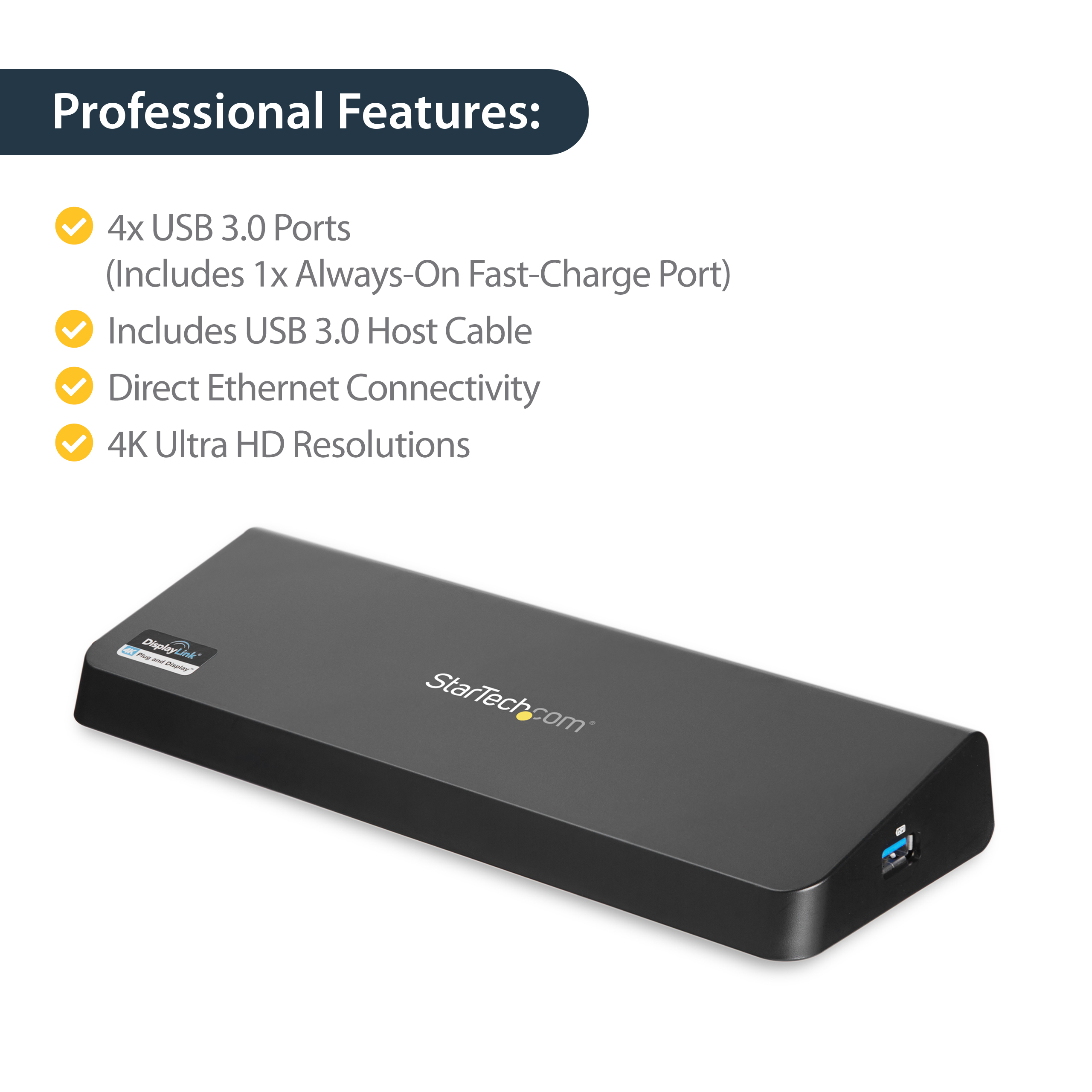

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

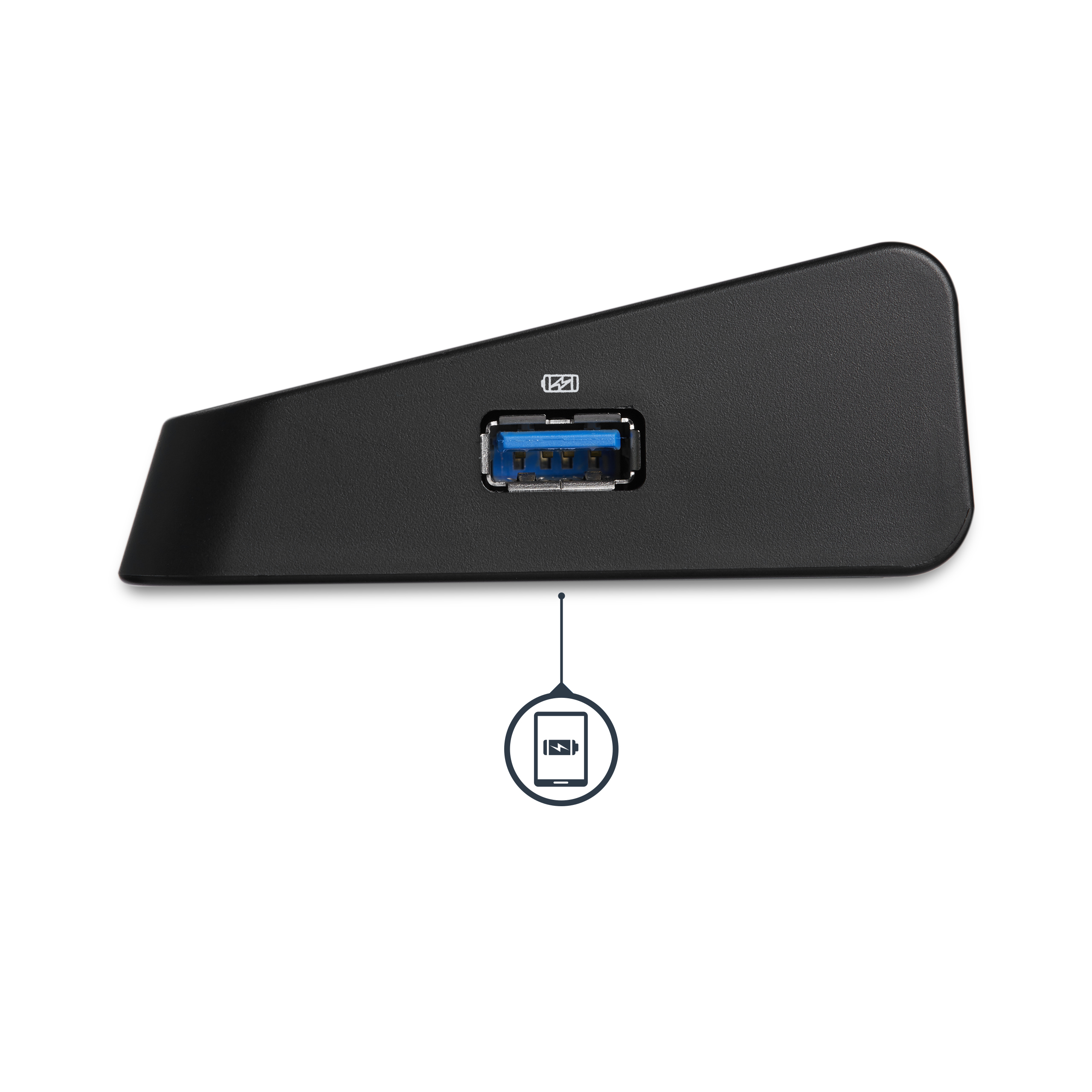

USB Fast Charge

The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use

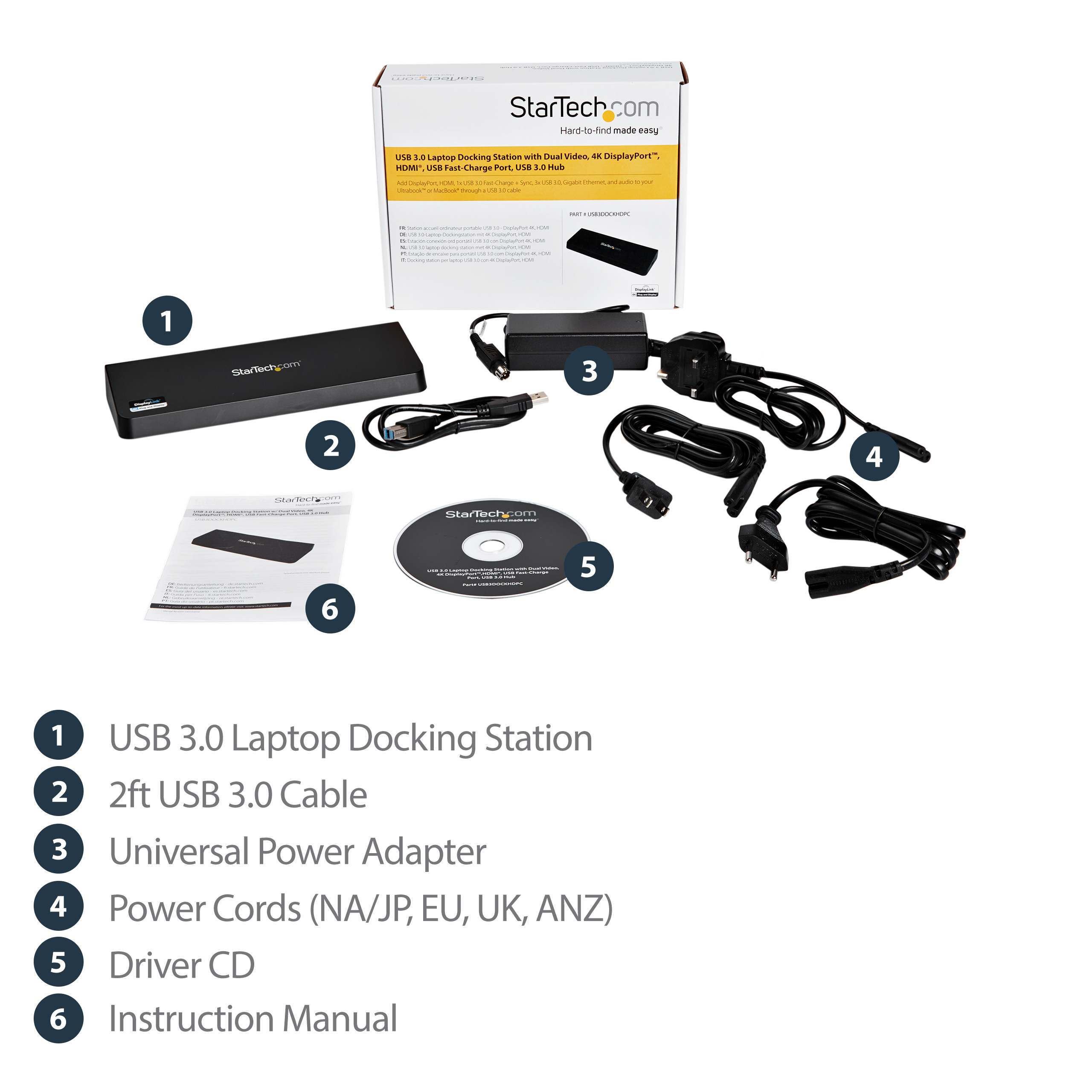

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
