Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5 HDMI ports quantity 1 Microphone in Yes Headphone outputs 2 DisplayPorts quantity 2 Combo headphone/mic port Yes Headphone connectivity 3.5 mm USB connector type USB Type-A DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Wake-on-LAN ready Yes Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u Auto MDI/MDI-X Yes Full duplex Yes Performance Product colour Black, Silver Card reader integrated No Data transfer rate 5 Gbit/s Maximum digital resolution 3840 x 2160 pixels Cable lock slot Yes LED indicators Activity, Link UASP support Yes Housing material Plastic Brand compatibility Any brand Certification CE, FCC, DisplayLink, TAA, REACH Power AC input voltage 100-240 V Input current 1.5 A Output voltage 5 V Output current 6.5 A Power consumption (typical) 32.5 W Power plug type Type N Compatible power plug types AU, EU, UK, US Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 Mac compatibility Yes Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura Other operating systems supported ChromeOS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 80 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Width 82 mm Depth 270 mm Height 34 mm Weight 376 g Packaging data Package width 296 mm Package depth 164 mm Package height 71 mm Package weight 1.03 kg Packaging content Cables included USB AC adapter included Yes Manual Yes Technical details Compliance certificates RoHS Logistics data Products per master (outer) case 10 pc(s) Master (outer) case width 363 mm Master (outer) case length 373 mm Master (outer) case height 395 mm Harmonized System (HS) code 84733020 Other features Chipset DisplayLink - DL-5910, VLI - VL812 Number of microphone inputs 1 USB data transfer rates 5000 Mbit/s

Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

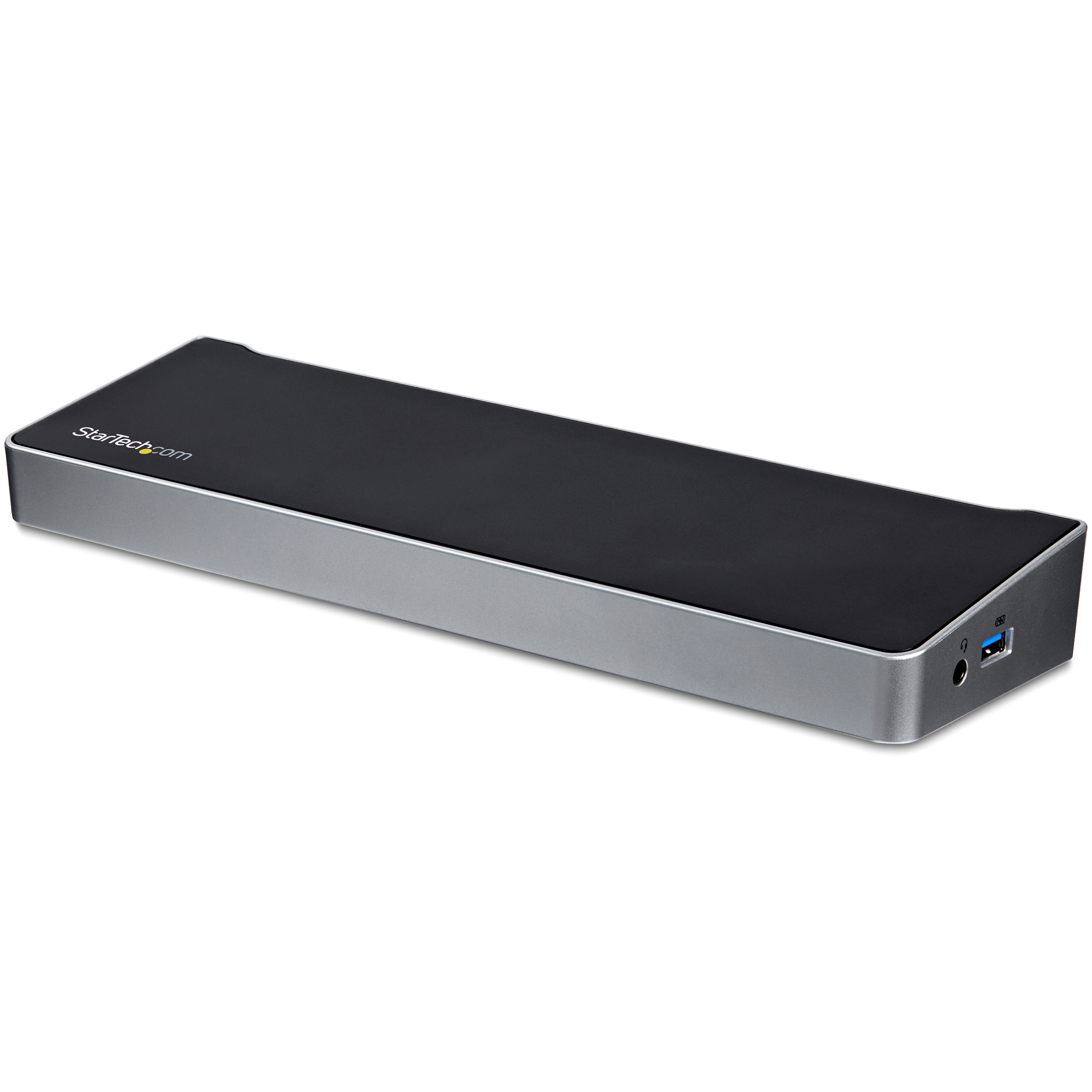

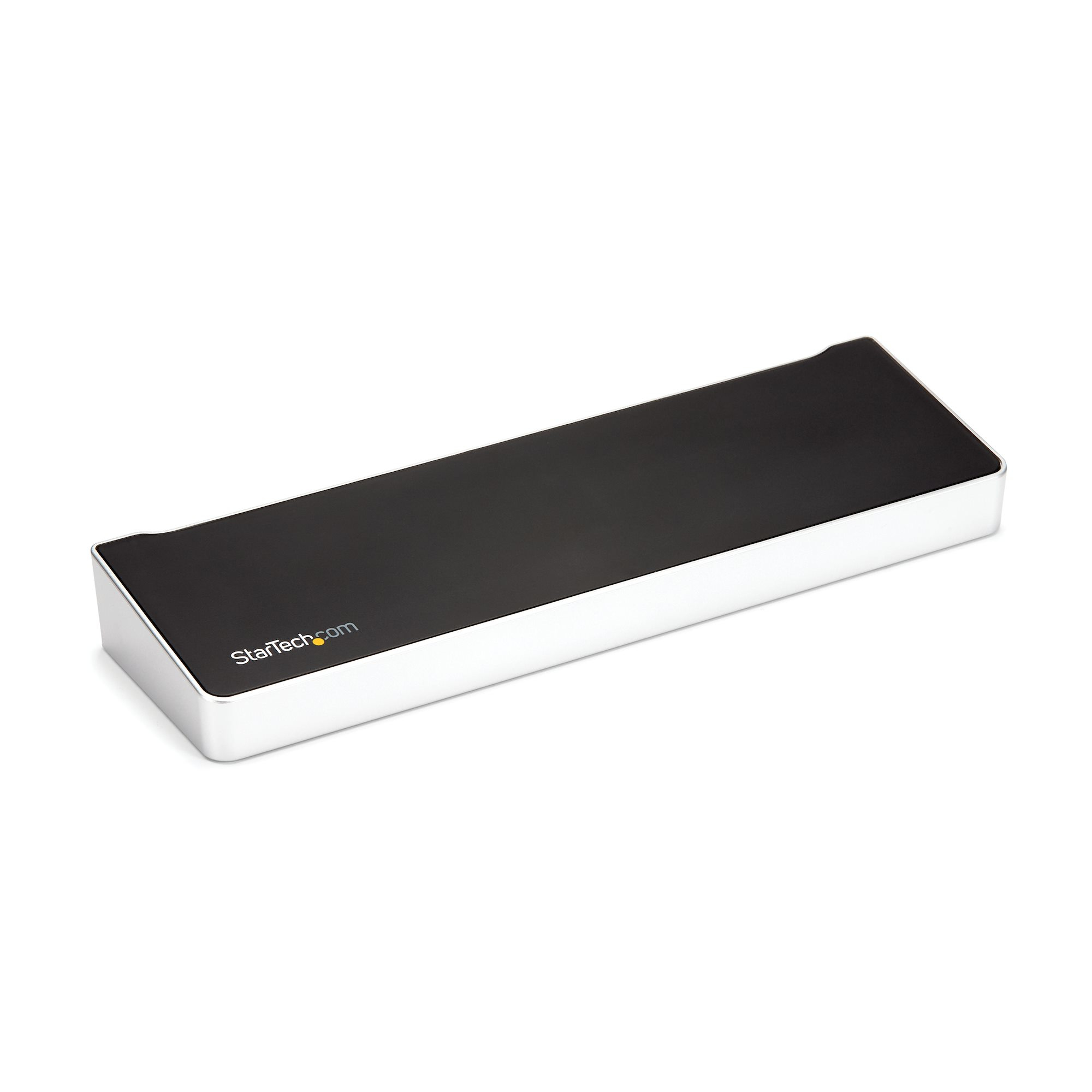

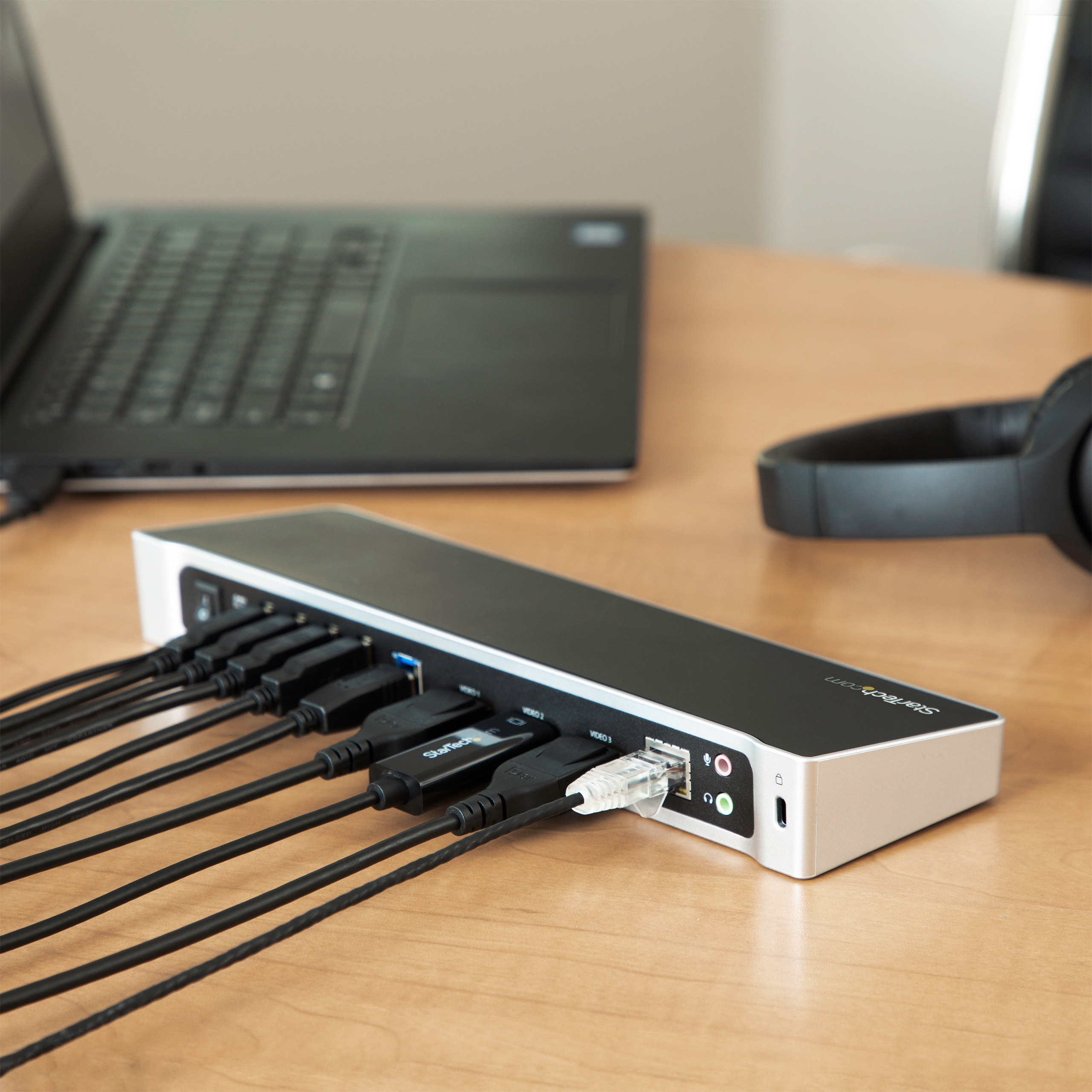

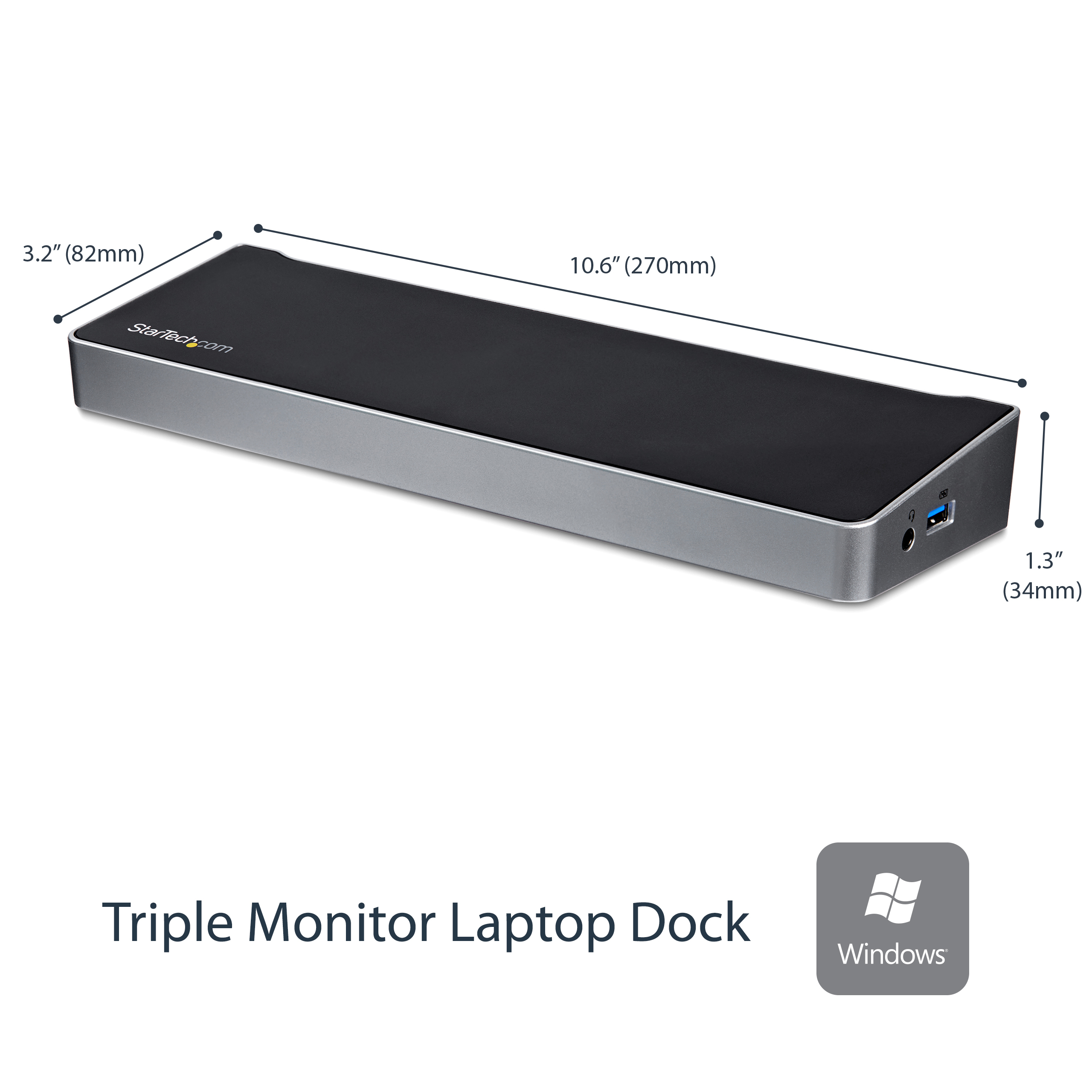

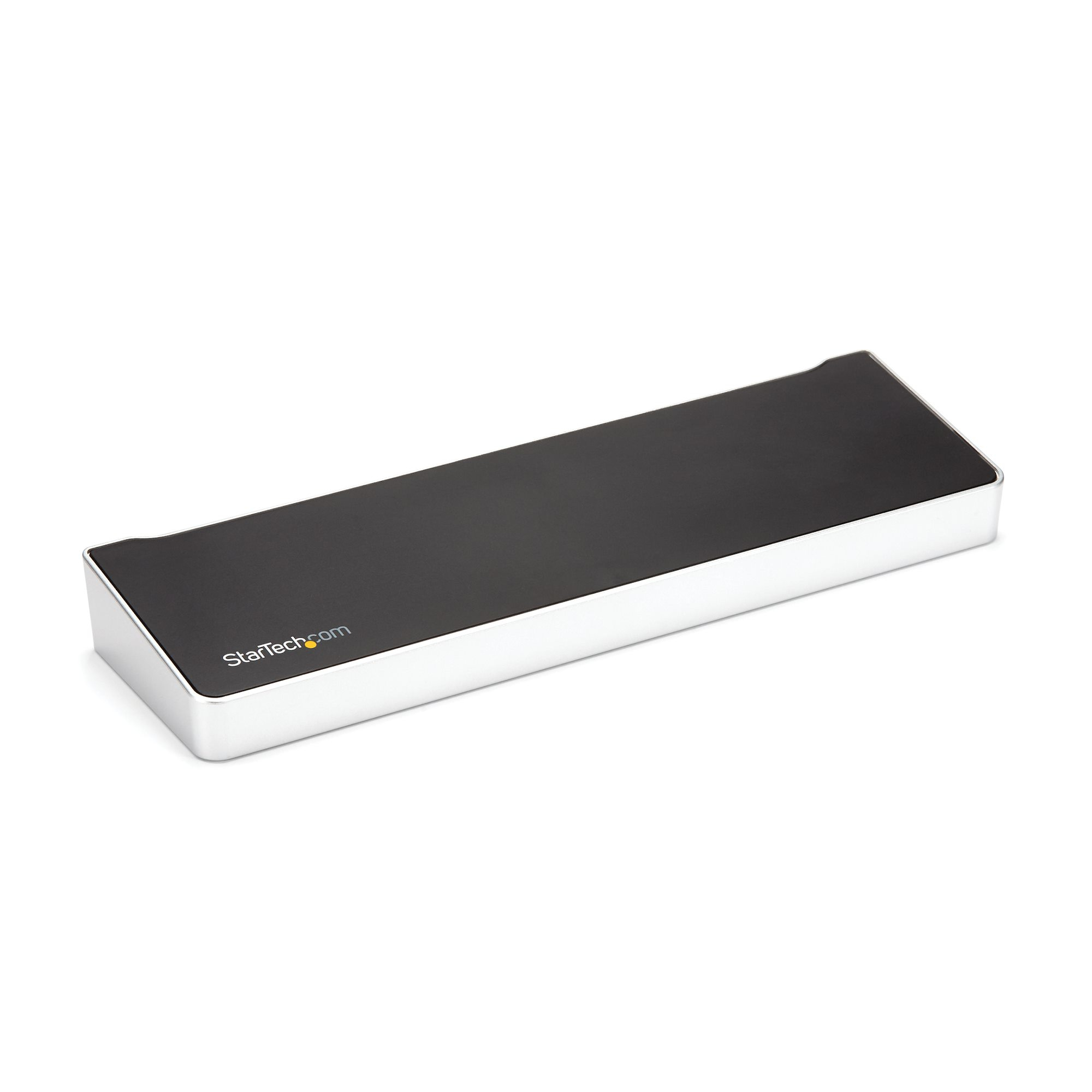

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

Powerful Connections and Fast Device Charging

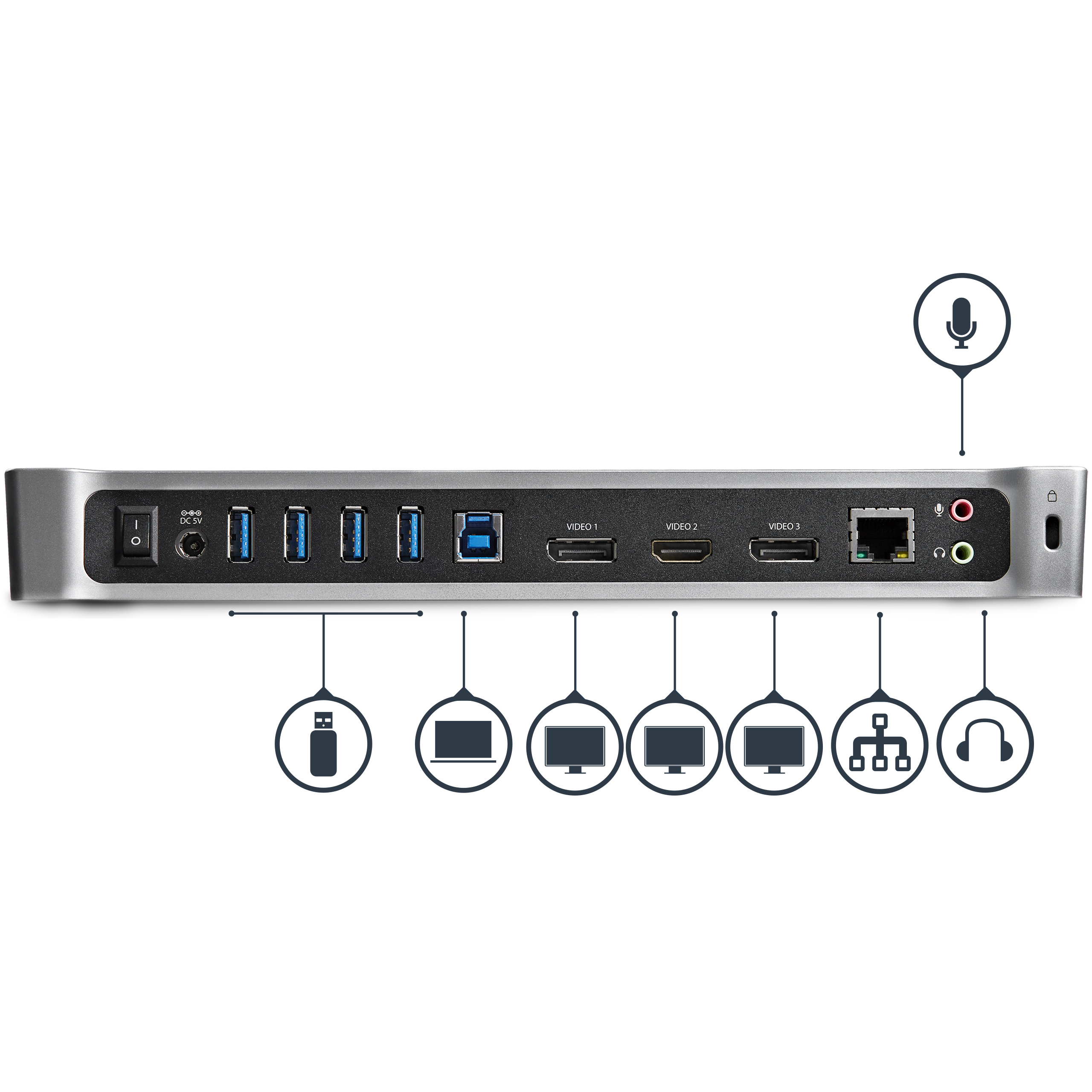

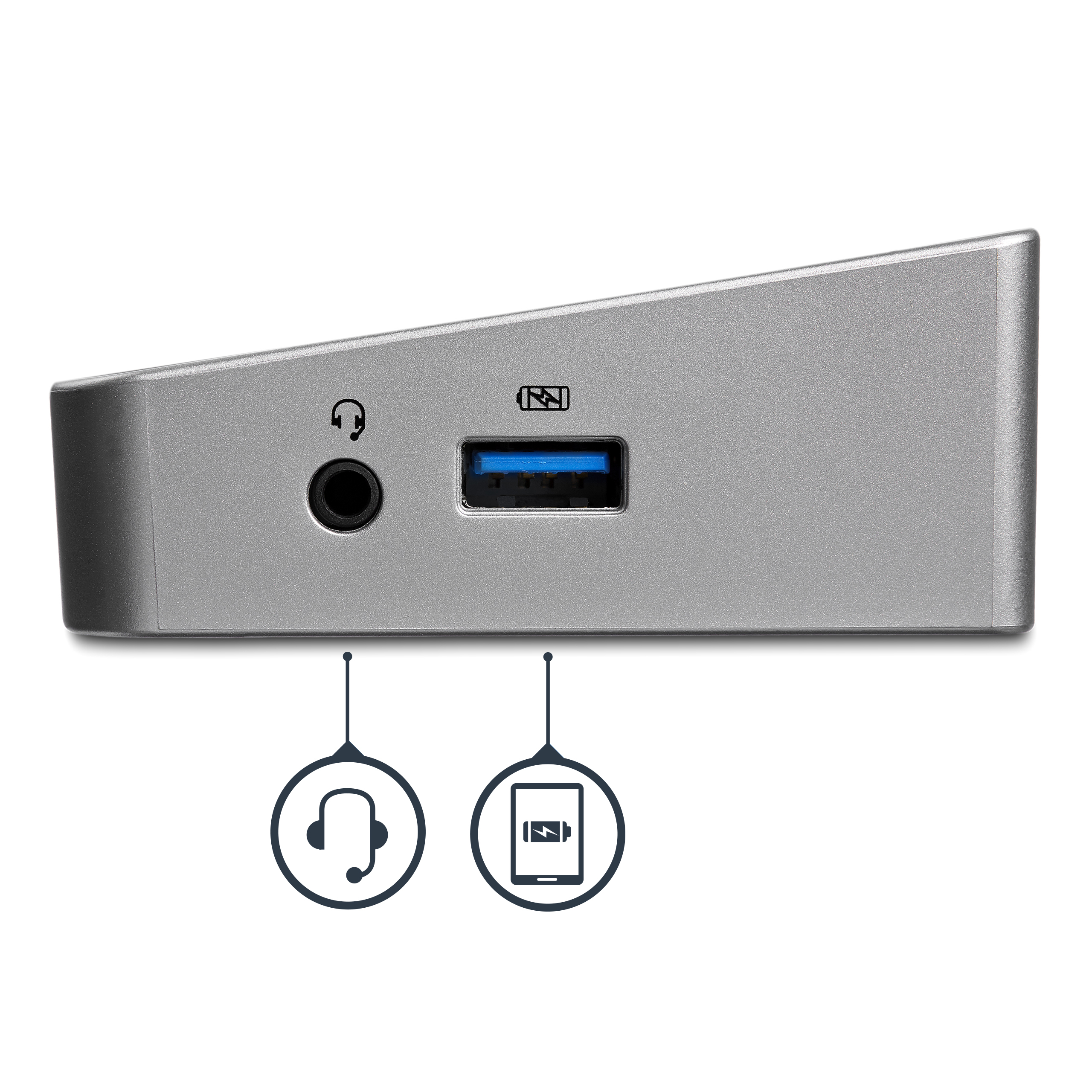

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
