Ports & interfaces Connectivity technology Wired Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 HDMI ports quantity 0 Microphone in No Headphone outputs 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB Power Delivery Yes USB Power Delivery up to 60 W VGA (D-Sub) ports quantity 1 Network Ethernet LAN No Ethernet LAN (RJ-45) ports 0 Performance Product color Black Card reader integrated No Data transfer rate 5 Gbit/s Maximum analog resolution 2048 x 1280 pixels UASP support Yes Housing material Plastic Brand compatibility Any brand Power Power source type USB Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensions Width 40 mm Depth 80 mm Height 15 mm Weight 39 g Packaging data Package width 145 mm Package depth 171 mm Package height 34 mm Package weight 109 g Technical details Compliance certificates CE, RoHS Logistics data Quantity per master (outer) case 60 pc(s) Master (outer) case width 338 mm Master (outer) case length 531 mm Master (outer) case height 315 mm Harmonized System (HS) code 84733020 Other features Cable length 0.14 m Chipset VIA/VLI - VL100, VIA/VLI - VL210, NXP - PTN3355 Sustainability Sustainability compliance Yes

Portable Docking Station | For Windows® & Mac | Thunderbolt™ 3 Compatible

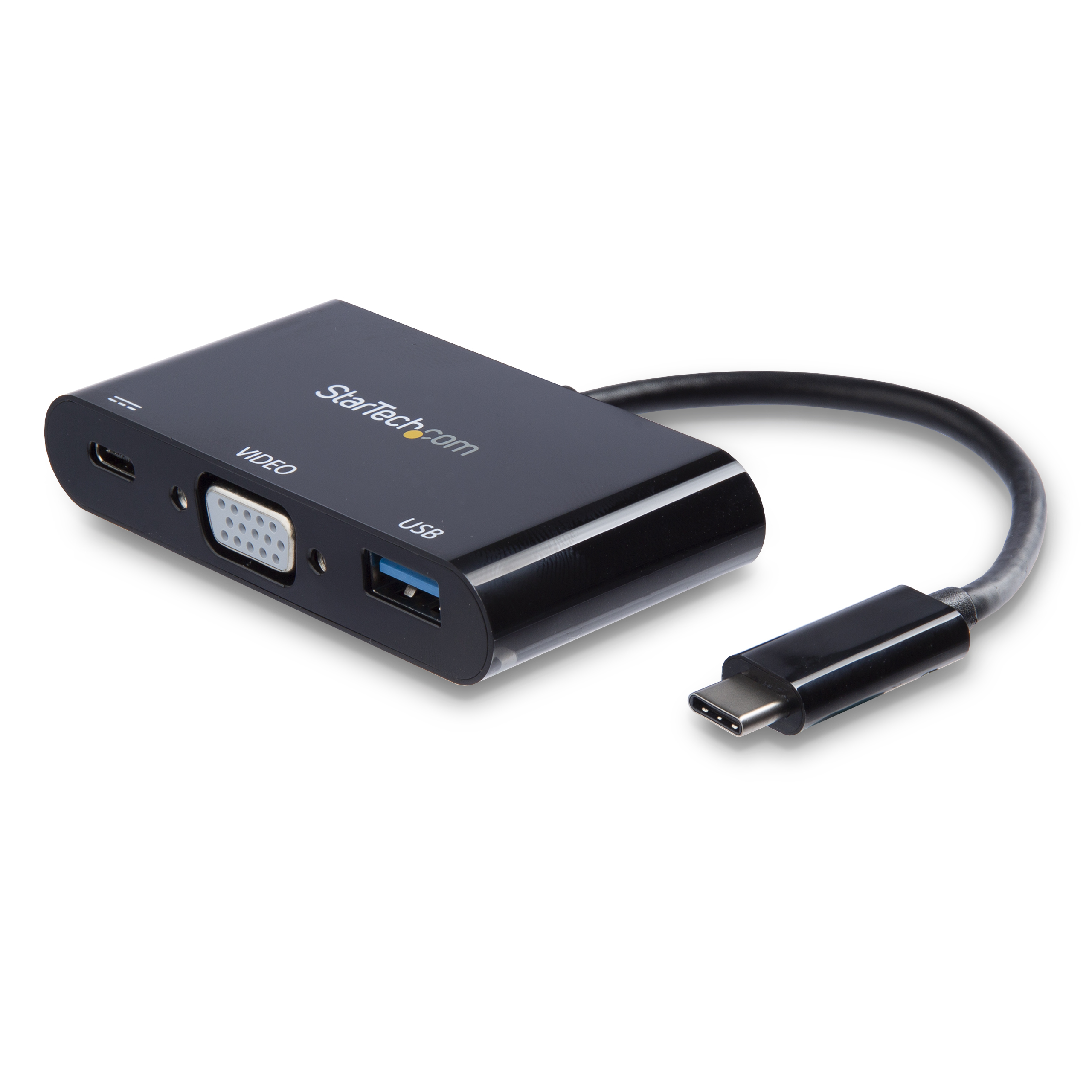

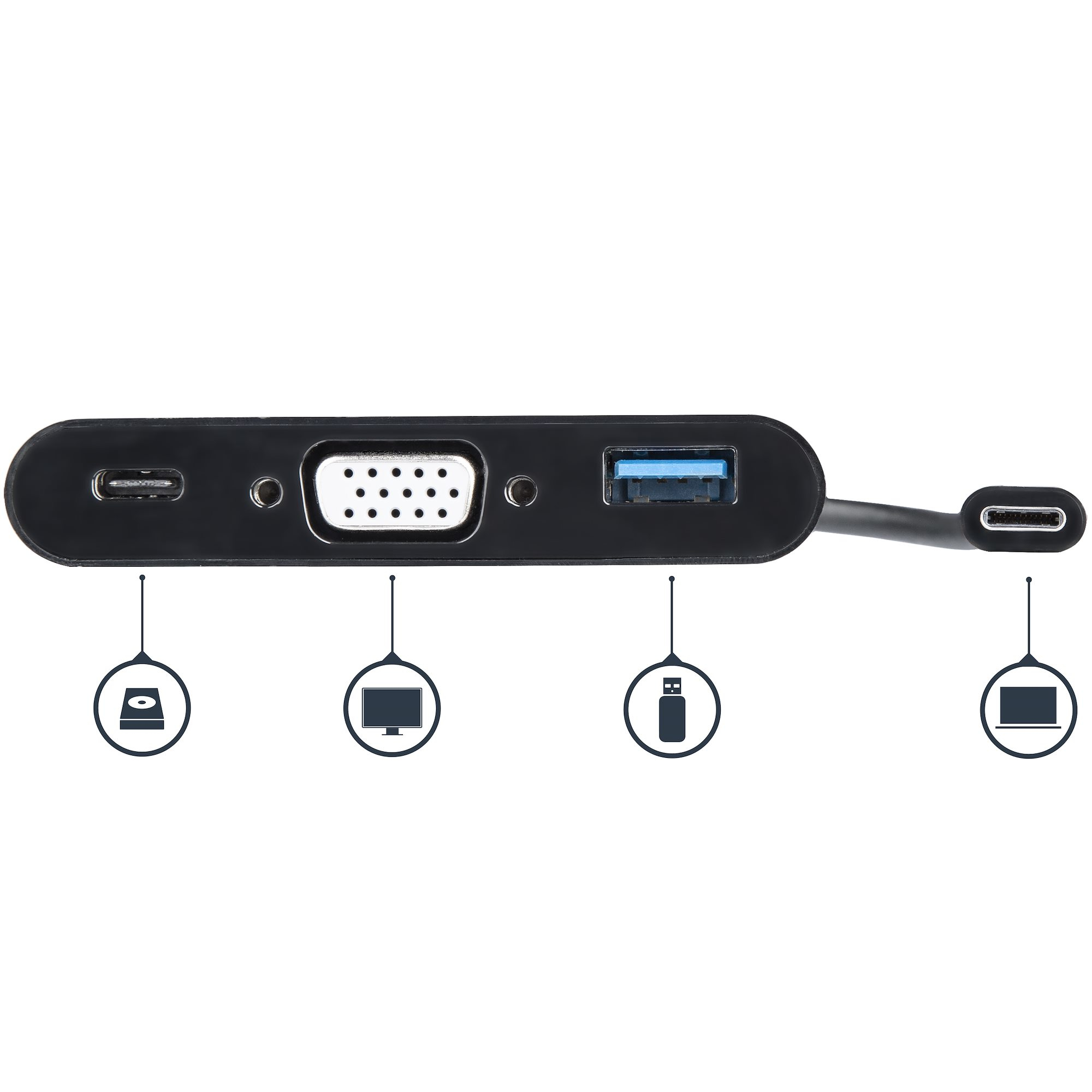

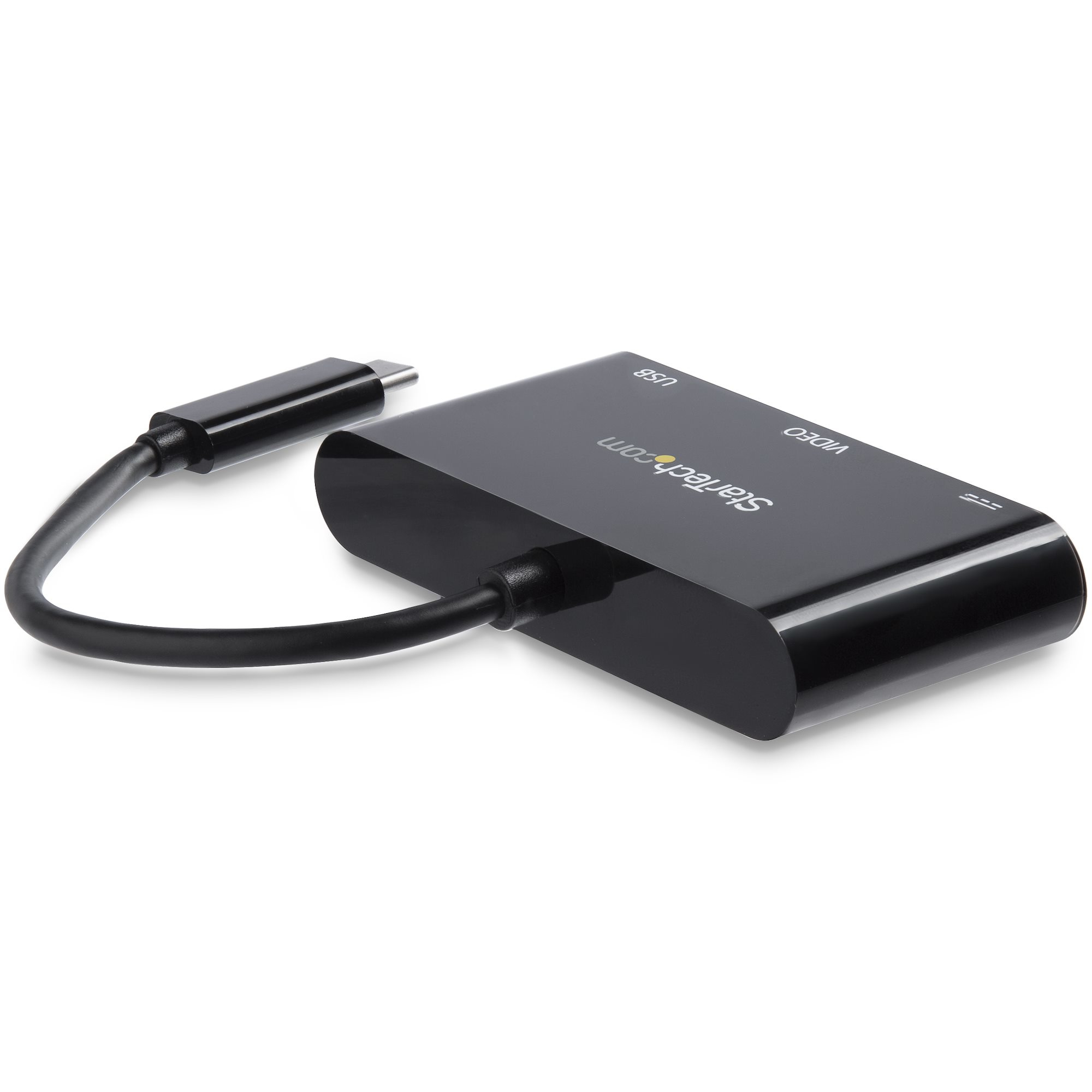

This USB-C VGA multiport adapter combines the capability of two single-function adapters, a USB-C video adapter and USB-C to USB adapter, into a portable docking station for your laptop. You can instantly connect to a VGA display and a USB 3.0 (Type-A) device, while also powering and charging your laptop using the same adapter.

Mobile Multitasking

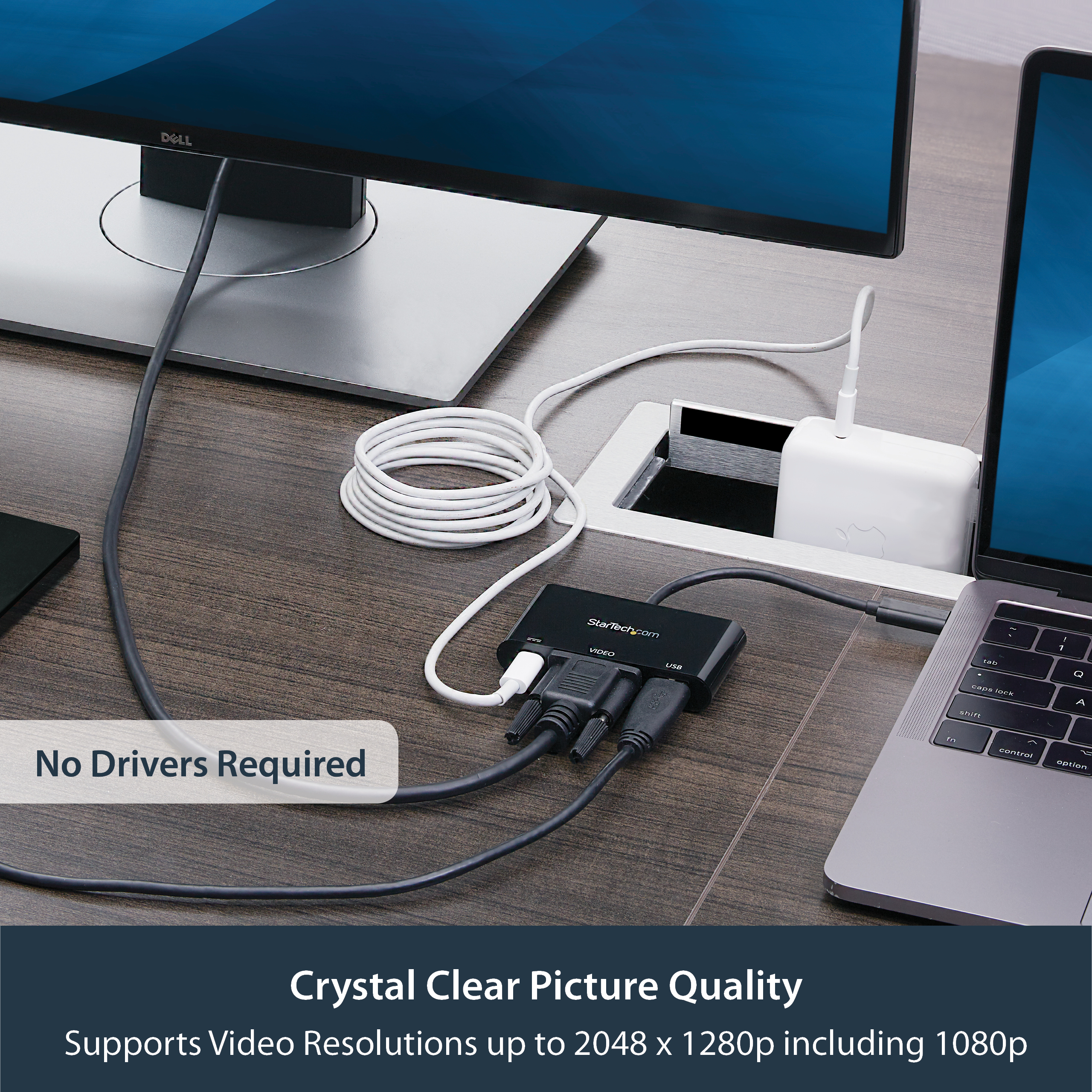

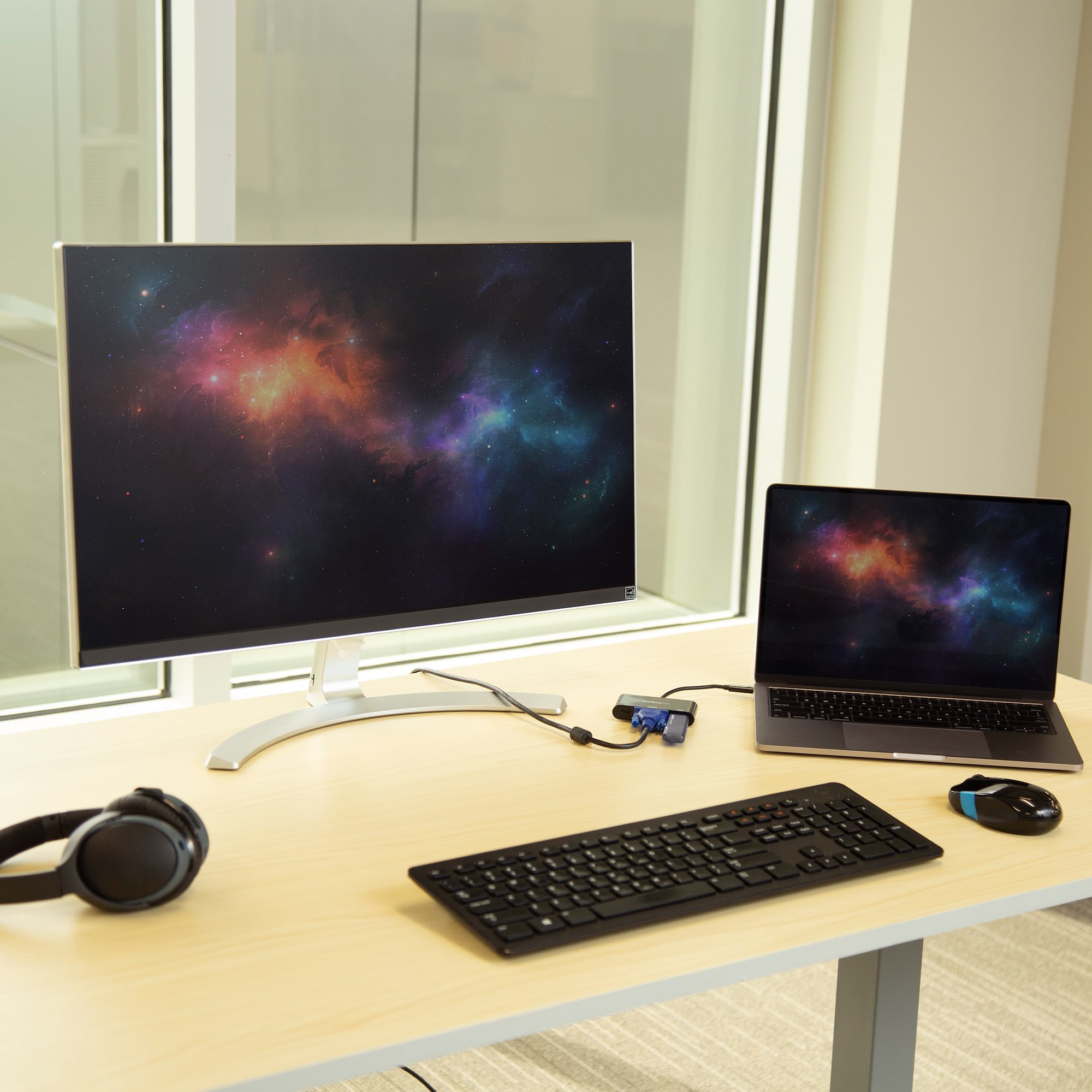

With a secondary display connected to your laptop, you can multitask faster and easier. The USB-C adapter’s VGA video output lets you create a dual-screen workstation comprised of your laptop’s display and an additional VGA monitor or projector, in a boardroom or other professional environment.

Powers and Charges Your Laptop

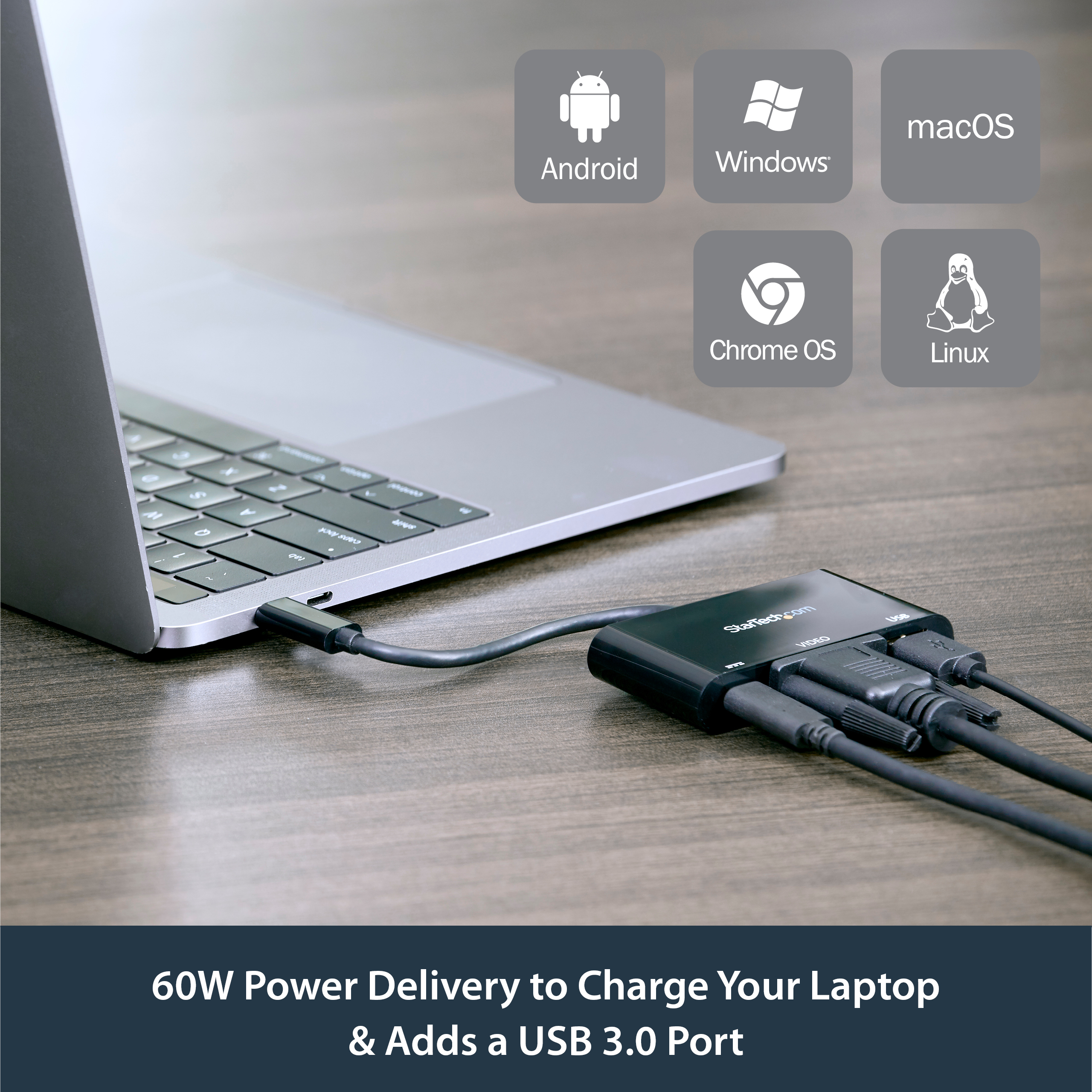

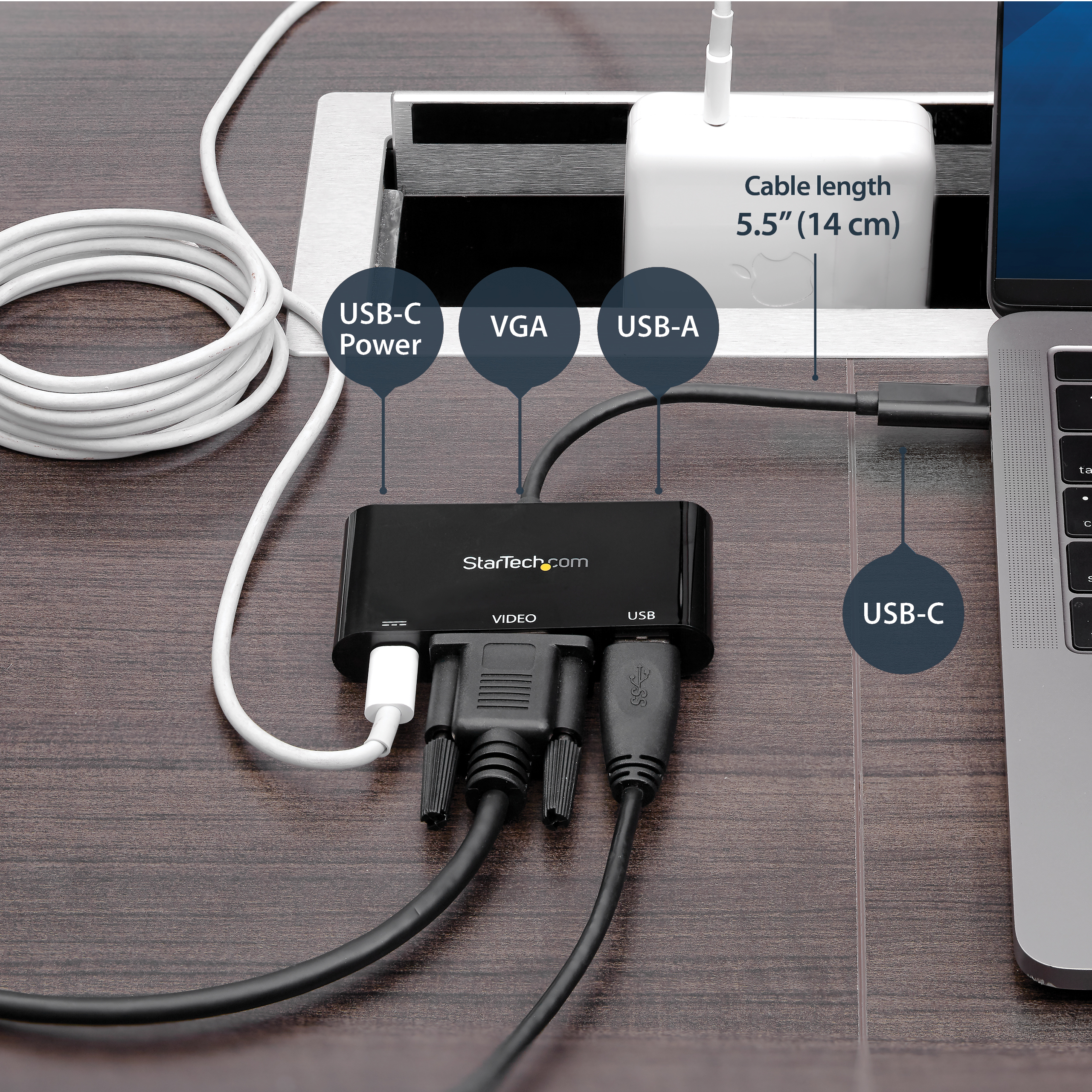

With USB Power Delivery, you can power and charge your laptop by simply connecting the multiport adapter to your laptop’s USB Type-C port, then connecting a USB Type-C power adapter.

Universal Compatibility

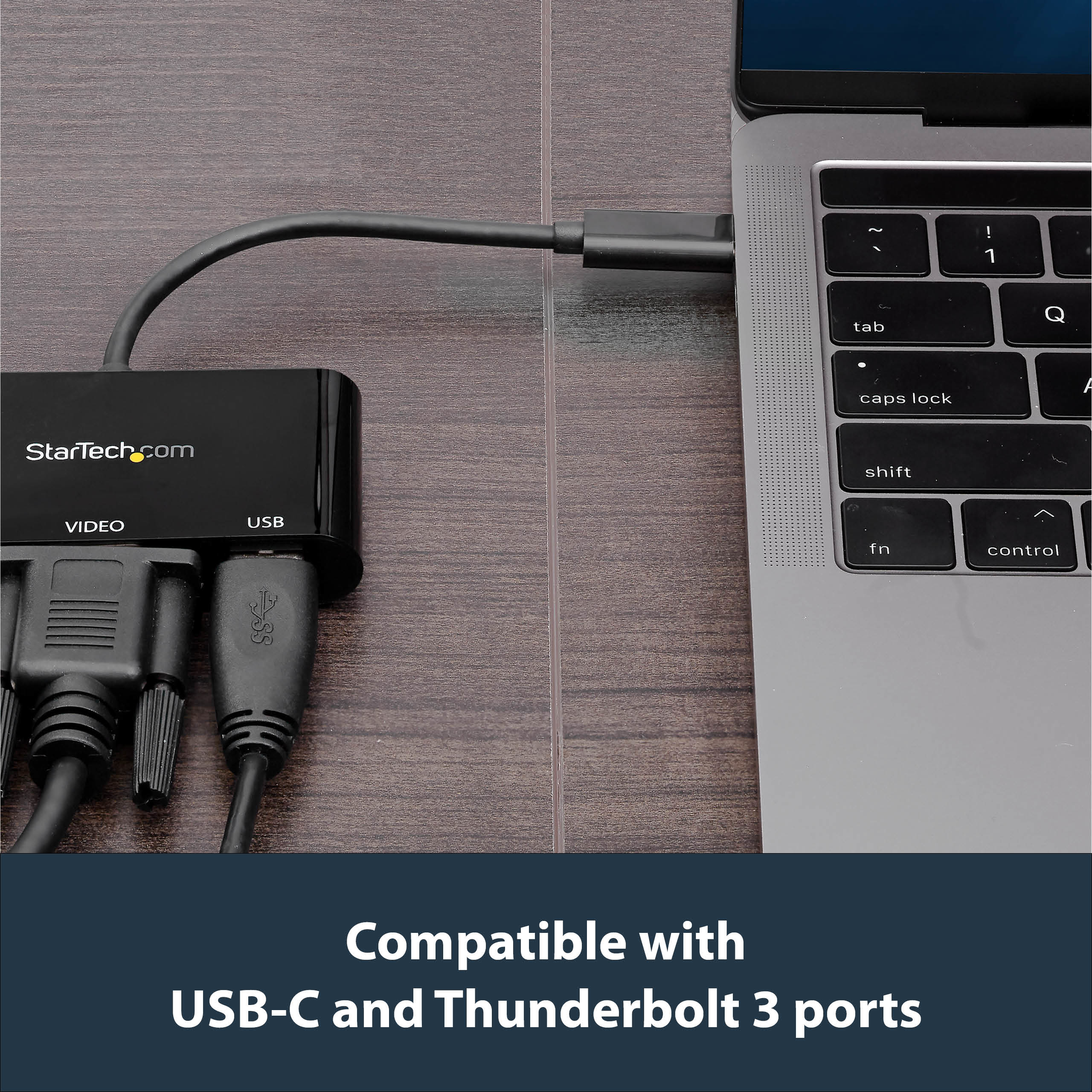

The USB-C multiport adapter features a built-in USB-C cable and works with USB-C equipped MacBook, Chromebook™ and Windows laptops that support DisplayPort (DP) Alt Mode and USB Power Delivery.

Rugged and Portable

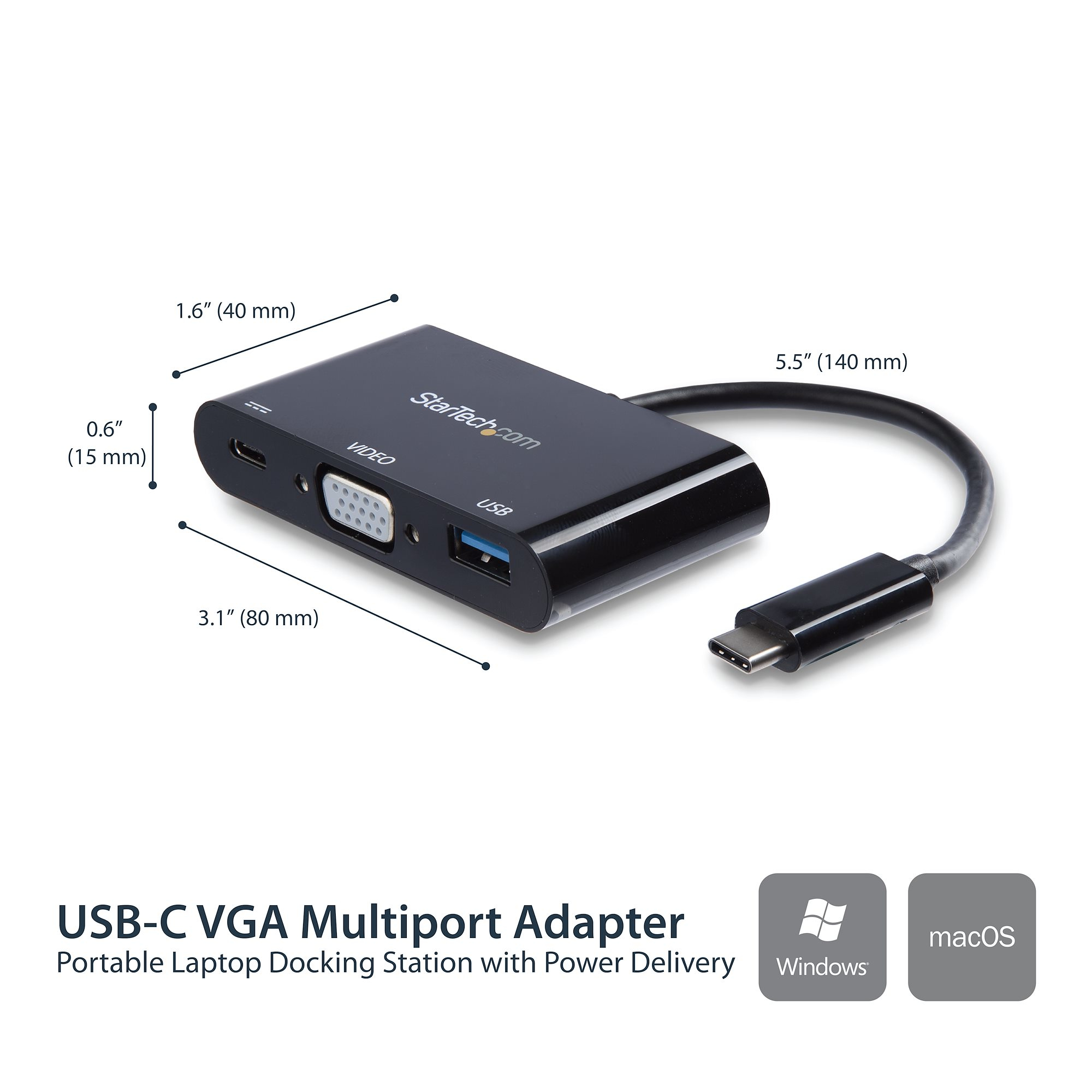

Compact, lightweight design and rugged construction lets you take this USB-C video adapter anywhere you take your laptop.

The StarTech.com Advantage for Docking Stations

• Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
•

Get more done faster - More ports and more displays maximize end user connectivity and productivity

•

Quick installation - eliminate deployment headaches that waste time and frustrate end users

•

IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

The CDP2VGAUACP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
