Ports & interfaces Ports quantity 4 Host interface USB 2.0 Type-B Hub interfaces USB 2.0 USB 2.0 ports quantity 4 Card reader integrated No Terminal block port Yes DC-in jack No Features Data transfer rate 480 Mbit/s Product color Black Housing material Steel LED indicators Power Plug and Play Yes Certification CE, FCC, TAA, RoHS Power Input voltage 7 - 24 V Weight & dimensions Width 57.3 mm Depth 114 mm Height 26 mm Weight 207 g Packaging data Package width 210 mm Package depth 146 mm Package height 40 mm Package weight 400 g Packaging content Cables included USB Manual Yes DIN rail kit included Yes Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 193317 h Logistics data Master (outer) case width 447 mm Master (outer) case length 527 mm Master (outer) case height 339 mm Quantity per master (outer) case 50 pc(s) Harmonized System (HS) code 84719000 Other features Chipset Renesas/NEC - µPD720114

Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

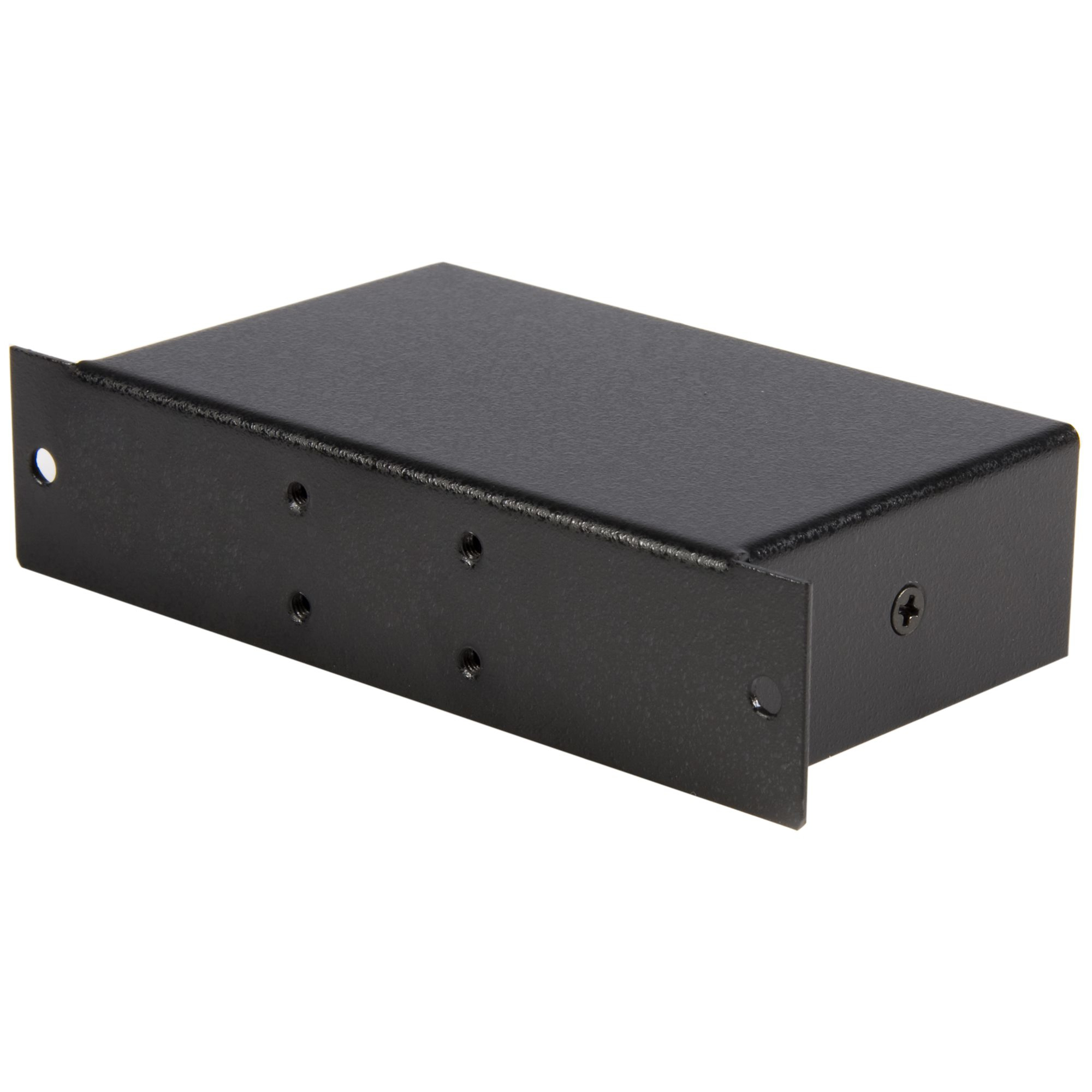

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

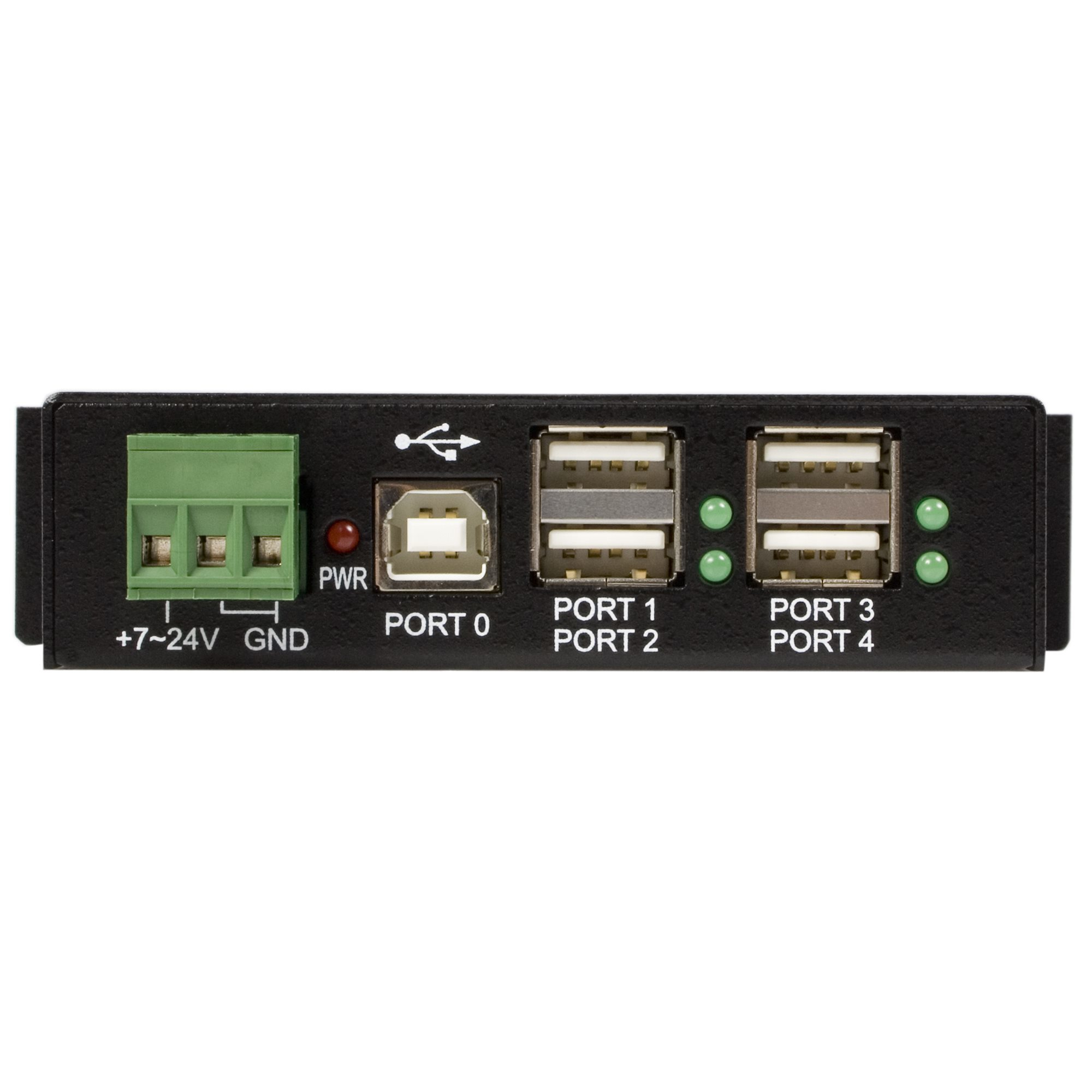

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

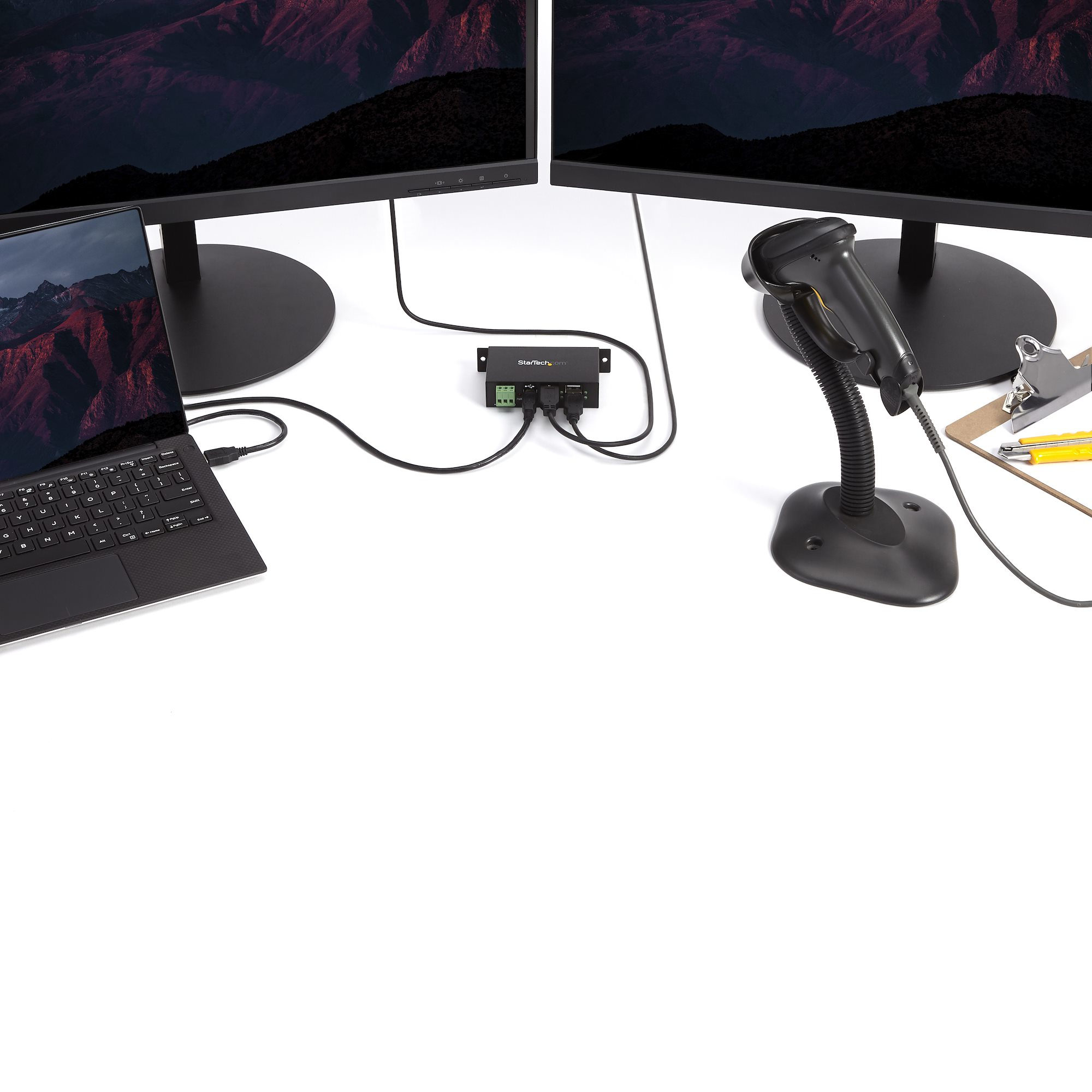

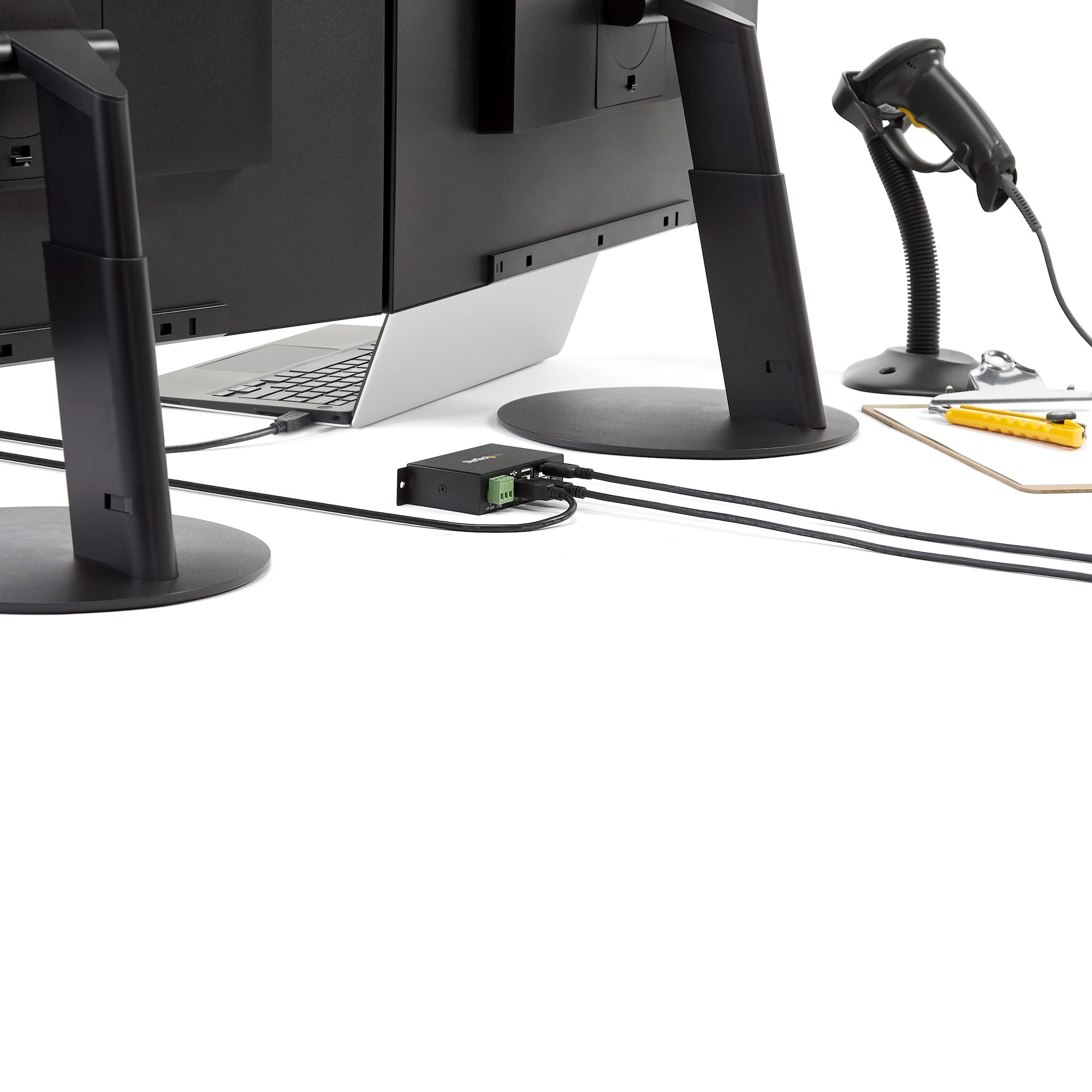

Locate the Hub Where You Need It Most

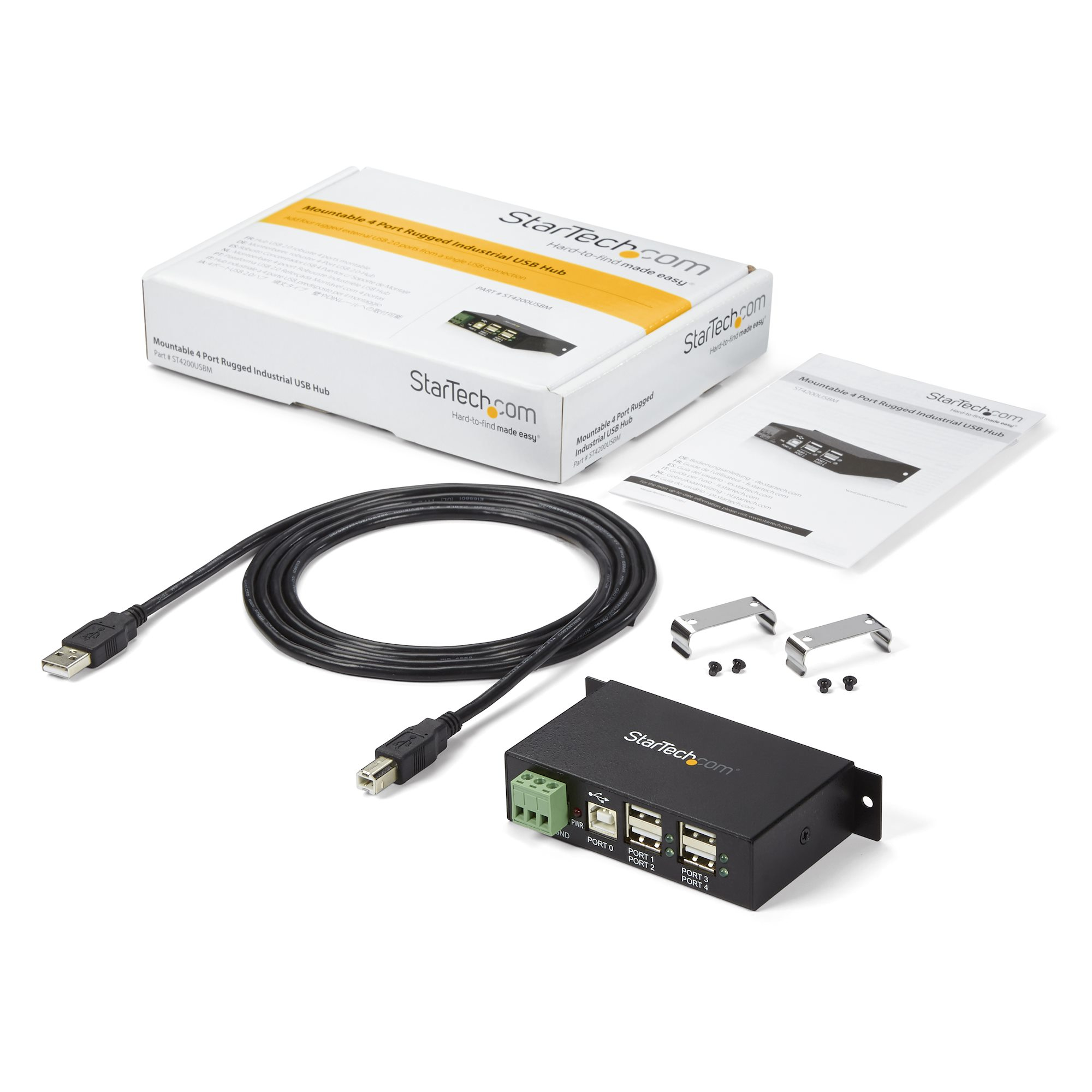

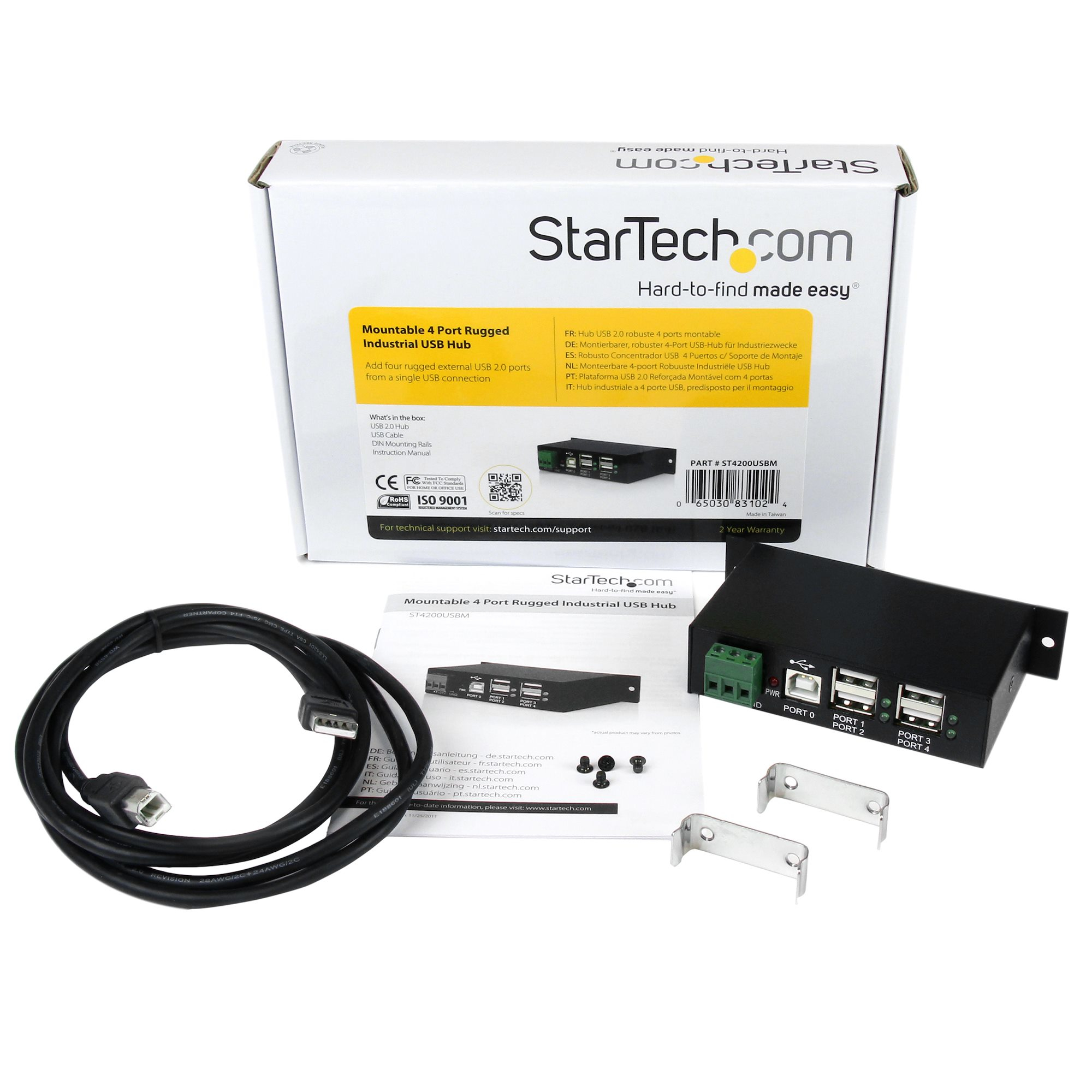

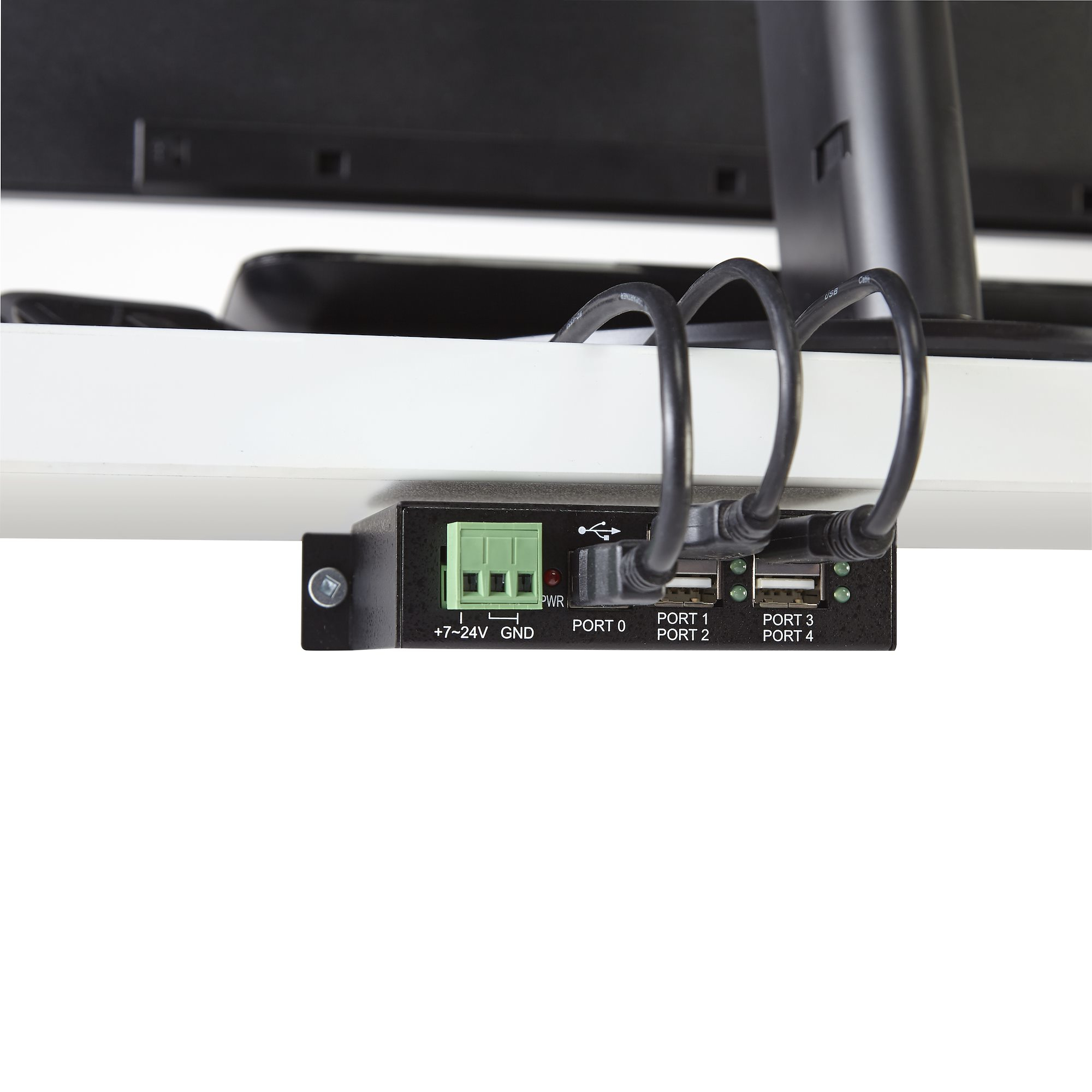

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
