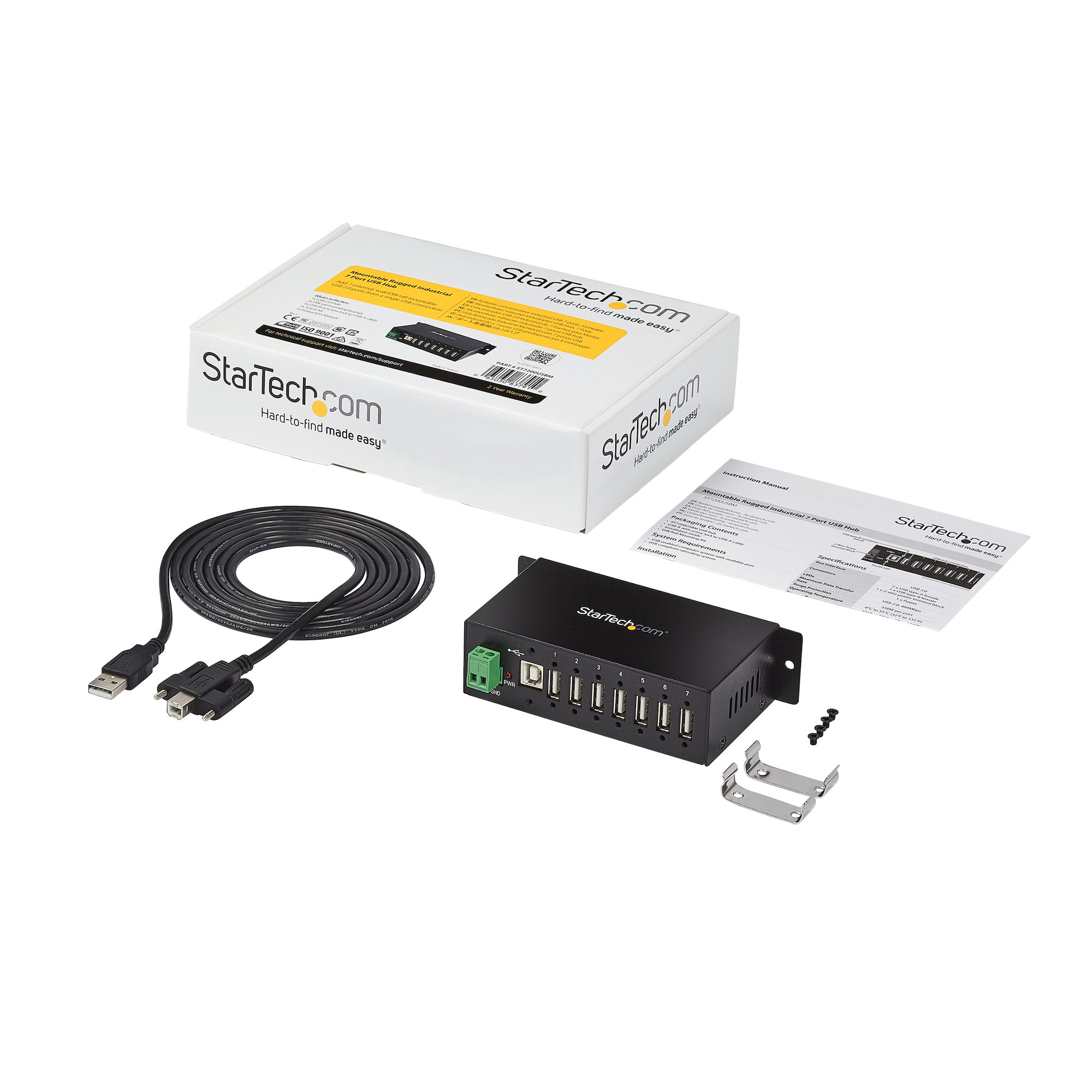

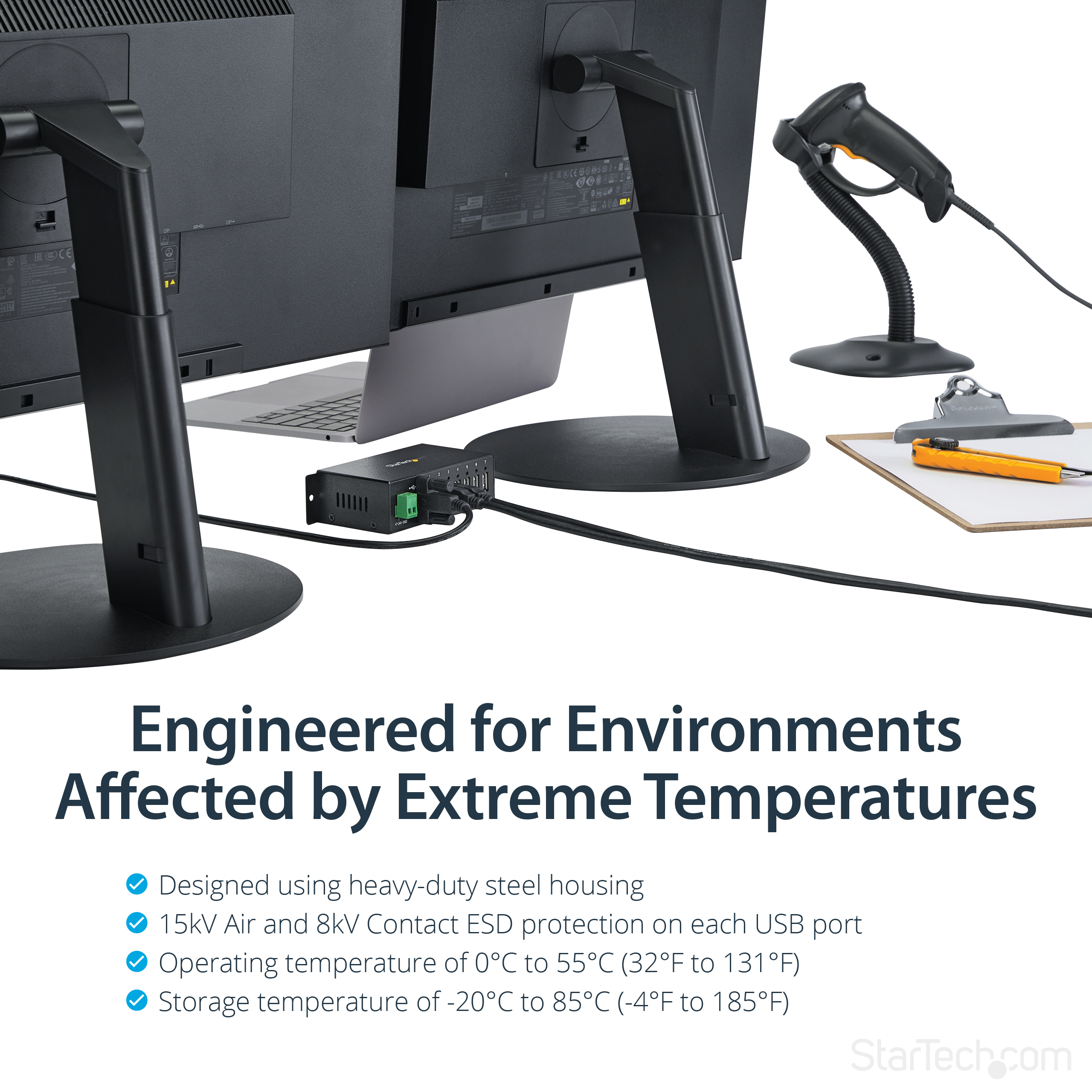

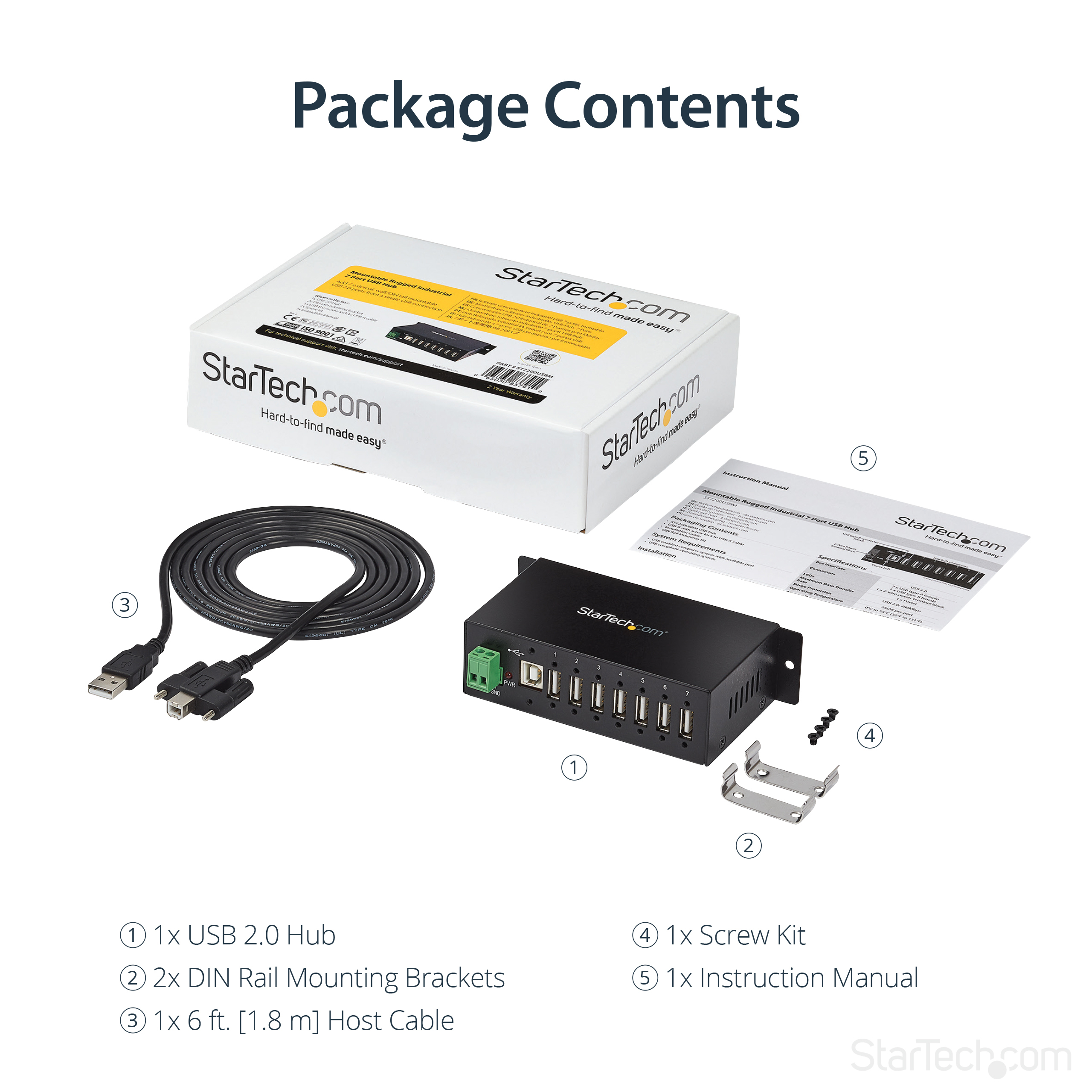

Ports & interfaces Ports quantity 7 Host interface USB 2.0 Type-B Hub interfaces USB 2.0 USB 2.0 ports quantity 7 Card reader integrated No Terminal block port Yes DC-in jack No Features Data transfer rate 480 Mbit/s Product color Black Housing material Steel Surge protection Yes LED indicators Yes Hot-swap Yes Plug and Play Yes Certification CE, FCC, RoHS, REACH, TAA Power Input voltage 7 - 24 V Weight & dimensions Width 61.5 mm Depth 133 mm Height 36.3 mm Weight 283 g Packaging data Package width 216 mm Package depth 151 mm Package height 51 mm Package weight 500 g Packaging content Cables included USB Manual Yes DIN rail kit included Yes Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Performance Mean time between failures (MTBF) 170227 h Logistics data Master (outer) case width 436 mm Master (outer) case length 514 mm Master (outer) case height 264 mm Quantity per master (outer) case 25 pc(s) Harmonized System (HS) code 84719000 Other features Chipset Terminus - FE2.1

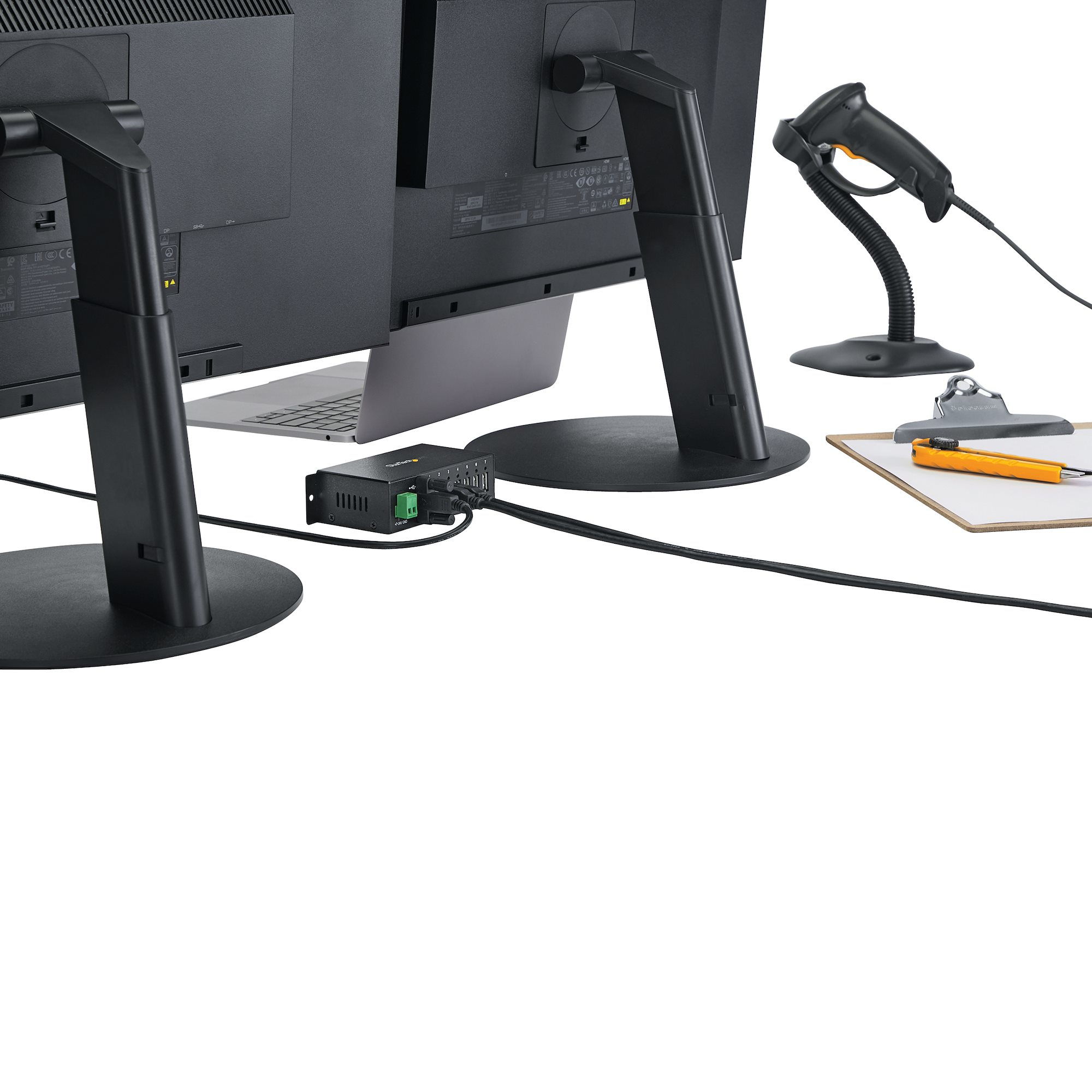

Add 7 USB 2.0 ports to your industrial workspace, with support for DIN rail or wall-mounted installation.

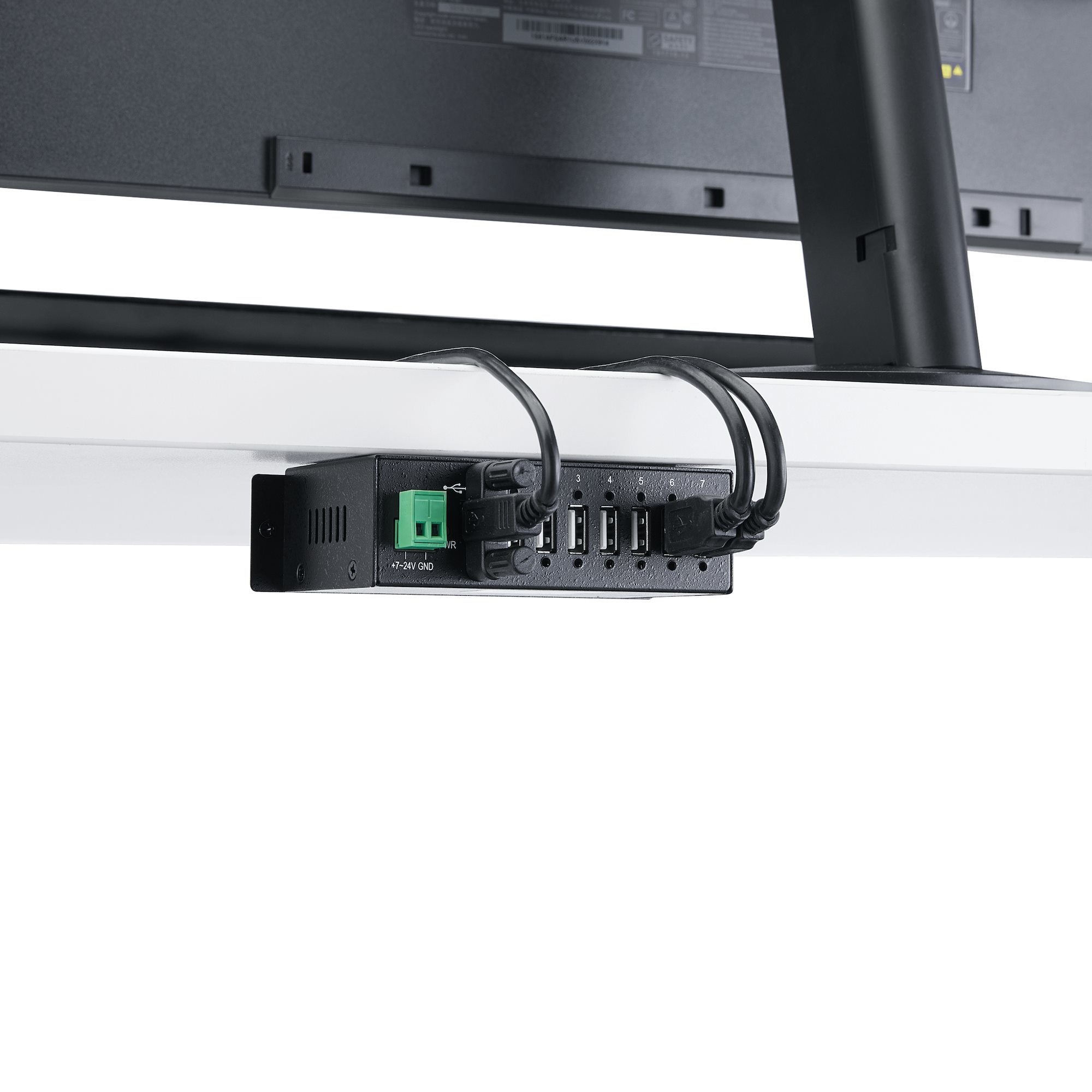

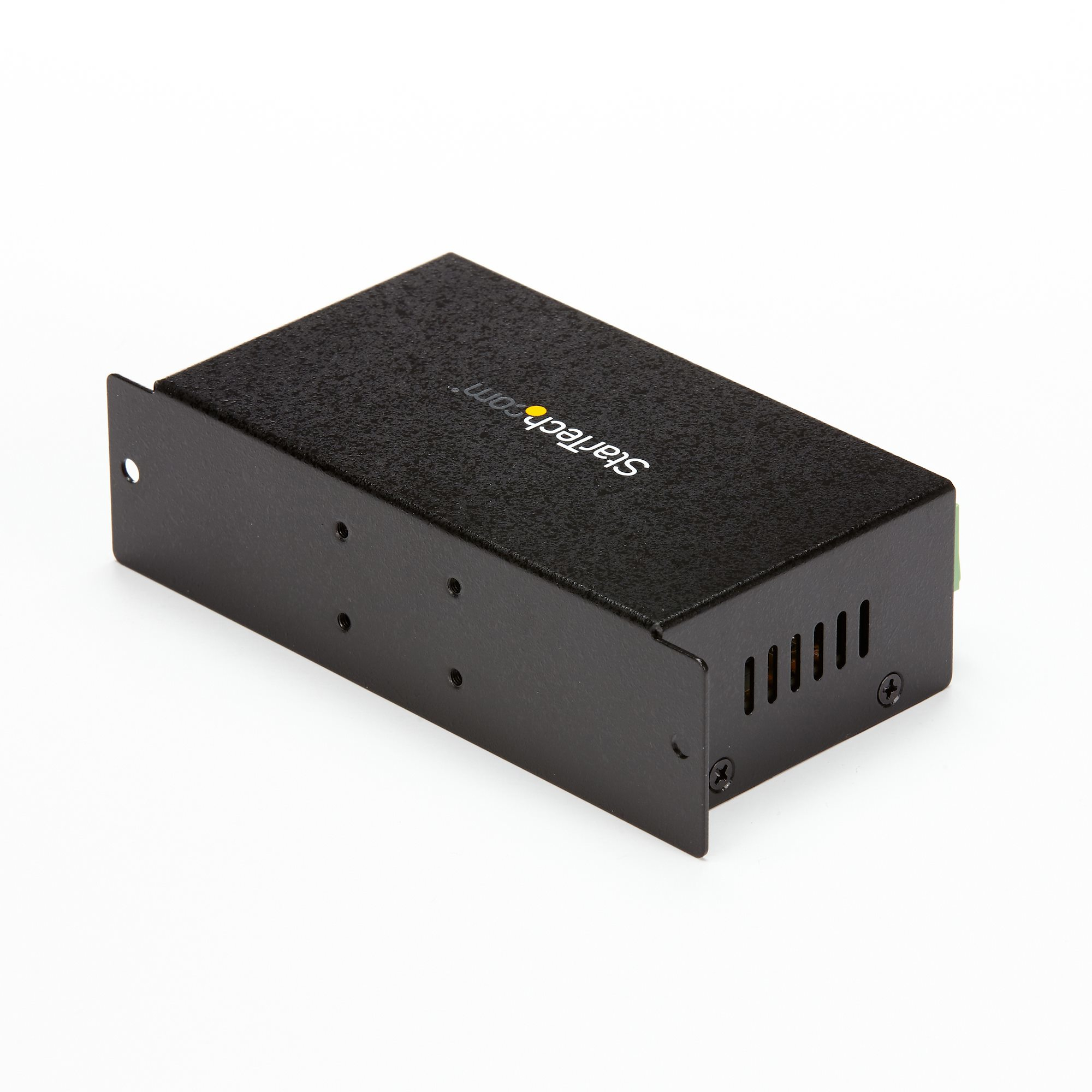

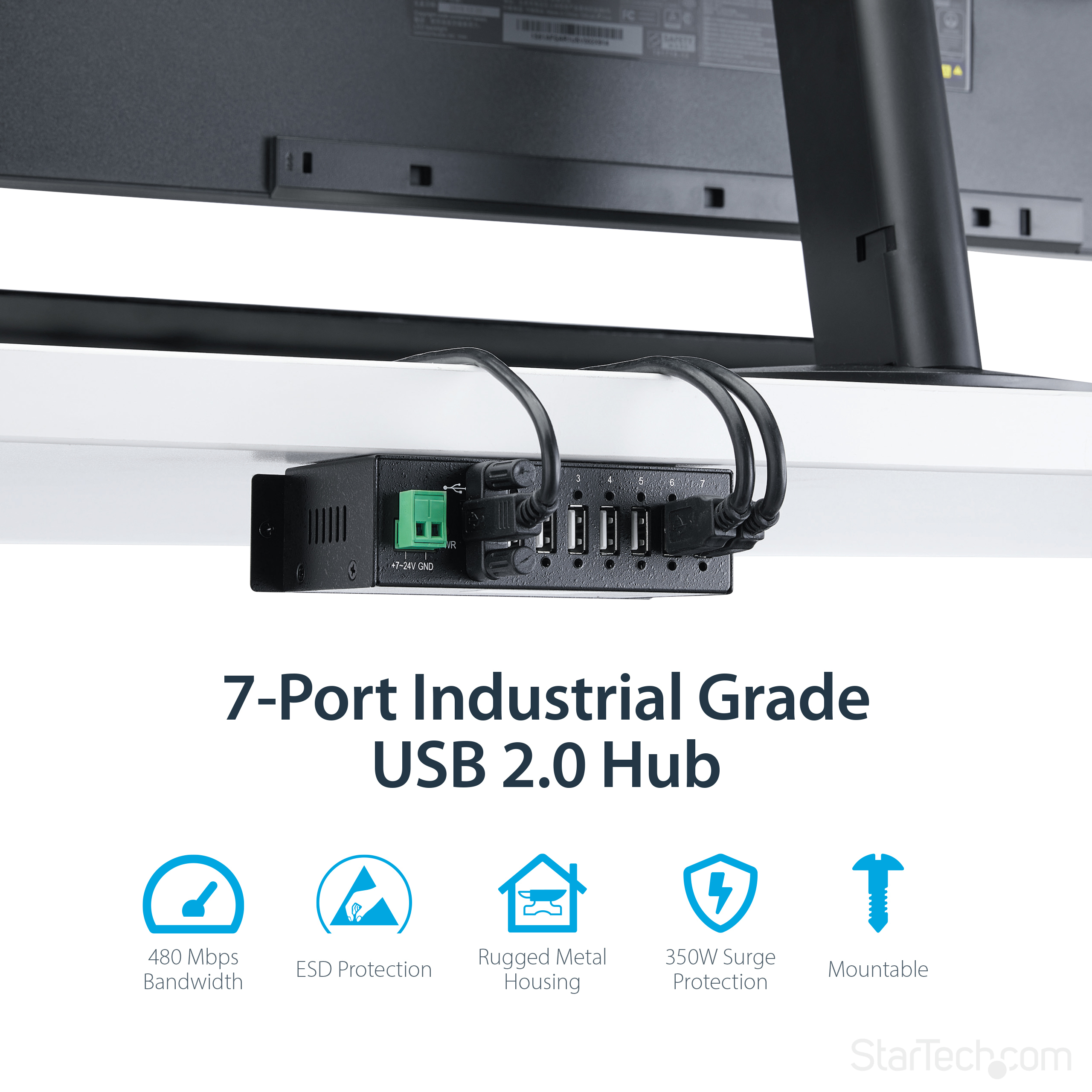

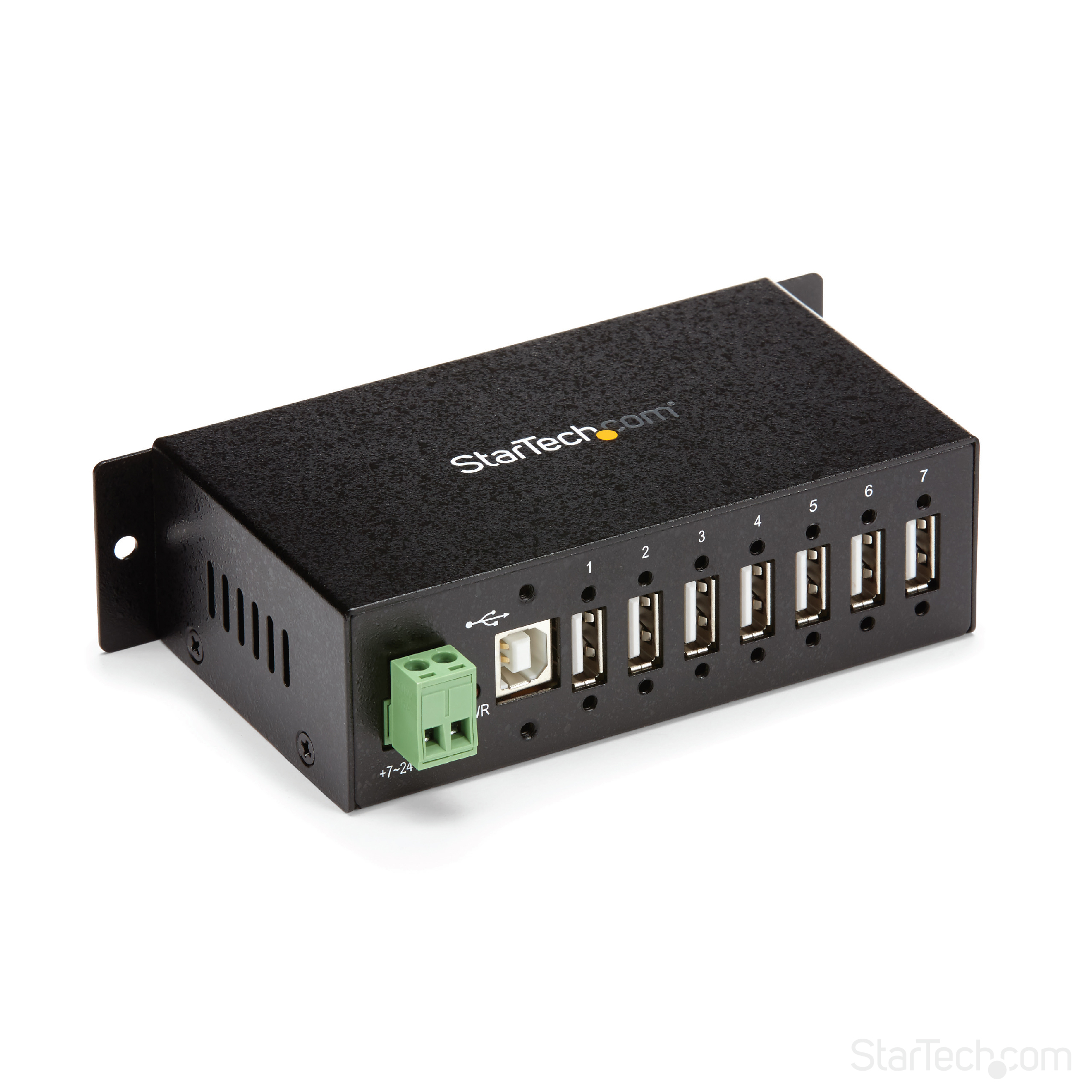

This sturdy, industrial grade USB 2.0 hub can be wall mounted or installed onto a DIN rail for convenient access to its 7 female USB 2.0 ports, providing a work area, server room, or industrial environment with USB 2.0 connectivity.

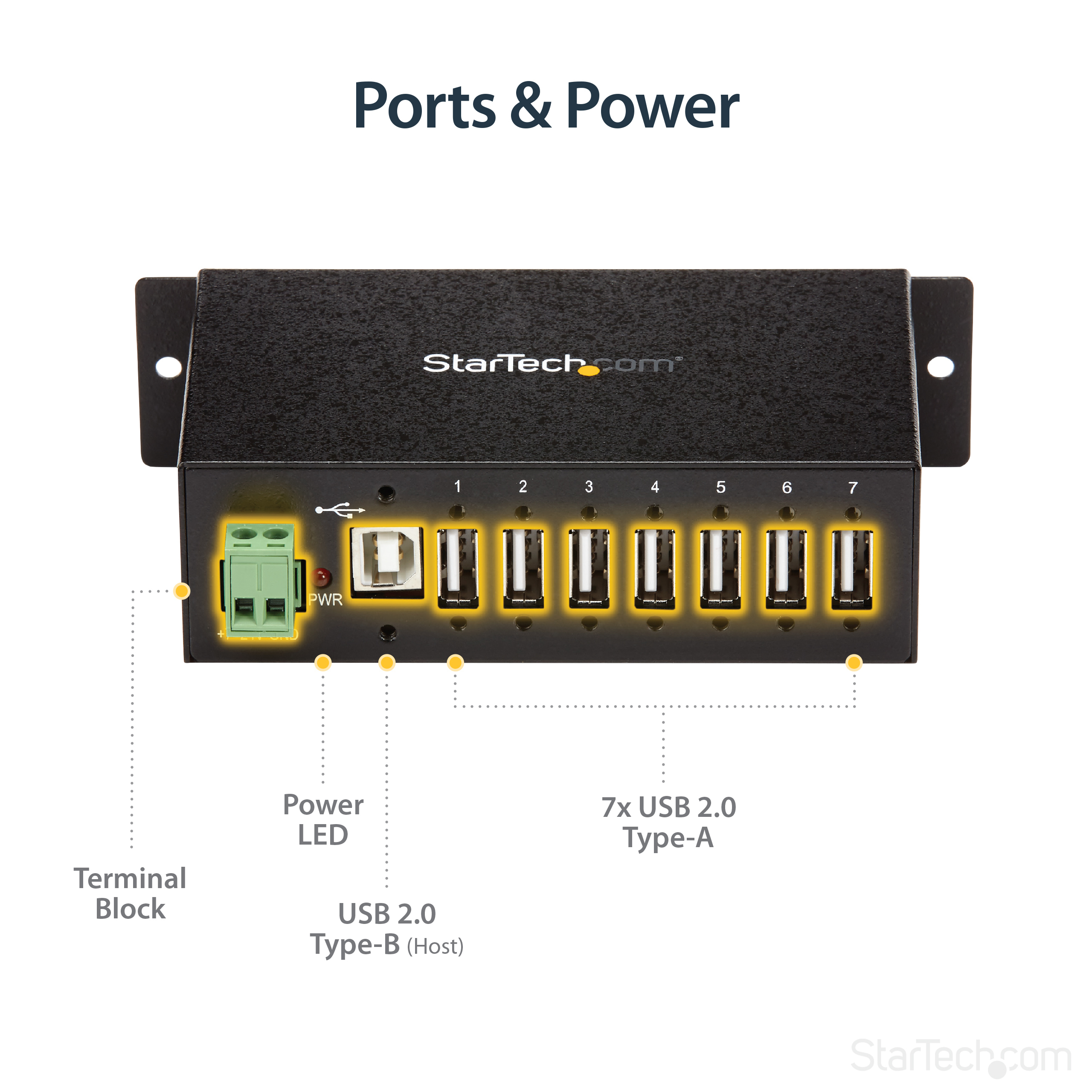

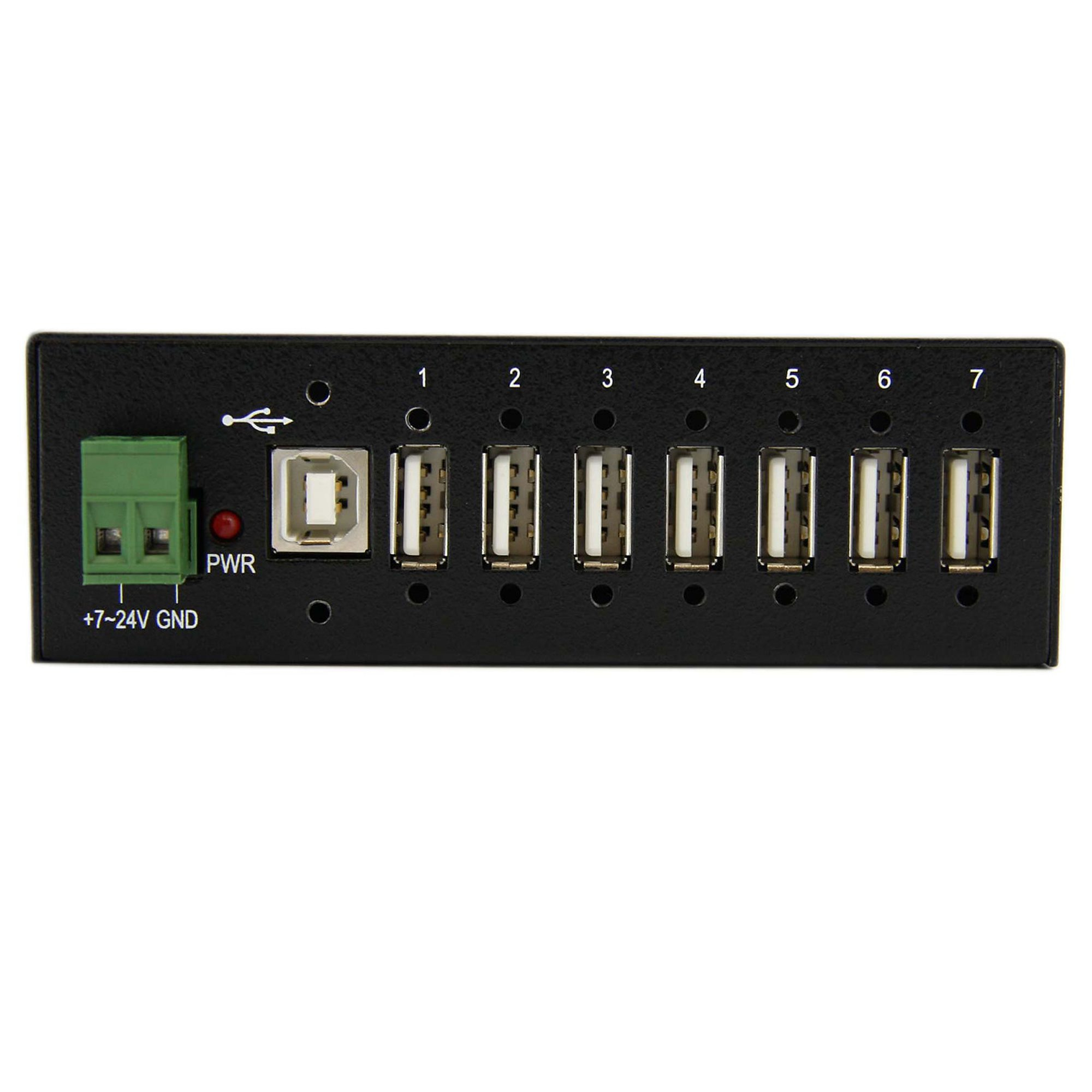

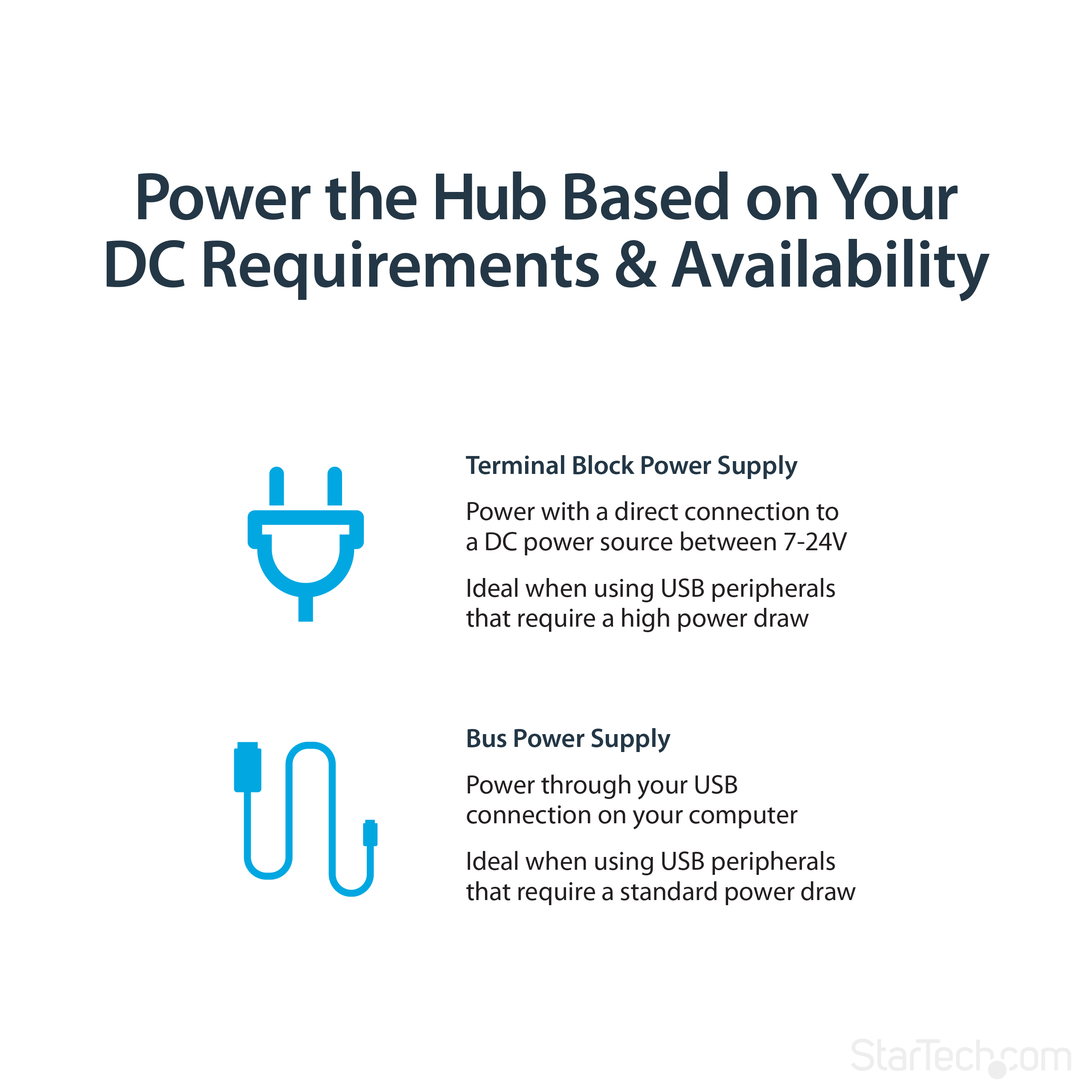

With support for Hi-Speed USB 2.0 data transfer rates of up to 480 Mbps, this 7 port USB hub is backwards compatible with USB 1.1 specifications and can be powered through the host USB bus, or self powered using a three wire terminal block connector (7-24V).
